The shape and spin state of (275677) 2000 RS11 from ground-based radar and optical observations
Pith reviewed 2026-05-15 09:28 UTC · model grok-4.3
The pith
Asteroid 2000 RS11 has a misaligned two-lobe shape and spins once every 4.445 hours.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The asteroid (275677) 2000 RS11 has a rotation period of 4.445 hours around a pole at ecliptic longitude 225 degrees and latitude minus 80 degrees. Its shape consists of a largely spherical smaller lobe attached via a narrow neck to an elongated larger lobe, with the attachment offset toward the shorter principal axis of the larger lobe rather than aligned with its long axis, and a prominent concavity on the outer face of the larger lobe.
What carries the argument
Combined inversion of delay-Doppler radar images and optical lightcurves to reconstruct the three-dimensional shape and determine the spin state.
Load-bearing premise
The gravitational stability conclusion assumes standard densities for S-type asteroids; a much lower actual density could allow rotational instability.
What would settle it
New radar observations or lightcurves yielding a shape model or rotation period outside the reported 4.445 plus or minus 0.001 hour range would falsify the current solution.

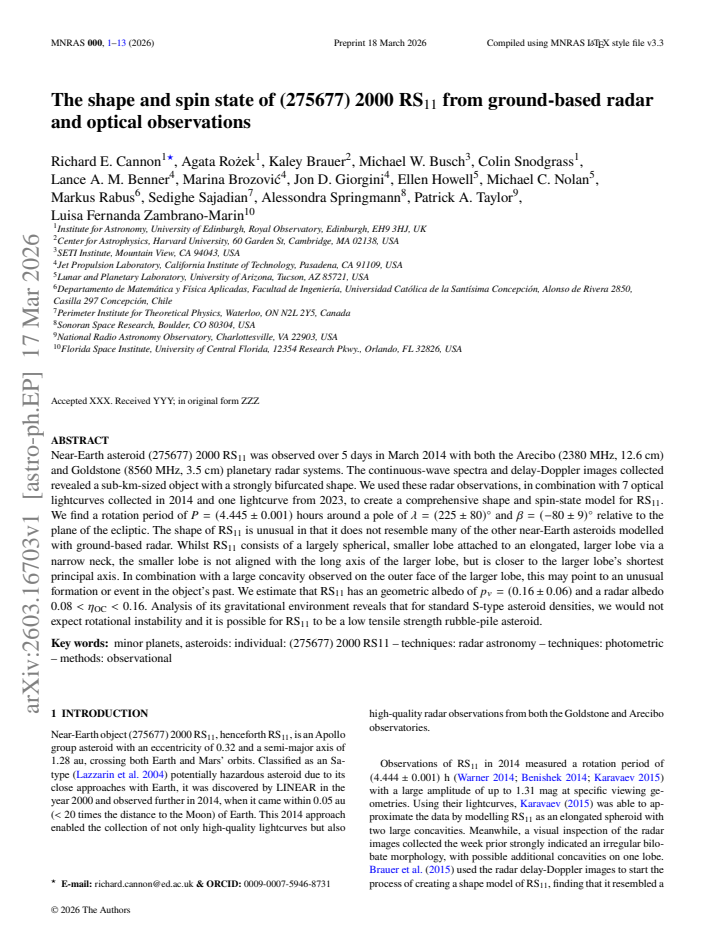

read the original abstract
Near-Earth asteroid (275677) 2000 RS11 was observed over 5 days in March 2014 with both the Arecibo (2380 MHz, 12.6 cm) and Goldstone (8560 MHz, 3.5 cm) planetary radar systems. The continuous-wave spectra and delay-Doppler images collected revealed a sub-km-sized object with a strongly bifurcated shape. We used these radar observations, in combination with 7 optical lightcurves collected in 2014 and one lightcurve from 2023, to create a comprehensive shape and spin-state model for RS11. We find a rotation period of P = (4.445+-0.001) hours around a pole of lambda = (225+-80) and beta = (-80+-9) relative to the plane of the ecliptic. The shape of RS11 is unusual in that it does not resemble many of the other near-Earth asteroids modelled with ground-based radar. Whilst RS11 consists of a largely spherical, smaller lobe attached to an elongated, larger lobe via a narrow neck, the smaller lobe is not aligned with the long axis of the larger lobe, but is closer to the larger lobe's shortest principal axis. In combination with a large concavity observed on the outer face of the larger lobe, this may point to an unusual formation or event in the object's past. We estimate that RS11 has an geometric albedo of (0.16+-0.06) and a radar albedo between 0.08 and 0.16. Analysis of its gravitational environment reveals that for standard S-type asteroid densities, we would not expect rotational instability and it is possible for RS11 to be a low tensile strength rubble-pile asteroid.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports Arecibo and Goldstone radar observations (CW spectra and delay-Doppler images) combined with 8 optical lightcurves of NEA (275677) 2000 RS11. Standard delay-Doppler imaging and lightcurve inversion yield a rotation period P = 4.445 ± 0.001 h, pole (λ, β) = (225° ± 80°, −80° ± 9°), a bifurcated shape consisting of a spherical smaller lobe attached by a narrow neck to an elongated larger lobe (with the smaller lobe misaligned toward the larger lobe’s shortest axis and a large concavity on the outer face), geometric albedo 0.16 ± 0.06, and radar albedo 0.08–0.16. Gravitational stability analysis concludes that rotational instability is not expected for standard S-type densities, allowing a low-tensile-strength rubble-pile interpretation.
Significance. The multi-epoch, multi-facility data set provides a well-constrained shape and spin model for an NEA whose bifurcated morphology differs from most radar-imaged objects. This adds a specific example to the catalog of sub-kilometer NEA shapes and supports discussion of possible formation pathways. The conditional stability result is useful context but secondary to the primary modeling.
major comments (1)
- [gravitational stability analysis] Gravitational stability analysis: the claim that rotational instability is not expected is stated only for standard S-type densities. Because the narrow neck makes the critical spin period density-dependent, the manuscript should report stability limits for lower densities (1.0–1.5 g cm^{-3}) to test whether the observed 4.445 h period remains stable in the porous rubble-pile regime.
minor comments (2)
- [spin-state results] The pole longitude uncertainty (±80°) is large; the text should discuss how this affects the uniqueness of the shape model and the alignment of the lobes.
- [albedo estimates] The radar albedo range (0.08–0.16) is broad; clarify the exact method used to derive the bounds from the CW spectra and images.
Simulated Author's Rebuttal
We thank the referee for their constructive review and positive assessment of our manuscript on the shape and spin state of (275677) 2000 RS11. We address the single major comment below and will incorporate the requested analysis into the revised version.
read point-by-point responses
-
Referee: [gravitational stability analysis] Gravitational stability analysis: the claim that rotational instability is not expected is stated only for standard S-type densities. Because the narrow neck makes the critical spin period density-dependent, the manuscript should report stability limits for lower densities (1.0–1.5 g cm^{-3}) to test whether the observed 4.445 h period remains stable in the porous rubble-pile regime.
Authors: We agree that the narrow neck renders the critical spin period density-dependent and that stability limits should be reported for lower densities characteristic of porous rubble-pile bodies. In the revised manuscript we will extend the gravitational stability analysis to densities of 1.0–1.5 g cm^{-3}, compute the corresponding critical spin periods, and explicitly demonstrate that the observed 4.445 h period remains stable in this regime. revision: yes
Circularity Check
No significant circularity in observational fitting and stability analysis
full rationale
The paper derives its rotation period, pole orientation, and bifurcated shape model by fitting directly to independent radar delay-Doppler images, CW spectra, and optical lightcurves collected in 2014 and 2023. These are external observational inputs with no reduction of derived quantities back to fitted constants by construction. The gravitational stability conclusion applies standard S-type density values to the fitted shape without invoking self-citations, uniqueness theorems, or ansatzes that collapse the result to the inputs. No load-bearing step matches the enumerated circularity patterns; the derivation remains self-contained against the provided data.
Axiom & Free-Parameter Ledger
free parameters (4)
- rotation period =
4.445 hours
- pole orientation =
lambda 225, beta -80
- shape model parameters
- geometric albedo =
0.16
axioms (2)
- domain assumption Standard radar delay-Doppler scattering assumptions for shape reconstruction
- domain assumption S-type asteroid bulk density for gravitational environment analysis
