arxiv: 2603.18468 · v2 · submitted 2026-03-19 · ❄️ cond-mat.mtrl-sci

Multiscale simulations guided advances for all-optical phase-change waveguides

Hanyi Zhang , Wanting Ma , Wen Zhou , Xueqi Xing , Junying Zhang , Tiankuo Huang , Ding Xu , Xiaozhe Wang
show 4 more authors
Riccardo Mazzarello En Ma Jiang-Jing Wang Wei Zhang
This is my paper

Pith reviewed 2026-05-15 09:19 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords phase-change materialsSb2Tephotonic waveguidesall-optical memorymultiscale simulationsoptical programmingphotonic computingmetastable crystalline
0
0 comments X

The pith

Multiscale simulations show shorter Sb2Te waveguides deliver over 7-bit optical programming precision in one cell.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper runs density functional theory calculations on material properties and finite-difference time-domain simulations on device optics to design all-optical phase-change waveguides made from Sb2Te. It identifies that a shorter waveguide length exploits the material's unusual optical response in its metastable crystalline state, widening the range of distinguishable states while lowering loss. Fabricated thin films and waveguide devices confirm the predicted gains, producing an optical programming precision above 7 bits per single cell. This sets a new benchmark for energy-efficient photonic memory used in AI hardware.

Core claim

By following a 'the shorter the better' design rule derived from multiscale simulations, Sb2Te waveguides achieve simultaneous enlargement of the optical programming window and reduction of optical loss, resulting in an optical programming precision exceeding 7 bits using a single waveguide cell.

What carries the argument

The 'the shorter the better' optimization strategy for Sb2Te photonic waveguides that exploits the unconventional optical properties of metastable crystalline Sb2Te as predicted by DFT and FDTD methods.

If this is right

  • A single waveguide cell supports optical programming precision exceeding 7 bits.
  • Both the programming window and optical loss improve at once.
  • Experiments on thin films and devices match the simulation predictions.
  • Multiscale simulations can guide further performance gains in phase-change photonic devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same simulation-first approach could be tested on other chalcogenide compositions to seek still higher bit depths.
  • Shorter waveguide cells may allow denser packing in integrated photonic circuits for AI accelerators.
  • Direct comparison of measured bit precision versus simulated values on devices of varying lengths would provide a clear test.

Load-bearing premise

The multiscale simulations accurately capture the unconventional optical behavior of metastable crystalline Sb2Te and correctly predict the experimental device performance.

What would settle it

Fabrication and measurement of Sb2Te waveguide cells that yield optical programming precision below 7 bits or show no improvement in both programming window and loss would falsify the claim.

Figures

Figures reproduced from arXiv: 2603.18468 by Ding Xu, En Ma, Hanyi Zhang, Jiang-Jing Wang, Junying Zhang, Riccardo Mazzarello, Tiankuo Huang, Wanting Ma, Wei Zhang, Wen Zhou, Xiaozhe Wang, Xueqi Xing.

Figure 1
Figure 1. Figure 1: Ab initio calculations of liquid, amorphous and crystalline ST phases. a The multi-fold phase transitions between the liquid, amorphous, metastable crystalline and ground states of ST. b The calculated DOS and (c) refractive index n and extinction coefficient k of the three solid states using the HSE06 hybrid functional. To verify this prediction experimentally, we prepared several ST films of ~100 nm thic… view at source ↗
Figure 2

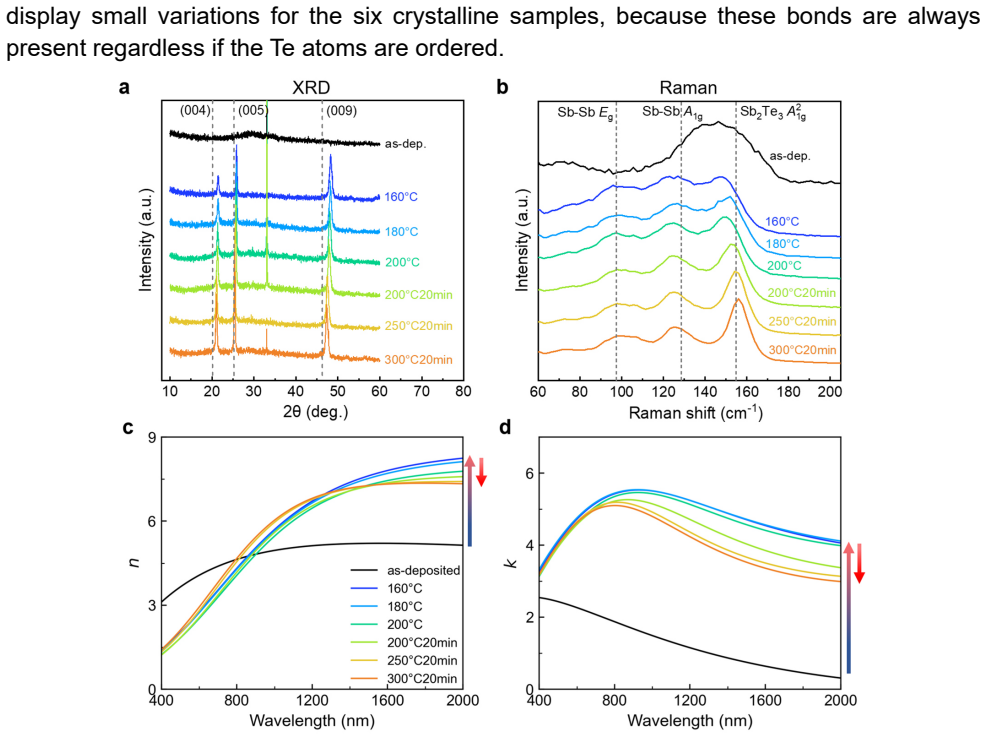

Figure 2. Figure 2: Structural and optical characterizations of ST thin films. a The XRD patterns measured for as-deposited and post-annealed ST thin films. The gray dashed lines indicate the positions of the XRD peaks identified from the standard card of Sb2Te (PDF#80-1722). b The Raman spectra measured for the ST thin films. The gray dashed lines indicate the Raman peaks for three typical vibrational modes. c The measured r… view at source ↗
Figure 3

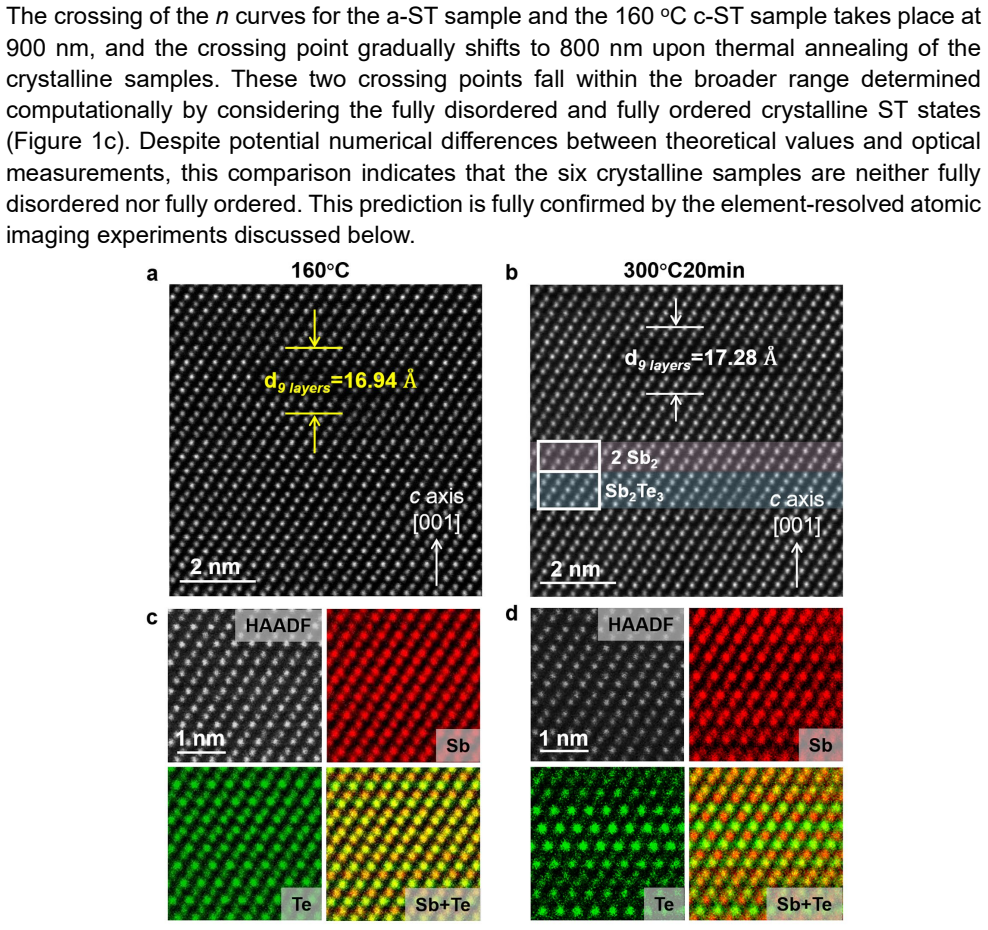

Figure 3. Figure 3: Atomic-scale structural characterizations of c-ST thin films. The atomic-scale HAADF-STEM images of a the 160o C c-ST sample and b the 300o C-20min c-ST sample. The corresponding atomic EDS mappings of c the 160o C c-ST sample and d the 300o C-20min c-ST sample. We performed spherical aberration corrected high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) and atomic EDS ma… view at source ↗
Figure 4

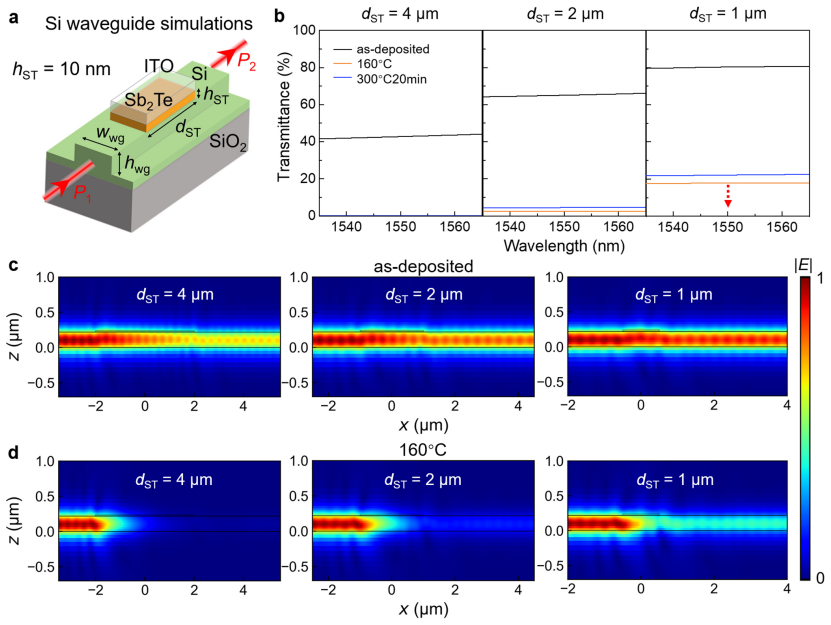

Figure 4. Figure 4: FDTD simulations of ST-based waveguide devices. a A sketch of PCM-based waveguide device. b The simulated transmittance spectra of ST-based waveguide devices with fixed film thickness hST = 10 nm and varying length dST = 4, 2 or 1 μm. The simulated electric field intensity |E| for the ST-based devices at a wavelength of 1550 nm using the measured n and k of c the as￾deposited thin films and d the thin film… view at source ↗
Figure 7

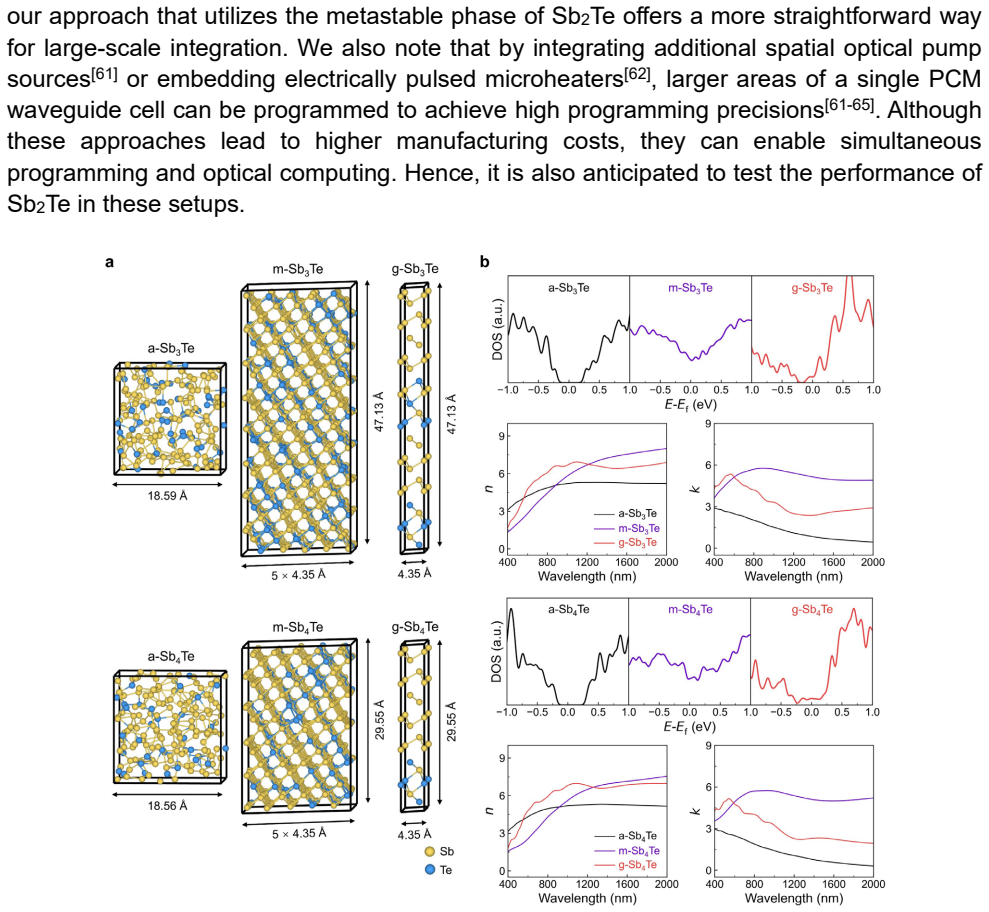

Figure 7. Figure 7: Electronic structure and optical calculations of Sb3Te and Sb4Te. a The atomic structure of a-Sb3Te, a-Sb4Te, g-Sb3Te, g-Sb4Te, m-Sb3Te and m-Sb4Te. b The DFT-calculated DOS, n and k calculated with HSE06 hybrid functional. As discussed above, our ab initio predictions of the optical properties are well confirmed by our optical measurements. This atomic understanding helps us optimize the performance of Sb… view at source ↗
read the original abstract

Photonic computing using chalcogenide phase-change materials (PCMs) is under active development for energy-efficient artificial intelligence (AI) applications. A key requirement is to enable as many optically programmable levels per device as possible, while maintaining relatively low optical loss. In this work, we carry out multiscale simulations using density functional theory and finite-difference time-domain methods, proposing a "the shorter the better" strategy to optimize the performance of Sb2Te photonic waveguide devices. Our subsequent experimental characterizations of Sb2Te thin films and optical device measurements fully verify our theoretical predictions. In particular, we reveal the unconventional optical properties of metastable crystalline Sb2Te, and utilize these features for device design, yielding a simultaneous improvement in both the programming window and the optical loss. Overall, an optical programming precision exceeding 7-bit is achieved using a single waveguide cell, setting a new record for all-optical phase-change memory devices. Our work serves as a compelling example of computational material design, which demonstrates the predictive power of multiscale simulations in guiding the design of phase-change photonic devices for enhanced performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript reports multiscale simulations (DFT for Sb2Te optical constants combined with FDTD for waveguide optics) that identify a 'shorter the better' design strategy exploiting the unconventional properties of metastable crystalline Sb2Te. The authors claim this yields simultaneous gains in programming window and reduced optical loss, with subsequent thin-film and device experiments fully verifying the predictions and enabling >7-bit optical programming precision in a single waveguide cell, establishing a new record for all-optical phase-change memory devices.

Significance. If the result holds, the work provides a clear example of simulation-guided materials design for photonic computing, with direct experimental confirmation of both the material properties and the device-level performance metrics. The >7-bit precision claim, supported by independent measurements rather than parameter fitting, would represent a meaningful advance for energy-efficient all-optical PCM devices.

minor comments (2)
  1. [Abstract] The abstract and introduction would benefit from a brief quantitative statement of the measured optical constants (n, k) for the metastable crystalline phase to allow readers to immediately compare against literature values for stable Sb2Te.
  2. [Device simulation section] Figure captions for the FDTD results should explicitly note the assumed film thickness and waveguide dimensions used in the 'shorter the better' optimization to facilitate reproducibility.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of our manuscript, including recognition of the simulation-guided design strategy, experimental verification, and the achieved >7-bit optical programming precision. We appreciate the recommendation to accept.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper performs independent multiscale simulations (DFT for Sb2Te optical constants and FDTD for waveguide optics) to derive the 'shorter the better' optimization strategy. These predictions are then tested against separate experimental measurements on thin films and fabricated devices, which confirm both the metastable crystalline properties and the >7-bit programming precision. No load-bearing equation reduces the final performance metrics to parameters fitted from the same data; the simulation-to-experiment sequence provides external validation rather than self-referential closure. Any self-citations present are not shown to be the sole justification for the central claims.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work relies on standard computational physics methods without introducing new free parameters, ad-hoc axioms, or postulated entities beyond the known Sb2Te material system.

axioms (2)
  • standard math Density functional theory approximations for electronic structure and optical constants
    Invoked for atomic-scale material property calculations in the multiscale workflow.
  • standard math Finite-difference time-domain discretization of Maxwell's equations
    Used to simulate electromagnetic wave propagation in the waveguide devices.

pith-pipeline@v0.9.0 · 5526 in / 1266 out tokens · 44956 ms · 2026-05-15T09:19:42.430643+00:00 · methodology
