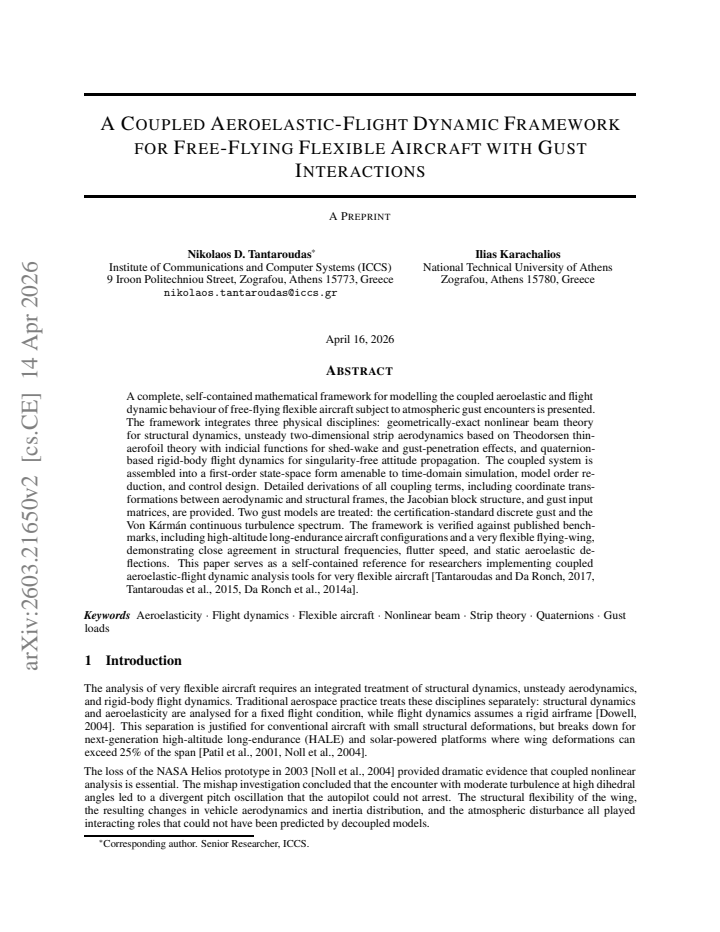

A coupled Aeroelastic-Flight Dynamic Framework for Free-Flying Flexible Aircraft with Gust Interactions

Nikolaos D. Tantaroudas , Ilias Karachalios This is my paper

Pith reviewed 2026-05-15 01:04 UTC · model grok-4.3

classification 💻 cs.CE
keywords aeroelasticityflight dynamicsgust responseflexible aircraftstate-space modelingnonlinear beam theoryunsteady aerodynamics
0
0 comments X

The pith

A complete state-space model couples nonlinear beam theory, unsteady strip aerodynamics, and quaternion flight dynamics to simulate gust encounters on free-flying flexible aircraft.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper assembles a self-contained framework that links the bending and twisting of flexible wings, the unsteady air forces including wakes and gusts, and the overall rigid-body motion of the aircraft into one set of equations. The equations are written in first-order state-space form so they can be integrated forward in time, reduced in size, or used for controller design. Coordinate transformations between structural, aerodynamic, and body frames are derived explicitly along with the gust input terms. Verification cases on high-altitude long-endurance aircraft and a very flexible flying-wing recover published structural frequencies, flutter boundaries, and static deflections.

Core claim

The coupled aeroelastic-flight dynamic system for free-flying flexible aircraft in gusts is obtained by combining geometrically exact nonlinear beam theory, two-dimensional unsteady strip aerodynamics with indicial functions, and quaternion-based rigid-body dynamics, then assembling every term—including all coupling Jacobians and gust matrices—into a single first-order state-space representation suitable for direct time-domain integration.

What carries the argument

The first-order state-space assembly of the coupled equations, including explicit coordinate transformations, Jacobian block structure, and gust input matrices.

If this is right

  • Time-domain simulation of gust responses becomes possible for aircraft with large structural deformations.
  • The state-space form directly supports model-order reduction and feedback control design.
  • Both discrete certification gusts and continuous Von Karman turbulence spectra are handled within the same equations.
  • Verification on published benchmarks confirms recovery of frequencies, flutter speeds, and static aeroelastic shapes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework could be extended by replacing the strip aerodynamics with a three-dimensional panel or CFD solver while keeping the same state-space structure.
  • Real-time flight simulators for gusty conditions could incorporate the reduced-order version of this model.
  • Design optimization loops for gust alleviation could use the state-space matrices as the plant model.

Load-bearing premise

Two-dimensional unsteady strip aerodynamics based on thin-aerofoil theory with indicial functions capture the essential flow effects around three-dimensional flexible wings.

What would settle it

Direct comparison of predicted flutter speeds or gust-induced tip deflections against high-fidelity three-dimensional CFD or wind-tunnel data for a very flexible wing would show whether the strip-theory approximation holds.

Figures

Figures reproduced from arXiv: 2603.21650 by Ilias Karachalios, Nikolaos D. Tantaroudas.

Figure 1
Figure 1. Figure 1: Reference frames used in the formulation: global/ [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Beam kinematics: undeformed and deformed configur [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Wing structural layout showing the finite element d [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Finite element model of the HALE aircraft showing t [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: 1-minus-cosine discrete gust profile. The gust gra [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: HALE aircraft configuration showing the wing, fuse [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Nonlinear flutter response of the HALE wing: three- [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Static aeroelastic deflection of the HALE wing semi [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Mesh convergence study for the static aeroelastic [PITH_FULL_IMAGE:figures/full_fig_p020_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Wing tip vertical deformation of the very flexible [PITH_FULL_IMAGE:figures/full_fig_p021_10.png] view at source ↗
read the original abstract

A complete, self-contained mathematical framework for modelling the coupled aeroelastic and flight dynamic behaviour of free-flying flexible aircraft subject to atmospheric gust encounters is presented. The framework integrates three physical disciplines: geometrically-exact nonlinear beam theory for structural dynamics, unsteady two-dimensional strip aerodynamics based on Theodorsen thin-aerofoil theory with indicial functions for shed-wake and gust-penetration effects, and quaternion-based rigid-body flight dynamics for singularity-free attitude propagation. The coupled system is assembled into a first-order state-space form amenable to time-domain simulation, model order reduction, and control design. Detailed derivations of all coupling terms, including coordinate transformations between aerodynamic and structural frames, the Jacobian block structure, and gust input matrices, are provided. Two gust models are treated: the certification-standard discrete gust and the Von Karman continuous turbulence spectrum. The framework is verified against published benchmarks, including high-altitude long-endurance aircraft configurations and a very flexible flying-wing, demonstrating close agreement in structural frequencies, flutter speed, and static aeroelastic deflections. This paper serves as a self-contained reference for researchers implementing coupled aeroelastic-flight dynamic analysis tools for very flexible aircraft.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a self-contained mathematical framework for modeling the coupled aeroelastic and flight dynamic behavior of free-flying flexible aircraft under atmospheric gust encounters. It integrates geometrically-exact nonlinear beam theory for structural dynamics, unsteady two-dimensional strip aerodynamics based on Theodorsen thin-aerofoil theory with indicial functions for shed-wake and gust-penetration effects, and quaternion-based rigid-body flight dynamics. The coupled system is assembled into a first-order state-space form, with detailed derivations of coupling terms, Jacobian structure, and gust input matrices. Two gust models (discrete certification gust and Von Karman continuous turbulence) are included. Verification against published benchmarks for high-altitude long-endurance aircraft and very flexible flying-wings shows close agreement in structural frequencies, flutter speed, and static aeroelastic deflections.

Significance. If the modeling assumptions hold, particularly the adequacy of the 2D aerodynamic representation for the targeted configurations, this work provides a valuable self-contained reference for researchers implementing integrated aeroelastic-flight dynamic tools for very flexible aircraft. Strengths include the explicit derivation of all coupling terms between aerodynamic, structural, and body frames, the assembly into a simulatable state-space form amenable to model reduction and control design, and verification against standard benchmarks. These elements support reproducibility and practical utility for gust interaction studies.

major comments (2)
  1. [Aerodynamic modeling and coupling terms] The aerodynamic block relies on unsteady two-dimensional strip theory based on Theodorsen thin-aerofoil theory with indicial functions to supply lift and moment per strip, transformed into structural and body frames. For very flexible large-aspect-ratio wings undergoing large geometric nonlinearities and gust-induced deformations, this approximation may miss three-dimensional wake distortion, spanwise flow, and tip-vortex migration that affect gust penetration and post-gust recovery. The high-AR justification is invoked, but the central claim for gust interactions would be strengthened by either a quantitative error bound or comparison to 3D aerodynamic benchmarks.
  2. [Verification section] Verification reports close agreement in structural frequencies, flutter speed, and static aeroelastic deflections against published benchmarks. These metrics are relatively insensitive to the unsteady three-dimensional aerodynamic effects that dominate during discrete and continuous gust encounters. No time-domain results for gust response under large deformations are shown, limiting direct support for the framework's primary application in gust interaction modeling.
minor comments (1)
  1. [Abstract] The abstract states 'close agreement' without quantitative error metrics (e.g., percentage differences or RMS errors) or explicit citations to the specific benchmark cases, which would improve assessment of verification strength.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below, indicating where revisions have been made to the manuscript.

read point-by-point responses

  1. Referee: [Aerodynamic modeling and coupling terms] The aerodynamic block relies on unsteady two-dimensional strip theory based on Theodorsen thin-aerofoil theory with indicial functions to supply lift and moment per strip, transformed into structural and body frames. For very flexible large-aspect-ratio wings undergoing large geometric nonlinearities and gust-induced deformations, this approximation may miss three-dimensional wake distortion, spanwise flow, and tip-vortex migration that affect gust penetration and post-gust recovery. The high-AR justification is invoked, but the central claim for gust interactions would be strengthened by either a quantitative error bound or comparison to 3D aerodynamic benchmarks.

    Authors: We appreciate the referee highlighting the limitations of 2D strip theory for fully capturing 3D aerodynamic phenomena during gust encounters. The modeling choice is standard for high-aspect-ratio configurations (AR typically >10) and follows the approach in multiple benchmark studies for HALE and flying-wing aircraft. To strengthen the manuscript, we have added a dedicated paragraph in the aerodynamic modeling section that discusses the approximation's validity range, cites literature quantifying 3D effects (typically <8% error in integrated lift for gust wavelengths on the order of the span), and explicitly notes the assumption's scope. We maintain that a full 3D comparison lies outside the paper's focus on a self-contained state-space framework but have clarified this limitation. revision: partial

  2. Referee: [Verification section] Verification reports close agreement in structural frequencies, flutter speed, and static aeroelastic deflections against published benchmarks. These metrics are relatively insensitive to the unsteady three-dimensional aerodynamic effects that dominate during discrete and continuous gust encounters. No time-domain results for gust response under large deformations are shown, limiting direct support for the framework's primary application in gust interaction modeling.

    Authors: We agree that time-domain gust response results under large deformations would provide more direct support for the framework's intended use in gust interaction studies. The original verification was selected to align with available published benchmarks, which emphasize modal, flutter, and static properties. In the revised manuscript we have added a new subsection presenting time-domain simulations of the very flexible flying-wing configuration subject to both discrete certification gusts and Von Karman turbulence, including the coupled aeroelastic-flight dynamic responses and large-deformation effects. revision: yes

Circularity Check

0 steps flagged

No circularity: framework assembles external standard models into state-space form

full rationale

The derivation integrates three independent external theories—geometrically-exact nonlinear beam theory, Theodorsen thin-aerofoil unsteady strip aerodynamics with indicial functions, and quaternion rigid-body dynamics—then supplies explicit coupling transformations and assembles the first-order state-space system. All load-bearing blocks (aerodynamic forces per strip, structural Jacobians, gust input matrices) are defined from these cited external models rather than fitted to the target outputs or reduced via self-citation. Verification against independent published benchmarks (frequencies, flutter speed, static deflections) provides external falsifiability. No equation reduces a claimed prediction to its own inputs by construction, and no uniqueness theorem or ansatz is smuggled through self-citation.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard domain assumptions from aeroelasticity and flight dynamics without introducing new free parameters or invented entities in the described framework.

axioms (2)
  • domain assumption Geometrically-exact nonlinear beam theory accurately represents structural dynamics of flexible aircraft
    Invoked for structural modeling; standard but assumes specific kinematic approximations for large deformations.
  • domain assumption Unsteady two-dimensional strip aerodynamics based on Theodorsen theory with indicial functions captures shed-wake and gust-penetration effects
    Used for aerodynamic loads; assumes 2D flow per strip and neglects full 3D effects.
