Nonlinear Model Order Reduction for Coupled Aeroelastic-Flight Dynamic Systems

Nikolaos D. Tantaroudas , Ilias Karachalios

Authors on Pith no claims yet

Pith reviewed 2026-05-15 10:15 UTC · model grok-4.3

classification 💻 cs.CE

keywords nonlinear model order reductionaeroelastic systemsflight dynamicsTaylor series expansioneigenvector projectionreduced-order modelingcoupled fluid-structure interactionflexible aircraft

0 comments

The pith

A Taylor-series projection onto coupled eigenvectors reduces aeroelastic-flight systems from thousands of states to single digits while preserving large-deformation nonlinearities.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a nonlinear model order reduction method for systems that combine fluid forces, flexible structures, and rigid-body flight motion. It expands the nonlinear residual in a Taylor series around equilibrium points up to third order and projects the result onto a small set of eigenvectors drawn from the Jacobian of the full coupled system. Biorthonormality of the left and right eigenvectors supplies an optimal basis, and higher-order tensors are obtained through matrix-free finite differences. Tests on an airfoil, a HALE aircraft, and a very flexible flying wing show that the resulting models reproduce the original nonlinear responses, including wing deformations larger than ten percent of span, while delivering speedups as large as six hundred times. The work further finds that the second-order truncation already suffices for the cubic structural nonlinearities examined, so third-order terms can be dropped.

Core claim

The central claim is that any coupled fluid-structure-flight system can be reduced by expanding its nonlinear residual to second- or third-order Taylor terms around an equilibrium, then projecting onto the right and left eigenvectors of the coupled Jacobian matrix; the resulting low-dimensional model reproduces the original large-amplitude dynamics at a fraction of the cost and is independent of the particular full-order discretization.

What carries the argument

The key machinery is the Taylor expansion of the nonlinear residual up to third order combined with biorthogonal projection onto the eigenvectors of the coupled-system Jacobian, with matrix-free finite-difference evaluation of the higher-order operators.

If this is right

Real-time or many-query tasks such as gust-load alleviation and aeroelastic optimization become feasible for highly flexible aircraft.
Cubic structural nonlinearities require only a quadratic expansion, removing the need to form or store third-order tensors.
The same projection procedure applies without reformulation to any full-order model whose Jacobian and residual can be evaluated.
Systems originally containing two thousand states can be replaced by nine-state models that still track limit-cycle oscillations and large static deflections.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The independence from the underlying discretization suggests the approach could be reused for other coupled multiphysics problems whose Jacobians remain accessible.
Adaptive recentering of the Taylor expansion point during long transients might further extend the range of validity without increasing the basis size.
Because the reduced basis is derived from the coupled Jacobian, the same machinery could supply sensitivity information for gradient-based design of flexible vehicles.

Load-bearing premise

Truncating the Taylor series at second or third order and projecting onto a small eigenvector basis preserves the essential nonlinear dynamics over the operating range without unacceptable error for the tested configurations.

What would settle it

A side-by-side run of the full-order and reduced-order models on the flying-wing case at a deformation level above fifteen percent of span, checking whether the predicted flutter boundary or response amplitude differs by more than five percent.

read the original abstract

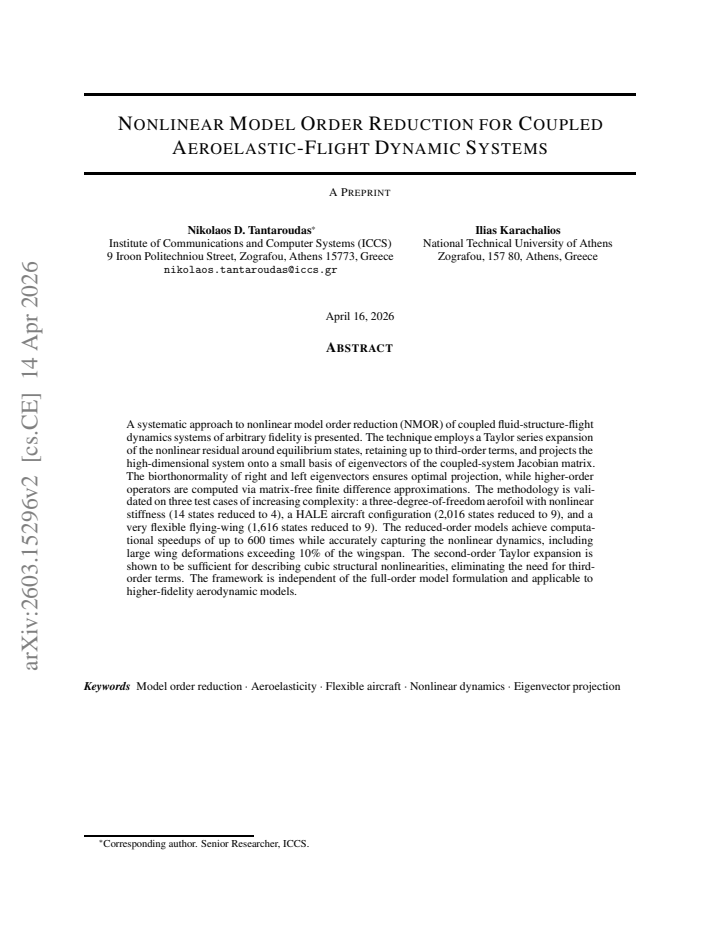

A systematic approach to nonlinear model order reduction (NMOR) of coupled fluid-structureflight dynamics systems of arbitrary fidelity is presented. The technique employs a Taylor series expansion of the nonlinear residual around equilibrium states, retaining up to third-order terms, and projects the high-dimensional system onto a small basis of eigenvectors of the coupled-system Jacobian matrix. The biorthonormality of right and left eigenvectors ensures optimal projection, while higher-order operators are computed via matrix-free finite difference approximations. The methodology is validated on three test cases of increasing complexity: a three-degree-of-freedom aerofoil with nonlinear stiffness (14 states reduced to 4), a HALE aircraft configuration (2,016 states reduced to 9), and a very flexible flying-wing (1,616 states reduced to 9). The reduced-order models achieve computational speedups of up to 600 times while accurately capturing the nonlinear dynamics, including large wing deformations exceeding 10% of the wingspan. The second-order Taylor expansion is shown to be sufficient for describing cubic structural nonlinearities, eliminating the need for third-order terms. The framework is independent of the full-order model formulation and applicable to higher-fidelity aerodynamic model

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This gives a practical NMOR route to 600x faster coupled aeroelastic-flight simulations on the tested cases, with the second-order truncation working for their cubic nonlinearities.

read the letter

The main takeaway is that the paper delivers a usable nonlinear reduction method for aeroelastic systems that include flight dynamics. It expands the residual in Taylor series up to third order around equilibrium, projects onto a small set of biorthogonal right and left eigenvectors of the coupled Jacobian, and builds the higher-order reduced operators with matrix-free finite differences. The framework is set up to work with models of any fidelity and is demonstrated on three cases that grow in complexity: a 3DOF airfoil (14 states to 4), a HALE configuration (2016 to 9), and a very flexible flying wing (1616 to 9). They report speedups reaching 600 times and state that the reduced models track the nonlinear behavior, including wing deflections past 10% of span. They also find that keeping only up to quadratic terms is enough for the cubic structural nonlinearities, so the third-order terms can be dropped.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a nonlinear model order reduction (NMOR) technique for coupled aeroelastic-flight dynamic systems of arbitrary fidelity. It applies a Taylor series expansion of the nonlinear residual around equilibrium states (retaining up to third-order terms) and projects the high-dimensional system onto a small basis of right and left eigenvectors of the coupled Jacobian, using biorthonormality for optimal projection and matrix-free finite differences for higher-order operators. Validation is reported on three cases of increasing complexity—a 3DOF aerofoil (14 states to 4), HALE aircraft (2016 states to 9), and very flexible flying-wing (1616 states to 9)—with claimed speedups up to 600x while capturing nonlinear dynamics including wing deformations exceeding 10% of span; the work concludes that second-order truncation suffices for cubic structural nonlinearities.

Significance. If the accuracy claims are confirmed with quantitative error measures, the framework would offer a practical route to large speedups in simulating flexible aircraft with coupled nonlinear aeroelastic and flight dynamics, supporting design, optimization, and control applications. The independence from specific full-order model formulations and the matrix-free treatment of higher-order terms are notable strengths that could extend the method beyond the presented test cases.

major comments (2)

[Validation sections (three test cases)] Validation sections: the central claim that the reduced models 'accurately capture the nonlinear dynamics' for deformations >10% wingspan rests on qualitative statements only; no L2 or other error norms, residual comparisons at peak-deformation instants, or convergence studies versus full-order trajectories are referenced, leaving the quantitative support for the 600x speedup claim incomplete.
[Taylor expansion and truncation discussion] Taylor truncation discussion: the assertion that second-order expansion suffices for cubic structural nonlinearities is not accompanied by a-priori bounds on neglected cubic and higher residuals or by explicit residual-norm checks in the large-deformation regime; without such analysis the projection onto the 9-eigenvector basis risks systematic omission of essential aero-structural coupling.

minor comments (1)

[Abstract] The abstract states both 'up to third-order terms' and that 'the second-order Taylor expansion is shown to be sufficient'; clarify which order is actually retained in each of the three reported cases and update the abstract accordingly.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. The feedback on validation and truncation analysis is helpful, and we will incorporate revisions to strengthen the quantitative support for our claims while preserving the core contributions of the NMOR framework.

read point-by-point responses

Referee: Validation sections (three test cases): the central claim that the reduced models 'accurately capture the nonlinear dynamics' for deformations >10% wingspan rests on qualitative statements only; no L2 or other error norms, residual comparisons at peak-deformation instants, or convergence studies versus full-order trajectories are referenced, leaving the quantitative support for the 600x speedup claim incomplete.

Authors: We agree that the current validation relies primarily on visual comparisons of trajectories and phase portraits. In the revised manuscript we will add L2-norm error measures between reduced-order and full-order state trajectories for all three test cases, together with point-wise residual comparisons at peak-deformation instants and a convergence study with respect to the number of retained modes. These additions will supply the quantitative evidence requested and further substantiate the reported speedups. revision: yes
Referee: Taylor expansion and truncation discussion: the assertion that second-order expansion suffices for cubic structural nonlinearities is not accompanied by a-priori bounds on neglected cubic and higher residuals or by explicit residual-norm checks in the large-deformation regime; without such analysis the projection onto the 9-eigenvector basis risks systematic omission of essential aero-structural coupling.

Authors: We acknowledge that explicit residual-norm checks and a-priori bounds would strengthen the truncation discussion. The revised manuscript will include computed residual norms of the neglected third- and higher-order terms evaluated along the large-deformation trajectories of the HALE and flying-wing cases. Deriving general a-priori bounds for the coupled nonlinear aeroelastic operators is non-trivial; however, we will add a brief analysis showing that the cubic structural nonlinearities, once projected onto the biorthogonal basis, are adequately represented by the retained second-order terms, consistent with the observed numerical agreement. revision: partial

Circularity Check

0 steps flagged

No circularity: standard Taylor expansion and eigenvector projection are independent of the target results

full rationale

The derivation applies a Taylor series expansion of the nonlinear residual around equilibrium states (retaining up to third-order terms) followed by projection onto a basis of right and left eigenvectors of the coupled Jacobian, using biorthonormality for optimality and matrix-free finite differences for higher-order operators. These steps are standard linear-algebra and approximation techniques whose validity does not depend on the specific outputs (speedup factors or deformation magnitudes) being claimed; the paper validates truncation sufficiency empirically on three independent test cases rather than by construction. No self-definitional equations, fitted inputs renamed as predictions, or load-bearing self-citations appear in the provided derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the standard assumption that a low-order Taylor expansion around equilibria plus eigenvector projection captures the dominant nonlinear behavior; no free parameters, new entities, or ad-hoc axioms are introduced in the abstract.

axioms (1)

domain assumption The nonlinear residual of the coupled system can be accurately represented by a Taylor series truncated at second or third order around equilibrium states.
This truncation is the basis for constructing the reduced-order operators.
