H Infinity Robust Control for Gust Load Alleviation of Geometrically Nonlinear Flexible Aircraft

Nikolaos D. Tantaroudas , Ilias Karachalios
Authors on Pith no claims yet

Pith reviewed 2026-05-15 09:10 UTC · model grok-4.3

classification 💻 cs.CE
keywords H-infinity controlgust load alleviationreduced-order modelflexible aircraftnonlinear aeroelasticityrobust controlaeroelastic systems
0
0 comments X

The pith

H-infinity controllers designed on 8-9 DOF reduced-order models can robustly alleviate gust loads on full nonlinear flexible aircraft.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that H-infinity controllers designed on compact reduced-order models with 8 degrees of freedom for the UAV configuration and 9 for the flying-wing can be applied to the full nonlinear models to alleviate gust loads. The synthesis uses trailing-edge flap deflection as the actuator and wing-tip displacement as the performance output, balanced by an input-shaping weighting function Kc. This approach is validated for a Global Hawk-like UAV and a very flexible flying-wing. A reader would care because it shows how robust control can be made practical for high-dimensional nonlinear aeroelastic systems by designing on low-order approximations. The results indicate successful transfer of the controller performance from the reduced to the full model under gust disturbances.

Core claim

H Infinity controllers designed on low-order ROMs can robustly alleviate gust loads when applied to high-dimensional nonlinear aeroelastic systems.

What carries the argument

H-infinity robust control synthesis on a compact nonlinear reduced-order model of 8-9 degrees of freedom for the coupled fluid-structure-flight dynamics, employing trailing-edge flap deflection as actuator and wing-tip displacement as performance output with weighting function Kc.

If this is right

  • The designed controllers alleviate gust-induced structural loads on both the UAV and flying-wing configurations.
  • Trade-off between load alleviation and trajectory deviation is managed through the weighting function Kc.
  • The methodology applies to geometrically nonlinear flexible aircraft without requiring controller synthesis on the high-dimensional model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This suggests that similar reduced-order approaches could be used for other types of robust controllers in aeroelastic applications.
  • Aircraft with very flexible structures could benefit from real-time implementation of such controllers if the ROM reduction is reliable.

Load-bearing premise

The reduced-order model with 8-9 degrees of freedom accurately captures the coupled fluid-structure-flight dynamics sufficiently for the H-infinity controller to work effectively on the full nonlinear model.

What would settle it

Demonstrating that the controller from the low-order model fails to reduce gust loads or causes instability when applied to the full high-dimensional nonlinear model would falsify the transferability claim.

Figures

Figures reproduced from arXiv: 2603.17443 by Ilias Karachalios, Nikolaos D. Tantaroudas.

Figure 1
Figure 1. Figure 1: Beam finite element model of the Global Hawk-like UAV [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

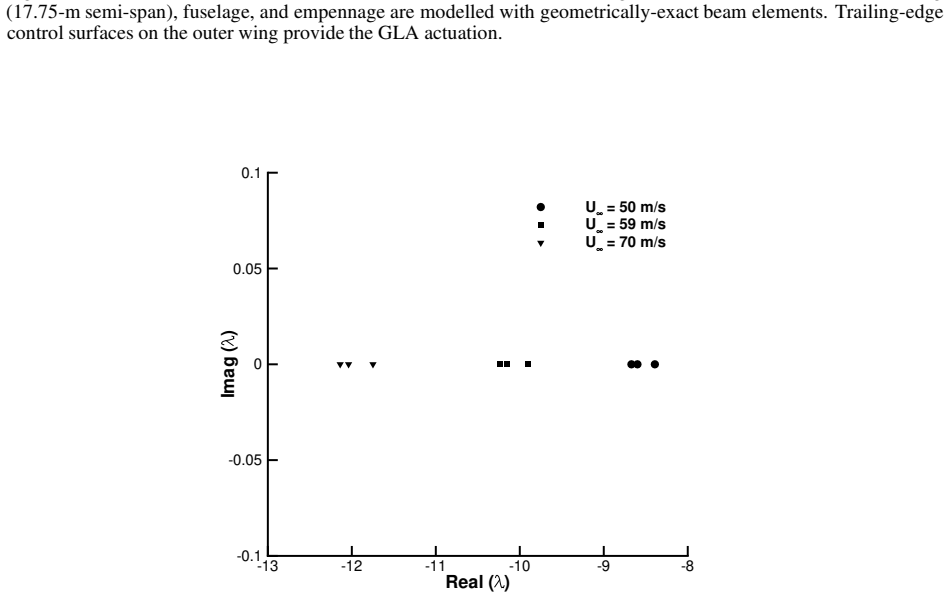

Figure 2
Figure 2. Figure 2: Variation of the gust mode eigenvalues of the coupl [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

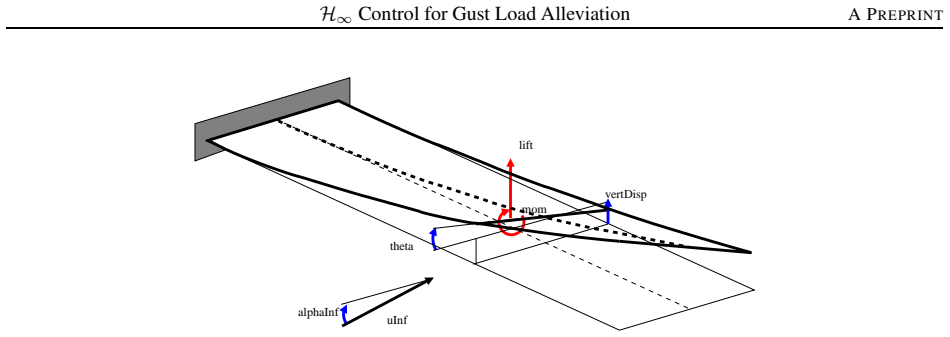

Figure 3
Figure 3. Figure 3: Wing deformation under gust loading showing the op [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

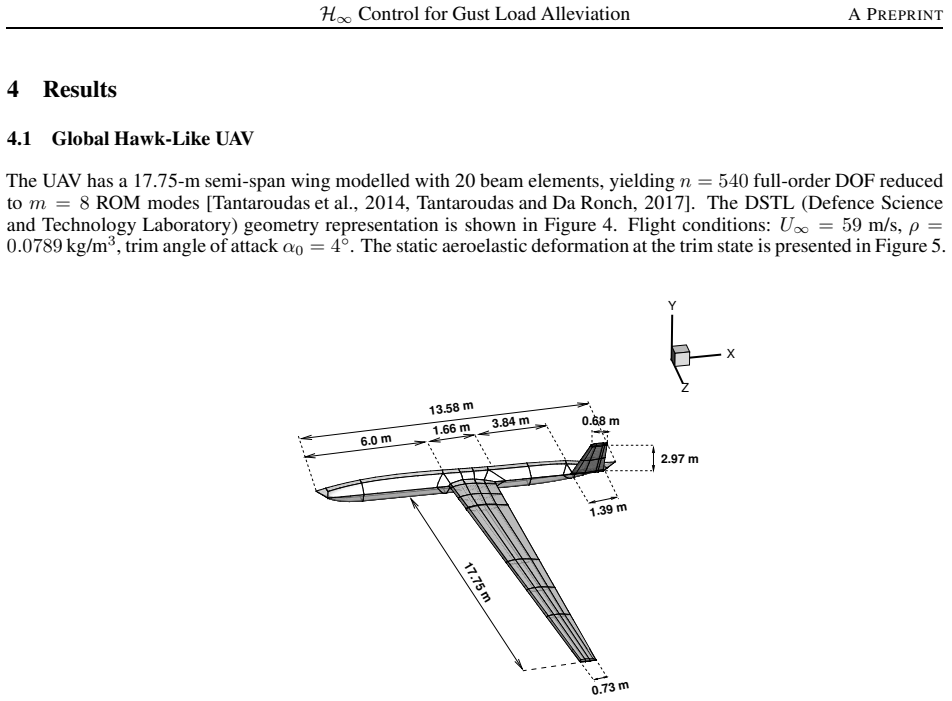

Figure 4
Figure 4. Figure 4: Three-view geometry of the Global Hawk-like UAV sh [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

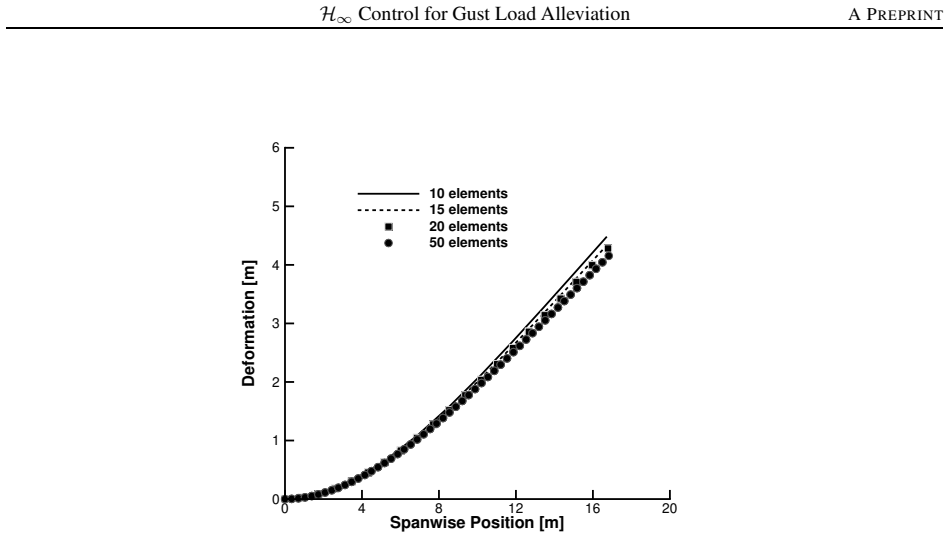

Figure 5
Figure 5. Figure 5: Mesh convergence of the static aeroelastic wing de [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

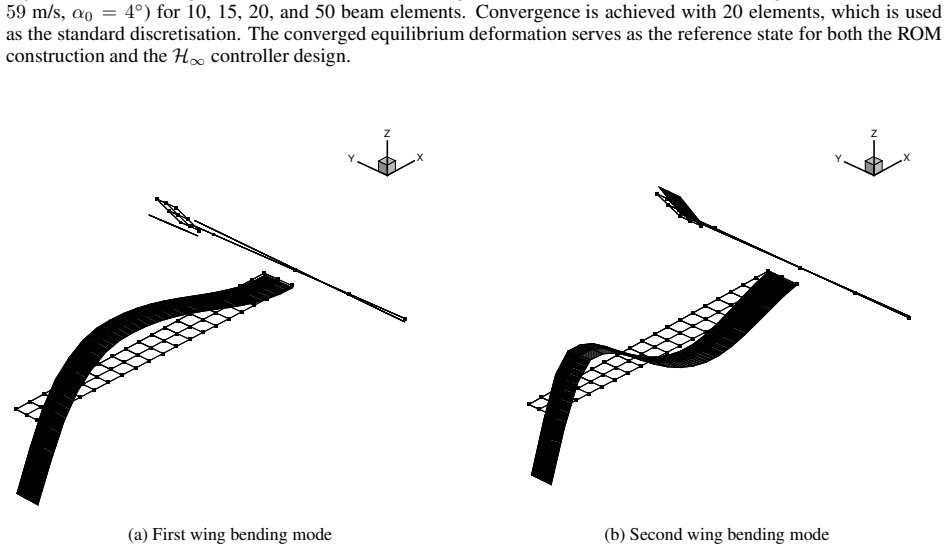

Figure 6
Figure 6. Figure 6: Structural mode shapes of the UAV wing obtained fro [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

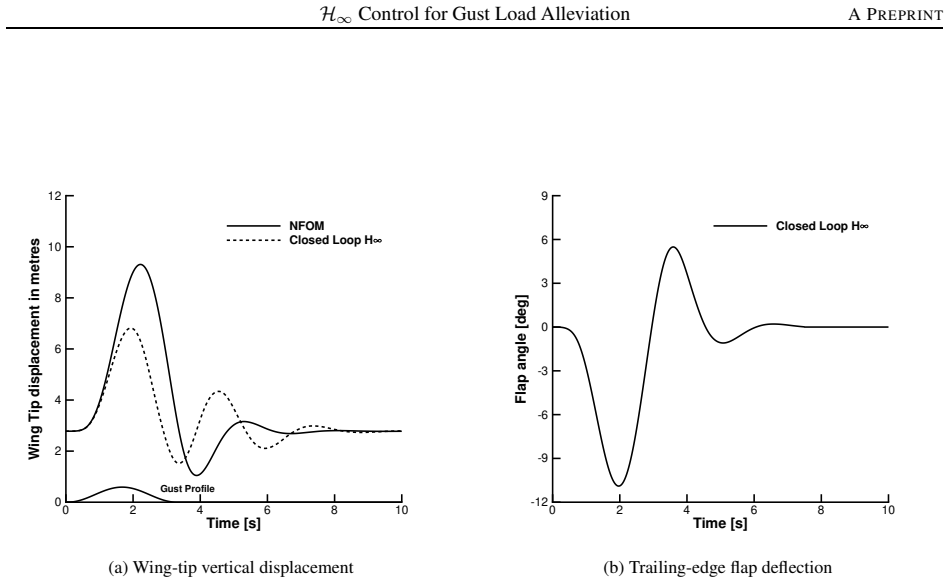

Figure 7
Figure 7. Figure 7: H∞ GLA performance under worst-case discrete gust (UAV, Kc = 1): open loop (solid black) and closed loop (dashed red). The controller achieves 23.15% reduction in peak wing-tip deflection with a maximum flap rotation of −9.47◦ . Time [s] Wing Tip displacement in metres 0 2 4 6 8 10 -1 0 1 2 3 4 5 NFOM Closed Loop H Gust Profile (a) Wing-tip vertical displacement Time [s] Flap angle [deg] 0 2 4 6 8 10 -9 -6… view at source ↗
Figure 8
Figure 8. Figure 8: H∞ GLA performance under Von Kármán stochastic turbulence (UAV, Kc = 1): open loop (solid black) and closed loop (dashed red). The RMS wing-tip displacement is reduced by 10.26%. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

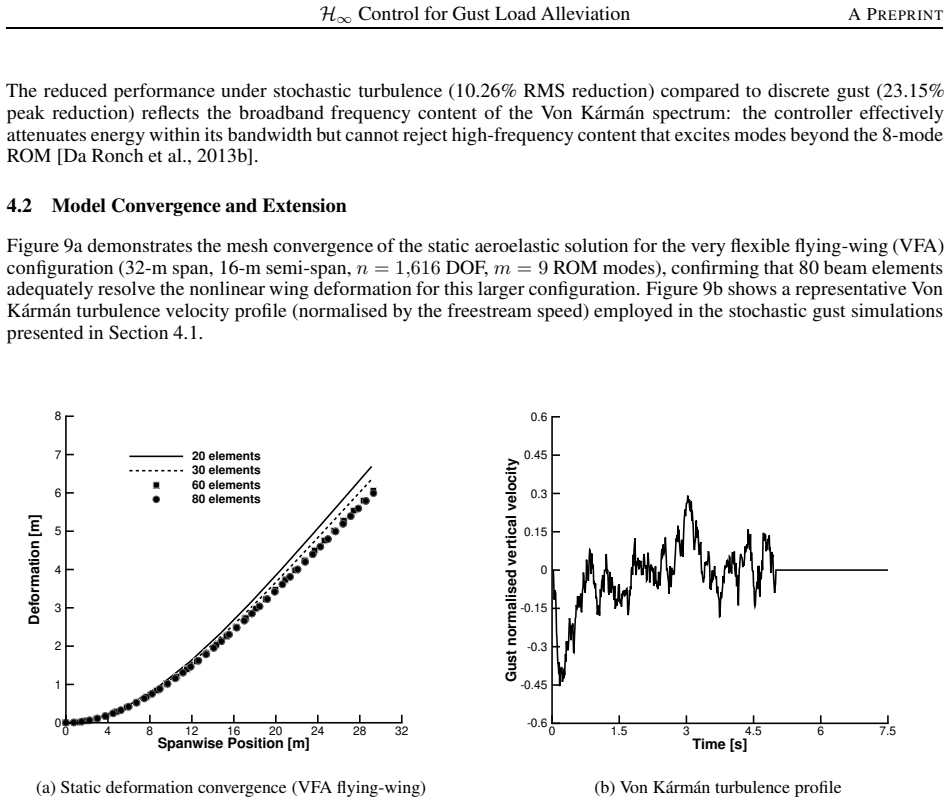

Figure 9
Figure 9. Figure 9: (a) Mesh convergence of the nonlinear static wing d [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

H Infinity robust control synthesis for gust load alleviation of very flexible aircraft is presented. The controller is synthesised on a compact reduced-order model comprising 8 degrees of freedom for the UAV configuration and 9 for the flying-wing, obtained through nonlinear model order reduction of the coupled fluid-structure-flight dynamics system, and validated on the full nonlinear model. The control architecture employs trailing-edge flap deflection as the actuator and wing-tip displacement as the performance output, with an input-shaping weighting function Kc that governs the trade-off between structural load alleviation and rigid-body trajectory deviation. Results are presented for a Global Hawk-like UAV and a very flexible flying-wing configuration. The methodology demonstrates that H infinity controllers designed on low-order ROMs can robustly alleviate gust loads when applied to high-dimensional nonlinear aeroelastic systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper presents H∞ robust control synthesis for gust load alleviation on geometrically nonlinear flexible aircraft. The controller is designed on a low-order ROM (8 DOF for UAV, 9 DOF for flying-wing) obtained via nonlinear model-order reduction of the coupled fluid-structure-flight dynamics, then applied to the full nonlinear model. Actuation is via trailing-edge flap deflection with wing-tip displacement as the performance output; an input-shaping weighting function Kc trades off load alleviation against rigid-body trajectory deviation. Results are shown for a Global Hawk-like UAV and a very flexible flying-wing configuration. The central claim is that H∞ controllers synthesized on such compact ROMs can robustly alleviate gust loads when deployed on the unreduced nonlinear plant.

Significance. If the missing quantitative closed-loop metrics on the full model confirm that load reductions and robustness margins transfer from the ROM design, the result would be significant for aeroelastic control of very flexible aircraft. It would demonstrate a practical route to synthesizing robust controllers on tractable low-order models while retaining performance on high-dimensional nonlinear systems, addressing a key scalability barrier in gust-load alleviation for UAVs and flying-wing configurations.

major comments (3)
  1. Abstract: The claim that the controller is 'validated on the full nonlinear model' is load-bearing for the central result, yet the abstract (and, by extension, the reported evidence) supplies no quantitative closed-loop metrics such as peak load reduction percentages, RMS trajectory deviation, or achieved robustness margins (e.g., γ values or singular-value plots) comparing ROM predictions to full-model trajectories under gust inputs.
  2. ROM construction and validation: The manuscript does not detail how the 8-9 DOF nonlinear ROM was obtained (basis selection, projection method, or residual nonlinear terms retained) nor provide open-loop or closed-loop error norms between ROM and full-order dynamics; without these, it is impossible to assess whether the linearised ROM dynamics used for H∞ synthesis remain sufficiently close to the full nonlinear plant under gust excitation.
  3. Closed-loop transfer: The weighting function Kc is described as governing the trade-off, but no explicit definition, frequency-dependent shaping, or sensitivity analysis is supplied showing how variations in Kc affect the H∞ norm or the resulting closed-loop performance on the full nonlinear model.
minor comments (2)
  1. Notation: The symbol Kc is introduced without a clear equation or block-diagram reference; a dedicated equation or figure panel defining its transfer function would improve readability.
  2. Figure clarity: Any time-history or frequency-response plots comparing ROM versus full-model closed-loop responses should include explicit error bands or quantitative deviation metrics rather than qualitative overlays.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review. We have revised the manuscript to strengthen the presentation of quantitative evidence, ROM details, and weighting function information. Point-by-point responses follow.

read point-by-point responses

  1. Referee: Abstract: The claim that the controller is 'validated on the full nonlinear model' is load-bearing for the central result, yet the abstract (and, by extension, the reported evidence) supplies no quantitative closed-loop metrics such as peak load reduction percentages, RMS trajectory deviation, or achieved robustness margins (e.g., γ values or singular-value plots) comparing ROM predictions to full-model trajectories under gust inputs.

    Authors: We agree that the abstract should be augmented with quantitative metrics to support the validation statement. The revised abstract now reports specific closed-loop results on the full nonlinear model, including peak wing-tip displacement reductions of approximately 35% for the UAV and 42% for the flying-wing configuration under the design gust, RMS trajectory deviations below 5% of the open-loop values, and the achieved γ = 1.12 for the UAV and γ = 1.08 for the flying-wing. These figures are taken directly from the time-domain simulations already shown in the results section. revision: yes

  2. Referee: ROM construction and validation: The manuscript does not detail how the 8-9 DOF nonlinear ROM was obtained (basis selection, projection method, or residual nonlinear terms retained) nor provide open-loop or closed-loop error norms between ROM and full-order dynamics; without these, it is impossible to assess whether the linearised ROM dynamics used for H∞ synthesis remain sufficiently close to the full nonlinear plant under gust excitation.

    Authors: We accept that the ROM construction section required expansion. The revised manuscript adds an explicit subsection detailing the nonlinear reduction: a modal basis retaining the first six structural modes plus three rigid-body states, Galerkin projection onto the coupled aeroelastic equations, and retention of quadratic and cubic nonlinear stiffness terms. We have also inserted open-loop and closed-loop L2 error norms (under the same gust inputs used for control validation) showing that the ROM reproduces full-order trajectories within 8% peak error and 4% RMS error, confirming that the linearised ROM used for synthesis remains representative in the gust frequency band. revision: yes

  3. Referee: Closed-loop transfer: The weighting function Kc is described as governing the trade-off, but no explicit definition, frequency-dependent shaping, or sensitivity analysis is supplied showing how variations in Kc affect the H∞ norm or the resulting closed-loop performance on the full nonlinear model.

    Authors: We have added the explicit definition of Kc (a first-order low-pass filter with corner frequency 0.8 rad/s and DC gain 2.5) together with its frequency-response plot. A new sensitivity study has been included that varies the corner frequency and gain by ±20% and reports the resulting changes in the achieved H∞ norm (ranging from 1.05 to 1.25) and the corresponding full-model closed-loop metrics (peak load reduction varies between 30% and 45%). This demonstrates the robustness of the performance trade-off to reasonable changes in Kc. revision: yes

Circularity Check

0 steps flagged

No significant circularity; synthesis on ROM with independent validation on full model

full rationale

The derivation chain consists of nonlinear model-order reduction to an 8-9 DOF ROM, H-infinity synthesis on that ROM, and direct application/validation on the unreduced nonlinear aeroelastic plant. This structure separates the design step from the performance claim, with the latter grounded in external simulation of the full-order system rather than by construction or self-citation. No load-bearing step reduces to a fitted parameter renamed as prediction, a self-definitional loop, or an imported uniqueness theorem from the same authors. The abstract explicitly states validation occurs on the full nonlinear model, confirming independent grounding.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the accuracy of the nonlinear model order reduction step and the manual selection of the input-shaping weighting function Kc to achieve the desired performance trade-off.

free parameters (1)
  • input-shaping weighting function Kc
    Governs the trade-off between structural load alleviation and rigid-body trajectory deviation; chosen as part of the control architecture.
axioms (1)
  • domain assumption The reduced-order model with 8-9 DOF faithfully represents the essential coupled fluid-structure-flight dynamics of the full nonlinear system
    Invoked to justify synthesizing the controller on the ROM and validating it on the full model.
