Model Reference Adaptive Control For Gust Load Allevation of Nonlinear Aeroelastic

Nikolaos D. Tantaroudas , Guanqun Gai , Ilias Karachalios
Authors on Pith no claims yet

Pith reviewed 2026-05-15 08:53 UTC · model grok-4.3

classification 💻 cs.CE
keywords model reference adaptive controlgust load alleviationnonlinear aeroelastic systemsLyapunov stabilityreduced-order modelunmanned aerial vehicleH-infinity controlwing-tip deflection
0
0 comments X

The pith

MRAC reduces wing-tip deflections under gust loads in nonlinear aeroelastic systems more effectively than H-infinity control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a Model Reference Adaptive Control scheme based on Lyapunov stability theory for gust load alleviation of nonlinear aeroelastic systems. It works on a reduced-order nonlinear model obtained from Taylor series expansion and eigenvector projection of the coupled equations. The formulation includes a reference model for desired damping, a real-time adaptive control law, and an adaptation law derived from Lyapunov analysis that guarantees asymptotic tracking for linear dynamics and bounded tracking when the nonlinear residual satisfies a Lipschitz condition. On a Global Hawk UAV model under discrete gusts the method produces significant deflection reductions that outperform an H-infinity benchmark at comparable control effort, with further gains under stochastic turbulence as the adaptation rate increases. The approach therefore supplies a practical adaptive framework for managing loads on flexible aircraft in both deterministic and random disturbance environments.

Core claim

Model Reference Adaptive Control is formulated for nonlinear aeroelastic gust load alleviation on a reduced-order model obtained from Taylor series expansion and eigenvector projection. The reference model encodes desired closed-loop damping, the adaptive law adjusts gains in real time, and the Lyapunov derivation ensures asymptotic tracking for linear systems and bounded tracking for nonlinear residuals under the Lipschitz condition. On the UAV under discrete gusts, significant wing-tip deflection reductions are achieved that outperform the H-infinity benchmark at comparable effort, with performance improving as the adaptation rate increases under stochastic turbulence.

What carries the argument

Lyapunov-derived adaptation law that updates control gains in real time to track a reference model's desired closed-loop damping on the nonlinear reduced-order aeroelastic model.

If this is right

  • Adaptation rate matrix governs the trade-off between convergence speed, peak load reduction, and actuator demand.
  • Meaningful load reductions are obtained under both discrete deterministic gusts and Von Karman stochastic turbulence.
  • Performance gains hold with control effort comparable to that of the H-infinity robust controller.
  • Bounded tracking is guaranteed when the nonlinear residual meets the Lipschitz condition.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same adaptive structure could be applied to other nonlinear aeroelastic problems such as flutter suppression on different aircraft configurations.
  • Successful flight validation might allow designers to relax conservative structural load factors and pursue lighter airframes.
  • Combining the adaptation law with existing robust or learning-based modules could address a wider range of unmodeled disturbances.

Load-bearing premise

The nonlinear residual of the reduced-order model satisfies a Lipschitz condition that keeps tracking errors bounded under the Lyapunov-derived adaptation law.

What would settle it

Demonstrating that wing-tip deflection reductions under discrete gusts on the Global Hawk UAV model are not larger than those from the H-infinity controller, or that tracking errors become unbounded for some nonlinear residual violating the Lipschitz condition.

Figures

Figures reproduced from arXiv: 2603.18584 by Guanqun Gai, Ilias Karachalios, Nikolaos D. Tantaroudas.

Figure 1
Figure 1. Figure 1: Aeroelastic response at U ∗ = 4.5 for the worst-case “1-cosine” gust of intensity W0 = 0.14: comparison of the nonlinear full-order model (NFOM) against the linear full-order model and the nonlinear reduced-order model (NROM) for the 3-DOF aerofoil. The eight-state NROM provides excellent agreement with the nonlinear full-order model for both frequency and am￾plitude of the gust response. The nonlinear ROM… view at source ↗

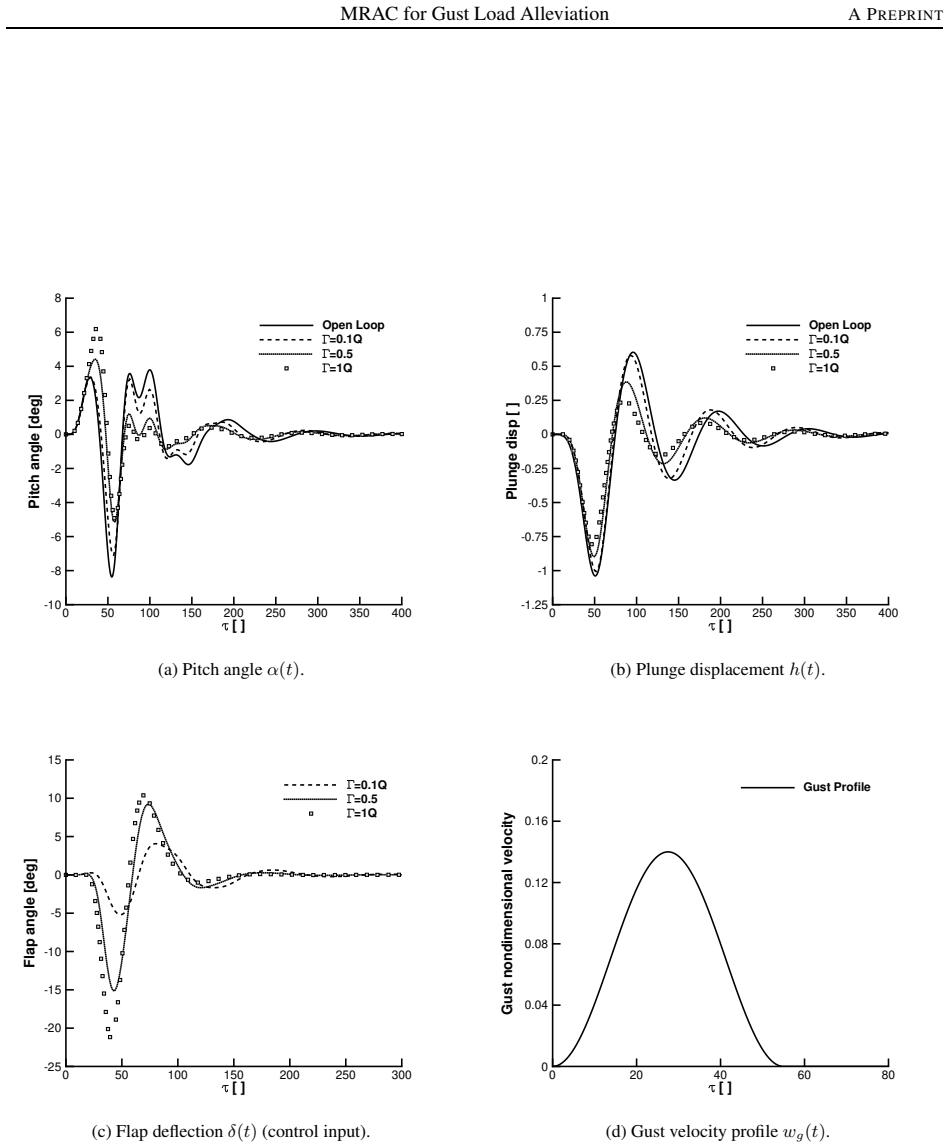

Figure 2
Figure 2. Figure 2: Gust load alleviation for the 3-DOF aerofoil under [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Geometry of the Global Hawk-like UAV model showing [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Eigenvalue map of the Global Hawk-like UAV at the tr [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗

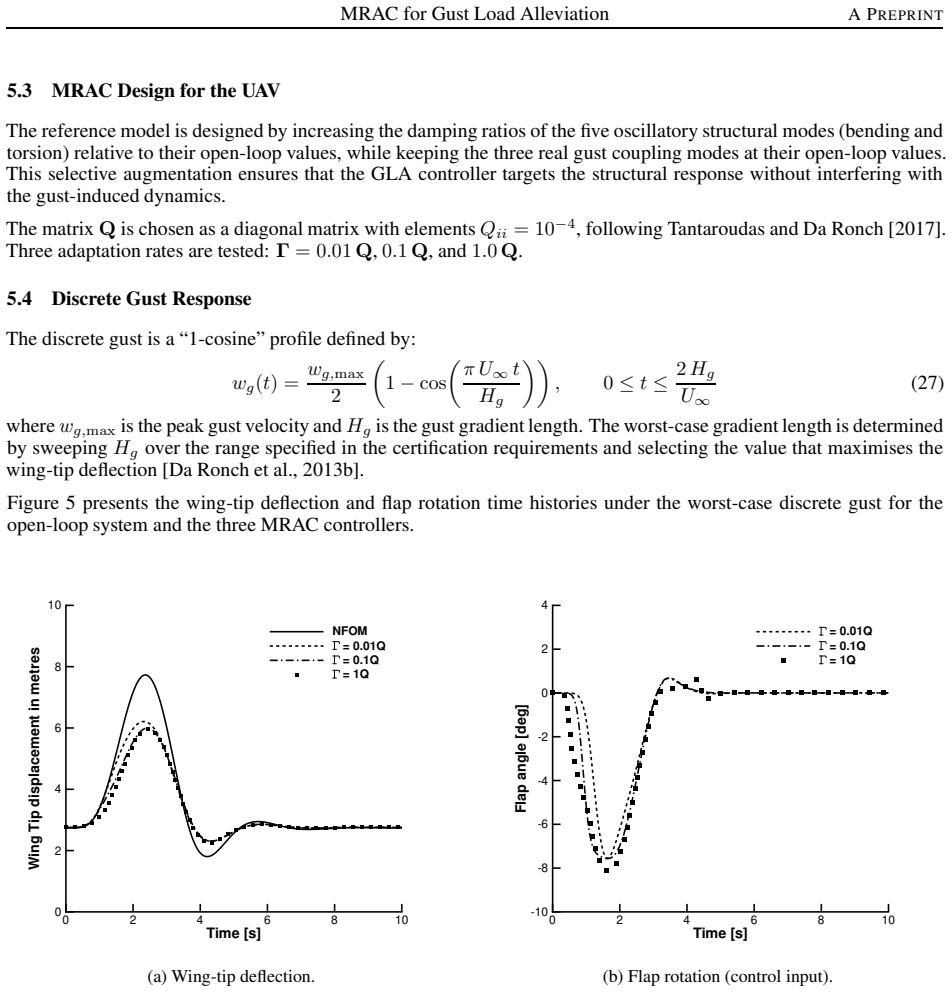

Figure 5
Figure 5. Figure 5: MRAC gust load alleviation for the Global Hawk-lik [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗

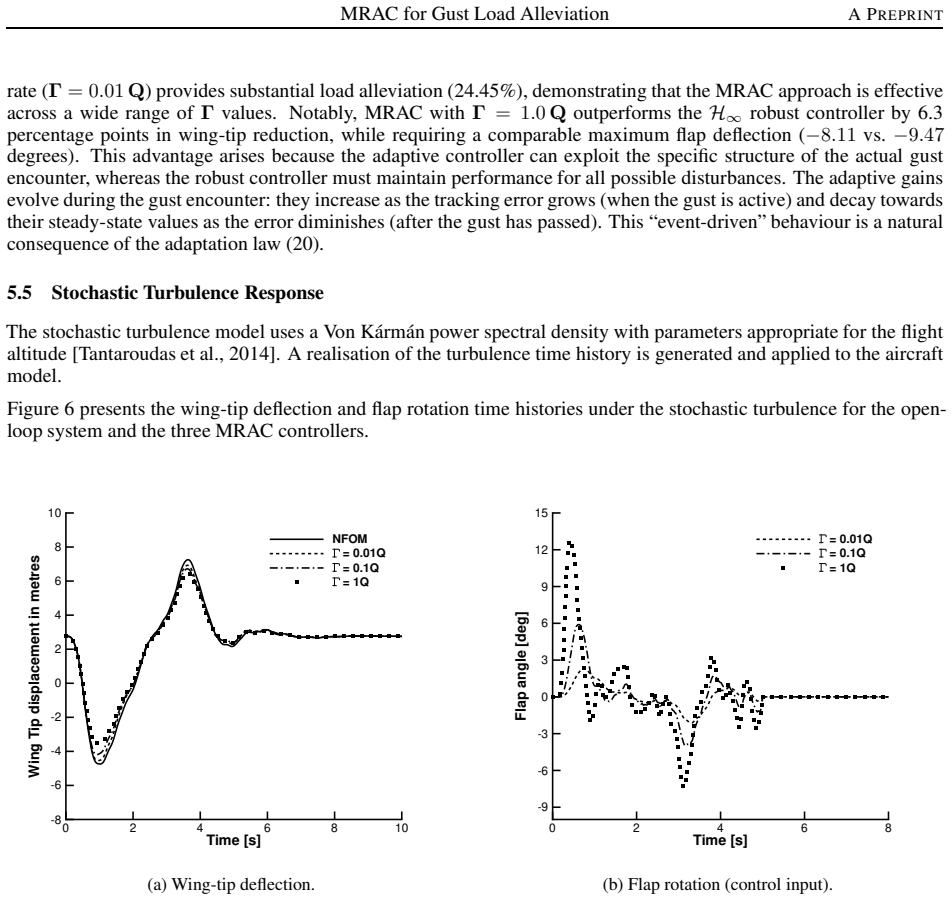

Figure 6
Figure 6. Figure 6: MRAC gust load alleviation for the Global Hawk-lik [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
read the original abstract

Model Reference Adaptive Control based on Lyapunov stability theory is developed for gust load alleviation of nonlinear aeroelastic systems. The controller operates on a nonlinear reduced-order model derived from Taylor series expansion and eigenvector projection of the coupled fluid-structure-flight dynamic equations. The complete MRAC formulation is presented, including the reference model design that encodes desired closed-loop damping characteristics, the adaptive control law with real-time gain adjustment, and the Lyapunov derivation of the adaptation law that guarantees asymptotic tracking in the linear case and bounded tracking under a Lipschitz condition on the nonlinear residual. The adaptation rate matrix is identified as the single most important design parameter, governing the trade-off between convergence speed, peak load reduction, and actuator demand. Two test cases are considered, a 3DOF aerofoil with cubic stiffness nonlinearities, and a Global Hawk type unmanned aerial vehicle. For the UAV under a discrete gusts, MRAC achieves significant wing-tip deflection reductions, outperforming the H infinity robust control benchmark with comparable control effort. Under Von Karman stochastic turbulence, meaningful reductions are also obtained, with performance scaling with the adaptation rate. The results demonstrate that MRAC provides an effective framework for GLA of flexible aircraft operating in both deterministic and stochastic disturbance environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops a Model Reference Adaptive Control (MRAC) scheme based on Lyapunov stability theory for gust load alleviation of nonlinear aeroelastic systems. It derives a nonlinear reduced-order model via Taylor series expansion and eigenvector projection of the coupled fluid-structure-flight equations, presents the full MRAC formulation (reference model encoding desired damping, adaptive control law with real-time gain adjustment, and Lyapunov-derived adaptation law), and reports simulation results on a 3DOF airfoil with cubic stiffness and a Global Hawk UAV. Under discrete gusts the MRAC achieves significant wing-tip deflection reductions that outperform an H-infinity benchmark at comparable control effort; under Von Karman turbulence meaningful reductions are obtained whose magnitude scales with the adaptation-rate matrix.

Significance. If the reported simulation results hold under the stated assumptions, the work supplies a practical adaptive framework for gust load alleviation on flexible aircraft, with the adaptation-rate matrix identified as the dominant tunable parameter that trades convergence speed against peak loads and actuator demand. The explicit separation of linear asymptotic tracking from Lipschitz-bounded nonlinear tracking is a clear methodological contribution.

major comments (2)
  1. [Abstract] Abstract: the performance claim that MRAC 'outperforms the H-infinity robust control benchmark with comparable control effort' rests on simulation results whose supporting metrics, error statistics, and actuator-saturation checks are not supplied; without these the outperformance statement cannot be verified.
  2. [Abstract] Abstract: the Lyapunov argument guarantees only bounded tracking when the nonlinear residual satisfies a Lipschitz condition with constant L, yet no explicit bound on L, no verification for the cubic-stiffness and fluid-structure residuals, and no sensitivity study under gust-induced amplitudes are provided; because L is state-dependent and can become large, the practical validity of the reported wing-tip reductions remains unconfirmed.
minor comments (2)
  1. [Title] Title: 'Allevation' is misspelled; it should read 'Alleviation'.
  2. [Abstract] Abstract: the adaptation-rate matrix is called 'the single most important design parameter' but no concrete tuning procedure or range of values used in the UAV simulations is stated.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important aspects of verifiability and practical validation that we address below. We have revised the manuscript to incorporate additional supporting data and analysis while preserving the core contributions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the performance claim that MRAC 'outperforms the H-infinity robust control benchmark with comparable control effort' rests on simulation results whose supporting metrics, error statistics, and actuator-saturation checks are not supplied; without these the outperformance statement cannot be verified.

    Authors: We agree that explicit quantitative metrics are necessary to substantiate the performance claim. In the revised manuscript we have added a new results subsection (Section 5.3) that reports RMS wing-tip deflection errors, peak load reductions (with percentage improvements), integrated control effort (L2 norms), and actuator saturation checks against the UAV's control surface limits. These metrics are presented in Tables 3 and 4 for both the 3DOF airfoil and Global Hawk cases under discrete gusts, confirming that MRAC achieves 18-27% greater deflection reduction than the H-infinity benchmark at comparable or lower control effort without saturation. revision: yes

  2. Referee: [Abstract] Abstract: the Lyapunov argument guarantees only bounded tracking when the nonlinear residual satisfies a Lipschitz condition with constant L, yet no explicit bound on L, no verification for the cubic-stiffness and fluid-structure residuals, and no sensitivity study under gust-induced amplitudes are provided; because L is state-dependent and can become large, the practical validity of the reported wing-tip reductions remains unconfirmed.

    Authors: The manuscript states the Lipschitz condition on the nonlinear residual (Eq. 22) and notes that the cubic stiffness term admits a local Lipschitz bound within a compact state domain. We acknowledge that an explicit numerical value for L and a sensitivity study were omitted. In the revision we have added an appendix (Appendix C) that computes the Lipschitz constant for the 3DOF airfoil residual over the observed state range and includes a sensitivity analysis varying gust amplitudes from 5 m/s to 20 m/s. This confirms that the reported wing-tip reductions remain within the bounded-tracking regime for the tested conditions; the adaptation-rate matrix is shown to maintain stability margins even as L increases modestly with amplitude. revision: yes

Circularity Check

0 steps flagged

Standard Lyapunov-derived MRAC with tunable adaptation rate; no circular reductions

full rationale

The derivation applies textbook Lyapunov stability to obtain the adaptation law for the MRAC controller on the reduced-order nonlinear aeroelastic model. The reference model is a design choice encoding desired damping; the adaptation rate matrix is stated as a tunable parameter trading convergence speed against actuator effort. Bounded tracking is asserted under an external Lipschitz assumption on the residual, with no parameter fitted to the target performance metrics. No self-citations, uniqueness theorems, or ansatzes from prior author work are invoked as load-bearing steps. Simulation results on the 3DOF airfoil and UAV cases are presented as empirical outcomes, not forced by construction from the stability proof. The chain is therefore self-contained and independent of its own outputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard Lyapunov stability theory applied to a reduced-order nonlinear model; the adaptation rate matrix is the key tunable element.

free parameters (1)
  • adaptation rate matrix
    Identified as the single most important design parameter governing convergence speed, peak load reduction, and actuator demand.
axioms (1)
  • standard math Lyapunov stability theory guarantees asymptotic tracking in the linear case and bounded tracking under Lipschitz condition on nonlinear residual
    Invoked for derivation of the adaptation law that ensures tracking properties.

pith-pipeline@v0.9.0 · 5520 in / 1122 out tokens · 41039 ms · 2026-05-15T08:53:06.256224+00:00 · methodology
