A Synchronized Audio-Visual Multi-View Capture System

Xiangwei Shi , Gara Dorta , Ruud de Jong , Ojas Shirekar , Chirag Raman

Authors on Pith no claims yet

Pith reviewed 2026-05-15 00:35 UTC · model grok-4.3

classification 💻 cs.CV

keywords multi-view captureaudio-visual synchronizationconversation analysismulti-camera systemtemporal alignmentdata-driven modelingcalibration workflowmulti-channel audio

0 comments

The pith

A multi-view capture system records synchronized audio and video streams with enough temporal consistency to analyze conversational timing at the level of turn-taking and prosody.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a capture system that treats synchronized audio and synchronized video as equal priorities rather than adding audio as an afterthought. It uses one unified timing architecture to align multiple cameras with multi-channel microphones and supplies a repeatable workflow for calibration, acquisition, and quality checks. Deployment tests show the resulting recordings stay temporally consistent enough to support detailed studies of how people take turns, overlap speech, and vary prosody. This matters because most existing multi-view setups focus only on video and therefore cannot reliably capture the timing cues that drive conversational interaction.

Core claim

The system integrates a multi-camera pipeline with multi-channel microphone recording under a unified timing architecture and provides a practical workflow for calibration, acquisition, and quality control that supports repeatable recordings at scale. Deployment measurements confirm that the recordings remain temporally consistent enough to enable fine-grained analysis and data-driven modeling of conversation behavior.

What carries the argument

The unified timing architecture that aligns multi-camera video streams with multi-channel audio under a single clock.

If this is right

Recordings become usable for precise measurement of turn-taking, speech overlap, and prosody.
Data sets produced at scale can train models that learn timing-sensitive conversational patterns.
Quality-control steps allow consistent data collection across multiple sessions or sites.
The same architecture can validate synchronization performance for any similar audio-visual setup.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The workflow could be adapted for other multi-modal recordings such as dance or musical performance where timing between sound and motion is critical.
Better synchronization might improve the accuracy of downstream machine-learning tasks that jointly model audio and visual cues.
The system lowers the barrier for labs to collect conversation data without custom hardware beyond standard cameras and microphones.

Load-bearing premise

The unified timing architecture and calibration workflow will keep synchronization tight across cameras and microphones in varied real-world settings without significant drift or hardware failures.

What would settle it

A deployment recording in which measured audio-video offset grows beyond 20 ms over a 30-minute session, as verified by an independent clapperboard or timestamp check.

Figures

Figures reproduced from arXiv: 2603.23089 by Chirag Raman, Gara Dorta, Ojas Shirekar, Ruud de Jong, Xiangwei Shi.

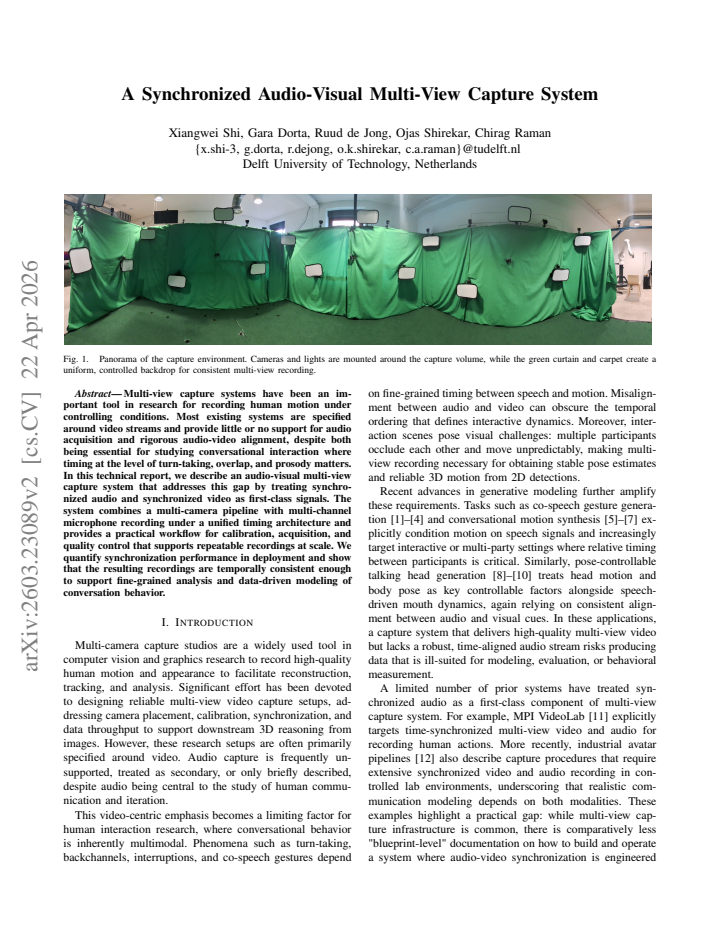

**Figure 1.** Figure 1: Panorama of the capture environment. Cameras and lights are mounted around the capture volume, while the green curtain and carpet create a [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

**Figure 2.** Figure 2: Top and interior views of the modular capture frame. The structure is [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: Overview of the camera unit. The right figure illustrates some key [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

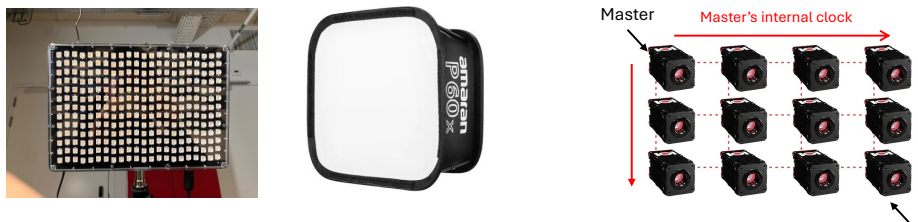

**Figure 5.** Figure 5: Left: LED panel. Right: light diffuser. sufficient bandwidth for rapid offload and multi-user access. With all eight bays populated, the system is configured as RAID5 to balance usable capacity and fault tolerance, yielding on the order of 70 TB usable storage. H. Lighting. To ensure consistent illumination across viewpoints and reduce motion blur in fast gestures and human motion, the capture volume is li… view at source ↗

**Figure 7.** Figure 7: Audio-video synchronization scheme. The tiemcode signal from the timecode generator is split and simultaneously fed to the master camera and, [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

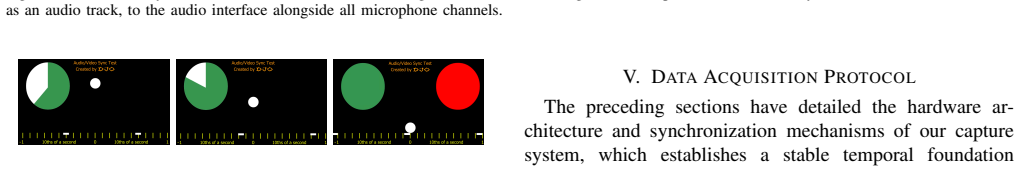

**Figure 8.** Figure 8: Illustration of the audio-video synchronization test stimulus. The [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗

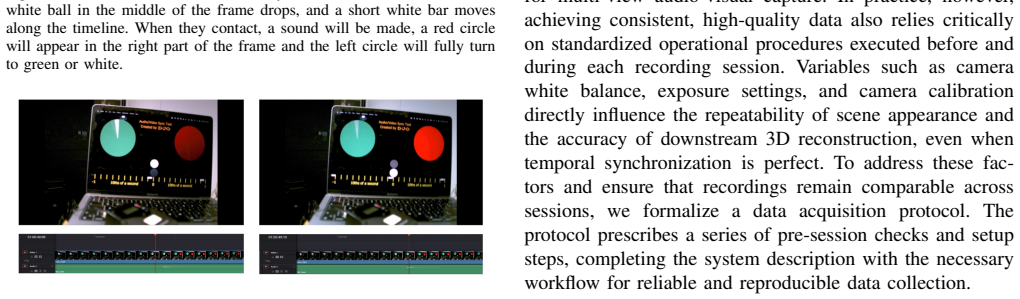

**Figure 9.** Figure 9: Illustration of the audio-video alignment result. The onset of the [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗

**Figure 10.** Figure 10: Example from the multi-person conversational interaction dataset. [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗

**Figure 11.** Figure 11: (Left) Example images of single-subject talking head generation dataset, demonstrating different features of the dataset. To protect participant [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗

read the original abstract

Multi-view capture systems have been an important tool in research for recording human motion under controlling conditions. Most existing systems are specified around video streams and provide little or no support for audio acquisition and rigorous audio-video alignment, despite both being essential for studying conversational interaction where timing at the level of turn-taking, overlap, and prosody matters. In this technical report, we describe an audio-visual multi-view capture system that addresses this gap by treating synchronized audio and synchronized video as first-class signals. The system combines a multi-camera pipeline with multi-channel microphone recording under a unified timing architecture and provides a practical workflow for calibration, acquisition, and quality control that supports repeatable recordings at scale. We quantify synchronization performance in deployment and show that the resulting recordings are temporally consistent enough to support fine-grained analysis and data-driven modeling of conversation behavior.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a practical engineering report on an integrated audio-visual multi-view capture system that makes synchronization a core design goal.

read the letter

The main point is a system that combines multi-camera video with multi-channel audio recording under a single timing architecture, plus a workflow for calibration and quality control. They show through deployment measurements that the recordings stay temporally consistent enough for analyzing turn-taking, overlap, and prosody in conversations. This fills a clear gap because most multi-view setups treat audio as secondary and do not enforce tight alignment from the start. The unified timing approach and repeatable workflow are the concrete advances, and the performance numbers provide direct evidence that the setup works in practice. The paper stays grounded as a technical report rather than claiming new theory. On the soft side, the evidence is empirical from their own deployments, so it would be stronger with more precise error metrics, comparisons to prior capture rigs, and tests under a wider range of hardware or environmental conditions. The assumption that the architecture prevents drift across sessions is reasonable given their calibration steps, but it is not exhaustively stress-tested in the description. Nothing in the work looks circular or internally inconsistent. This is useful for labs or projects that need to collect conversational datasets at scale. Readers building multimodal recording setups or studying social interaction signals will get direct, applicable details. I would send it for peer review as a solid, scoped contribution that others can build on or replicate.

Referee Report

0 major / 1 minor

Summary. The paper describes an audio-visual multi-view capture system that integrates a multi-camera pipeline with multi-channel microphone recording under a unified timing architecture. It provides workflows for calibration, acquisition, and quality control to support repeatable recordings at scale, and quantifies synchronization performance in deployment to show that the recordings achieve temporal consistency sufficient for fine-grained analysis of conversational behavior such as turn-taking, overlap, and prosody.

Significance. If the reported synchronization holds, the work fills a clear gap in existing multi-view systems that focus primarily on video and provide limited support for rigorous audio-video alignment. By treating synchronized audio as a first-class signal and supplying empirical validation from deployment, the system enables more accurate data collection for research on human conversation and data-driven modeling. The emphasis on practical, scalable workflows is a strength for applications requiring repeatable multi-view recordings.

minor comments (1)

[Results/Deployment Quantification] The quantification of synchronization performance would be strengthened by including specific details on the exact error metrics (e.g., mean offset, standard deviation, maximum drift) and testing conditions (e.g., recording durations, number of sessions, environmental factors) used in the deployment measurements.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the supportive summary and recommendation for minor revision. The assessment correctly identifies the system's focus on unified timing for audio-visual data suitable for fine-grained conversational analysis.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper is an engineering system description of a multi-view audio-visual capture setup. Its core claim is an empirical quantification of synchronization performance in deployment, supported by direct measurements rather than any derivation chain, fitted parameters, or self-citation load-bearing premises. No equations, predictions, or uniqueness theorems are present that could reduce to inputs by construction. The work is self-contained against external benchmarks of hardware timing and calibration workflows.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The system relies on standard hardware synchronization techniques and calibration methods from prior multi-view capture literature without introducing new free parameters, axioms beyond domain standards, or invented entities.
