arxiv: 2603.24062 · v3 · submitted 2026-03-25 · 💻 cs.IT · math.IT

Rydberg Atomic Quantum Receivers for Wireless Communications: Two-Color vs. Three-Color Excitation

Jian Xiao , Tierui Gong , Ji Wang , Erry Gunawan , Chau Yuen This is my paper

Pith reviewed 2026-05-15 00:52 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords Rydberg atomic quantum receiverthree-color excitationDoppler cancellationwireless communicationssensitivitylow-frequency detectionLiouvillian superoperator
0
0 comments X

The pith

A three-color laser scheme for Rydberg atomic receivers cancels Doppler broadening and reaches higher sensitivity than two-color designs or conventional antennas.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines a three-color laser excitation architecture for Rydberg atomic quantum receivers that uses a five-level atomic transition instead of the usual two-color four-level setup. This change replaces unstable blue lasers with stable red or infrared ones while creating a three-photon resonance that cancels residual Doppler shifts in thermal atoms. The new approach also removes the energy-level barrier that previously blocked low-frequency signal detection. An end-to-end baseband model is derived and performance is computed with the Liouvillian superoperator, showing better sensitivity and broader spectrum access at the cost of a sensitivity-capacity trade-off that favors power-limited links.

Core claim

The 3C5L-RAQR architecture with three-photon resonance enables effective Doppler cancellation and low-frequency detection while using all-red/infrared lasers, producing superior sensitivity compared to the conventional 2C4L-RAQR and classical conductor-antenna receivers, as shown by numerical evaluation of sensitivity, achievable capacity, and spectrum access range.

What carries the argument

Three-photon resonance in the five-level electronic transition system, which simultaneously cancels Doppler broadening and relaxes the two-photon energy constraint to permit low-frequency detection.

If this is right

  • The 3C5L-RAQR exhibits higher sensitivity than both the 2C4L-RAQR and classical conductor-antenna receivers.
  • Low-frequency wireless bands become detectable because the three-photon process removes the two-photon energy-level constraint.
  • An inherent sensitivity-capacity trade-off exists, making the 3C5L-RAQR preferable for power-limited scenarios that need wide spectrum access.
  • Exact numerical solutions for realistic RAQRs are obtained by applying the Liouvillian superoperator formalism to the five-level master equation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same multi-color resonance principle could be adapted to other atomic species or level schemes to target additional frequency bands without new laser hardware.
  • Hybrid systems that combine 3C5L-RAQRs with conventional antennas might extend coverage in mixed indoor-outdoor wireless networks.
  • Real-time calibration routines could be developed to maintain the three-photon resonance condition under varying temperature or laser-intensity drifts.

Load-bearing premise

The three-photon resonance in the five-level system enables effective Doppler cancellation and low-frequency detection without introducing new noise sources or requiring impractical laser stability.

What would settle it

A laboratory measurement of signal-to-noise ratio for the same weak RF field at low carrier frequency using an actual 3C5L five-level atomic vapor versus a 2C4L four-level vapor would directly test whether the predicted sensitivity gain appears.

Figures

Figures reproduced from arXiv: 2603.24062 by Chau Yuen, Erry Gunawan, Jian Xiao, Ji Wang, Tierui Gong.

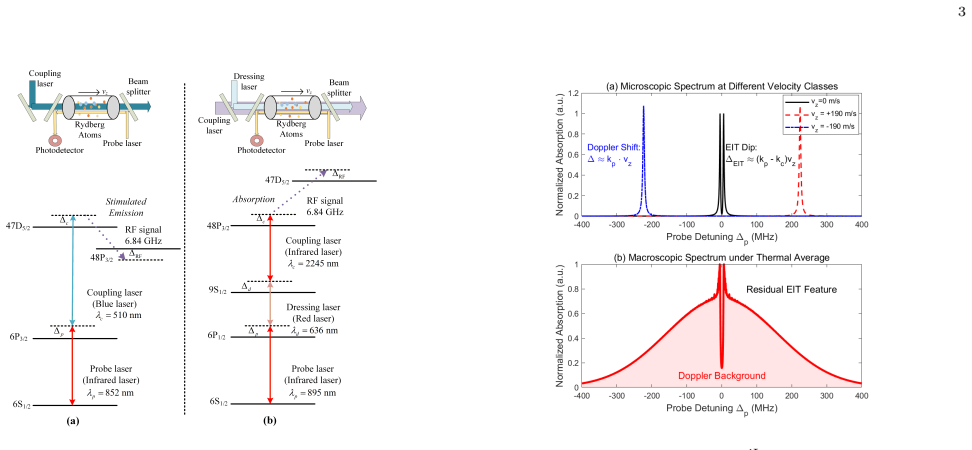

Figure 2
Figure 2. Figure 2: EIT absorption spectrum [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

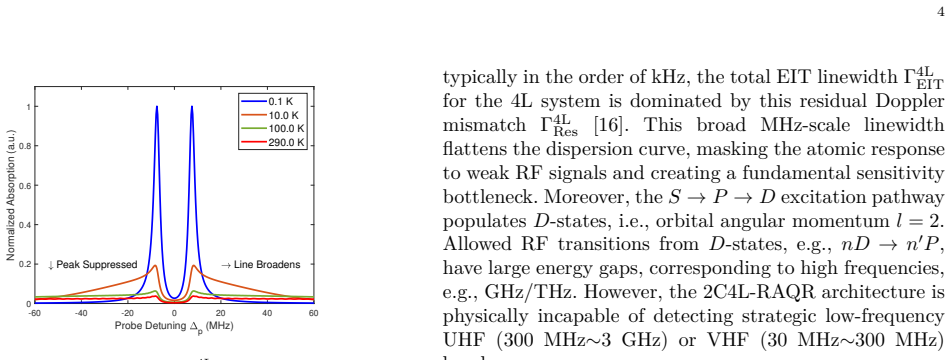

Figure 3
Figure 3. Figure 3: EIT absorption spectrum ℑ(ˆρ 4L 21 ) vs. probe detuning ∆p for different thermal-atom temperature Tatom of vapor cell. the Doppler effect ∆j (⃗v) = ∆j − ⃗kj⃗v, where ⃗kj is the wavevector of the j-th laser field. To minimize the Doppler mismatch, the probe and coupling beams are configured to be counter-propagating. We define the propagation direction of the probe beam as the positive z-axis and vz is the … view at source ↗

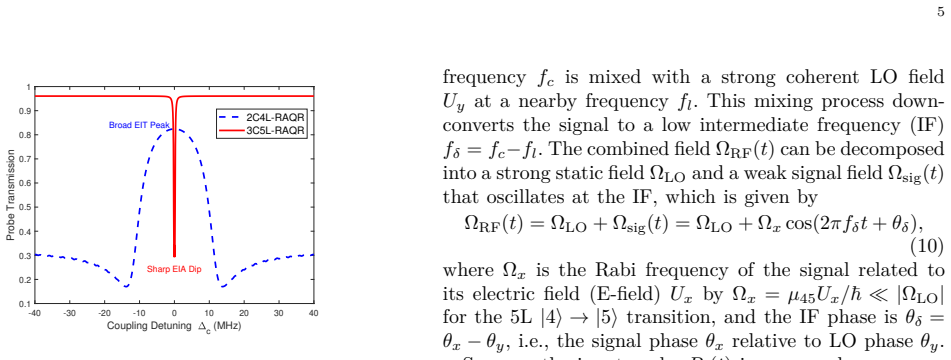

Figure 4
Figure 4. Figure 4: Transmission spectrum vs. coupling detuning [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

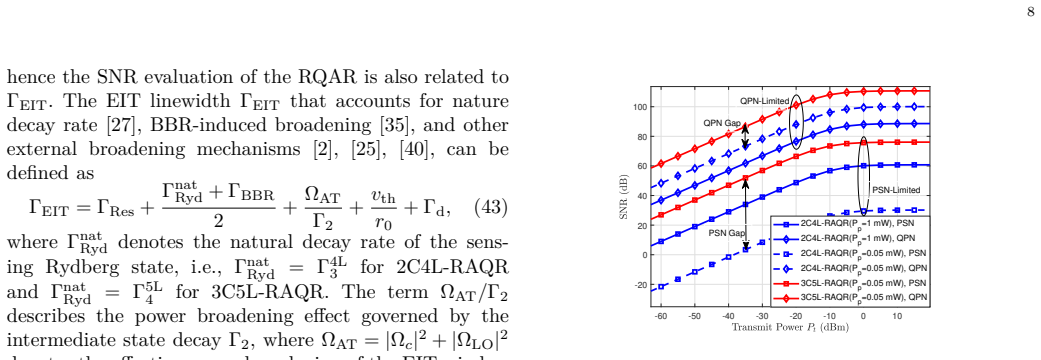

Figure 5
Figure 5. Figure 5: SNR performance under different noise regimes of RAQRs. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

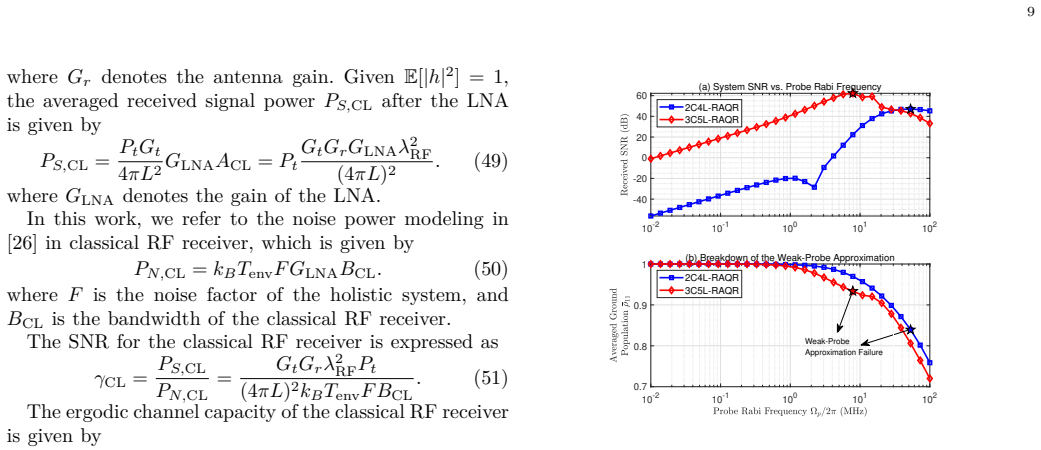

Figure 6
Figure 6. Figure 6: Probe laser intensity vs. SNR and ground-state atom [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

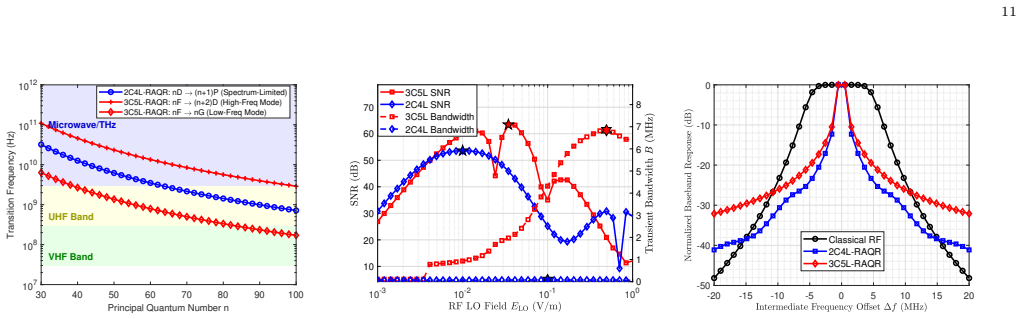

Figure 7
Figure 7. Figure 7: Spectrum access range of RAQRs. 10-3 10-2 10-1 100 10 20 30 40 50 60 70 0 1 2 3 4 5 6 7 8 3C5L SNR 2C4L SNR 3C5L Bandwidth 2C4L Bandwidth [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

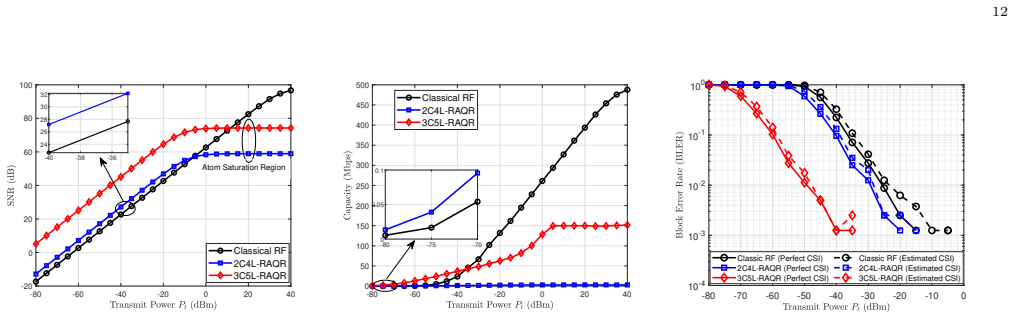

Figure 10
Figure 10. Figure 10: Transmitting power Pt vs. SNR. -80 -60 -40 -20 0 20 40 0 50 100 150 200 250 300 350 400 450 500 Classical RF 2C4L-RAQR 3C5L-RAQR -80 -75 -70 0 0.05 0.1 [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
read the original abstract

An efficient three-color (3C) laser excitation-based Rydberg atomic quantum receiver (RAQR) architecture is investigated for wireless communications, utilizing a five-level (5L) electronic transition mechanism. Specifically, the conventional two-color (2C) RAQR with the four-level (4L) excitation faces three fundamental obstacles: 1) high cost and engineering challenges due to the reliance on unstable blue lasers; 2) a fundamental sensitivity limit in thermal atoms caused by residual Doppler broadening; and 3) the inability to detect low-frequency bands due to the energy-level constraint of two-photon resonance. To address these challenges, this paper analyzes a 3C5L-RAQR architecture with all-red/infrared lasers, which not only solves the engineering cost issues but also enables effective Doppler cancellation and low-frequency detection by exhibiting the three-photon resonance. Bridging atomic physics and communication theory, an end-to-end equivalent baseband signal model is derived. Furthermore, the performance of different RAQR architectures is evaluated in terms of sensitivity, achievable capacity and spectrum access range. Moreover, we provide an exact numerical solution for practical RAQRs by employing the Liouvillian superoperator formalism. Numerical results demonstrate that the exhibited 3C5L-RAQR achieves superior sensitivity compared to the conventional 2C4L-RAQR and the classical receiver based on the conductor antenna. Finally, the inherent sensitivity-capacity trade-off is revealed, showing that the 3C5L-RAQR is more suitable for deployment in power-limited communication scenarios demanding broad spectrum access.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a three-color five-level Rydberg atomic quantum receiver (3C5L-RAQR) using all red/IR lasers to overcome limitations of conventional two-color four-level (2C4L-RAQR) systems, including blue-laser instability, residual Doppler broadening in thermal atoms, and inability to detect low-frequency bands. It derives an end-to-end baseband signal model, solves the five-level master equation numerically via the Liouvillian superoperator, and evaluates sensitivity, capacity, and spectrum access, claiming superior sensitivity for 3C5L-RAQR over 2C4L-RAQR and classical antenna receivers while identifying a sensitivity-capacity trade-off.

Significance. If the derived model and numerics hold under realistic conditions, the work could advance practical Rydberg-based receivers by eliminating unstable blue lasers and enabling Doppler cancellation plus low-frequency operation. The explicit bridging of atomic physics with communication-theoretic metrics (capacity, spectrum access) and the use of the Liouvillian formalism for reproducible numerics are strengths that could influence quantum-enhanced wireless system design in power-limited regimes.

major comments (3)
  1. [Numerical Results / Liouvillian Formalism] The Liouvillian-based numerical solution (described in the performance evaluation section) omits finite laser linewidths as additional dephasing terms in the master equation. Without these, the reported sensitivity advantage of 3C5L-RAQR over 2C4L-RAQR may be an artifact of an idealized noise model rather than a robust physical result.
  2. [System Model / Three-Photon Resonance] The claim of effective Doppler cancellation via three-photon resonance assumes exact wavevector matching (k1 + k2 + k3 = 0) for the chosen red/IR wavelengths, but the end-to-end baseband model derivation does not explicitly verify residual velocity-dependent detuning or quantify the cancellation for thermal velocity distributions.
  3. [Numerical Results] The numerical results demonstrating superior sensitivity (abstract and results section) rest on the weakest assumption that three-photon resonance introduces no new noise sources; the manuscript should include a sensitivity analysis with imperfect cancellation or laser phase noise to support the central claim.
minor comments (2)
  1. [Abstract] The abstract states 'exact numerical solution' via Liouvillian; clarify whether this is an exact closed-form or a numerical matrix exponentiation of the superoperator.
  2. [Baseband Model Derivation] Notation for the baseband equivalent model (e.g., signal mapping from RF field to atomic coherence) could be made more explicit with a dedicated equation block for communication theorists.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We agree that the idealized assumptions in the noise model and Doppler cancellation require explicit verification to strengthen the central claims. We will revise the manuscript to incorporate finite laser linewidths as dephasing terms, add explicit quantification of residual Doppler effects for thermal distributions, and include sensitivity analysis under imperfect conditions. Point-by-point responses follow.

read point-by-point responses

  1. Referee: [Numerical Results / Liouvillian Formalism] The Liouvillian-based numerical solution (described in the performance evaluation section) omits finite laser linewidths as additional dephasing terms in the master equation. Without these, the reported sensitivity advantage of 3C5L-RAQR over 2C4L-RAQR may be an artifact of an idealized noise model rather than a robust physical result.

    Authors: We acknowledge that finite laser linewidths introduce additional dephasing not captured in the current monochromatic-laser assumption. In the revised manuscript we will augment the Liouvillian superoperator with explicit linewidth-induced dephasing rates for both the 3C5L and 2C4L architectures, then recompute the sensitivity, capacity, and spectrum-access metrics. This will establish whether the reported advantage persists under realistic laser conditions. revision: yes

  2. Referee: [System Model / Three-Photon Resonance] The claim of effective Doppler cancellation via three-photon resonance assumes exact wavevector matching (k1 + k2 + k3 = 0) for the chosen red/IR wavelengths, but the end-to-end baseband model derivation does not explicitly verify residual velocity-dependent detuning or quantify the cancellation for thermal velocity distributions.

    Authors: The selected red/IR wavelengths were chosen to satisfy k1 + k2 + k3 ≈ 0. We agree that the derivation should explicitly quantify residual velocity-dependent detuning. In the revision we will add an analytical expression for the residual detuning as a function of atomic velocity and numerically evaluate the cancellation efficiency over a Maxwell-Boltzmann thermal distribution at room temperature, reporting the resulting effective linewidth broadening. revision: yes

  3. Referee: [Numerical Results] The numerical results demonstrating superior sensitivity (abstract and results section) rest on the weakest assumption that three-photon resonance introduces no new noise sources; the manuscript should include a sensitivity analysis with imperfect cancellation or laser phase noise to support the central claim.

    Authors: We will add a dedicated sensitivity analysis that incorporates both imperfect wavevector matching (residual Doppler) and finite laser phase noise. The revised results section will present sensitivity curves for the 3C5L-RAQR under these non-ideal conditions alongside the ideal case and the 2C4L-RAQR benchmark, thereby directly supporting the superiority claim under realistic operating assumptions. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation uses standard Liouvillian formalism on independent physical model

full rationale

The paper derives an end-to-end baseband signal model for the 3C5L-RAQR by applying the standard Liouvillian superoperator to the five-level master equation, a first-principles method from quantum optics that does not reduce to fitted parameters or self-citations. Numerical sensitivity comparisons follow directly from solving these equations under stated assumptions about three-photon resonance and Doppler effects. No load-bearing step equates a prediction to its input by construction, renames a known result, or relies on an unverified self-citation chain; the formalism is externally verifiable and self-contained against atomic physics benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so specific free parameters, axioms, and invented entities cannot be extracted. The approach relies on standard atomic-physics assumptions for Rydberg states and the Liouvillian formalism for open quantum systems.
