arxiv: 2603.24992 · v3 · submitted 2026-03-26 · 💻 cs.CV

C2W-Tune: Cavity-to -Wall Transfer Learning for Thin Atrial Wall Segmentation in 3D LGE-MRI

Pith reviewed 2026-05-15 00:44 UTC · model grok-4.3

classification 💻 cs.CV
keywords left atrial wall segmentation3D LGE-MRItransfer learningcavity segmentationthin wallU-Netfibrosis quantificationmedical image segmentation
0
0 comments X

The pith

Transferring weights from a cavity segmentation model raises thin left atrial wall Dice from 0.623 to 0.814 in 3D LGE-MRI.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces C2W-Tune, a two-stage method that first trains a 3D U-Net to segment the left atrial cavity and then transfers those weights to segment the much thinner atrial wall. The transfer uses progressive layer unfreezing to keep useful cavity features while refining for wall detail. This addresses the low contrast and thin geometry that make direct wall segmentation unreliable in late gadolinium-enhanced MRI. Readers care because wall thickness maps and fibrosis measurements guide treatment decisions in atrial fibrillation. Experiments on the 2018 LA Segmentation Challenge dataset show clear gains over an identical network trained from scratch on wall labels alone.

Core claim

C2W-Tune pre-trains a 3D U-Net with ResNeXt encoder and instance normalization on LA cavity segmentation to learn robust atrial representations, then transfers the weights to the wall task and adapts them with a progressive layer-unfreezing schedule. On the 2018 LA Segmentation Challenge dataset this produces a wall Dice of 0.814 versus 0.623 for the matched baseline, surface Dice at 1 mm of 0.731 versus 0.553, HD95 of 2.55 mm versus 2.95 mm, and ASSD of 0.63 mm versus 0.71 mm. The same transferred model reaches Dice 0.78 when trained on only 70 volumes.

What carries the argument

C2W-Tune, the cavity-to-wall transfer framework that pre-trains on cavity segmentation then applies progressive layer-unfreezing to adapt the same 3D U-Net for wall segmentation.

If this is right

  • Wall thickness mapping and fibrosis quantification become more reliable with the higher Dice and lower surface distances.
  • The approach stays competitive even when only 70 labeled wall volumes are available.
  • Progressive unfreezing preserves cavity features while allowing wall-specific refinement without major hyperparameter changes.
  • The method reduces dependence on large wall-specific annotation sets by reusing cavity models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cavity-to-wall transfer idea could be tested on other thin cardiac or vascular structures where cavity data are easier to obtain than wall labels.
  • An end-to-end multi-task model that jointly predicts cavity and wall might remove the need for staged fine-tuning.
  • If the cavity prior creates unwanted shape bias, adding a small adversarial term during fine-tuning could be checked as a simple extension.

Load-bearing premise

The cavity segmentation features remain useful anatomical priors for the wall task and do not introduce shape biases that hurt thin-wall accuracy during fine-tuning.

What would settle it

Training the identical 3D U-Net architecture from scratch on the full wall-labeled dataset and reaching wall Dice of 0.814 or higher would show that cavity pre-training adds no benefit.

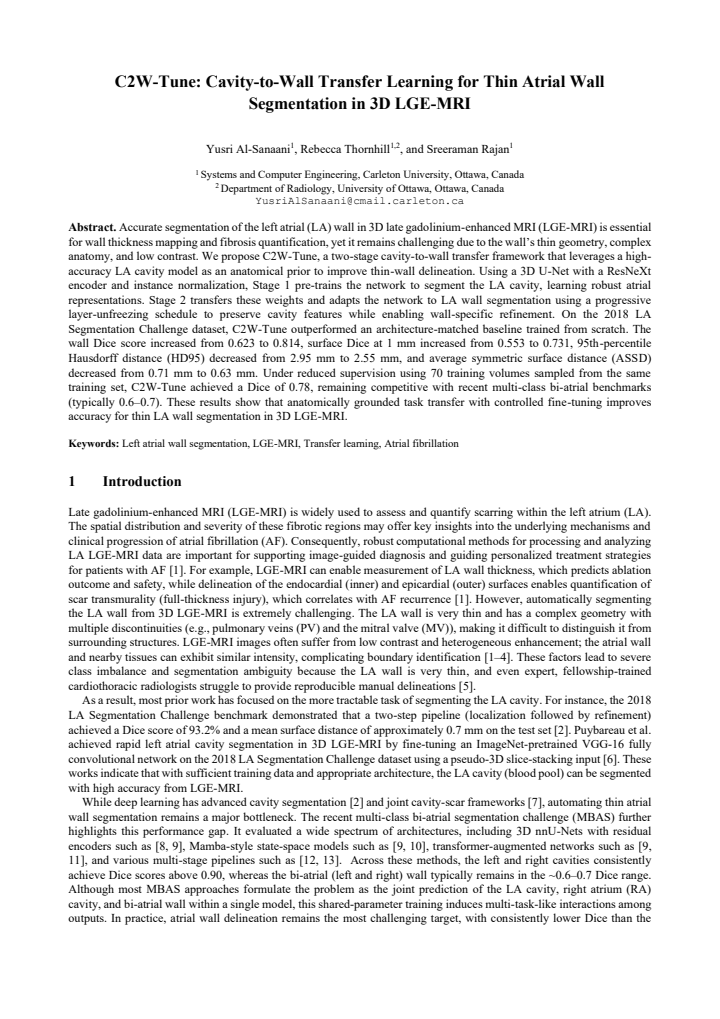

read the original abstract

Accurate segmentation of the left atrial (LA) wall in 3D late gadolinium-enhanced MRI (LGE-MRI) is essential for wall thickness mapping and fibrosis quantification, yet it remains challenging due to the wall's thin geometry, complex anatomy, and low contrast. We propose C2W-Tune, a two-stage cavity-to-wall transfer framework that leverages a high-accuracy LA cavity model as an anatomical prior to improve thin-wall delineation. Using a 3D U-Net with a ResNeXt encoder and instance normalization, Stage 1 pre-trains the network to segment the LA cavity, learning robust atrial representations. Stage 2 transfers these weights and adapts the network to LA wall segmentation using a progressive layer-unfreezing schedule to preserve cavity features while enabling wall-specific refinement. On the 2018 LA Segmentation Challenge dataset, C2W-Tune outperformed an architecture-matched baseline trained from scratch. The wall Dice score increased from 0.623 to 0.814, surface Dice at 1 mm increased from 0.553 to 0.731, 95th-percentile Hausdorff distance (HD95) decreased from 2.95 mm to 2.55 mm, and average symmetric surface distance (ASSD) decreased from 0.71 mm to 0.63 mm. Under reduced supervision using 70 training volumes sampled from the same training set, C2W-Tune achieved a Dice of 0.78, remaining competitive with recent multi-class bi-atrial benchmarks, typically 0.6-0.7. These results show that anatomically grounded task transfer with controlled fine-tuning improves accuracy for thin LA wall segmentation in 3D LGE-MRI.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes C2W-Tune, a two-stage transfer learning framework for thin left atrial wall segmentation in 3D LGE-MRI. Stage 1 pre-trains a 3D U-Net with ResNeXt encoder and instance normalization on LA cavity segmentation; Stage 2 transfers the weights and fine-tunes for wall segmentation via progressive layer-unfreezing. On the 2018 LA Segmentation Challenge dataset, C2W-Tune improves wall Dice from 0.623 to 0.814, surface Dice at 1 mm from 0.553 to 0.731, HD95 from 2.95 mm to 2.55 mm, and ASSD from 0.71 mm to 0.63 mm over an architecture-matched scratch baseline, with competitive performance under reduced supervision (70 volumes, Dice 0.78).

Significance. If the gains hold after controlling for the fine-tuning protocol, the work demonstrates a practical way to inject anatomical priors from an easier cavity task into thin-wall segmentation, which is clinically relevant for wall-thickness mapping and fibrosis quantification. The evaluation on a public benchmark with multiple complementary surface metrics (Dice, surface Dice, HD95, ASSD) provides a solid empirical foundation.

major comments (2)
  1. [Experimental results] Experimental results (comparison to baseline): the headline improvements (wall Dice 0.623→0.814) compare C2W-Tune (cavity pretrain + progressive unfreezing) against a scratch baseline, but no ablation applies the identical Stage-2 unfreezing schedule and hyperparameters to a randomly initialized network. Without this control, the contribution of transferable cavity priors cannot be isolated from the fine-tuning procedure itself.
  2. [Methods] Methods section: training schedules, exact data splits, and statistical testing (e.g., significance of the reported metric differences) are not fully detailed, which prevents independent verification of the quantitative claims on the public dataset.
minor comments (1)
  1. The abstract and results could explicitly state the number of volumes and any cross-validation strategy used in the reduced-supervision experiment for reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the contributions of our work. We address each major point below and will revise the manuscript to incorporate the suggested improvements.

read point-by-point responses
  1. Referee: [Experimental results] Experimental results (comparison to baseline): the headline improvements (wall Dice 0.623→0.814) compare C2W-Tune (cavity pretrain + progressive unfreezing) against a scratch baseline, but no ablation applies the identical Stage-2 unfreezing schedule and hyperparameters to a randomly initialized network. Without this control, the contribution of transferable cavity priors cannot be isolated from the fine-tuning procedure itself.

    Authors: We agree that an ablation applying the identical Stage-2 progressive unfreezing schedule to a randomly initialized network is required to isolate the benefit of the cavity priors. In the revised manuscript we will add this control experiment and report the full set of metrics (Dice, surface Dice, HD95, ASSD) for direct comparison. revision: yes

  2. Referee: [Methods] Methods section: training schedules, exact data splits, and statistical testing (e.g., significance of the reported metric differences) are not fully detailed, which prevents independent verification of the quantitative claims on the public dataset.

    Authors: We will expand the Methods section to include the complete training schedules (learning rates, number of epochs per stage, batch sizes, and the precise progressive unfreezing protocol), the exact data splits used from the 2018 LA Segmentation Challenge, and statistical significance testing (paired t-tests with p-values) for all reported metric differences. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents an empirical transfer-learning pipeline (cavity pre-training followed by progressive unfreezing for wall segmentation) whose performance claims rest on direct numerical comparisons against an architecture-matched from-scratch baseline on the external 2018 LA Segmentation Challenge dataset. No equations, fitted parameters, or self-referential definitions appear that would reduce the reported Dice or surface-distance gains to quantities defined by the method itself. The central results are therefore independent of the method's own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method relies on standard deep-learning assumptions about U-Net feature reuse and transferability of cavity features to wall boundaries; no new entities or fitted constants beyond ordinary training hyperparameters are introduced.

axioms (1)
  • domain assumption Features learned for cavity segmentation remain useful priors for wall segmentation after controlled fine-tuning
    Invoked in the description of Stage 2 transfer and progressive unfreezing

pith-pipeline@v0.9.0 · 5636 in / 1258 out tokens · 25143 ms · 2026-05-15T00:44:46.005523+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages

  1. [1]

    Li, L., Zimmer, V.A., Schnabel, J.A., Zhuang, X.: Medical image analysis on left atrial LGE MRI for atrial fibrillation studies: a review. Med. Image Anal. 77, 102360 (2022). https://doi.org/10.1016/j.media.2022.102360

  2. [2]

    A global benchmark of algorithms for segmenting the left atrium from late gadolinium-enhanced cardiac magnetic resonance imaging,

    Xiong, Z. et al.: A global benchmark of algorithms for segmenting the left atrium from late gadolinium-enhanced cardiac magnetic resonance imaging. Med. Image Anal. 67, 101832 (2021). https://doi.org/10.1016/j.media.2020.101832

  3. [3]

    Maceira, A.M., Cosín-Sales, J., Roughton, M., Prasad, S.K., Pennell, D.J.: Reference left atrial dimensions and volumes by steady state free precession cardiovascular magnetic resonance. J. Cardiovasc. Magn. Reson. 12, 65 (2010). https://doi.org/10.1186/1532- 429X-12-65

  4. [4]

    et al.: A robust computational framework for estimating 3D bi-atrial chamber wall thickness

    Wang, Y. et al.: A robust computational framework for estimating 3D bi-atrial chamber wall thickness. Comput. Biol. Med. 114, 103444 (2019). https://doi.org/10.1016/j.compbiomed.2019.103444

  5. [5]

    Petitjean, C., Dacher, J.-N.: A review of segmentation methods in short axis cardiac MR images. Med. Image Anal. 15(2), 169– 184 (2011). https://doi.org/10.1016/j.media.2010.12.004

  6. [6]

    et al.: Left atrial segmentation in a few seconds using fully convolutional network and transfer learning

    Puybareau, É. et al.: Left atrial segmentation in a few seconds using fully convolutional network and transfer learning . In: Pop, M. et al. (eds.) Statistical Atlases and Computational Models of the Heart. Atrial Segmentation and LV Quantification Challenges. LNCS, vol. 11395, pp. 339–347. Springer International, Cham (2019). https://doi.org/10.1007/978-...

  7. [7]

    Li, L., Zimmer, V.A., Schnabel, J.A., Zhuang, X.: AtrialJSQnet: a new framework for joint segmentation and quantification of left atrium and scars incorporating spatial and shape information. Med. Image Anal. 76, (2022). https://doi.org/10.1016/j.media.2021.102303

  8. [8]

    An Ensemble of 3D Residual Encoder UNet Models for Solving Multi - class Bi-atrial Segmentation Challenge,

    Zolotarev, A., Johnson, K., Khan, A., Slabaugh, G., Roney, C.: An ensemble of 3D residual encoder UNet models for solving multi-class bi-atrial segmentation challenge. In: Camara, O., et al. (eds.) Statistical Atlases and Computational Models of the Heart. Workshop, CMRxRecon and MBAS Challenge Papers. LNCS, vol. 15448, pp. 209 –213. Springer, Cham (2025)...

  9. [9]

    Evaluating Convolution, Attention, and Mamba Based U -Net Models for Multi- class Bi -Atrial Segmentation from LGE-MRI,

    Thesing, C., Bueno-Orovio, A., Banerjee, A.: Evaluating convolution, attention, and Mamba based U-Net models for multi-class bi-atrial segmentation from LGE-MRI. In: Camara, O., et al. (eds.) Statistical Atlases and Computational Models of the Heart. Workshop, CMRxRecon and MBAS Challenge Papers. LNCS, vol. 15448, pp. 214 –225. Springer, Cham (2025). http...

  10. [10]

    Multi-loss 3D Segmentation for Enhanced Bi- atrial Segmentation,

    Almar-Munoz, E. et al.: Multi -loss 3D segmentation for enhanced bi-atrial segmentation. In: Camara, O., et al. (eds.) Statistical Atlases and Computational Models of the Heart. Workshop, CMRxRecon and MBAS Challenge Papers. LNCS, vol. 15448, pp. 236–244. Springer, Cham (2025). https://doi.org/10.1007/978-3-031-87756-8_24

  11. [11]

    In: Proc

    Zhang, Y., Cheng, Y., Qi, Y.: Exploring CNN and transformer architectures for multi -class bi -atrial segmentation from late gadolinium-enhanced MRI. In: Camara, O., et al. (eds.) Statistical Atlases and Computational Models of the Heart. Workshop, CMRxRecon and MBAS Challenge Papers. LNCS, vol. 15448, pp. 390–397. Springer, Cham (2025). https://doi.org/1...

  12. [12]

    In: Camara, O., et al

    Merino-Caviedes, S., Nnadozie, E.C., Moya-Sáez, E., Martín-Fernández, M., Alberola-López, C.: CavityBASNet: cavity-focused biatrial automatic segmentation on LGE-MRI with augmented input channel and left-right myocardium splitting. In: Camara, O., et al. (eds.) Statistical Atlases and Computational Models of the Heart. Workshop, CMRxRecon and MBAS Challen...

  13. [13]

    et al.: SegBAW-Net: segmentation of bi-atria and wall network offering valuable insights into challenge data

    Lefebvre, A.L. et al.: SegBAW-Net: segmentation of bi-atria and wall network offering valuable insights into challenge data. In: Camara, O., et al. (eds.) Statistical Atlases and Computational Models of the Heart. Workshop, CMRxRecon and MBAS Challenge Papers. LNCS, vol. 15448, pp. 345–356. Springer, Cham (2025). https://doi.org/10.1007/978-3-031-87756-8_34

  14. [14]

    arXiv preprint arXiv:2503.02892 (2025)

    Gunawardhana, M., Trew, M.L., Sands, G.B., Zhao, J.: Segmenting bi-atrial structures using ResNext based framework . arXiv preprint arXiv:2503.02892 (2025). https://doi.org/10.48550/arXiv.2503.02892

  15. [15]

    In: Wallach, H.M., Larochelle, H., Beygelzimer, A., d'Alché-Buc, F., Fox, E.A., Garnett, R

    Raghu, M., Zhang, C., Kleinberg, J., Bengio, S.: Transfusion: understanding transfer learning for medical imaging. In: Wallach, H.M., Larochelle, H., Beygelzimer, A., d'Alché-Buc, F., Fox, E.A., Garnett, R. (eds.) Advances in Neural Information Processing Systems 32, pp. 3342–3352. Curran Associates, Inc. (2019)

  16. [16]

    Adversarial discrim- inative domain adaptation,

    Xie, S., Girshick, R., Dollar, P., Tu, Z., He, K.: Aggregated residual transformations for deep neural networks . In: 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR) , pp. 5987 –5995. IEEE, Honolulu, HI (2017). https://doi.org/10.1109/CVPR.2017.634

  17. [17]

    et al.: Convolutional neural networks for medical image analysis: full training or fine tuning? IEEE Trans

    Tajbakhsh, N. et al.: Convolutional neural networks for medical image analysis: full training or fine tuning? IEEE Trans. Med. Imaging. 35(5), 1299–1312 (2016). https://doi.org/10.1109/TMI.2016.2535302

  18. [18]

    et al.: Domain generalization in deep learning for contrast-enhanced imaging

    Sendra-Balcells, C. et al.: Domain generalization in deep learning for contrast-enhanced imaging. Comput. Biol. Med. 149, 106052 (2022). https://doi.org/10.1016/j.compbiomed.2022.106052

  19. [19]

    , year =

    Ma, J. et al.: Loss odyssey in medical image segmentation. Med. Image Anal. 71, 102035 (2021). https://doi.org/10.1016/j.media.2021.102035

  20. [20]

    Zhang, Z., Wang, Z., Wang, X., Wang, K., Yuan, Y., Li, Q.: A novel network with enhanced edge information for left atrium segmentation from LGE-MRI. Front. Physiol. 15, 1478347 (2024). https://doi.org/10.3389/fphys.2024.1478347
