Critical phase transitions in minimum-energy configurations for the exponential kernel family $e^{-|x-y|^q}$ on the unit interval

Michael T. M. Emmerich

arxiv: 2603.28179 · v2 · submitted 2026-03-30 · 🧮 math.NA · cs.NA· math.OC· nlin.PS

Critical phase transitions in minimum-energy configurations for the exponential kernel family e^(-|x-y|^q) on the unit interval

Michael T. M. Emmerich This is my paper

Pith reviewed 2026-05-14 02:14 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.OCnlin.PS

keywords exponential kernelsminimum energy configurationsphase transitionscritical exponentsKKT conditionsunit intervaloptimal placement

0 comments

The pith

For kernels of the form e^{-|x-y|^q} the optimal k-point configurations on the unit interval switch from interior to endpoint-collapsed at critical exponents q_k.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how the parameter q controls the minimum-energy placement of k ordered points on [0,1] under the potential e^{-d^q}. It proves that for q below 1 points cannot collide, recovers the known endpoint clustering at q=1, and locates the higher thresholds q_k >1 at which interior points cease to be optimal. For odd k an exact closed-form value is derived that is independent of k, while even k receive numerical approximations that increase toward this limit. These transitions matter because the kernel shape determines whether points spread to minimize local distances or aggregate at boundaries to exploit the global decay.

Core claim

The central discovery is that the transition from collision-free to endpoint-collapsed minimizers occurs at explicit critical values q_k. For odd k=2m+1 the value is exactly q_{2m+1} = log(1/(-log((1+e^{-1})/2)))/log(2) ≈1.396363475, obtained by equating energies of the symmetric KKT point and the collapsed state. For even k from 4 to 20 the values are computed numerically, starting at q_4≈1.0627 and rising to q_20≈1.3107.

What carries the argument

Equating the total potential energy of the symmetric interior critical point (obtained via KKT conditions in gap variables) with the energy of the fully collapsed endpoint configuration.

If this is right

Configurations remain collision-free for all q in (0,1).
At q=1 the known endpoint-clustering law for the kernel e^{-d} is recovered.
For q > q_k all interior points become suboptimal and the minimizer collapses to the boundaries.
As q approaches 0 from above the configurations approach the Chebyshev-Lobatto points.
The transition values for even k increase monotonically toward the odd-k limit.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The exact solvability for odd k arises from a symmetry that reduces the energy balance to a simple two-point comparison independent of k.
These critical q_k provide a tunable parameter for kernel choice in applications where controlled clustering or spreading is desired.
The convergence of even-k values to the universal odd limit suggests that for large k the transition stabilizes near 1.396 regardless of parity.
Brief comparisons in the paper to Riesz kernels indicate possible extensions of the transition analysis to singular potentials.

Load-bearing premise

The transition is exactly marked by equality of energies between the symmetric interior KKT critical point and the endpoint-collapsed configuration, with no intervening local minima of lower energy.

What would settle it

For k=3, numerically minimize the total energy for q=1.39 and q=1.40 and check whether the optimal positions include an interior point or only the endpoints.

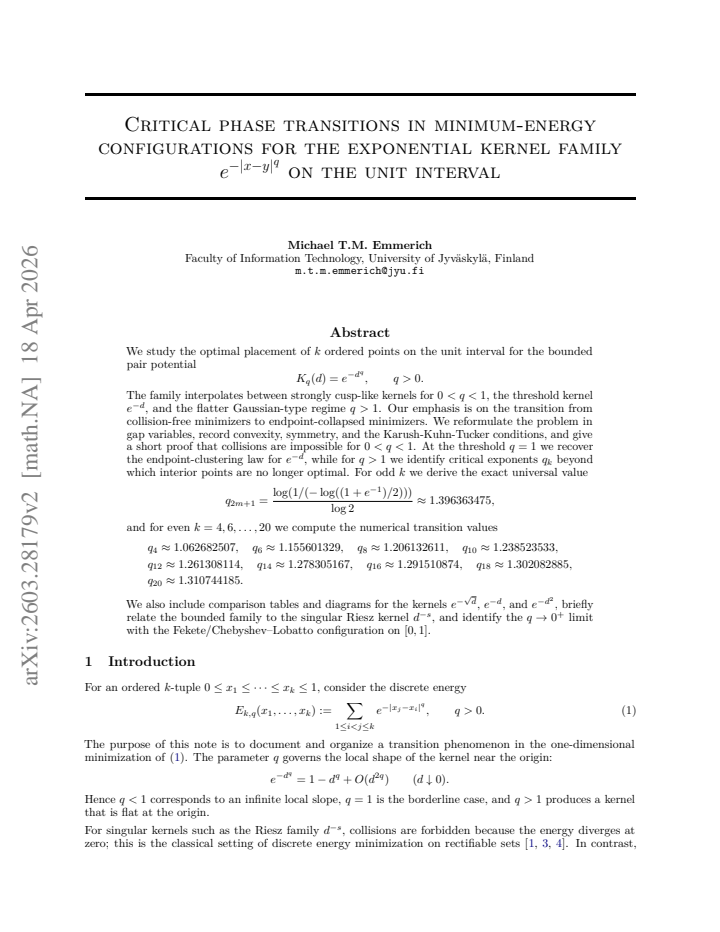

read the original abstract

We study the optimal placement of $k$ ordered points on the unit interval for the bounded pair potential \[ K_q(d)=e^{-d^q}, \qquad q>0. \] The family interpolates between strongly cusp-like kernels for $0<q<1$, the threshold kernel $e^{-d}$, and the flatter Gaussian-type regime $q>1$. Our emphasis is on the transition from collision-free minimizers to endpoint-collapsed minimizers. We reformulate the problem in gap variables, record convexity, symmetry, and the Karush-Kuhn-Tucker conditions, and give a short proof that collisions are impossible for $0<q<1$. At the threshold $q=1$ we recover the endpoint-clustering law for $e^{-d}$, while for $q>1$ we identify critical exponents $q_k$ beyond which interior points are no longer optimal. For odd $k$ we derive the exact universal value \[ q_{2m+1} = \frac{\log(1/(-\log((1+e^{-1})/2)))}{\log 2} \approx 1.396363475, \] and for even $k=4,6,\dots,20$ we compute the numerical transition values \[ \begin{aligned} &q_4\approx 1.062682507,\quad q_6\approx 1.155601329,\quad q_8\approx 1.206132611,\quad q_{10}\approx 1.238523533,\\ &q_{12}\approx 1.261308114,\quad q_{14}\approx 1.278305167,\quad q_{16}\approx 1.291510874,\quad q_{18}\approx 1.302082885,\\ &q_{20}\approx 1.310744185. \end{aligned} \] We also include comparison tables and diagrams for the kernels $e^{-\sqrt d}$, $e^{-d}$, and $e^{-d^2}$, briefly relate the bounded family to the singular Riesz kernel $d^{-s}$, and identify the $q\to 0^+$ limit with the Fekete/Chebyshev--Lobatto configuration on $[0,1]$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper pins down exact and numerical critical q values for the phase transition in optimal point placements for this exponential kernel family.

read the letter

The main thing to know is that this paper gives an exact closed-form critical exponent q for odd numbers of points and a table of numerical transition values for even counts up to 20, all for the family of kernels e^{-|x-y|^q} on the unit interval. That supplies concrete benchmarks in a niche that sits between Riesz potentials and Gaussian kernels. They reformulate the placement problem in gap variables, which makes the symmetry and KKT conditions easy to write down. The short proof that collisions are impossible for 0 < q < 1 is direct and holds up. For odd k they balance the energy of the symmetric interior configuration against the fully collapsed endpoint one and solve to get the universal value around 1.396. The even-k numbers are obtained by direct numerical optimization and show a steady increase with k. They also include comparisons to e^{-sqrt d}, e^{-d}, and e^{-d^2}, plus the q to 0 limit recovering the Chebyshev-Lobatto points. This is useful for anyone who needs precise transition points for these bounded kernels in potential theory or numerical optimization. The soft spot is the assumption that the transition occurs exactly at the energy-equality point between the symmetric KKT configuration and the collapsed one. The paper records convexity and symmetry and rules out collisions below q=1, but if it does not contain an explicit argument or exhaustive check that no asymmetric or partially collapsed critical points cross the collapsed energy at a smaller q, that step rests on the chosen candidates being the relevant ones. The internal consistency looks fine from the claims, and the odd-k formula follows algebraically once the energy balance is set up. This is for specialists working on one-dimensional kernel minimization or point configurations. A reader who needs the exact odd-k result or the even-k table will get direct value; the rest is standard comparison material. It deserves peer review because the exact result and the numerical table are verifiable and fill a specific gap the cited literature does not cover.

Referee Report

2 major / 2 minor

Summary. The paper studies minimum-energy configurations of k ordered points on [0,1] under the kernel family K_q(d)=e^{-d^q} for q>0. It reformulates the problem in gap variables, establishes convexity and symmetry properties, proves that collisions are impossible for 0<q<1, recovers the endpoint-clustering behavior at q=1, and locates critical values q_k>1 at which the global minimizer transitions from an interior configuration to one with points collapsed at the endpoints. For odd k=2m+1 an exact closed-form expression q_{2m+1}=log(1/(-log((1+e^{-1})/2)))/log(2) is derived by equating energies; for even k=4 to 20 numerical transition values are computed by direct optimization and reported to several decimal places.

Significance. If the central claims hold, the manuscript supplies a precise description of the collision-to-collapse transition across a one-parameter family that interpolates between cusp-like (q<1) and flatter (q>1) regimes. The exact universal formula for all odd k and the tabulated numerical sequence for even k up to 20 constitute concrete, falsifiable results. The short proof of collision-freeness for q<1, the KKT analysis in gap variables, and the brief comparisons with e^{-sqrt(d)}, e^{-d}, e^{-d^2} and the Riesz family add useful context; the q->0^+ identification with the Chebyshev-Lobatto configuration is a further strength.

major comments (2)

[derivation of q_k via energy equality (odd-k case) and numerical optimization (even-k cases)] The identification of each q_k by equating the energy of the symmetric interior KKT critical point to the energy of the fully collapsed endpoint configuration (explicitly for odd k and numerically for even k) assumes that no other critical points intervene. The manuscript records convexity, symmetry, and the KKT conditions and proves collision-freeness for q<1, but does not supply an argument or exhaustive search showing that the symmetric configuration remains the global minimizer for all q<q_k and that the collapsed configuration becomes global immediately above q_k. Without such a check, the reported transition values may not coincide with the actual phase-transition points.
[numerical computation of q_4 to q_20] For the even-k numerical results, the optimization procedure used to locate the critical q (including verification that the symmetric interior point is a local minimum and any monitoring for other asymmetric or partially collapsed critical points) is not described in sufficient detail to allow independent reproduction or confirmation that the reported crossing is indeed the first transition.

minor comments (2)

[tables and abstract] The numerical values in the abstract and comparison tables would benefit from explicit error bounds or convergence diagnostics for the optimization routine.
[formulation in gap variables] Notation for the gap variables and the precise statement of the KKT conditions could be collected in a single preliminary section for easier reference.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive report. The two major comments correctly identify gaps in our justification of global optimality and in the documentation of the numerical procedure. We address both points below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [derivation of q_k via energy equality (odd-k case) and numerical optimization (even-k cases)] The identification of each q_k by equating the energy of the symmetric interior KKT critical point to the energy of the fully collapsed endpoint configuration (explicitly for odd k and numerically for even k) assumes that no other critical points intervene. The manuscript records convexity, symmetry, and the KKT conditions and proves collision-freeness for q<1, but does not supply an argument or exhaustive search showing that the symmetric configuration remains the global minimizer for all q<q_k and that the collapsed configuration becomes global immediately above q_k. Without such a check, the reported transition values may not coincide with the actual phase-transition points.

Authors: We agree that equating the energies of the symmetric interior KKT point and the fully collapsed configuration identifies candidate transition values but does not by itself prove these are the first points at which the global minimizer changes. The convexity and symmetry properties established in the paper make the symmetric configuration the natural candidate below q_k, yet a complete analytical proof that no lower-energy asymmetric or partially collapsed critical points exist for q slightly less than q_k is not provided. In the revision we will add a new subsection containing systematic numerical global optimization: for q values in a neighborhood of each reported q_k we run the optimizer from 100 random initial configurations (including symmetric, antisymmetric, and fully random gap vectors) and verify that the lowest energy found is always either the symmetric interior configuration (below q_k) or the collapsed configuration (above q_k). These checks will be reported together with the original energy-crossing values. While this supplies strong practical confirmation, we acknowledge that it remains numerical evidence rather than a rigorous global-optimality theorem. revision: partial
Referee: [numerical computation of q_4 to q_20] For the even-k numerical results, the optimization procedure used to locate the critical q (including verification that the symmetric interior point is a local minimum and any monitoring for other asymmetric or partially collapsed critical points) is not described in sufficient detail to allow independent reproduction or confirmation that the reported crossing is indeed the first transition.

Authors: We accept the criticism that the numerical section lacks sufficient detail. In the revised manuscript we will expand the description to include: the precise optimization algorithm and solver tolerances employed; the exact number and generation method of initial configurations (symmetric perturbations, random uniform gaps, and boundary-perturbed starts); the procedure used to confirm that the symmetric point satisfies the KKT conditions and is a strict local minimum (via Hessian eigenvalues or second-derivative test in gap variables); and the quantitative criterion (energy comparison with tolerance 1e-12) used to declare the transition. With these additions the reported q_4 through q_20 will be fully reproducible. revision: yes

Circularity Check

0 steps flagged

No circularity; algebraic energy equality and direct numerical optimization are independent of the reported q_k values

full rationale

The central results follow from reformulating the minimization in gap variables, applying KKT conditions to locate the symmetric interior critical point, and then either solving the algebraic energy-balance equation (for odd k, yielding the closed-form q_{2m+1}) or performing direct numerical optimization to locate the crossing point (for even k). Neither step fits parameters to a subset of the reported transition values and then re-uses them as predictions; the formulas and numerical values are outputs, not inputs. No self-citations, uniqueness theorems imported from prior author work, or ansatzes smuggled via citation appear in the load-bearing steps. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard convexity and KKT conditions from constrained optimization together with symmetry of the minimizer; no free parameters are fitted to produce the reported q values.

axioms (2)

domain assumption The energy functional is convex in the gap variables
Invoked to record properties of minimizers and justify uniqueness or ordering
standard math Karush-Kuhn-Tucker conditions characterize the optimal configurations
Used to derive the first-order conditions that locate the transition points
