arxiv: 2603.28307 · v2 · submitted 2026-03-30 · 🪐 quant-ph

Local robust shadows on a trapped ion computer -- a case study

Jadwiga Wilkens , Milena Guevara-Bertsch , Marwa Marso , Mederika Zangerl , Florian Girtler , Albert Frisch , Juris Ulmanis , Ingo Roth

show 1 more author

Richard Kueng

This is my paper

Pith reviewed 2026-05-14 21:54 UTC · model grok-4.3

classification 🪐 quant-ph

keywords robust shadowstrapped ionsmeasurement errorserror mitigationPauli twirlingQAOAquantum state estimation

0 comments

The pith

Local robust shadows mitigate measurement errors from shortened pulses on trapped-ion computers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that alternating calibration with shadow estimation, combined with Pauli-X-twirling, recovers accurate estimates of quantum states even when measurement pulses are deliberately shortened to increase speed and error rates. This is tested on a local Haar random state plus two QAOA variants on an actual trapped-ion device. A sympathetic reader cares because the approach directly addresses a practical tradeoff: faster readout usually means noisier data, yet the protocol keeps the estimates usable without changing the hardware.

Core claim

The local robust shadow protocol, implemented by alternating calibration and estimation stages while applying Pauli-X-twirling in both, succeeds at mitigating the increased error rates that arise from shorter measurement pulse durations. This holds for a local Haar random state, standard QAOA states, and Pauli-correlation-encoded QAOA states on a trapped-ion quantum computer.

What carries the argument

The local robust shadow protocol, which alternates calibration and estimation stages and uses Pauli-X-twirling to symmetrize readout errors before measurement.

If this is right

Experiments can run faster by shortening measurement pulses while still obtaining usable state estimates.
The same mitigation works for both unstructured random states and structured QAOA states.
Pauli-X-twirling symmetrizes the dominant readout errors enough for the alternating protocol to correct them.
No hardware modification is required beyond the software-level calibration and twirling steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same calibration-twirling pattern could be tried on other platforms where readout time can be traded for noise.
If the errors stay stationary across longer runs, the method might scale to larger numbers of qubits without extra calibration overhead.
Combining this protocol with different twirling sets could address other error channels that are not fully symmetrized by X-twirling alone.

Load-bearing premise

The extra errors caused by shortening the pulses must remain stationary during the run and become sufficiently symmetric under Pauli-X-twirling for the alternating calibration to cancel them out.

What would settle it

Re-running the protocol with the same shortened pulses and finding that the mitigated shadow estimates deviate systematically from the known ideal values for the three tested states would falsify the claim.

Figures

Figures reproduced from arXiv: 2603.28307 by Albert Frisch, Florian Girtler, Ingo Roth, Jadwiga Wilkens, Juris Ulmanis, Marwa Marso, Mederika Zangerl, Milena Guevara-Bertsch, Richard Kueng.

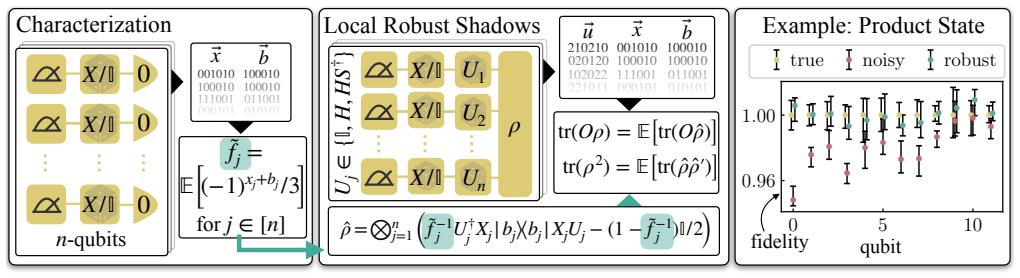

**Figure 1.** Figure 1: Local robust shadows with Pauli-X-twirling. Here, circuit diagrams go from left to right. Step I (left): characterize the read-out noise via twirling the zero state with a random bit-flip layer before read-out. Use the acquired data to estimate the noisy single-qubit expansion coefficients f˜ j . Step II (center): execute a sequential local shadow protocol with random single-qubit measurements and add an a… view at source ↗

**Figure 2.** Figure 2: Experimental data evaluation. Error bars denote 95% confidence intervals obtained from 20 parametric bootstrap samples. (a) Estimated local readout error probabilities pflip for different measurement pulse lengths, (b) Estimated two-qubit subsystem purities p (2) for the QAOA state across qubit pairs (150 µs). (c) Estimated Pauli correlators c (2) = ⟨PiPj ⟩ for the Pauli-correlation encoding (PCE) solution… view at source ↗

read the original abstract

We experimentally demonstrate local robust shadows on a trapped-ion quantum computing system, a protocol developed to counteract measurement errors. We alternate between a calibration stage and the shadow estimation stage and also introduce Pauli-X-twirling before measurements in both stages to symmetrize error rates. We then demonstrate the protocol on a trapped-ion quantum computer with artificially shortened measurement pulse duration. This yields faster experiments at the cost of increased error rates which are subsequently mitigated by the robust shadow protocol. We benchmark this approach on three exemplary quantum states: a local Haar random state, as well as standard and Pauli-correlation-encoded QAOA states. In all three cases, the local robust shadow protocol succeeds at mitigating the increased error rates hailing from shorter measurement pulse durations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a practical experimental case study showing local robust shadows mitigate errors from shortened pulses on trapped ions via Pauli-X-twirling and alternating calibration, but without explicit stationarity checks the causal link remains unproven.

read the letter

The main thing to know is that the authors took the existing local robust shadows protocol and ran it on a trapped-ion device with artificially shortened measurement pulses, adding Pauli-X-twirling in both calibration and estimation stages to symmetrize errors. They report that the approach succeeds at recovering the target states for a local Haar random state, a standard QAOA state, and a Pauli-correlation-encoded QAOA state despite the higher noise from faster pulses. This is a straightforward hardware application rather than a new theoretical derivation, but the concrete tweaks and the choice of three distinct test states make it a useful data point for near-term experiments. The work is honest about the trade-off between speed and error rate, and the alternating calibration-estimation loop is a reasonable way to learn the noise model on the fly. What stands out positively is that the protocol is described in enough detail for others to replicate the pulse shortening and twirling steps on similar hardware. The soft spot is the stationarity assumption flagged in the stress-test note. Shortened pulses can introduce drifts from laser intensity, motional heating, or fluorescence changes, and nothing in the abstract or framing shows interleaved calibration runs or variance measures on the learned noise parameters to confirm the errors stay consistent across stages. If those errors shift, the robust estimator could appear to work without actually driving the improvement. The abstract also gives no numbers, error bars, or comparison baselines, which keeps the strength of the mitigation claim modest. This paper is for experimental groups working on error mitigation and shadow tomography in trapped-ion systems. A reader already familiar with robust shadows would get value from seeing the platform-specific tuning and the three-state benchmark. It deserves peer review because the experimental setup is grounded and the protocol choices are reproducible, even though additional diagnostics on error stationarity would make the results more convincing.

Referee Report

1 major / 1 minor

Summary. The manuscript experimentally demonstrates a local robust shadow protocol on a trapped-ion quantum computer to mitigate measurement errors induced by shortened measurement pulses. The protocol alternates between a calibration stage and a shadow estimation stage, incorporating Pauli-X-twirling in both to symmetrize error rates. The authors benchmark the approach on three states—a local Haar random state, a standard QAOA state, and a Pauli-correlation-encoded QAOA state—claiming successful mitigation of the increased errors from faster measurements.

Significance. If the result holds, this case study provides a practical hardware demonstration of robust shadows for trading measurement speed against error rates in trapped-ion systems. It offers a concrete example of alternating calibration-estimation with twirling, which could inform error mitigation strategies on near-term devices where measurement overhead is a bottleneck.

major comments (1)

[Experimental Results] The central claim requires that errors from shortened pulses remain stationary and Pauli-X-twirlable across alternating calibration and estimation stages. No explicit stationarity diagnostic—such as interleaved repeated calibrations, variance in the learned noise model, or time-series checks on error rates—is described in the experimental results section. Without this, it is unclear whether the observed mitigation is causally due to the protocol or could arise from unaccounted drift.

minor comments (1)

[Abstract] The abstract states success on three states but provides no quantitative metrics (e.g., error reduction factors, shadow norm values, or fidelity comparisons with/without the protocol).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback on our manuscript. We address the major comment point by point below and have revised the manuscript to incorporate additional experimental diagnostics.

read point-by-point responses

Referee: [Experimental Results] The central claim requires that errors from shortened pulses remain stationary and Pauli-X-twirlable across alternating calibration and estimation stages. No explicit stationarity diagnostic—such as interleaved repeated calibrations, variance in the learned noise model, or time-series checks on error rates—is described in the experimental results section. Without this, it is unclear whether the observed mitigation is causally due to the protocol or could arise from unaccounted drift.

Authors: We agree that explicit stationarity diagnostics strengthen the central claim. The original manuscript describes alternating calibration and estimation stages with Pauli-X-twirling applied in both to symmetrize error rates, but we acknowledge that no explicit checks (e.g., time-series of error rates or variance in the learned noise model) were reported. In the revised manuscript we have added a dedicated paragraph and supplementary figure in the Experimental Results section. These present interleaved repeated calibrations performed throughout the data collection, together with the observed variance in the fitted noise parameters and a time-series plot of the effective measurement error rates. The data show that the error rates remained stationary within the experimental duration (variance < 5% across runs), confirming that the reported mitigation arises from the robust-shadow protocol rather than unaccounted drift. We have also clarified that the alternating schedule itself was designed to track slow drifts, and the new diagnostics quantify the residual stationarity. revision: yes

Circularity Check

0 steps flagged

No circularity in experimental demonstration of robust shadows

full rationale

The paper presents an experimental case study implementing local robust shadows on trapped-ion hardware. The protocol alternates calibration and estimation stages with Pauli-X-twirling to symmetrize errors, then benchmarks mitigation of increased error rates from shortened measurement pulses on three states (local Haar, QAOA, Pauli-encoded QAOA). All claims rest on observed empirical outcomes rather than any mathematical derivation, fitted parameters renamed as predictions, or self-citations that reduce the central result to its own inputs by construction. No equations or uniqueness theorems are invoked that would create self-definitional or load-bearing circularity. The protocol's success is externally falsifiable via the reported hardware data and does not collapse to tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that measurement errors induced by shortened pulses remain correctable by the robust shadow protocol after twirling; no free parameters or new entities are introduced in the abstract.

axioms (1)

domain assumption Measurement errors from shortened pulses in trapped-ion systems can be symmetrized and mitigated by Pauli-X-twirling combined with alternating calibration and estimation stages.
Invoked when claiming successful mitigation across the three tested states.

pith-pipeline@v0.9.0 · 5450 in / 1266 out tokens · 62529 ms · 2026-05-14T21:54:53.478372+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

We alternate between a calibration stage and the shadow estimation stage and also introduce Pauli-X-twirling before measurements in both stages to symmetrize error rates.
IndisputableMonolith/Foundation/AlphaCoordinateFixation.lean J_uniquely_calibrated_via_higher_derivative unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

the robust classical snapshot thus becomes ˆρ = ⊗_j (˜f_j^{-1} U_j^† X_j |b_j⟩⟨b_j| X_j U_j + (1−˜f_j^{-1})/2 I )

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

29 extracted references · 29 canonical work pages · 1 internal anchor

[1]

Correlation spectroscopy with multiqubit-enhanced phase estimation,

H. Hainzeret al., “Correlation spectroscopy with multiqubit-enhanced phase estimation,”Phys. Rev. X, vol. 14, p. 011033, 02 2024. https://link.aps.org/doi/10. 1103/PhysRevX.14.011033

work page 2024
[2]

Controlling two-dimensional coulomb crystals of more than 100 ions in a monolithic radio-frequency trap,

D. Kiesenhoferet al., “Controlling two-dimensional coulomb crystals of more than 100 ions in a monolithic radio-frequency trap,”PRX Quantum, vol. 4, p. 020317, 4 2023. https://link.aps.org/doi/10.1103/PRXQuantum.4. 020317

work page doi:10.1103/prxquantum.4 2023
[3]

Controlling long ion strings for quantum simulation and precision measurements,

F. Kranzlet al., “Controlling long ion strings for quantum simulation and precision measurements,”Phys. Rev. A, vol. 105, p. 052426, 5 2022. https://link.aps.org/ doi/10.1103/PhysRevA.105.052426

work page doi:10.1103/physreva.105.052426 2022
[4]

A Path to Scalable Quantum Computers,

S. Campbell, “A Path to Scalable Quantum Computers,” Physics, vol. 18, p. 40, Feb. 2025. https://physics.aps. org/articles/v18/40

work page 2025
[5]

A Race Track Trapped-Ion Quantum Processor,

S. A. Moseset al., “A Race Track Trapped-Ion Quantum Processor,”Physical Review X, vol. 13, no. 4, p. 041052, Dec. 2023, arXiv:2305.03828 [quant-ph]. http://arxiv.org/abs/2305.03828

work page arXiv 2023
[6]

Ibex Q1 Quantum Computer System,

Alpine Quantum Technologies GmbH, “Ibex Q1 Quantum Computer System,” 2026, accessed: 2025- 03-24. https://www.aqt.eu/products/ibex-q1/

work page 2026
[7]

Focus on quantum tomography,

K. Banaszek, M. Cramer, and D. Gross, “Focus on quantum tomography,”New Journal of Physics, vol. 15, no. 12, p. 125020, 12 2013. https://doi.org/10.1088/ 1367-2630/15/12/125020

work page 2013
[8]

Sample-optimal tomography of quantum states,

J. Haahet al., “Sample-optimal tomography of quantum states,” inProceedings of the Forty-Eighth Annual ACM Symposium on Theory of Computing, ser. STOC ’16. New York, NY , USA: Association for Computing Machinery, 2016, p. 913–925. https://doi.org/10.1145/ 2897518.2897585

work page arXiv 2016
[9]

Low rank matrix recovery from rank one measurements,

R. Kueng, H. Rauhut, and U. Terstiege, “Low rank matrix recovery from rank one measurements,” Applied and Computational Harmonic Analysis, vol. 42, no. 1, pp. 88–116, 2017. https://www.sciencedirect.com/ science/article/pii/S1063520315001037

work page 2017
[10]

Lower bounds for learning quantum states with single-copy measurements,

A. Lowe and A. Nayak, “Lower bounds for learning quantum states with single-copy measurements,”ACM Transactions on Computation Theory, vol. 17, no. 1, p. 1–42, Mar. 2025. http://dx.doi.org/10.1145/3717450

work page doi:10.1145/3717450 2025
[11]

Huang, R

H.-Y . Huang, R. Kueng, and J. Preskill, “Predicting Many Properties of a Quantum System from Very Few Measurements,”Nature Physics, vol. 16, no. 10, pp. 1050–1057, Oct. 2020, arXiv:2002.08953 [quant-ph]. http://arxiv.org/abs/2002.08953

work page arXiv 2020
[12]

The randomized measurement toolbox,

A. Elbenet al., “The randomized measurement toolbox,” Nature Reviews Physics, vol. 5, no. 1, p. 9–24, Dec

work page
[13]

http://dx.doi.org/10.1038/s42254-022-00535-2

work page doi:10.1038/s42254-022-00535-2
[14]

Model- free readout-error mitigation for quantum expectation values,

E. v. d. Berg, Z. K. Minev, and K. Temme, “Model- free readout-error mitigation for quantum expectation values,”Physical Review A, vol. 105, no. 3, p. 032620, Mar. 2022, arXiv:2012.09738 [quant-ph]. http: //arxiv.org/abs/2012.09738

work page arXiv 2022
[15]

Mitigation of readout noise in near-term quantum devices by classical post-processing based on detector tomography,

F. B. Maciejewski, Z. Zimborás, and M. Oszmaniec, “Mitigation of readout noise in near-term quantum devices by classical post-processing based on detector tomography,”Quantum, vol. 4, p. 257, Apr. 2020. https://doi.org/10.22331/q-2020-04-24-257

work page doi:10.22331/q-2020-04-24-257 2020
[16]

Robust shadow estimation,

S. Chenet al., “Robust shadow estimation,”PRX Quantum, vol. 2, no. 3, p. 030348, Sep. 2021, arXiv:2011.09636 [quant-ph]. http://arxiv.org/abs/2011. 09636

work page arXiv 2021
[17]

Group-theoretic error miti- gation enabled by classical shadows and symmetries,

A. Zhao and A. Miyake, “Group-theoretic error miti- gation enabled by classical shadows and symmetries,” npj Quantum Information, vol. 10, no. 1, Jun. 2024. http://dx.doi.org/10.1038/s41534-024-00854-5

work page doi:10.1038/s41534-024-00854-5 2024
[18]

Robust ultra-shallow shadows,

R. M. S. Fariaset al., “Robust ultra-shallow shadows,” Quantum Science and Technology, vol. 10, no. 2, p. 025044, Mar. 2025. http://dx.doi.org/10.1088/2058-9565/ adc14f

work page doi:10.1088/2058-9565/ 2025
[19]

Compressive gate set tomography,

R. Brieger, I. Roth, and M. Kliesch, “Compressive gate set tomography,”PRX Quantum, vol. 4, no. 1, p. 010325, 2023

work page 2023
[20]

Robust estimation of the quantum fisher information on a quantum processor,

V . Vitaleet al., “Robust estimation of the quantum fisher information on a quantum processor,”PRX Quantum, vol. 5, no. 3, Aug. 2024. http://dx.doi.org/10.1103/ PRXQuantum.5.030338

work page 2024
[21]

Demonstration of Robust and Efficient Quantum Property Learning with Shallow Shadows,

H.-Y . Huet al., “Demonstration of Robust and Efficient Quantum Property Learning with Shallow Shadows,”Nature Communications, vol. 16, no. 1, p. 2943, Mar. 2025, arXiv:2402.17911 [quant-ph]. http://arxiv.org/abs/2402.17911

work page arXiv 2025
[22]

Observing the quantum mpemba effect in quantum simulations,

L. K. Joshiet al., “Observing the quantum mpemba effect in quantum simulations,”Phys. Rev. Lett., vol. 133, p. 010402, 7 2024. https://link.aps.org/doi/10.1103/ PhysRevLett.133.010402

work page 2024
[23]

Measuring full counting statistics in a trapped-ion quantum simulator,

L. K. Joshiet al., “Measuring full counting statistics in a trapped-ion quantum simulator,”Physical Review Letters, vol. 135, no. 16, Oct. 2025. http://dx.doi.org/10. 1103/gyvf-s5bd

work page 2025
[24]

Stability of classical shadows under gate-dependent noise,

R. Briegeret al., “Stability of classical shadows under gate-dependent noise,”Physical Review Letters, vol. 134, no. 9, p. 090801, 2025

work page 2025
[25]

Probing Rényi entanglement entropy via randomized measurements,

T. Brydgeset al., “Probing Rényi entanglement entropy via randomized measurements,”Science, vol. 364, no. 6437, pp. 260–263, Apr. 2019, publisher: American Association for the Advancement of Science. https: //www.science.org/doi/full/10.1126/science.aau4963

work page doi:10.1126/science.aau4963 2019
[26]

A Quantum Approximate Optimization Algorithm

E. Farhi, J. Goldstone, and S. Gutmann, “A quantum approximate optimization algorithm,” 2014. https://arxiv. org/abs/1411.4028

work page internal anchor Pith review Pith/arXiv arXiv 2014
[27]

Avoiding barren plateaus using classical shadows,

S. H. Sacket al., “Avoiding barren plateaus using classical shadows,”PRX Quantum, vol. 3, no. 2, p. 020365, Jun. 2022, arXiv:2201.08194 [quant-ph]. http://arxiv.org/abs/2201.08194

work page arXiv 2022
[28]

Towards large-scale quantum optimization solvers with few qubits,

M. Sciorilliet al., “Towards large-scale quantum optimization solvers with few qubits,”Nature Communications, vol. 16, no. 1, Jan. 2025. http://dx.doi.org/10.1038/s41467-024-55346-z

work page doi:10.1038/s41467-024-55346-z 2025
[29]

Monoion oscillator as potential ultimate laser frequency standard,

H. G. Dehmelt, “Monoion oscillator as potential ultimate laser frequency standard,”IEEE transactions on instru- mentation and measurement, no. 2, pp. 83–87, 2012

work page 2012
