arxiv: 2603.28463 · v2 · submitted 2026-03-30 · 💻 cs.CV

Decoupling Wavelet Sub-bands for Single Source Domain Generalization in Fundus Image Segmentation

Shramana Dey , Varun Ajith , Abhirup Banerjee , Sushmita Mitra This is my paper

Pith reviewed 2026-05-14 21:31 UTC · model grok-4.3

classification 💻 cs.CV
keywords domain generalizationfundus image segmentationwavelet sub-bandsoptic discoptic cupsingle sourcemedical imaging
0
0 comments X

The pith

Wavelet sub-band decoupling enables single-source domain generalization in fundus image segmentation by isolating anatomical structure from appearance variations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents WaveSDG, a segmentation network for optic disc and cup in fundus images that trains on one source domain and performs on multiple unseen target domains. It decomposes encoder features into wavelet sub-bands and uses a dedicated module to hold global anatomy in low-frequency parts while sharpening edges and removing noise in high-frequency parts. This separation aims to keep structural cues stable even when device or clinic conditions change. Evaluations across five target datasets show higher balanced Dice scores and lower Hausdorff distances than seven prior methods, along with lower result variance.

Core claim

WaveSDG decouples anatomical structure from domain-specific appearance through wavelet sub-band decomposition. The WISER module refines low-frequency components to anchor global anatomy while selectively enhancing directional edges and suppressing noise in high-frequency sub-bands, producing more accurate and stable segmentations on unseen domains.

What carries the argument

The Wavelet-based Invariant Structure Extraction and Refinement (WISER) module, which assigns distinct processing roles to each wavelet sub-band to separate stable anatomical topology from varying appearance features.

If this is right

  • Consistent outperformance on optic cup and optic disc segmentation from one source to five unseen target datasets.
  • Best balanced Dice score and lowest 95th-percentile Hausdorff distance among compared methods.
  • Lower variance across domains, indicating greater cross-domain stability.
  • Ablation studies confirm the contribution of both the sub-band decoupling and the WISER refinement steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same frequency separation could be tested on other retinal or medical segmentation tasks that suffer from device-induced domain shifts.
  • If the approach preserves all structural information, it may reduce the need to collect multi-site annotated training data in clinical settings.
  • Extending the method to color fundus images with additional artifacts such as cataracts would test whether the decoupling remains effective under stronger appearance changes.

Load-bearing premise

Wavelet sub-band decomposition combined with the WISER module can reliably separate anatomical topology from domain-specific appearance without discarding needed segmentation cues or creating artifacts on new domains.

What would settle it

Running WaveSDG on an additional unseen fundus dataset and finding that its Dice scores and Hausdorff distances match or fall below those of a plain encoder-decoder network without any wavelet decomposition.

Figures

Figures reproduced from arXiv: 2603.28463 by Abhirup Banerjee, Shramana Dey, Sushmita Mitra, Varun Ajith.

Figure 1

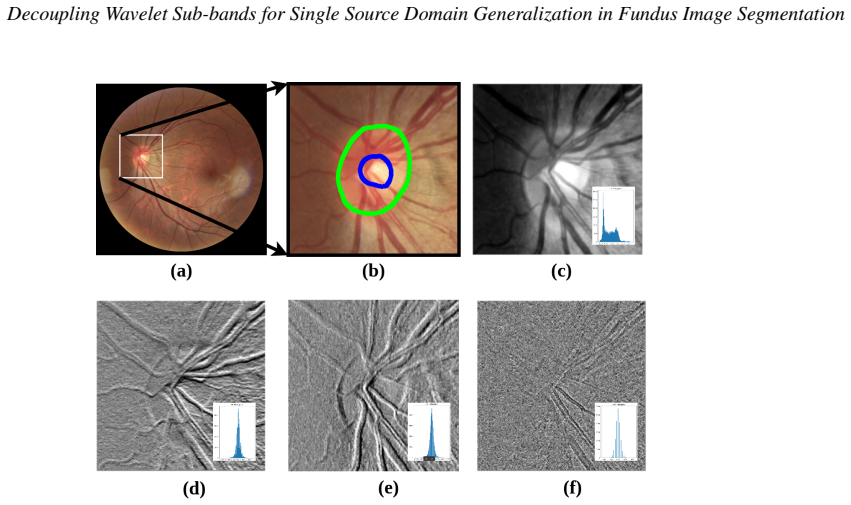

Figure 1. Figure 1: Representative wavelet decomposition of (a) Fundus image, with (b) extracted [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The proposed WaveSDG architecture. The lower and upper rectangles illustrate the overall network and the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Visualization of predicted segmentation mask by WaveSDG and seven other competing methods, along with [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

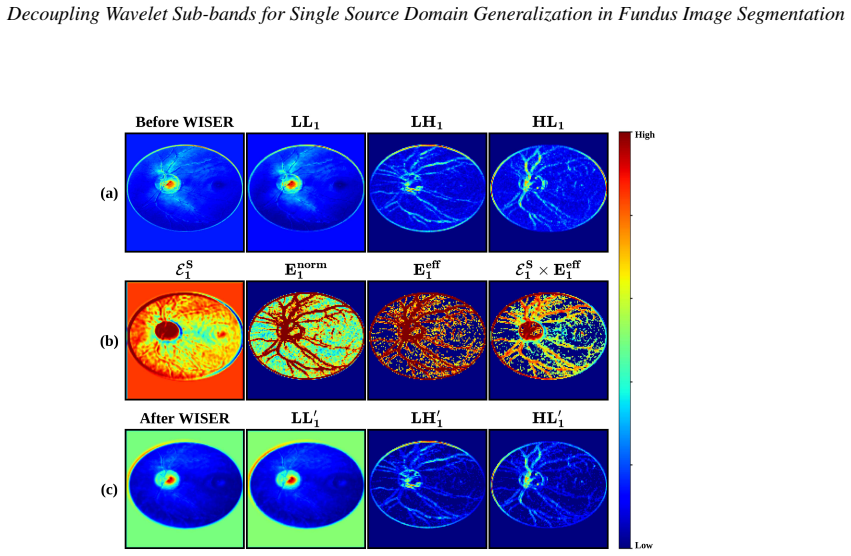

Figure 4. Figure 4: Visualization of the effect of various components in WISER. (a) Feature channel and its wavelet-decomposed [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5

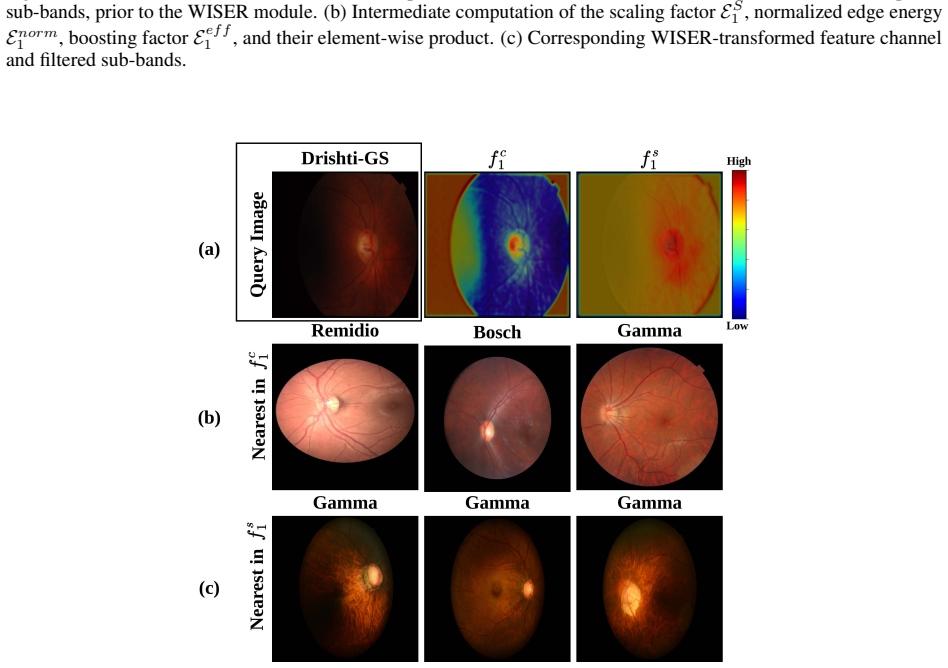

Figure 5. Figure 5: Visualization of LL sub-band decomposition, with row (a) showing column-wise, (i) query image, with its [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
read the original abstract

Domain generalization in fundus imaging is challenging due to variations in acquisition conditions across devices and clinical settings. The inability to adapt to these variations causes performance degradation on unseen domains for deep learning models. Besides, obtaining annotated data across domains is often expensive and privacy constraints restricts their availability. Although single-source domain generalization (SDG) offers a realistic solution to this problem, the existing approaches frequently fail to capture anatomical topology or decouple appearance from anatomical features. This research introduces WaveSDG, a new wavelet-guided segmentation network for SDG. It decouples anatomical structure from domain-specific appearance through a wavelet sub-band decomposition. A novel Wavelet-based Invariant Structure Extraction and Refinement (WISER) module is proposed to process encoder features by leveraging distinct semantic roles of each wavelet sub-band. The module refines low-frequency components to anchor global anatomy, while selectively enhancing directional edges and suppressing noise within the high-frequency sub-bands. Extensive ablation studies validate the effectiveness of the WISER module and its decoupling strategy. Our evaluations on optic cup and optic disc segmentation across one source and five unseen target datasets show that WaveSDG consistently outperforms seven state-of-the-art methods. Notably, it achieves the best balanced Dice score and lowest 95th percentile Hausdorff distance with reduced variance, indicating improved accuracy, robustness, and cross-domain stability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes WaveSDG, a wavelet-guided network for single-source domain generalization in fundus image segmentation of optic cup and disc. It decomposes encoder features via wavelet sub-bands and introduces the WISER module, which refines low-frequency components to anchor global anatomy while enhancing directional edges and suppressing noise in high-frequency sub-bands. The central claim is that this decoupling yields consistent outperformance over seven SOTA methods on one source and five unseen target datasets, with the best balanced Dice score, lowest 95th-percentile Hausdorff distance, and reduced variance.

Significance. If the quantitative claims hold under rigorous validation, the work would be significant for medical imaging SDG: it offers an architectural route to separate anatomical topology from acquisition-specific appearance without multi-domain training data, directly addressing privacy and annotation costs in fundus analysis.

major comments (2)
  1. [WISER module] Abstract and WISER module description: the load-bearing assumption that low-frequency (approximation) coefficients remain largely domain-invariant is not supported by explicit normalization or disentanglement steps; fundus images commonly exhibit low-frequency shifts (vignetting, sensor gain, global brightness) that directly alter these coefficients, and the paper must demonstrate via pre/post-WISER statistics or targeted ablations that source-specific bias is removed rather than merely assumed absent.
  2. [Experiments] Evaluation section: the abstract asserts 'best balanced Dice score and lowest 95th percentile Hausdorff distance with reduced variance' across five targets, yet supplies no numerical tables, per-dataset scores, statistical significance tests, or variance breakdowns; without these, the cross-domain stability claim cannot be verified and the comparison to the seven baselines remains unverifiable.
minor comments (2)
  1. Clarify the exact wavelet family, decomposition level, and sub-band selection criteria used in the decomposition step.
  2. Provide a diagram or pseudocode for the WISER module to make the distinct processing of low- versus high-frequency paths explicit.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help strengthen the presentation of our work on WaveSDG for single-source domain generalization in fundus segmentation. We address each major point below and commit to revisions that directly respond to the concerns raised.

read point-by-point responses

  1. Referee: [WISER module] Abstract and WISER module description: the load-bearing assumption that low-frequency (approximation) coefficients remain largely domain-invariant is not supported by explicit normalization or disentanglement steps; fundus images commonly exhibit low-frequency shifts (vignetting, sensor gain, global brightness) that directly alter these coefficients, and the paper must demonstrate via pre/post-WISER statistics or targeted ablations that source-specific bias is removed rather than merely assumed absent.

    Authors: We agree that explicit empirical support for the domain-invariance of low-frequency coefficients is required rather than relying solely on the design rationale of wavelet decomposition. In the revised manuscript we will add (i) quantitative pre- and post-WISER statistics (mean and variance of approximation coefficients) computed on source and target domains, and (ii) targeted ablation results that isolate the effect of the low-frequency refinement branch on cross-domain performance. These additions will demonstrate that source-specific low-frequency bias is actively reduced by the WISER module. revision: yes

  2. Referee: [Experiments] Evaluation section: the abstract asserts 'best balanced Dice score and lowest 95th percentile Hausdorff distance with reduced variance' across five targets, yet supplies no numerical tables, per-dataset scores, statistical significance tests, or variance breakdowns; without these, the cross-domain stability claim cannot be verified and the comparison to the seven baselines remains unverifiable.

    Authors: We acknowledge that the evaluation section as currently written does not contain the full numerical tables needed to substantiate the abstract claims. In the revision we will expand the evaluation section with complete per-dataset tables reporting Dice, 95th-percentile Hausdorff distance, and standard deviation for WaveSDG and all seven baselines across the five target domains. We will also include paired statistical significance tests (e.g., Wilcoxon signed-rank) and explicit variance breakdowns to allow direct verification of the reported improvements in accuracy, robustness, and cross-domain stability. revision: yes

Circularity Check

0 steps flagged

No circularity: architectural proposal evaluated on held-out targets

full rationale

The paper introduces WaveSDG and the WISER module as a new architectural design for decoupling wavelet sub-bands in single-source domain generalization. No equations, derivations, or fitted parameters are presented that reduce reported performance gains to quantities computed from the same source data by construction. The central claims rest on empirical results across one source and five unseen target datasets plus ablation studies, with no self-citation load-bearing uniqueness theorems, ansatz smuggling, or renaming of known results. The derivation chain is self-contained and does not collapse to its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Abstract-only review limits visibility into exact parameter counts or training choices; the central claim rests on the unverified assumption that wavelet sub-bands cleanly separate anatomy from appearance.

axioms (1)
  • domain assumption Wavelet sub-band decomposition can separate anatomical structure from domain-specific appearance in fundus images
    Invoked by the decoupling strategy and WISER module description.
invented entities (1)
  • WISER module no independent evidence
    purpose: Process encoder features by leveraging distinct semantic roles of each wavelet sub-band to refine low-frequency anatomy and enhance/suppress high-frequency components
    Newly proposed component whose effectiveness is asserted via ablation studies mentioned but not shown.
