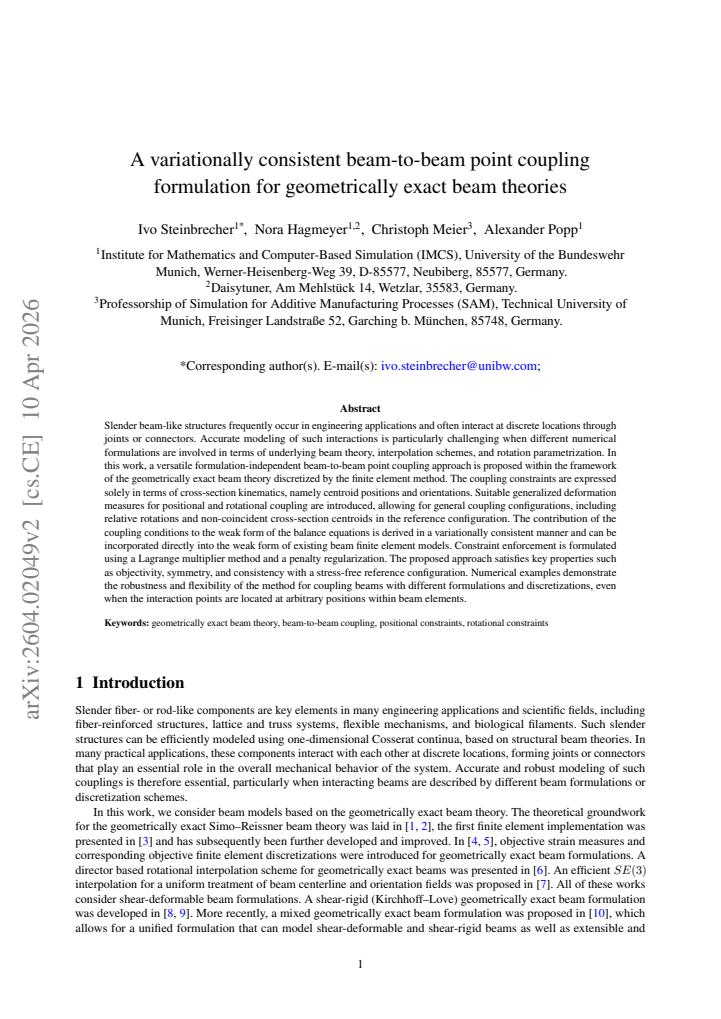

A variationally consistent beam-to-beam point coupling formulation for geometrically exact beam theories

Ivo Steinbrecher , Nora Hagmeyer , Christoph Meier , Alexander Popp

Authors on Pith no claims yet

Pith reviewed 2026-05-13 20:58 UTC · model grok-4.3

classification 💻 cs.CE

keywords beam-to-beam couplinggeometrically exact beamsfinite element methodpoint constraintsvariational formulationLagrange multipliersobjectivitysymmetry

0 comments

The pith

A variationally consistent point coupling formulation allows beams with different theories and discretizations to interact at arbitrary locations while maintaining objectivity and symmetry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a formulation-independent method for connecting beams at discrete points in geometrically exact beam theories. Constraints are defined using only the positions and orientations of cross-sections, with generalized measures handling relative rotations and offset centroids. These are incorporated into the weak form of the equations in a variationally consistent way using Lagrange multipliers or penalties. This matters because many engineering structures involve beam interactions that previously required matching formulations exactly, limiting flexibility in simulations.

Core claim

The central claim is that beam-to-beam point coupling constraints can be expressed solely in terms of cross-section centroid positions and orientations, with suitable generalized deformation measures introduced for general configurations including relative rotations and non-coincident centroids, and that their contribution to the weak form can be derived variationally consistently to satisfy objectivity, symmetry, and stress-free reference consistency.

What carries the argument

Generalized deformation measures for positional and rotational coupling, which translate cross-section kinematics into constraint equations that are added to the weak form.

If this is right

The approach works with beams using different underlying theories, interpolation schemes, and rotation parametrizations.
Interaction points can be located at arbitrary positions within beam elements.
The method preserves key mechanical properties like objectivity and symmetry.
It can be directly added to existing beam finite element models without reformulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This formulation could facilitate modeling of large-scale structures like bridges or aircraft frames with mixed beam types.
It opens possibilities for coupling with other element types, such as shells or solids, at point locations.
Future work might explore extensions to frictional contact or dynamic loading scenarios.

Load-bearing premise

The coupling constraints can be adequately captured using only the kinematics of the beam cross-sections at the interaction points, without needing additional details from the beam theories involved.

What would settle it

A numerical test where two beams with incompatible rotation parametrizations are coupled and the resulting system loses frame-indifference or exhibits asymmetric tangent stiffness would falsify the consistency claims.

read the original abstract

Slender beam-like structures frequently occur in engineering applications and often interact at discrete locations through joints or connectors. Accurate modeling of such interactions is particularly challenging when different numerical formulations are involved in terms of underlying beam theory, interpolation schemes, and rotation parametrization. In this work, a versatile formulation-independent beam-to-beam point coupling approach is proposed within the framework of the geometrically exact beam theory discretized by the finite element method. The coupling constraints are expressed solely in terms of cross-section kinematics, namely centroid positions and orientations. Suitable generalized deformation measures for positional and rotational coupling are introduced, allowing for general coupling configurations, including relative rotations and non-coincident cross-section centroids in the reference configuration. The contribution of the coupling conditions to the weak form of the balance equations is derived in a variationally consistent manner and can be incorporated directly into the weak form of existing beam finite element models. Constraint enforcement is formulated using a Lagrange multiplier method and a penalty regularization. The proposed approach satisfies key properties such as objectivity, symmetry, and consistency with an stress-free reference configuration. Numerical examples demonstrate the robustness and flexibility of the method for coupling beams with different formulations and discretizations, even when the interaction points are located at arbitrary positions within beam elements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper gives a clean formulation-independent point coupling for beams that stays variationally consistent and handles arbitrary reference configs.

read the letter

Hi colleague, The main takeaway is that this work introduces a beam-to-beam point coupling that's independent of the specific geometrically exact beam formulation and discretization. It uses generalized deformation measures for position and rotation to handle arbitrary reference configurations, including non-coincident centroids. They derive the contribution to the virtual work in a variationally consistent way from the balance equations, which is the part that matters for finite element implementation. Enforcement via Lagrange multipliers or penalty is straightforward. The method keeps the coupling objective and symmetric, and it vanishes properly in the stress-free state. Numerical tests show it works when coupling beams with different theories and when the contact point is inside elements rather than at nodes. The potential issue is the one in the stress-test: constructing those measures might implicitly rely on the element's shape functions, which could break the claimed independence or introduce inconsistencies for arbitrary intra-element locations if the discretizations don't match. The paper's examples don't reveal problems, so it may be fine, but confirming that the variation operator commutes with the coupling map without depending on interpolation would make the claim stronger. This is aimed at researchers and engineers doing finite element analysis of beam structures like trusses or frames with connectors. Anyone implementing or using beam elements in complex assemblies would find the flexibility useful. The thinking is clear and the evidence from derivation and tests is reasonable, so it deserves peer review rather than a desk reject.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes a variationally consistent formulation for point-wise coupling of geometrically exact beams discretized by finite elements. Coupling constraints are defined using only cross-section centroid positions and orientations, with generalized positional and rotational deformation measures introduced to handle arbitrary reference configurations including non-coincident centroids and relative rotations. The contribution to the weak form is derived consistently and can be added to existing models, with enforcement via Lagrange multipliers or penalty regularization. Key properties of objectivity, symmetry, and consistency with the stress-free reference state are claimed to be satisfied, supported by numerical examples involving different beam formulations, discretizations, and intra-element coupling locations.

Significance. If the formulation indeed maintains variational consistency and symmetry independently of the underlying beam element approximations and rotation parametrizations, it would represent a valuable contribution to the field of computational mechanics for modeling discrete interactions in beam structures. The ability to couple beams with mismatched discretizations at arbitrary points is particularly useful for practical engineering applications. However, the significance is tempered by the need for explicit verification that the generalized deformation measures do not introduce interpolation-dependent artifacts.

major comments (1)

[Abstract] Abstract (and the derivation of the weak-form contribution): the central claim that generalized deformation measures for positional and rotational coupling (including non-coincident centroids) yield variationally consistent, symmetric terms independent of the beams' interpolation schemes is load-bearing. The construction via composition with kinematic operators risks non-commutation of variation and pull-back when coupling points lie inside elements, potentially introducing non-variational residuals or breaking symmetry; an explicit proof that the measures commute with the variation operator for arbitrary intra-element locations and mismatched discretizations is required.

minor comments (2)

[Abstract] Abstract: 'an stress-free reference configuration' should read 'a stress-free reference configuration'.
[Numerical examples] Numerical examples section: quantitative metrics (e.g., convergence rates, residual norms) comparing coupled vs. monolithic solutions would strengthen the robustness claim beyond qualitative demonstration.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive feedback. We address the major comment below.

read point-by-point responses

Referee: [Abstract] Abstract (and the derivation of the weak-form contribution): the central claim that generalized deformation measures for positional and rotational coupling (including non-coincident centroids) yield variationally consistent, symmetric terms independent of the beams' interpolation schemes is load-bearing. The construction via composition with kinematic operators risks non-commutation of variation and pull-back when coupling points lie inside elements, potentially introducing non-variational residuals or breaking symmetry; an explicit proof that the measures commute with the variation operator for arbitrary intra-element locations and mismatched discretizations is required.

Authors: We appreciate the referee's emphasis on this foundational aspect. The generalized positional and rotational deformation measures are defined by direct composition of the point-wise coupling constraints with the interpolated kinematic fields (centroid position and orientation) at the coupling location. Because the finite-element approximation is introduced first and the constraint functional is then formed on these discrete fields, the directional derivative yielding the weak-form contribution is taken entirely within the finite-dimensional space. Consequently, variation and pull-back commute by construction: the resulting residual is the exact variation of the discrete constraint, and the tangent operator obtained from its linearization is symmetric. This property is independent of the underlying interpolation scheme, rotation parametrization, or whether the coupling point lies at a node or inside an element, as the interpolation functions remain differentiable within each element. The same holds for mismatched discretizations, since each beam contributes its own interpolated kinematics independently. We will add a concise appendix to the revised manuscript that explicitly demonstrates this commutation for intra-element points and provides a numerical check of symmetry for a mismatched-discretization case. revision: yes

Circularity Check

0 steps flagged

No circularity: variationally consistent derivation from balance equations with independent generalized measures

full rationale

The paper states that coupling constraints are expressed via cross-section kinematics and that suitable generalized deformation measures are introduced, with their contribution to the weak form derived variationally consistently from the balance equations. No quoted equation or step shows these measures defined in terms of the final result, nor any prediction that reduces by construction to a fitted input or self-citation chain. The formulation is presented as independent of specific beam discretizations and rotation parametrizations, with symmetry, objectivity, and stress-free consistency asserted as derived properties rather than assumed. Numerical examples are used only for validation, not as part of the derivation. This matches the default expectation of a self-contained derivation; the reader's score of 2 reflects at most minor non-load-bearing self-citation, which does not elevate the circularity score under the hard rules.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

No free parameters are introduced; the formulation relies on standard assumptions from geometrically exact beam theory and variational principles.

axioms (1)

domain assumption The coupling can be expressed solely in terms of cross-section kinematics, namely centroid positions and orientations.
This is the basis for the generalized deformation measures as stated in the abstract.
