arxiv: 2604.02805 · v2 · submitted 2026-04-03 · ❄️ cond-mat.soft

Elasticity-Driven Periodic Polarization Patterns in Confined Chiral Ferroelectric Nematic Fluid

Anej Sterle , Peter Medle-Rupnik , Luka Cmok , Aitor Erkoreka , Marta Lavri\v{c} , Natan Osterman , Calum J. Gibb , J. Hobbs
show 4 more authors
Josu Martinez-Perdiguero Richard J. Mandle Alenka Mertelj Nerea Sebasti\'an
This is my paper

Pith reviewed 2026-05-13 19:13 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords chiral ferroelectric nematicbend elastic constantperiodic polarizationelastic frustrationconfinement effectsheliconical phasesecond harmonic generationliquid crystal textures
0
0 comments X

The pith

Bend elastic softening in confined chiral ferroelectric nematics produces periodic polarization patterns.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a chiral ferroelectric nematic fluid develops spontaneous periodic polarization textures when confined and cooled toward the transition into a heliconical polar phase. The driver is softening of the bend elastic constant, which creates frustration that confinement resolves through periodic director distortions. Experiments that change cell thickness and surface anchoring produce stripe, square, and hexagonal morphologies, and these distortions appear as periodic modulations in second-harmonic generation. Elasticity theory and free-energy minimization reproduce the same patterns, indicating that the instability is a direct consequence of the approaching phase transition.

Core claim

The instability originates from the softening of the bend elastic constant in the chiral nematic phase as the system approaches the lower-temperature heliconical polar phase. The resulting elastic frustration, combined with confinement, drives the formation of spatially periodic director distortions. These structures translate directly into periodic modulation of the nonlinear optical response, as shown by second-harmonic generation imaging.

What carries the argument

Softening of the bend elastic constant in the chiral nematic phase near the heliconical transition, which produces elastic frustration resolved by periodic director modulations under confinement.

If this is right

  • Stripe, square, and hexagonal polarization patterns form spontaneously depending on cell thickness and anchoring conditions.
  • The director distortions produce corresponding periodic modulation of the nonlinear optical response visible in second-harmonic generation.
  • Numerical minimization of the Frank elastic free energy reproduces the observed morphologies.
  • The patterns appear only when the system is close to the heliconical polar phase, tying them to the elastic softening at that transition.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same bend-softening route could generate periodic structures in other ferroelectric nematics whose elastic constants vary sharply near transitions.
  • The resulting textures offer a route to self-assembled polar gratings or frequency converters whose period is set by geometry alone.
  • Weak external fields or changes in chirality could be used to switch between different lattice symmetries beyond the zero-field cases studied here.

Load-bearing premise

The modulated states arise primarily from bend-constant softening inside a standard Frank elasticity description, without dominant contributions from flexoelectricity, surface charges, or unmeasured parameter adjustments.

What would settle it

Direct measurement of the bend elastic constant showing no significant softening near the transition, or persistence of the patterns after the softening is suppressed by independent means, would falsify the proposed mechanism.

Figures

Figures reproduced from arXiv: 2604.02805 by Aitor Erkoreka, Alenka Mertelj, Anej Sterle, Calum J. Gibb, J. Hobbs, Josu Martinez-Perdiguero, Luka Cmok, Marta Lavri\v{c}, Natan Osterman, Nerea Sebasti\'an, Peter Medle-Rupnik, Richard J. Mandle.

Figure 2
Figure 2. Figure 2: a [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

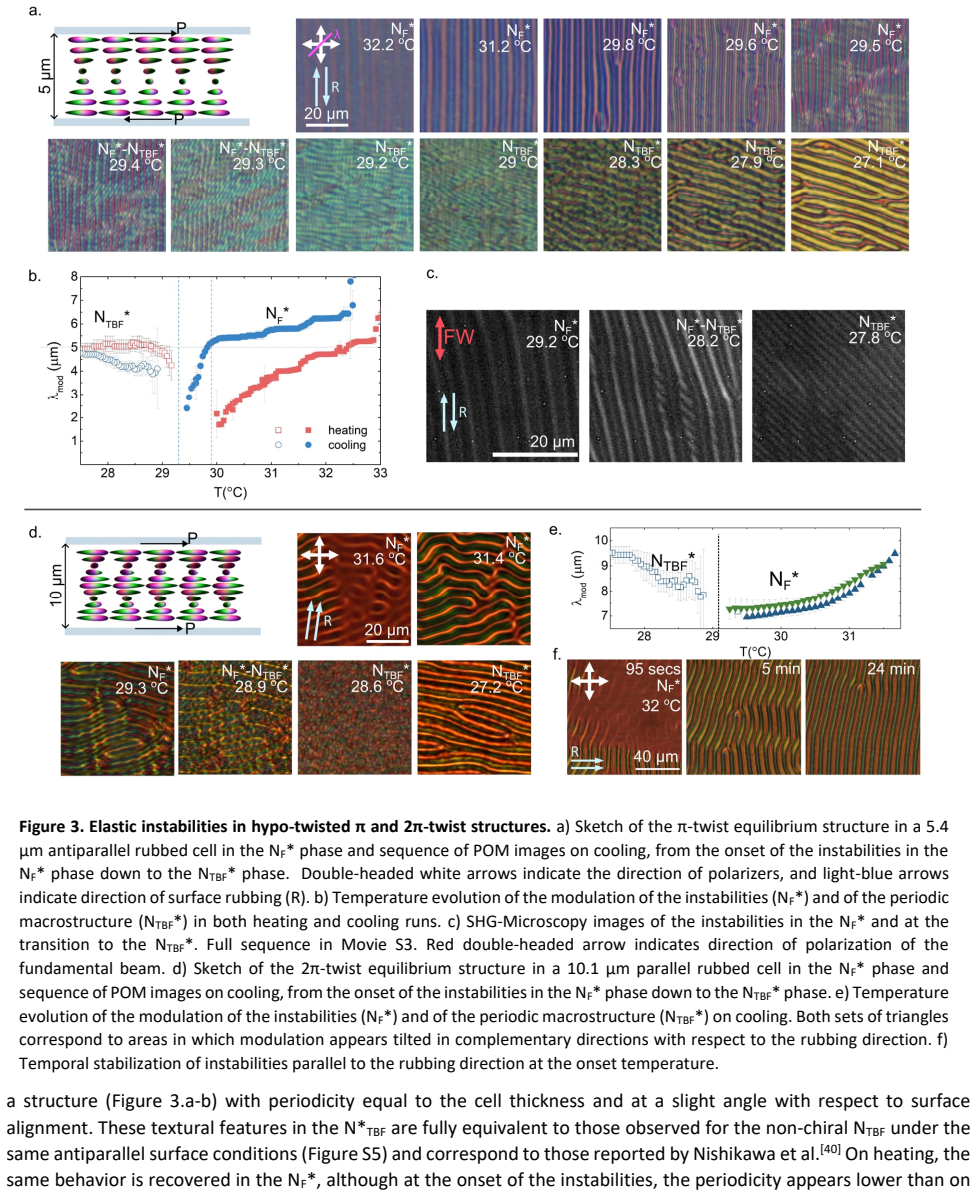

Figure 3. Figure 3: Elastic instabilities in hypo-twisted π and 2π-twist structures. a) Sketch of the π-twist equilibrium structure in a 5.4 μm antiparallel rubbed cell in the NF* phase and sequence of POM images on cooling, from the onset of the instabilities in the NF* phase down to the NTBF* phase. Double-headed white arrows indicate the direction of polarizers, and light-blue arrows indicate direction of surface rubbing (… view at source ↗
Figure 4

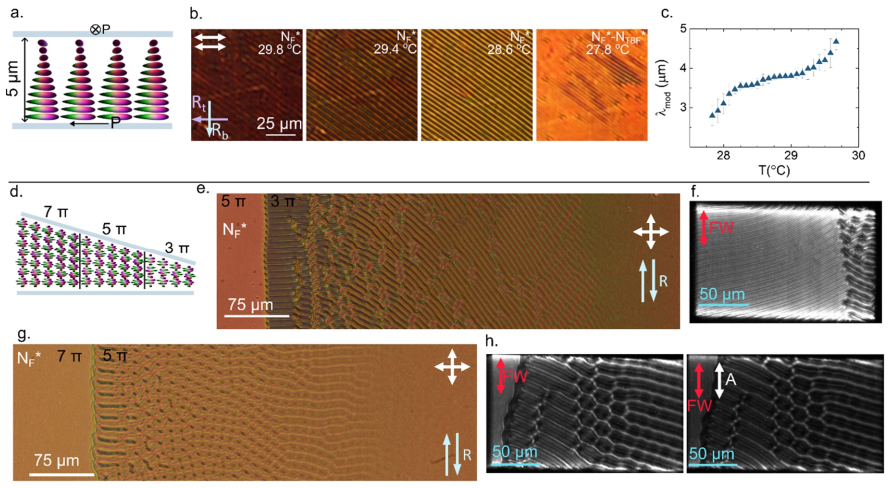

Figure 4. Figure 4: Elastic instabilities in hypo-twisted π/2, 3π-twist and 5π-twist structures. a) Sketch of the π-twist equilibrium structure in a 5 μm 90 left-handed rubbed cell in the NF* phase. b) Sequence of POM images on cooling, from the onset of the instabilities in the NF* phase down to the NTBF* phase. Double-headed white arrows indicate the direction of polarizers, and light-blue arrows indicate the direction of s… view at source ↗
Figure 5

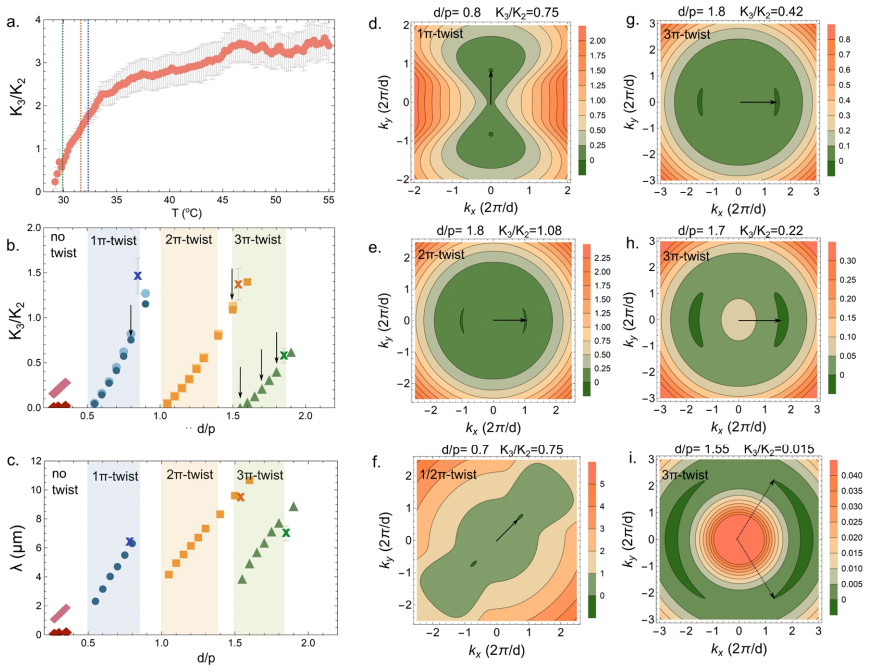

Figure 5. Figure 5: Numerical Predictions vs. Experimental Observations of Twist [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

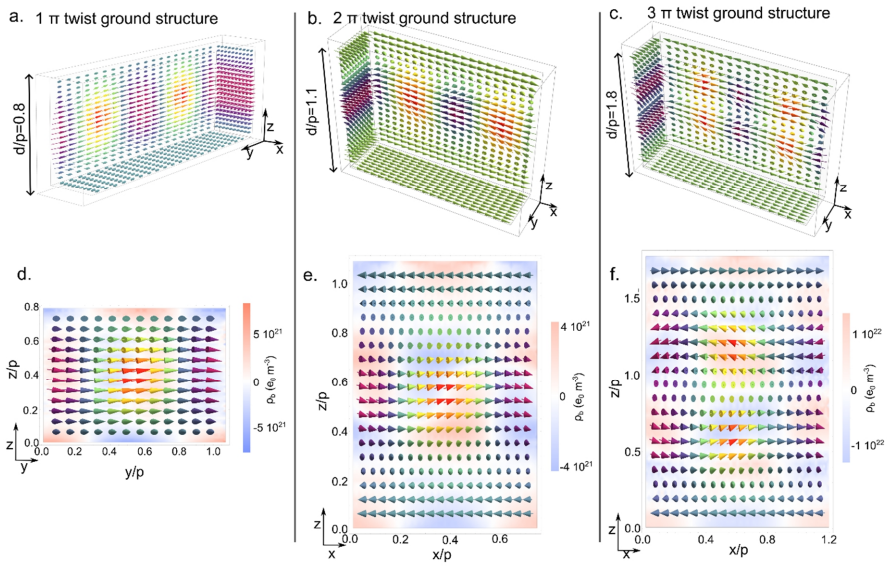

Figure 6. Figure 6: Director fields and bound charge density. a-c) Director/polarization fields obtained by taking the critical instability mode as an initial condition for free energy minimization for 1π-, 2π-, and 3π- twist structures, where x is along the cell surface alignment direction and z is along the cell thickness. The colour of the arrows indicates differences in the z component of the local director. (d-f) Project… view at source ↗
read the original abstract

Ferroelectric nematic phases are a new class of polar fluids in which spontaneous polarization is directly coupled to the orientational order, providing unique opportunities for creating self-organized materils with spatially modulated electric polarization and nonlinear optical response. Here we report the spontaneous emergence of polarization modulated textures in a chiral ferroelectric nematic material close to the transition to the chiral twist-bend ferroelectric nematic phase. By systematically varying cell thickness and surface anchoring conditions, we map the formation of these modulated states, revealing stripe, square and hexagonal morphologies determined via confinement conditions. These structures are directly translated into periodic modulation of the nonlinear optical response, as evidenced by second-harmonic generation imaging. Comparison with an elasticity based theoretical framework and numerical free energy minimization shows that the instability originates from the softening of the bend elastic constant in the chiral nematic phase as the system approaches the lower-temperature heliconical polar phase. The resulting elastic frustration, combined with confinement, drives the formation of spatially periodic director distortions, highlighting ferroelectric nematic fluids as a promising platform for self-assembled nonlinear optical materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript reports the spontaneous formation of periodic polarization-modulated textures (stripes, square, and hexagonal morphologies) in confined chiral ferroelectric nematic fluids near the transition to the heliconical polar phase. Systematic experiments varying cell thickness and surface anchoring conditions map the pattern formation, with second-harmonic generation imaging confirming the resulting periodic modulation of nonlinear optical response. Comparison to an elasticity-based model with numerical free-energy minimization attributes the instability to softening of the bend elastic constant K3, producing elastic frustration under confinement.

Significance. If the central claim holds, the work identifies a confinement-tunable route to self-assembled periodic polarization structures with enhanced nonlinear optical properties in ferroelectric nematics, which could impact photonic and optoelectronic applications. The systematic experimental mapping across thicknesses and anchorings, combined with direct SHG visualization, provides useful data on morphology selection. The linkage of observed patterns to a standard Frank-Oseen elasticity framework is a clear strength, though quantitative validation details are limited in the current version.

major comments (2)
  1. [Theoretical framework] Theoretical framework section: The numerical minimization employs the standard Frank-Oseen free energy with temperature-dependent K3 softening but omits flexoelectric polarization-director coupling terms (such as -e1 P·(n·∇)n and -e3 P·(n×(∇×n))). No estimate is given of the relative magnitude of these terms versus elastic contributions near the heliconical transition, leaving open the possibility that flexoelectricity or surface-charge effects could drive equivalent modulations without K3 softening.
  2. [Results and comparison to theory] Results and comparison to theory: No independent measurement of K3(T) (e.g., via Freedericksz transition or light scattering) is reported; the softening appears invoked to match observed pattern periods and thresholds. Without tabulated experimental wavelengths, error bars, or explicit fitting procedure, the quantitative agreement cannot be verified and carries circularity risk for the claim that bend softening is the primary driver.
minor comments (3)
  1. [Abstract] Abstract: Typo 'materils' should be corrected to 'materials'.
  2. [Figures] Figure captions and methods: Several figures lack explicit scale bars for pattern periods or intensity scales for SHG images; inclusion would aid quantitative comparison.
  3. [References] References: Key prior works on flexoelectricity in nematic and ferroelectric nematic phases should be cited to contextualize the omission of these terms.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major point below and have revised the manuscript accordingly to strengthen the theoretical discussion and the presentation of experimental data.

read point-by-point responses

  1. Referee: [Theoretical framework] Theoretical framework section: The numerical minimization employs the standard Frank-Oseen free energy with temperature-dependent K3 softening but omits flexoelectric polarization-director coupling terms (such as -e1 P·(n·∇)n and -e3 P·(n×(∇×n))). No estimate is given of the relative magnitude of these terms versus elastic contributions near the heliconical transition, leaving open the possibility that flexoelectricity or surface-charge effects could drive equivalent modulations without K3 softening.

    Authors: We acknowledge that the initial model omitted flexoelectric coupling terms. The choice was motivated by the strong dependence of the observed patterns on cell thickness and anchoring conditions, which aligns with elastic frustration from K3 softening rather than flexoelectricity. To address the concern, we have added a new paragraph with an order-of-magnitude estimate using typical flexoelectric coefficients (e1, e3 ~ 10 pC/m) for ferroelectric nematics and the elastic energy scale near the transition; this shows elastic terms dominate by at least a factor of 10. Surface-charge effects are also discussed and shown to be inconsistent with the morphology selection. These additions will appear in the revised manuscript. revision: partial

  2. Referee: [Results and comparison to theory] Results and comparison to theory: No independent measurement of K3(T) (e.g., via Freedericksz transition or light scattering) is reported; the softening appears invoked to match observed pattern periods and thresholds. Without tabulated experimental wavelengths, error bars, or explicit fitting procedure, the quantitative agreement cannot be verified and carries circularity risk for the claim that bend softening is the primary driver.

    Authors: We agree that an independent K3(T) measurement would strengthen the quantitative claim. Such measurements were not performed in this study because standard Freedericksz or scattering methods are complicated by the large spontaneous polarization and ionic conductivity in the ferroelectric phase. The temperature dependence used is based on literature trends for analogous materials. To improve transparency, we have added a supplementary table with measured pattern periods (stripes, squares, hexagons) versus thickness and temperature, including standard deviations from repeated experiments, and we now explicitly describe the fitting procedure for the K3 softening parameter. While this does not remove all risk of circularity, the qualitative match across independent morphologies and anchoring conditions supports the elastic mechanism as primary. revision: partial

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper presents experimental observations of modulated polarization textures and compares them to a standard Frank-Oseen elasticity model minimized numerically under confinement. The central claim attributes the instability to temperature-dependent softening of the bend constant K3 near the heliconical transition. No equations or text in the abstract or described framework reduce the result to a fitted parameter renamed as a prediction, a self-definitional loop, or a load-bearing self-citation chain. The derivation remains self-contained against the external experimental benchmarks of morphology and SHG response, with the elasticity framework invoked as an independent explanatory tool rather than tautological input.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard nematic elasticity theory applied to a new material class; no new entities are introduced, but the bend-constant softening is treated as the dominant driver without independent verification of its value or exclusion of flexoelectric contributions.

free parameters (1)
  • bend elastic constant near transition
    Value is central to the instability but its temperature dependence is likely obtained by fitting or measurement not detailed in abstract.
axioms (1)
  • domain assumption Frank elastic energy description remains valid for ferroelectric nematics
    The comparison with elasticity-based framework assumes the standard three-constant Frank model captures the director energetics.
