Microwave Performance of all MOCVD-grown AlScN/GaN MIS-HEMTs on Semi-Insulating GaN Substrates

Can Cao , Vijay Gopal Thirupakuzi Vangipuram , Abdul Mukit , Motahareh Helli , Jinwoo Hwang , Hongping Zhao , Wu Lu This is my paper

Pith reviewed 2026-05-13 17:41 UTC · model grok-4.3

classification ⚛️ physics.app-ph

keywords AlScNGaNMIS-HEMTMOCVDsubthreshold swingpower densitynoise figureinterface traps

0 comments p. Extension

The pith

All-MOCVD AlScN/GaN MIS-HEMTs on semi-insulating GaN substrates reach 1 A/mm drain current and 25.8 GHz fT in 1-micron gate devices.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that long-gate metal-insulator-semiconductor high electron mobility transistors can be fabricated entirely by metal-organic chemical vapor deposition using an aluminum scandium nitride barrier layer on a gallium nitride channel, grown on semi-insulating gallium nitride substrates. These 1-micrometer gate devices deliver a maximum drain current density of 1 A/mm, an on/off ratio of 2 times 10 to the 5, a subthreshold swing of 63 mV/decade, and current dispersion as low as 7.8 percent, linked to an interface trap density of 2.11 times 10 to the 11 per square centimeter per electron volt. Radio-frequency testing yields an fT of 25.8 GHz and fmax of 51.1 GHz, while load-pull measurements at 10 GHz give 4.04 W/mm output power with 22.7 percent power-added efficiency and noise figures below 2.5 dB across a wide current range. A reader would care because the results move the material system from prior short-gate demonstrations into practical high-voltage microwave operation, showing that the growth approach and substrate choice sustain performance without added complexity.

Core claim

The authors establish that all-MOCVD-grown AlScN/GaN MIS-HEMTs on semi-insulating GaN substrates with 1 μm gate length and 0.9 μm gate-drain spacing exhibit a maximum drain current density of 1 A/mm, on/off ratio of 2×10^5, three-terminal breakdown of 63 V, subthreshold swing of 63 mV/dec, current dispersion of 7.8% at 10 V, fT/fmax of 25.8/51.1 GHz, output power density of 4.04 W/mm with 22.7% PAE at 10 GHz, and minimum noise figure below 2.5 dB below 6 GHz. This performance stems from the low interface trap density of 2.11×10^11 cm^{-2}eV^{-1} together with the low threading dislocation density of the semi-insulating substrate, confirming the material system works in the long-gate high-bia

What carries the argument

The all-MOCVD growth of the AlScN barrier on GaN channel atop a semi-insulating GaN substrate that produces low threading dislocation density and enables the measured low interface trap density Dit of 2.11×10^11 cm^{-2}eV^{-1} in the metal-insulator-semiconductor gate stack.

If this is right

The same growth sequence supports both high-frequency small-signal metrics and high-power large-signal operation at 10 GHz.
Low Dit directly enables the near-ideal subthreshold characteristics and reduced trapping effects.
Microwave noise performance stays below 2.5 dB across drain currents from 100 to 700 mA/mm.
The structure maintains a 63 V breakdown voltage at short gate-drain spacing suitable for power applications.
Current dispersion remains low at 7.8% under 10 V bias, indicating stable operation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The single-growth-process approach could reduce steps compared with hybrid growth methods that switch between techniques.
Low noise across a broad current range suggests the devices suit both power amplifiers and low-noise receiver chains on the same platform.
Extending gate lengths further or testing at higher frequencies would test whether the performance scaling holds without new trap mechanisms.
The semi-insulating substrate may allow monolithic integration of passive elements with better isolation than on conductive templates.

Load-bearing premise

The low current dispersion and near-ideal subthreshold swing arise mainly from the low interface trap density achieved by the specific MOCVD growth parameters on this semi-insulating GaN substrate.

What would settle it

Reproducing the identical 1 μm gate devices on a conventional GaN substrate with higher dislocation density and measuring current dispersion well above 7.8% or subthreshold swing well above 63 mV/dec would falsify the claimed role of the substrate and interface quality.

Figures

Figures reproduced from arXiv: 2604.03485 by Abdul Mukit, Can Cao, Hongping Zhao, Jinwoo Hwang, Motahareh Helli, Vijay Gopal Thirupakuzi Vangipuram, Wu Lu.

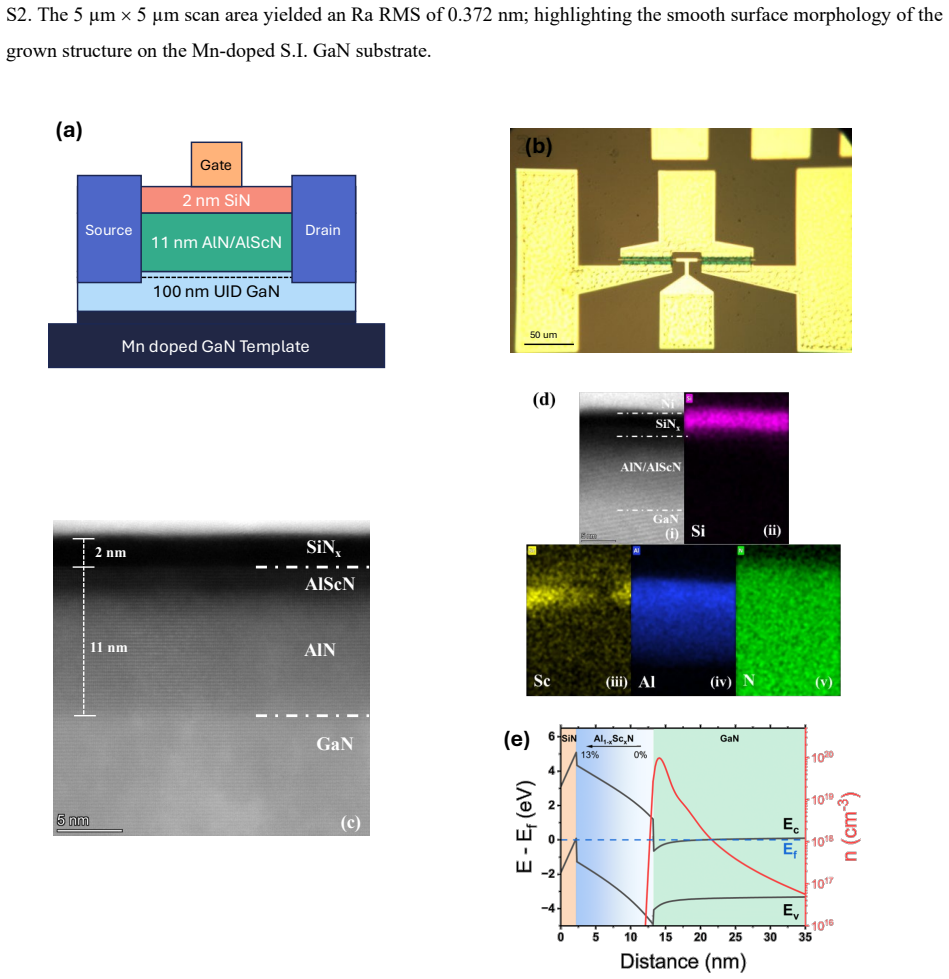

**Figure 1.** Figure 1: (a) Schematic of epitaxial and processed device structure of the AlScN/GaN MIS-HEMTs. (b) Microscope image of an AlScN/GaN MIS-HEMT. (c) High resolution STEM cross-sectional imaging of the AlScN/AlN/GaN MIS-HEMT structure. (d) STEM-EDX elemental color map of the MIS-HEMT layers, and (e) 1D simulated energy band diagram and electron density profile of the AlScN/GaN MIS-HEMT with SiN cap layer. The simulated… view at source ↗

read the original abstract

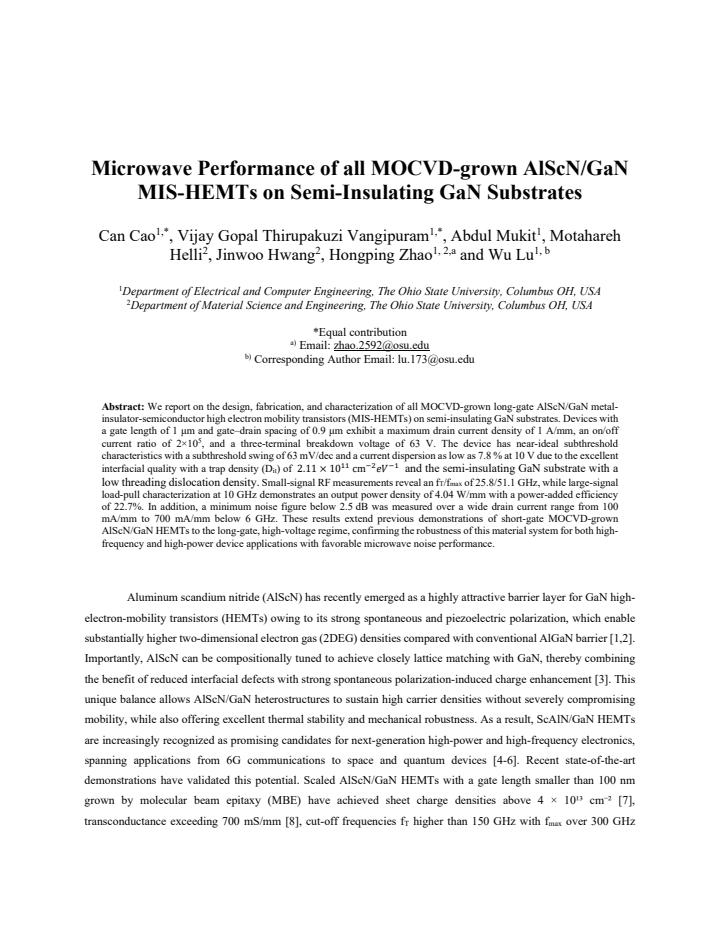

We report on the design, fabrication, and characterization of all MOCVD-grown long-gate AlScN/GaN metal-insulator-semiconductor high electron mobility transistors (MIS-HEMTs) on semi-insulating GaN substrates. Devices with a gate length of $1~\mu$m and gate-drain spacing of $0.9~\mu$ m exhibit a maximum drain current density of 1 A/mm, an on/off current ratio of $2\times 10^5$, and a three-terminal breakdown voltage of 63 V. The device has near-ideal subthreshold characteristics with a subthreshold swing of 63 mV/dec and a current dispersion as low as 7.8$\%$ at 10 V due to the excellent interfacial quality with a trap density ($D_\mathrm{it}$) of $2.11\times{10}^{11}~\mathrm{cm}^{-2}eV^{-1}$ and the semi-insulating GaN substrate with a low threading dislocation density. Small-signal RF measurements reveal an $f_\mathrm{T}/f_\mathrm{max}$ of 25.8/51.1 GHz, while large-signal load-pull characterization at 10 GHz demonstrates an output power density of 4.04 W/mm with a power-added efficiency of 22.7$\%$. In addition, a minimum noise figure below 2.5 dB was measured over a wide drain current range from 100 mA/mm to 700 mA/mm below 6 GHz. These results extend previous demonstrations of short-gate MOCVD-grown AlScN/GaN HEMTs to the long-gate, high-voltage regime, confirming the robustness of this material system for both high-frequency and high-power device applications with favorable microwave noise performance.
