· Lean TheoremCascade of Spin Liquids in a Bilayer Triangular-lattice Antiferromagnet Rb₂Co₂(SeO₃)₃
Pith reviewed 2026-05-13 17:25 UTC · model grok-4.3
The pith
Magnetic fields create a cascade of classical spin liquids by diluting Ising dimers in the bilayer triangular antiferromagnet Rb2Co2(SeO3)3
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We demonstrate that a cascade of CSLs characterized by doubly degenerate one-up-one-down local spin configurations and a residual entropy of 1/2(1-M/M_s)Rln2 per mole emerges through field-controlled dilution of Ising dimers. Owing to the interplay of intra- and inter-layer interactions, these CSLs are further stabilized by lattice symmetry breaking at fractional magnetization plateaus. Such field-induced spin liquids can be understood as a consequence of generalized ice rules, analogous to those governing in pyrochlore antiferromagnets. In particular, the 5/6-plateau state is a candidate quantum spin liquid.
What carries the argument
Field-controlled dilution of Ising dimers, which enforces doubly degenerate one-up-one-down local spin configurations under generalized ice rules
If this is right
- Multiple fractional magnetization plateaus each host a classical spin liquid with residual entropy 1/2(1-M/M_s)Rln2 per mole.
- Lattice symmetry breaking from bilayer interactions stabilizes the degeneracy at those plateaus.
- The 5/6 plateau supplies a concrete candidate for a quantum spin liquid reachable by field tuning.
- Generalized ice rules provide a unified description for these field-induced liquids across classical and quantum regimes.
Where Pith is reading between the lines
- The same dimer-dilution route may be testable in other bilayer or multilayer triangular magnets to generate additional tunable spin liquids.
- Numerical simulations of the bilayer Ising model could predict whether extra plateaus or entropy values appear beyond those already measured.
- If the 5/6 state is confirmed as quantum, it would connect field-induced liquids in this geometry to known quantum spin liquid candidates on triangular and kagome lattices.
Load-bearing premise
The observed magnetization plateaus and entropy values arise exactly from the proposed one-up-one-down spin configurations without any hidden long-range order or extra couplings that would remove the remaining degeneracy.
What would settle it
Neutron scattering at the 5/6-plateau field that detects sharp Bragg peaks instead of diffuse scattering would show long-range order and rule out the spin-liquid interpretation.

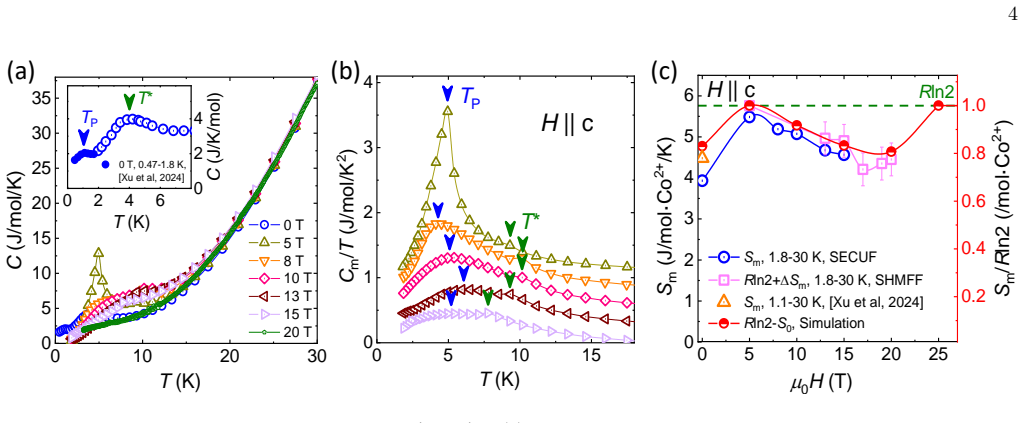

Figures
read the original abstract
In frustrated Ising magnets, classical spin liquids (CSLs) with macroscopic ground-state degeneracy can survive against conventional magnetic order, as exemplified by systems on triangular, kagome and pyrochlore lattices at zero field. Here we report the discovery of a high-field route toward spin liquids in a bilayer triangular lattice antiferromagnet, Rb$_2$Co$_2$(SeO$_3$)$_3$. We demonstrate that a cascade of CSLs -- characterized by doubly degenerate one-up-one-down local spin configurations and a residual entropy of 1/2(1-M/M_s)Rln2 per mole -- emerges through field-controlled dilution of Ising dimers. Owing to the interplay of intra- and inter-layer interactions, these CSLs are further stabilized by lattice symmetry breaking at fractional magnetization plateaus. Such field-induced spin liquids can be understood as a consequence of generalized ice rules, analogous to those governing in pyrochlore antiferromagnets. In particular, the 5/6-plateau state is a candidate quantum spin liquid. Our results thereby establish a new pathway for exploring diverse spin liquid states across both classical and quantum regimes.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports the experimental discovery of a cascade of classical spin liquids (CSLs) in the bilayer triangular-lattice antiferromagnet Rb₂Co₂(SeO₃)₃. Field-induced dilution of Ising dimers produces states with doubly degenerate one-up-one-down local configurations, yielding a residual entropy of ½(1−M/Mₛ)R ln 2 per mole at fractional magnetization plateaus. These CSLs are stabilized by intra- and inter-layer interactions and lattice symmetry breaking, interpreted via generalized ice rules analogous to pyrochlore systems; the 5/6 plateau is proposed as a candidate quantum spin liquid.
Significance. If the entropy measurements and plateau assignments hold, the work provides a new high-field route to tunable classical spin liquids in frustrated magnets, extending ice-rule physics to bilayer geometries and offering a platform where classical degeneracy can be field-controlled before potential quantum effects emerge. The explicit entropy formula tied to magnetization fractions supplies falsifiable predictions that could guide further experiments.
major comments (3)
- [§3] §3 (magnetization and specific-heat results): The reported residual entropy values are stated to match exactly ½(1−M/Mₛ)R ln 2, but the manuscript provides no tabulated integration limits, background subtraction details, or error propagation from the specific-heat data; without these, it is impossible to assess whether the measured entropy release is statistically consistent with the claimed degeneracy or could accommodate undetected ordering.
- [§4.2] §4.2 (theoretical interpretation): The claim that inter-layer couplings stabilize the CSLs via lattice symmetry breaking at fractional plateaus is central, yet no explicit calculation or simulation (e.g., Monte Carlo or exact diagonalization on the bilayer geometry) is shown to demonstrate that the doubly degenerate one-up-one-down manifold survives once both intra- and inter-layer exchanges are included at the reported strengths.
- [§5] §5 (discussion of 5/6 plateau): Labeling the 5/6 state a candidate quantum spin liquid rests on the absence of conventional order and the persistence of degeneracy; however, the manuscript reports no neutron-scattering, μSR, or NMR data that would directly constrain the spin-correlation length or rule out short-range order that could lift the entropy below the classical prediction.
minor comments (2)
- [Abstract] Notation for the entropy formula is introduced in the abstract but first defined only in §4; a brief parenthetical reminder in the abstract would improve readability.
- [Figure captions] Figure captions for the magnetization curves should explicitly state the temperature at which each isotherm was measured and whether demagnetization corrections were applied.
Simulated Author's Rebuttal
We thank the referee for the constructive comments and for recognizing the potential of our work on field-induced classical spin liquids in Rb₂Co₂(SeO₃)₃. We address each major point below, indicating revisions where appropriate.
read point-by-point responses
-
Referee: [§3] The reported residual entropy values are stated to match exactly ½(1−M/Mₛ)R ln 2, but the manuscript provides no tabulated integration limits, background subtraction details, or error propagation from the specific-heat data; without these, it is impossible to assess whether the measured entropy release is statistically consistent with the claimed degeneracy or could accommodate undetected ordering.
Authors: We agree that these methodological details are essential for assessing the entropy results. In the revised manuscript we will add a dedicated supplementary section specifying the integration limits (0.05 K to 30 K), the Debye-model background subtraction procedure calibrated against a non-magnetic reference compound, and error estimates derived from repeated measurements and temperature calibration uncertainties. These additions will allow direct verification that the residual entropy remains consistent with ½(1−M/Mₛ)R ln 2 within experimental precision. revision: yes
-
Referee: [§4.2] The claim that inter-layer couplings stabilize the CSLs via lattice symmetry breaking at fractional plateaus is central, yet no explicit calculation or simulation (e.g., Monte Carlo or exact diagonalization on the bilayer geometry) is shown to demonstrate that the doubly degenerate one-up-one-down manifold survives once both intra- and inter-layer exchanges are included at the reported strengths.
Authors: We acknowledge that an explicit demonstration of degeneracy survival under inter-layer couplings would strengthen the theoretical section. Our current argument rests on symmetry analysis of the bilayer triangular lattice and the quantitative match between measured entropy and the ice-rule prediction. In revision we will expand the discussion to include a qualitative symmetry argument showing how the observed fractional plateaus break lattice symmetry in a manner that preserves the two-fold degeneracy, supported by citations to related bilayer ice-rule models. Full Monte Carlo simulations on the bilayer geometry lie beyond the scope of this primarily experimental study. revision: partial
-
Referee: [§5] Labeling the 5/6 state a candidate quantum spin liquid rests on the absence of conventional order and the persistence of degeneracy; however, the manuscript reports no neutron-scattering, μSR, or NMR data that would directly constrain the spin-correlation length or rule out short-range order that could lift the entropy below the classical prediction.
Authors: The referee correctly notes that microscopic probes would provide stronger constraints on possible short-range order. Our candidacy for the 5/6 plateau as a quantum spin liquid is based on the thermodynamic signatures: the absence of any ordering anomaly in magnetization and specific heat down to 50 mK, combined with the residual entropy matching the classical ice-rule value exactly. Short-range order sufficient to lift the degeneracy would be expected to produce detectable deviations from this entropy, which are not observed. We will clarify the candidate status in the revised discussion while noting that neutron, μSR or NMR measurements are planned for future work. revision: no
- Explicit Monte Carlo or exact-diagonalization simulations of the bilayer model including both intra- and inter-layer exchanges at the reported coupling strengths
- Neutron-scattering, μSR or NMR data that would directly measure the spin-correlation length in the 5/6 plateau
Circularity Check
No significant circularity in derivation chain
full rationale
The manuscript is an experimental study reporting magnetization plateaus and entropy release in Rb2Co2(SeO3)3. The residual entropy expression ½(1−M/Ms)Rln2 follows directly as a counting consequence of the proposed doubly degenerate one-up-one-down configurations under generalized ice rules; it is not obtained by fitting parameters to the target data nor by self-referential definition. No load-bearing self-citations, uniqueness theorems imported from the same authors, or ansatzes smuggled via prior work are invoked to close the central argument. The claims remain self-contained against external benchmarks (pyrochlore ice-rule analogies and direct thermodynamic measurements).
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Spins behave as classical Ising variables with strong anisotropy
- ad hoc to paper Observed plateaus correspond exactly to the stated degenerate configurations without additional ordering
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
residual entropy of 1/2(1−M/Ms)Rln2 per mole ... one-up-one-down local spin configurations ... generalized ice rules
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
cascade of CSLs ... 5/6-plateau state is a candidate quantum spin liquid
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
P. Fazekas and P. W. Anderson, On the ground state properties of the anisotropic triangular antiferromagnet, Philos. Mag.30, 423 (1974)
work page 1974
-
[2]
R. Moessner and A. P. Ramirez, Geometrical frustration, Phys. Today59, 24 (2006)
work page 2006
-
[3]
Kitaev, Anyons in an exactly solved model and be- yond, Ann
A. Kitaev, Anyons in an exactly solved model and be- yond, Ann. Phys.321, 2 (2006)
work page 2006
-
[4]
Balents, Spin liquids in frustrated magnets, Nature 464, 199 (2010)
L. Balents, Spin liquids in frustrated magnets, Nature 464, 199 (2010)
work page 2010
-
[5]
M. Gen, D. Hirai, K. Morita,et al., Chemically tunable quantum magnetism on the anisotropic triangular lattice in rhenium oxyhalides, Nat. Commun.16(2025)
work page 2025
-
[6]
W. F. Giauque and J. W. Stout, The entropy of water and the third law of thermodynamics. The heat capacity of ice from 15 to 273 K, J. Am. Chem. Soc.58, 1144 (1936)
work page 1936
-
[7]
D. A. Garanin and B. Canals, Classical spin liquid: Ex- act solution for the infinite-component antiferromagnetic model on the kagom´ e lattice, Phys. Rev. B59, 443 (1999)
work page 1999
-
[8]
Z. Wang and L. Pollet, Renormalized classical spin liquid on the ruby lattice, Phys. Rev. Lett.134, 086601 (2025)
work page 2025
-
[9]
G. H. Wannier, Antiferromagnetism. The triangular Ising net, Phys. Rev.79, 357 (1950)
work page 1950
-
[10]
K. Kanˆ o and S. Naya, Antiferromagnetism. The kagom´ e Ising net, Prog. Theor. Phys.10, 158 (1953)
work page 1953
-
[11]
M. J. Harris, S. T. Bramwell, D. F. McMorrow, T. Zeiske, and K. W. Godfrey, Geometrical frustration in the fer- romagnetic pyrochlore Ho 2Ti2O7, Phys. Rev. Lett.79, 2554 (1997)
work page 1997
-
[12]
A. P. Ramirez, A. Hayashi, R. J. Cava, R. Siddharthan, and B. S. Shastry, Zero-point entropy in ‘spin ice’, Nature 399, 333 (1999)
work page 1999
-
[13]
R. Siddharthanet al., Ising pyrochlore magnets: Low- temperature properties, “ice rules,” and beyond, Phys. Rev. Lett.83, 1854 (1999)
work page 1999
-
[14]
S. T. Bramwell and M. J. P. Gingras, Spin ice state in frustrated magnetic pyrochlore materials, Science294, 1495 (2001)
work page 2001
-
[15]
K. Zhaoet al., Realization of the kagome spin ice state in a frustrated intermetallic compound, Science367, 1218 (2020)
work page 2020
-
[16]
3D XY Universality and Nonlinear magnetic susceptibility in a kagome ice compound
K. Zhaoet al., Nonlinear time-reversal symmetry break- ing in kagome spin ice HoAgGe (2025), preprint at https://arxiv.org/abs/2505.22544
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[17]
K. A. Ross, L. Savary, B. D. Gaulin, and L. Balents, Quantum excitations in quantum spin ice, Phys. Rev. X 1, 021002 (2011)
work page 2011
-
[18]
N. Shannon, O. Sikora, F. Pollmann, K. Penc, and P. Fulde, Quantum ice: A quantum monte carlo study, Phys. Rev. Lett.108, 067204 (2012)
work page 2012
- [19]
-
[20]
A. Banerjee, S. V. Isakov, K. Damle, and Y. B. Kim, Un- usual liquid state of hard-core bosons on the pyrochlore lattice, Phys. Rev. Lett.100, 047208 (2008)
work page 2008
-
[21]
M. Hermele, M. P. A. Fisher, and L. Balents, Pyrochlore photons: The U(1) spin liquid in aS= 1/2 three- dimensional frustrated magnet, Phys. Rev. B69, 064404 (2004)
work page 2004
-
[22]
C. Castelnovo, R. Moessner, and S. L. Sondhi, Magnetic monopoles in spin ice, Nature451, 42 (2008)
work page 2008
-
[23]
L. Savary and L. Balents, Coulombic quantum liquids in spin-1/2 pyrochlores, Phys. Rev. Lett.108, 037202 (2012)
work page 2012
-
[24]
S. Yan, D. A. Huse, and S. R. White, Spin-liquid ground state of the S = 1/2 kagome heisenberg antiferromagnet, Science332, 1173 (2011)
work page 2011
-
[25]
L. Savary and L. Balents, Quantum spin liquids: a re- view, Rep. Prog. Phys.80, 016502 (2016)
work page 2016
- [26]
-
[27]
Broholmet al., Quantum spin liquids, Science367, eaay0668 (2020)
C. Broholmet al., Quantum spin liquids, Science367, eaay0668 (2020)
work page 2020
-
[28]
J. Xing, S. Mu, E. S. Choi, and R. Jin, Candidate spin- liquid ground state in CsNdSe2 with an effective spin-1/2 triangular lattice, Commun. Mater.5, 45 (2024)
work page 2024
- [29]
-
[30]
X. Xuet al., Frustrated magnetism in a potential quan- tum material based on spin-1/2 Co 2+ dimers, Chem. Mater36, 4157 (2024)
work page 2024
-
[31]
Z. R. Liet al., Differences in magnetic properties between the triangular-dimer-lattice antiferromagnets Rb2Ni2(SeO3)3 and K 2Co2(SeO3)3, Phys. Rev. B112, 094456 (2025)
work page 2025
-
[32]
G. V. Chen, Emergent Berezinskii-Kosterlitz-Thouless and Kugel-Khomskii physics in the triangular lattice bi- layer colbaltate, Phys. Rev. Lett.133, 136703 (2024)
work page 2024
- [33]
-
[34]
X. Xu, Y. Wang, X. Gui, J. Luo, G. Duan, K. Shi, Z. Wang, S. Li, H. Ren, C. Xi, L. Ling, Z. Wu, Y. Chen, X. Bo, X. Shi, K. Du, R. Bian, J. Yang, Y. Cui, R. Zhou, J. Wang, R. Yu, and W. Yu, (2025), see Supplementary materials for details of other measurement results
work page 2025
-
[35]
S. Nishimoto, N. Shibata, and C. Hotta, Controlling frustrated liquids and solids with an applied field in a kagome Heisenberg antiferromagnet, Nat. Commun.4, 2287 (2013)
work page 2013
-
[36]
X. Xuet al., NMR study of spin supersolid phases in 8 the triangular-lattice antiferromagnet Na 2BaCo(PO4)2, Phys. Rev. B112, 125163 (2025)
work page 2025
-
[37]
Y. Kamiyaet al., The nature of spin excitations in the one-third magnetization plateau phase of Ba 3CoSb2O9, Nat. Commun.9, 2666 (2018)
work page 2018
-
[38]
S. Suetsuguet al., Emergent spin-gapped magnetization plateaus in a spin-1/2 perfect kagome antiferromagnet, Phys. Rev. Lett.132, 226701 (2024)
work page 2024
-
[39]
M. E. Zhitomirsky and H. Tsunetsugu, High field prop- erties of geometrically frustrated magnets, Prog. Theor. Phys. Suppl.160, 361 (2005)
work page 2005
-
[40]
L. Pauling, The structure and entropy of ice and of other crystals with some randomness of atomic arrangement, J. Am. Chem. Soc.57, 2680 (1935)
work page 1935
- [41]
-
[42]
M. Zhuet al., Wannier states and spin supersolid physics in the triangular antiferromagnet K 2Co(SeO3)2, npj Quant. Mater.10, 74 (2025)
work page 2025
-
[43]
S. Jeon, D. Wulferding, Y. Choi,et al., One-ninth mag- netization plateau stabilized by spin entanglement in a kagome antiferromagnet, Nat. Phys.20, 435 (2024)
work page 2024
-
[44]
G. Zhenget al., Thermodynamic evidence of fermionic behavior in the vicinity of one-ninth plateau in a kagome antiferromagnet, Phys. Rev. X15, 021076 (2025)
work page 2025
-
[45]
J. A. Sears, Y. Zhao, Z. Xu, J. W. Lynn, and Y.-J. Kim, Phase diagram ofα-RuCl 3 in an in-plane magnetic field, Phys. Rev. B95, 180411 (2017)
work page 2017
-
[46]
J. Zhenget al., Gapless spin excitations in the field- induced quantum spin liquid phase ofα-RuCl 3, Phys. Rev. Lett.119, 227208 (2017)
work page 2017
-
[47]
T. Yokoiet al., Half-integer quantized anomalous ther- mal hall effect in the Kitaev material candidateα-RuCl 3, Science373, 568 (2021)
work page 2021
-
[48]
D. T. Liu, F. J. Burnell, L. D. C. Jaubert, and J. T. Chalker, Classical spin liquids in stacked triangular- lattice Ising antiferromagnets, Phys. Rev. B94, 224413 (2016)
work page 2016
-
[49]
S. Hayami, Multiple-Q states in bilayer triangular-lattice systems with bond-dependent anisotropic interaction, Crystals15, 663 (2025)
work page 2025
-
[50]
E. M. Smithet al., Two-peak heat capacity accounts forRln2 entropy and ground state access in the dipole- octupole pyrochlore Ce 2Hf2O7, Phys. Rev. Lett.135, 086702 (2025)
work page 2025
