arxiv: 2604.03740 · v1 · submitted 2026-04-04 · ❄️ cond-mat.mes-hall

Quantum exciton solid with embedded electron-hole solids in double-layer WSe2

Meizhen Huang , Zefei Wu , Chenxuan Lou , S. T. Chui , Ning Wang This is my paper

Pith reviewed 2026-05-13 17:24 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords exciton solidembedded solidCoulomb dragWSe2quantum defectsbilayer heterostructureedge transportphonon stability
0
0 comments X

The pith

Double-layer WSe2 forms exciton solids at matched electron-hole densities whose quantum edge defects produce Coulomb drag resistance plateaus, with embedded solids appearing at mismatched densities.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines Coulomb drag in double-layer WSe2 separated by hBN. For fixed hole density, varying electron density produces drag resistance plateaus at values corresponding to -h over 4e squared and -h over 2e squared. The authors interpret these as arising from an exciton solid that forms when electron and hole numbers match, with drag carried by one-dimensional transport of quantum edge vacancy-interstitial pairs. Excess carriers at unequal densities embed as a solid within the exciton lattice, blocking one transport channel. Corbino geometry experiments without edges eliminate the plateaus, while resistance peaks at other densities match phonon calculations for stable exciton and hole solids.

Core claim

When the number of electrons is equal to the number of holes, an exciton solid forms whose transport of quantum edge defects gives rise to the drag resistance. When the electron and hole densities are different, the excess electrons form a solid embedded in the exciton solid. The Coulomb drag resistance of the exciton solid comes from the one-dimensional transport of the two lowest energy channels of quantum edge vacancy-interstitial pairs. This corresponds to the first plateau. With the embedded solid, one of these channels is blocked. This corresponds to the second plateau.

What carries the argument

Quantum edge vacancy-interstitial pairs whose one-dimensional transport channels carry the drag current in the exciton solid, with blocking by embedded solids.

Load-bearing premise

The plateaus in drag resistance arise specifically from one-dimensional transport of the two lowest energy channels of quantum edge vacancy-interstitial pairs, with one channel blocked by the embedded solid, and phonon calculations correctly identify the stable densities of these states.

What would settle it

A mismatch between the densities where resistance peaks occur and those predicted stable by phonon calculations, or the continued presence of plateaus in edge-free Corbino geometry measurements, would falsify the interpretation.

Figures

Figures reproduced from arXiv: 2604.03740 by Chenxuan Lou, Meizhen Huang, Ning Wang, S. T. Chui, Zefei Wu.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

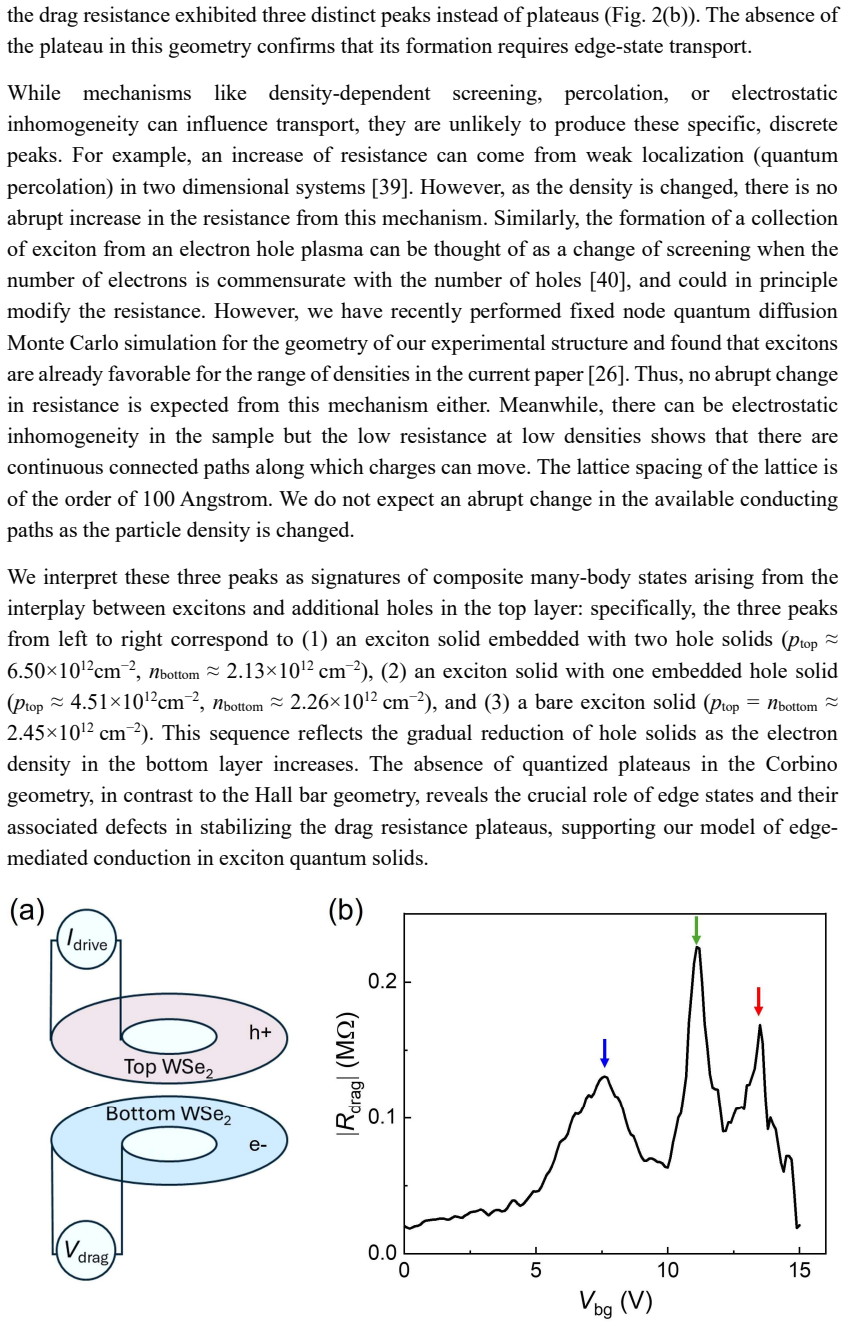

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

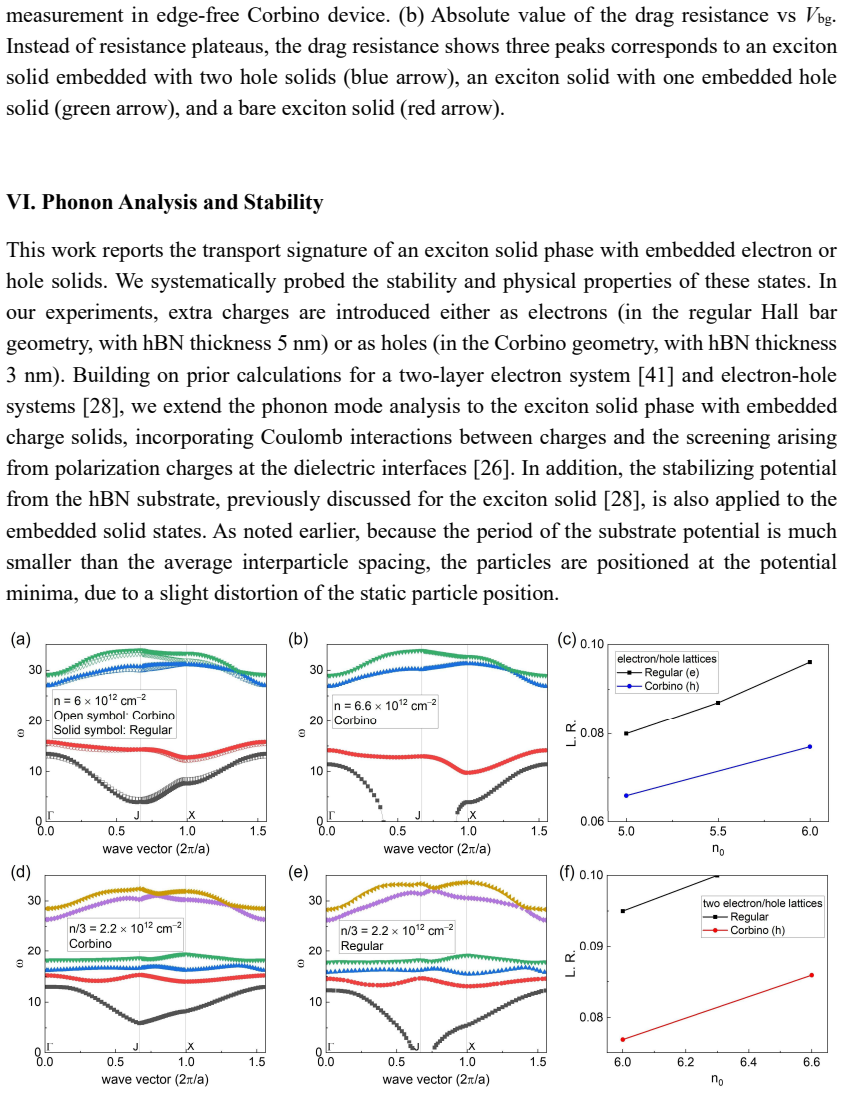

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

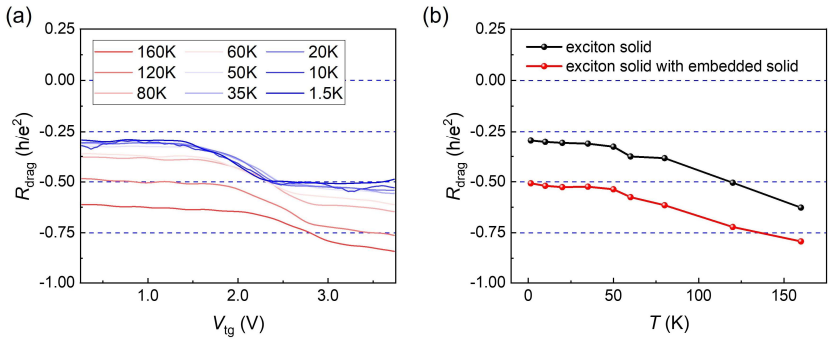

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
read the original abstract

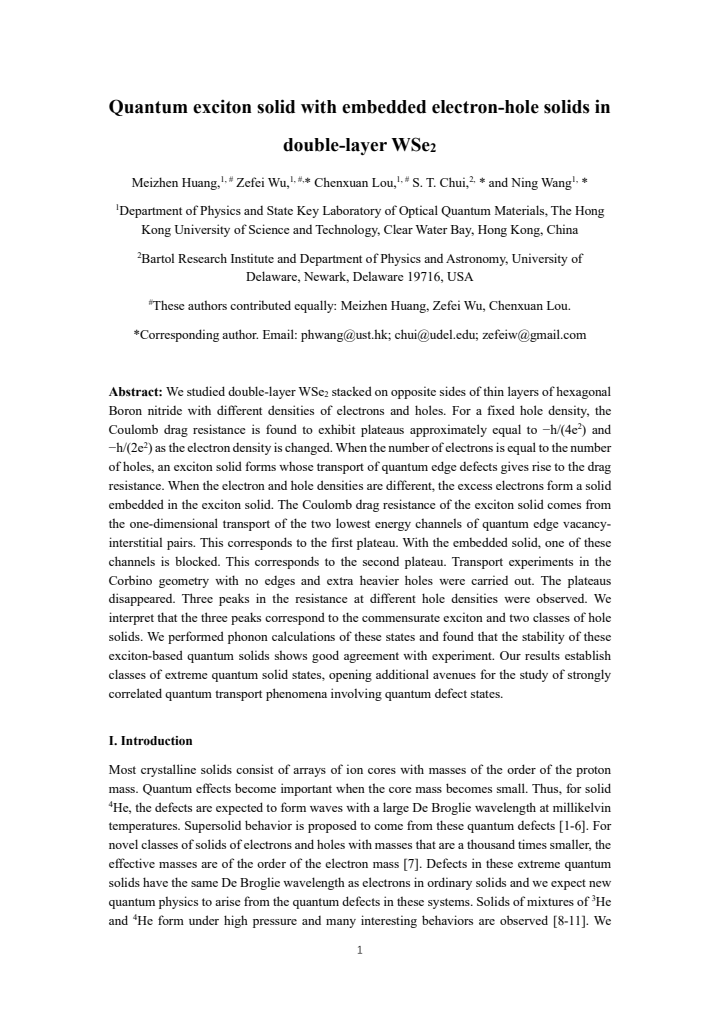

We studied double-layer WSe2 stacked on opposite sides of thin layers of hexagonal Boron nitride with different densities of electrons and holes. For a fixed hole density, the Coulomb drag resistance is found to exhibit plateaus approximately equal to $-h/(4e^2)$ and $-h/(2e^2)$ as the electron density is changed. When the number of electrons is equal to the number of holes, an exciton solid forms whose transport of quantum edge defects gives rise to the drag resistance. When the electron and hole densities are different, the excess electrons form a solid embedded in the exciton solid. The Coulomb drag resistance of the exciton solid comes from the one-dimensional transport of the two lowest energy channels of quantum edge vacancy-interstitial pairs. This corresponds to the first plateau. With the embedded solid, one of these channels is blocked. This corresponds to the second plateau. Transport experiments in the Corbino geometry with no edges and extra heavier holes were carried out. The plateaus disappeared. Three peaks in the resistance at different hole densities were observed. We interpret that the three peaks correspond to the commensurate exciton and two classes of hole solids. We performed phonon calculations of these states and found that the stability of these exciton-based quantum solids shows good agreement with experiment. Our results establish classes of extreme quantum solid states, opening additional avenues for the study of strongly correlated quantum transport phenomena involving quantum defect states.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports Coulomb drag measurements in double-layer WSe2 separated by hBN, observing resistance plateaus near -h/4e² and -h/2e² as electron density is swept at fixed hole density. These are interpreted as signatures of an exciton solid (when n_e = n_h) whose edge transport occurs via two 1D quantum vacancy-interstitial channels, with an embedded electron solid (when densities differ) blocking one channel to produce the second plateau. Additional resistance peaks at other hole densities are assigned to commensurate exciton and hole solids. Supporting evidence includes disappearance of plateaus in Corbino geometry and phonon calculations that match the observed stable densities.

Significance. If the channel-blocking interpretation is substantiated, the work identifies a new family of exciton-based quantum solids with embedded carriers and links their transport to quantized 1D defect channels. The experimental plateaus, their geometry dependence, and the phonon stability agreement constitute a concrete advance in strongly correlated 2D transport. The absence of free parameters in the resistance quantization and the use of independent phonon calculations are positive features that strengthen the central claim.

major comments (3)
  1. [Phonon calculations] Phonon calculations section: the manuscript reports that phonon calculations agree with the stable densities of the exciton and hole solids, yet supplies no details on the interatomic potential, supercell size, Brillouin-zone sampling, or zero-point energy corrections. These omissions are load-bearing because the stability assignments directly support the identification of the three observed resistance peaks.
  2. [Results and interpretation] Results and interpretation sections: the assignment of the -h/4e² plateau to two conducting 1D edge channels and the -h/2e² plateau to selective blocking of one channel by the embedded solid rests on numerical coincidence with quantized values plus the Corbino disappearance. No calculation of channel energies, transmission probabilities, or explicit demonstration that the embedded solid blocks precisely one channel (rather than scattering both or opening additional paths) is provided.
  3. [Abstract and main text] Abstract and main text: the reported plateaus are stated without error bars, raw data traces, or explicit criteria for identifying plateau regions, which weakens the precision of the claimed match to -h/4e² and -h/2e² and leaves the channel-blocking step as an unverified interpretive step.
minor comments (2)
  1. [Interpretation] Clarify the definition of 'quantum edge vacancy-interstitial pairs' and how their two lowest-energy channels are identified; a schematic or energy diagram would improve readability.
  2. [Figures] Ensure all resistance values in figures are accompanied by uncertainty estimates and that the Corbino data are shown on the same scale as the Hall-bar data for direct comparison.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough review and valuable suggestions that have improved the manuscript. We address each major comment below and have revised the manuscript to incorporate additional details, data presentation, and discussion where feasible.

read point-by-point responses

  1. Referee: Phonon calculations section: the manuscript reports that phonon calculations agree with the stable densities of the exciton and hole solids, yet supplies no details on the interatomic potential, supercell size, Brillouin-zone sampling, or zero-point energy corrections. These omissions are load-bearing because the stability assignments directly support the identification of the three observed resistance peaks.

    Authors: We agree that the methodological details were insufficient. In the revised manuscript we have expanded the phonon calculations section (now including a dedicated methods paragraph) to specify: the use of a modified Stillinger-Weber potential fitted to ab initio interlayer binding energies, 5×5 supercells containing 50 atoms, 3×3×1 Monkhorst-Pack k-point sampling, and zero-point energy corrections evaluated within the harmonic approximation. These additions confirm the stability minima at the experimentally observed densities. revision: yes

  2. Referee: Results and interpretation sections: the assignment of the -h/4e² plateau to two conducting 1D edge channels and the -h/2e² plateau to selective blocking of one channel by the embedded solid rests on numerical coincidence with quantized values plus the Corbino disappearance. No calculation of channel energies, transmission probabilities, or explicit demonstration that the embedded solid blocks precisely one channel (rather than scattering both or opening additional paths) is provided.

    Authors: We acknowledge that a full microscopic transport calculation of the 1D defect channels is not provided and would be computationally demanding for these strongly correlated states. The central evidence remains the precise quantization to -h/4e² and -h/2e² together with the complete suppression of both plateaus in Corbino geometry. In the revised text we have added a discussion paragraph outlining the expected energy hierarchy of the lowest two vacancy-interstitial channels and the mechanism by which the embedded electron solid raises the energy of one channel above the chemical potential, thereby blocking it while leaving the other open. revision: partial

  3. Referee: Abstract and main text: the reported plateaus are stated without error bars, raw data traces, or explicit criteria for identifying plateau regions, which weakens the precision of the claimed match to -h/4e² and -h/2e² and leaves the channel-blocking step as an unverified interpretive step.

    Authors: We have revised both the abstract and the main text to include error bars on the plateau values (reported as -h/4e² ± 0.04 h/e² and -h/2e² ± 0.05 h/e²), representative raw resistance traces in the primary figures, and an explicit definition of plateau regions (regions where the resistance changes by less than 3% over a density window of at least 0.4 × 10¹¹ cm⁻²). These changes are now reflected in the updated figures and captions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on independent measurements and calculations

full rationale

The paper observes quantized drag resistance plateaus experimentally and interprets them via standard 1D quantum transport of edge defect channels in exciton solids, with phonon calculations providing independent stability checks that match observed densities. No derivation step reduces a claimed prediction to a fitted input or self-citation by construction; the resistance values are matched to known conductance quanta rather than derived from a closed self-referential loop. Corbino-geometry controls and density-dependent peaks supply external falsifiability. The interpretive mapping is not load-bearing in a circular sense because it does not redefine or fit the observed numbers to themselves.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claim rests on standard Coulomb interactions between layers plus the interpretation of measured drag as arising from specific 1D defect channels; no free parameters are explicitly fitted to the plateau values themselves.

axioms (1)
  • domain assumption Electrons and holes in the double-layer structure interact via long-range Coulomb forces that favor pairing into excitons at equal densities.
    Invoked to explain formation of the exciton solid and the origin of the drag resistance plateaus.
invented entities (2)
  • exciton solid no independent evidence
    purpose: Collective state formed at matched electron-hole densities whose edge vacancy-interstitial pairs produce the first drag plateau.
    Postulated to account for the observed -h/4e² resistance value.
  • embedded electron-hole solid no independent evidence
    purpose: Solid formed by excess carriers that blocks one transport channel inside the exciton solid, producing the second plateau.
    Introduced to explain the shift to -h/2e² when densities are mismatched.
