arxiv: 2604.03748 · v1 · submitted 2026-04-04 · 💻 cs.GR · cs.CV

Real-time Neural Six-way Lightmaps

Wei Li , Hanxiao Sun , Tao Huang , Haoxiang Wang , Tongtong Wang , Zherong Pan , Kui Wu This is my paper

Pith reviewed 2026-05-13 17:12 UTC · model grok-4.3

classification 💻 cs.GR cs.CV

keywords neural lightmapsparticipating mediareal-time renderingsmokegame enginesray marchingneural networks

0 comments

The pith

A neural network predicts six-way lightmaps from coarse camera-view guiding maps to enable real-time dynamic smoke rendering in game engines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that six-way lightmaps, traditionally precomputed for static smoke sequences, can be generated dynamically using a neural network. A guiding map is first created from the current camera view via ray marching with large steps to capture approximate scattering and outlines. The network then outputs the six directional lightmaps that plug directly into existing rendering pipelines. This matters for games and VR because it allows smoke to respond to moving cameras, changing lights, and obstacles in real time without the cost of full volume simulation.

Core claim

Given a guiding map generated from the camera view using ray marching with a large sampling distance to approximate smoke scattering and silhouette, a neural network predicts the corresponding six-way lightmaps that can be used directly in existing game engine pipelines while supporting smoke-obstacle interaction, camera movement, and light change.

What carries the argument

The neural network that maps a ray-marched guiding map to six directional lightmaps for smoke rendering.

Load-bearing premise

The trained neural network produces accurate lightmaps for smoke conditions, densities, and viewpoints outside the training set without introducing visible errors.

What would settle it

Rendering the method on a smoke scene with a novel density distribution or camera path and comparing the output lightmaps or final image to a high-quality offline volume renderer for mismatches.

Figures

Figures reproduced from arXiv: 2604.03748 by Hanxiao Sun, Haoxiang Wang, Kui Wu, Tao Huang, Tongtong Wang, Wei Li, Zherong Pan.

**Figure 1.** Figure 1: Two frames of a chimney smoke example rendered with rotating camera direction in Unreal Engine (UE) [Epic Games 2021]. Our neural lightmaps support dynamic lighting, camera direction, and realistic multiple-scattering effects, whereas traditional six-way lightmaps [Muller 2023] with asymmetrically shaped smoke only work for one camera direction, leading to severe offset artifacts and a lack of interaction.… view at source ↗

**Figure 2.** Figure 2: An example set of lightmaps packed in two RGBA textures. Of the 8 available channels, 6 channels store the six-way scattering lightmaps along axis-aligned directions. Additionally, the alpha channel for the first texture contains the transparency 𝑇 (x ↔ z), while the alpha channel of the second texture is an optional emissive component. equation (Eq. 1) can be rewritten in following form: 𝐿(x) = ∫ 𝑧 0 𝑇 (… view at source ↗

**Figure 3.** Figure 3: Our pipeline: the physically based fluid simulator takes the obstacle as input (a) to produce the density field (b). (c) A ray marching with a large sample step extracts the guiding map with three channels, in-scattered radiance 𝐿˜ scattering, transparency 𝑇 , and depth 𝐷. (d) Our neural lightmaps generator contains a modified UNet that first extracts channel-shared features from the input, which are then … view at source ↗

**Figure 4.** Figure 4: Our approach can handle dynamic smoke under a moving camera and be integrated seamlessly into Unreal Engine [Epic Games 2021]. slightly, dropping a few PSNR points due to the distribution shift, the results remain stable, with overall PSNR values above 30. Even at 2.0× density, our method continues to outperform both denoised ReSTIR and MRPNN, demonstrating stronger robustness to density variation, as illu… view at source ↗

**Figure 5.** Figure 5: Comparison on a denser smoke field shows that our method continues to outperform prior techniques, maintaining higher visual fidelity even under significantly increased density. Reference Front Front+LR Front+TB PSNR↑ 32.61/37.83/28.96 34.99/39.05/33.08 40.85/48.78/37.93 MSE ↓ 0.00065/0.00127/0.00017 0.00033/0.00049/0.00012 0.00009/0.00016/0.00001 [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

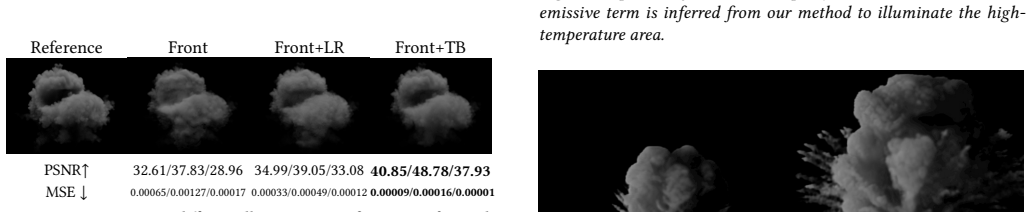

**Figure 6.** Figure 6: Comparison on different illumination configurations for guiding map generation with Avg./max/min PSNR and MSE. LR and TB denote left + right and top + bottom, respectively [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

**Figure 7.** Figure 7: A rotating jet flow, where our method can illuminate smoke wit details under the shadow [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗

**Figure 13.** Figure 13: Comparison between reference, ours, ReSTIR [Lin et al. 2021] with 1 spp, ReSTIR with 1 spp and denoising, and MRPNN [Hu et al. 2023]. Reference Ours Reference Ours Reference Ours Density ×0.5 32.39/0.00057 Density ×1.0 40.71/0.00008 Density ×2.0 35.89/0.00025 [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗

**Figure 14.** Figure 14: Ablation study on different densities. While PSNR decreases slightly due to the distribution shift, the results remain stable. Reference No channel adapter No SRGB space W/o flow loss W/o perceptual loss Our total Avg./max/min PSNR ↑ 38.75/44.90/36.03 38.93/46.10/36.09 39.11/47.31/36.15 38.93/46.10/36.09 40.85/48.78/37.93 Avg./max/min MSE ↓ 0.00019/0.00029/0.00002 0.00017/0.00027/0.00002 0.00016/0.00024/0… view at source ↗

**Figure 15.** Figure 15: Ablation study on different losses. Each component proves essential for achieving high-quality results [PITH_FULL_IMAGE:figures/full_fig_p011_15.png] view at source ↗

**Figure 16.** Figure 16: Jet flow over a rigid bunny with a rotating light. The middle image demonstrates the bunny casting a shadow on the smoke from the backlit [PITH_FULL_IMAGE:figures/full_fig_p011_16.png] view at source ↗

read the original abstract

Participating media are a pervasive and intriguing visual effect in virtual environments. Unfortunately, rendering such phenomena in real-time is notoriously difficult due to the computational expense of estimating the volume rendering equation. While the six-way lightmaps technique has been widely used in video games to render smoke with a camera-oriented billboard and approximate lighting effects using six precomputed lightmaps, achieving a balance between realism and efficiency, it is limited to pre-simulated animation sequences and is ignorant of camera movement. In this work, we propose a neural six-way lightmaps method to strike a long-sought balance between dynamics and visual realism. Our approach first generates a guiding map from the camera view using ray marching with a large sampling distance to approximate smoke scattering and silhouette. Then, given a guiding map, we train a neural network to predict the corresponding six-way lightmaps. The resulting lightmaps can be seamlessly used in existing game engine pipelines. This approach supports visually appealing rendering effects while enabling real-time user interactivity, including smoke-obstacle interaction, camera movement, and light change. By conducting a series of comprehensive benchmarks, we demonstrate that our method is well-suited for real-time applications, such as games and VR/AR.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper sketches a neural pipeline that turns coarse ray-marched guides into dynamic six-way lightmaps for smoke, but supplies no numbers to show the network actually generalizes.

read the letter

The main takeaway is that the authors combine a cheap ray-march step to build a guiding map with a neural net that then outputs the six directional lightmaps. This lets the lightmaps respond to camera motion, moving lights, and obstacle collisions while still dropping into standard game-engine billboards. That combination is not in the static six-way papers they cite, so the pipeline itself is new for the dynamic case. The description is straightforward and the engineering goal is clear: keep the output compatible with existing renderers instead of forcing a full volume integrator. If the net really runs fast and looks decent, it would be a practical win for VR and games where pre-baked sequences break on interaction. The soft spot is exactly where the stress-test note flags it. The abstract claims comprehensive benchmarks and real-time performance, yet gives no error metrics, no baseline timings, no description of the training set size or diversity, and no held-out test cases for unseen densities or light directions. Without those, the claim that one trained network will stay artifact-free under arbitrary conditions stays unverified. The method is coherent on paper, but the load-bearing step is the generalization, and nothing in the supplied text secures it. This is aimed at graphics engineers who already use six-way lightmaps and want to add dynamics without rewriting their pipeline. A practitioner could pull the high-level idea and try it, but would have to do the validation work themselves. I would send it to peer review because the target problem is real and the proposed route is simple enough that referees could quickly check whether the numbers back it up or expose the gaps.

Referee Report

2 major / 1 minor

Summary. The paper claims to introduce a neural six-way lightmaps technique for real-time rendering of participating media such as smoke. A guiding map is generated from the camera view using ray marching with large sampling distance to approximate scattering and silhouette. A neural network is then trained to predict the corresponding six-way lightmaps from this guiding map, allowing seamless integration into game engine pipelines and supporting dynamic interactions like smoke-obstacle collisions, camera movement, and light changes. Comprehensive benchmarks are said to show suitability for real-time applications.

Significance. If the neural network generalizes accurately to arbitrary conditions, this method could provide a practical solution for dynamic volume rendering in games and VR/AR, improving upon traditional precomputed lightmaps by enabling interactivity without sacrificing visual quality.

major comments (2)

[Abstract] The abstract asserts that 'comprehensive benchmarks' demonstrate the method's suitability for real-time applications, but supplies no error metrics, comparison baselines, failure cases, or details on training data diversity, network architecture, or loss terms. This absence directly impacts the ability to evaluate the central claim of artifact-free generalization.
[Method] The description of the neural network prediction step lacks specifics on how the network is trained to handle variations in smoke densities, camera positions, and lighting not seen in training, which is the key assumption for supporting arbitrary interactions.

minor comments (1)

[Abstract] The phrase 'long-sought balance between dynamics and visual realism' is vague; consider quantifying the trade-off or referencing prior work more precisely.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our work. We address each major point below and will revise the manuscript to improve clarity and completeness while preserving the core contributions.

read point-by-point responses

Referee: [Abstract] The abstract asserts that 'comprehensive benchmarks' demonstrate the method's suitability for real-time applications, but supplies no error metrics, comparison baselines, failure cases, or details on training data diversity, network architecture, or loss terms. This absence directly impacts the ability to evaluate the central claim of artifact-free generalization.

Authors: We agree that the abstract's brevity limits the inclusion of quantitative details. The full manuscript contains an experiments section with timing benchmarks, visual comparisons to ray-marched ground truth, and qualitative results across dynamic scenarios. To strengthen the abstract's claim, we will revise it to briefly reference key outcomes such as real-time frame rates and low reconstruction error. All requested specifics on metrics, baselines, failure cases, training data diversity, network architecture, and loss terms will be explicitly detailed or cross-referenced in the revised method and experiments sections. revision: partial
Referee: [Method] The description of the neural network prediction step lacks specifics on how the network is trained to handle variations in smoke densities, camera positions, and lighting not seen in training, which is the key assumption for supporting arbitrary interactions.

Authors: The current manuscript outlines the high-level pipeline but we acknowledge the need for expanded training details to substantiate generalization. In the revision we will add a dedicated subsection describing the training procedure: the network is trained on procedurally generated smoke volumes spanning a wide range of densities, with randomized camera trajectories and lighting configurations drawn from both training and held-out distributions. Data augmentation (random scaling, rotation, and lighting perturbation) combined with a composite loss (L1 reconstruction plus feature-space regularization) is used to promote robustness to unseen conditions, directly enabling the reported support for smoke-obstacle collisions, free camera movement, and dynamic lighting. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in neural prediction pipeline

full rationale

The paper generates a guiding map via standard ray marching with large sampling distance, then trains a neural network to map it to six-way lightmaps for use in existing engines. No equations, self-citations, or uniqueness claims reduce the predicted lightmaps to the guiding map by construction; the mapping is learned from external training data and evaluated against game-engine benchmarks. The derivation chain remains independent of its own fitted outputs.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The approach rests on the assumption that a coarsely sampled ray march plus a trained network can faithfully approximate the volume rendering integral for smoke under changing viewpoints and lights; no new physical entities are introduced.

free parameters (2)

neural network weights and architecture
Learned during training to map guiding maps to lightmaps; exact count and values not stated in abstract.
ray marching sampling distance
Chosen as 'large' to approximate scattering and silhouette; value not specified.

axioms (2)

domain assumption Ray marching with large step size produces a usable guiding map that captures smoke scattering and silhouette sufficiently for the downstream network.
Invoked in the first step of the pipeline described in the abstract.
domain assumption Six-way lightmaps produced by the network can be directly substituted into existing game-engine rendering pipelines without additional correction.
Stated as enabling seamless integration.
