arxiv: 2604.03762 · v1 · submitted 2026-04-04 · ❄️ cond-mat.mes-hall

Theoretical study of spin-dependent transport in WSe₂-based vertical spin valves

Yibo Wang , Yuchen Liu , Xinhe Wang , Wang Yang This is my paper

Pith reviewed 2026-05-13 17:19 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords WSe2vertical spin valvesmagnetoresistancespin-dependent transportFabry-Perot interferenceTMD heterostructuresnegative magnetoresistancetransfer matrix
0
0 comments X

The pith

Magnetoresistance in WSe2 vertical spin valves oscillates with layer thickness and turns negative due to interference.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper models spin-dependent electron flow through a stack of WSe2 layers placed between two ferromagnetic electrodes. Using simplified band-structure models and a transfer-matrix calculation of transmission, it shows that the resulting magnetoresistance varies periodically as the WSe2 thickness changes, especially when the Fermi level sits near the valence-band edge. Gate voltage and electrode exchange fields further shift both the size and the sign of this resistance change. The work also isolates a wave-interference term inside the WSe2 slab that can produce or strengthen negative magnetoresistance at particular thicknesses.

Core claim

Using effective Hamiltonians for the WSe2 heterostructure and the Landauer formula within a transfer-matrix approach, the transmission and reflection coefficients are derived for parallel and antiparallel electrode magnetizations. The magnetoresistance exhibits an oscillatory dependence on WSe2 thickness when the Fermi level is tuned near the valence-band maximum. Gate voltage and exchange fields modulate the amplitude and sign of the magnetoresistance, while a Fabry-Pérot-like interference contribution can enhance or induce negative magnetoresistance in selected thickness windows.

What carries the argument

Transfer-matrix method applied to effective Hamiltonians for the layered heterostructure, used to compute spin-resolved transmission probabilities.

If this is right

  • Magnetoresistance oscillates with WSe2 thickness when the Fermi level lies near the valence-band maximum.
  • Gate voltage shifts the oscillation pattern and can change the sign of the magnetoresistance.
  • Exchange fields in the electrodes alter the magnitude and thickness dependence of the resistance change.
  • Fabry-Pérot interference inside the WSe2 slab produces or strengthens negative magnetoresistance at specific thicknesses.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Selecting a precise WSe2 layer count could let device designers flip the magnetoresistance sign without changing materials.
  • The same interference mechanism may appear in other transition-metal dichalcogenides that share similar band-edge properties.
  • Temperature or interface disorder would likely damp the oscillations, setting a practical limit on how sharply the effect can be tuned.

Load-bearing premise

Effective Hamiltonians for the WSe2 heterostructure accurately represent the band structure, spin-orbit coupling, and interface properties without full atomic-scale calculations.

What would settle it

Experimental magnetoresistance measurements on WSe2 vertical spin valves with systematically varied layer counts that either match or deviate from the predicted oscillation periods and negative values near the valence-band edge.

Figures

Figures reproduced from arXiv: 2604.03762 by Wang Yang, Xinhe Wang, Yibo Wang, Yuchen Liu.

Figure 1
Figure 1. Figure 1: FIG. 1: Schematic illustrations of the vertical spin valve based [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

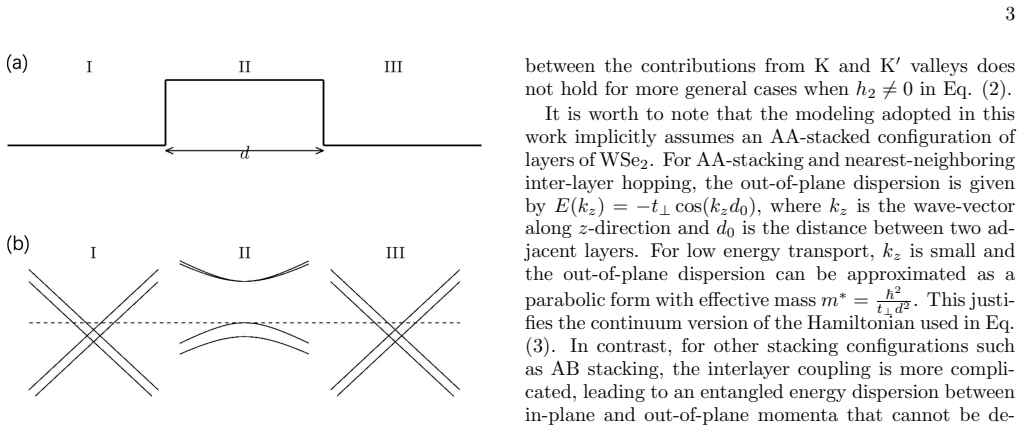

Figure 2
Figure 2. Figure 2: FIG. 2: (a) Potential profile along the vertical transport di [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

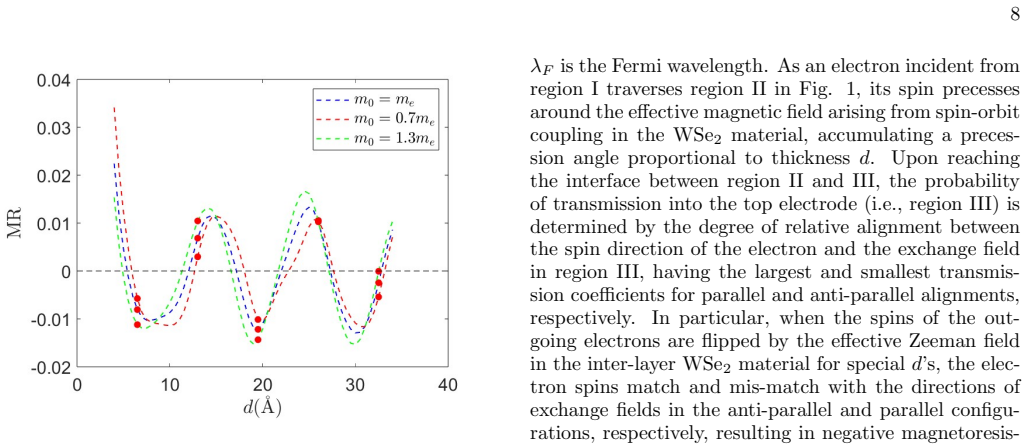

Figure 3
Figure 3. Figure 3: FIG. 3: Magnetoresistance (MR) as a function of the WSe [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

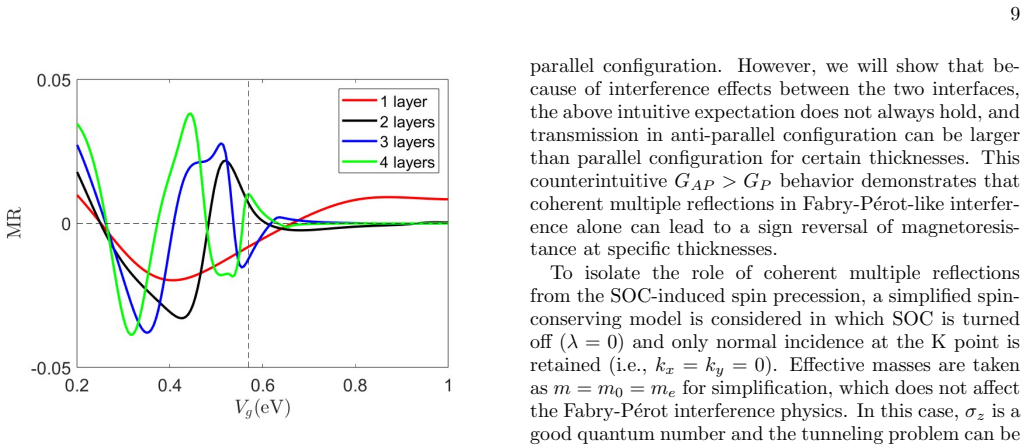

Figure 4
Figure 4. Figure 4: FIG. 4: Magnetoresistance MR as a function of [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

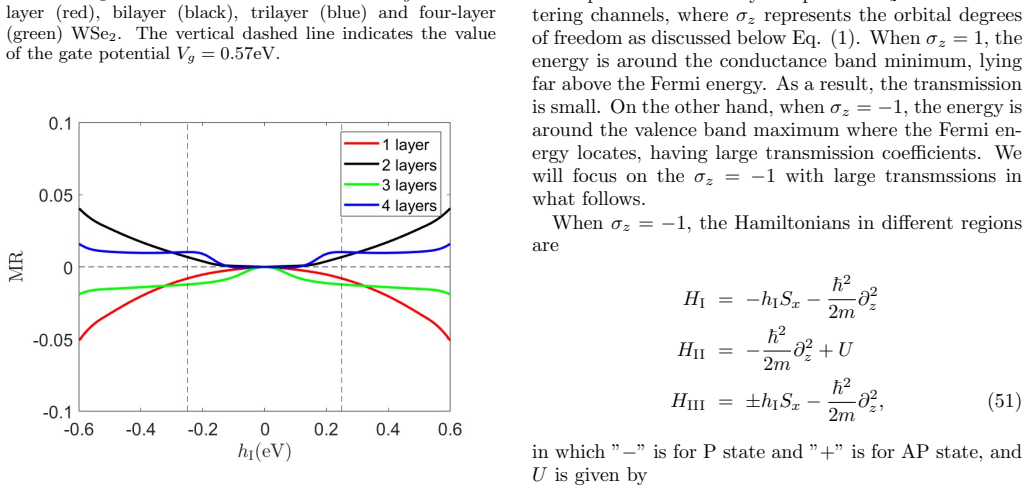

Figure 5
Figure 5. Figure 5: FIG. 5: Magnetoresistance MR as a function of exchange field [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

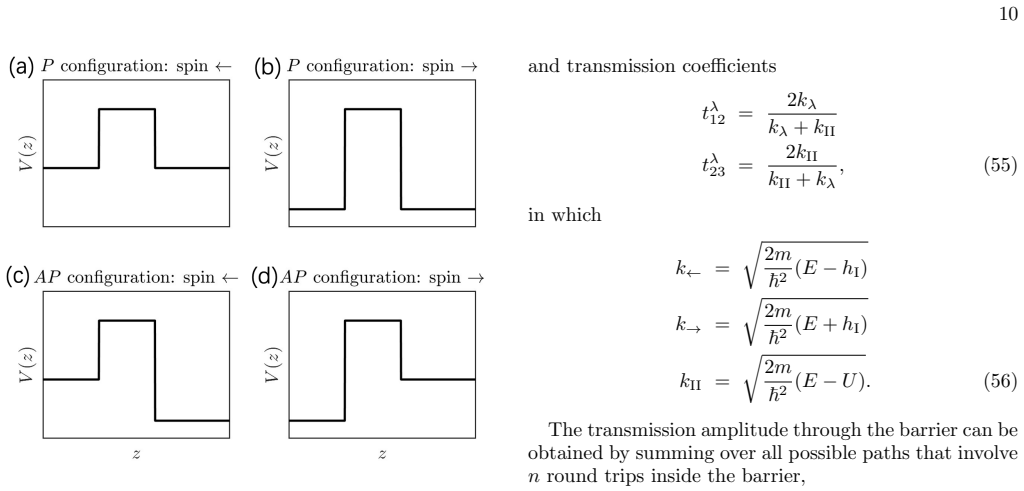

Figure 6
Figure 6. Figure 6: FIG. 6: Spin-resolved potential files for (a) spin left in P [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

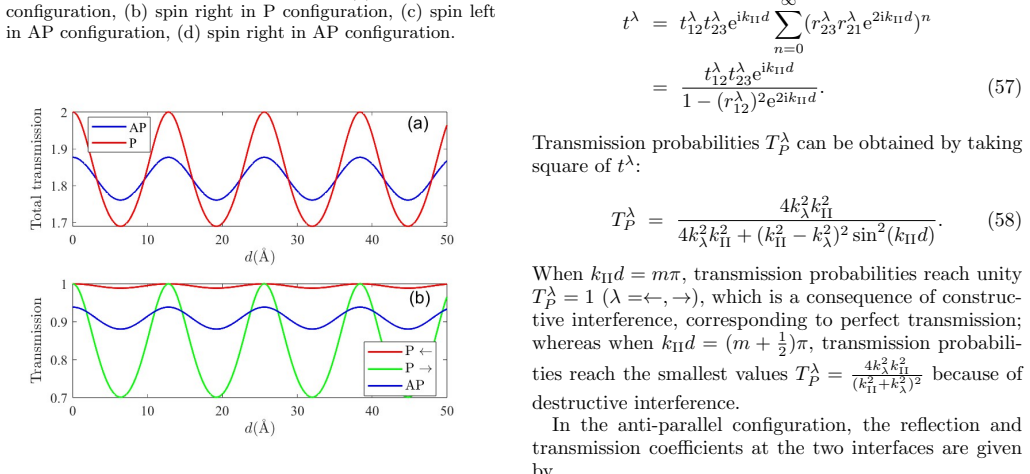

Figure 7
Figure 7. Figure 7: FIG. 7: Spin-dependent transmission in the simplified model. [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
read the original abstract

We theoretically investigate spin-dependent transport in a TMD-based vertical spin valve, taking WSe$_2$ as a representative example. Using effective Hamiltonians for the heterostructure and the Landauer formula, we derive the transmission and reflection coefficients within a transfer-matrix approach. The calculated magnetoresistance shows an oscillatory dependence on the WSe$_2$ thickness when the Fermi level is tuned near the valence-band maximum. The effects of gate voltage and exchange fields on the magnetoresistance are further analyzed. We also identify a Fabry-P\'erot-like interference contribution to the magnetoresistance, which can enhance or even induce negative magnetoresistance in certain thickness regimes. Our results provide a qualitative understanding of the negative magnetoresistance observed in WSe$_2$-based spin valves and may offer useful insights for the design of tunable spintronic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper theoretically investigates spin-dependent transport in WSe₂-based vertical spin valves using effective Hamiltonians for the heterostructure combined with the Landauer formula and a transfer-matrix method. It reports an oscillatory dependence of magnetoresistance on WSe₂ thickness near the valence-band maximum, examines the influence of gate voltage and exchange fields, and identifies a Fabry-Pérot-like interference contribution that can enhance or induce negative magnetoresistance in specific thickness regimes, offering a qualitative explanation for experimental observations.

Significance. If the effective-Hamiltonian results hold, the work supplies a useful qualitative framework for understanding negative magnetoresistance in TMD vertical spin valves and suggests design principles for gate-tunable spintronic devices.

major comments (2)
  1. [Model section] Model section: The central claims of oscillatory MR and negative-MR regimes rest on the transfer-matrix transmission coefficients derived from effective Hamiltonians that encode valence-band maximum, spin-orbit splitting, and exchange fields. No explicit comparison to atomistic (DFT or tight-binding) calculations of interface band offsets or layer-dependent potentials is provided, so the quantitative accuracy of the phase accumulation that produces the Fabry-Pérot resonances remains unverified.
  2. [Results section] Results section: The thickness regimes in which negative magnetoresistance is “induced” by interference depend sensitively on the two free parameters (exchange-field strength and Fermi-level position relative to the valence-band maximum). The manuscript supplies no error bars, sensitivity plots, or robustness checks against small variations in these parameters, leaving the predicted sign changes vulnerable to modest shifts in the effective barrier height.
minor comments (1)
  1. [Figures] Figure captions and text could more clearly label the specific WSe₂ layer counts (in monolayers) corresponding to the plotted oscillatory periods.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and outline the revisions we will make.

read point-by-point responses

  1. Referee: [Model section] The central claims of oscillatory MR and negative-MR regimes rest on the transfer-matrix transmission coefficients derived from effective Hamiltonians that encode valence-band maximum, spin-orbit splitting, and exchange fields. No explicit comparison to atomistic (DFT or tight-binding) calculations of interface band offsets or layer-dependent potentials is provided, so the quantitative accuracy of the phase accumulation that produces the Fabry-Pérot resonances remains unverified.

    Authors: We agree that direct atomistic benchmarks would strengthen quantitative claims. Our effective Hamiltonian parameters (band offsets, spin-orbit splitting, effective masses) are taken from established DFT literature values for WSe₂ and TMD/ferromagnet interfaces. The transfer-matrix method is chosen precisely because it isolates the phase-accumulation physics responsible for Fabry-Pérot oscillations. In the revised manuscript we will expand the Model section with an explicit paragraph citing the DFT sources for each parameter and stating the expected accuracy limits of the effective model for resonance positions. This clarifies that the work targets robust qualitative trends rather than precise numerical values. revision: partial

  2. Referee: [Results section] The thickness regimes in which negative magnetoresistance is “induced” by interference depend sensitively on the two free parameters (exchange-field strength and Fermi-level position relative to the valence-band maximum). The manuscript supplies no error bars, sensitivity plots, or robustness checks against small variations in these parameters, leaving the predicted sign changes vulnerable to modest shifts in the effective barrier height.

    Authors: The referee correctly identifies the parametric sensitivity. While the original figures already scan a range of Fermi-level positions and exchange fields, we did not include explicit robustness tests. In the revised version we will add a new supplementary figure (or inset panels) showing MR versus thickness for ±10 % variations in exchange-field strength and Fermi energy around the valence-band maximum. These plots will demonstrate that the oscillatory behavior and the existence of negative-MR thickness windows remain stable within physically plausible parameter windows. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The paper computes transmission coefficients via transfer-matrix on effective Hamiltonians for the WSe2 heterostructure, then obtains magnetoresistance from the Landauer formula. The claimed oscillatory thickness dependence and Fabry-Pérot-like interference are direct numerical outputs of wave propagation and phase accumulation inside that model; they are not presupposed by redefining inputs or by renaming fitted quantities. No self-citation load-bearing steps, no uniqueness theorems imported from the same authors, and no ansatz smuggled via prior work appear in the derivation chain. Effective-Hamiltonian parameters are external inputs (literature values), but the central predictions remain independent computations rather than tautological reductions. This is the normal, non-circular case for a model-based transport calculation.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on the validity of effective Hamiltonians for the heterostructure and the assumption of coherent ballistic transport in the transfer-matrix method; no new particles or forces are introduced.

free parameters (2)
  • exchange field strength
    Parameter controlling the spin splitting in the magnetic contacts; its specific value is not given in the abstract and must be chosen to match the desired regime.
  • Fermi level position relative to valence band maximum
    Tuned by gate voltage; the oscillatory behavior is reported only when this position is near the band edge.
axioms (2)
  • domain assumption Effective Hamiltonian approximation captures the essential band structure and spin-orbit effects in WSe2 heterostructure
    Invoked to derive transmission coefficients without full ab initio treatment.
  • domain assumption Transport is coherent and ballistic so that transfer-matrix method applies
    Required for the Landauer-formula calculation of transmission and reflection.
