arxiv: 2604.04445 · v1 · submitted 2026-04-06 · 💻 cs.LG

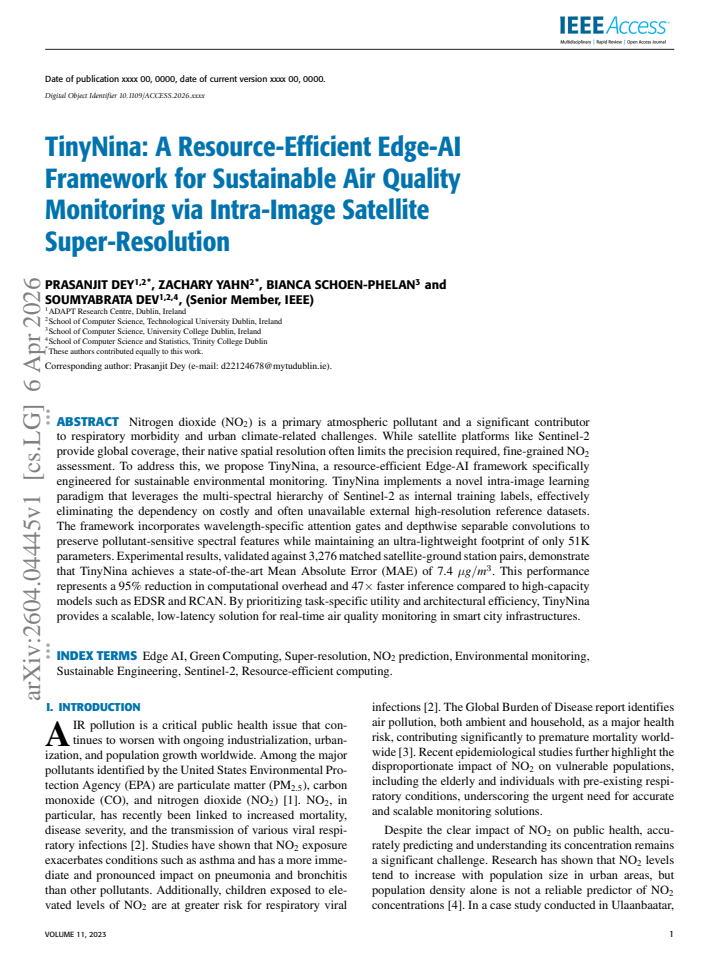

TinyNina: A Resource-Efficient Edge-AI Framework for Sustainable Air Quality Monitoring via Intra-Image Satellite Super-Resolution

Prasanjit Dey , Zachary Yahn , Bianca Schoen-Phelan , Soumyabrata Dev This is my paper

Pith reviewed 2026-05-10 19:16 UTC · model grok-4.3

classification 💻 cs.LG
keywords air quality monitoringsuper-resolutionSentinel-2edge AInitrogen dioxidelightweight neural networksintra-image learningenvironmental monitoring
0
0 comments X

The pith

TinyNina super-resolves Sentinel-2 images for NO2 monitoring using only internal multi-spectral data and 51K parameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents TinyNina as a lightweight neural network that enhances the spatial detail of satellite observations for nitrogen dioxide pollution tracking. It trains exclusively on the different wavelength bands available inside each Sentinel-2 image, removing the need for separate high-resolution reference data that is often unavailable. The resulting model reports an average error of 7.4 micrograms per cubic meter against ground measurements while using far less computation than conventional super-resolution networks.

Core claim

TinyNina achieves a mean absolute error of 7.4 μg/m³ for NO2 concentration estimates on 3,276 matched satellite-ground station pairs by applying an intra-image super-resolution approach that treats the multi-spectral hierarchy within individual Sentinel-2 scenes as self-supervised training labels, combined with wavelength-specific attention gates and depthwise separable convolutions inside a network containing only 51,000 parameters.

What carries the argument

The intra-image learning paradigm that converts multi-spectral bands of each Sentinel-2 image into internal training labels for super-resolution, implemented through wavelength-specific attention gates and depthwise separable convolutions in a 51K-parameter architecture.

If this is right

  • Air quality maps can be generated at finer spatial scales without collecting additional high-resolution training datasets.
  • Real-time NO2 monitoring becomes feasible on low-power edge hardware in smart-city deployments.
  • The same internal-label strategy can support monitoring of other pollutants captured by multi-spectral satellites.
  • Computational cost for satellite-based environmental assessment drops by 95 percent relative to standard high-capacity models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may transfer to other remote-sensing tasks where paired low- and high-resolution data are scarce.
  • Performance on unseen regions could be further tested by withholding entire geographic areas during training.
  • Combining the model with on-board satellite processing could reduce data transmission needs from space.

Load-bearing premise

The multi-spectral information inside each single Sentinel-2 image supplies accurate and unbiased labels for learning to super-resolve NO2 distributions.

What would settle it

New Sentinel-2 images from locations or seasons absent from the 3,276-pair validation set where the model's error rises substantially above 7.4 μg/m³ or exceeds that of models trained on external high-resolution references.

Figures

Figures reproduced from arXiv: 2604.04445 by Bianca Schoen-Phelan, Prasanjit Dey, Soumyabrata Dev, Zachary Yahn.

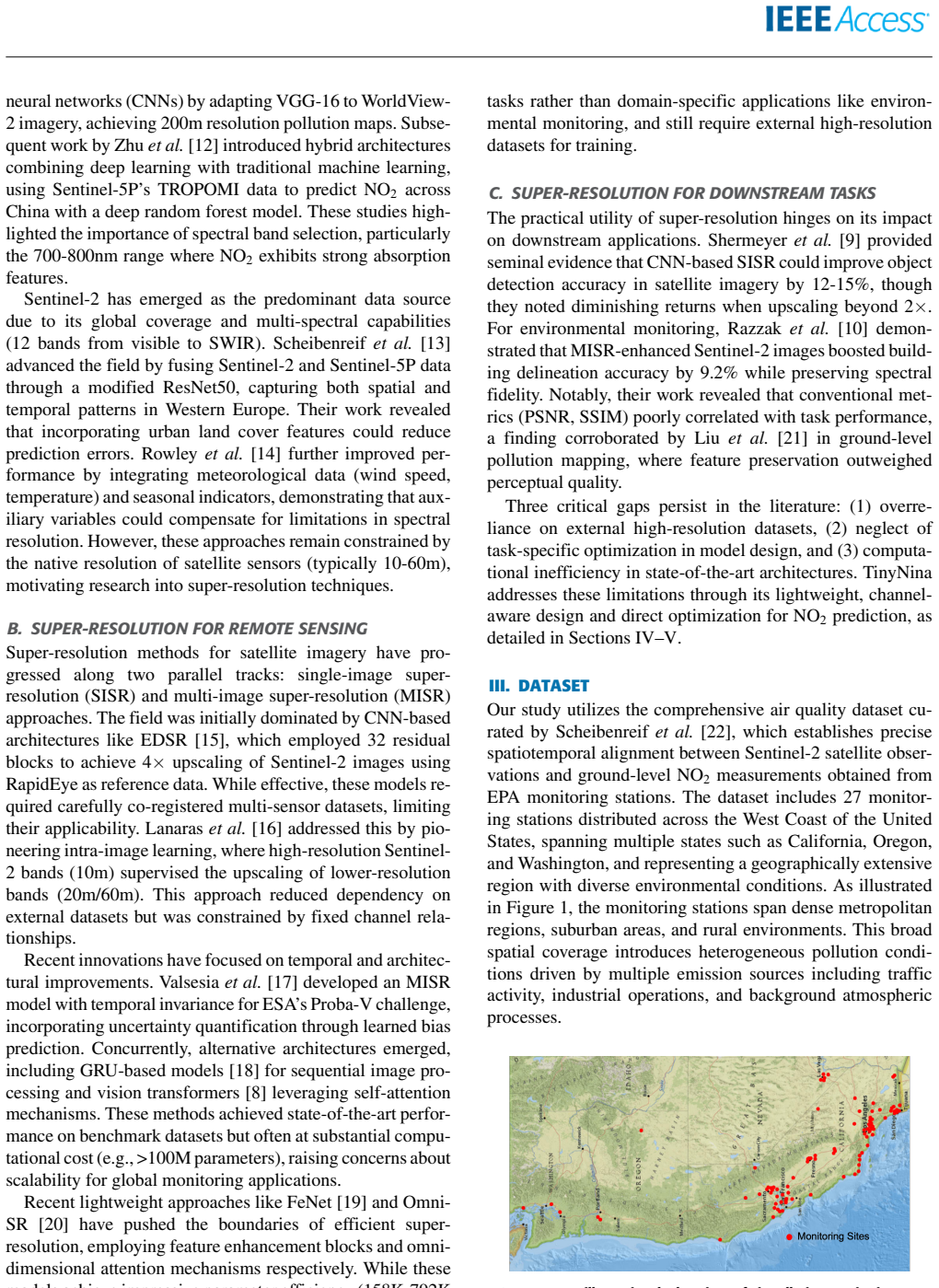

Figure 1
Figure 1. Figure 1: FIGURE 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

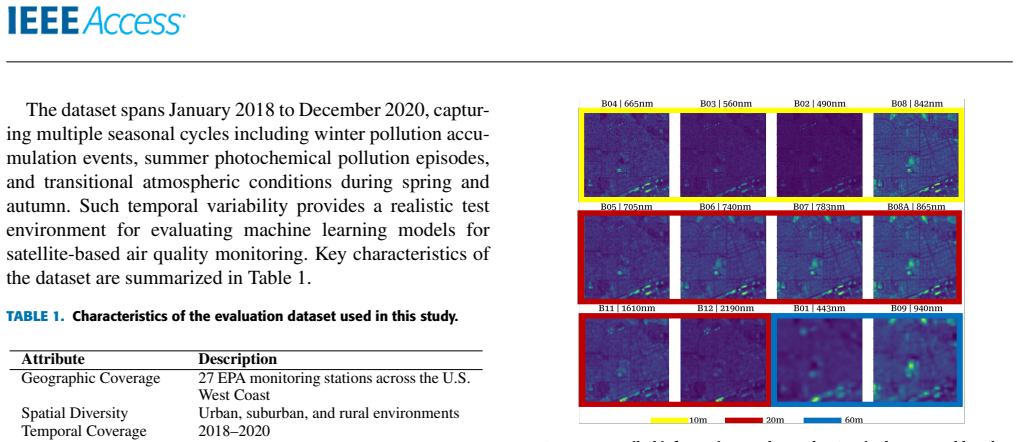

Figure 2
Figure 2. Figure 2: FIGURE 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

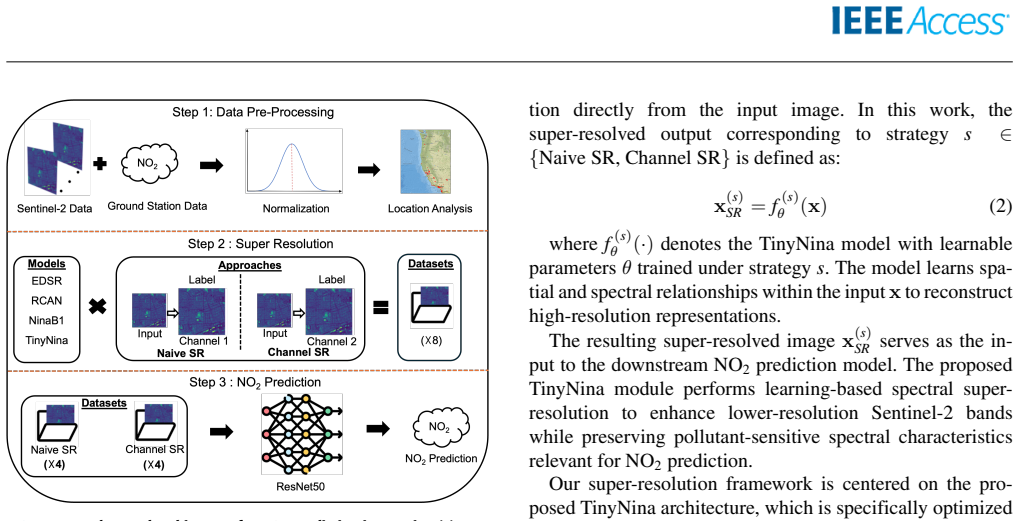

Figure 3
Figure 3. Figure 3: FIGURE 3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

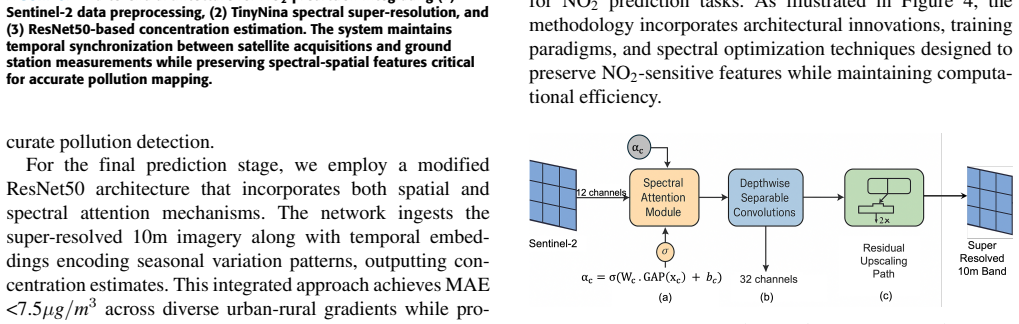

Figure 4
Figure 4. Figure 4: FIGURE 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

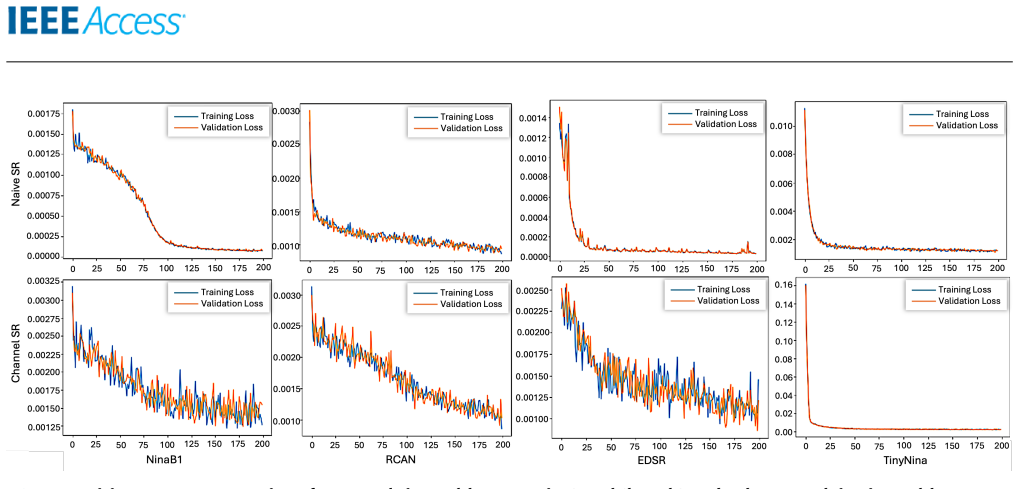

Figure 5
Figure 5. Figure 5: FIGURE 5 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

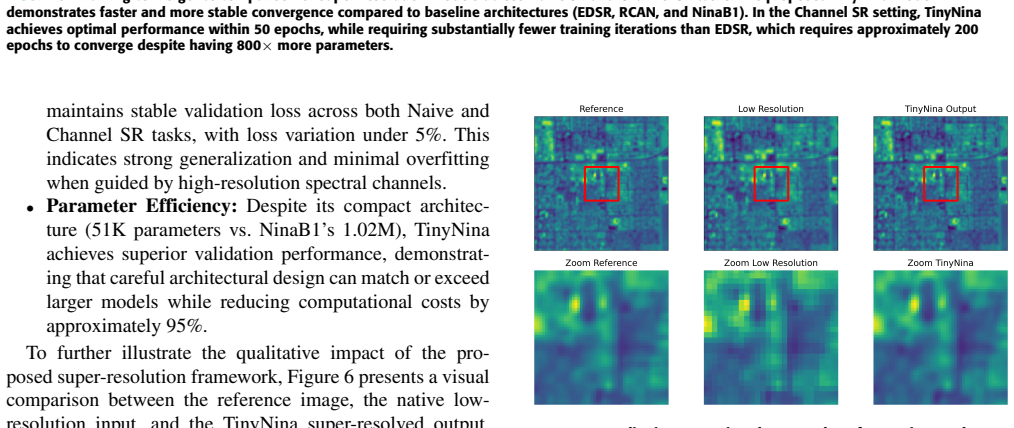

Figure 6
Figure 6. Figure 6: FIGURE 6 [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

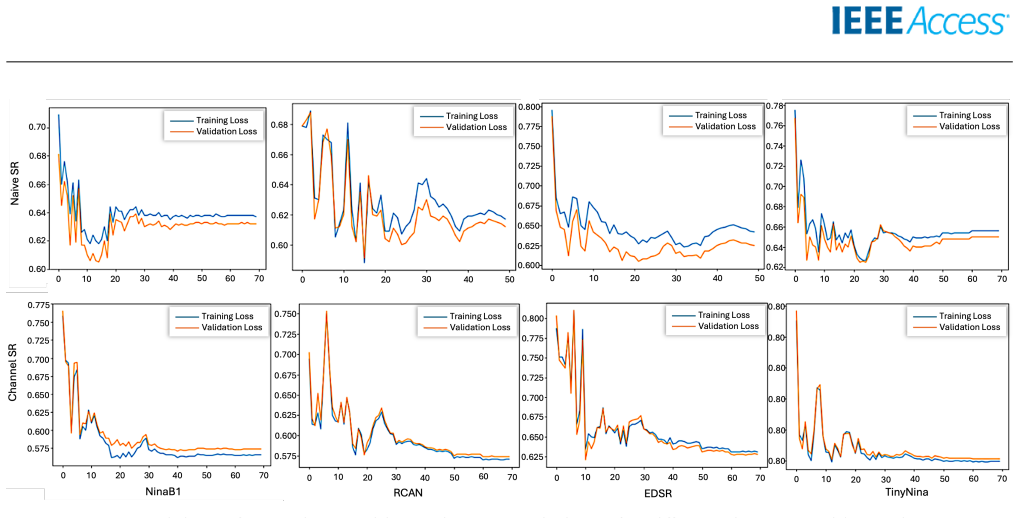

Figure 7
Figure 7. Figure 7: FIGURE 7 [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗

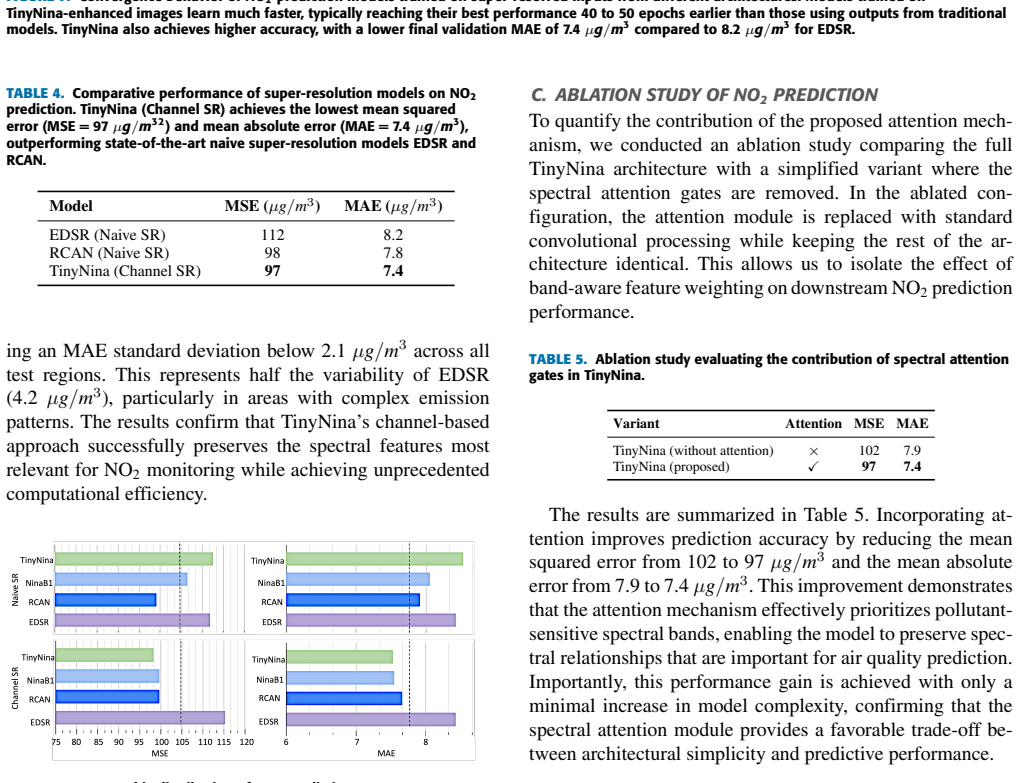

Figure 8
Figure 8. Figure 8: FIGURE 8 [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗

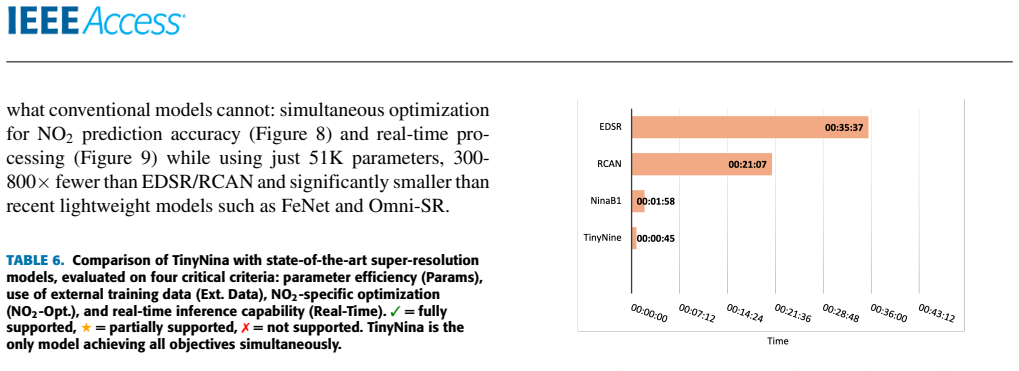

Figure 9
Figure 9. Figure 9: FIGURE 9 [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗

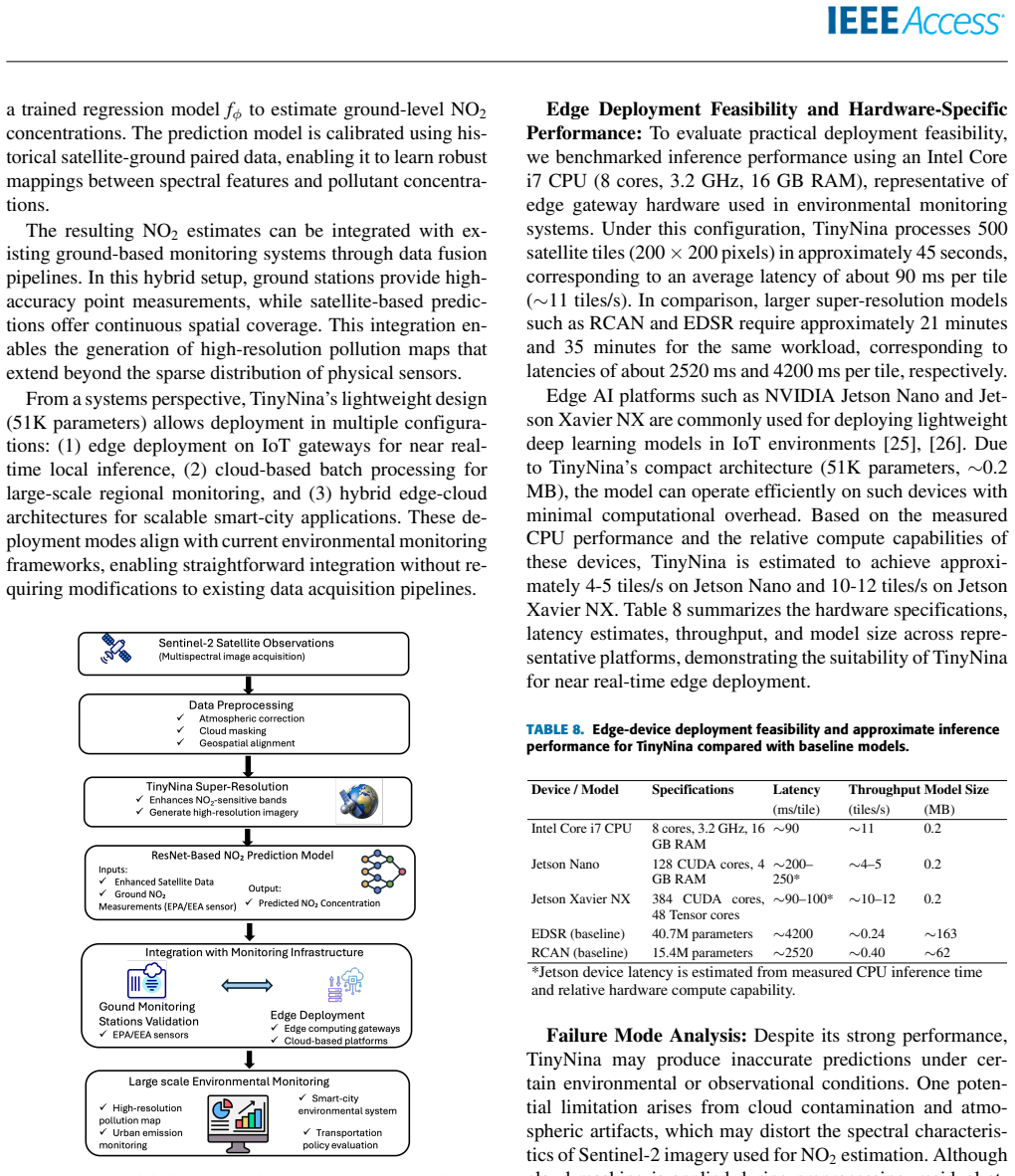

Figure 10
Figure 10. Figure 10: FIGURE 10 [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
read the original abstract

Nitrogen dioxide (NO$_2$) is a primary atmospheric pollutant and a significant contributor to respiratory morbidity and urban climate-related challenges. While satellite platforms like Sentinel-2 provide global coverage, their native spatial resolution often limits the precision required, fine-grained NO$_2$ assessment. To address this, we propose TinyNina, a resource-efficient Edge-AI framework specifically engineered for sustainable environmental monitoring. TinyNina implements a novel intra-image learning paradigm that leverages the multi-spectral hierarchy of Sentinel-2 as internal training labels, effectively eliminating the dependency on costly and often unavailable external high-resolution reference datasets. The framework incorporates wavelength-specific attention gates and depthwise separable convolutions to preserve pollutant-sensitive spectral features while maintaining an ultra-lightweight footprint of only 51K parameters. Experimental results, validated against 3,276 matched satellite-ground station pairs, demonstrate that TinyNina achieves a state-of-the-art Mean Absolute Error (MAE) of 7.4 $\mu$g/m$^3$. This performance represents a 95% reduction in computational overhead and 47$\times$ faster inference compared to high-capacity models such as EDSR and RCAN. By prioritizing task-specific utility and architectural efficiency, TinyNina provides a scalable, low-latency solution for real-time air quality monitoring in smart city infrastructures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes TinyNina, a 51K-parameter Edge-AI model for super-resolving Sentinel-2 multi-spectral imagery to improve NO2 air quality estimation. It introduces an intra-image learning paradigm that treats the native 10 m / 20 m / 60 m band hierarchy as internal high-resolution training labels, thereby avoiding external HR reference datasets. Wavelength-specific attention gates and depthwise separable convolutions are used to preserve pollutant-sensitive features. On a validation set of 3,276 matched satellite-ground station pairs, the model reports a state-of-the-art MAE of 7.4 μg/m³ together with a 95 % reduction in computational overhead and 47× faster inference relative to EDSR and RCAN.

Significance. If the central claim holds—that intra-image super-resolution measurably improves NO2 retrieval beyond what native-resolution spectral regression achieves—the work would offer a genuinely resource-efficient route to global, real-time air-quality monitoring on edge devices. The elimination of external HR data requirements and the extreme parameter count are attractive for sustainable deployment; however, the significance is currently limited by the absence of controls that isolate the spatial-enhancement contribution from simple spectral fitting.

major comments (3)
  1. [Abstract] Abstract: The reported 7.4 μg/m³ MAE on the 3,276 ground-station pairs is presented as evidence that intra-image super-resolution enhances NO2 estimation, yet no ablation is described that compares TinyNina against an otherwise identical lightweight regressor operating directly on native-resolution inputs. Without this control, the performance gain cannot be attributed to spatial super-resolution rather than improved spectral feature extraction.
  2. [Abstract] Abstract: The intra-image paradigm treats lower-resolution bands (e.g., 20 m red-edge) as higher-resolution targets for the 10 m bands relevant to NO2. No physical or empirical justification is supplied showing that these bands constitute valid, unbiased HR references for the NO2 signal, given their distinct wavelengths and atmospheric interactions.
  3. [Abstract] Abstract: No error bars, confidence intervals, cross-validation details, or training hyperparameters are reported for either the MAE or the efficiency metrics (51 k parameters, 47× speedup). This absence prevents assessment of statistical reliability and reproducibility of the SOTA claim.
minor comments (2)
  1. [Abstract] Abstract: The sentence 'their native spatial resolution often limits the precision required, fine-grained NO2 assessment' is grammatically incomplete and should read 'required for fine-grained NO2 assessment.'
  2. [Abstract] Abstract: The manuscript would benefit from a concise diagram or pseudocode illustrating how the multi-spectral band hierarchy is converted into training pairs for the super-resolution task.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The comments correctly identify areas where additional controls, justifications, and statistical details would strengthen the manuscript. We address each major comment below and commit to specific revisions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The reported 7.4 μg/m³ MAE on the 3,276 ground-station pairs is presented as evidence that intra-image super-resolution enhances NO2 estimation, yet no ablation is described that compares TinyNina against an otherwise identical lightweight regressor operating directly on native-resolution inputs. Without this control, the performance gain cannot be attributed to spatial super-resolution rather than improved spectral feature extraction.

    Authors: We agree that an explicit ablation isolating the spatial super-resolution contribution is required. In the revised manuscript we will add a control experiment that trains and evaluates an otherwise identical lightweight architecture (same depthwise separable convolutions and wavelength-specific attention gates) directly on native-resolution inputs without the intra-image upsampling module. The resulting MAE will be reported alongside the full TinyNina result so that the incremental benefit attributable to super-resolution can be quantified. revision: yes

  2. Referee: [Abstract] Abstract: The intra-image paradigm treats lower-resolution bands (e.g., 20 m red-edge) as higher-resolution targets for the 10 m bands relevant to NO2. No physical or empirical justification is supplied showing that these bands constitute valid, unbiased HR references for the NO2 signal, given their distinct wavelengths and atmospheric interactions.

    Authors: The referee correctly notes the absence of justification for treating the lower-resolution bands as valid internal high-resolution targets. In the revision we will add a dedicated paragraph in the methodology section that (1) cites atmospheric spectroscopy literature on Sentinel-2 band sensitivities to NO2, (2) reports empirical band-to-band correlations measured on our 3,276-pair dataset, and (3) includes a bias analysis comparing predictions derived from the intra-image targets against ground-station measurements. These additions will make the physical and empirical basis of the paradigm explicit. revision: yes

  3. Referee: [Abstract] Abstract: No error bars, confidence intervals, cross-validation details, or training hyperparameters are reported for either the MAE or the efficiency metrics (51 k parameters, 47× speedup). This absence prevents assessment of statistical reliability and reproducibility of the SOTA claim.

    Authors: We acknowledge the omission of these essential details. The revised manuscript will report: standard deviation or confidence intervals for the 7.4 μg/m³ MAE across repeated runs or folds; the cross-validation procedure (including spatial/temporal partitioning of the 3,276 pairs); the full hyperparameter set (learning rate, batch size, optimizer, epochs, loss weights); and the precise hardware and measurement protocol used for the parameter count and 47× inference speedup. These additions will allow readers to evaluate statistical reliability and reproducibility. revision: yes

Circularity Check

0 steps flagged

No circularity; external ground-truth validation keeps result independent

full rationale

The paper trains TinyNina via intra-image multi-spectral hierarchy (10 m / 20 m / 60 m Sentinel-2 bands) as internal pseudo-HR labels for super-resolution, then reports MAE of 7.4 μg/m³ on 3,276 separate matched satellite-ground station pairs. Because the evaluation metric is computed against independent external measurements rather than the training labels or any fitted internal quantity, the central performance claim does not reduce to its inputs by construction. No equations, self-citations, or fitted-parameter-as-prediction steps appear in the provided text, and the efficiency claims (51 k parameters, 47× speedup) are direct measurements of the deployed model. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that multi-spectral bands within a single Sentinel-2 image form reliable internal supervision for super-resolution; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Sentinel-2 multi-spectral hierarchy can serve as internal training labels for super-resolution without external high-resolution references
    This is the core of the intra-image learning paradigm stated in the abstract.
