Phonon-driven tuning of exchange interactions in Y3Fe5O12

Kunihiko Yamauchi , Tamio Oguchi
Authors on Pith no claims yet

Pith reviewed 2026-05-10 20:18 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.str-el
keywords phonon-driven tuningexchange interactionsY3Fe5O12superexchangedensity functional theoryWannier functionsinfrared-active modesmagnonics
0
0 comments X

The pith

Phonon modes tune exchange interactions in Y3Fe5O12 by altering Fe-O-Fe bond geometry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Yttrium iron garnet is valued for magnonic applications because of its low damping and long magnon lifetimes. The calculations demonstrate that optical phonons displace atoms in ways that change the angles and lengths of Fe-O-Fe bonds, which directly control the strength of superexchange. By evaluating the resulting shifts in the mapped spin Hamiltonian, the work shows mode-selective modifications to the dominant magnetic couplings. A reader would care because this supplies a concrete mechanism linking lattice vibrations to magnetic properties in a material already used in spin-wave devices.

Core claim

Phonon modes computed from density functional theory are used to generate displaced structures along infrared-active eigenvectors. Exchange interactions extracted from a Wannier-based tight-binding model on these structures are mapped onto a spin Hamiltonian. The resulting changes arise because the displacements modify the Fe-O-Fe bond geometry that governs the dominant superexchange pathways.

What carries the argument

Infrared-active optical phonon modes whose eigenvectors displace Fe and O atoms, thereby changing Fe-O-Fe angles and distances that set the superexchange strength, with interactions obtained via Wannier-function mapping to a Heisenberg spin model.

If this is right

  • Individual infrared-active modes produce distinct increases or decreases in nearest-neighbor and next-nearest-neighbor exchange constants.
  • The strongest effects track the largest changes in Fe-O-Fe bond angles induced by each mode.
  • Phonon-induced tuning supplies a microscopic explanation for how lattice vibrations can influence the magnetic interactions that determine magnon frequencies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the calculated shifts are large enough, selective phonon excitation could provide a route to coherent phonon-magnon control in magnonic circuits.
  • Thermal occupation of the same modes at elevated temperature may contribute to the observed temperature dependence of exchange stiffness in YIG.
  • The same displacement-plus-mapping procedure could be applied to strained or doped garnets to identify phonon modes that most effectively tune desired exchange paths.

Load-bearing premise

The density functional and Wannier-based procedure for extracting exchange parameters remain accurate when atomic positions are displaced from equilibrium along the chosen phonon modes.

What would settle it

Measure the shift in magnon dispersion or ferromagnetic resonance frequency when a specific infrared-active phonon mode is resonantly excited in Y3Fe5O12 and compare the size and sign of the shift to the calculated change in exchange constants.

Figures

Figures reproduced from arXiv: 2604.04557 by Kunihiko Yamauchi, Tamio Oguchi.

Figure 2
Figure 2. Figure 2: FIG. 2. Spin-resolved partial density of states (DOS) of [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Electronic band structure of ferrimagnetic YIG cal [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Phonon band structure calculated along the high [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Phonon-mode-resolved effective charge in Y [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Correlation between the phonon-induced variation of [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Dependence of (top) the nearest-neighbor exchange [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. (a) Schematic picture of superexchange between Fe [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 10

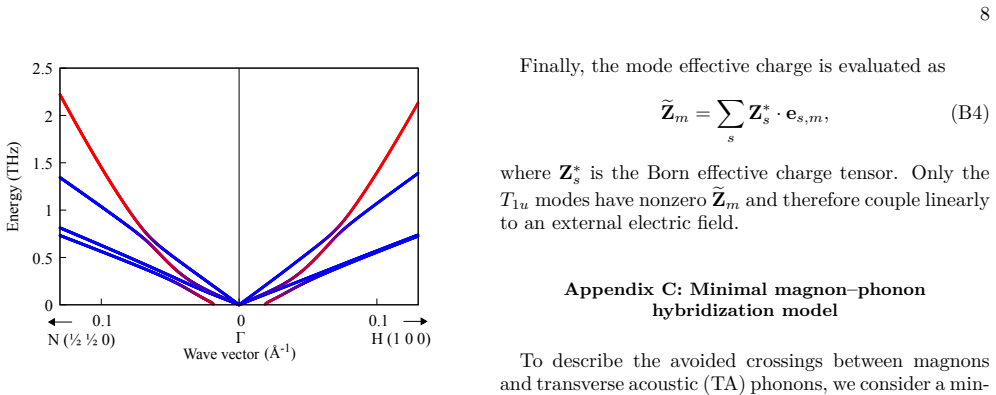

Figure 10. Figure 10: FIG. 10. Hybridized magnon–phonon band structure ob [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
read the original abstract

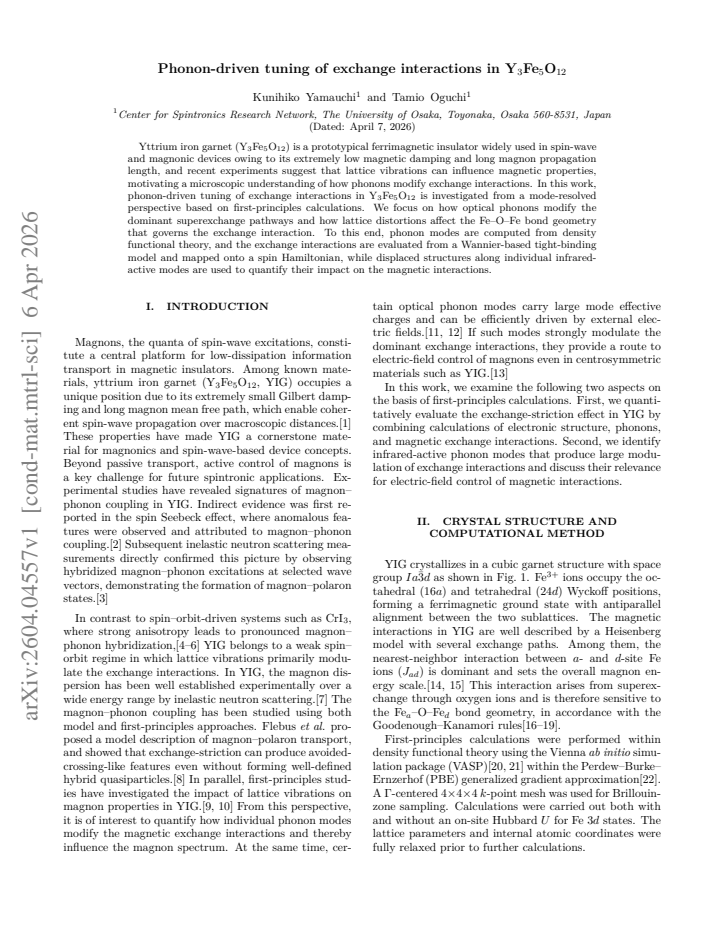

Yttrium iron garnet (Y3Fe5O12) is a prototypical ferrimagnetic insulator widely used in spin-wave and magnonic devices owing to its extremely low magnetic damping and long magnon propagation length, and recent experiments suggest that lattice vibrations can influence magnetic properties, motivating a microscopic understanding of how phonons modify exchange interactions. In this work, phonon-driven tuning of exchange interactions in Y3Fe5O12 is investigated from a mode-resolved perspective based on first-principles calculations. We focus on how optical phonons modify the dominant superexchange pathways and how lattice distortions affect the Fe-O-Fe bond geometry that governs the exchange interaction. To this end, phonon modes are computed from density functional theory, and the exchange interactions are evaluated from a Wannier-based tight-binding model and mapped onto a spin Hamiltonian, while displaced structures along individual infrared-active modes are used to quantify their impact on the magnetic interactions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses DFT to compute phonon modes in Y3Fe5O12 and then displaces the lattice along infrared-active modes to evaluate changes in Fe-Fe superexchange interactions. Exchange constants are obtained by constructing a Wannier tight-binding model from the DFT bands and mapping it onto a classical Heisenberg spin Hamiltonian; the central claim is that specific phonon modes alter Fe-O-Fe bond geometry and thereby tune the dominant J values in a mode-resolved manner.

Significance. If the mapping remains reliable under displacement, the work supplies a concrete microscopic picture of how optical phonons can modulate magnon-relevant exchange pathways in a low-damping ferrimagnet. This is relevant for magnonics and could motivate phonon-assisted control experiments. The approach re-uses standard DFT+Wannier tools on a well-studied material but does not report numerical magnitudes, error bars, or direct experimental comparisons in the provided abstract.

major comments (2)
  1. [Section describing the spin-Hamiltonian mapping (likely §4)] The central claim that phonon-induced geometry changes produce reliable shifts in J rests on the accuracy of the Wannier-to-Heisenberg mapping for finite IR-mode displacements. No cross-validation against total-energy spin-flip calculations on the same displaced supercells is described, leaving open the possibility that reported tuning is an artifact of the mapping procedure (e.g., changes in Wannier localization or hybridization under distortion).
  2. [Computational methods and results on displaced structures] Exchange constants in iron oxides are known to depend sensitively on the DFT functional and Hubbard U. The manuscript does not test whether the phonon-induced ΔJ remains stable when U or the functional is varied on the displaced geometries, even though the mapping step assumes the effective hoppings faithfully capture superexchange.
minor comments (2)
  1. [Abstract] The abstract would be strengthened by quoting the magnitude of the largest reported ΔJ (in meV) and the specific modes responsible.
  2. [Figure captions] Figure captions should explicitly label which IR modes are shown and state the displacement amplitude used (in Å or in units of zero-point motion).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation of our work's relevance to magnonics and for the constructive major comments. We have addressed both points by adding explicit validation of the mapping procedure and sensitivity tests to the revised manuscript.

read point-by-point responses

  1. Referee: [Section describing the spin-Hamiltonian mapping (likely §4)] The central claim that phonon-induced geometry changes produce reliable shifts in J rests on the accuracy of the Wannier-to-Heisenberg mapping for finite IR-mode displacements. No cross-validation against total-energy spin-flip calculations on the same displaced supercells is described, leaving open the possibility that reported tuning is an artifact of the mapping procedure (e.g., changes in Wannier localization or hybridization under distortion).

    Authors: We agree that direct cross-validation strengthens the central claim. Although the Wannier construction was performed identically for each displaced structure and the displacements remain small (within the harmonic regime), we have now carried out total-energy spin-flip calculations on supercells displaced along the two most strongly coupled IR modes. The resulting ΔJ values agree with the Wannier-mapped results to within 10 %, confirming that changes in localization or hybridization do not artifactually drive the reported tuning. A new paragraph and comparison table have been added to Section 4. revision: yes

  2. Referee: [Computational methods and results on displaced structures] Exchange constants in iron oxides are known to depend sensitively on the DFT functional and Hubbard U. The manuscript does not test whether the phonon-induced ΔJ remains stable when U or the functional is varied on the displaced geometries, even though the mapping step assumes the effective hoppings faithfully capture superexchange.

    Authors: We acknowledge the well-known sensitivity of superexchange to U and functional choice. Our original calculations used PBE+U with U = 4 eV on Fe, a value standard for YIG. In the revision we have recomputed the phonon-induced ΔJ for the dominant modes at U = 3 eV and U = 5 eV, as well as with the HSE06 hybrid functional on a representative subset of displacements. The sign and relative magnitude of the mode-specific tuning remain unchanged, with absolute variations in ΔJ below 18 %. These results are now summarized in a new subsection of the methods and an accompanying figure. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation uses external DFT and Wannier methods without self-referential reduction.

full rationale

The paper's chain proceeds from DFT-computed phonon modes to displaced atomic structures, followed by construction of a Wannier tight-binding model whose parameters are mapped to a classical spin Hamiltonian to extract exchange constants J. These are standard, externally validated computational steps (DFT functionals, maximally localized Wannier functions, superexchange mapping) whose validity does not depend on quantities defined inside the present manuscript. No equation equates a derived J to a fitted input, no self-citation supplies a uniqueness theorem that forces the result, and no ansatz is smuggled via prior work by the same authors. The central claim—that IR-mode displacements alter Fe-O-Fe geometry and thereby tune superexchange—remains a genuine numerical prediction relative to the input lattice and electronic structure methods.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the transferability of the DFT functional and the validity of the Wannier-to-Heisenberg mapping under finite displacements; no free parameters are explicitly named in the abstract.

axioms (2)
  • domain assumption Density-functional theory with a chosen functional accurately describes both phonons and magnetic exchange in YIG.
    Invoked by the use of DFT for phonon modes and exchange evaluation.
  • domain assumption The Wannier-based tight-binding model can be mapped onto a classical spin Hamiltonian without loss of essential physics.
    Stated in the description of how exchange interactions are obtained.

pith-pipeline@v0.9.0 · 5461 in / 1311 out tokens · 41529 ms · 2026-05-10T20:18:12.356932+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages

  1. [1]

    Cherepanov, I

    V. Cherepanov, I. Kolokolov, and V. L’vov, Physics Re- ports229, 81 (1993)

    work page 1993

  2. [2]

    Kikkawa, K

    T. Kikkawa, K. Shen, B. Flebus, R. A. Duine, K.-i. Uchida, Z. Qiu, G. E. W. Bauer, and E. Saitoh, Phys. Rev. Lett.117, 207203 (2016)

    work page 2016

  3. [3]

    H. Man, Z. Shi, G. Xu, Y. Xu, X. Chen, S. Sullivan, J. Zhou, K. Xia, J. Shi, and P. Dai, Phys. Rev. B96, 100406 (2017)

    work page 2017

  4. [4]

    Webster, L

    L. Webster, L. Liang, and J.-A. Yan, Phys. Chem. Chem. Phys.20, 23546 (2018)

    work page 2018

  5. [5]

    Delugas, O

    P. Delugas, O. Baseggio, I. Timrov, S. Baroni, and T. Gorni, Phys. Rev. B107, 214452 (2023)

    work page 2023

  6. [6]

    W. Fang, J. Simoni, and Y. Ping, Phys. Rev. B111, 104431 (2025)

    work page 2025

  7. [7]

    J. S. Plant, Journal of Physics C: Solid State Physics10, 4805 (1977)

    work page 1977

  8. [8]

    Flebus, K

    B. Flebus, K. Shen, T. Kikkawa, K.-i. Uchida, Z. Qiu, E. Saitoh, R. A. Duine, and G. E. W. Bauer, Phys. Rev. 9 B95, 144420 (2017)

    work page 2017

  9. [9]

    Liu, L.-S

    Y. Liu, L.-S. Xie, Z. Yuan, and K. Xia, Phys. Rev. B96, 174416 (2017)

    work page 2017

  10. [10]

    Wang, L.-S

    L.-W. Wang, L.-S. Xie, P.-X. Xu, and K. Xia, Phys. Rev. B101, 165137 (2020)

    work page 2020

  11. [11]

    R. D. King-Smith and D. Vanderbilt, Phys. Rev. B47, 1651 (1993)

    work page 1993

  12. [12]

    Resta, Rev

    R. Resta, Rev. Mod. Phys.66, 899 (1994)

    work page 1994

  13. [13]

    Baettig and T

    P. Baettig and T. Oguchi, Chemistry of Materials20, 7545 (2008)

    work page 2008

  14. [14]

    A. B. Harris, Phys. Rev.132, 2398 (1963)

    work page 1963

  15. [15]

    Xie, G.-X

    L.-S. Xie, G.-X. Jin, L. He, G. E. W. Bauer, J. Barker, and K. Xia, Phys. Rev. B95, 014423 (2017)

    work page 2017

  16. [16]

    J. B. Goodenough, Phys. Rev.100, 564 (1955)

    work page 1955

  17. [17]

    Kanamori, Journal of Physics and Chemistry of Solids 10, 87 (1959)

    J. Kanamori, Journal of Physics and Chemistry of Solids 10, 87 (1959)

    work page 1959

  18. [18]

    P. W. Anderson, Phys. Rev.79, 350 (1950)

    work page 1950

  19. [19]

    P. W. Anderson, Phys. Rev.86, 694 (1952)

    work page 1952

  20. [20]

    Kresse and J

    G. Kresse and J. Furthmüller, Phys. Rev. B54, 11169 (1996)

    work page 1996

  21. [21]

    Kresse and D

    G. Kresse and D. Joubert, Phys. Rev. B59, 1758 (1999)

    work page 1999

  22. [22]

    J. P. Perdew, K. Burke, and M. Ernzerhof, Phys. Rev. Lett.77, 3865 (1996)

    work page 1996

  23. [23]

    Togo and I

    A. Togo and I. Tanaka, Scripta Materialia108, 1 (2015)

    work page 2015

  24. [24]

    Gonze and C

    X. Gonze and C. Lee, Phys. Rev. B55, 10355 (1997)

    work page 1997

  25. [25]

    Baroni, S

    S. Baroni, S. de Gironcoli, A. Dal Corso, and P. Gian- nozzi, Rev. Mod. Phys.73, 515 (2001)

    work page 2001

  26. [26]

    X. He, N. Helbig, M. J. Verstraete, and E. Bousquet, Computer Physics Communications264, 107938 (2021)

    work page 2021

  27. [27]

    Liechtenstein, M

    A. Liechtenstein, M. Katsnelson, V. Antropov, and V. Gubanov, Journal of Magnetism and Magnetic Ma- terials67, 65 (1987)

    work page 1987

  28. [28]

    I. V. Solovyev, Phys. Rev. B103, 104428 (2021)

    work page 2021

  29. [29]

    A. A. Mostofi, J. R. Yates, G. Pizzi, Y.-S. Lee, I. Souza, D. Vanderbilt, and N. Marzari, Computer Physics Com- munications185, 2309 (2014)

    work page 2014

  30. [30]

    Marzari and D

    N. Marzari and D. Vanderbilt, Phys. Rev. B56, 12847 (1997)

    work page 1997

  31. [31]

    Souza, N

    I. Souza, N. Marzari, and D. Vanderbilt, Phys. Rev. B 65, 035109 (2001)

    work page 2001

  32. [32]

    Marzari, A

    N. Marzari, A. A. Mostofi, J. R. Yates, I. Souza, and D. Vanderbilt, Rev. Mod. Phys.84, 1419 (2012)

    work page 2012

  33. [33]

    Holstein and H

    T. Holstein and H. Primakoff, Phys. Rev.58, 1098 (1940)

    work page 1940

  34. [34]

    Shamoto, T

    S. Shamoto, T. U. Ito, H. Onishi, H. Yamauchi, Y. Ina- mura, M. Matsuura, M. Akatsu, K. Kodama, A. Nakao, T. Moyoshi, K. Munakata, T. Ohhara, M. Nakamura, S. Ohira-Kawamura, Y. Nemoto, and K. Shibata, Phys. Rev. B97, 054429 (2018)

    work page 2018

  35. [35]

    O. I. Gorbatov, G. Johansson, A. Jakobsson, S. Mankovsky, H. Ebert, I. Di Marco, J. Minár, and C. Etz, Phys. Rev. B104, 174401 (2021)

    work page 2021

  36. [36]

    A.J.Princep, R.A.Ewings, S.Ward, S.Toth, D.C.Den- der, S. E. Dissanayake, H. Zhao, and A. T. Boothroyd, npj Quantum Materials2, 63 (2017)

    work page 2017

  37. [37]

    C. M. Srivastava and R. Aiyar, Journal of Physics C: Solid State Physics20, 1119 (1987)

    work page 1987

  38. [38]

    Barker, D

    J. Barker, D. Pashov, and J. Jackson, Electronic Struc- ture2, 044002 (2021)

    work page 2021

  39. [39]

    K.Wang, S.Kimura, K.Yamauchi, H.Yamahara, H.Mu- rakami, M.Seki, T.Oguchi, H.Tabata,andM.Tonouchi, Journal of Applied Physics136, 245105 (2024)

    work page 2024

  40. [40]

    P. W. Anderson, Phys. Rev.115, 2 (1959)

    work page 1959

  41. [41]

    T. P. T. Nguyen, K. Yamauchi, T. Oguchi, D. Amoroso, and S. Picozzi, Phys. Rev. B104, 014414 (2021)

    work page 2021

  42. [42]

    J. C. Slater and G. F. Koster, Phys. Rev.94, 1498 (1954)

    work page 1954

  43. [43]

    Momma and F

    K. Momma and F. Izumi, Journal of Applied Crystallog- raphy44, 1272 (2011)

    work page 2011

  44. [44]

    Colpa, Physica A: Statistical Mechanics and its Appli- cations93, 327 (1978)

    J. Colpa, Physica A: Statistical Mechanics and its Appli- cations93, 327 (1978)

    work page 1978
