pith. sign in

arxiv: 2604.04679 · v1 · submitted 2026-04-06 · ❄️ cond-mat.mtrl-sci

Nonlocal Linear Instability Drives the Initiation of Motion of Rational and Irrational Twin Interfaces

Chang-Tsan Lu , Anthony Rollett , Kaushik Dayal This is my paper

Pith reviewed 2026-05-10 19:58 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords twin boundarieslinear stability analysisHessian eigenvalueirrational interfacesmartensitic materialsatomistic simulationshear loadingnonlocal instability
0
0 comments X

The pith

The initiation of motion at both rational and irrational twin interfaces is driven by nonlocal linear instability signaled by the vanishing of the lowest Hessian eigenvalue.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines how twin boundaries begin to move in a two-dimensional rectangular lattice model under quasistatic shear loading. It applies full linear stability analysis to show that motion starts when a nonlocal instability sets in, marked by the lowest eigenvalue of the Hessian reaching zero. The associated eigenmode identifies the precise atomic displacements that launch the motion. Irrational twin boundaries reach this point at lower critical shear stresses than rational ones and can nucleate microtwins in directions orthogonal to the main interface. Local stability measures miss this distinction, while the nonlocal approach correctly captures the lower threshold for irrational cases.

Core claim

Using atomistic simulations and quasistatic shear loading on a 2D rectangular lattice, the authors establish that motion initiation for both rational and irrational twin interfaces occurs at the vanishing of the lowest eigenvalue of the Hessian of the total energy. The corresponding eigenmode predicts the initial atomic displacements, including the formation of orthogonal microtwins for irrational boundaries. Irrational interfaces exhibit significantly lower critical shear stresses than rational ones, and various local measures of stability fail to detect this difference.

What carries the argument

The Hessian matrix of the total energy, whose lowest eigenvalue vanishing signals the nonlocal linear instability and whose eigenmode predicts the initiating atomic displacements.

Load-bearing premise

The simplified two-dimensional rectangular lattice model with quasistatic shear loading captures the essential physics of real three-dimensional martensitic crystals containing irrational twin interfaces.

What would settle it

Track the lowest Hessian eigenvalue during incremental shear loading in simulation or experiment and check whether it reaches zero at the exact critical stress where atomic displacements first match the predicted eigenmode and the boundary begins to move.

Figures

Figures reproduced from arXiv: 2604.04679 by Anthony Rollett, Chang-Tsan Lu, Kaushik Dayal.

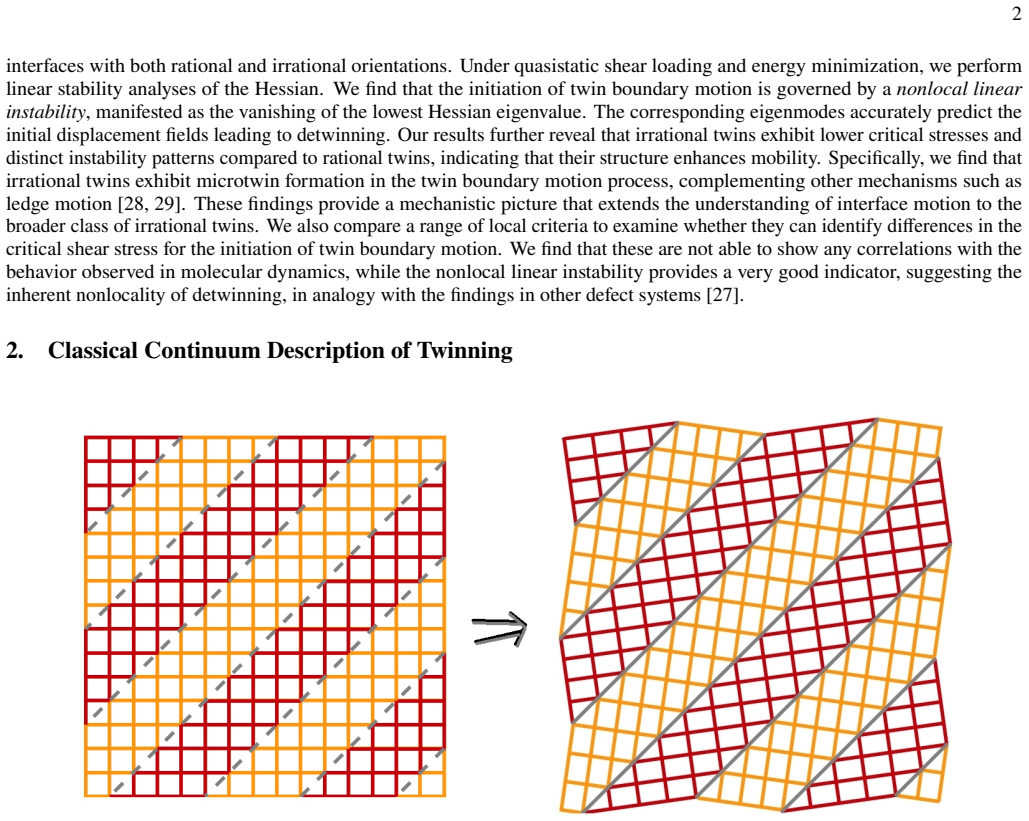

Figure 1

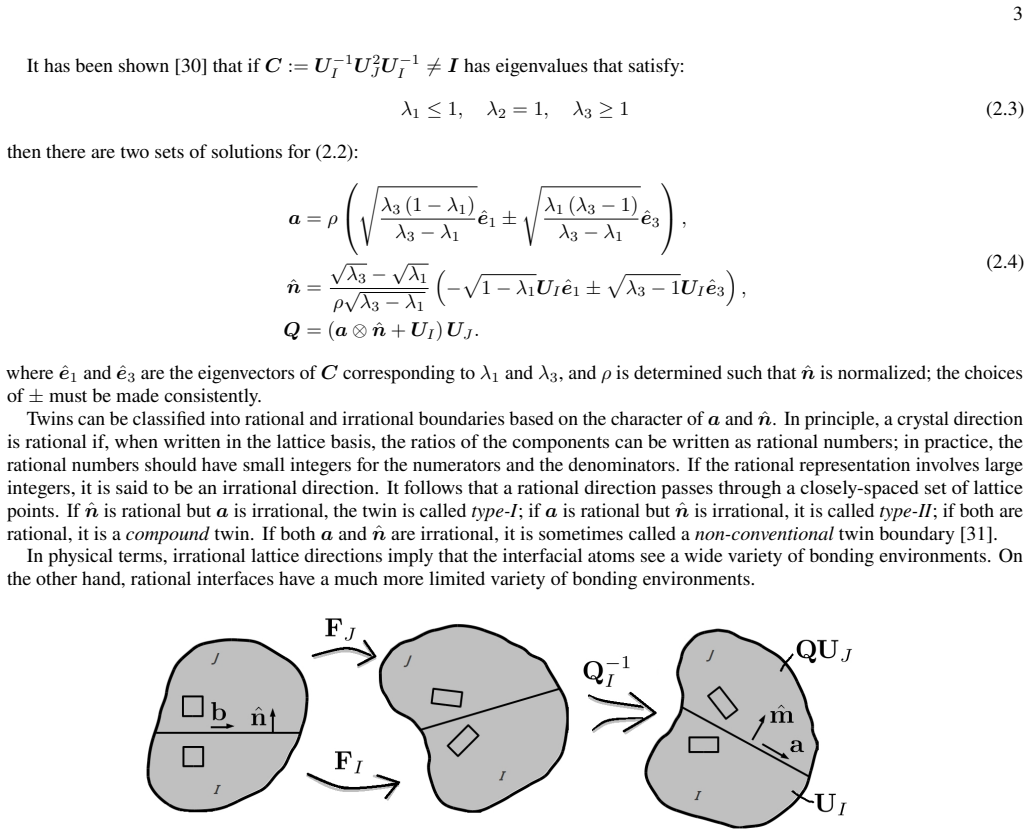

Figure 1. Figure 1: The square austenitic lattice (left) is transformed into a twinned rectangular martensitic lattice (right), with the coherent twin [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Left: reference configuration (austenite). Center: the region below the twin interface is transformed through [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

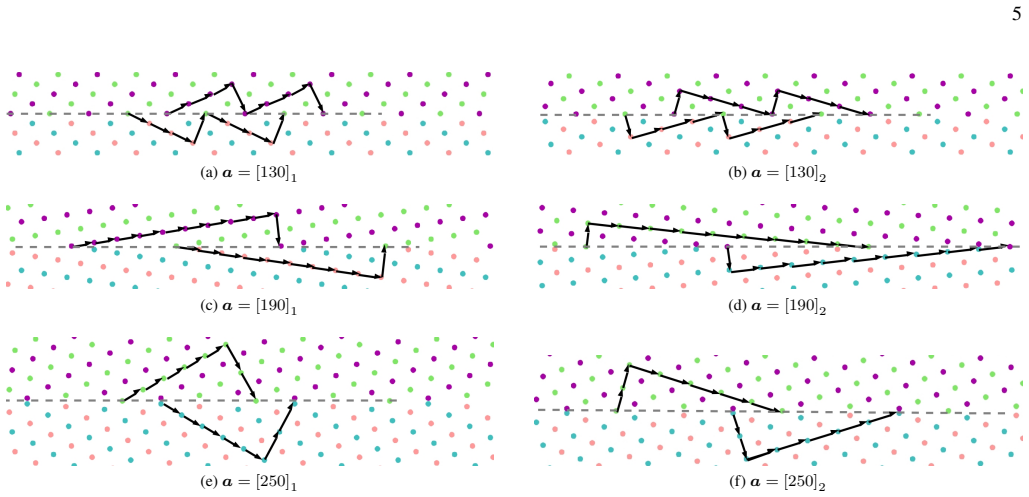

Figure 3. Figure 3: Some examples of the structure of twin boundaries, constructed using [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

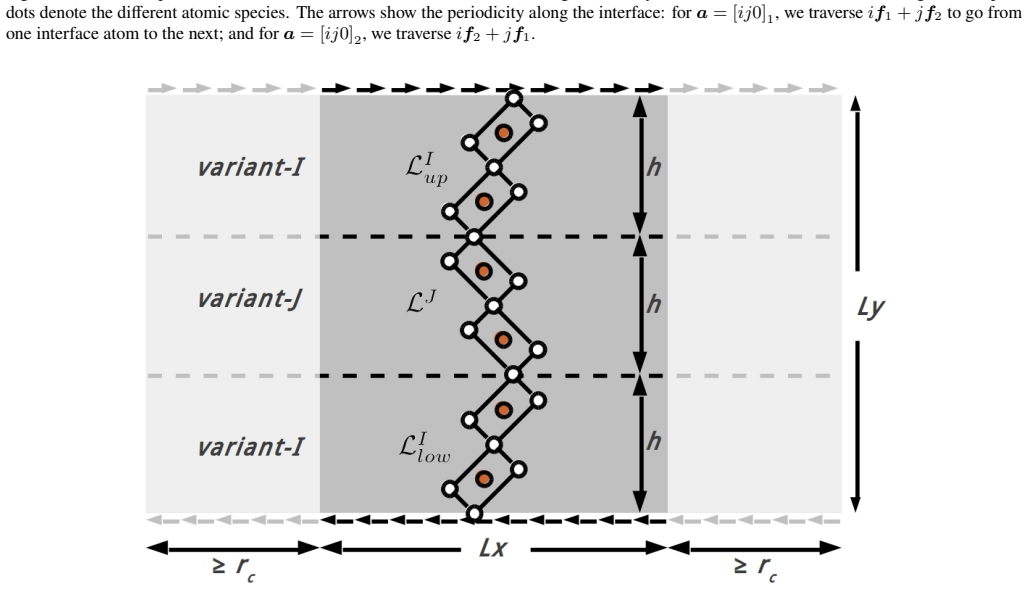

Figure 4. Figure 4: Schematic of the periodic simulation cell. The twin planes are aligned horizontally and the box is sheared as indicated by the arrows. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

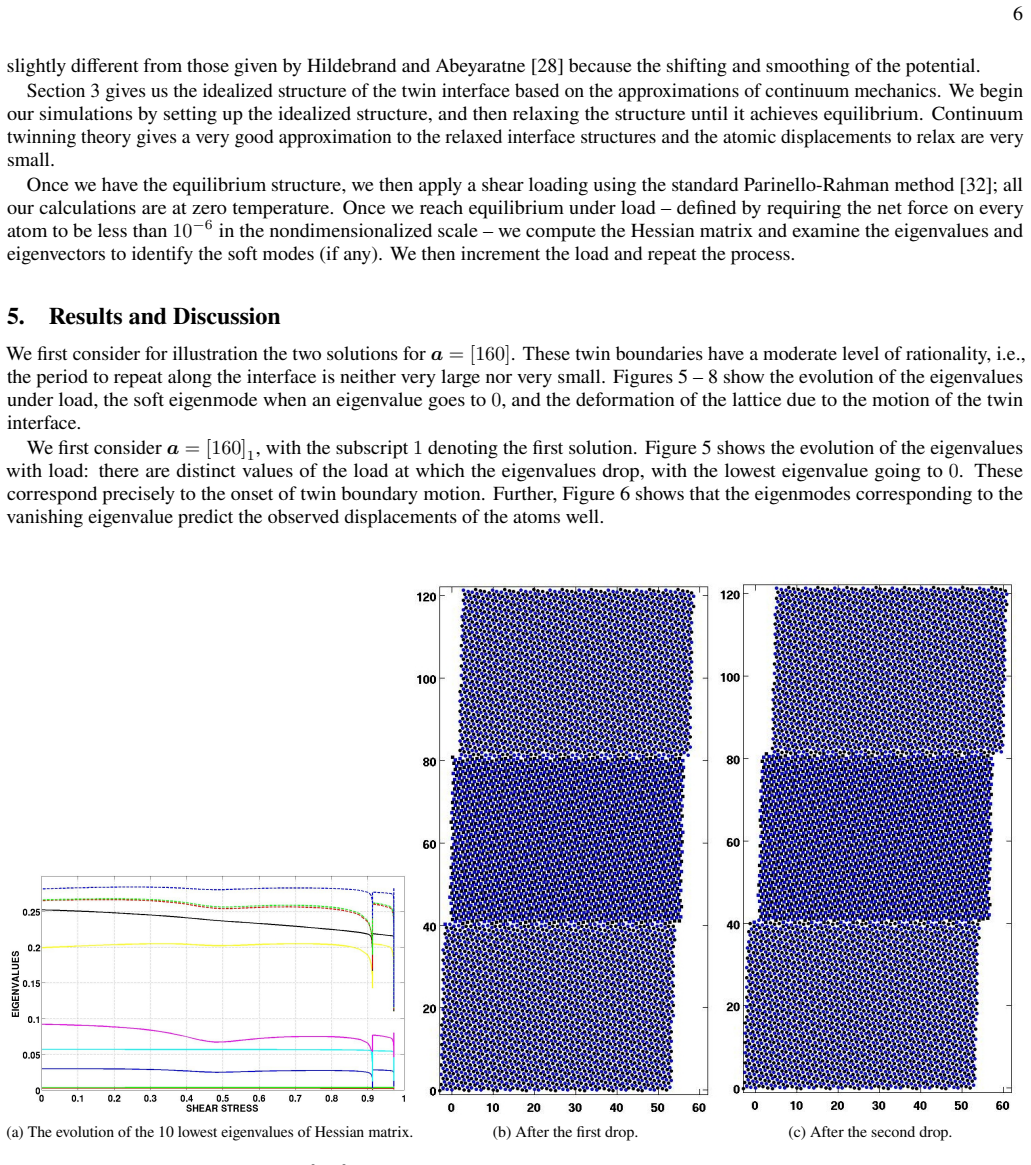

Figure 5. Figure 5: Twin boundary motion for a = [160]1 : (a) shows the evolution of the 10 lowest eigenvalues with load; (b) and (c) show the atomic configuration after the first and second load drops. Next, we consider the interface a = [160]2 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

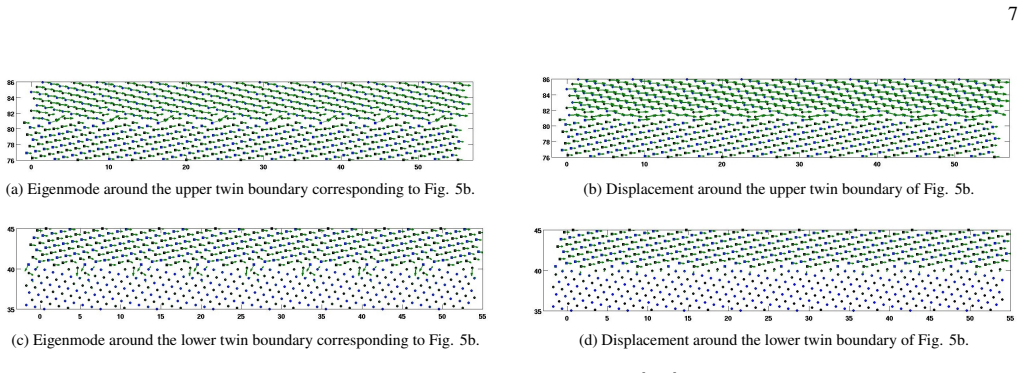

Figure 6. Figure 6: Comparison of the soft eigenmodes and the observed displacements for [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

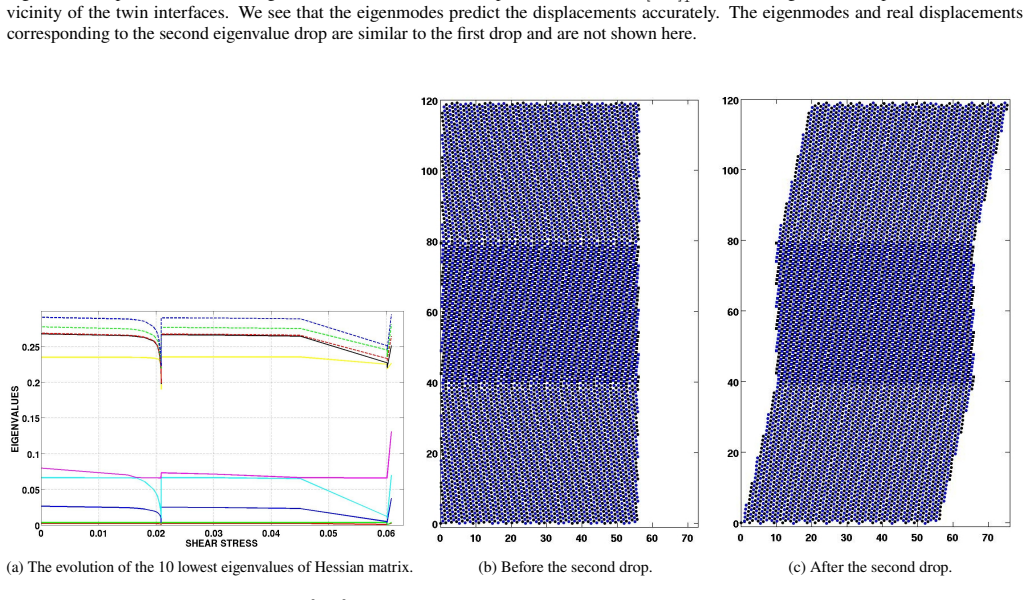

Figure 7. Figure 7: Twin boundary motion for a = [160]2 : (a) shows the evolution of the 10 lowest eigenvalues with load; (b) and (c) show the atomic configuration after the first and second load drops. The upper twin boundary moves upwards and the lower one moves downwards. 5.A. Significantly Lower Initiation Stress for Irrational Twins We consider the set of examples in [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Comparison of the soft eigenmodes and the observed displacements for [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

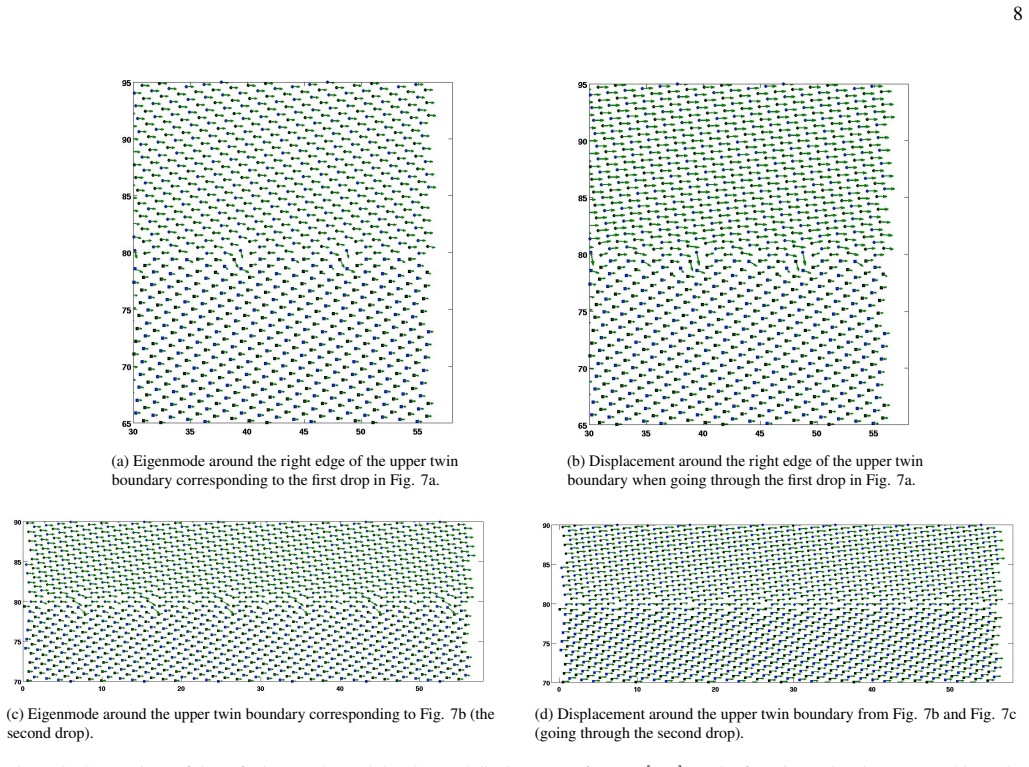

Figure 9
Figure 9. Figure 9: The soft eigenmode for a = [110] [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗

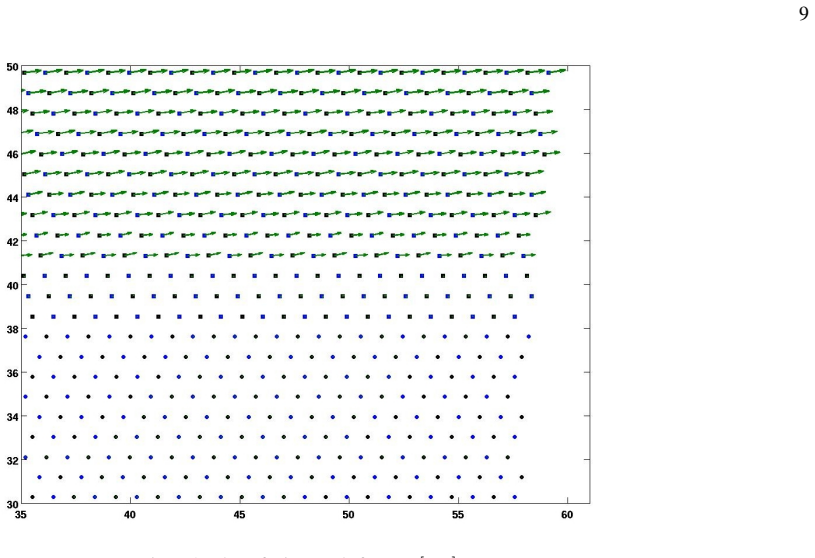

Figure 10
Figure 10. Figure 10: The soft eigenmode for a = [150]2 . 5.C. Local Measures: Surface Atom Density, Surface Energy Density, and Maximum Energy per Atom The atoms around the twin boundaries have significantly different crystallographic environments compared to those that are away from the twin boundaries. Therefore, we can think of various measures that capture these differences and then examine the correlation between boundar… view at source ↗

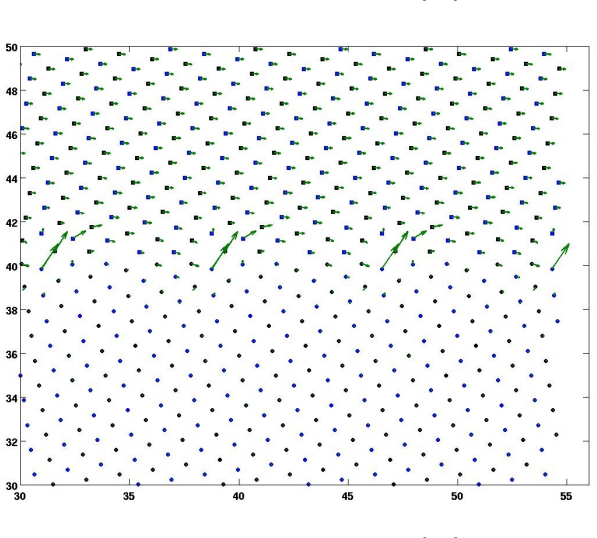

Figure 11

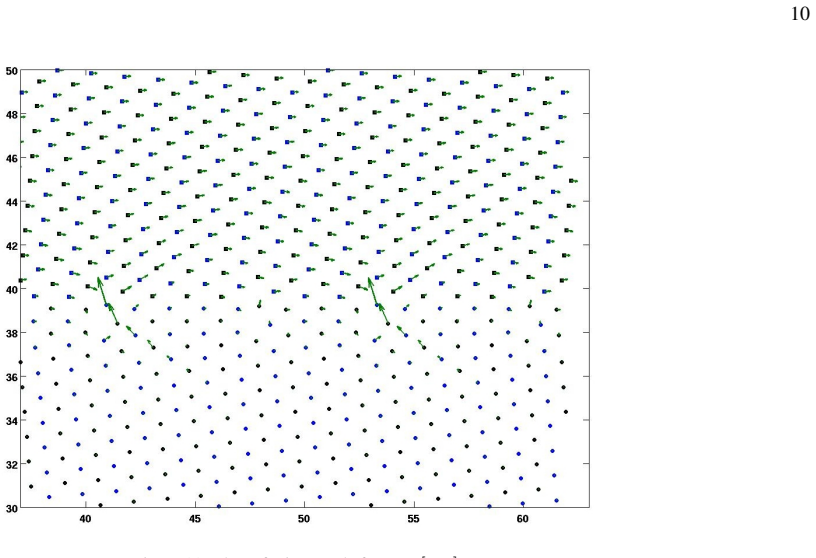

Figure 11. Figure 11: The soft eigenmode for a = [180]2 . measures, as opposed to a linear stability analysis which is global. The surface energy density for a twin boundary is calculated by computing the total energy of the system, then subtracting off the energy density of the bulk phases neglecting the interface, giving the excess energy due to the twin boundary. This excess energy is divided by the nominal area to find the… view at source ↗
Figure 12
Figure 12. Figure 12: Microtwin formation in a = [340]1 (top row) and a = [470]1 (bottom row). (a), (c) show the soft eigenmode with the nucleation of microtwins indicated by the red dashed lines in the diagonal direction along fdiag shown by the red arrow. (b), (d) show that further loading causes the detwinning of the microtwins. for useful discussions. [1] John Wyrill Christian and Subhash Mahajan. Deformation twinning. Pro… view at source ↗
Figure 13
Figure 13. Figure 13: Detwinning of a = [560]1 occurs by an alternation of (a) motion along the dominant shear direction, and then (b) the formation of microtwins along fdiag. (a) a = [290]1 (b) a = [350]1 [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗

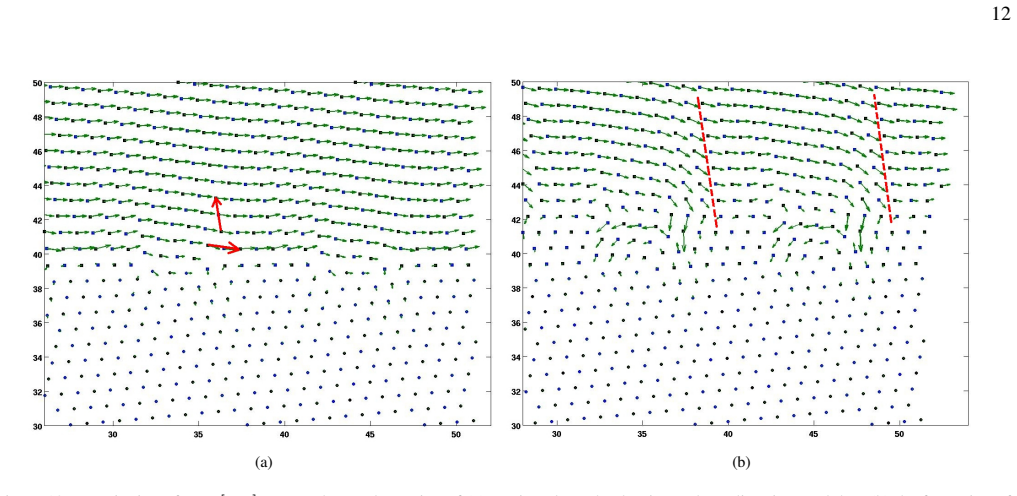

Figure 14
Figure 14. Figure 14: Slip along the twin boundaries. The eigenmodes above the twin boundaries are so uniform that look like rigid body translation. [PITH_FULL_IMAGE:figures/full_fig_p012_14.png] view at source ↗

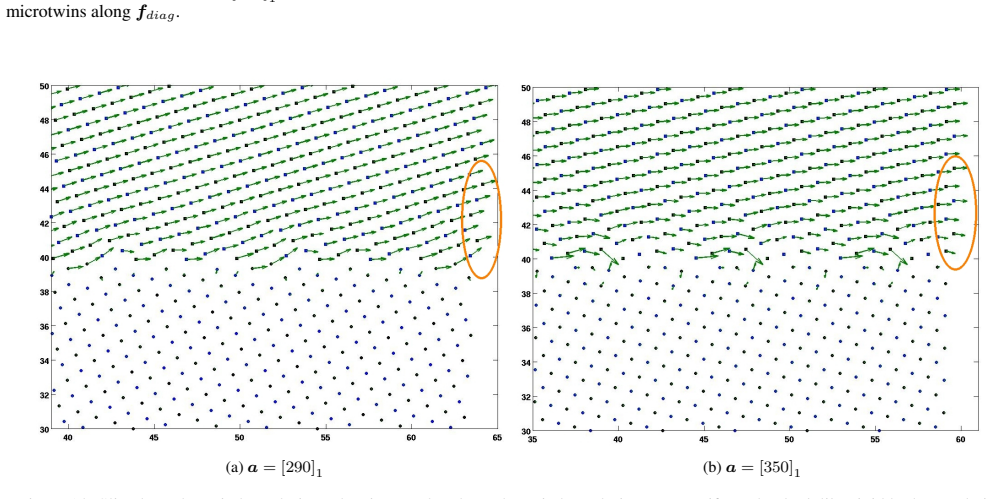

Figure 15
Figure 15. Figure 15: Correlations for a large number of different twins between the critical shear stress for the initiation of motion between (a) the surface [PITH_FULL_IMAGE:figures/full_fig_p013_15.png] view at source ↗

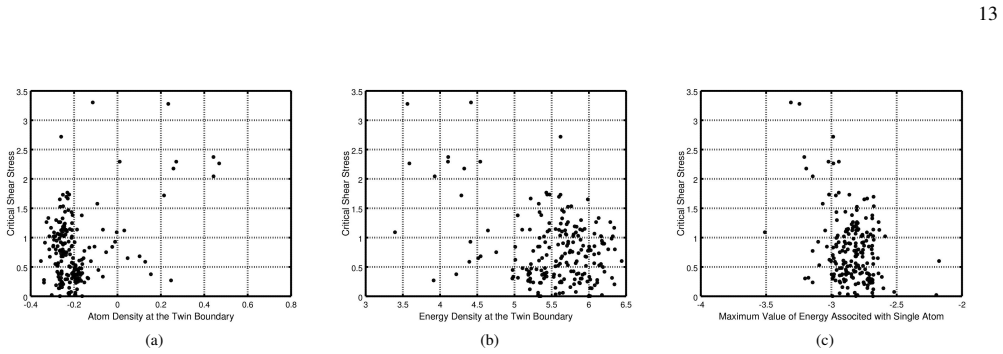

read the original abstract

Twin boundaries play a central role in the functional behavior of martensitic materials, yet the mechanisms governing the initiation of their motion remain poorly understood for twins lying along irrational crystallographic directions. Here we present an atomistic investigation of the onset of motion of both rational and irrational twin interfaces in a two-dimensional model lattice with rectangular unit cells. Using quasistatic shear loading and full linear stability analysis, we show that the initiation of twin boundary motion is signaled by a nonlocal linear instability, marked by the vanishing of the lowest eigenvalue of the Hessian; the corresponding eigenmode predicts the atomic displacements that initiate motion. We find that irrational twin boundaries have significantly lower critical shear stress to initiate motion compared to rational twin boundaries. Further, we find that they display unusual mechanisms to initiate motion such as the formation of microtwins in directions orthogonal to the overall twin boundary. Finally, we compare various local measures against the nonlocal stability analysis, and find that the former do not capture that irrational twin boundaries initiate their motion at lower stresses compared to rational boundaries.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript claims that in a 2D rectangular lattice model under quasistatic shear, the onset of motion for both rational and irrational twin interfaces is marked by a nonlocal linear instability identified by the vanishing of the lowest Hessian eigenvalue; the associated eigenmode predicts the initiating atomic displacements. Irrational interfaces are reported to exhibit significantly lower critical shear stresses and to initiate via orthogonal microtwin formation, in contrast to rational interfaces, while various local stability measures fail to capture this distinction.

Significance. If the central results hold after addressing modeling concerns, the work would offer a rigorous nonlocal criterion for twin-boundary motion initiation that improves on local measures, with direct relevance to irrational twins prevalent in martensitic materials. The use of full Hessian analysis to link eigenvalue vanishing to predicted displacements is a methodological strength that could generalize to other interface problems.

major comments (2)
  1. [§3.2 and §4.1] §3.2 and §4.1 (irrational interface construction): The distinction in critical stress and initiation mechanism between rational and irrational boundaries rests on periodic supercells using finite rational approximants to the interface angle. The manuscript must include a convergence study (varying approximant order or supercell size) demonstrating that the lowest eigenvalue zero-crossing, critical stress value, and eigenmode character (including orthogonal microtwin formation) are insensitive to residual commensurability; without this, the reported lower critical stress for irrational cases may be an artifact rather than intrinsic.
  2. [§4.3] §4.3 (comparison of local vs. nonlocal measures): The claim that local measures do not capture the lower initiation stress for irrational boundaries requires quantitative tabulation of the critical values predicted by each local criterion (e.g., specific atomic strain or stress thresholds) alongside the Hessian eigenvalue results for the same loading paths; the current qualitative statement leaves open whether the local measures were applied consistently across approximants.
minor comments (3)
  1. [Figures 4-6] Figure captions for eigenmode plots should explicitly state the applied strain and eigenvalue magnitude at the reported critical point to allow direct comparison across rational and irrational cases.
  2. [Methods] The methods section should specify the numerical tolerance used to identify eigenvalue vanishing and whether the Hessian is computed with or without periodic boundary corrections for the supercell.
  3. [Introduction] A brief discussion of how the 2D rectangular lattice parameters map to real 3D martensite systems would help readers assess transferability, even if the study is model-focused.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed and constructive feedback on our manuscript. Their comments highlight important aspects that will enhance the robustness of our results. Below, we provide point-by-point responses to the major comments and outline the revisions we will make.

read point-by-point responses

  1. Referee: [§3.2 and §4.1] §3.2 and §4.1 (irrational interface construction): The distinction in critical stress and initiation mechanism between rational and irrational boundaries rests on periodic supercells using finite rational approximants to the interface angle. The manuscript must include a convergence study (varying approximant order or supercell size) demonstrating that the lowest eigenvalue zero-crossing, critical stress value, and eigenmode character (including orthogonal microtwin formation) are insensitive to residual commensurability; without this, the reported lower critical stress for irrational cases may be an artifact rather than intrinsic.

    Authors: We agree that demonstrating convergence with respect to approximant order is essential to establish that the observed differences are intrinsic to irrational interfaces rather than artifacts of finite commensurability. In the revised manuscript, we will add a new subsection or appendix presenting results for higher-order rational approximants (e.g., continued fraction convergents) and larger supercell sizes. We will show that the critical shear stress, the point of eigenvalue vanishing, and the character of the eigenmode (including the formation of orthogonal microtwins) converge to stable values as the approximant improves, thereby confirming the robustness of our findings. revision: yes

  2. Referee: [§4.3] §4.3 (comparison of local vs. nonlocal measures): The claim that local measures do not capture the lower initiation stress for irrational boundaries requires quantitative tabulation of the critical values predicted by each local criterion (e.g., specific atomic strain or stress thresholds) alongside the Hessian eigenvalue results for the same loading paths; the current qualitative statement leaves open whether the local measures were applied consistently across approximants.

    Authors: We concur that a quantitative comparison would provide clearer evidence. In the revised manuscript, we will include a table in §4.3 that tabulates, for each local stability measure considered (such as maximum atomic shear strain, local von Mises stress, or other criteria), the predicted critical stress values for both rational and irrational interfaces along identical loading paths. This table will also list the corresponding Hessian eigenvalue zero-crossing stresses for direct comparison, and we will specify how the local measures were computed consistently across all approximants used. revision: yes

Circularity Check

0 steps flagged

No circularity in numerical stability analysis of defined lattice model

full rationale

The paper constructs an explicit 2D rectangular lattice model, applies quasistatic shear, assembles the Hessian from the interatomic potential, and computes its eigenvalues and eigenvectors as direct numerical outputs. The vanishing of the lowest eigenvalue is the standard linear-stability criterion applied to the model; the associated eigenmode is the computed direction of incipient motion. Neither quantity is fitted to data nor defined in terms of the target result. No self-citations are invoked to justify the core stability claim, and the rational/irrational comparison is performed by explicit construction of periodic approximants within the same model. The derivation therefore remains self-contained and does not reduce to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on a simplified 2D atomistic model whose interatomic interactions and boundary conditions are not detailed in the abstract.

axioms (1)
  • domain assumption A 2D rectangular lattice with chosen interatomic potentials sufficiently represents the mechanics of twin interfaces in real crystals.
    Basis for all simulations and stability calculations described in the abstract.

pith-pipeline@v0.9.0 · 5487 in / 1264 out tokens · 56819 ms · 2026-05-10T19:58:43.653353+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages · 1 internal anchor

  1. [1]

    non-conventional

    Introduction Martensitictransformationsarefundamentaltothemechanicalbehaviorofmanystructuralandmultifunctionalmaterials,including shape-memory alloys and advanced steels [1–3]. These transformations, induced by changes in temperature or external stress, generate complex microstructures composed of multiple martensite variants separated bytwin boundariesth...

    work page

  2. [2]

    Nonlocal Linear Instability Drives the Initiation of Motion of Rational and Irrational Twin Interfaces

    identified twin-boundary migration as a controlling creep mechanism at intermediate/high stresses; and [16] demonstrate that rational twin boundaries exhibit unusual fluctuation kinetics and long-range interactions. More recent studies have examined the role of interface structure and energetics [17–21] on twin nucleation and related properties. On the ex...

    work page internal anchor Pith review Pith/arXiv arXiv 2026

  3. [3]

    The square austenitic lattice (left) is transformed into a twinned rectangular martensitic lattice (right), with the coherent twin bounmdaries shown in gray

    Classical Continuum Description of Twinning Figure 1. The square austenitic lattice (left) is transformed into a twinned rectangular martensitic lattice (right), with the coherent twin bounmdaries shown in gray. We briefly summarize here the relevant aspects of the continuum theory of austenite-martensite phase transformations and twinning (Fig. 1). The d...

    work page

  4. [4]

    The lattice on one side can be obtained by a simple shear of the lattice on the other

    work page

  5. [5]

    When considering the deformations occurring in an austenite-martensite transformation, it is convenient to take the austenite phase as the reference configuration

    The lattice on one side can also be obtained by a rotation of the lattice on the other. When considering the deformations occurring in an austenite-martensite transformation, it is convenient to take the austenite phase as the reference configuration. Suppose that there areNpossible martensite variants, and the deformations relative to the reference confi...

    work page

  6. [6]

    The simplest structural transformation would then be a square-rectangle transition

    Construction of Irrational Twin Interfaces For simplicity, we aim to work in two dimensions. The simplest structural transformation would then be a square-rectangle transition. However, the point group for this transformation is small, i.e., there are not many choices forR in (2.1). This implies that there is a limited set of solutions to (2.2), and in fa...

    work page

  7. [7]

    While strictly irrational twin planes would require an infinite periodicity in the horizontal direction, we use a large but finite periodicity to mimic this

    Simulation Methods We construct the atomic configuration as schematically shown in Figure 4 to be compatible with periodic boundary conditions. While strictly irrational twin planes would require an infinite periodicity in the horizontal direction, we use a large but finite periodicity to mimic this. We require that the normal unit vector of the twin boun...

    work page

  8. [8]

    These twin boundaries have a moderate level of rationality, i.e., the period to repeat along the interface is neither very large nor very small

    Results and Discussion We first consider for illustration the two solutions fora= [160] . These twin boundaries have a moderate level of rationality, i.e., the period to repeat along the interface is neither very large nor very small. Figures 5 – 8 show the evolution of the eigenvalues under load, the soft eigenmode when an eigenvalue goes to0, and the de...

    work page

  9. [9]

    = 1.09136 whereas τ cr [150]2 = 0.23738,τ cr [160]2 = 0.193072, and τ cr [180]2 = 0.213072. 5.B. Microtwinning Normal to the Primary Twin Interface We next consider the examples in Figure 12 fora= [340] 1 and a= [470] 1. A key common feature of these twin boundaries, as opposed to those considered above, is that thediagonal lattice vectorfdiag := 1 2 (f1 ...

    work page

  10. [10]

    Conclusions We have used molecular statics to investigate the initiation of motion of both rational and irrational twin boundaries under loading. We have shown that the onset of motion is governed by a linear instability, manifested by the vanishing of the lowest eigenvalue with the corresponding eigenmode accurately predicting the initial atomic displace...

    work page

  11. [11]

    Deformation twinning.Progress in materials science, 39(1-2):1–157, 1995

    John Wyrill Christian and Subhash Mahajan. Deformation twinning.Progress in materials science, 39(1-2):1–157, 1995

    work page 1995

  12. [12]

    CRC Press, 2021

    Harshad KDH Bhadeshia.Theory of transformations in steels. CRC Press, 2021

    work page 2021

  13. [13]

    Oxford University Press, 2003

    Kaushik Bhattacharya.Microstructure of martensite: why it forms and how it gives rise to the shape-memory effect, volume 2. Oxford University Press, 2003

    work page 2003

  14. [14]

    Chapman and Hall/CRC, 2002

    Mario Pitteri and Giovanni Zanzotto.Continuum models for phase transitions and twinning in crystals. Chapman and Hall/CRC, 2002

    work page 2002

  15. [15]

    Cambridge University Press, 2006

    Rohan Abeyaratne and James K Knowles.Evolution of phase transitions: a continuum theory. Cambridge University Press, 2006

    work page 2006

  16. [16]

    Equilibrium phase interfaces

    LM Truskinovskii. Equilibrium phase interfaces. InSoviet Physics Doklady, volume 27, page 551, 1982

    work page 1982

  17. [17]

    A dynamic phase-field model for structural transformations and twinning: Regularized interfaces with transparent prescription of complex kinetics and nucleation

    Vaibhav Agrawal and Kaushik Dayal. A dynamic phase-field model for structural transformations and twinning: Regularized interfaces with transparent prescription of complex kinetics and nucleation. part i: Formulation and one-dimensional characterization.Journal of the Mechanics and Physics of Solids, 85:270–290, 2015

    work page 2015

  18. [18]

    A dynamic phase-field model for structural transformations and twinning: Regularized interfaces with transparent prescription of complex kinetics and nucleation

    Vaibhav Agrawal and Kaushik Dayal. A dynamic phase-field model for structural transformations and twinning: Regularized interfaces with transparent prescription of complex kinetics and nucleation. part ii: Two-dimensional characterization and boundary kinetics.Journal 12 (a) (b) Figure 13. Detwinning ofa= [560]1 occurs by an alternation of (a) motion alon...

    work page 2015

  19. [19]

    Phase-field modeling and peridynamics for defect dynamics, and an augmented phase-field model with viscous stresses.Journal of the Mechanics and Physics of Solids, 159:104716, 2022

    Janel Chua, Vaibhav Agrawal, Timothy Breitzman, George Gazonas, and Kaushik Dayal. Phase-field modeling and peridynamics for defect dynamics, and an augmented phase-field model with viscous stresses.Journal of the Mechanics and Physics of Solids, 159:104716, 2022

    work page 2022

  20. [20]

    Interplay between nucleation and kinetics in dynamic twinning.Journal of Applied Mechanics, 91(12):121002, 2024

    Janel Chua, Vaibhav Agrawal, Noel Walkington, George Gazonas, and Kaushik Dayal. Interplay between nucleation and kinetics in dynamic twinning.Journal of Applied Mechanics, 91(12):121002, 2024

    work page 2024

  21. [21]

    Formulationofphase-fieldenergiesformicrostructureincomplexcrystalstructures.AppliedPhysicsLetters, 96(8), 2010

    LunYangandKaushikDayal. Formulationofphase-fieldenergiesformicrostructureincomplexcrystalstructures.AppliedPhysicsLetters, 96(8), 2010

    work page 2010

  22. [22]

    A lattice-based model of the kinetics of twin boundary motion.Journal of the Mechanics and Physics of Solids, 51(9):1675–1700, 2003

    Rohan Abeyaratne and Srikanth Vedantam. A lattice-based model of the kinetics of twin boundary motion.Journal of the Mechanics and Physics of Solids, 51(9):1675–1700, 2003

    work page 2003

  23. [23]

    Alternating brittle and ductile response of coherent twin boundaries in nanotwinned metals

    Tanushree Sinha and Yashashree Kulkarni. Alternating brittle and ductile response of coherent twin boundaries in nanotwinned metals. Journal of Applied Physics, 116:183505, 2014

    work page 2014

  24. [24]

    Size effects in twinned nanopillars.Journal of Applied Physics, 116:033512, 2014

    Farah Hammami and Yashashree Kulkarni. Size effects in twinned nanopillars.Journal of Applied Physics, 116:033512, 2014

    work page 2014

  25. [25]

    Molecular dynamics study of creep mechanisms in nanotwinned metals.Computational Materials Science, 110:254–260, 2015

    Shuyin (S.) Jiao and Yashashree Kulkarni. Molecular dynamics study of creep mechanisms in nanotwinned metals.Computational Materials Science, 110:254–260, 2015

    work page 2015

  26. [26]

    Elucidating the kinetics of twin boundaries from thermal fluctuations.MRS Communications, 13 (a) (b) (c) Figure 15

    Dengke Chen and Yashashree Kulkarni. Elucidating the kinetics of twin boundaries from thermal fluctuations.MRS Communications, 13 (a) (b) (c) Figure 15. Correlations for a large number of different twins between the critical shear stress for the initiation of motion between (a) the surface atomic density, (b) the surface energy density, and (c) the highes...

    work page 2013

  27. [27]

    Martensitic twin boundary migration as a source of irreversible slip in shape memory alloys.Acta Materialia, 186:50–67, 2020

    Ahmed Sameer Khan Mohammed and Huseyin Sehitoglu. Martensitic twin boundary migration as a source of irreversible slip in shape memory alloys.Acta Materialia, 186:50–67, 2020

    work page 2020

  28. [28]

    Modeling the interface structure of type ii twin boundary in b19’ niti from an atomistic and topological standpoint.Acta Materialia, 183:93–109, 2020

    Ahmed Sameer Khan Mohammed and Huseyin Sehitoglu. Modeling the interface structure of type ii twin boundary in b19’ niti from an atomistic and topological standpoint.Acta Materialia, 183:93–109, 2020

    work page 2020

  29. [29]

    Gorkem Gengor, Ahmed Sameer Khan Mohammed, and Huseyin Sehitoglu.{101¯ 2} twin interface structure and energetics in hcp materials.Acta Materialia, 219:117256, 2021

    work page 2021

  30. [30]

    Predictions of an alternative pathway for grain-boundary driven twinning.Applied Physics Letters, 104(23), 2014

    A Hunter and IJ Beyerlein. Predictions of an alternative pathway for grain-boundary driven twinning.Applied Physics Letters, 104(23), 2014

    work page 2014

  31. [31]

    Relationship between monolayer stacking faults and twins in nanocrystals.Acta Materialia, 88:207–217, 2015

    A Hunter and IJ Beyerlein. Relationship between monolayer stacking faults and twins in nanocrystals.Acta Materialia, 88:207–217, 2015

    work page 2015

  32. [32]

    Kinetics of the reverse martensitic transformation in shape memory alloys under an abrupt heating pulse.Scripta Materialia, 135:76–79, 2017

    Shahaf Vollach, Haim Shlagman, and Doron Shilo. Kinetics of the reverse martensitic transformation in shape memory alloys under an abrupt heating pulse.Scripta Materialia, 135:76–79, 2017

    work page 2017

  33. [33]

    The kinetic relation for twin wall motion in nimnga.Journal of the Mechanics and Physics of Solids, 59(5):975–987, 2011

    Eilon Faran and Doron Shilo. The kinetic relation for twin wall motion in nimnga.Journal of the Mechanics and Physics of Solids, 59(5):975–987, 2011

    work page 2011

  34. [34]

    The kinetic relation for twin wall motion in nimnga—part 2.Journal of the Mechanics and Physics of Solids, 61(3):726–741, 2013

    Eilon Faran and Doron Shilo. The kinetic relation for twin wall motion in nimnga—part 2.Journal of the Mechanics and Physics of Solids, 61(3):726–741, 2013

    work page 2013

  35. [35]

    Twin motion faster than the speed of sound.Physical review letters, 104(15):155501, 2010

    Eilon Faran and Doron Shilo. Twin motion faster than the speed of sound.Physical review letters, 104(15):155501, 2010

    work page 2010

  36. [36]

    Linear instability signals the initiation of motion of a twin plane under load.Philosophical Magazine Letters, 91(4):264–271, 2011

    Chang-Tsan Lu and Kaushik Dayal. Linear instability signals the initiation of motion of a twin plane under load.Philosophical Magazine Letters, 91(4):264–271, 2011

    work page 2011

  37. [37]

    On the nonlocal nature of dislocation nucleation during nanoindentation.Journal of the Mechanics and Physics of Solids, 56(4):1203–1223, 2008

    Ronald E Miller and David Rodney. On the nonlocal nature of dislocation nucleation during nanoindentation.Journal of the Mechanics and Physics of Solids, 56(4):1203–1223, 2008

    work page 2008

  38. [38]

    An atomistic investigation of the kinetics of detwinning.Journal of the Mechanics and Physics of Solids, 56(4):1296–1319, 2008

    Felix E Hildebrand and Rohan Abeyaratne. An atomistic investigation of the kinetics of detwinning.Journal of the Mechanics and Physics of Solids, 56(4):1296–1319, 2008

    work page 2008

  39. [39]

    Dynamics of steps along a martensitic phase boundary i: Semi-analytical solution.Journal of the Mechanics and Physics of Solids, 56(2):496–520, 2008

    Yubao Zhen and Anna Vainchtein. Dynamics of steps along a martensitic phase boundary i: Semi-analytical solution.Journal of the Mechanics and Physics of Solids, 56(2):496–520, 2008

    work page 2008

  40. [40]

    Fine phase mixtures as minimizers of energy.Archive for Rational Mechanics and Analysis, 100:13–52, 1987

    John M Ball and Richard D James. Fine phase mixtures as minimizers of energy.Archive for Rational Mechanics and Analysis, 100:13–52, 1987

    work page 1987

  41. [41]

    Generic and non-generic cubic-to-monoclinic transitions and their twins.Acta materialia, 46(1):225–237, 1998

    Mario Pitteri and Giovanni Zanzotto. Generic and non-generic cubic-to-monoclinic transitions and their twins.Acta materialia, 46(1):225–237, 1998

    work page 1998

  42. [42]

    Polymorphic transitions in single crystals: A new molecular dynamics method.Journal of Applied physics, 52(12):7182–7190, 1981

    Michele Parrinello and Aneesur Rahman. Polymorphic transitions in single crystals: A new molecular dynamics method.Journal of Applied physics, 52(12):7182–7190, 1981

    work page 1981

  43. [43]

    A. P. Sutton and R. W. Balluffi.Interfaces in Crystalline Materials. Oxford University Press, 2007

    work page 2007

  44. [44]

    Kinetics of phase transformations in the peridynamic formulation of continuum mechanics

    Kaushik Dayal and Kaushik Bhattacharya. Kinetics of phase transformations in the peridynamic formulation of continuum mechanics. Journal of the Mechanics and Physics of Solids, 54(9):1811–1842, 2006

    work page 2006
