arxiv: 2604.05514 · v1 · submitted 2026-04-07 · 💻 cs.AI

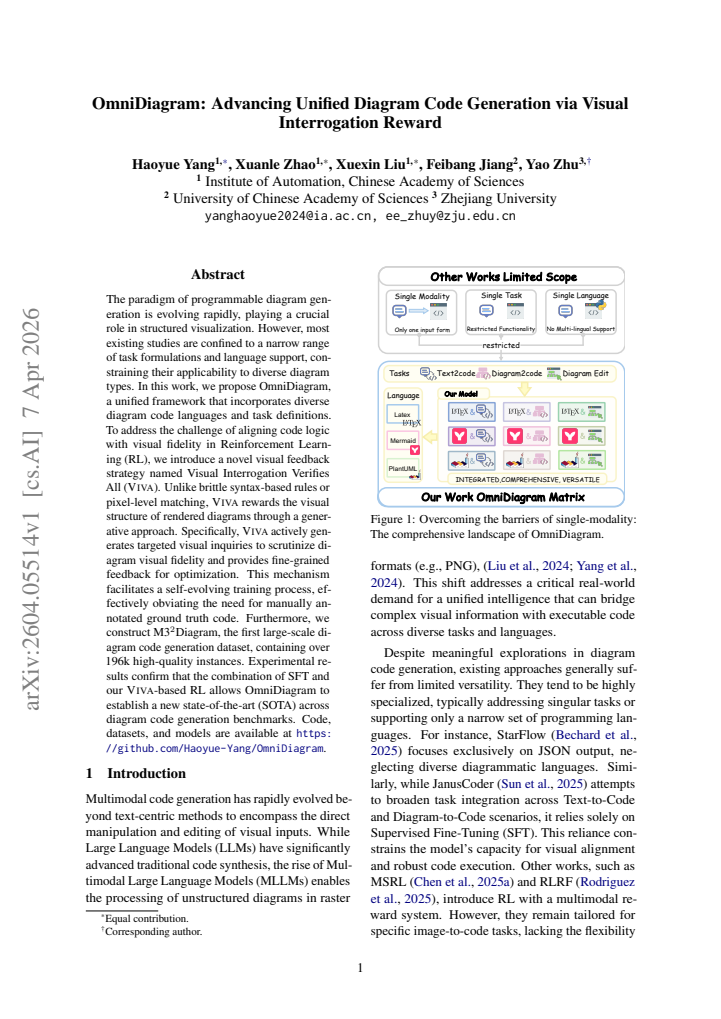

OmniDiagram: Advancing Unified Diagram Code Generation via Visual Interrogation Reward

Haoyue Yang , Xuanle Zhao , Xuexin Liu , Feibang Jiang , Yao Zhu This is my paper

Pith reviewed 2026-05-10 18:54 UTC · model grok-4.3

classification 💻 cs.AI
keywords diagram code generationvisual feedbackreinforcement learningunified frameworkdiagram datasetvisual interrogationcode generationstate-of-the-art results
0
0 comments X

The pith

OmniDiagram trains code generators for many diagram languages by using self-generated visual questions to score rendered outputs in reinforcement learning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents OmniDiagram as a single framework that supports multiple diagram code languages and task types instead of restricting to narrow cases. It introduces Viva, a process in which the model creates its own visual inquiries to examine how faithfully a rendered diagram matches the intended structure and then uses that feedback to guide reinforcement learning updates. This approach removes the need for manually written ground-truth code during training. The authors also release M3²Diagram, a dataset of more than 196,000 examples. When supervised fine-tuning is followed by Viva-based reinforcement learning, the system records new state-of-the-art results on standard diagram code generation benchmarks.

Core claim

OmniDiagram is a unified framework incorporating diverse diagram code languages and task definitions. To align code logic with visual fidelity in reinforcement learning, it employs Visual Interrogation Verifies All (Viva), a generative strategy that actively produces targeted visual inquiries to scrutinize diagram visual fidelity and supplies fine-grained feedback for optimization. This enables a self-evolving training process that does not require manually annotated ground-truth code. Paired with supervised fine-tuning on the newly constructed M3²Diagram dataset of over 196k high-quality instances, the combination reaches new state-of-the-art performance across diagram code generation tasks

What carries the argument

Visual Interrogation Verifies All (Viva), the mechanism that generates targeted visual inquiries about rendered diagrams to produce fine-grained rewards for reinforcement learning without ground-truth annotations.

If this is right

  • A single model can now handle a broader set of diagram languages and task formulations than earlier specialized systems.
  • Training proceeds without paired ground-truth code annotations for every example.
  • The self-evolving loop allows performance to improve iteratively from visual structure feedback alone.
  • The released M3²Diagram dataset supplies scale for future training of diagram-related models.
  • SOTA numbers are established on existing diagram code benchmarks when SFT is followed by Viva-based RL.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same interrogation style of feedback could be adapted to other generation tasks where output is judged by rendered appearance, such as plot or UI code.
  • If Viva-style questions prove reliable across diagram types, the method might reduce dependence on large labeled datasets in related multimodal code tasks.
  • The unified framework opens the possibility of extending support to additional languages or tasks not covered in current benchmarks.
  • Measuring how well Viva inquiries align with human judgments on diagram correctness would provide an independent check on the reward quality.

Load-bearing premise

The visual inquiries that Viva generates give accurate and unbiased feedback on diagram visual fidelity that reliably guides code improvements.

What would settle it

Training the same base model with Viva rewards replaced by syntax-only or random rewards and measuring whether performance on the benchmark suite stays at or above the reported SOTA level would directly test whether the visual interrogation step is necessary for the gains.

Figures

Figures reproduced from arXiv: 2604.05514 by Feibang Jiang, Haoyue Yang, Xuanle Zhao, Xuexin Liu, Yao Zhu.

Figure 1
Figure 1. Figure 1: Overcoming the barriers of single-modality: [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

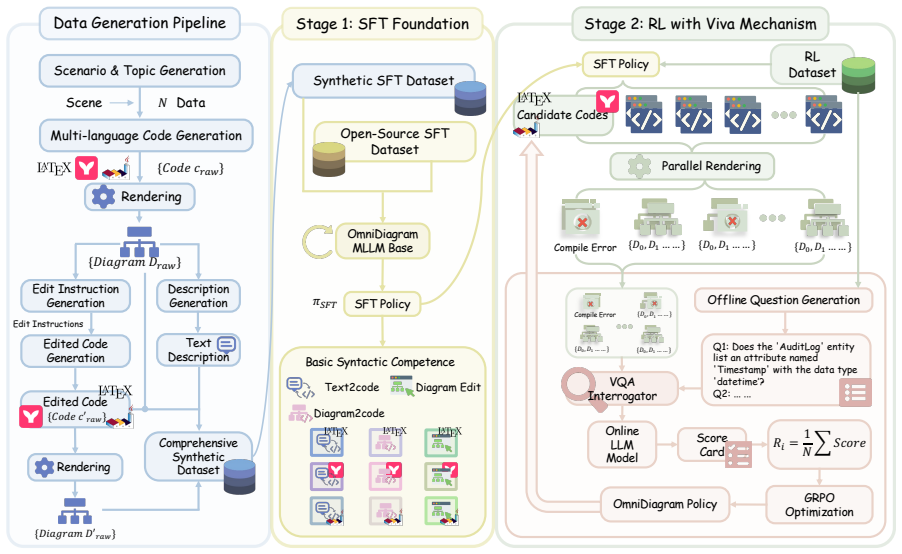

Figure 2. Figure 2: Overview of the OmniDiagram methodology. The framework illustrates the end-to-end flow from scalable [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

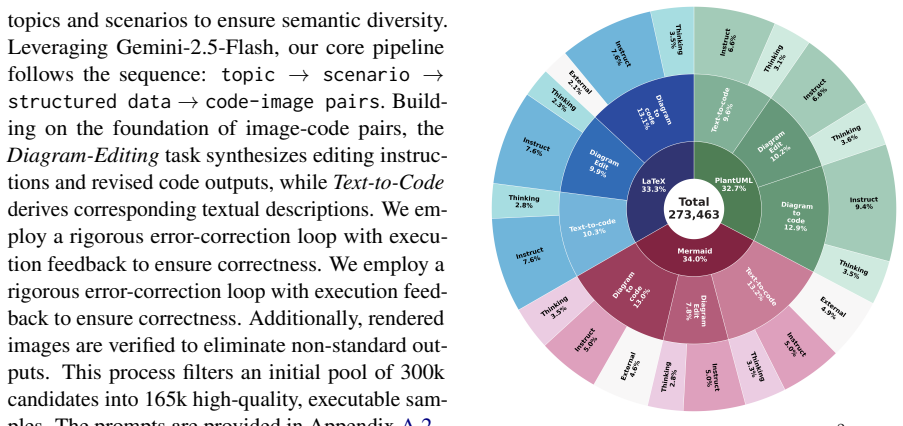

Figure 3. Figure 3: Breakdown of the 196k-sample M3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

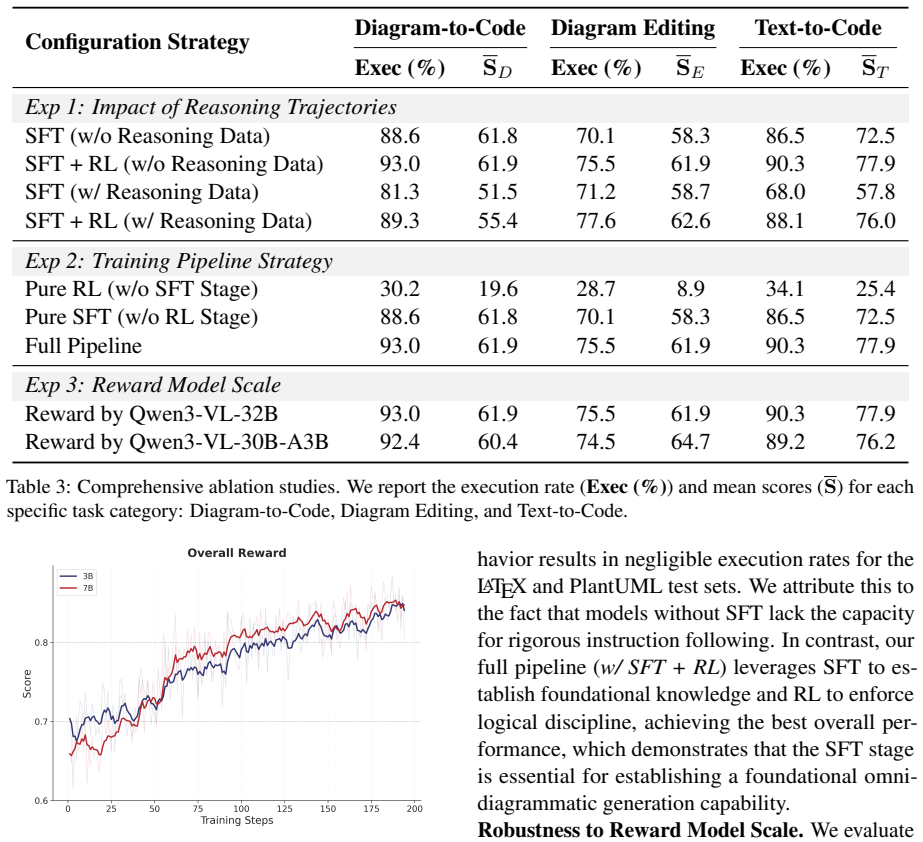

Figure 4. Figure 4: Progression of the overall reward during the [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Statistical breakdown of tasks and diagram [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

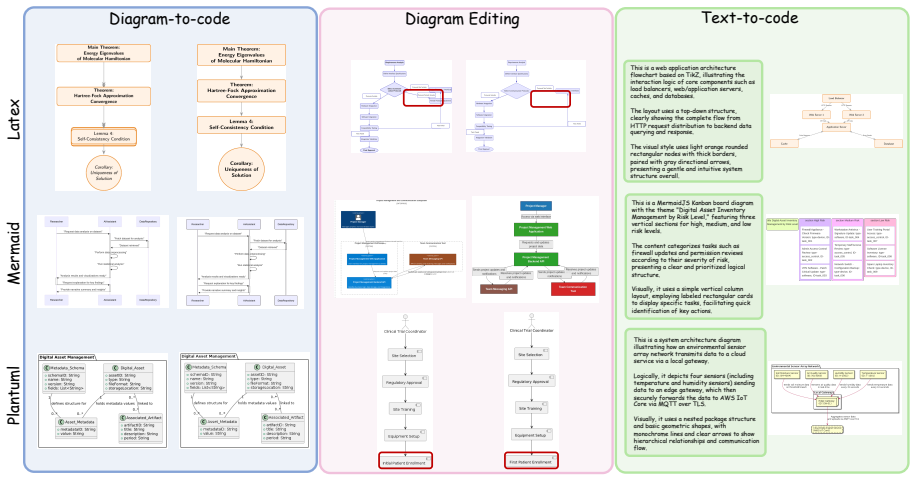

Figure 6. Figure 6: Qualitative showcase of our model across three modalities (LA [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7

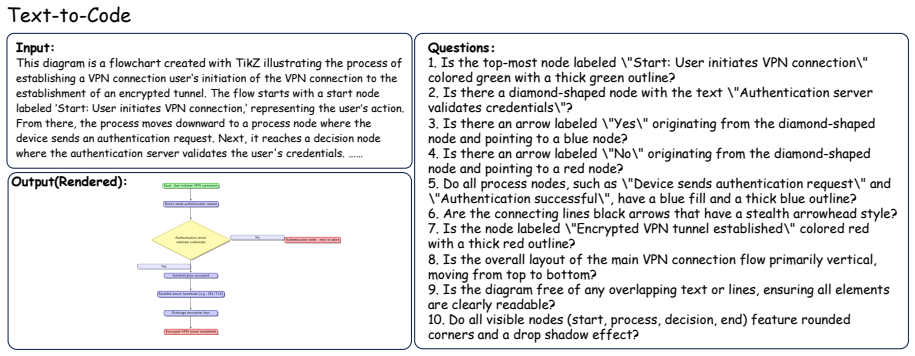

Figure 7. Figure 7: Qualitative example of visual verification questions for the Text-to-Code task. [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Qualitative example of visual verification questions for the Diagram-to-Code task. [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Qualitative example of visual verification questions for the Diagram Editing task. [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The prompt template used for generating different topics to set scene limitations. [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: The prompt template used for generating diverse diagram scenario based on user topics and specific [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: The prompt template used for generating structured JSON data elements tailored to specific Mermaid [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: The prompt template used and applying structured JSON data into executable Mermaid Mindmap code. [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: The prompt used for the Diagram-to-Code task evaluation. [PITH_FULL_IMAGE:figures/full_fig_p021_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: The prompt used for the Diagram Editing task evaluation. [PITH_FULL_IMAGE:figures/full_fig_p022_15.png] view at source ↗
Figure 16

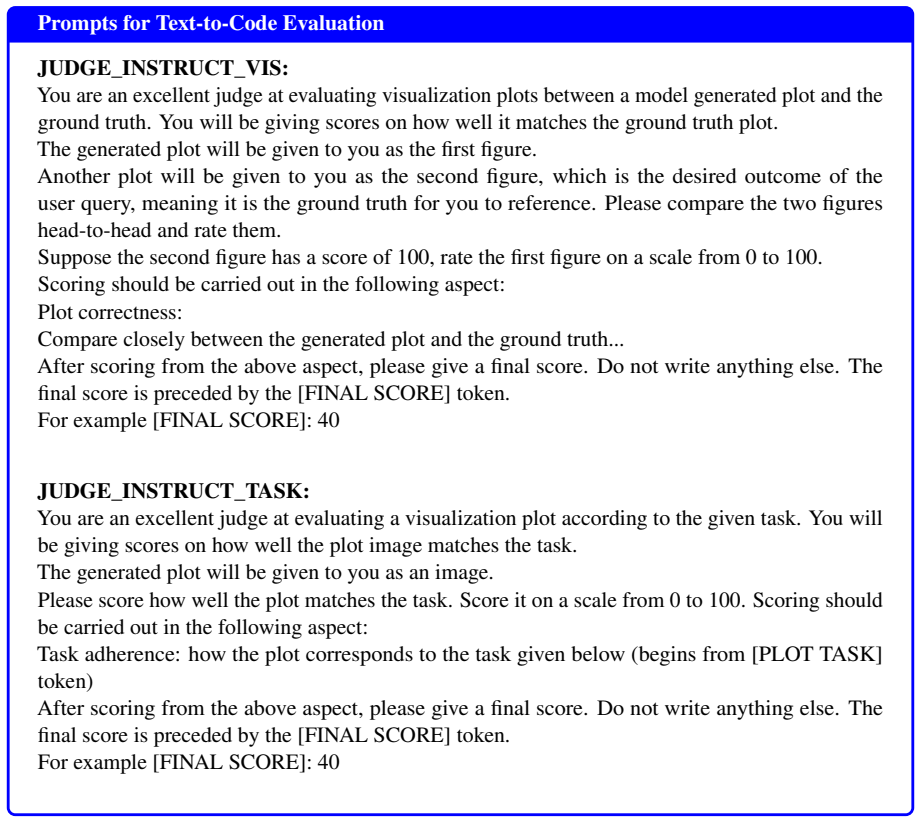

Figure 16. Figure 16: The prompt used for Text-to-Code task evaluation. [PITH_FULL_IMAGE:figures/full_fig_p023_16.png] view at source ↗
read the original abstract

The paradigm of programmable diagram generation is evolving rapidly, playing a crucial role in structured visualization. However, most existing studies are confined to a narrow range of task formulations and language support, constraining their applicability to diverse diagram types. In this work, we propose OmniDiagram, a unified framework that incorporates diverse diagram code languages and task definitions. To address the challenge of aligning code logic with visual fidelity in Reinforcement Learning (RL), we introduce a novel visual feedback strategy named Visual Interrogation Verifies All (\textsc{Viva}). Unlike brittle syntax-based rules or pixel-level matching, \textsc{Viva} rewards the visual structure of rendered diagrams through a generative approach. Specifically, \textsc{Viva} actively generates targeted visual inquiries to scrutinize diagram visual fidelity and provides fine-grained feedback for optimization. This mechanism facilitates a self-evolving training process, effectively obviating the need for manually annotated ground truth code. Furthermore, we construct M3$^2$Diagram, the first large-scale diagram code generation dataset, containing over 196k high-quality instances. Experimental results confirm that the combination of SFT and our \textsc{Viva}-based RL allows OmniDiagram to establish a new state-of-the-art (SOTA) across diagram code generation benchmarks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper introduces OmniDiagram, a unified framework supporting diverse diagram code languages and task formulations. It proposes Viva (Visual Interrogation Verifies All), a generative visual feedback strategy for RL that generates targeted inquiries to assess rendered diagram fidelity and supply rewards, enabling training without ground-truth annotations. The authors construct the M3²Diagram dataset containing over 196k instances and claim that SFT combined with Viva-based RL achieves new state-of-the-art results on diagram code generation benchmarks.

Significance. If the Viva feedback mechanism can be empirically validated as reliable and unbiased, the work could meaningfully advance annotation-efficient RL for structured visualization tasks by addressing the code-to-visual alignment problem in a scalable way. The release of the large-scale M3²Diagram dataset is a clear positive contribution that may serve as a foundation for future benchmark studies in programmable diagram generation.

major comments (2)
  1. Abstract: The central claim that SFT plus Viva-based RL establishes new SOTA performance is asserted without any reported metrics, baseline comparisons, ablation studies, or implementation details, leaving the experimental support for the primary result unverifiable from the manuscript text.
  2. Viva description (Abstract and method sections): The approach depends on the unvalidated assumption that generative visual inquiries produce accurate, unbiased, and fine-grained signals of diagram visual fidelity. No checks—such as inter-rater agreement with humans, correlation with pixel-level metrics, or ablation on interrogator quality—are provided, which is load-bearing because unreliable rewards could reinforce artifacts rather than genuine improvements in the RL stage.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: Abstract: The central claim that SFT plus Viva-based RL establishes new SOTA performance is asserted without any reported metrics, baseline comparisons, ablation studies, or implementation details, leaving the experimental support for the primary result unverifiable from the manuscript text.

    Authors: We agree that the abstract's brevity makes the SOTA claim difficult to verify at a glance. The full manuscript reports these details in Section 4 (Experiments), including quantitative tables comparing against baselines, ablation studies on the RL component, and implementation specifics. To address the concern directly, we will revise the abstract to include key performance metrics (e.g., relative improvements on the primary benchmarks) and a brief mention of the evaluation setup. revision: yes

  2. Referee: Viva description (Abstract and method sections): The approach depends on the unvalidated assumption that generative visual inquiries produce accurate, unbiased, and fine-grained signals of diagram visual fidelity. No checks—such as inter-rater agreement with humans, correlation with pixel-level metrics, or ablation on interrogator quality—are provided, which is load-bearing because unreliable rewards could reinforce artifacts rather than genuine improvements in the RL stage.

    Authors: We acknowledge that direct validation of the Viva reward signals is important for establishing reliability. The current manuscript supports Viva's utility through end-to-end performance gains over SFT-only training and qualitative examples of the generated inquiries. However, we agree that additional checks would strengthen the claims. We will add a dedicated validation subsection that reports correlation between Viva rewards and both human ratings and pixel-level structural metrics, plus an ablation varying the interrogator model. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation relies on novel Viva mechanism, new dataset, and external benchmarks

full rationale

The paper introduces OmniDiagram as a unified framework, proposes Viva as a generative visual interrogation reward for RL without ground-truth annotations, and constructs the M3^2Diagram dataset. The SOTA claim is supported by experimental results on benchmarks rather than any self-definitional reduction, fitted parameter renamed as prediction, or load-bearing self-citation chain. The derivation chain remains self-contained with independent components and external evaluation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim depends on the effectiveness of the Viva visual feedback loop and the quality of the newly constructed dataset; no free parameters are explicitly named in the abstract.

axioms (1)
  • domain assumption Generative visual inquiries can reliably assess and improve the structural fidelity of rendered diagrams in an RL loop
    This is the core premise of the Viva strategy as described.
invented entities (1)
  • Viva (Visual Interrogation Verifies All) no independent evidence
    purpose: Provide fine-grained visual feedback for RL optimization of diagram code without ground-truth annotations
    Newly introduced reward mechanism whose independent validation is not described in the abstract.
