Effective Dynamics and Transition Pathways from Koopman-Inspired Neural Learning of Collective Variables

Alexander Sikorski , Luca Donati , Marcus Weber , Christof Sch\"utte This is my paper

Pith reviewed 2026-05-10 19:03 UTC · model grok-4.3

classification 🧮 math.DS physics.chem-phstat.ML
keywords Koopman operatorcollective variablesmetastable transitionseffective dynamicsneural networkstransition pathwaysinvariant subspaces
0
0 comments X

The pith

Koopman neural learning extracts collective variables that yield effective dynamics and transition rates from molecular simulation data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to learn dominant invariant subspaces of the Koopman operator with neural networks, then derive reduced effective dynamics on those variables that reproduce the original system's metastable transitions. This approach connects the learned variables directly to committor functions, transition pathways, and rate constants without requiring hand-crafted reaction coordinates. A reader would care because it offers a data-driven route to analyze rare events in high-dimensional systems such as molecules, where direct simulation of transitions is impractical. The method is demonstrated on one-, two-, and three-dimensional benchmark potentials that include both enthalpic and entropic barriers, recovering coarse-grained kinetics and transition times.

Core claim

Starting from data, the ISOKANN framework identifies collective variables as dominant invariant subspaces of the Koopman operator via neural networks, constructs the corresponding reduced dynamical model on the latent space, and uses that model to compute transition rates, mean transition times, committor functions, and transition pathways for metastable systems.

What carries the argument

The ISOKANN framework, which learns dominant invariant subspaces of the Koopman operator with artificial neural networks to identify collective variables and then derives the effective dynamics on the resulting latent space.

If this is right

  • Transition rates and pathways become computable directly from trajectory data once the collective variables are learned.
  • The same reduced model reproduces both enthalpic and entropic barrier crossings on benchmark potentials.
  • Committor functions and transition pathways emerge as direct outputs of the effective dynamics on the latent space.
  • Krylov-like subspace methods can be combined with the neural learning step to maintain consistency with the underlying operator theory.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework could be applied to longer molecular-dynamics trajectories where manual collective-variable design is difficult.
  • It may allow systematic comparison of different neural architectures for subspace learning on the same dataset.
  • Extending the reduced dynamics to include explicit memory terms could improve accuracy for systems with slower hidden variables.

Load-bearing premise

The learned dominant invariant subspaces must accurately represent the collective variables that control the slow, metastable transitions of interest.

What would settle it

On a standard double-well potential with known exact transition time, the method's predicted mean transition time deviates by more than a small percentage from the analytic value or from long direct simulations.

Figures

Figures reproduced from arXiv: 2604.05778 by Alexander Sikorski, Christof Sch\"utte, Luca Donati, Marcus Weber.

Figure 1
Figure 1. Figure 1: Illustration of the transformation from eigen- to [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

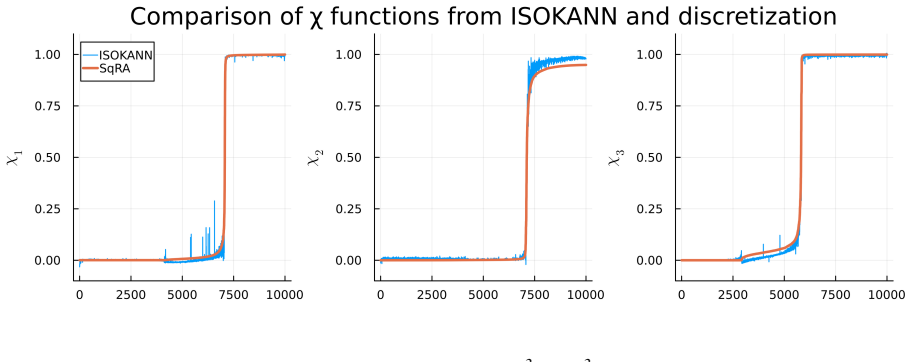

Figure 2. Figure 2: Comparison of the three components of χ : R 3 → R 3 obtained from either ISOKANN (blue) or direct discretization through the SqRA (red) for the potential from Section 5.3. Each plot displays one component of χ evaluated at one of 10 000 training samples, where the samples displayed on the horizontal axis were sorted by the respective χ value (different for each subfig￾ure) obtained from SqRA to allow for a… view at source ↗
Figure 3

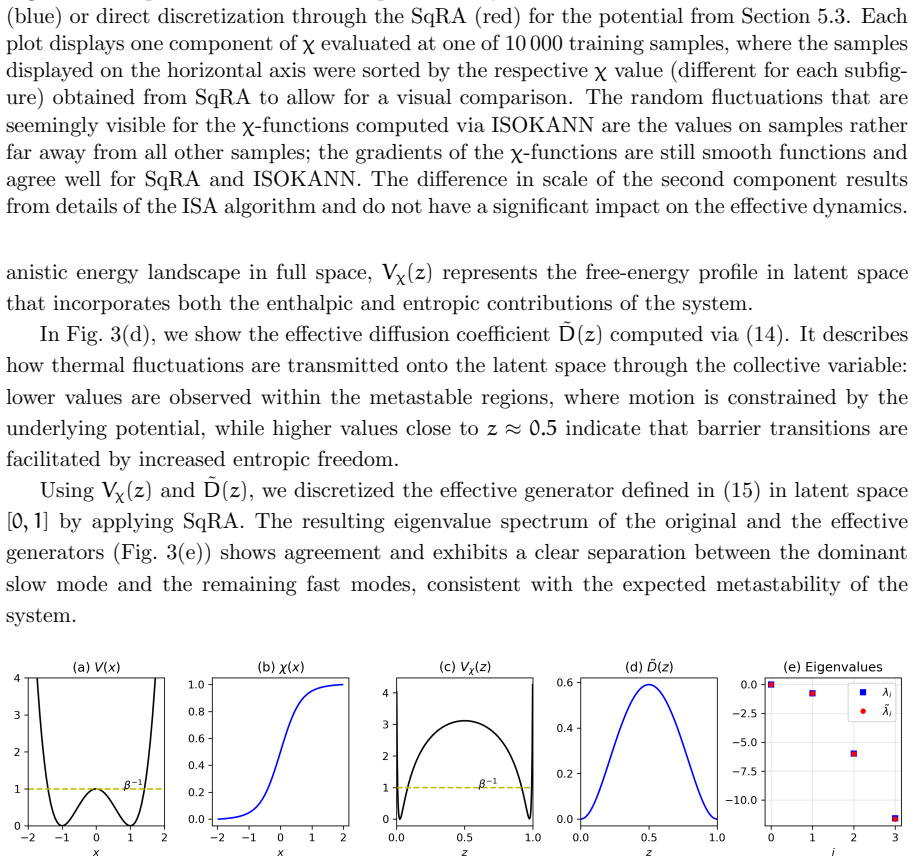

Figure 3. Figure 3: 1D system. (a) Potential energy function; (b) [PITH_FULL_IMAGE:figures/full_fig_p019_3.png] view at source ↗
Figure 4

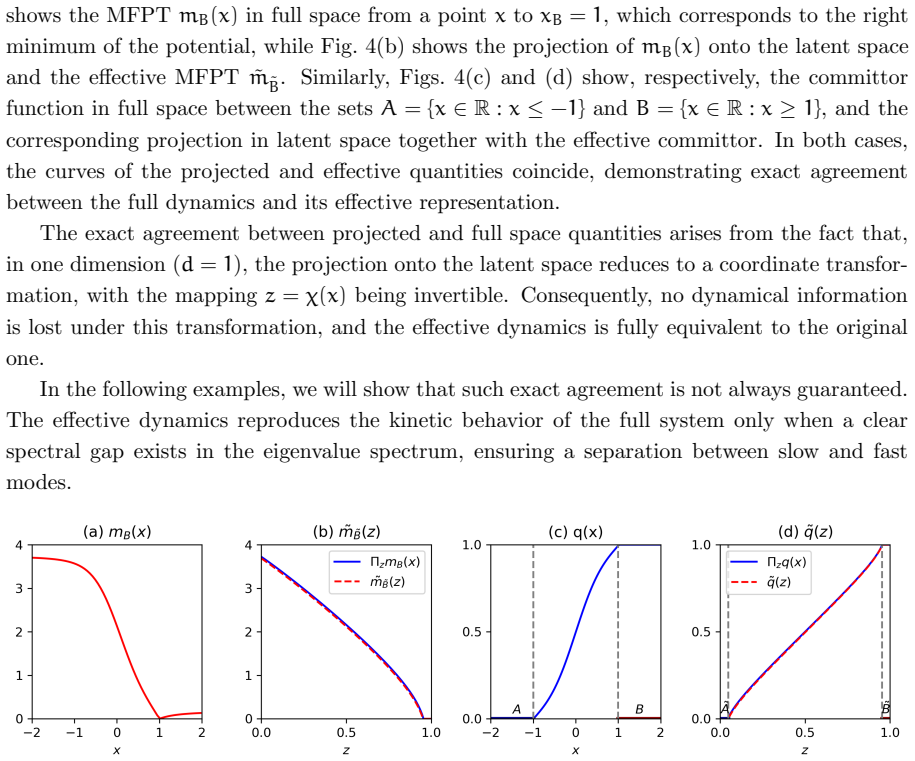

Figure 4. Figure 4: 1D system. (a) MFPT in full space; (b) MFPT in latent space; (c) Committor in full [PITH_FULL_IMAGE:figures/full_fig_p020_4.png] view at source ↗
Figure 5

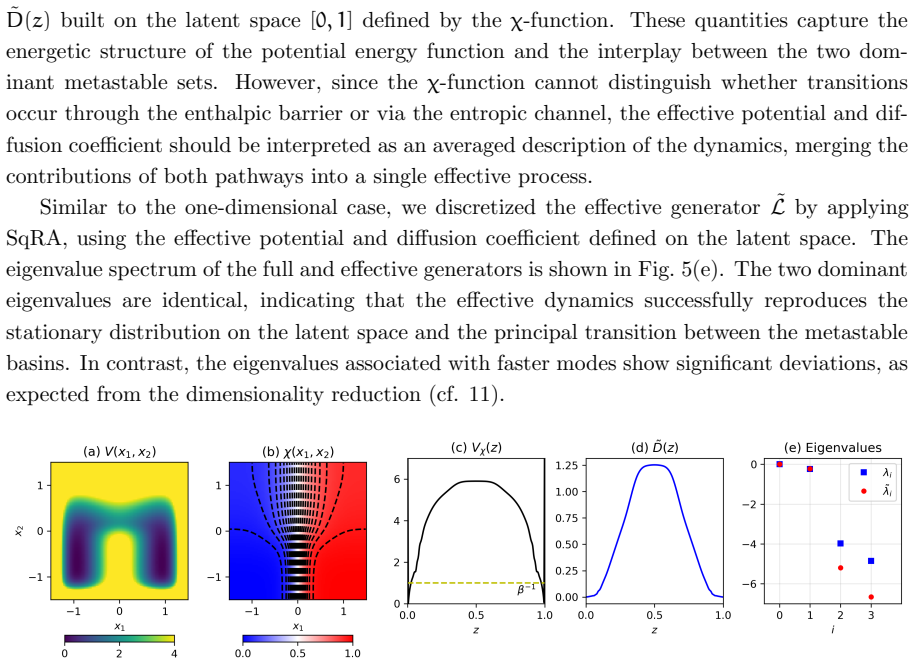

Figure 5. Figure 5: 2D system. (a) Potential energy function; (b) [PITH_FULL_IMAGE:figures/full_fig_p021_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: 2D system. (a) MFPT in full space; (b) MFPT in latent space; (c) Committor in full [PITH_FULL_IMAGE:figures/full_fig_p022_6.png] view at source ↗
Figure 7

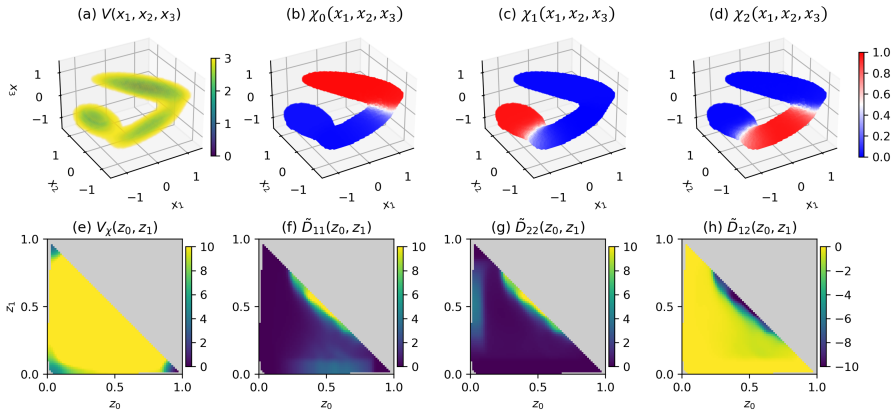

Figure 7. Figure 7: 3D system. (a) Potential energy function; (b,c,d) Three [PITH_FULL_IMAGE:figures/full_fig_p023_7.png] view at source ↗
Figure 8

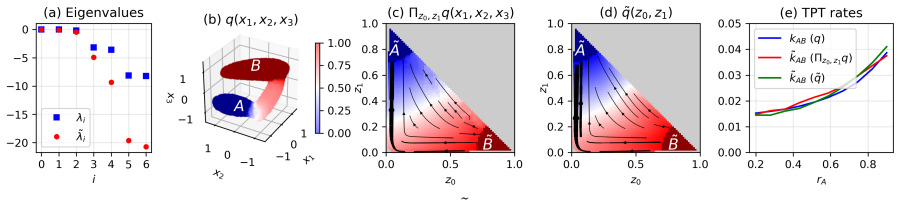

Figure 8. Figure 8: 3D system. (a) Eigenvalues of L and L˜; (b) Committor in full space; (c) Committor q projected on ∆¯ 2 ; (d) Effective committor q˜; (e) TPT rates of full and effective dynamics. 5.4 Discussion Across all examples, the CV χ of ISOKANN allows to consistently reconstruct the dominant eigenmodes and corresponding kinetic observables of the underlying stochastic process. The one-dimensional case validates the … view at source ↗
read the original abstract

The ISOKANN (Invariant Subspaces of Koopman Operators Learned by Artificial Neural Networks) framework provides a data-driven route to extract collective variables (CVs) and effective dynamics from complex molecular systems. In this work, we integrate the theoretical foundation of Koopman operators with Krylov-like subspace algorithms, and reduced dynamical modeling to build a coherent picture of how to describe metastable transitions in high-dimensional systems based on CVs. Starting from the identification of CVs based on dominant invariant subspaces, we derive the corresponding effective dynamics on the latent space and connect these to transition rates and times, committor functions, and transition pathways. The combination of Koopman-based learning and reduced-dimensional effective dynamics yields a principled framework for computing transition rates and pathways from simulation data. Numerical experiments on one-, two-, and three-dimensional benchmark potentials illustrate the ability of ISOKANN to reconstruct the coarse-grained kinetics and reproduce transition times across enthalpic and entropic barriers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper claims to introduce the ISOKANN framework that combines Koopman operator theory with neural networks to identify dominant invariant subspaces serving as collective variables for metastable transitions. It then derives effective dynamics in this reduced space and links them to committor functions, transition rates, and pathways. The framework is illustrated with numerical experiments on benchmark potentials in one to three dimensions, where it reconstructs coarse-grained kinetics and reproduces transition times for both enthalpic and entropic barriers.

Significance. This result, if the subspaces accurately represent the governing CVs, offers a systematic data-driven method for analyzing rare events and transition mechanisms in complex systems without requiring predefined reaction coordinates. The manuscript's strengths include the coherent theoretical integration of invariant subspace learning with reduced dynamical modeling and the concrete numerical validation on standard test cases that confirms consistency with known transition times. The potential circularity concern regarding subspace selection being tuned to transition data does not appear to land, as the rates are derived quantities from the learned dynamics rather than direct fits. These elements support the potential utility of the approach in molecular dynamics applications.

minor comments (3)
  1. The notation for the Koopman operator and its invariant subspaces could be introduced more clearly in the early sections for readers unfamiliar with the field.
  2. Ensure all acronyms like ISOKANN are defined at first use in the main text.
  3. The abstract mentions integration with Krylov-like subspace algorithms; the main text should provide a brief explicit link to how this is implemented within the neural learning procedure.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and accurate summary of our manuscript on the ISOKANN framework. The assessment correctly highlights the integration of Koopman operator theory with neural networks for learning invariant subspaces as collective variables, the derivation of effective dynamics, and the connections to transition rates, times, and pathways. We also appreciate the recognition of the numerical experiments on benchmark potentials demonstrating consistency with known kinetics for both enthalpic and entropic barriers. No specific major comments requiring clarification or changes were raised in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper presents ISOKANN as a data-driven method that first identifies dominant invariant subspaces via neural networks to obtain collective variables, then derives reduced effective dynamics on that latent space, and finally connects those to committor functions, rates, and pathways using standard Markovian and Koopman theory. No step reduces a claimed prediction or rate to a fitted parameter by construction, nor does any load-bearing premise rest on a self-citation whose content is itself unverified or tautological. The numerical experiments on benchmark potentials serve as external validation rather than internal fitting loops. The central claims therefore remain independent of the inputs they are derived from.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The framework rests on standard Koopman operator theory and neural network approximation capabilities; no new physical entities are introduced, but the choice of latent dimension and network architecture function as free parameters.

free parameters (1)
  • latent space dimension
    Selected to isolate dominant invariant subspaces; its value directly affects which transitions are captured.
axioms (1)
  • domain assumption The underlying molecular dynamics admits a Koopman operator representation whose dominant invariant subspaces correspond to the slow collective variables.
    Invoked at the start of the CV identification step.
