ALD Zinc Tin Oxide Buffers for Chalcopyrite Solar Cells: Electrical Barriers and Conduction Band Cliffs

Boaz Koren , Francesco Lodola , Zhuangyi Zhou , Trong Tien Le , Kulwinder Kaur , Simon Backes , Michele Melchiorre , Susanne Siebentritt This is my paper

Pith reviewed 2026-05-10 19:30 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords zinc tin oxideatomic layer depositionbuffer layerconduction band offsetchalcopyrite solar cellsband alignmentCu(In,Ga)S2
0
0 comments X

The pith

Tin content in zinc tin oxide buffers raises their conduction band minimum, producing either cliffs or barriers depending on the absorber.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The work tests atomic-layer-deposited zinc tin oxide as a buffer replacement for cadmium sulfide in wide-bandgap chalcopyrite solar cells. Researchers vary the tin-to-zinc ratio by changing the relative number of ZnO and SnO deposition cycles and measure how this shifts device performance across three absorbers that have different conduction band positions. Low tin produces a drop in open-circuit voltage traced to a conduction band cliff that speeds interface recombination. High tin produces a drop in fill factor traced to an electron transport barrier. The pattern across absorbers shows that tin content sets the buffer conduction band minimum in a controllable way.

Core claim

Tin content correlates positively with the conduction band minimum of these buffers. Low-tin buffers decrease the activation energy of interface recombination and reduce open-circuit voltage, indicating a cliff. High-tin buffers reduce fill factor for all cells and short-circuit current under some conditions, indicating an electron transport barrier. Cliffs appear at lower tin fractions and barriers become more severe when the absorber itself has a lower conduction band minimum.

What carries the argument

The Sn/(Sn+Zn) atomic ratio, fixed by the ratio of ZnO to SnO atomic-layer-deposition cycles, which shifts the conduction band minimum of the ZnSnO layer relative to the absorber.

If this is right

  • Low tin fractions create a conduction band cliff that increases interface recombination and lowers open-circuit voltage.
  • High tin fractions create an electron transport barrier that lowers fill factor in every absorber tested.
  • Absorbers whose conduction band minimum lies lower experience cliffs at smaller tin fractions and stronger barrier effects at high tin fractions.
  • Zinc tin oxide composition can be adjusted during deposition to match the conduction band of different chalcopyrite absorbers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cycle-ratio tuning could be used to align buffers with other wide-bandgap absorbers in tandem stacks.
  • If the offset mechanism dominates, similar compositional control may improve band alignment in other oxide-buffer systems.
  • Measuring actual band offsets on finished devices would give a quantitative map between tin fraction and offset energy.

Load-bearing premise

Changes in open-circuit voltage and fill factor are caused mainly by the conduction band offset rather than by secondary changes in interface defect density or buffer conductivity.

What would settle it

Photoelectron spectroscopy measurement of the actual conduction band offsets at the absorber-ZnSnO interface for several tin ratios, followed by direct comparison of those offsets to the measured voltage and fill-factor losses.

Figures

Figures reproduced from arXiv: 2604.05891 by Boaz Koren, Francesco Lodola, Kulwinder Kaur, Michele Melchiorre, Simon Backes, Susanne Siebentritt, Trong Tien Le, Zhuangyi Zhou.

Figure 5

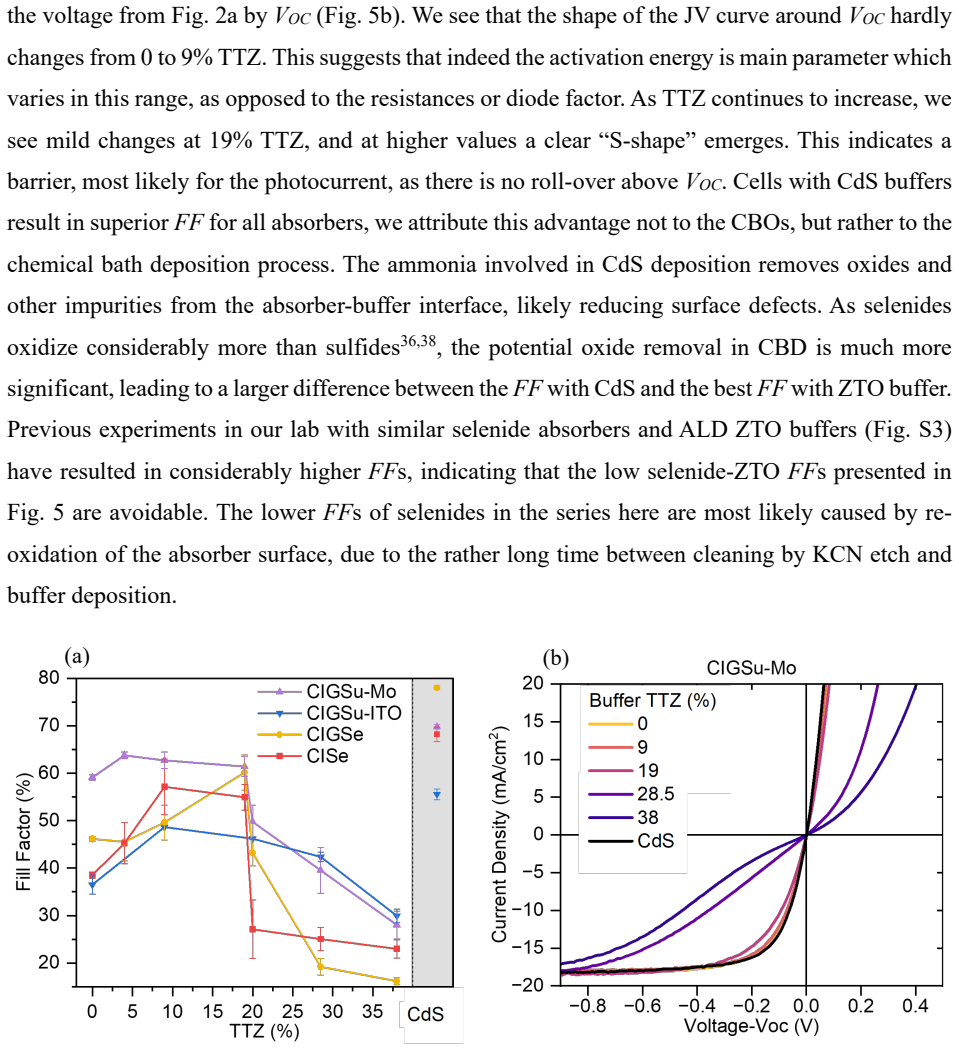

Figure 5. Figure 5: FIG. 5: (a) Fill factor with TTZ variation for different cells. (b) JV of selected CIGSu [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

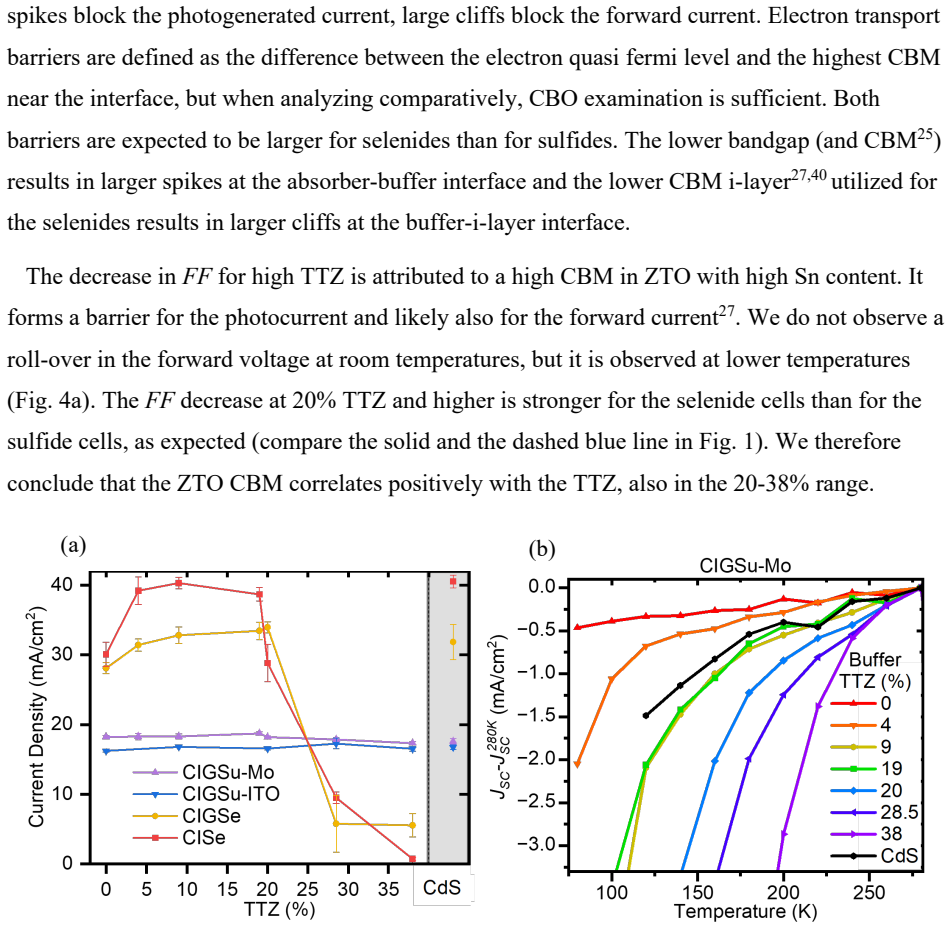

Figure 6. Figure 6: FIG. 6: (a) Short circuit current density of the cells (b) J [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

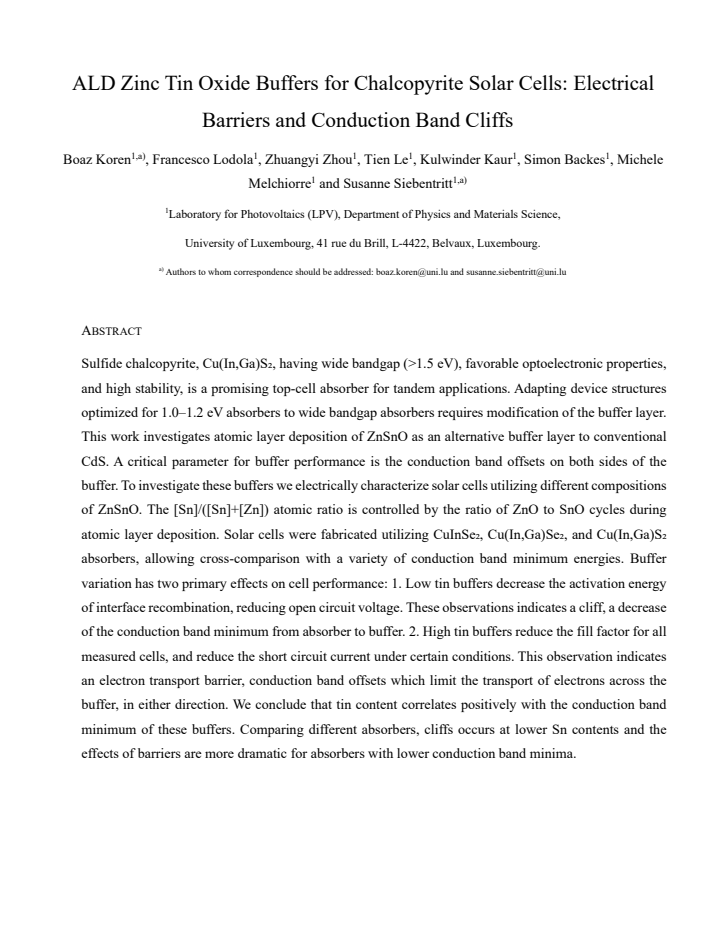

read the original abstract

Sulfide chalcopyrite, Cu(In,Ga)S2, having wide bandgap (larger than 1.5 eV), favorable optoelectronic properties, and high stability, is a promising top-cell absorber for tandem applications. Adapting device structures optimized for 1.0 - 1.2 eV absorbers to wide bandgap absorbers requires modification of the buffer layer. This work investigates atomic layer deposition of ZnSnO as an alternative buffer layer to conventional CdS. A critical parameter for bufferperformance is the conduction band offsets on both sides of the buffer. To investigate these buffers we electrically characterize solar cells utilizing different compositions of ZnSnO. The Sn/(Sn+Zn) atomic ratio is controlled by the ratio of ZnO to SnO cycles during atomic layer deposition. Solar cells were fabricated utilizing CuInSe2, Cu(In,Ga)Se2, and Cu(In,Ga)S2 absorbers, allowing cross-comparison with a variety of conduction band minimum energies. Buffer variation has two primary effects on cell performance: 1. Low tin buffers decrease the activation energy of interface recombination, reducing open circuit voltage. These observations indicates a cliff, a decrease of the conduction band minimum from absorber to buffer. 2. High tin buffers reduce the fill factor for all measured cells, and reduce the short circuit current under certain conditions. This observation indicates an electron transport barrier, conduction band offsets which limit the transport of electrons across the buffer, in either direction. We conclude that tin content correlates positively with the conduction band minimum of these buffers. Comparing different absorbers, cliffs occurs at lower Sn contents and the effects of barriers are more dramatic for absorbers with lower conduction band minima.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript examines ALD-grown ZnSnO buffer layers for chalcopyrite solar cells (CuInSe2, Cu(In,Ga)Se2, and Cu(In,Ga)S2 absorbers), varying the Sn/(Sn+Zn) ratio via ZnO:SnO cycle ratios. Electrical device characterization shows that low-Sn buffers reduce Voc via lowered activation energy for interface recombination (interpreted as a conduction-band cliff), while high-Sn buffers reduce FF (and sometimes Jsc) via an electron transport barrier. The central conclusion is that increasing Sn content raises the buffer conduction-band minimum, with the magnitude of cliffs and barriers depending on the absorber CBM.

Significance. If the band-offset interpretation is confirmed, the work provides a practical, tunable alternative to CdS buffers for wide-bandgap sulfide chalcopyrites intended as top cells in tandems. The multi-absorber comparison supplies useful orthogonality that strengthens the attribution of performance trends to CBO rather than absorber-specific effects. The ALD cycle-ratio method for composition control is straightforward and reproducible.

major comments (2)
  1. [Abstract and Discussion] Abstract (final paragraph) and Discussion: The claim that Sn content positively shifts buffer CBM (producing cliffs at low Sn and barriers at high Sn) rests entirely on interpreting Voc loss at low Sn/(Sn+Zn) as interface recombination from a cliff and FF/Jsc loss at high Sn as a transport barrier. No direct band-offset measurements (UPS/IPES) or device simulations that isolate CBO from composition-dependent buffer resistivity, doping, or interface defect densities are reported. This assumption is load-bearing for the central claim; alternative explanations remain viable without such data.
  2. [Results] Results (multi-absorber comparison): While the cross-comparison across CISe, CIGSe, and CIGS absorbers is a strength, the paper does not quantify how the observed cliff/barrier thresholds align with expected CBM differences between absorbers. Explicit modeling or tabulated expected offsets would make the interpretation more rigorous and falsifiable.
minor comments (2)
  1. [Abstract] The abstract states that 'cliffs occurs at lower Sn contents' (subject-verb agreement).
  2. [Experimental] Notation for the Sn ratio is sometimes written Sn/(Sn+Zn) and sometimes 'tin content'; consistent use and a clear definition in the experimental section would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the potential utility of tunable ZnSnO buffers for wide-bandgap chalcopyrite top cells. We address each major comment below and outline targeted revisions that strengthen the interpretation while acknowledging the limitations of our electrical-characterization approach.

read point-by-point responses

  1. Referee: [Abstract and Discussion] The claim that Sn content positively shifts buffer CBM (producing cliffs at low Sn and barriers at high Sn) rests entirely on interpreting Voc loss at low Sn/(Sn+Zn) as interface recombination from a cliff and FF/Jsc loss at high Sn as a transport barrier. No direct band-offset measurements (UPS/IPES) or device simulations that isolate CBO from composition-dependent buffer resistivity, doping, or interface defect densities are reported. This assumption is load-bearing for the central claim; alternative explanations remain viable without such data.

    Authors: We agree that direct UPS/IPES measurements would provide stronger, more direct evidence for the band offsets. Our work relies on device-level electrical characterization, which is standard for evaluating buffer-layer performance in chalcopyrite solar cells. The systematic shift in the Sn-ratio thresholds for Voc-limited versus FF-limited behavior across three absorbers with differing CBMs supplies orthogonal evidence that is difficult to explain by absorber-independent factors such as resistivity or doping alone. We will revise the Discussion section to (i) explicitly enumerate alternative explanations (e.g., Sn-dependent interface defect density or buffer resistivity changes), (ii) present supporting resistivity data measured on the same ALD films, and (iii) add a limitations paragraph noting the indirect nature of the CBO inference. These additions will make the evidential basis clearer without overclaiming. revision: partial

  2. Referee: [Results] Results (multi-absorber comparison): While the cross-comparison across CISe, CIGSe, and CIGS absorbers is a strength, the paper does not quantify how the observed cliff/barrier thresholds align with expected CBM differences between absorbers. Explicit modeling or tabulated expected offsets would make the interpretation more rigorous and falsifiable.

    Authors: We accept this point and will add a new table (or expanded figure caption) that tabulates literature-reported CBM positions for the three absorbers (CuInSe2, Cu(In,Ga)Se2, Cu(In,Ga)S2) together with the experimentally observed Sn/(Sn+Zn) thresholds at which the cliff-to-barrier transition occurs. A short accompanying paragraph will estimate the implied buffer CBM shift per cycle-ratio increment and compare it to the absorber CBM differences. This quantification will render the alignment explicit and falsifiable. Full numerical device simulations are beyond the scope of the present study but can be noted as future work. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental inferences from device metrics

full rationale

The manuscript reports ALD growth of ZnSnO buffers with controlled Sn/(Sn+Zn) ratio, followed by fabrication and electrical characterization of solar cells on three different chalcopyrite absorbers. All load-bearing statements are direct observations of Voc, FF, and Jsc trends versus buffer composition and absorber CBM. No equations, models, or fitted parameters appear; the positive correlation between Sn content and buffer CBM is stated as an inference from those trends, not derived by construction from any prior result or self-citation. The paper is therefore self-contained as an experimental report with no reduction of outputs to inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

As an experimental paper, the central claim depends on standard assumptions from semiconductor device physics regarding the role of band offsets in carrier transport and recombination.

axioms (1)
  • domain assumption Solar cell performance metrics (open-circuit voltage, fill factor, short-circuit current) are primarily influenced by the conduction band alignment at the absorber-buffer interface.
    This links the electrical observations directly to band offsets without considering other possible mechanisms in detail.
