arxiv: 2604.05903 · v1 · submitted 2026-04-07 · ❄️ cond-mat.soft · physics.flu-dyn

Diffusion from particle-coated drops: the subtle role of particle size

Alexandros T. Oratis , Matteo Camagna , Timo J.J.M. van Overveld , Valeria Garbin This is my paper

Pith reviewed 2026-05-10 18:45 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.flu-dyn
keywords particle-coated dropsdiffusioninterfacial transportemulsionsparticle monolayersmass transferfluorescence microscopyclose-packing
0
0 comments X

The pith

Particle-coated drops allow solute diffusion with minimal hindrance except at extreme coverages beyond close packing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates how particles at the surface of a liquid drop affect the diffusion of dissolved substances out of the drop. Experiments confining the drop to two dimensions and imaging the spreading dye reveal that particles of various sizes add little resistance to the process. A mathematical model links the particles to changes in how the outgoing flux evolves over time rather than creating a fixed barrier. Only when the particles are packed more densely than physically possible in a single layer does transport slow substantially. This result helps explain the behavior of particle-stabilized emulsions where mass transfer still occurs readily.

Core claim

Over a range of particle sizes the particles impose minimal resistance to diffusion from the drop. The particle monolayer controls the temporal dynamics of the flux across the interface and hinders transport only at extreme coverage fractions beyond the close-packing limit. This is shown through fluorescence measurements of concentration profiles in a confined 2D setup combined with a model of interfacial mass transfer.

What carries the argument

The mathematical model that couples interfacial mass transfer to a particle-coated interface, which governs the time-dependent flux of solutes without creating strong blocking.

Load-bearing premise

The two-dimensional confinement and fluorescence intensity to concentration conversion accurately represent the three-dimensional diffusion process without significant edge or optical artifacts.

What would settle it

Direct observation of substantial slowing of diffusion at moderate coverages well below the close-packing limit, or no change in transport even when coverage exceeds close packing, would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.05903 by Alexandros T. Oratis, Matteo Camagna, Timo J.J.M. van Overveld, Valeria Garbin.

Figure 1

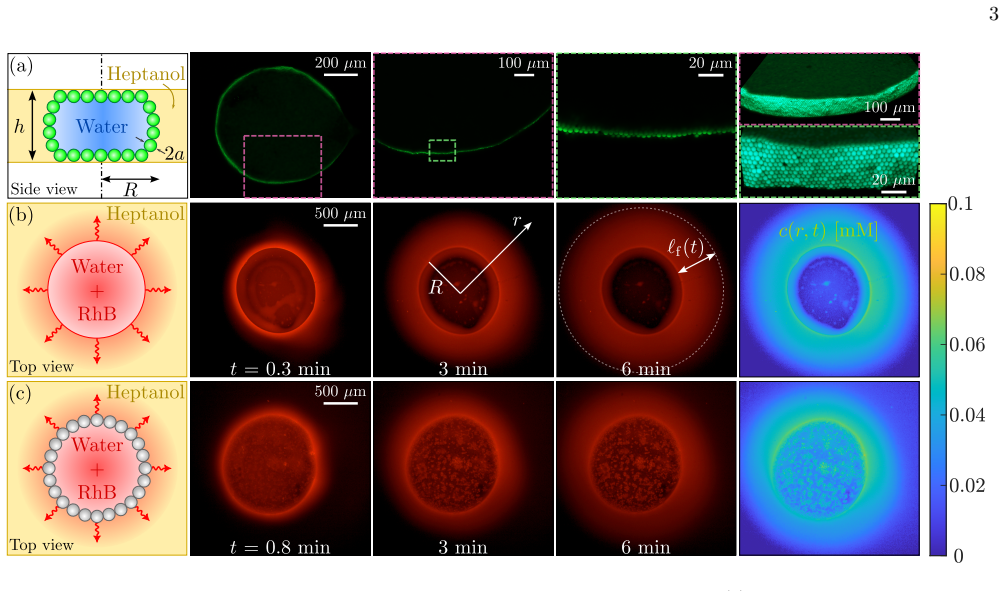

Figure 1. Figure 1: FIG. 1. Experimental snapshots of the diffusion from a drop with radius [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

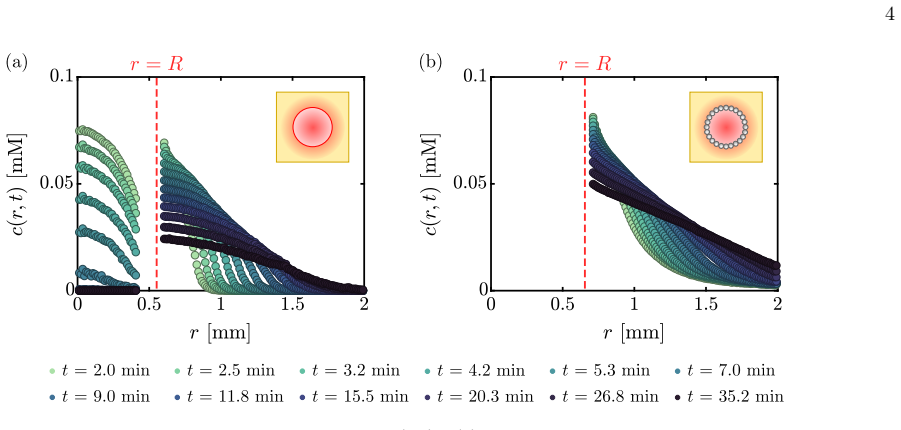

Figure 2. Figure 2: FIG. 2. Spatio-temporal evolution of the concentration field [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

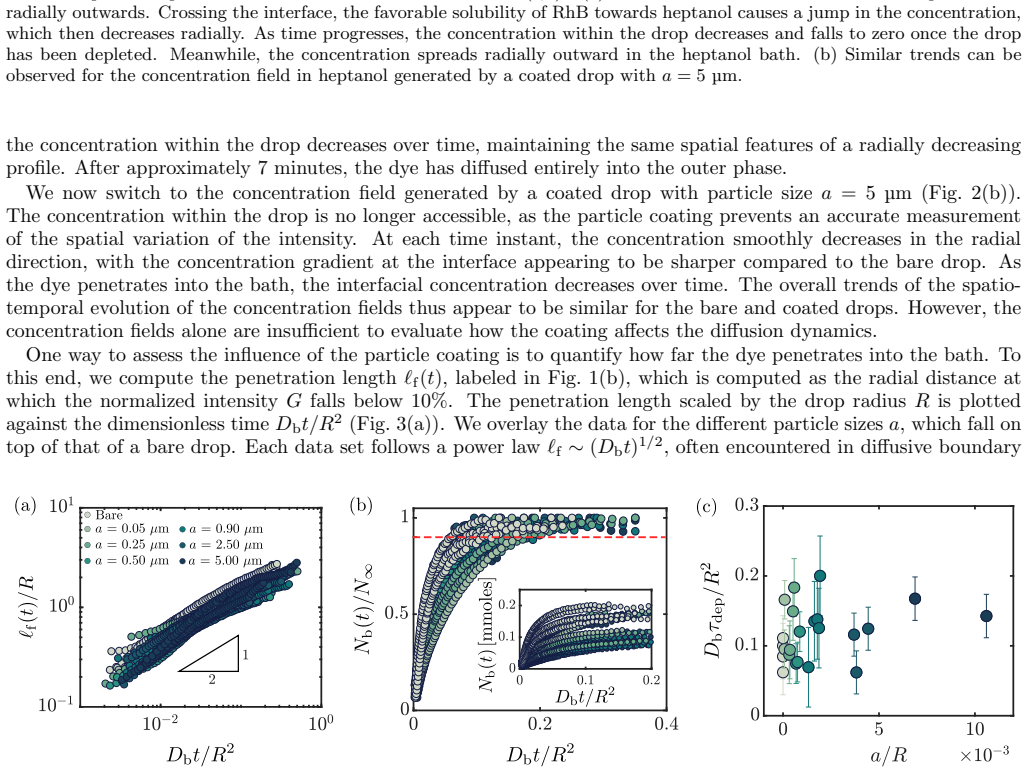

Figure 3. Figure 3: FIG. 3. Effect of particle size on the diffusion dynamics. (a) The scaled front length [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

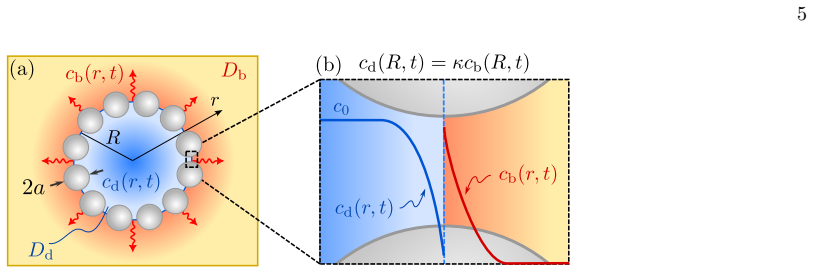

Figure 4. Figure 4: FIG. 4. (a) Schematic illustrating the diffusion from a drop with radius [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Numerical results for the diffusion from a coated drop. (a) The normalized total mass per unit length [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

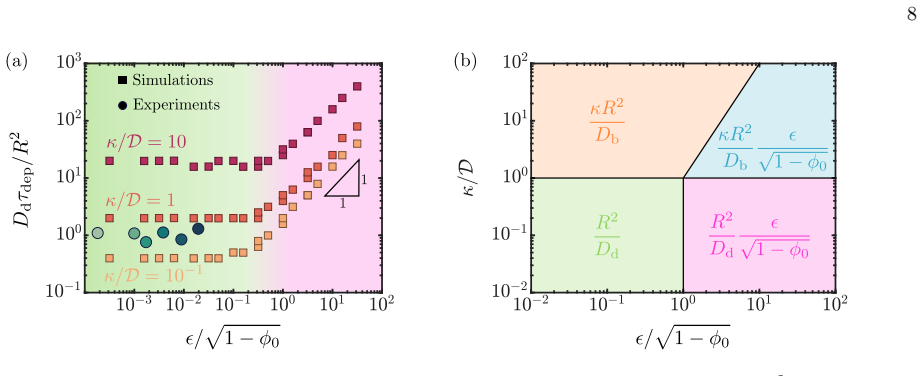

Figure 6. Figure 6: FIG. 6. Phase plots for the depletion dynamics of coated drops. (a) Plotting scaled depletion time [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
read the original abstract

Many natural and industrial systems involve particle-laden interfaces. Because interfacial particles prevent the coalescence and coarsening of drops, they hold promise for various applications requiring stable emulsions. Despite their remarkable ability to stabilize emulsions, it remains challenging to characterize how particles influence the interfacial transport of dissolved solutes. Here, we quantify the diffusion from a single particle-coated drop by confining it to a two-dimensional configuration. Using fluorescence microscopy, we extract the intensity profiles of the fluorescent dye as it diffuses from the drop, yielding spatio-temporal measurements of the concentration field. Over a range of particle sizes, the particles impose minimal resistance to diffusion. We rationalize this counterintuitive result with a mathematical model that couples interfacial mass transfer to a particle-coated interface. We show that the particle monolayer controls the temporal dynamics of the flux across the interface, hindering transport only at extreme coverage fractions beyond the close-packing limit. This framework reveals why particles often fail to hinder diffusion, offering new pathways to harness mass transfer in particle-stabilized emulsions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper reports experimental measurements of solute diffusion from single particle-coated drops confined to a 2D geometry, using fluorescence microscopy to extract spatio-temporal concentration fields. Over a range of particle sizes, the authors find that the particles impose minimal resistance to diffusion except at extreme coverages beyond close packing. They develop a mathematical model coupling interfacial mass transfer to the particle-coated interface, which they use to show that the monolayer primarily controls the temporal dynamics of the flux rather than providing strong hindrance at typical coverages.

Significance. If the 2D-to-3D extrapolation and intensity-to-concentration mapping hold without significant artifacts, the work provides a useful explanation for why particle-stabilized emulsions frequently maintain good permeability to dissolved solutes. The combination of direct visualization of concentration fields with a model that ties coverage to flux dynamics offers a framework for designing interfacial transport in emulsions, with potential applications in materials and chemical engineering.

major comments (3)
  1. [Experimental Methods / 2D confinement setup] The central claim that particles impose minimal resistance rests on the 2D confinement accurately reproducing unperturbed 3D diffusion dynamics. The manuscript should include explicit validation (e.g., comparison of bare-drop diffusion coefficients or length-scale analysis) that edge effects, meniscus curvature, or optical sectioning do not systematically bias the extracted flux; without this, the conclusion that hindrance occurs only beyond close packing remains vulnerable to geometric artifacts.
  2. [Results / Concentration field extraction] The fluorescence intensity-to-concentration conversion is load-bearing for all quantitative claims. The paper should demonstrate linearity across the relevant concentration range and quantify any particle-induced scattering or quenching effects on the calibration; if these corrections are coverage-dependent, they could alter the reported temporal flux control.
  3. [Mathematical Model] In the mathematical model section, clarify whether the interfacial mass-transfer coefficient is derived from first principles or adjusted to match the observed dynamics. If the model contains any coverage-dependent fitting parameter, the statement that the monolayer 'controls the temporal dynamics' risks becoming a post-hoc rationalization rather than an independent prediction.
minor comments (2)
  1. [Figures] Figure captions should explicitly state the particle coverage fractions shown and whether the images are raw intensity or converted concentration fields.
  2. [Discussion] The abstract states that hindrance occurs 'beyond the close-packing limit'; the main text should define this limit quantitatively (e.g., via jamming fraction for the specific particle size and monolayer) and show the corresponding coverage data.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their positive assessment of the significance of our work and for the constructive comments. We have carefully considered each point and provide detailed responses below. Where appropriate, we have revised the manuscript to incorporate additional validations and clarifications.

read point-by-point responses

  1. Referee: [Experimental Methods / 2D confinement setup] The central claim that particles impose minimal resistance rests on the 2D confinement accurately reproducing unperturbed 3D diffusion dynamics. The manuscript should include explicit validation (e.g., comparison of bare-drop diffusion coefficients or length-scale analysis) that edge effects, meniscus curvature, or optical sectioning do not systematically bias the extracted flux; without this, the conclusion that hindrance occurs only beyond close packing remains vulnerable to geometric artifacts.

    Authors: We agree that rigorous validation of the 2D setup is essential to support our claims. In the original submission, we discussed the advantages of the 2D confinement for direct visualization but did not provide quantitative comparisons to 3D cases. In the revised manuscript, we have added a new subsection in the Methods detailing comparisons of diffusion coefficients extracted from bare drops in our setup to established 3D values from literature, showing agreement within experimental error. Additionally, we include a length-scale analysis demonstrating that meniscus curvature effects are confined to a small region near the edges and do not affect the central diffusion profiles used for flux extraction. These additions confirm that the 2D geometry faithfully reproduces the unperturbed diffusion dynamics for our system parameters. revision: yes

  2. Referee: [Results / Concentration field extraction] The fluorescence intensity-to-concentration conversion is load-bearing for all quantitative claims. The paper should demonstrate linearity across the relevant concentration range and quantify any particle-induced scattering or quenching effects on the calibration; if these corrections are coverage-dependent, they could alter the reported temporal flux control.

    Authors: We appreciate this point, as the calibration is indeed critical. The manuscript already includes a calibration curve in the Supplementary Information demonstrating linearity over the concentration range used (0 to 10 mM). However, we had not explicitly quantified particle-induced effects. In the revision, we have added experimental data showing that the presence of particles at various coverages causes less than 3% deviation in the intensity-to-concentration mapping, which is within our measurement uncertainty and does not alter the conclusions regarding temporal dynamics. We have also clarified that any scattering effects are independent of coverage in our optical setup due to the thin monolayer. revision: yes

  3. Referee: [Mathematical Model] In the mathematical model section, clarify whether the interfacial mass-transfer coefficient is derived from first principles or adjusted to match the observed dynamics. If the model contains any coverage-dependent fitting parameter, the statement that the monolayer 'controls the temporal dynamics' risks becoming a post-hoc rationalization rather than an independent prediction.

    Authors: We thank the referee for highlighting the need for clarity here. The interfacial mass-transfer coefficient in our model is derived from first principles based on the geometry of the particle monolayer and the available interfacial area for diffusion, using a simple effective medium approximation without any adjustable parameters. The only input is the measured coverage fraction from image analysis. We have revised the Mathematical Model section to explicitly state this derivation and to emphasize that the model predictions for flux dynamics are independent of the experimental data, serving as a true prediction rather than a fit. No coverage-dependent fitting parameters are used. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper reports experimental spatio-temporal concentration fields extracted via fluorescence microscopy from 2D-confined particle-coated drops, then introduces a mathematical model coupling interfacial mass transfer to the coated interface to rationalize the observed minimal resistance except at extreme coverages. No load-bearing step reduces by construction to a fitted parameter renamed as prediction, a self-definitional relation, or a self-citation chain; the model assumptions are stated separately from the data and the central claim rests on independent experimental observations rather than tautological re-expression of inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the validity of the 2D confinement approximation for diffusion and on the assumptions built into the interfacial mass-transfer model; no explicit free parameters, axioms, or invented entities are stated in the abstract.

pith-pipeline@v0.9.0 · 5484 in / 1124 out tokens · 40618 ms · 2026-05-10T18:45:15.987196+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

48 extracted references · 48 canonical work pages

  1. [1]

    We first non-dimensionalize the radial distancerby the drop radiusRand timetby the bulk’s diffusive time scaleR 2/Db

    for more details. We first non-dimensionalize the radial distancerby the drop radiusRand timetby the bulk’s diffusive time scaleR 2/Db. The concentrations in the drop and the bulk are scaled byc 0 andc 0/κrespectively. The non-dimensionalization introduces four dimensionless parameters, reflecting the rich nature of the problem. These parameters can be se...

    work page

  2. [2]

    T. N. Hunter, R. J. Pugh, G. V. Franks, and G. J. Jameson, Advances in colloid and interface science137, 57 (2008)

    work page 2008

  3. [3]

    L. M. Sagis, Rev. Mod. Phys.83, 1367 (2011). 10

    work page 2011

  4. [4]

    J. Tang, P. J. Quinlan, and K. C. Tam, Soft Matter11, 3512 (2015)

    work page 2015

  5. [5]

    B. P. Binks, Curr. Opin. Colloid Interface Sci.7, 21 (2002)

    work page 2002

  6. [6]

    Van Hooghten, V

    R. Van Hooghten, V. E. Blair, A. Vananroye, A. B. Schofield, J. Vermant, and J. H. Thijssen, Langmuir33, 4107 (2017)

    work page 2017

  7. [7]

    J. H. Thijssen and J. Vermant, Journal of Physics: Condensed Matter30, 023002 (2018)

    work page 2018

  8. [8]

    A. B. Pawar, M. Caggioni, R. Ergun, R. W. Hartel, and P. T. Spicer, Soft Matter7, 7710 (2011)

    work page 2011

  9. [9]

    Chevalier and M.-A

    Y. Chevalier and M.-A. Bolzinger, Colloids Surf., A: Physicochem. Eng. Aspects439, 23 (2013)

    work page 2013

  10. [10]

    M. E. Cates and E. Tjhung, J. Fluid Mech.836, P1 (2018)

    work page 2018

  11. [11]

    D. Bais, A. Trevisan, R. Lapasin, P. Partal, and C. Gallegos, J. Colloid Int. Sci.290, 546 (2005)

    work page 2005

  12. [12]

    C. C. Berton-Carabin and K. Schro¨ en, Annu. Rev. Food Sci. Technol.6, 263 (2015)

    work page 2015

  13. [13]

    X. Yan, C. Ma, F. Cui, D. J. McClements, X. Liu, and F. Liu, Trends Food Sci. Technol.103, 293 (2020)

    work page 2020

  14. [14]

    Crossley, J

    S. Crossley, J. Faria, M. Shen, and D. E. Resasco, Science327, 68 (2010)

    work page 2010

  15. [15]

    A. M. B. Rodriguez and B. P. Binks, Soft Matter16, 10221 (2020)

    work page 2020

  16. [16]

    Chang, C

    F. Chang, C. M. Vis, W. Ciptonugroho, and P. C. Bruijnincx, Green Chem.23, 2575 (2021)

    work page 2021

  17. [17]

    Dedovets, Q

    D. Dedovets, Q. Li, L. Leclercq, V. Nardello-Rataj, J. Leng, S. Zhao, and M. Pera-Titus, Angew. Chem. Int. Ed.61, e202107537 (2022)

    work page 2022

  18. [18]

    Dinsmore, M

    A. Dinsmore, M. F. Hsu, M. Nikolaides, M. Marquez, A. Bausch, and D. Weitz, Science298, 1006 (2002)

    work page 2002

  19. [19]

    K. L. Thompson, M. Williams, and S. P. Armes, J. Colloid Int. Sci.447, 217 (2015)

    work page 2015

  20. [20]

    Sun, J.-F

    Q. Sun, J.-F. Chen, and A. F. Routh, Expert Opin. Drug Deliv.16, 903 (2019)

    work page 2019

  21. [21]

    Abkarian, A

    M. Abkarian, A. B. Subramaniam, S.-H. Kim, R. J. Larsen, . f. S.-M. Yang, and H. A. Stone, Phys. Rev. Lett.99, 188301 (2007)

    work page 2007

  22. [22]

    Laborie, F

    B. Laborie, F. Lachauss´ ee, E. Lorenceau, and F. Rouyer, Soft Matter9, 4822 (2013)

    work page 2013

  23. [23]

    Gallo, F

    A. Gallo, F. Tavares, R. Das, and H. Mishra, Soft Matter17, 7628 (2021)

    work page 2021

  24. [24]

    Saczek, K

    J. Saczek, K. Murphy, V. Zivkovic, A. Putranto, and S. S. Pramana, Soft Matter20, 5822 (2024)

    work page 2024

  25. [25]

    J.-W. Kim, A. Fern´ andez-Nieves, N. Dan, A. S. Utada, M. Marquez, and D. A. Weitz, Nano Letters7, 2876 (2007)

    work page 2007

  26. [26]

    Sj¨ o¨ o, S

    M. Sj¨ o¨ o, S. C. Emek, T. Hall, M. Rayner, and M. Wahlgren, J. Colloid Int. Sci.450, 182 (2015)

    work page 2015

  27. [27]

    M. Li, Q. Song, Y. Wang, and B. Liu, Nat. Commun.16, 2490 (2025)

    work page 2025

  28. [28]

    Lee and D

    D. Lee and D. A. Weitz, Advanced Materials20, 3498 (2008)

    work page 2008

  29. [29]

    H. N. Yow and A. F. Routh, Langmuir25, 159 (2009)

    work page 2009

  30. [30]

    K. L. Thompson, S. Armes, J. Howse, S. Ebbens, I. Ahmad, J. Zaidi, D. York, and J. Burdis, Macromolecules43, 10466 (2010)

    work page 2010

  31. [31]

    Y. Liu, M. Xu, L. M. Portela, and V. Garbin, Soft Matter20, 94 (2024)

    work page 2024

  32. [32]

    van Overveld and V

    T. van Overveld and V. Garbin, Phys. Rev. Fluids10, L112501 (2025)

    work page 2025

  33. [33]

    Cl´ ement and J

    F. Cl´ ement and J. Leng, Langmuir20, 6538 (2004)

    work page 2004

  34. [34]

    Boulogne, F

    F. Boulogne, F. Giorgiutti-Dauphin´ e, and L. Pauchard, Soft Matter9, 750 (2013)

    work page 2013

  35. [35]

    Loussert, A

    C. Loussert, A. Bouchaudy, and J.-B. Salmon, Physical Review Fluids1, 084201 (2016)

    work page 2016

  36. [36]

    Milark, J.-B

    O. Milark, J.-B. Salmon, and B. Sobac, Physical Review Fluids11, 033603 (2026)

    work page 2026

  37. [37]

    Bruus,Theoretical microfluidics, Vol

    H. Bruus,Theoretical microfluidics, Vol. 18 (Oxford university press, 2007)

    work page 2007

  38. [38]

    Pe˜ nas-L´ opez, B

    P. Pe˜ nas-L´ opez, B. Van Elburg, M. A. Parrales, and J. Rodr´ ıguez-Rodr´ ıguez, Phys. Rev. Fluids2, 063602 (2017)

    work page 2017

  39. [39]

    M. H. Jacobs, inErgebnisse der Biologie(Springer, 1967) pp. 1–160

    work page 1967

  40. [40]

    Zwanzig, J

    R. Zwanzig, J. Phys. Chem.96, 3926 (1992)

    work page 1992

  41. [41]

    Reguera and J

    D. Reguera and J. Rubi, Phys. Rev. E64, 061106 (2001)

    work page 2001

  42. [42]

    Kalinay and J

    P. Kalinay and J. Percus, Physical Review E—Statistical, Nonlinear, and Soft Matter Physics74, 041203 (2006)

    work page 2006

  43. [43]

    Crank,The mathematics of diffusion(Oxford university press, 1979)

    J. Crank,The mathematics of diffusion(Oxford university press, 1979)

    work page 1979

  44. [44]

    P. S. Epstein and M. S. Plesset, J. Chem. Phys.18, 1505 (1950)

    work page 1950

  45. [45]

    P. B. Duncan and D. Needham, Langmuir20, 2567 (2004)

    work page 2004

  46. [46]

    Gunes, M

    D. Gunes, M. Murith, J. Godefroid, C. Pelloux, H. Deyber, O. Schafer, and O. Breton, Langmuir33, 1563 (2017)

    work page 2017

  47. [47]

    Sarkar and E

    A. Sarkar and E. Dickinson, Current Opinion in Colloid & Interface Science49, 69 (2020)

    work page 2020

  48. [48]

    M. P. Ruiz and J. A. Faria, ACS Engineering Au2, 295 (2022)

    work page 2022
