arxiv: 2604.05951 · v1 · submitted 2026-04-07 · ❄️ cond-mat.mtrl-sci

Lattice location of ion-implanted 6He in diamond

U. Wahl , J.G. Correia , A. Costa , B. Biesmans , G. Magchiels , S.M. Tunhuma , A. Lamelas , A. Vantomme
show 2 more authors
L.M.C. Pereira the ISOLDE Collaboration
This is my paper

Pith reviewed 2026-05-10 19:23 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords helium-6diamondinterstitial sitesemission channelingion implantationdiffusion activation energylattice location
0
0 comments X

The pith

Implanted helium-6 atoms settle into tetrahedral interstitial sites in diamond.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The study tracks the positions of short-lived 6He nuclei implanted into a diamond crystal by recording the directions in which their beta particles are emitted. Comparing the measured angular patterns to computer simulations for many possible atomic sites shows that the helium occupies tetrahedral interstitial positions. This finding matters because it tests predictions about how helium moves and stays trapped inside diamond, which in turn affects models of how the material retains or releases light atoms over time. If the result holds, it indicates that freely moving interstitial helium cannot persist in diamond for geological durations and must instead attach to defects or form clusters to remain inside.

Core claim

By implanting 6He at 30 keV into single-crystal diamond and recording beta emission channeling patterns along several crystallographic axes at temperatures from 30 °C to 800 °C, the experiment shows that the atoms reside in tetrahedral interstitial sites. This assignment follows from the close match between the observed yields and simulated patterns calculated for T sites, while other candidate positions such as bond-centered or octahedral sites produce distinctly poorer agreement. Raising the temperature to 800 °C lowers the tetrahedral fraction by about 20 percent, which is taken as the onset of interstitial migration that allows the atoms either to reach lower-symmetry sites or to leave a

What carries the argument

Beta emission channeling, which records the angular distribution of beta particles emitted by the implanted 6He and compares those distributions to Monte Carlo simulations of yields expected for each possible lattice site.

If this is right

  • Interstitial helium becomes mobile in diamond once the temperature reaches roughly 800 °C.
  • The estimated activation energy of 1.63–2.89 eV for helium migration agrees with several independent theoretical calculations.
  • Free interstitial helium cannot remain stable inside diamond on geological time scales.
  • To persist inside diamond for long periods, helium must bind to defects, occupy inclusions, or form small bubbles.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same emission-channeling approach could be used to map the sites of other light implanted nuclei in diamond or in related wide-band-gap materials.
  • If the diffusion barrier is confirmed near 2 eV, diamond crystals recovered from the mantle should contain helium only in bound or clustered forms rather than as isolated interstitial atoms.
  • Measurements at additional temperatures would allow a full Arrhenius plot and a more precise value for the migration barrier.

Load-bearing premise

That the 20 percent drop in tetrahedral occupancy observed at 800 °C arises solely from the beginning of interstitial diffusion rather than from competing temperature-dependent processes such as trapping at defects or escape to the surface.

What would settle it

Recording channeling patterns at several intermediate temperatures and finding either no change in site fraction or a temperature dependence that cannot be described by a single activation energy for diffusion.

Figures

Figures reproduced from arXiv: 2604.05951 by A. Costa, A. Lamelas, A. Vantomme, B. Biesmans, G. Magchiels, J.G. Correia, L.M.C. Pereira, S.M. Tunhuma, the ISOLDE Collaboration, U. Wahl.

Figure 1

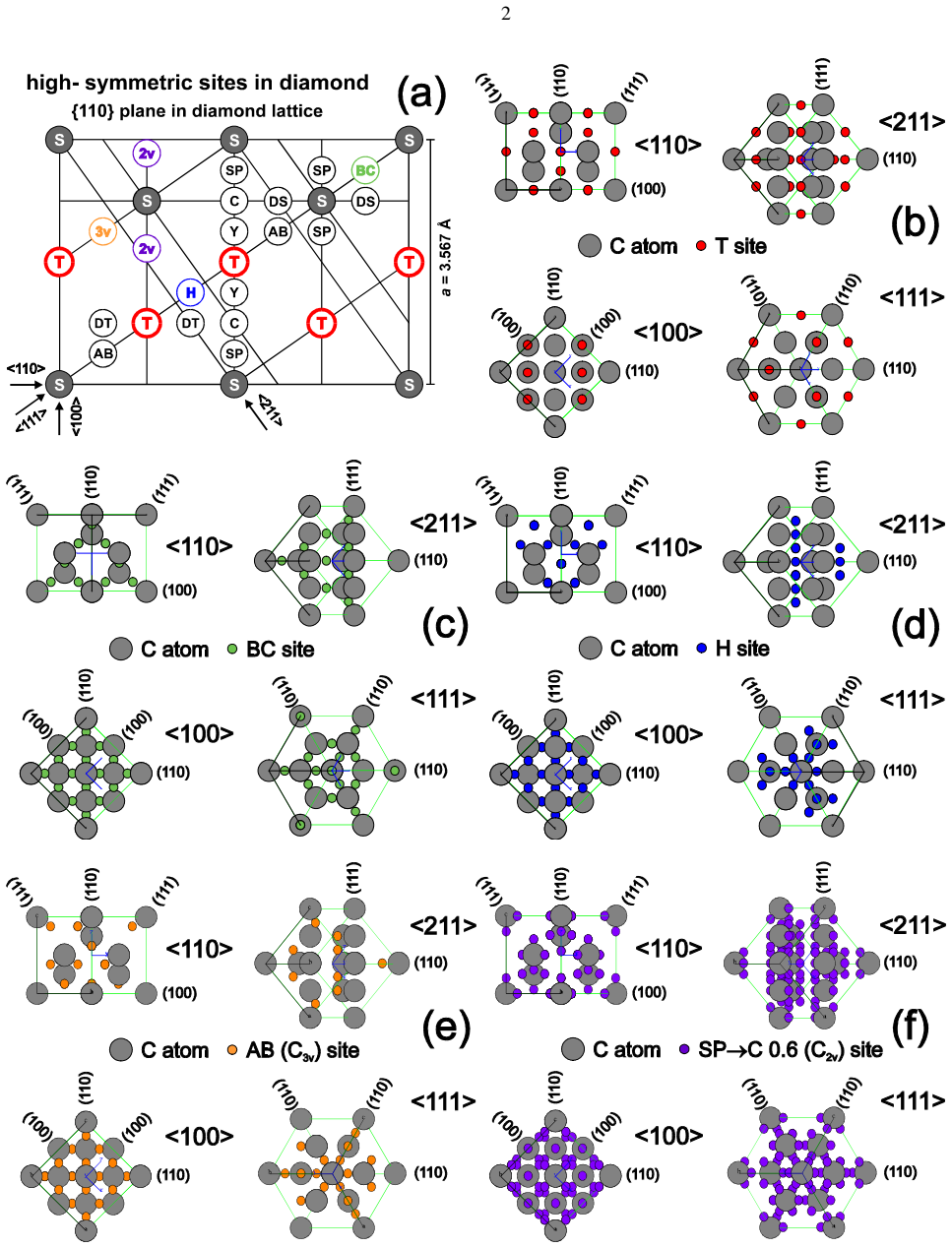

Figure 1. Figure 1: FIG 1. (a) Most common sites of high crystal symmet [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

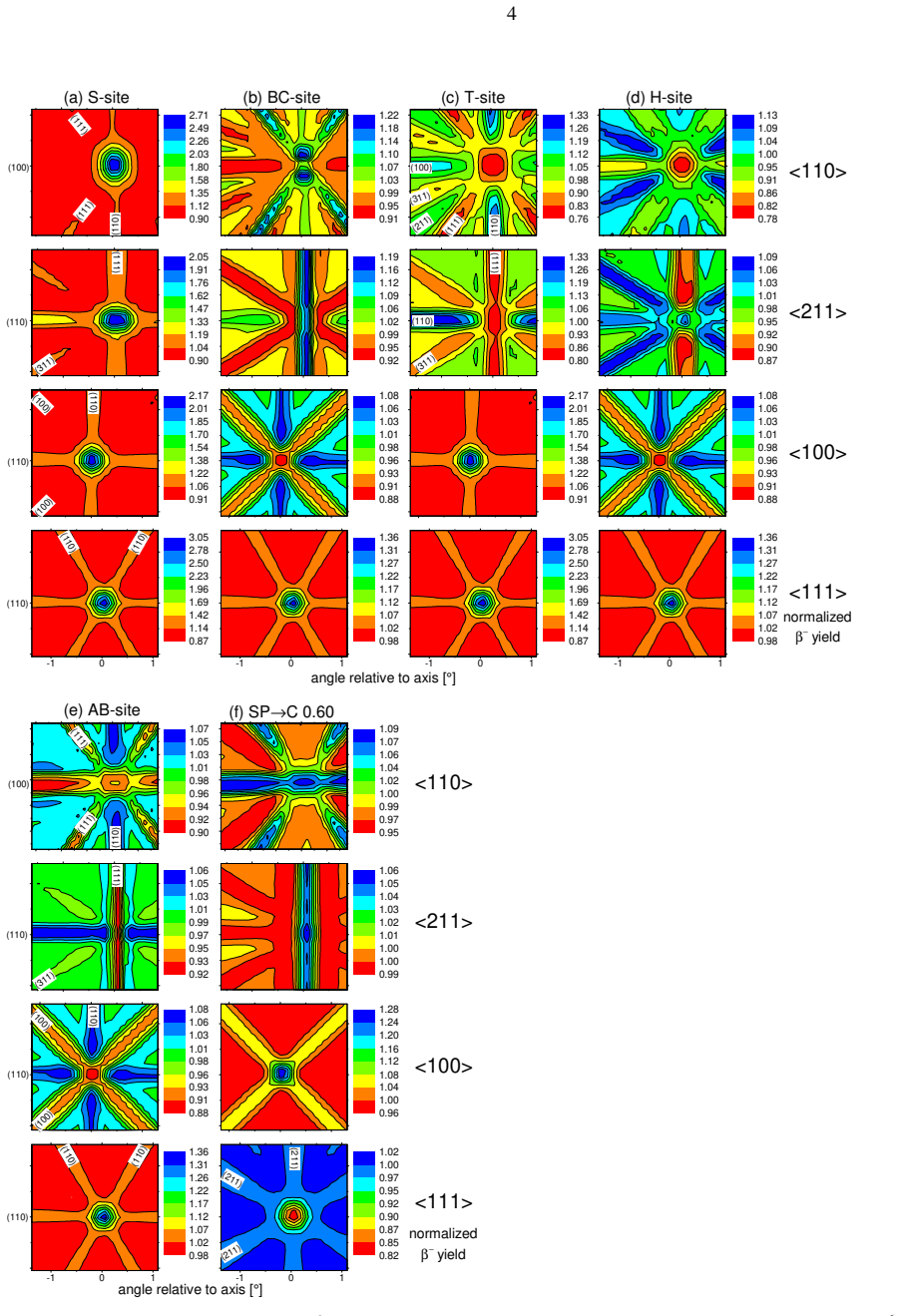

Figure 2. Figure 2: FIG 2. Theoretical angular distributions of [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

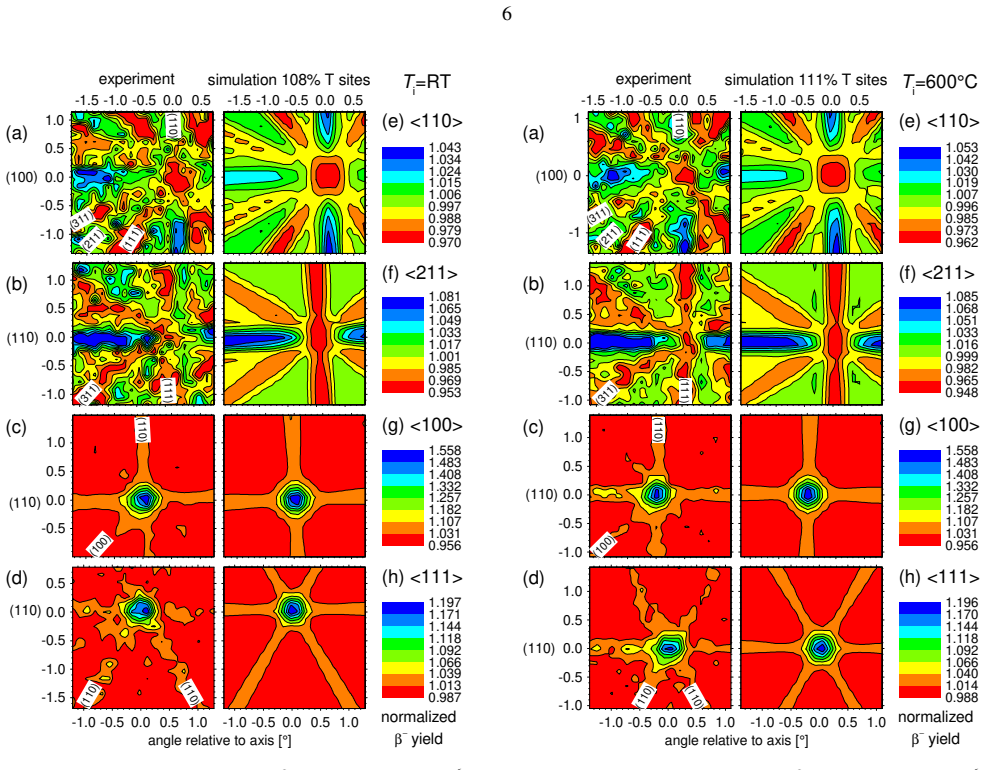

Figure 3. Figure 3: FIG 3. (a)-(d) Angular distributions of [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5

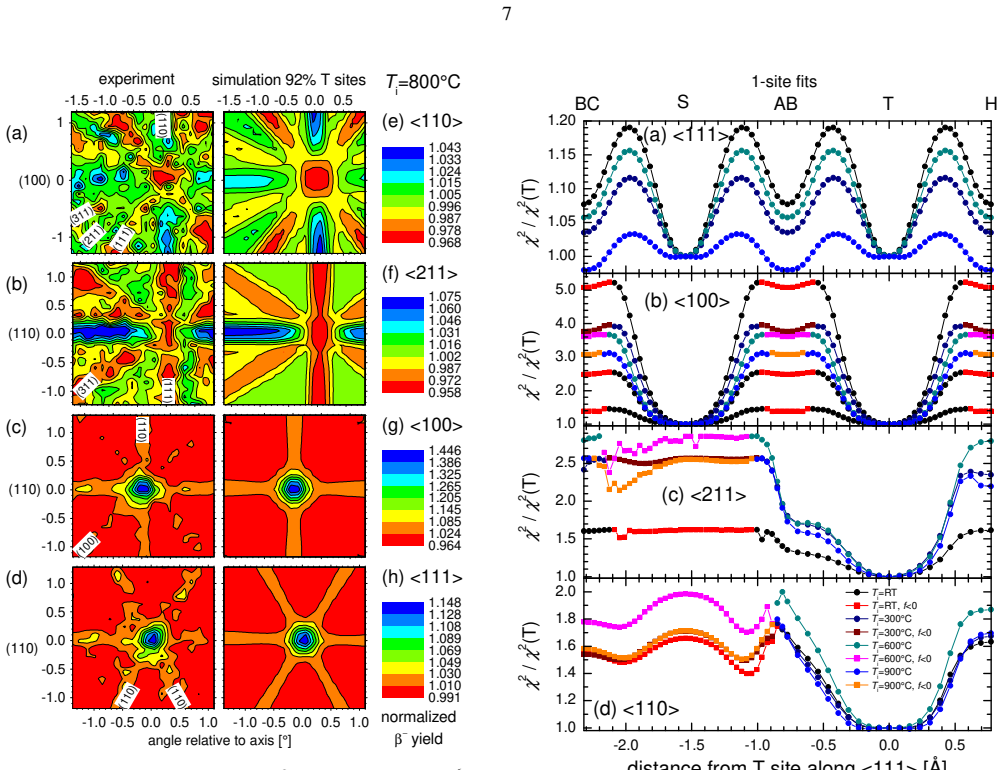

Figure 5. Figure 5: FIG 5. (a)-(d) Angular distributions of [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 7

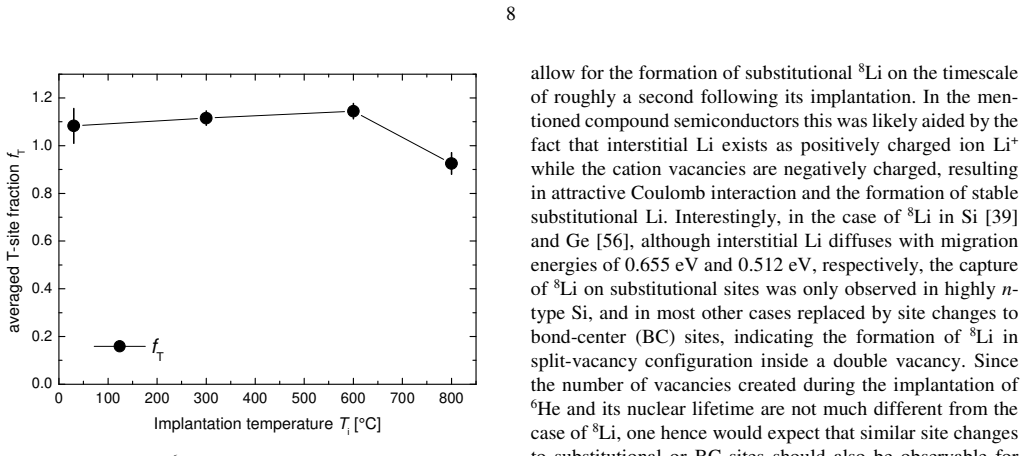

Figure 7. Figure 7: FIG 7. Fractions [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
read the original abstract

We report on the lattice location of the short-lived ion implanted nuclear probe 6He (t1/2=807 ms) in diamond, which was performed using the beta emission channeling method at CERN's ISOLDE facility. 6He was implanted with 30 keV into a single-crystalline artificial diamond sample kept at a temperature ranging from 30 deg C up to 800 deg C. By means of comparing the measured emission channeling patterns along different crystallographic directions with simulated yields for a variety of possible sites, we conclude that the implanted 6He occupies tetrahedral (T) interstitial sites, in agreement with theoretical predictions that T sites should be the preferred position of He in diamond. Implantation at 800 deg C resulted in a drop in the tetrahedral interstitial fraction by 20%, which we interpret as the onset of diffusion, 6He thus being able to change to lattice sites of low crystallographic symmetry, or reach the surface of the sample or escape to the bulk during its lifetime. We estimate the activation energy for interstitial migration of He to be around 1.63-2.89 eV, which agrees with theoretical predictions of 1.41 eV, 1.97 eV, 2.35 eV and 2.36 eV from the literature. Activation energies around 2 eV would mean that simple interstitial He cannot be stable in diamond on geological time scales, thus to remain inside, it should be bound to some defect in the material or exist in another form such as within inclusions of other minerals or liquids, or possibly small He bubbles.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper reports beta emission channeling measurements on 30 keV 6He implanted into single-crystal diamond at temperatures from 30°C to 800°C. By direct comparison of the measured angular yield patterns along several crystallographic directions to Monte Carlo simulations for candidate interstitial and substitutional sites, the authors conclude that 6He occupies tetrahedral (T) interstitial sites. They further observe a 20% reduction in the T-site fraction at 800°C, which they interpret as the onset of interstitial diffusion, and estimate an activation energy for migration in the range 1.63–2.89 eV.

Significance. If the site assignment holds, the work supplies experimental confirmation of independent theoretical predictions for the preferred location of He in diamond. The ISOLDE beta-channeling approach with a short-lived probe is a standard, minimally perturbative method, and the central assignment rests on comparison to independent simulations rather than any parameter fitted to the same data set. The temperature-dependent observation, while secondary, carries implications for long-term He retention in diamond on geological timescales.

major comments (2)
  1. [Results section on pattern comparison] Results section on pattern comparison: the manuscript does not report quantitative goodness-of-fit metrics (e.g., reduced χ², overlap integrals, or site-fraction uncertainties) for the tetrahedral-site simulations versus alternative sites such as bond-centered or hexagonal. Without these values it is difficult to judge how conclusively other sites are excluded by the angular-yield data.
  2. [Discussion of high-temperature data] Discussion of high-temperature data: the activation-energy range 1.63–2.89 eV is obtained from the fraction change observed at a single temperature (800°C) under the assumption that the 20% drop is caused exclusively by the onset of interstitial diffusion. No full Arrhenius analysis or explicit exclusion of competing temperature-dependent processes (defect trapping, surface escape) is presented.
minor comments (3)
  1. [Abstract] Abstract: error bars on the reported tetrahedral fractions and the precise fitting procedure used to extract them are omitted, reducing the reader’s ability to assess the statistical weight of the 20% drop.
  2. The simulation parameters (number of trajectories, treatment of energy loss and straggling, detector solid angle) should be stated explicitly to allow independent reproduction of the calculated patterns.
  3. A compact table listing the extracted site fractions (with uncertainties) at each implantation temperature would improve clarity and facilitate comparison with future work.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the positive recommendation and constructive comments on our manuscript. We address each major comment below.

read point-by-point responses

  1. Referee: Results section on pattern comparison: the manuscript does not report quantitative goodness-of-fit metrics (e.g., reduced χ², overlap integrals, or site-fraction uncertainties) for the tetrahedral-site simulations versus alternative sites such as bond-centered or hexagonal. Without these values it is difficult to judge how conclusively other sites are excluded by the angular-yield data.

    Authors: We agree that quantitative metrics would strengthen the presentation of the site assignment. In the revised manuscript we will add reduced χ² values for the tetrahedral interstitial site versus bond-centered and hexagonal alternatives, together with the derived site-fraction uncertainties. These metrics show the tetrahedral site to be the clear best fit. revision: yes

  2. Referee: Discussion of high-temperature data: the activation-energy range 1.63–2.89 eV is obtained from the fraction change observed at a single temperature (800°C) under the assumption that the 20% drop is caused exclusively by the onset of interstitial diffusion. No full Arrhenius analysis or explicit exclusion of competing temperature-dependent processes (defect trapping, surface escape) is presented.

    Authors: The reported range is an estimate based on the observed 20% drop at 800°C, the 807 ms lifetime of 6He, and the implantation depth, with the bounds reflecting different assumptions on the diffusion length needed to alter the channeling pattern. We will revise the text to state these assumptions explicitly and to note that competing processes such as defect trapping or surface escape cannot be ruled out with the present single-temperature data. The estimate remains consistent with the cited theoretical barriers. revision: partial

standing simulated objections not resolved
  • A full Arrhenius analysis and definitive exclusion of competing temperature-dependent processes would require measurements at additional temperatures, which are not available in the current dataset.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper derives its primary claim—that implanted 6He occupies tetrahedral interstitial sites—through direct comparison of measured beta emission channeling patterns (along multiple crystallographic directions) to independent Monte Carlo simulations of yields for candidate sites. This matching process uses no parameters fitted from the same experimental dataset and does not redefine any quantity in terms of the conclusion itself. The secondary interpretation of a 20% fraction drop at 800°C as the onset of diffusion, leading to an activation-energy estimate of 1.63-2.89 eV, is presented as an interpretive inference aligned with external literature values rather than a load-bearing derivation that reduces to self-citation or input redefinition. All cited theoretical predictions originate from independent prior work, and the experimental technique is standard and externally validated. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim depends on the accuracy of channeling-yield simulations for candidate sites and on the assumption that the temperature-induced change in site fraction follows simple interstitial migration kinetics. No new particles or forces are postulated.

free parameters (2)
  • tetrahedral site fraction
    Fitted parameter obtained by matching experimental angular distributions to simulated patterns for different lattice sites.
  • activation energy for interstitial migration
    Estimated from the temperature at which the tetrahedral fraction drops, spanning 1.63-2.89 eV.
axioms (2)
  • domain assumption Simulated beta emission channeling patterns for candidate sites accurately reproduce experimental yields when the correct site is occupied.
    Invoked when assigning the tetrahedral site by pattern comparison.
  • domain assumption The observed drop in tetrahedral occupancy at 800 °C is caused by the onset of thermally activated diffusion.
    Used to convert the single high-temperature datum into an activation-energy range.
