arxiv: 2604.05991 · v1 · submitted 2026-04-07 · 📡 eess.SP

Ray-Based Simulation of Scattering from Discretized Curved Bodies for Vehicular and ISAC Applications

Ainur Ziganshin , Enrico M. Vitucci , Wim Kotterman , Reiner Thomae , Christian Schneider , Vittorio Degli-Esposti This is my paper

Pith reviewed 2026-05-10 18:43 UTC · model grok-4.3

classification 📡 eess.SP
keywords ray-tracingscatteringdiffractiondiscretizationvehicular channelsISACcurved surfacesUTD
0
0 comments X

The pith

Discretizing curved surfaces with facets sized by local curvature and wavelength, plus extended diffraction, improves ray-tracing accuracy for vehicle scattering predictions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a ray-tracing method for near-field scattering from curved metallic bodies such as vehicles by breaking them into planar facets and applying diffraction corrections. It introduces a discretization rule that sets facet size according to local curvature and wavelength to keep both geometric detail and computation manageable. The approach extends standard diffraction theory to include vertex effects and double-bounce paths, allowing better handling of shadow regions behind the body. Validation against exact solutions for spheres and cylinders, plus a full vehicle model, shows clear gains in prediction quality. This matters for building realistic wireless channel models needed in automotive communications and radar-based sensing.

Core claim

The central claim is that appropriate discretization of curved surfaces, with facet size linked to local curvature and wavelength, combined with extensions to the Uniform Theory of Diffraction that add vertex diffraction and double-bounce interactions, yields significantly more accurate and efficient scattering predictions than conventional facet approximations, as confirmed by comparisons to analytical results and full-wave simulations on spheres, cylinders, and a realistic vehicle geometry.

What carries the argument

A discretization strategy linking facet size to local curvature and wavelength, paired with Uniform Theory of Diffraction extended by vertex diffraction and double-bounce interactions.

If this is right

  • Scattering in the forward shadow region behind vehicles becomes predictable with ray-tracing tools without full-wave computation.
  • The same framework applies to other curved metallic objects such as roadside structures.
  • Channel models for vehicular networks and ISAC systems gain accuracy while remaining computationally light enough for large scenarios.
  • Double-bounce and vertex contributions can be included routinely in existing ray-tracing engines.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The discretization rule might be adapted to non-metallic surfaces by incorporating material-specific reflection coefficients.
  • Embedding the method in network simulators could allow real-time assessment of sensing performance in dense traffic.
  • The approach could guide placement of radar sensors on vehicles by revealing which curved parts dominate multipath.
  • Extension to time-varying geometries, such as moving vehicles, would test whether the curvature-based rule remains stable under motion.

Load-bearing premise

The assumption that linking facet size to local curvature and wavelength balances geometric fidelity, computational accuracy and efficiency sufficiently for practical use in complex scenarios like vehicles.

What would settle it

Direct numerical comparison of the model's scattering amplitude and phase patterns against full-wave simulations or anechoic-chamber measurements for a vehicle body in the forward shadow region at 5-6 GHz would falsify the claim if large discrepancies persist after the proposed discretization and diffraction extensions are applied.

Figures

Figures reproduced from arXiv: 2604.05991 by Ainur Ziganshin, Christian Schneider, Enrico M. Vitucci, Reiner Thomae, Vittorio Degli-Esposti, Wim Kotterman.

Figure 1

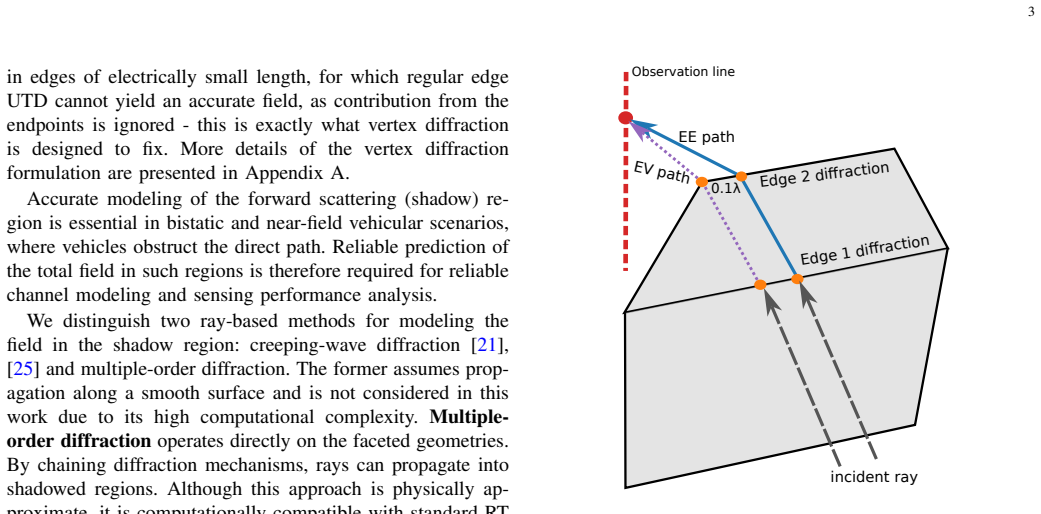

Figure 1. Figure 1: Geometry used to illustrate edge–vertex diffraction. The double-edge [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Total electric field magnitude for the geometry in Fig. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: General simulation geometry used for scattering evaluation. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Examples of discretized canonical geometries used for validation: a [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Electric field magnitude for different discretizations vs. the smooth-cylinder analytical solution: large cylinder case. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Electric field magnitude for small cylinder case vs. the smooth-cylinder analytical solution and MLFMM: HH polarization. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Electric field magnitude for sphere case vs. the smooth-sphere analytical solution vs. MLFMM: HH polarization. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Low-polygon vehicle model used for scattering simulations in ray [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Electric field magnitude for the low-poly car case under VV polarization: RT vs. MLFMM. [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

Realistic modeling of scattering from curved metallic bodies - such as vehicles and roadside structures - is essential for cellular and vehicular channel modeling as well as radar applications. A practical approach is to approximate curved surfaces with planar facets and apply ray-tracing with diffraction methods; however, accuracy depends critically on both geometric discretization and diffraction modeling. This work investigates ray-tracing-based modeling of near-field scattering from curved bodies, including the forward (shadow) region, using the Uniform Theory of Diffraction (UTD), extended with vertex diffraction and double-bounce interactions. A discretization strategy linking facet size to local curvature and wavelength is proposed to balance geometric fidelity, computational accuracy and efficiency. Validation is performed against analytical solutions and full-wave simulations for canonical geometries (sphere and circular cylinder), as well as a realistic vehicle model to demonstrate the method's practical relevance. Results show that appropriate discretization combined with extended diffraction modeling significantly improves scattering prediction from curved bodies, providing a computationally efficient framework for vehicular propagation and integrated sensing and communication (ISAC) channel modeling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a ray-tracing approach for near-field scattering from curved metallic bodies (vehicles, roadside structures) by discretizing surfaces into planar facets whose size is linked to local curvature and wavelength, then applying an extended Uniform Theory of Diffraction (UTD) that incorporates vertex diffraction and double-bounce interactions. Validation is performed against analytical solutions for a sphere and circular cylinder plus full-wave simulations for a realistic vehicle mesh, with the central claim that the combination yields significantly improved scattering predictions (including in the forward shadow region) while remaining computationally efficient for vehicular propagation and ISAC channel modeling.

Significance. If the results hold, the work supplies a practical, ray-based alternative to full-wave solvers for scattering in complex curved geometries that are ubiquitous in vehicular and sensing scenarios. The explicit validation on both canonical shapes and a vehicle model, together with the emphasis on near-field and shadow-region accuracy, strengthens its relevance for 5G/6G propagation and ISAC applications. The approach builds on established UTD theory rather than introducing new fitted parameters.

major comments (2)
  1. [Discretization strategy and validation] The discretization rule that links facet size to local curvature and wavelength is presented without a derivation, a priori error bound, or sensitivity analysis showing how deviations from the rule affect accuracy on non-canonical surfaces. This is load-bearing for the claim that the strategy 'balances geometric fidelity, computational accuracy and efficiency' for arbitrary vehicular geometries (see the discretization strategy description and the validation sections).
  2. [Validation results] The reported improvements are demonstrated only on a sphere, a cylinder, and one vehicle mesh. No quantitative error metrics (e.g., RMS error, dB deviation in shadow region) or comparison against standard faceting without the curvature-wavelength rule are supplied in the abstract or validation summary, making it difficult to judge whether the gains are general or case-specific.
minor comments (2)
  1. [Abstract] The abstract states that results 'significantly improve' scattering prediction; adding one or two concrete quantitative figures (e.g., reduction in dB error in the forward region) would strengthen the claim without lengthening the text.
  2. [Notation and terminology] Notation for the extended UTD components (vertex diffraction, double-bounce) should be introduced once and used consistently; minor inconsistencies in terminology appear between the abstract and the method description.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript. The comments help clarify how to better support the discretization approach and strengthen the validation presentation. We address each major comment below and will incorporate revisions to address the concerns raised.

read point-by-point responses

  1. Referee: [Discretization strategy and validation] The discretization rule that links facet size to local curvature and wavelength is presented without a derivation, a priori error bound, or sensitivity analysis showing how deviations from the rule affect accuracy on non-canonical surfaces. This is load-bearing for the claim that the strategy 'balances geometric fidelity, computational accuracy and efficiency' for arbitrary vehicular geometries (see the discretization strategy description and the validation sections).

    Authors: We agree that an explicit derivation, error bound, and sensitivity analysis would strengthen the justification for the proposed discretization rule on arbitrary geometries. The rule was selected to keep the local surface approximation error small relative to the wavelength while controlling the number of facets for computational efficiency. In the revised manuscript we will add a dedicated subsection deriving the facet-size criterion from a maximum phase-error bound across each facet (drawing on standard practices for curved-surface meshing) and include a sensitivity study that varies the curvature-wavelength scaling factor on the vehicle model to quantify its impact on scattering accuracy. revision: yes

  2. Referee: [Validation results] The reported improvements are demonstrated only on a sphere, a cylinder, and one vehicle mesh. No quantitative error metrics (e.g., RMS error, dB deviation in shadow region) or comparison against standard faceting without the curvature-wavelength rule are supplied in the abstract or validation summary, making it difficult to judge whether the gains are general or case-specific.

    Authors: The manuscript already contains detailed comparisons against analytical solutions and full-wave results, with emphasis on the shadow region. However, we acknowledge that explicit quantitative metrics (RMS error, dB deviations) and a direct baseline comparison to conventional uniform faceting are not highlighted in the abstract or summary sections. We will revise the validation section to report these quantitative metrics for all three geometries and add a side-by-side comparison using standard fixed-size faceting on the vehicle mesh. While the abstract length is constrained, we will ensure the key quantitative improvements are clearly stated in the introduction and conclusions. revision: yes

Circularity Check

0 steps flagged

No circularity: discretization rule and UTD extensions are proposed heuristics validated against external references

full rationale

The paper proposes a facet-size rule linked to local curvature and wavelength as a practical heuristic to balance accuracy and efficiency, then validates the combined ray-tracing + extended UTD (vertex diffraction, double-bounce) approach on sphere, cylinder, and vehicle geometries against independent analytical solutions and full-wave simulations. No step reduces a claimed prediction to a fitted parameter by construction, no self-citation supplies a load-bearing uniqueness theorem, and no ansatz is smuggled via prior work. The derivation chain is self-contained because the central results are numerical comparisons to external benchmarks rather than tautological re-statements of inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The paper introduces a discretization strategy as a key element, which may involve free parameters for facet sizing. Relies on standard UTD assumptions.

free parameters (1)
  • facet size scaling factor
    The discretization strategy links facet size to local curvature and wavelength, likely involving a tunable parameter for balance.
axioms (2)
  • domain assumption UTD is applicable to discretized planar facets approximating curved surfaces
    The approach relies on UTD for diffraction on the facets.
  • domain assumption Vertex diffraction and double-bounce interactions can be accurately modeled in the extended UTD
    Extensions to UTD are used without derivation in abstract.

pith-pipeline@v0.9.0 · 5505 in / 1347 out tokens · 48123 ms · 2026-05-10T18:43:43.750533+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

30 extracted references · 30 canonical work pages

  1. [1]

    Distributed multisensor ISAC,

    R. Thom ¨a, C. Andrich, M. D ¨obereiner, R. Faramarzahangari, J. Ged- schold, M. F. C. Miranda, S. J. Myint, S. Schieler, C. Schneider, S. Semperet al., “Distributed multisensor ISAC,”arXiv preprint arXiv:2511.13104, 2025

    work page arXiv 2025

  2. [2]

    6G for vehicle-to-everything (V2X) communications: Enabling technologies, challenges, and oppor- tunities,

    M. Noor-A-Rahim, Z. Liu, H. Lee, M. O. Khyam, J. He, D. Pesch, K. Moessner, W. Saad, and H. V . Poor, “6G for vehicle-to-everything (V2X) communications: Enabling technologies, challenges, and oppor- tunities,”Proceedings of the IEEE, vol. 110, no. 6, pp. 712–734, 2022

    work page 2022

  3. [3]

    A scalable hybrid channel model for ISAC evaluation,

    A. Ziganshin, C. Schneider, D. Czaniera, and R. Thomae, “A scalable hybrid channel model for ISAC evaluation,” inICMIM 2024; 7th IEEE MTT Conference. VDE, 2024, pp. 13–16

    work page 2024

  4. [4]

    Statistical analysis and modeling of vehicular radar cross section,

    S. J. Myint, C. Schneider, M. R ¨oding, G. Del Galdo, and R. S. Thom ¨a, “Statistical analysis and modeling of vehicular radar cross section,” in2019 13th European Conference on Antennas and Propagation (EuCAP). IEEE, 2019, pp. 1–5

    work page 2019

  5. [5]

    D. B. Davidson,Computational electromagnetics for RF and microwave engineering. Cambridge University Press, 2010

    work page 2010

  6. [6]

    W. C. Gibson,The method of moments in electromagnetics. Chapman and Hall/CRC, 2021

    work page 2021

  7. [7]

    P. Y . Ufimtsev,Fundamentals of the physical theory of diffraction. John Wiley & Sons, 2014

    work page 2014

  8. [8]

    Ray tracing for radio propagation modeling: Principles and applications,

    Z. Yun and M. F. Iskander, “Ray tracing for radio propagation modeling: Principles and applications,”IEEE Access, vol. 3, pp. 1089–1100, 2015

    work page 2015

  9. [9]

    A uniform geometrical theory of diffraction for an edge in a perfectly conducting surface,

    R. G. Kouyoumjian and P. H. Pathak, “A uniform geometrical theory of diffraction for an edge in a perfectly conducting surface,”Proceedings of the IEEE, vol. 62, no. 11, pp. 1448–1461, 1974

    work page 1974

  10. [10]

    On NURBS: a survey,

    L. Piegl, “On NURBS: a survey,”IEEE Computer Graphics and Applications, vol. 11, no. 1, pp. 55–71, 1991

    work page 1991

  11. [11]

    Compu- tation of the RCS of complex bodies modeled using NURBS surfaces,

    M. Domingo, F. Rivas, J. Perez, R. Torres, and M. Catedra, “Compu- tation of the RCS of complex bodies modeled using NURBS surfaces,” IEEE Antennas and Propagation Magazine, vol. 37, no. 6, pp. 36–47, 1995

    work page 1995

  12. [12]

    Efficient algorithm for the evaluation of the physical optics scattering by NURBS surfaces with relatively general boundary condition,

    C. Della Giovampaola, G. Carluccio, F. Puggelli, A. Toccafondi, and M. Albani, “Efficient algorithm for the evaluation of the physical optics scattering by NURBS surfaces with relatively general boundary condition,”IEEE Transactions on Antennas and Propagation, vol. 61, no. 8, pp. 4194–4203, 2013

    work page 2013

  13. [13]

    Sefi,Ray Tracing Tools for High Frequency Electromagnetics Simu- lations

    S. Sefi,Ray Tracing Tools for High Frequency Electromagnetics Simu- lations. Numerisk analys och datalogi, 2003

    work page 2003

  14. [14]

    Sionna RT: Differentiable ray tracing for radio propagation modeling,

    J. Hoydis, F. A. Aoudia, S. Cammerer, M. Nimier-David, N. Binder, G. Marcus, and A. Keller, “Sionna RT: Differentiable ray tracing for radio propagation modeling,” in2023 IEEE Globecom Workshops (GC Wkshps). IEEE, 2023, pp. 317–321

    work page 2023

  15. [15]

    Ray tracing with PO/PTD for RCS modeling of large complex objects,

    F. Weinmann, “Ray tracing with PO/PTD for RCS modeling of large complex objects,”IEEE Transactions on Antennas and Propagation, vol. 54, no. 6, pp. 1797–1806, 2006

    work page 2006

  16. [16]

    Overview of MM and UTD methods at the Ohio State University (radar target scattering),

    E. H. Newman and R. J. Marhefka, “Overview of MM and UTD methods at the Ohio State University (radar target scattering),”Proceedings of the IEEE, vol. 77, no. 5, pp. 700–708, 2002

    work page 2002

  17. [17]

    Extraction of virtual scattering centers of vehicles by ray-tracing simulations,

    K. Schuler, D. Becker, and W. Wiesbeck, “Extraction of virtual scattering centers of vehicles by ray-tracing simulations,”IEEE Transactions on Antennas and Propagation, vol. 56, no. 11, pp. 3543–3551, 2008

    work page 2008

  18. [18]

    Ray-based simulation of multistatic scattering from target objects in ISAC,

    A. Ziganshin, E. M. Vitucci, S. Myint, W. Kotterman, C. Schneider, V . Degli-Esposti, and R. Thom ¨a, “Ray-based simulation of multistatic scattering from target objects in ISAC,” in2025 19th European Confer- ence on Antennas and Propagation (EuCAP). IEEE, 2025, pp. 1–5

    work page 2025

  19. [19]

    UTD vertex diffraction coefficient for the scattering by perfectly conducting faceted structures,

    M. Albani, F. Capolino, G. Carluccio, and S. Maci, “UTD vertex diffraction coefficient for the scattering by perfectly conducting faceted structures,”IEEE Transactions on Antennas and Propagation, vol. 57, no. 12, pp. 3911–3925, 2009

    work page 2009

  20. [20]

    A uniform double diffraction coefficient for a pair of wedges in arbitrary configuration,

    M. Albani, “A uniform double diffraction coefficient for a pair of wedges in arbitrary configuration,”IEEE Transactions on Antennas and Propagation, vol. 53, no. 2, pp. 702–710, 2005

    work page 2005

  21. [21]

    The uniform geometrical theory of diffraction and some of its applications,

    P. H. Pathak, G. Carluccio, and M. Albani, “The uniform geometrical theory of diffraction and some of its applications,”IEEE Antennas and Propagation magazine, vol. 55, no. 4, pp. 41–69, 2013

    work page 2013

  22. [22]

    FEKO (version 7.0) - Field Computations Involving Bodies of Arbitrary Shape,

    Altair Engineering, “FEKO (version 7.0) - Field Computations Involving Bodies of Arbitrary Shape,” https://help.altair.com/feko/index.htm, 2020

    work page 2020

  23. [23]

    C. A. Balanis,Advanced engineering electromagnetics. John Wiley & Sons, 2012

    work page 2012

  24. [24]

    Sionna-RT Reflectivity,

    A. Ziganshin, “Sionna-RT Reflectivity,” https://github.com/AinurZiga/ sionna-RT-reflectivity, 2026, accessed: 2026-03-31

    work page 2026

  25. [25]

    Research on the computational method of creeping waves diffraction of arbitrary complex target based on the planar mesh model,

    Q. Huang, S. He, Y . Zhang, G. Zhu, and H. Chen, “Research on the computational method of creeping waves diffraction of arbitrary complex target based on the planar mesh model,”Optics Express, vol. 31, no. 4, pp. 6426–6452, 2023

    work page 2023

  26. [26]

    A UTD triple diffraction coefficient for straight wedges in arbitrary configuration,

    G. Carluccio, F. Puggelli, and M. Albani, “A UTD triple diffraction coefficient for straight wedges in arbitrary configuration,”IEEE Trans- actions on Antennas and Propagation, vol. 60, no. 12, pp. 5809–5817, 2012

    work page 2012

  27. [27]

    An efficient ray tracing algorithm for multiple straight wedge diffraction,

    G. Carluccio and M. Albani, “An efficient ray tracing algorithm for multiple straight wedge diffraction,”IEEE Transactions on Antennas and Propagation, vol. 56, no. 11, pp. 3534–3542, 2008

    work page 2008

  28. [28]

    Variational anisotropic surface meshing with V oronoi parallel linear enumeration,

    B. L ´evy and N. Bonneel, “Variational anisotropic surface meshing with V oronoi parallel linear enumeration,” inProceedings of the 21st international meshing roundtable. Springer, 2013, pp. 349–366

    work page 2013

  29. [29]

    BIRA: A spherical bistatic radar reflectivity measurement system,

    C. Andrich, T. F. Nowack, A. Ihlow, S. Giehl, M. Engelhardt, G. Som- merkorn, A. Schwind, W. Hofmann, C. Bornkessel, M. A. Heinet al., “BIRA: A spherical bistatic radar reflectivity measurement system,” IEEE Transactions on Antennas and Propagation, 2026

    work page 2026

  30. [30]

    Modeling micro-doppler signature of multi-propeller drones in distributed ISAC,

    H. C. Costa, S. J. Myint, C. Andrich, S. W. Giehl, M. Engelhardt, C. Schneider, and R. S. Thom ¨a, “Modeling micro-doppler signature of multi-propeller drones in distributed ISAC,”IEEE Journal of Selected Topics in Electromagnetics, Antennas and Propagation, 2025

    work page 2025
