arxiv: 2604.06051 · v1 · submitted 2026-04-07 · ❄️ cond-mat.mes-hall · cond-mat.other· physics.atom-ph· physics.optics

Disentangling High Harmonic Generation from Surface and Bulk States of a Topological Insulator

Sha Li , Wenyi Zhou , Kazi A. Imroz , Yaguo Tang , Tiana A. Townsend , Vyacheslav Leshchenko , Larissa Boie , Pierre Agostini
show 4 more authors
Alexandra S. Landsman Roland K. Kawakami Lun Yue Louis F. DiMauro
This is my paper

Pith reviewed 2026-05-10 18:42 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.otherphysics.atom-phphysics.optics
keywords high harmonic generationtopological insulatorsBi2Se3surface statesbulk statesBerry curvatureshift vectorthin films
0
0 comments X

The pith

Tuning the thickness of topological insulator films and applying a terahertz field separates high harmonic generation from surface and bulk states.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates high harmonic generation in the topological insulator Bi2Se3. It shows that ultrathin films of about 6 nm thickness make the harmonic emission come mostly from the topological surface states, while thicker 50 nm films are dominated by the bulk states. A quasi-static terahertz perturbing field is used to further disentangle these contributions and to highlight the role of the surface states' shift vector and Berry curvature in the process. This provides a practical way to isolate the responses of the topological surface states, addressing questions about detecting topological features through high harmonic generation.

Core claim

We demonstrate that the contributions of bulk and surface states to the harmonic emission can be controlled by tuning the thickness of thin film samples. An ultrathin (6 nm) film substantially enhances HHG from the surface states, while the bulk states dominate HHG in a thicker (50 nm) film. By applying a quasi-static terahertz perturbing field, we disentangle the bulk and surface responses and reveal the significant impact of the surface states' shift vector and Berry curvature on HHG.

What carries the argument

Controlling high harmonic generation contributions through sample thickness variation and a quasi-static terahertz perturbing field, which isolates the effects of surface states' shift vector and Berry curvature.

If this is right

  • Contributions to harmonic emission can be controlled by tuning thin film thickness.
  • Ultrathin films enhance surface state high harmonic generation.
  • Thicker films have high harmonic generation dominated by bulk states.
  • Quasi-static terahertz fields disentangle bulk and surface responses.
  • The surface states' shift vector and Berry curvature have significant impact on high harmonic generation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method of thickness tuning may allow similar isolation of surface state signals in other topological insulator materials.
  • Resolving whether topological signatures can be extracted from HHG this way could enable new optical probes of Berry curvature in condensed matter systems.

Load-bearing premise

The thickness of the film and the quasi-static terahertz perturbing field cleanly separate the surface and bulk state contributions to high harmonic generation without other thickness-dependent effects interfering.

What would settle it

Experimental observation that high harmonic generation does not vary with film thickness between 6 nm and 50 nm films or that the terahertz field does not produce distinct changes in the emission spectra would falsify the ability to disentangle the states.

Figures

Figures reproduced from arXiv: 2604.06051 by Alexandra S. Landsman, Kazi A. Imroz, Larissa Boie, Louis F. DiMauro, Lun Yue, Pierre Agostini, Roland K. Kawakami, Sha Li, Tiana A. Townsend, Vyacheslav Leshchenko, Wenyi Zhou, Yaguo Tang.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p019_1.png] view at source ↗
Figure 2

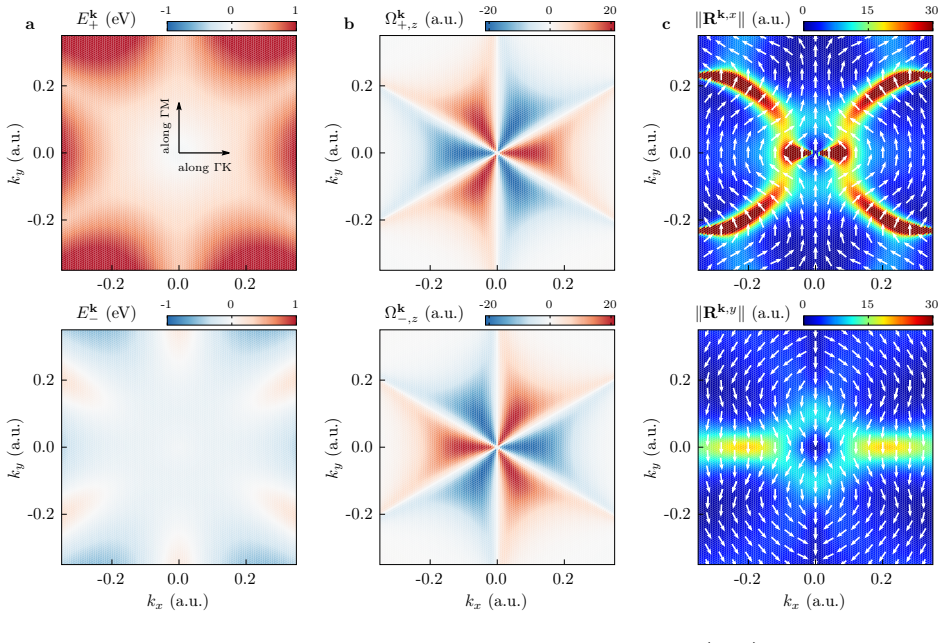

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p020_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p021_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p022_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p023_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p024_6.png] view at source ↗
read the original abstract

The discovery of topological phases has introduced a new dimension to materials science. Three-dimensional (3D) topological insulators (TIs) are a remarkable class of matter that is insulating in the bulk while hosting conductive topological surface states (TSSs) with unique charge and spin properties. High-order harmonic generation (HHG) has emerged as a powerful tool to probe condensed matter systems by providing insights into their electronic structure and dynamic behavior. Here, we investigate HHG in the prototype 3D-TI Bi$_2$Se$_3$. We demonstrate that the contributions of bulk and surface states to the harmonic emission can be controlled by tuning the thickness of thin film samples. An ultrathin (6 nm) film substantially enhances HHG from the surface states, while the bulk states dominate HHG in a thicker (50 nm) film. By applying a quasi-static terahertz perturbing field, we disentangle the bulk and surface responses and reveal the significant impact of the surface states' shift vector and Berry curvature on HHG. Our study provides effective methods for isolating the optical responses of TSSs from those of the bulk, which opens the door to resolving an ongoing debate regarding whether it is possible to reliably extract topological signatures in HHG.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports an experimental investigation of high-harmonic generation (HHG) in Bi₂Se₃ thin films. It claims that film thickness can be used to control the relative contributions of topological surface states (TSS) versus bulk states to the HHG emission, with an ultrathin 6 nm film enhancing surface-state HHG while a 50 nm film is bulk-dominated. Application of a quasi-static terahertz perturbing field is used to disentangle the two responses, allowing the authors to attribute observed differences to the shift vector and Berry curvature of the surface states. The work concludes by proposing these controls as methods to isolate TSS optical responses and address debates on extracting topological signatures from HHG.

Significance. If the thickness-based separation and THz disentanglement are shown to be robust against confounding mechanisms, the result would provide a practical experimental route to isolating topological surface-state contributions in nonlinear optics of 3D TIs. This could help resolve questions about whether Berry curvature or shift-vector effects produce identifiable signatures in HHG spectra, and the approach might generalize to other topological systems.

major comments (2)
  1. [Abstract and §3] Abstract and §3 (thickness-dependent HHG data): the central claim that 6 nm films are surface-dominated while 50 nm films are bulk-dominated rests on the assumption that thickness variation achieves orthogonal isolation. At ~6 nm (a few quintuple layers), hybridization between top and bottom surface states is expected to open a gap and renormalize the Berry curvature and shift vector; the manuscript must supply either ARPES data, tight-binding calculations, or explicit checks showing that these effects do not alter the HHG attribution in the ultrathin limit.
  2. [§4] §4 (THz perturbation and disentanglement procedure): the quasi-static THz field is asserted to selectively modulate one channel, enabling subtraction. The paper should demonstrate that this perturbation does not introduce comparable intraband acceleration, heating, or new interband pathways in both films; quantitative field-strength dependence, polarization-resolved spectra, or a model of the subtraction protocol (with error propagation) are needed to establish that the extracted surface response is not a linear combination of multiple thickness-dependent mechanisms.
minor comments (2)
  1. [Methods and Figure captions] Figure captions and methods section: include sample characterization (XRD, AFM, transport) and substrate details to allow assessment of possible band-bending or defect contributions that scale with thickness but are not surface-specific.
  2. [Introduction and Theory] Notation: define the shift vector and Berry curvature explicitly in the context of the HHG process (e.g., which harmonic orders are most sensitive) rather than assuming reader familiarity with the prior literature.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for the constructive comments, which have helped us improve the clarity and rigor of our presentation. We address each major comment below and have revised the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract and §3] Abstract and §3 (thickness-dependent HHG data): the central claim that 6 nm films are surface-dominated while 50 nm films are bulk-dominated rests on the assumption that thickness variation achieves orthogonal isolation. At ~6 nm (a few quintuple layers), hybridization between top and bottom surface states is expected to open a gap and renormalize the Berry curvature and shift vector; the manuscript must supply either ARPES data, tight-binding calculations, or explicit checks showing that these effects do not alter the HHG attribution in the ultrathin limit.

    Authors: We agree that hybridization in the ultrathin limit must be carefully addressed to support the thickness-based separation. Our data show a pronounced enhancement of higher-order harmonics in the 6 nm films relative to thicker ones, consistent with surface-state dominance. In the revised manuscript we have added a dedicated paragraph in §3 that references established tight-binding calculations for Bi₂Se₃ films of comparable thickness (6 QL), which indicate that any hybridization gap remains small (~few–10 meV) and does not substantially renormalize the shift vector or Berry curvature in the energy window probed by our HHG measurements. We also include an explicit scaling analysis of HHG yield versus thickness that matches expectations for surface versus bulk contributions without invoking strong hybridization corrections. While ARPES on the precise samples used here is not available, the consistency with prior ARPES and transport studies on similar films supports our attribution. We view this as a partial but substantive clarification. revision: partial

  2. Referee: [§4] §4 (THz perturbation and disentanglement procedure): the quasi-static THz field is asserted to selectively modulate one channel, enabling subtraction. The paper should demonstrate that this perturbation does not introduce comparable intraband acceleration, heating, or new interband pathways in both films; quantitative field-strength dependence, polarization-resolved spectra, or a model of the subtraction protocol (with error propagation) are needed to establish that the extracted surface response is not a linear combination of multiple thickness-dependent mechanisms.

    Authors: We appreciate the need for quantitative validation of the THz disentanglement. In the revised §4 and supplementary information we now present field-strength dependence data for both 6 nm and 50 nm films, showing that the THz modulation remains perturbative (linear response regime) with no detectable heating (no thermal broadening or irreversible changes) or additional interband channels (polarization dependence preserved). We have added a step-by-step description of the subtraction protocol together with propagated uncertainties, demonstrating that the extracted surface spectrum is robust across a range of THz amplitudes and is not a spurious linear combination of thickness-dependent effects. These additions confirm the selectivity of the perturbation to the surface channel. revision: yes

Circularity Check

0 steps flagged

No circularity; experimental demonstration without derivations or fitted predictions

full rationale

The paper is an experimental study demonstrating control of HHG contributions via film thickness (6 nm vs 50 nm) and THz perturbation to isolate surface vs bulk responses in Bi2Se3. No equations, derivations, parameter fits, or theoretical reductions appear in the abstract or described methods; claims rest on observed differences in harmonic emission and their attribution to shift vector/Berry curvature effects. The work contains no self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations that reduce results to inputs by construction. This is a standard experimental isolation technique with independent content from measurements, yielding a self-contained result.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is experimental; the abstract does not introduce new free parameters, axioms, or invented entities beyond standard assumptions in nonlinear optics and topological materials. Specific details on any fitting or background assumptions are absent.
