arxiv: 2604.06441 · v1 · submitted 2026-04-07 · ❄️ cond-mat.mtrl-sci

Study of the Nonlinear Dependence of Anomalous Hall Conductivity on Magnetization in Weak Itinerant Ferromagnet ZrZn2

Surasree Sadhukhan , Stepan S. Tsirkin , Yaroslav Zhumagulov , Igor. I. Mazin This is my paper

Pith reviewed 2026-05-10 18:30 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords anomalous Hall effectZrZn2itinerant ferromagnetBerry curvaturenonlinear dependenceKarplus-Luttinger formula
0
0 comments X

The pith

Anomalous Hall conductivity in ZrZn2 deviates from linear magnetization dependence and reverses sign at small moments.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests the assumption that anomalous Hall conductivity stays linearly proportional to magnetization in a single-domain weak itinerant ferromagnet. Direct calculations on ZrZn2 using the Karplus-Luttinger formula show the linear relation holds only in the limit as magnetization approaches zero. At moments around 0.4 Bohr magnetons per zirconium atom the dependence turns nonlinear and the conductivity changes sign. A sympathetic reader would care because this challenges interpretations of the anomalous Hall effect that treat linearity as general even when magnetization is tuned continuously through the band structure.

Core claim

Direct application of the Karplus-Luttinger formula to the DFT band structure of ZrZn2 demonstrates that anomalous Hall conductivity is linear with magnetization only as M approaches zero; at finite but small moments of approximately 0.4 μB per Zr the relation breaks down completely and the conductivity reverses sign relative to the magnetization.

What carries the argument

The Karplus-Luttinger formula for anomalous Hall conductivity evaluated on the Berry curvature of DFT electronic bands in ZrZn2, with exchange splitting varied to produce different magnetization values.

If this is right

  • The linear relation between anomalous Hall conductivity and magnetization holds only in the zero-magnetization limit for this itinerant ferromagnet.
  • Nonlinearity and sign reversal appear at modest moments well below saturation.
  • Domain population effects are not required to produce apparent linearity; intrinsic band-structure contributions already deviate at small M.
  • Results are specific to single-domain configurations where magnetization is varied continuously.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar sign reversals could occur in other weak itinerant ferromagnets when magnetization is tuned finely through the same range.
  • Measurements of Hall conductivity versus applied field in ZrZn2 near the critical moment would provide a direct experimental test.
  • Device concepts that use anomalous Hall voltage to read out small magnetizations may require nonlinear calibration curves.

Load-bearing premise

The Karplus-Luttinger formula applied to a DFT band structure of ZrZn2 accurately captures the real-material anomalous Hall conductivity without significant corrections from disorder, finite temperature, or many-body effects.

What would settle it

Measurement of the anomalous Hall conductivity in ZrZn2 at controlled magnetizations near 0.4 μB per Zr atom to test whether the sign reverses as predicted by the magnetization-dependent band calculation.

Figures

Figures reproduced from arXiv: 2604.06441 by Igor. I. Mazin, Stepan S. Tsirkin, Surasree Sadhukhan, Yaroslav Zhumagulov.

Figure 1

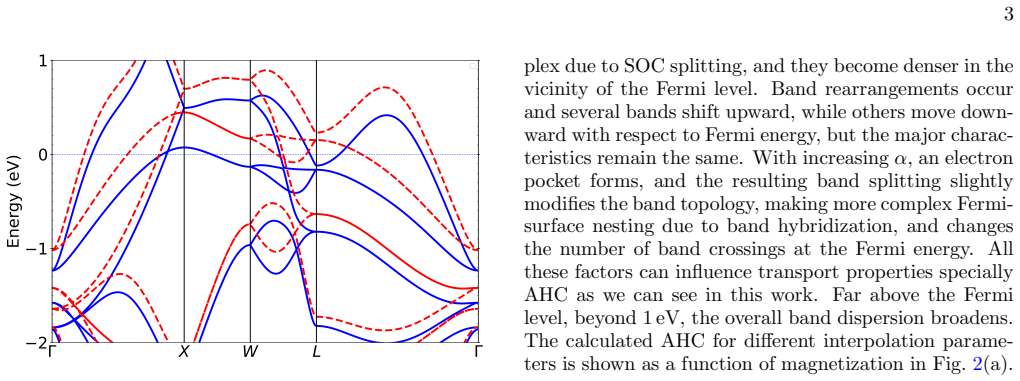

Figure 1. Figure 1: FIG. 1: The figure shows the spin polarized band struc [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

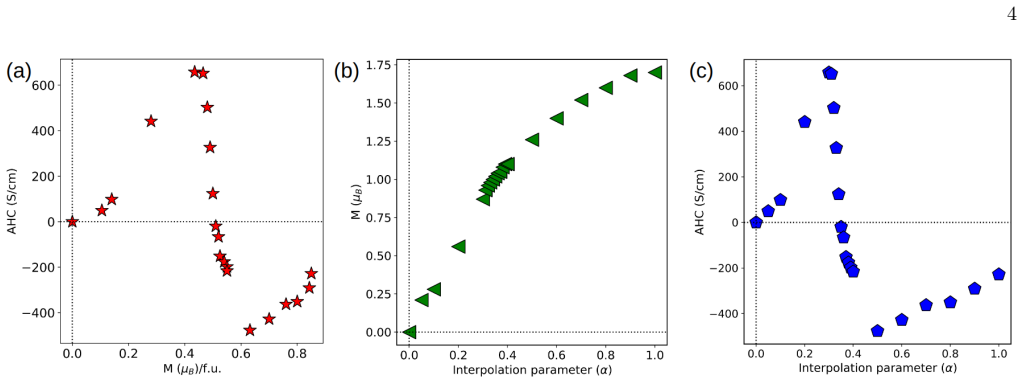

Figure 2. Figure 2: FIG. 2: Figures (a), (b), and (c) show, respectively, the AHC as a function of the total magnetization, the interpolation [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

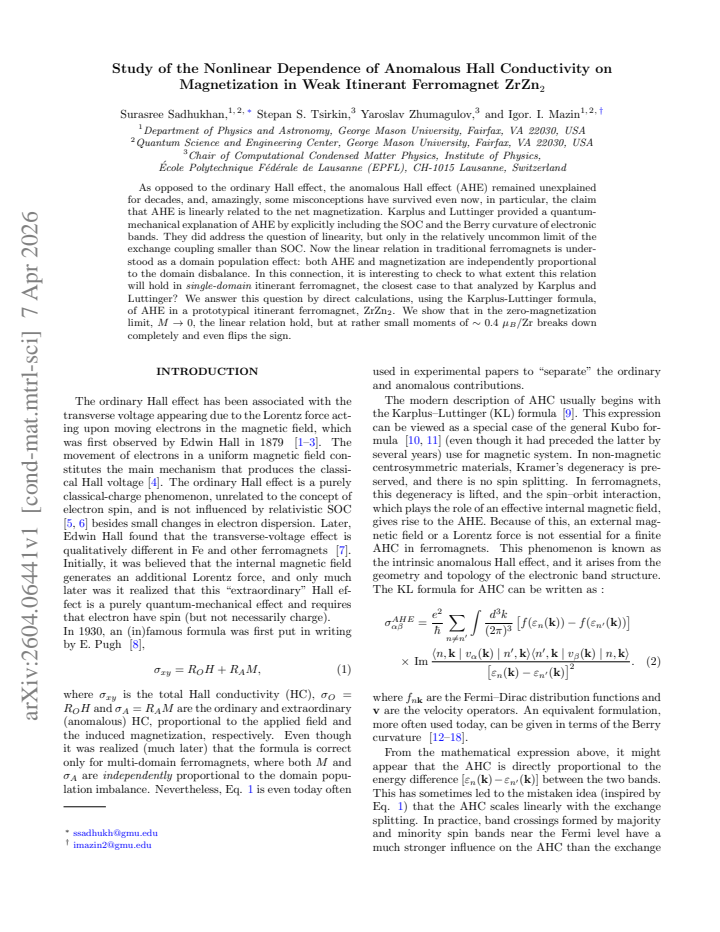

read the original abstract

As opposed to the ordinary Hall effect, the anomalous Hall effect (AHE) remained unexplained for decades, and, amazingly, some misconceptions have survived even now, in particular, the claim that AHE is linearly related to the net magnetization. Karplus and Luttinger provided a quantum-mechanical explanation of AHE by explicitly including the SOC and the Berry curvature of electronic bands. They did address the question of linearity, but only in the relatively uncommon limit of the exchange coupling smaller than SOC. Now the linear relation in traditional ferromagnets is understood as a domain population effect: both AHE and magnetization are independently proportional to the domain disbalance. In this connection, it is interesting to check to what extent this relation will hold in {\em single-domain} itinerant ferromagnet, the closest case to that analyzed by Karplus and Luttinger? We answer this question by direct calculations, using the Karplus-Luttinger formula, of AHE in a prototypical itinerant ferromagnet, ZrZn$_2$. We show that in the zero-magnetization limit, $M\rightarrow 0$, the linear relation hold, but at rather small moments of $\sim 0.4\ \mu_B$/Zr breaks down completely and even flips the sign.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that in the weak itinerant ferromagnet ZrZn2, the anomalous Hall conductivity (AHC) computed via the Karplus-Luttinger formula on DFT bands is linearly related to magnetization M only in the limit M → 0. At small but finite moments of ~0.4 μB/Zr, the linear relation breaks down completely and the sign of AHC flips.

Significance. If the numerical result holds, it would demonstrate that the AHC-M relation in single-domain itinerant ferromagnets deviates from linearity at modest magnetization values, providing a concrete counterexample to the domain-population picture and underscoring the role of Berry curvature details near a ferromagnetic quantum critical point. The work directly tests the Karplus-Luttinger framework in a realistic material setting.

major comments (2)
  1. [Abstract] Abstract: the central numerical claim of a complete breakdown and sign flip at ~0.4 μB/Zr is presented without error bars, DFT convergence tests, k-mesh details, or the specific exchange-correlation functional and magnetization constraint method used; these omissions are load-bearing because the sign change is a quantitative feature of the computed AHC(M) curve.
  2. [Discussion (or equivalent section presenting the AHC(M) results)] The calculation is restricted to the clean, T=0 intrinsic AHC via Berry curvature; given ZrZn2's proximity to a ferromagnetic QCP, the manuscript does not address why extrinsic channels (skew scattering, side-jump) or critical spin fluctuations can be neglected, even though these are expected to be comparable in magnitude to the intrinsic term at small M.
minor comments (2)
  1. [Abstract] The abstract and main text would benefit from explicit comparison of the computed AHC values to any available experimental data on ZrZn2, even if only to note the absence of such data.
  2. [Introduction] Notation for magnetization (μB/Zr) and the precise definition of the AHC tensor component should be clarified in the first appearance to avoid ambiguity for readers unfamiliar with the ZrZn2 structure.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments, which will help strengthen the manuscript. We address each major point below and will revise accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central numerical claim of a complete breakdown and sign flip at ~0.4 μB/Zr is presented without error bars, DFT convergence tests, k-mesh details, or the specific exchange-correlation functional and magnetization constraint method used; these omissions are load-bearing because the sign change is a quantitative feature of the computed AHC(M) curve.

    Authors: We agree that the abstract requires additional methodological details to support the quantitative claim of the sign reversal. In the revised manuscript we will specify the exchange-correlation functional (PBE), the fixed-spin-moment constraint method, the k-mesh density employed for Berry-curvature integration, and the results of convergence tests with respect to k-mesh and cutoff energy. Although statistical error bars do not apply to deterministic DFT calculations, we will add a brief statement on numerical precision and convergence of the AHC(M) values. These additions will be incorporated without changing the central conclusions. revision: yes

  2. Referee: [Discussion (or equivalent section presenting the AHC(M) results)] The calculation is restricted to the clean, T=0 intrinsic AHC via Berry curvature; given ZrZn2's proximity to a ferromagnetic QCP, the manuscript does not address why extrinsic channels (skew scattering, side-jump) or critical spin fluctuations can be neglected, even though these are expected to be comparable in magnitude to the intrinsic term at small M.

    Authors: Our work is deliberately focused on the intrinsic Karplus-Luttinger contribution in the clean, zero-temperature, single-domain limit in order to test the linearity assumption within that framework. We acknowledge that proximity to the ferromagnetic QCP implies that extrinsic scattering and critical fluctuations are expected to be important in real samples. In the revision we will add a clarifying paragraph in the discussion section that explicitly states the scope of the calculation, notes that extrinsic and fluctuation effects lie outside the present intrinsic Berry-curvature treatment, and indicates that a combined treatment would require separate methodological extensions. This addition will preserve the value of the intrinsic result as a theoretical benchmark while addressing the referee's concern about the neglected channels. revision: partial

Circularity Check

0 steps flagged

No circularity: direct numerical evaluation of Berry curvature on DFT bands

full rationale

The derivation consists of self-consistent or constrained DFT band-structure calculations for ZrZn2 at varying magnetization values, followed by direct numerical integration of the Berry curvature via the Karplus-Luttinger formula to obtain AHC(M). No parameter is fitted to the target AHC dependence, no result is renamed or smuggled in via self-citation, and the central claim (linearity only as M→0, breakdown and sign flip by ~0.4 μB/Zr) is an output of the computation rather than an input. The calculation is self-contained against external benchmarks and does not reduce to any of the enumerated circular patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the validity of the Karplus-Luttinger semiclassical formula for the anomalous Hall conductivity and on the accuracy of the underlying electronic band structure obtained for ZrZn2.

axioms (2)
  • standard math The anomalous Hall conductivity is given by the integral of Berry curvature over occupied bands (Karplus-Luttinger formula).
    Invoked in the abstract as the computational method.
  • domain assumption DFT band structure of ZrZn2 provides a sufficient description of the electronic states for Berry-curvature evaluation.
    Implicit in any first-principles calculation of this type; not justified in the abstract.
