arxiv: 2604.06984 · v1 · submitted 2026-04-08 · 🪐 quant-ph

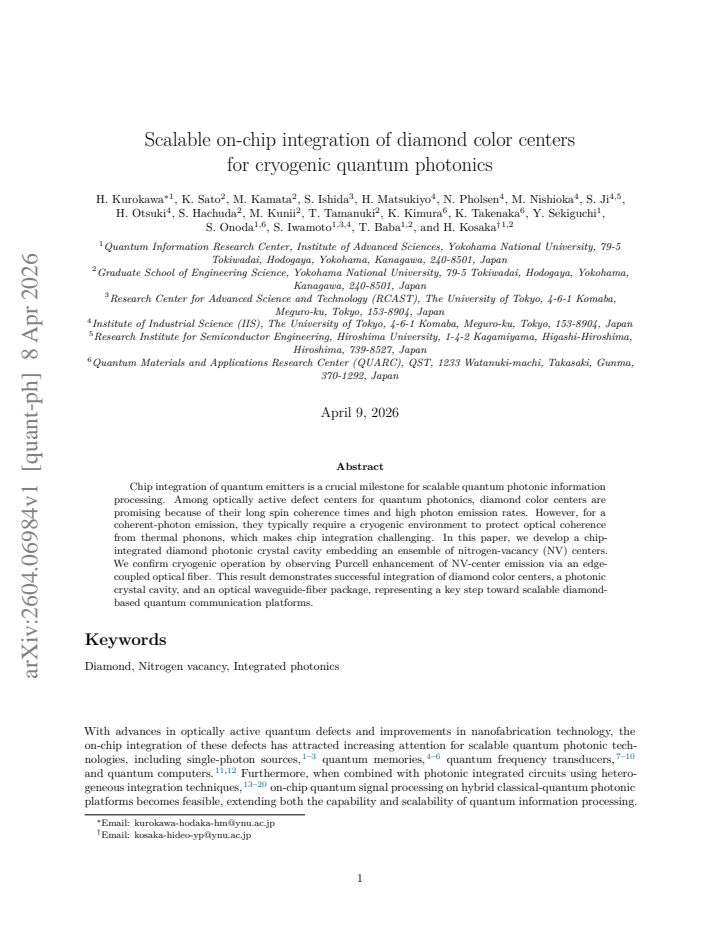

Scalable on-chip integration of diamond color centers for cryogenic quantum photonics

H. Kurokawa , K. Sato , M. Kamata , S. Ishida , H. Matsukiyo , N. Pholsen , M. Nishioka , S. Ji
show 11 more authors
H. Otsuki S. Hachuda M. Kunii T. Tamanuki K. Kimura K. Takenaka Y. Sekiguchi S. Onoda S. Iwamoto T. Baba H. Kosaka
This is my paper

Pith reviewed 2026-05-10 18:32 UTC · model grok-4.3

classification 🪐 quant-ph
keywords diamond color centersnitrogen-vacancy centersphotonic crystal cavitycryogenic operationPurcell enhancementon-chip integrationquantum photonics
0
0 comments X

The pith

A diamond photonic crystal cavity embedding NV centers is integrated on a chip and operated at cryogenic temperatures with observed Purcell enhancement via edge-coupled fiber.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that diamond color centers can be placed inside a photonic crystal cavity on a chip and still function properly when cooled to cryogenic temperatures. This matters because those low temperatures are needed to shield the centers' optical coherence from thermal vibrations, yet chip-scale integration is essential for building larger quantum systems. The authors embed an ensemble of nitrogen-vacancy centers, add an edge-coupled fiber package, and record Purcell-enhanced emission, which increases the rate of useful photons. If the integration works without adding decoherence, it removes a major barrier to assembling many such devices into practical quantum networks.

Core claim

The central claim is that a chip-integrated diamond photonic crystal cavity containing nitrogen-vacancy centers can be packaged with an optical waveguide and fiber coupler and still exhibit Purcell-enhanced emission when cooled to cryogenic temperatures. This combination demonstrates that the color centers, the cavity, and the fiber interface can be brought together on one platform while preserving the conditions required for coherent photon emission.

What carries the argument

The chip-integrated diamond photonic crystal cavity with an embedded ensemble of NV centers and an edge-coupled optical-fiber package, which simultaneously provides optical confinement, cryogenic compatibility, and external photon collection.

If this is right

  • Diamond color centers, photonic crystal cavities, and fiber packaging can coexist on a single chip at cryogenic temperatures.
  • Purcell enhancement remains measurable through the edge-coupled fiber, confirming efficient photon extraction.
  • The platform supplies a building block for larger arrays of quantum emitters connected to external networks.
  • Coherent-photon emission is achievable in a fully packaged cryogenic diamond device.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Repeating the same fabrication sequence with single NV centers instead of ensembles could produce deterministic single-photon sources on chip.
  • The same packaging approach might be applied to other diamond defects or to similar host materials such as silicon carbide.
  • Multiple such cavities on one substrate could be linked by on-chip waveguides to form small quantum photonic circuits.

Load-bearing premise

That the observed Purcell enhancement at cryogenic temperatures proves the fabrication and packaging steps have not added hidden optical losses or decoherence that would spoil coherent operation.

What would settle it

If the integrated device shows no Purcell factor or a noticeably broader emission linewidth than unprocessed NV centers under the same cryogenic conditions, the claim that integration preserves coherence would be refuted.

Figures

Figures reproduced from arXiv: 2604.06984 by H. Kosaka, H. Kurokawa, H. Matsukiyo, H. Otsuki, K. Kimura, K. Sato, K. Takenaka, M. Kamata, M. Kunii, M. Nishioka, N. Pholsen, S. Hachuda, S. Ishida, S. Iwamoto, S. Ji, S. Onoda, T. Baba, T. Tamanuki, Y. Sekiguchi.

Figure 1
Figure 1. Figure 1: Schematic of the device. (a) Conceptual illustration of a chip-integrated diamond nanophotonic [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

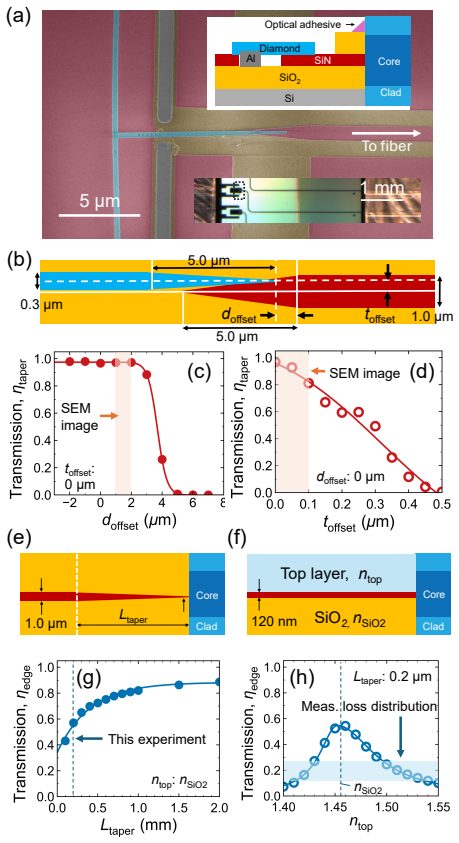

Figure 2. Figure 2: Photonic crystal integration with a SiN optical waveguide. (a) SEM image of an integrated [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

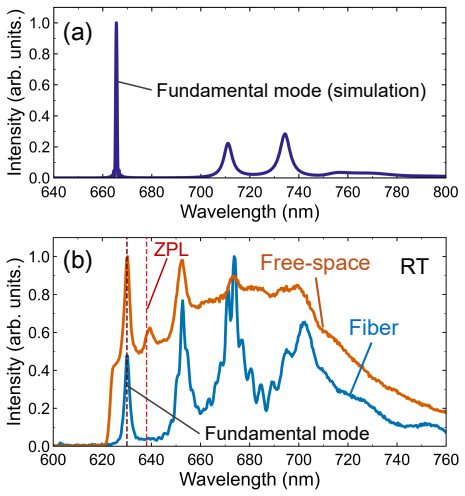

Figure 3. Figure 3: Photonic crystal cavity evaluation. (a) Simulated transmission spectrum for TE excitation applied [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

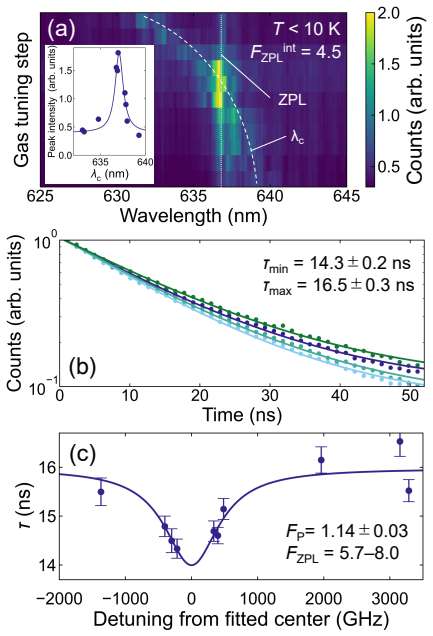

Figure 4. Figure 4: Purcell-enhanced fluorescence and relaxation dynamics. (a) PL spectra around the ZPL for different [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Chip integration of quantum emitters is a crucial milestone for scalable quantum photonic information processing. Among optically active defect centers for quantum photonics, diamond color centers are promising because of their long spin coherence times and high photon emission rates. However, for a coherent-photon emission, they typically require a cryogenic environment to protect optical coherence from thermal phonons, which makes chip integration challenging. In this paper, we develop a chip-integrated diamond photonic crystal cavity embedding an ensemble of nitrogen-vacancy (NV) centers. We confirm cryogenic operation by observing Purcell enhancement of NV-center emission via an edge-coupled optical fiber. This result demonstrates successful integration of diamond color centers, a photonic crystal cavity, and an optical waveguide-fiber package, representing a key step toward scalable diamond-based quantum communication platforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the development of a chip-integrated diamond photonic crystal cavity embedding an ensemble of NV centers, packaged with an edge-coupled optical fiber. Cryogenic operation is asserted based on the observation of Purcell-enhanced NV emission collected through the fiber, presented as a milestone toward scalable diamond quantum photonic platforms.

Significance. Successful on-chip integration of color centers with cavities and fiber packaging at cryogenic temperatures would be a meaningful engineering step for quantum photonics. The reported Purcell enhancement via packaged waveguide demonstrates that the cavity modifies emission rate and that light can be extracted post-packaging. However, without direct measurements of optical or spin coherence before and after fabrication/packaging, the result provides limited support for the stronger claim of utility in coherent quantum communication systems.

major comments (2)
  1. [Abstract] Abstract and results: The central claim that Purcell enhancement via edge-coupled fiber at cryogenic temperatures confirms successful integration preserving optical coherence is under-supported. No quantitative enhancement factor, error analysis, control measurements (e.g., off-resonance or non-cavity devices), or pre/post-fabrication linewidth/spectral diffusion data are provided to isolate the effect or bound decoherence introduced by etching or fiber attachment.
  2. [Results] Results section: The observation of rate enhancement does not address the weakest assumption that packaging and fabrication preserve sufficient coherence for quantum applications. No data on NV linewidth, T2 spin coherence, or comparison to unprocessed diamond are reported, leaving open the possibility that strain or surface defects degrade coherence without eliminating the Purcell effect.
minor comments (2)
  1. [Methods] Clarify the exact fiber coupling efficiency and any thermal contraction effects in the packaging description.
  2. [Figure 1] Add scale bars and labels to all device micrographs for clarity.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We have addressed each major point below and revised the manuscript to provide additional quantitative details, controls, and clarifications where supported by our existing data. We have tempered claims regarding coherence preservation to align with the presented evidence.

read point-by-point responses

  1. Referee: [Abstract] Abstract and results: The central claim that Purcell enhancement via edge-coupled fiber at cryogenic temperatures confirms successful integration preserving optical coherence is under-supported. No quantitative enhancement factor, error analysis, control measurements (e.g., off-resonance or non-cavity devices), or pre/post-fabrication linewidth/spectral diffusion data are provided to isolate the effect or bound decoherence introduced by etching or fiber attachment.

    Authors: We agree that the original abstract and results section would benefit from more quantitative support. We have revised both to report the observed emission rate increase (with error analysis from repeated measurements) and to include control data from off-resonance and non-cavity reference devices that show no comparable enhancement. These additions isolate the cavity effect. Pre- and post-fabrication linewidth or spectral diffusion data were not acquired in this study, as all characterizations occurred after full integration and packaging; we have added explicit discussion of this limitation and clarified that the cryogenic Purcell observation demonstrates functional cavity-emitter coupling post-processing without claiming full coherence preservation. revision: partial

  2. Referee: [Results] Results section: The observation of rate enhancement does not address the weakest assumption that packaging and fabrication preserve sufficient coherence for quantum applications. No data on NV linewidth, T2 spin coherence, or comparison to unprocessed diamond are reported, leaving open the possibility that strain or surface defects degrade coherence without eliminating the Purcell effect.

    Authors: The referee is correct that rate enhancement alone does not fully address coherence preservation for quantum applications. We have revised the results section to remove any overstatement, explicitly noting that the work demonstrates photonic integration and cryogenic operation via observed Purcell-enhanced emission collected through the fiber, rather than full quantum coherence. We have added literature-based comparison to typical NV properties in unprocessed diamond and a discussion of possible fabrication-induced effects. Direct NV linewidth, spectral diffusion, or T2 measurements before and after processing are not available in this dataset, as the focus was on the integrated photonic platform; we have acknowledged this gap and outlined it as future work. revision: partial

standing simulated objections not resolved
  • Direct pre- and post-fabrication measurements of NV optical linewidth, spectral diffusion, and spin coherence (T2) on the same devices.

Circularity Check

0 steps flagged

No circularity: experimental demonstration with no derivation chain

full rationale

The paper reports an experimental fabrication and measurement of a diamond photonic crystal cavity with embedded NV centers, packaged with an edge-coupled fiber, and verified by direct observation of Purcell-enhanced emission at cryogenic temperature. No equations, theoretical derivations, fitted parameters, or load-bearing self-citations appear in the provided abstract or description. The central claim rests on physical observation rather than any calculation that could reduce to its inputs by construction, making the result self-contained as an empirical milestone.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This experimental fabrication and measurement paper introduces no free parameters, mathematical axioms, or invented physical entities. The claim rests entirely on the physical device performance and optical measurements.

pith-pipeline@v0.9.0 · 5510 in / 1092 out tokens · 75946 ms · 2026-05-10T18:32:43.481799+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

49 extracted references · 49 canonical work pages

  1. [1]

    G.; Anant, V.; Song, J.; Englund, D.; Blumenthal, D

    Chanana, A.; Larocque, H.; Moreira, R.; Carolan, J.; Guha, B.; Melo, E. G.; Anant, V.; Song, J.; Englund, D.; Blumenthal, D. J.; Srinivasan, K.; Davanco, M. Ultra-low loss quantum photonic circuits integrated with single quantum emitters. Nature Communications 2022, 13, 7693

    work page 2022

  2. [2]

    Indi- vidually addressable and spectrally programmable artificial atoms in silicon photonics

    Prabhu, M.; Errando-Herranz, C.; De Santis, L.; Christen, I.; Chen, C.; Gerlach, C.; Englund, D. Indi- vidually addressable and spectrally programmable artificial atoms in silicon photonics. Nature Commu- nications 2023, 14, 2380

    work page 2023

  3. [3]

    A.; Errando-Herranz, C.; Papon, C.; Harper, S.; Tao, M.; Carolan, J.; Lee, C.-M.; Richardson, C

    Larocque, H.; Buyukkaya, M. A.; Errando-Herranz, C.; Papon, C.; Harper, S.; Tao, M.; Carolan, J.; Lee, C.-M.; Richardson, C. J. K.; Leake, G. L.; Coleman, D. J.; Fanto, M. L.; Waks, E.; Englund, D. Tunable quantum emitters on large-scale foundry silicon photonics. Nature Communications 2024, 15, 5781. 7

    work page 2024

  4. [4]

    L.; Schröder, T.; Poitras, C

    Mouradian, S. L.; Schröder, T.; Poitras, C. B.; Li, L.; Goldstein, J.; Chen, E. H.; Walsh, M.; Cardenas, J.; Markham, M. L.; Twitchen, D. J.; Lipson, M.; Englund, D. Scalable Integration of Long-Lived Quantum Memories into a Photonic Circuit. Physical Review X 2015, 5, 031009

    work page 2015

  5. [5]

    H.; Lu, T

    Wan, N. H.; Lu, T. J.; Chen, K. C.; Walsh, M. P.; Trusheim, M. E.; De Santis, L.; Bersin, E. A.; Harris, I. B.; Mouradian, S. L.; Christen, I. R.; Bielejec, E. S.; Englund, D. Large-scale integration of artificial atoms in hybrid photonic circuits. Nature 2020, 583, 226–231

    work page 2020

  6. [6]

    Li, L. et al. Heterogeneous integration of spin-photon interfaces with a CMOS platform. Nature 2024, 630, 70–76

    work page 2024

  7. [7]

    Remote Entanglement of Superconducting Qubits via Solid-State Spin Quantum Memories

    Kurokawa, H.; Yamamoto, M.; Sekiguchi, Y.; Kosaka, H. Remote Entanglement of Superconducting Qubits via Solid-State Spin Quantum Memories. Physical Review Applied 2022, 18, 064039

    work page 2022

  8. [8]

    Diamond optomechanical cavity with a color center for coherent microwave-to-optical quantum interfaces

    Kim, B.; Kurokawa, H.; Sakai, K.; Koshino, K.; Kosaka, H.; Nomura, M. Diamond optomechanical cavity with a color center for coherent microwave-to-optical quantum interfaces. Physical Review Applied 2023, 20, 044037

    work page 2023

  9. [9]

    Scalable microwave-to-optical transducers at the single-photon level with spins

    Xie, T.; Fukumori, R.; Li, J.; Faraon, A. Scalable microwave-to-optical transducers at the single-photon level with spins. Nature Physics 2025, 21, 931–937

    work page 2025

  10. [10]

    Quantum Orbital-State Control of a Neutral Nitrogen-Vacancy Center at Millikelvin Temperatures

    Kurokawa, H.; Nakazato, S.; Makino, T.; Kato, H.; Onoda, S.; Sekiguchi, Y.; Kosaka, H. Quantum Orbital-State Control of a Neutral Nitrogen-Vacancy Center at Millikelvin Temperatures. Physical Re- view Letters 2025, 135, 016902

    work page 2025

  11. [11]

    M.; Guidry, M

    Lukin, D. M.; Guidry, M. A.; Vučković, J. Integrated Quantum Photonics with Silicon Carbide: Chal- lenges and Prospects. PRX Quantum 2020, 1, 020102

    work page 2020

  12. [12]

    M.; Reinke, P.; Corujeira Gallo, S.; Stacey, A.; Pakes, C

    Oberg, L.; Weber, C.; Yang, H.-H.; Klesse, W. M.; Reinke, P.; Corujeira Gallo, S.; Stacey, A.; Pakes, C. I.; Doherty, M. W. Bottom-up fabrication of scalable room-temperature diamond quantum computing and sensing technologies. Materials for Quantum Technology 2025, 5, 033001

    work page 2025

  13. [13]

    C.; Bunandar, D.; Pant, M.; Steinbrecher, G

    Harris, N. C.; Bunandar, D.; Pant, M.; Steinbrecher, G. R.; Mower, J.; Prabhu, M.; Baehr-Jones, T.; Hochberg, M.; Englund, D. Large-scale quantum photonic circuits in silicon. Nanophotonics 2016, 5, 456–468

    work page 2016

  14. [14]

    V.; Verma, V.; Mirin, R.; Nam, S

    Davanco, M.; Liu, J.; Sapienza, L.; Zhang, C.-Z.; De Miranda Cardoso, J. V.; Verma, V.; Mirin, R.; Nam, S. W.; Liu, L.; Srinivasan, K. Heterogeneous integration for on-chip quantum photonic circuits with single quantum dot devices. Nature Communications 2017, 8, 889

    work page 2017

  15. [15]

    Y.; Boltasseva, A.; Shalaev, V

    Bogdanov, S.; Shalaginov, M. Y.; Boltasseva, A.; Shalaev, V. M. Material platforms for integrated quantum photonics. Optical Materials Express 2017, 7, 111–132

    work page 2017

  16. [16]

    Lenzini, F.; Gruhler, N.; Walter, N.; Pernice, W. H. P. Diamond as a Platform for Integrated Quantum Photonics. Advanced Quantum Technologies 2018, 1, 1800061

    work page 2018

  17. [17]

    Wang, J.; Sciarrino, F.; Laing, A.; Thompson, M. G. Integrated photonic quantum technologies. Nature Photonics 2020, 14, 273–284

    work page 2020

  18. [18]

    W.; Pernice, W.; Srinivasan, K.; Benson, O.; Zwiller, V

    Elshaari, A. W.; Pernice, W.; Srinivasan, K.; Benson, O.; Zwiller, V. Hybrid integrated quantum photonic circuits. Nature Photonics 2020, 14, 285–298

    work page 2020

  19. [19]
