Phase coherence and disorder-induced wave propagation in micromotor arrays
Pith reviewed 2026-05-10 17:29 UTC · model grok-4.3
The pith
Quenched disorder in rotary motor arrays triggers propagating phase waves between mismatched-speed regions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In arrays of thousands of 3D-printed rotary motors linked by elastic coupling, the rotors spontaneously form a pristine antiferromagnetic phase, develop phase coherence in their precession, and, under quenched disorder, support the free propagation of phase waves across self-organized domains that rotate at different speeds.
What carries the argument
Elastic coupling between the rotary motors, which enforces antiferromagnetic ordering, sustains phase coherence, and permits disorder-induced phase waves when rotation speeds mismatch.
If this is right
- The antiferromagnetic phase organizes unspecified initial precession directions into stable collective dynamics.
- Phase coherence supplies global spatiotemporal order without central control.
- Quenched disorder converts speed mismatches into freely propagating phase waves.
- The same mechanism offers a route to metachronal-wave formation in synthetic metamachines.
Where Pith is reading between the lines
- Controlling the amount or placement of disorder could allow directed signal routing in larger motor arrays.
- The same elastic-coupling principle might apply to other active rotors or oscillators to produce waves without added forces.
- Scaling the array size or varying motor density could test whether wave speed depends only on the disorder pattern.
Load-bearing premise
The elastic links between motors are strong enough on their own to produce the observed antiferromagnetic order and phase coherence without external fields or initial programming.
What would settle it
An experiment in which all motors are forced to identical speeds or the elastic coupling is removed would show whether phase waves still appear under quenched disorder; absence of waves would falsify the claim that disorder initiates propagation.

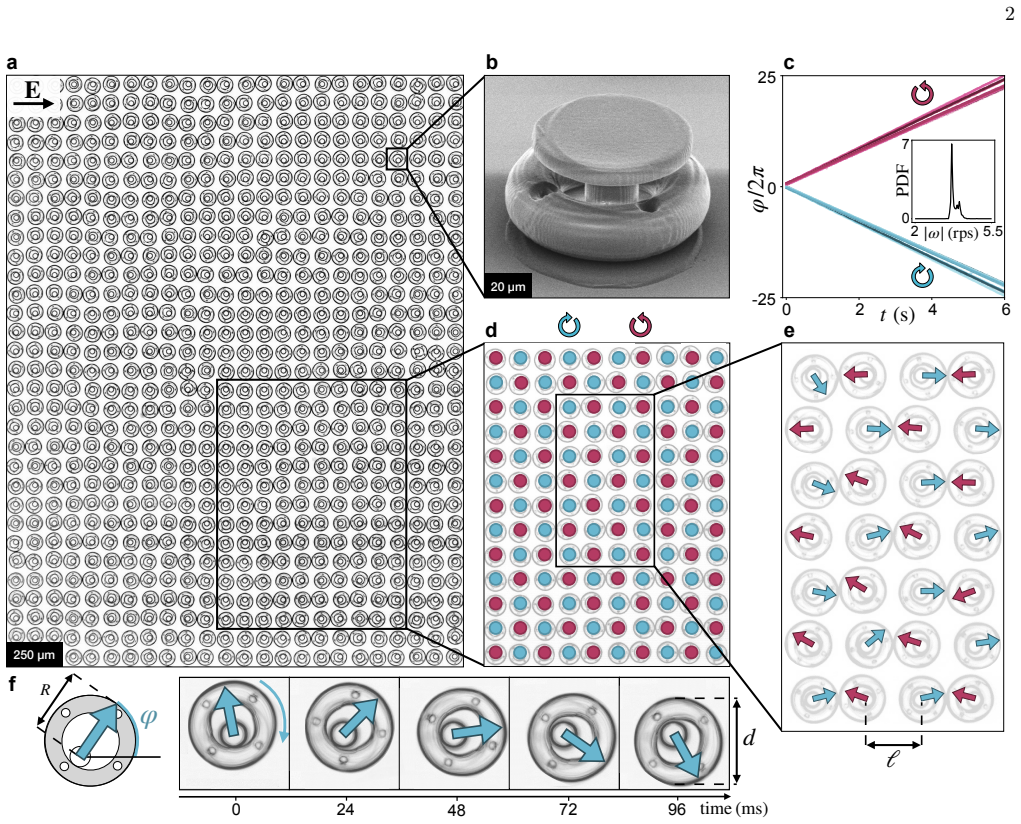

Figures
read the original abstract
Machines are designed, assembled, and programmed to convert power into predetermined dynamics and functions. In contrast, living systems such as interacting cells and animal groups self-organize, synchronize, and perform complex tasks without predefined patterns. Inspired by these decentralized architectures, experiments have shown that small assemblies of elastically coupled self-propelled robots can achieve two fundamental functionalities observed in nature: collective motion and oscillatory deformations. However, biological inspiration has steered research toward translational self-propulsion, while active rotation remains an underexplored route to designing broader animate materials. Here, we study the self-organization of microscopic metamachines composed of thousands of 3D-printed rotary motors. We first demonstrate and explain how motors precessing in unspecified directions collectively arrange their dynamics into a pristine antiferromagnetic phase. Next, we elucidate the emergence of spatiotemporal order in the form of phase coherence in the rotors' precession. Finally, we show how quenched disorder initiates the free propagation of phase waves across self-organized regions with mismatched rotation speeds. Our results suggest that spinner-based metamachines could illuminate metachronal-wave formation in living systems, and signal propagation in synthetic animate materials.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports experiments and simulations on arrays of thousands of 3D-printed rotary micromotors that are elastically coupled. It demonstrates that motors with initially unspecified precession directions self-organize into a pristine antiferromagnetic phase, develop spatiotemporal phase coherence in their precession, and that the introduction of quenched disorder (regions with mismatched rotation speeds) triggers sustained, free propagation of phase waves across the self-organized domains without further external driving.
Significance. If the central claims hold, the work establishes a disorder-driven mechanism for generating metachronal-like waves in rotary active-matter systems, providing a scalable experimental platform for studying decentralized synchronization and signal propagation in synthetic metamaterials. The combination of direct measurements of pairwise elastic interactions, parameter sweeps in the model, and large-scale demonstrations with thousands of motors strengthens the case that elastic coupling alone can stabilize antiferromagnetic order and enable wave emergence.
major comments (2)
- [Results on antiferromagnetic phase] The section describing the antiferromagnetic ordering (likely the first results subsection) should explicitly quantify the elastic coupling strength relative to the driving torques and any residual noise; without this comparison it remains unclear whether the observed order is robust against small perturbations or requires fine-tuning of the 3D-printed geometry.
- [Quenched-disorder wave propagation] In the wave-propagation experiments, the claim that propagation is 'free' (no continuous external driving after the quench) is load-bearing; the manuscript must show time-resolved data confirming that wave speed and coherence persist over many periods once the speed heterogeneity is fixed, with a clear control that removes the disorder and eliminates the waves.
minor comments (3)
- [Figures] Figure captions should state the number of motors, the measured coupling constant, and the rotation-speed mismatch values used in each panel to allow direct comparison with the model.
- [Methods] The abstract states 'unspecified directions' yet the main text must clarify whether initial directions are truly random or set by fabrication tolerances; a short methods paragraph on fabrication variability would remove ambiguity.
- [Theory/Methods] Notation for phase difference and wave vector should be defined once in the text and used consistently; currently the transition from local precession phase to global wave description is abrupt.
Simulated Author's Rebuttal
We thank the referee for their positive assessment of our manuscript and for the constructive comments. We address each major comment below.
read point-by-point responses
-
Referee: [Results on antiferromagnetic phase] The section describing the antiferromagnetic ordering (likely the first results subsection) should explicitly quantify the elastic coupling strength relative to the driving torques and any residual noise; without this comparison it remains unclear whether the observed order is robust against small perturbations or requires fine-tuning of the 3D-printed geometry.
Authors: We agree that an explicit comparison is valuable for establishing robustness. In the revised manuscript we will add a dedicated paragraph (with supporting figure) that reports the elastic coupling energy extracted from independent pairwise interaction measurements, directly compares it to the driving torques, and estimates residual noise from the observed fluctuations in isolated motors. This will show that the antiferromagnetic order is stable well above the noise floor and does not require fine-tuning. revision: yes
-
Referee: [Quenched-disorder wave propagation] In the wave-propagation experiments, the claim that propagation is 'free' (no continuous external driving after the quench) is load-bearing; the manuscript must show time-resolved data confirming that wave speed and coherence persist over many periods once the speed heterogeneity is fixed, with a clear control that removes the disorder and eliminates the waves.
Authors: We concur that sustained free propagation must be demonstrated explicitly. The revised version will include extended time series (spanning >20 precession periods) that track wave speed and phase coherence after the quench, together with a control experiment in which the speed heterogeneity is removed while keeping all other conditions fixed; in that control the waves cease, confirming that disorder is required for propagation. revision: yes
Circularity Check
No significant circularity
full rationale
The manuscript is a purely experimental study of self-organization in arrays of 3D-printed rotary motors. It reports direct observations of antiferromagnetic ordering, emergence of phase coherence, and disorder-induced traveling waves, supported by measurements of pairwise interactions and parameter sweeps in a supporting numerical model. No derivation chain, fitted parameters renamed as predictions, or load-bearing self-citations appear; all claims rest on physical measurements and controlled experiments rather than equations that reduce to their own inputs by construction. The work is therefore self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Elastic coupling between motors produces collective antiferromagnetic ordering and phase coherence
Reference graph
Works this paper leans on
-
[1]
3D Nanoprinting We first design 3D models of the motors using the CAD software Fusion360 (Fig. S1). We then 3D-print micro- motor lattices using two-photon polymerization with a Nanoscribe Photonic Professional GT2 (PPGT2) 3D printer. We print the motors in photosensitive resin SU-8 100 spincoated on fused silica substrates, and enhance the adhesion of th...
-
[2]
S2.Microfluidic chip.Our microfluidic channels are made of double sided tapes
Microfluidic device 100 µm thick inox electrodes 10 µm thick double sided tape Micro-motors 3D printed on the glass slide Glass-slide E Fluid inlet Fluid outlet FIG. S2.Microfluidic chip.Our microfluidic channels are made of double sided tapes. The two electrodes are made of stainless steel. We place the micromotors in 1 cm wide microfluidic channels (Fig...
-
[3]
Quincke motorization setup and principle 3.1 . Electric setup To actuate our micromotors, we take advantage of the Quincke electrorotation instability, which we briefly recall in the next section [3, 14, 18]. Using a voltage amplifier (TREK 610E), we apply an electric fieldEtransverse to the electrodes and parallel to one of the axes of the micromotor net...
-
[4]
S4.Tracking of the rotor phase and speed
Measurements of the instantaneous phase and angular velocity rφ rθ,i θ1 θ2 θ4 θ3 b φa rφ rφ ex ey FIG. S4.Tracking of the rotor phase and speed. a.To measure the instantaneous phaseφ(t)we need to measure the instantaneous center of mass (pink dot) of the rotor and its time average (blue dot).b.We measure the instantaneous rotation angleθby detecting the p...
-
[5]
For each geometry, and each value ofℓ, we repeated ten independent experiments
Experimental Protocols AntiferromagneticorderTocharacterizetheemergenceofantiferromagneticorderasthelatticespacingℓdecreases, we conducted experiments both on lattices made of 20×11 small motors, and on 13×12 large motors. For each geometry, and each value ofℓ, we repeated ten independent experiments. The order parameterΩplotted in Fig. 2a in the main tex...
-
[6]
Geometric control of the motor speed We here describe a practical method to control the spatial variations of the motor speed. The motors being powered by the Quincke instability, controlling their rotation speed amounts to controlling the magnitude of the electric field. To achieve a local control ofEwe take advantage of the Ohmic transport in the microc...
-
[7]
Quincke electrotation of micromotors: spin and precession FIG. S8.a.Sketch of the three states of the motor dynamics: Arrested, Spinning, Precession.b.E= 0.6E Q: The motors do not rotate. Electrophoresis drives the rotors towards the stators.c.E= 1.3EQ: Above the onset of electro-rotation, the rotors are centered and spin at a constant rate.d.E= 2.1E Q: A...
-
[8]
On average, the precession angleφ(t)increases linearly with time and is controlled byE(Fig
Modulation of the precession dynamics Before explaining this variety of dynamics, it is worth taking a closer look at the precession regime. On average, the precession angleφ(t)increases linearly with time and is controlled byE(Fig. S8g). However the instantaneous value ofω= ˙φ(t)is not constant. Even when a rotor is isolated,ωfluctuates periodically arou...
-
[9]
Origins of the spinning and hula-hoop dynamics Providing a quantitative and predictive theory of single motor dynamics goes beyond the scope of our article. On the sole basis of our measurements, we can however pinpoint the physical phenomena that rule the transition from 10 FIG. S10.Dielectrophoresis centers the rotor’s position aA single rotor immersed ...
-
[10]
Quincke electro-rotation instability: a primer We first briefly recall how to model the dynamics of a single Quincke rotor, see for instance Ref. [14, 16] for more details. We consider a rotor, an axisymmetric body, immersed in a conducting fluid. Both the solid body and the fluid are weak Ohmic conductors and have a finite electric permittivity. We negle...
-
[11]
Two coupled rotors 2.1 . How do Quincke spinners respond to torques? Before addressing the dynamics of coupled motors, we can gain some insight by considering a simpler situation where a single Quincke motor responds to an imposed constant torque. The dynamics then obeys the rescaled overdamped equations: dΠx dt∗ = ΩΠy −Π x (S11) dΠy dt∗ = Ω(ρ−Π x)−Π y (S...
-
[12]
A Minimal Model: coupled phase oscillators Our goal is not to model in detail all the specifics of our experiments. Rather, we seek to highlight the types of dynamics and interactions that can give rise to a collective phase organization. To this end, we adopt a minimal approach inspired by models developed to study the synchronization of beating cilia in...
-
[13]
Precession at constant speed: Dipolar interactions induce phase coherence We first disregard the modulation of the precession speed measured for isolated motors and takeτ1 =−τ 2 =τ 0. In our experiments the rotors are in principle coupled by three types of interactions: (i) radial repulsive forces: these include both contact interactions, and electrostati...
-
[14]
(Fig. S14b). Accordingly, we assume that the first micromotor, rotating counterclockwise, carries a dipolep1 with angleδ >0, whereas the second micromotor, rotating clockwise, carries a dipolep2 with angle−δ, with|p 1|=|p 2|. The interaction potential between the two particles located atr1 andr 2 is then given by: U∝ − 1 r3 21 [3(p1 · ˆr21)(p2 · ˆr21)−p 1...
-
[15]
We find that the equations of motion take the form: ˙φ1 = 1− C r′3 21 ℓ a sin (α−φ 1) + sin (φ2 −φ 1) (S28) ˙φ2 =−1 + C r′3 21 ℓ a sin (α−φ 2) + sin (φ2 −φ 1) ,(S29) whereCa positive constant controlling the amplitude of the interactions, and r′ 21 = ℓ a cosα+ (cosφ 2 −cosφ 1) 2 + ℓ a sinα+ (sinφ 2 −sinφ 1) 2 1/2 .(S30) We numerically solve these two equa...
-
[16]
In section III2 we have shown that the fluctuations of the rotation speed has a two-fold symmetry
Twofold-modulated drive: impact of hydrodynamic interactions on phase coherence Earlier studies have shown that hydrodynamic interactions can effectively synchronize the phase of driven colloids and beating microcilia when their oscillation pattern is modulated [2, 4, 9, 15, 23, 24]. In section III2 we have shown that the fluctuations of the rotation spee...
-
[17]
How to shape the phase-coherent states of phase-oscillator lattices We close this section with a more general discussion on the phase coherent states accessible to metamachines. We focus on coupled motors whose directions of rotation self-organize into an ordered antiferromagnetic state, as in our experiments. Beyond the specifics of our system, a broader...
-
[18]
Synchronization without contact interactions We report in Fig. S20 an additional experimental observation that discards contact interactions as the primary source of phase coherence. When the lattice spacing is too large to yield pristine AF order, ordered domains remains (see Figure 2 in the main text). In those domains, we find that the motors precessio...
-
[19]
Oscillations of the phase sum in steady state Figure 3b in the main text shows that¯φ(t)oscillates around the mean value¯φ(t) =π. These oscillations at the same frequency as the average rotation speedω0 do not require the rotation speed to be modulated. To see this, 23 we simulate the dynamics of a pair of rotors with constant natural frequencies±ω0, and ...
-
[20]
Phase coherence in homogeneous motor lattices To guide our numerical investigation, we first inspect the role of the lattice spacingℓand dipole strengthBon the self-organization of10×10lattices (Figure S22). Informed by our previous analysis we focus on a minimal model where pointwise oscillators are only coupled via dipolar interactions. We impose a perf...
-
[21]
Disorder in rotation speeds as a source of waves To assess the impact of disorder, we introduce noise in the driving torques of the motors. The equations of motion take the same form: 0 =−γa˙φi +τ i + X j̸=i τji,(S42) but theτ i are now quenched random variables. The sign ofτi alternates on each site to account for antiferromagnetic ordering, buttheir amp...
-
[22]
The boundary conditions do not impact the wave spectra In order to assess whether the phase-wave patterns depends on the boundary conditions at the edges of the motor lattices, we performed three series of numerical simulations changing the type of boundary conditions and keeping all the other parameters identical. Figure VI22.2 shows that the wave spectr...
-
[23]
Wave Generation Mechanism To elucidate the mechanism behind wave generation, we perform simplified one-dimensional simulations with dipolar interactions and periodic boundary conditions (Lattice size: 100×6). We initialize the system in a perfectly coherent state and induce two distinct velocity domains by imposing two different driving torques in the hal...
-
[24]
Long wave-length dynamics ofδφ ⋆: emergence of phase waves from domain walls To gain more insight into the propagation of phase waves from the boundaries of the ordered domains, we provide a long-wave-length approximation of the minimal model developed in Section V1. Within this approximation, we will show that the modified phase differenceδφ⋆ is a slow v...
-
[25]
