arxiv: 2604.07171 · v1 · submitted 2026-04-08 · 💻 cs.LG

Smart Commander: A Hierarchical Reinforcement Learning Framework for Fleet-Level PHM Decision Optimization

Pith reviewed 2026-05-10 17:49 UTC · model grok-4.3

classification 💻 cs.LG
keywords hierarchical reinforcement learningfleet maintenance optimizationprognostics and health managementlogistics decision makingsparse rewardsdiscrete-event simulationstochastic mission profiles
0
0 comments X

The pith

A two-tier hierarchical reinforcement learning system decomposes fleet maintenance into strategic and tactical levels to handle complexity and sparse rewards.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a hierarchical reinforcement learning framework to optimize sequential maintenance and logistics decisions for large aircraft fleets under uncertainty. It splits the control task so a top-level commander sets fleet-wide availability and cost goals while lower-level commanders handle daily scheduling, resource use, and sortie generation. Layered rewards and planning-enhanced networks are added to manage delayed feedback. The approach is tested in a detailed simulation of aircraft operations and support logistics, where it trains faster and scales more reliably than single-level deep reinforcement learning or rule-based alternatives. If the results hold, this structure could make reinforcement learning usable for real-time decisions in high-dimensional, stochastic systems like military aviation support.

Core claim

By decomposing the complex fleet PHM control problem into a two-tier hierarchy, a strategic General Commander manages overall availability and cost objectives while tactical Operation Commanders execute specific actions for sortie generation, maintenance scheduling, and resource allocation; integrating layered reward shaping with planning-enhanced neural networks addresses sparse and delayed rewards, enabling the system to outperform monolithic deep reinforcement learning and rule-based baselines in training speed, scalability, and robustness within a high-fidelity discrete-event simulation.

What carries the argument

The two-tier hierarchy with a General Commander overseeing fleet-level availability and costs and Operation Commanders managing specific maintenance and logistics actions, supported by layered reward shaping and planning-enhanced networks to process sparse feedback.

If this is right

  • The hierarchy allows training time to stay manageable as fleet size grows rather than exploding with the full state space.
  • Robustness improves because tactical commanders can adapt locally even when unexpected failures occur at the fleet level.
  • Layered rewards and planning integration make it possible to learn effective policies despite long delays between actions and outcomes in logistics chains.
  • The framework produces policies that maintain higher aircraft availability at lower cost than flat methods under stochastic mission demands.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar hierarchical decompositions could simplify reinforcement learning for other large-scale logistics problems such as supply-chain scheduling or power-grid maintenance.
  • The simulation results suggest that adding explicit planning layers may be a general way to reduce sample requirements in delayed-reward domains.
  • If the hierarchy generalizes, it could lower the barrier to applying reinforcement learning in safety-critical fleet settings where full monolithic training is impractical.

Load-bearing premise

The custom-built high-fidelity discrete-event simulation accurately captures the real dynamics of aircraft configuration, support logistics, stochastic mission profiles, and sparse feedback encountered in actual fleet operations.

What would settle it

Deploying the trained hierarchical policies on real fleet operational data or in a live test environment and measuring whether the reported gains in training time, availability, and robustness persist relative to monolithic and rule-based baselines.

Figures

Figures reproduced from arXiv: 2604.07171 by Guijiang Li, Jing Li, Mingfei Lu, Yang Hu, Yong Si, Yueheng Song, Zhaokui Wang.

Figure 1

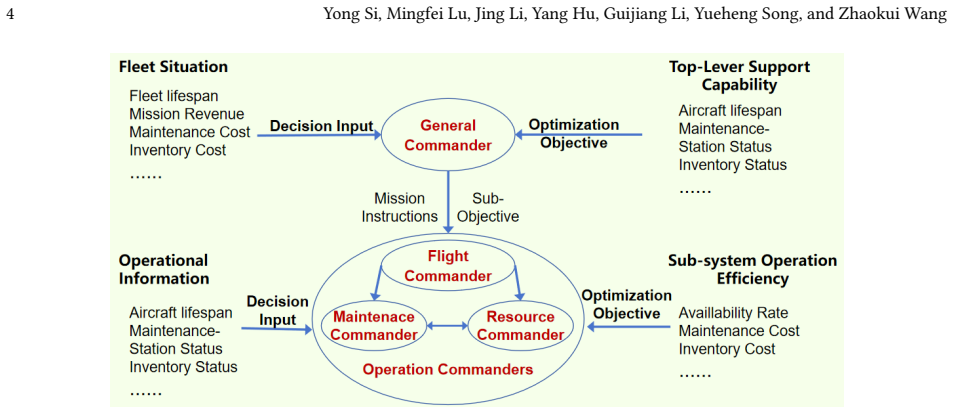

Figure 1. Figure 1: Hierarchical decision-making architecture of the Smart Commander framework. The General Commander operates at the strategic level, [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

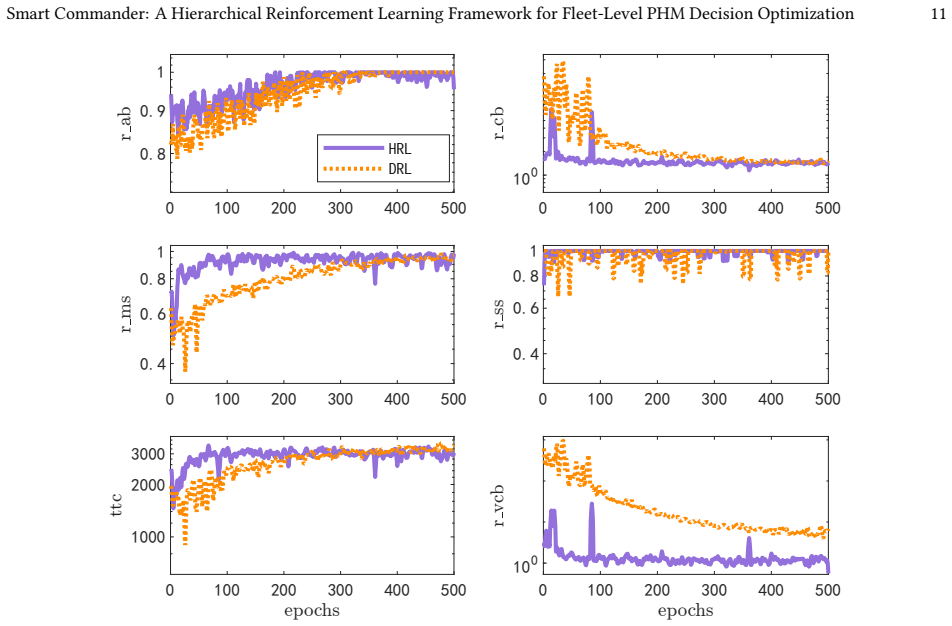

Figure 2. Figure 2: Training dynamics under nominal conditions. The Smart Commander (HRL, purple) converges faster than DRL (orange) across all metrics. [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3

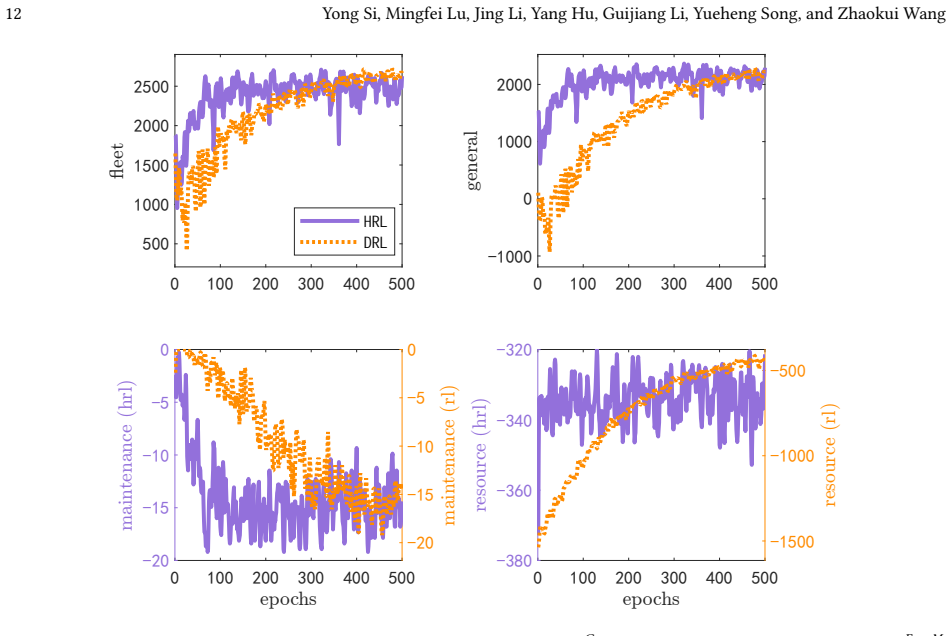

Figure 3. Figure 3: Training rewards under nominal conditions. Top: General Commander reward ( [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

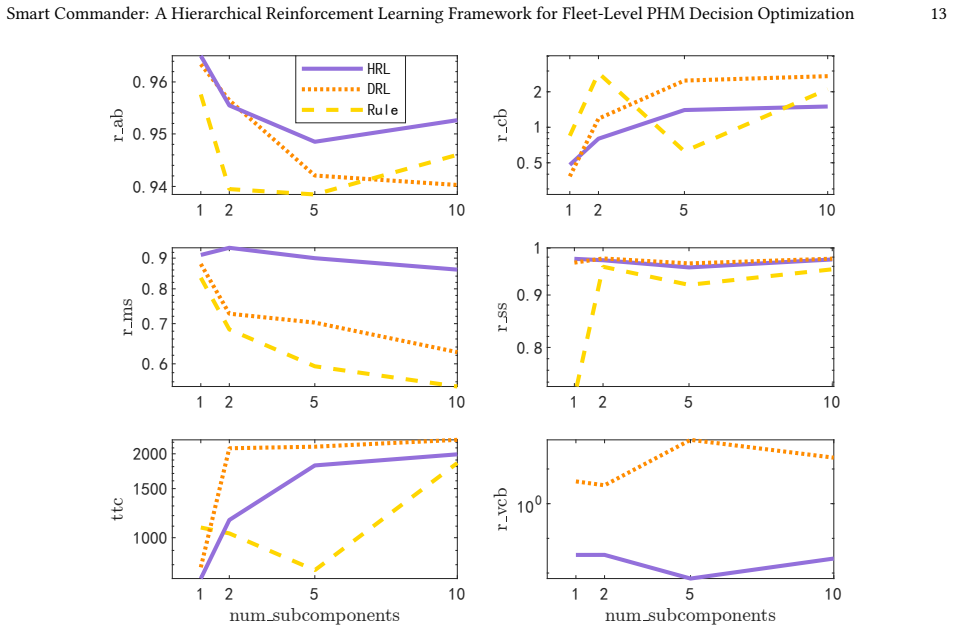

Figure 4. Figure 4: Scalability analysis under varying system complexity ( [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

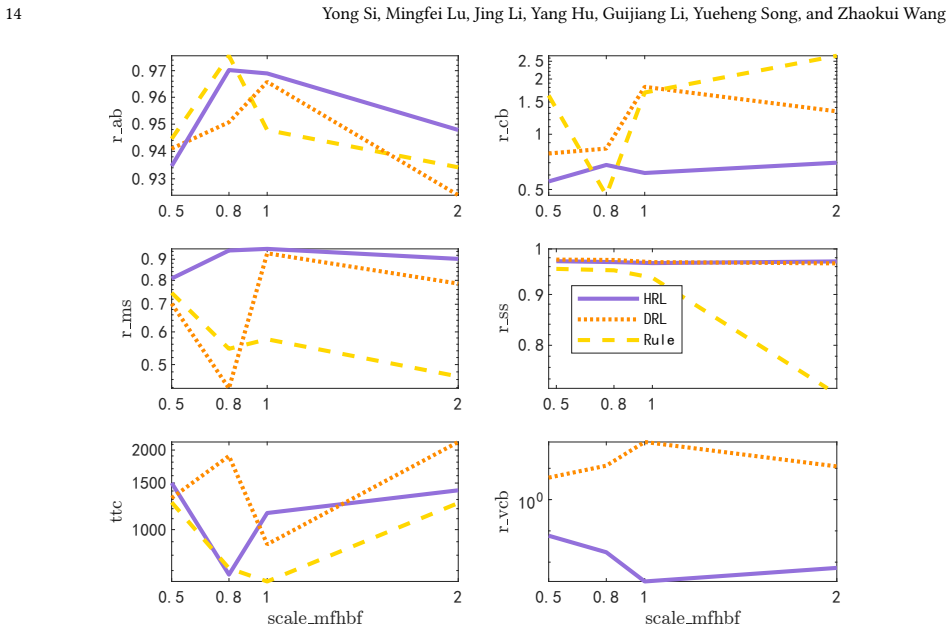

Figure 5. Figure 5: Robustness analysis under varying failure intensities ( [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6

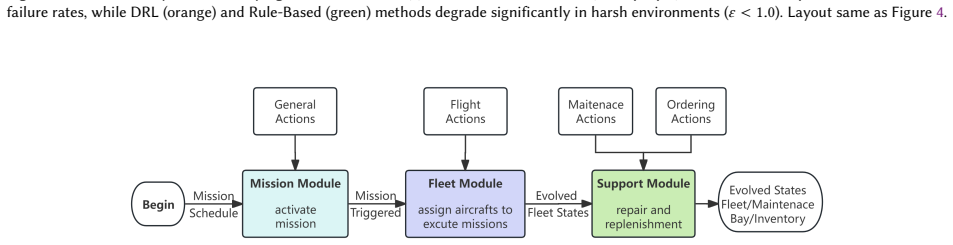

Figure 6. Figure 6: Simulation model architecture with mission, fleet-health, and support/logistics modules. [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7

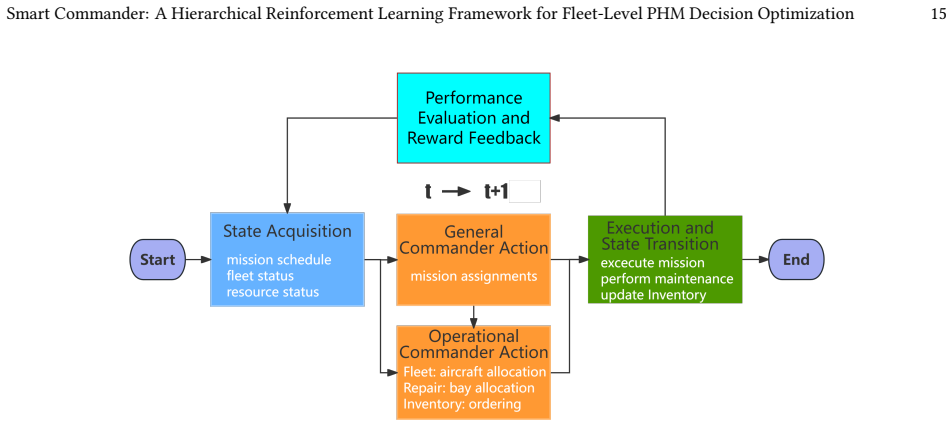

Figure 7. Figure 7: Simulation flow of fleet operations in each DES cycle. [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8

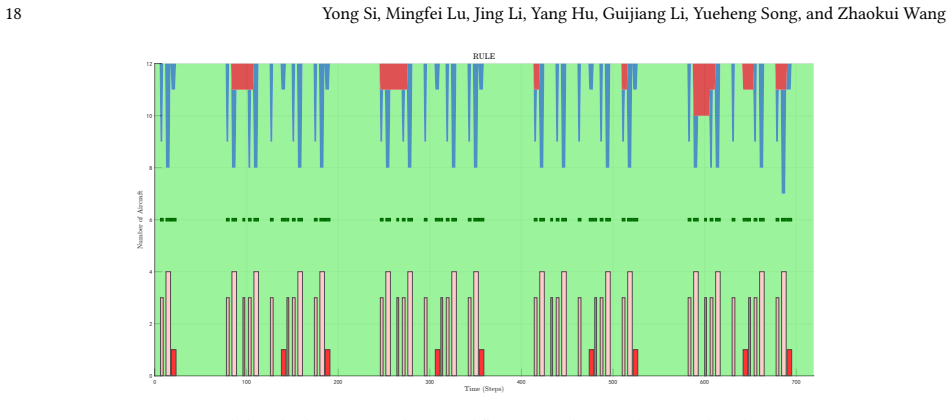

Figure 8. Figure 8: Rule-based policy: mission selection and fleet state evolution under nominal conditions. [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9

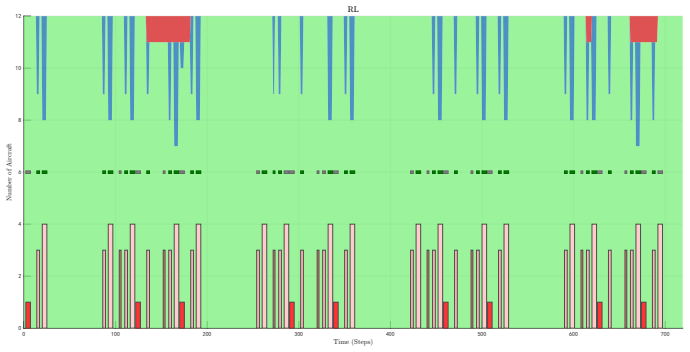

Figure 9. Figure 9: Flat DRL policy: mission selection and fleet state evolution under nominal conditions. [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10

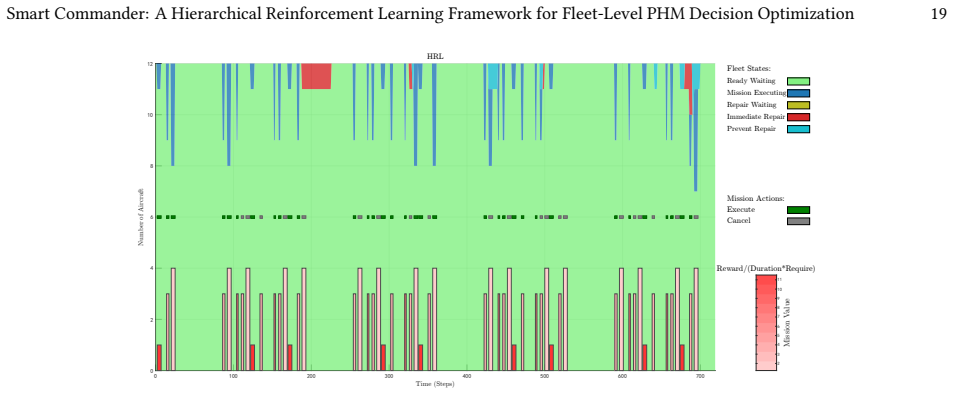

Figure 10. Figure 10: HRL Smart Commander: mission selection and fleet state evolution under nominal conditions. [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
read the original abstract

Decision-making in military aviation Prognostics and Health Management (PHM) faces significant challenges due to the "curse of dimensionality" in large-scale fleet operations, combined with sparse feedback and stochastic mission profiles. To address these issues, this paper proposes Smart Commander, a novel Hierarchical Reinforcement Learning (HRL) framework designed to optimize sequential maintenance and logistics decisions. The framework decomposes the complex control problem into a two-tier hierarchy: a strategic General Commander manages fleet-level availability and cost objectives, while tactical Operation Commanders execute specific actions for sortie generation, maintenance scheduling, and resource allocation. The proposed approach is validated within a custom-built, high-fidelity discrete-event simulation environment that captures the dynamics of aircraft configuration and support logistics.By integrating layered reward shaping with planning-enhanced neural networks, the method effectively addresses the difficulty of sparse and delayed rewards. Empirical evaluations demonstrate that Smart Commander significantly outperforms conventional monolithic Deep Reinforcement Learning (DRL) and rule-based baselines. Notably, it achieves a substantial reduction in training time while demonstrating superior scalability and robustness in failure-prone environments. These results highlight the potential of HRL as a reliable paradigm for next-generation intelligent fleet management.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes Smart Commander, a two-tier hierarchical reinforcement learning framework for fleet-level Prognostics and Health Management (PHM) decision optimization in military aviation. A strategic General Commander handles high-level availability and cost objectives while tactical Operation Commanders manage sortie generation, maintenance scheduling, and resource allocation. The method incorporates layered reward shaping and planning-enhanced networks to address sparse rewards and is evaluated in a custom high-fidelity discrete-event simulation, claiming substantial outperformance over monolithic DRL and rule-based baselines in training time, scalability, and robustness under failure-prone conditions.

Significance. If the simulation faithfully reproduces real fleet dynamics and the empirical gains are reproducible, the work could meaningfully advance scalable HRL applications to high-dimensional, stochastic PHM problems with delayed feedback, offering a practical path toward improved aircraft availability and reduced logistics costs in large-scale operations.

major comments (3)
  1. [Abstract] Abstract: the central empirical claim of 'significant outperformance' and 'substantial reduction in training time' is stated without any quantitative metrics, confidence intervals, ablation results, or baseline implementation details, rendering the primary result unverifiable from the provided text.
  2. [Validation / Experiments] The validation section (implied by the abstract's simulation description): the custom discrete-event simulation is presented as high-fidelity yet no calibration against historical fleet data, parameter sensitivity analysis on failure rates or mission profiles, or cross-validation with real operations is reported; this assumption is load-bearing for all applicability conclusions.
  3. [Method] Method description: while the two-tier hierarchy is outlined, no explicit equations or pseudocode define the inter-level communication, reward decomposition, or how the planning-enhanced networks are trained, preventing assessment of whether the claimed robustness stems from the architecture or from simulation-specific tuning.
minor comments (2)
  1. [Method] Notation for the two commander levels and reward components should be introduced with consistent symbols and a table of definitions to improve readability.
  2. [Abstract] The abstract mentions 'failure-prone environments' without specifying the failure rate distribution or how it was sampled; a brief parameter table would clarify reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major point below, indicating where revisions will be made to improve clarity, verifiability, and rigor.

read point-by-point responses
  1. Referee: [Abstract] Abstract: the central empirical claim of 'significant outperformance' and 'substantial reduction in training time' is stated without any quantitative metrics, confidence intervals, ablation results, or baseline implementation details, rendering the primary result unverifiable from the provided text.

    Authors: We agree that the abstract would be strengthened by including key quantitative results. While the full manuscript provides these details (including metrics, confidence intervals, ablation studies, and baseline specifications) in the experimental evaluation, the abstract itself does not. We will revise the abstract to incorporate specific performance figures and references to the supporting tables and figures. revision: yes

  2. Referee: [Validation / Experiments] The validation section (implied by the abstract's simulation description): the custom discrete-event simulation is presented as high-fidelity yet no calibration against historical fleet data, parameter sensitivity analysis on failure rates or mission profiles, or cross-validation with real operations is reported; this assumption is load-bearing for all applicability conclusions.

    Authors: The simulation is constructed from domain-standard models of aircraft availability, failure processes, and logistics, but we acknowledge that direct calibration to classified historical data is not possible in this work. We will add a dedicated parameter sensitivity analysis on failure rates and mission profiles in the revised validation section, along with expanded discussion of how parameter choices align with published PHM literature. This addresses the concern about robustness without claiming direct real-world calibration. revision: partial

  3. Referee: [Method] Method description: while the two-tier hierarchy is outlined, no explicit equations or pseudocode define the inter-level communication, reward decomposition, or how the planning-enhanced networks are trained, preventing assessment of whether the claimed robustness stems from the architecture or from simulation-specific tuning.

    Authors: We agree that formal definitions are needed for reproducibility. We will add explicit equations for inter-level communication and reward decomposition, as well as pseudocode for the training procedure of the planning-enhanced networks, in the revised method section. These additions will clarify the architectural mechanisms independent of simulation details. revision: yes

Circularity Check

0 steps flagged

No circularity detected; claims rest on independent empirical comparisons

full rationale

The paper proposes a hierarchical RL framework (Smart Commander) that decomposes fleet PHM decisions into strategic and tactical levels, then reports empirical outperformance versus monolithic DRL and rule-based baselines inside a custom discrete-event simulation. No equations, derivations, or first-principles results are shown that reduce any claimed prediction or performance metric to fitted parameters or self-referential definitions by construction. The simulation functions as an external testbed for scalability and robustness rather than an input that is redefined as output. Any self-citations present do not carry the load of the central empirical claims, satisfying the criteria for a self-contained, non-circular derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the unverified fidelity of a custom simulation and the effectiveness of the chosen hierarchy and reward shaping; no explicit free parameters, axioms, or invented entities are stated in the abstract.

pith-pipeline@v0.9.0 · 5517 in / 1175 out tokens · 21265 ms · 2026-05-10T17:49:55.873462+00:00 · methodology
