Behavioral-Level Simulation of Digital Readout for COFFEE at LHCb Upstream Pixel Tracker

Anqi Wang; Huimin Wu; Jianchun Wang; Lei Zhang; Leyi Li; Mingjie Feng; Xiaomin Wei; Xiaoxu Zhang; Yang Zhou; Yiming Li

arxiv: 2604.07318 · v1 · submitted 2026-04-08 · ⚛️ physics.ins-det

Behavioral-Level Simulation of Digital Readout for COFFEE at LHCb Upstream Pixel Tracker

Xiaoxu Zhang , Yang Zhou , Xiaomin Wei , Anqi Wang , Leyi Li , Yu Zhao , Zexuan Zhao , Huimin Wu

show 4 more authors

Mingjie Feng Lei Zhang Jianchun Wang Yiming Li

This is my paper

Pith reviewed 2026-05-10 17:19 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords COFFEEHVCMOSpixel sensorcolumn-drain readoutbehavioral-level simulationLHCbdigital readoutBXID-sharing

0 comments

The pith

Behavioral simulation shows the column-drain readout for COFFEE pixel sensors achieves nearly 100% efficiency if each cycle is 100 ns or less.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses behavioral-level simulation to test the digital readout design for the COFFEE HVCMOS pixel sensor, which targets the high particle rates in the LHCb Upstream Pixel tracker. At rates up to 322.5 MHz per chip, the simulation evaluates how well the column-drain mechanism performs. It finds nearly complete efficiency when readout cycles stay within 100 nanoseconds. The study also determines the buffer and memory needs for a peripheral readout that uses BXID-sharing data format. These findings guide the actual chip implementation.

Core claim

The behavioral-level simulation results show that the column-drain readout mechanism achieves nearly 100% efficiency when the single readout cycle does not exceed 100 ns. The buffer depth and memory resources required for the peripheral readout adapted to the BXID-sharing data format are evaluated, providing guidance for the design of COFFEE. The column-drain readout mechanism was used in COFFEE3 fabricated in 2025, while the peripheral readout architecture adapted to the BXID-sharing data format is implemented in CHiR taped out in early 2026.

What carries the argument

Behavioral-level simulation of the column-drain readout mechanism combined with BXID-sharing peripheral architecture.

If this is right

The COFFEE sensor design can support the maximum hit rate of 322.5 MHz per chip with high efficiency.
Appropriate buffer depths can be chosen based on the simulation's memory resource evaluation.
The column-drain approach is suitable for incorporation into fabricated chips like COFFEE3.
The BXID-sharing format peripheral readout can be implemented in designs such as CHiR.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the model is accurate, behavioral simulations offer a fast way to iterate on readout designs before fabrication.
Setting a 100 ns upper limit on readout cycles implies a minimum clock frequency requirement for the digital logic.
Adoption in COFFEE3 and CHiR suggests this architecture could scale to other LHCb subdetectors facing similar rates.

Load-bearing premise

The behavioral-level model faithfully represents the actual digital circuitry behavior under the expected operating conditions and hit rates.

What would settle it

Fabricating the COFFEE3 chip and testing its readout efficiency directly with particle hits at rates up to 322.5 MHz per chip to verify if it stays near 100% for cycles under 100 ns.

Figures

Figures reproduced from arXiv: 2604.07318 by Anqi Wang, Huimin Wu, Jianchun Wang, Lei Zhang, Leyi Li, Mingjie Feng, Xiaomin Wei, Xiaoxu Zhang, Yang Zhou, Yiming Li, Yu Zhao, Zexuan Zhao.

**Figure 1.** Figure 1: (a) The row-column configuration of pixel array and the placement of peripheral readout. (b) The placement and orientation of the innermost chips adjacent to the beam. (a) (b) (c) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: The characteristics of MC hit events. (a) Hit rate distributions of two selected chips. (b) Distribution of hits/BXID for a single chip. (c) TOT distribution. The placement and orientation of the innermost chips adjacent to the beam are shown in [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: The chip efficiency with different READ signal widths. (a) Chip 1. (b) Chip 2 [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

**Figure 4.** Figure 4: Block diagram of the peripheral readout architecture adapted for the BXID-sharing data format. rate distribution shown in [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

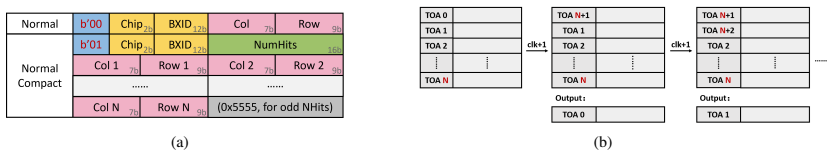

**Figure 5.** Figure 5: (a) The Normal Compact data format used by UP. (b) Schematic diagram illustrating the mechanism of the globally shared multi-bank circular buffer. (a) (b) (c) [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

**Figure 6.** Figure 6: (a) Distribution of latency from hit to data packet arrival at the multi-bank circular buffer. (b) Efficiency loss when reducing memory resources by truncating the long tail. (c) Maximum occupancy of 16 FIFOs at the frontend of the multi-bank circular buffer. save 39.3% and 40.8% of the bits, respectively, when using the Normal Compact format. The key to realizing the BXID sharing is the globally shared mu… view at source ↗

read the original abstract

COFFEE series is a HVCMOS pixel sensor using the advanced 55 nm process, currently being developed for the Upstream Pixel (UP) tracker of the LHCb Upgrade II. To ensure that COFFEE will be able to handle the particle hit rates at UP tracker, which reach a maximum of 322.5 MHz/chip, detailed simulation of the digital readout circuitry was performed. Simulation results show that the column-drain readout mechanism achieves nearly 100\% efficiency when the single readout cycle does not exceed 100 ns. Meanwhile, the buffer depth and memory resources required for the peripheral readout adapted to the BXID-sharing data format are also evaluated. These provide guidance for the design of COFFEE. The column-drain readout mechanism was used in COFFEE3 (fabricated in 2025), while the peripheral readout architecture adapted to the BXID-sharing data format is implemented in CHiR (taped out in early 2026).
