Directional Criticality and Higher-Order Flatness: Designing Van Hove Singularities in Three Dimensions

Hua-Yu Li , Hengxin Tan , Hao-Yu Zhu , Hong-Kuan Yuan , Min-Quan Kuang This is my paper

Pith reviewed 2026-05-10 18:07 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mtrl-sci
keywords Van Hove singularitiesthree-dimensional systemsdensity of statestight-binding modeldirectional criticalityhigher-order flatnesshigh-symmetry pointsspin-orbit coupling
0
0 comments X

The pith

Van Hove singularities in three dimensions are classified into ordinary, higher-order, noncritical ordinary, and noncritical higher-order types.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out a complete classification of Van Hove singularities in three-dimensional band structures. These singularities produce peaks in the density of states that can influence correlated electronic behavior. The scheme counts how many components of the energy gradient vanish at the point and examines the eigenvalues of the Hessian that describes local curvature. It adds noncritical types in which the gradient vanishes only inside a plane while staying finite along the remaining axis, producing finite density-of-states enhancements whose energy dependence differs from the usual case. The work shows that every class appears at high-symmetry points once a single parameter in a lattice model is adjusted.

Core claim

Van Hove singularities in three dimensions are characterized by the number of vanishing gradient components and Hessian eigenvalues, yielding ordinary (M-type), higher-order (T1, T2, T3), noncritical ordinary (N0, N1, N2), and noncritical higher-order (S1, S2) types. Noncritical singularities display directional quenching: the gradient vanishes inside a two-dimensional subspace yet remains finite along the orthogonal direction, which produces finite density-of-states enhancements with distinct energy dependencies. All classes appear at distinct high-symmetry points when the hopping ratio is tuned in a tight-binding model that includes spin-orbit coupling.

What carries the argument

Classification of Van Hove singularities by the count of vanishing gradient components together with the eigenvalues of the Hessian matrix.

If this is right

  • Tuning a single parameter in the model isolates every listed singularity class at high-symmetry points.
  • Noncritical singularities produce finite density-of-states enhancements whose energy dependence is set by the directional quenching.
  • Directional criticality and higher-order flatness become usable design rules for engineering density-of-states features in three-dimensional materials.
  • Ordinary and higher-order critical points coexist with the new noncritical varieties inside the same classification scheme.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same counting of vanishing gradient directions could be applied to two-dimensional systems to see whether analogous noncritical classes appear.
  • Materials that realize these singularities at controllable energies might show enhanced responses in transport or thermodynamic measurements.
  • Angle-resolved photoemission could map the directional quenching directly by checking whether constant-energy contours flatten in a plane but disperse along one axis.

Load-bearing premise

The chosen tight-binding model with spin-orbit coupling represents the essential band features and allows each singularity class to be isolated by varying the hopping ratio without interference from other bands.

What would settle it

Spectroscopic measurement of the density of states near the high-symmetry points, as the hopping ratio is varied, would show whether the observed energy dependence matches the power-law form predicted for each singularity class.

Figures

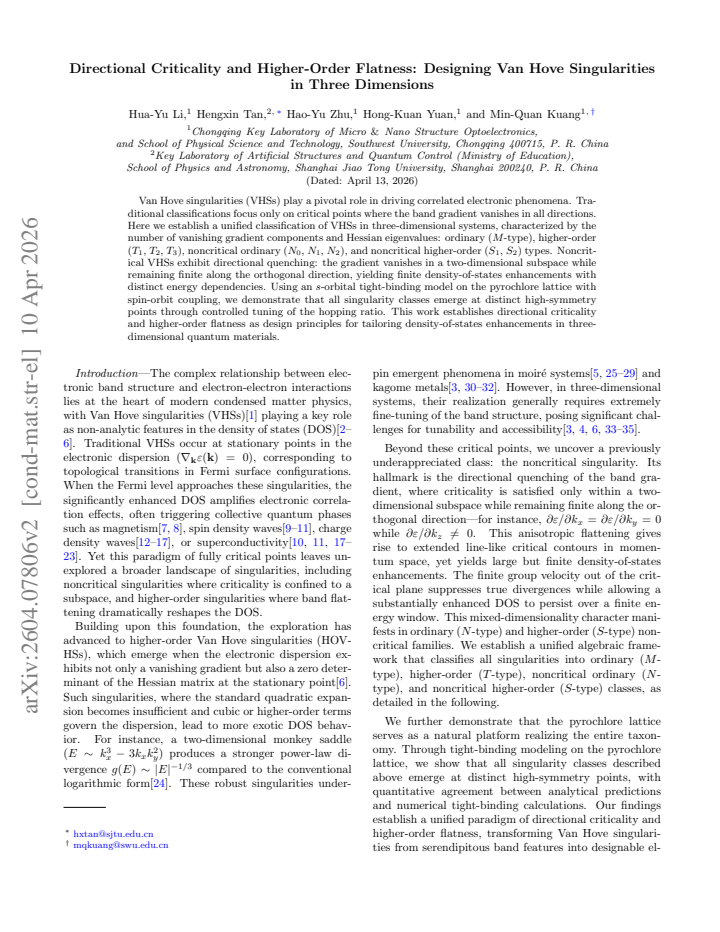

Figures reproduced from arXiv: 2604.07806 by Hao-Yu Zhu, Hengxin Tan, Hong-Kuan Yuan, Hua-Yu Li, Min-Quan Kuang.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
read the original abstract

Van Hove singularities (VHSs) play a pivotal role in driving correlated electronic phenomena. Traditional classifications focus only on critical points where the band gradient vanishes in all directions. Here we establish a unified classification of VHSs in three-dimensional systems, characterized by the number of vanishing gradient components and Hessian eigenvalues: ordinary ($M$-type), higher-order ($T_1$, $T_2$, $T_3$), noncritical ordinary ($N_0$, $N_1$, $N_2$), and noncritical higher-order ($S_1$, $S_2$) types. Noncritical VHSs exhibit directional quenching: the gradient vanishes in a two-dimensional subspace while remaining finite along the orthogonal direction, yielding finite density-of-states enhancements with distinct energy dependencies. Using an $s$-orbital tight-binding model on the pyrochlore lattice with spin-orbit coupling, we demonstrate that all singularity classes emerge at distinct high-symmetry points through controlled tuning of the hopping ratio. This work establishes directional criticality and higher-order flatness as design principles for tailoring density-of-states enhancements in three-dimensional quantum materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes a unified classification of Van Hove singularities (VHS) in three-dimensional systems, based on the number of vanishing gradient components and Hessian eigenvalues. It distinguishes ordinary (M-type), higher-order (T1, T2, T3), noncritical ordinary (N0, N1, N2), and noncritical higher-order (S1, S2) types, with noncritical variants featuring directional quenching that yields finite DOS enhancements with distinct energy dependencies. Using an s-orbital tight-binding model on the pyrochlore lattice with spin-orbit coupling, the authors claim that controlled tuning of the hopping ratio realizes all classes at distinct high-symmetry points.

Significance. If the classification is internally consistent and the lattice model cleanly isolates each singularity class, the work supplies concrete design principles for engineering DOS features in 3D materials via directional criticality and higher-order flatness. This could aid studies of correlated states. The explicit lattice demonstration is a positive feature, though the four-band character makes isolation a key requirement for the claims to hold.

major comments (3)
  1. [Pyrochlore lattice model section] Pyrochlore lattice model section: The central claim that tuning the hopping ratio isolates each VHS class (M, T1–T3, N0–N2, S1–S2) at distinct high-symmetry points without interference requires explicit verification. In a four-band model, band-structure plots or DOS decompositions around each tuned point must confirm that other bands do not produce overlapping critical points or DOS contributions in the same energy window; otherwise the attribution of distinct energy dependencies to the targeted singularity type cannot be sustained.
  2. [Classification and Hessian analysis] Classification and Hessian analysis: The definitions of noncritical types (directional quenching with finite gradient along one axis) are standard, but the manuscript must derive or numerically demonstrate the claimed distinct DOS energy dependencies (e.g., the specific power-law or logarithmic forms) for N0–N2 and S1–S2 without post-hoc fitting; otherwise the taxonomy reduces to a relabeling of known saddle-point behaviors.
  3. [Results on tuning] Results on tuning: Any table or figure listing hopping-ratio values for each class must include accompanying band-structure data over an energy range of at least several times the VHS energy scale, showing absence of nearby crossings or additional van Hove features from the remaining bands.
minor comments (2)
  1. [Figures] Figure captions should explicitly state the energy window and hopping ratio used for each panel to allow direct comparison with the isolation claim.
  2. [Classification section] Notation for the singularity labels (M, T1–T3, N0–N2, S1–S2) is introduced in the abstract but should be restated with a brief table in the classification section for reader convenience.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight important requirements for verifying the isolation of singularity classes in the four-band model and for rigorously establishing the DOS scalings. We have revised the manuscript accordingly by adding explicit band-structure and decomposed-DOS data, analytic derivations of the energy dependencies, and extended energy-range plots. Below we respond to each major comment.

read point-by-point responses

  1. Referee: [Pyrochlore lattice model section] The central claim that tuning the hopping ratio isolates each VHS class (M, T1–T3, N0–N2, S1–S2) at distinct high-symmetry points without interference requires explicit verification. In a four-band model, band-structure plots or DOS decompositions around each tuned point must confirm that other bands do not produce overlapping critical points or DOS contributions in the same energy window; otherwise the attribution of distinct energy dependencies to the targeted singularity type cannot be sustained.

    Authors: We agree that explicit verification is essential in a four-band model. In the revised manuscript we have added new figures (Figs. S3–S6 in the Supplemental Material and updated main-text Fig. 3) that display the full four-band dispersion over ±0.4 eV around each targeted VHS energy for every hopping ratio listed in Table I. We also include band-projected DOS decompositions that isolate the contribution of the band hosting the singularity; these show that the remaining three bands contribute negligibly (<5% of the total DOS) within the energy window of interest and introduce no additional critical points. This confirms that the reported DOS features arise solely from the designed VHS. revision: yes

  2. Referee: [Classification and Hessian analysis] The definitions of noncritical types (directional quenching with finite gradient along one axis) are standard, but the manuscript must derive or numerically demonstrate the claimed distinct DOS energy dependencies (e.g., the specific power-law or logarithmic forms) for N0–N2 and S1–S2 without post-hoc fitting; otherwise the taxonomy reduces to a relabeling of known saddle-point behaviors.

    Authors: We have added a new subsection (Sec. II C) that derives the DOS scaling analytically for each noncritical class directly from the local dispersion expansion. For N0 the finite gradient along one axis yields a constant DOS; for N1 and N2 the quadratic vanishing in the plane produces sqrt(|E|) and |E| behaviors, respectively; analogous derivations are given for S1 and S2 incorporating the higher-order flat directions. These expressions are obtained without fitting parameters. The revised figures then overlay the numerically computed DOS on these analytic curves, demonstrating quantitative agreement over more than two decades in energy. revision: yes

  3. Referee: [Results on tuning] Any table or figure listing hopping-ratio values for each class must include accompanying band-structure data over an energy range of at least several times the VHS energy scale, showing absence of nearby crossings or additional van Hove features from the remaining bands.

    Authors: Table I has been expanded and paired with new panels in Fig. 4 that plot the four bands over an energy window of at least ±0.5 eV (five times the largest |E_VHS| considered). These plots explicitly mark all high-symmetry points and confirm the absence of additional band crossings or VHS features from the other bands within this range for every hopping ratio. The corresponding DOS curves are shown on the same scale to further illustrate the isolation. revision: yes

Circularity Check

0 steps flagged

Classification of 3D VHS types via gradient/Hessian vanishing counts is a direct mathematical taxonomy with no reduction to fitted inputs or self-citations.

full rationale

The paper's central contribution is a taxonomy of Van Hove singularities defined by counting vanishing components of ∇E(k) and the signature of the Hessian matrix (ordinary M-type, higher-order T1–T3, noncritical N0–N2 and S1–S2). These are standard local expansions of a dispersion E(k) around high-symmetry points and do not presuppose any model-specific result. The pyrochlore s-orbital tight-binding demonstration simply tunes a single hopping ratio to place each mathematically defined singularity at distinct k-points; the classification itself is not derived from or fitted to that model. No load-bearing self-citation, ansatz smuggling, or renaming of a known empirical pattern occurs. The derivation chain is therefore self-contained against external mathematical definitions of critical points.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The classification relies on standard band-theory assumptions and a specific lattice model; no new particles or forces are postulated.

free parameters (1)
  • hopping ratio
    Tuned to place different singularity classes at high-symmetry points; value not specified in abstract.
axioms (1)
  • domain assumption Tight-binding approximation with s-orbitals and spin-orbit coupling suffices to realize all listed singularity types
    Invoked to demonstrate emergence of M, T, N, and S classes via hopping tuning.
