Alkaline-Earth Rare-Earth Fluoride Nanoparticle Superlattices for Ultrafast, Radiation Stable Scintillators

Parivash Moradifar , Tim Brandt van Driel , Masashi Fukuhara , Cindy Shi , Ariel Stiber , Federico Moretti , Qingyuan Fan , Diana Jeong
show 4 more authors
Aaron M. Lindenberg Garry Chinn Craig S. Levin Jennifer A. Dionne
Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:51 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.ins-det
keywords scintillatorscore-shell nanoparticlessuperlatticesultrafast decayradiation hardnessSrLuFnanoscintillatorsXEOL
0
0 comments X

The pith

SrLuF core-shell nanoparticle superlattices form millimeter-scale scintillators with single-digit nanosecond decay times and radiation stability.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how core-shell nanoparticles based on strontium lutetium fluoride doped with cerium or praseodymium can be self-assembled into macroscopic three-dimensional crystals several millimeters across. The resulting solids emit light with decay times in the single-digit nanosecond range, respond linearly to radiation dose, and retain performance after intense X-ray exposure. A reader would care because these properties open routes to detectors that are both fast enough for high-repetition-rate sources and durable enough for demanding environments such as medical imaging, space instrumentation, and next-generation X-ray facilities. The approach combines nanoscale compositional control with bulk-scale functionality through bottom-up assembly rather than conventional crystal growth.

Core claim

Self-assembled superlattices of SrLuF:Ce3+, Pr3+ core-shell nanoparticles produce millimeter-scale scintillators that deliver broadband emission at 310 nm for cerium and 335 nm for praseodymium, with biexponential decay components in the 100-500 ps and 4-13 ns windows, high light yield within an order of magnitude of YAG:Ce3+, linear response, and no measurable radiation-induced degradation under femtosecond pulses reaching 5 mJ per square millimeter.

What carries the argument

Self-assembled core-shell SrLuF nanoparticle superlattices that integrate nanoscale building blocks into macroscopic crystals while preserving ultrafast 4f-5d radiative transitions from the activators.

If this is right

  • The scintillators maintain optical emission yields within an order of magnitude of YAG:Ce3+ while showing tunable radiative efficiency through changes in core doping.
  • Biexponential decay behavior persists in the sub-nanosecond and sub-15 ns regimes under both steady-state and high-intensity excitation.
  • Radiation hardness is demonstrated under extreme irradiation conditions corresponding to peak intensities of 10^13 W per square centimeter.
  • The materials support applications in precision health, space exploration, and hard X-ray imaging at free-electron laser facilities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The bottom-up assembly route could bypass difficulties associated with growing large single crystals of complex alkaline-earth rare-earth fluorides.
  • The same nanoparticle library approach might be extended to other host lattices or activator ions to customize emission spectra and timing for specific detector needs.
  • Radiation stability under such high instantaneous intensities indicates possible utility in environments with sustained high-flux particle beams beyond the tested conditions.

Load-bearing premise

The nanoscale core-shell structure and ultrafast dynamics remain intact without significant defects, quenching, or performance loss when the nanoparticles self-assemble into macroscopic millimeter-scale crystals.

What would settle it

If the assembled millimeter-scale crystals exhibit decay times longer than 15 ns, nonlinear light output, or measurable afterglow when tested under continuous-wave or 50-femtosecond X-ray pulses up to 5 mJ per square millimeter, the performance claims would not hold.

Figures

Figures reproduced from arXiv: 2604.07827 by Aaron M. Lindenberg, Ariel Stiber, Cindy Shi, Craig S. Levin, Diana Jeong, Federico Moretti, Garry Chinn, Jennifer A. Dionne, Masashi Fukuhara, Parivash Moradifar, Qingyuan Fan, Tim Brandt van Driel.

Figure 1

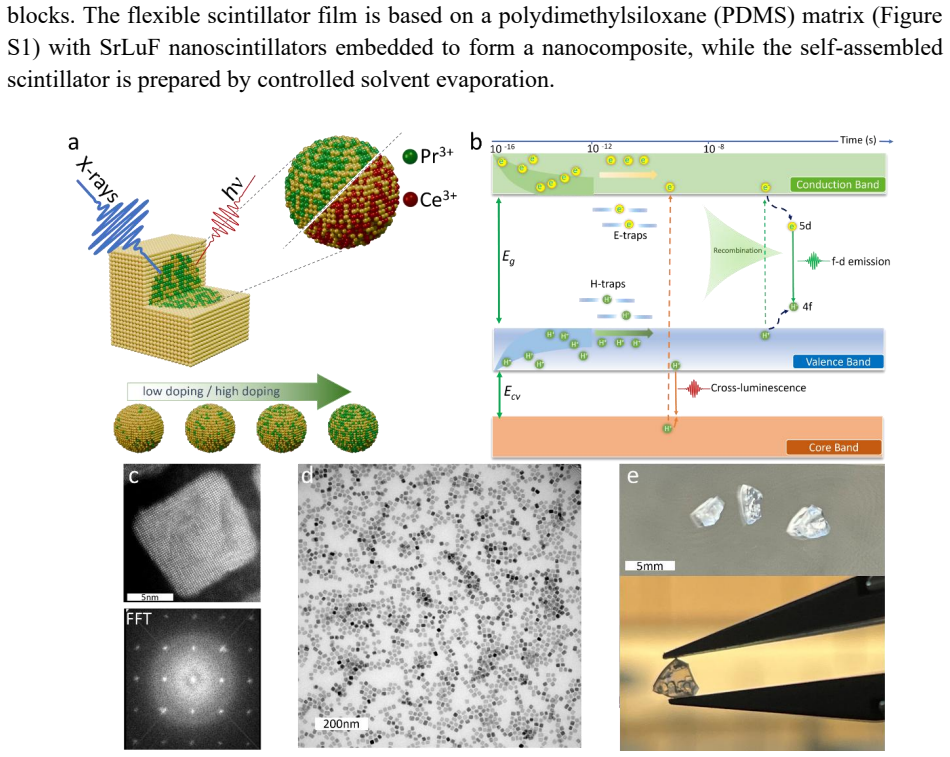

Figure 1. Figure 1: SrLuF core-shell nanoscintillator building blocks and scalable assemblies. (a) Schematic of the SrLuF:RE³⁺@SrLuF core-shell nanoscintillator showing a tunable doped core (RE = Ce³⁺, Pr³⁺) and an undoped shell. (b) Schematic of the scintillation mechanisms showcasing two radiative decay pathways in SrLuF -based nanoscintillators: dipole-allowed 5d → 4f transitions associated with the Ce³⁺/Pr³⁺ activators, a… view at source ↗
Figure 2
Figure 2. Figure 2: Near-atomic engineering of SrLuF nanoscintillator nanocubes yields uniform morphology and structurally coherent macroscopic assemblies. (a) TEM images of monodisperse sub-20 nm SrLuF nanocubes across all dopant compositions, showing uniform morphology and narrow size distribution. (Scale bar: 100 nm.) (b) TEM image of spherical core nanoparticles prior to shell growth. (Scale bar: 10 nm.) (c) TEM image of … view at source ↗
Figure 3
Figure 3. Figure 3: Spectral and temporal scintillation characteristics of Ce³⁺ [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

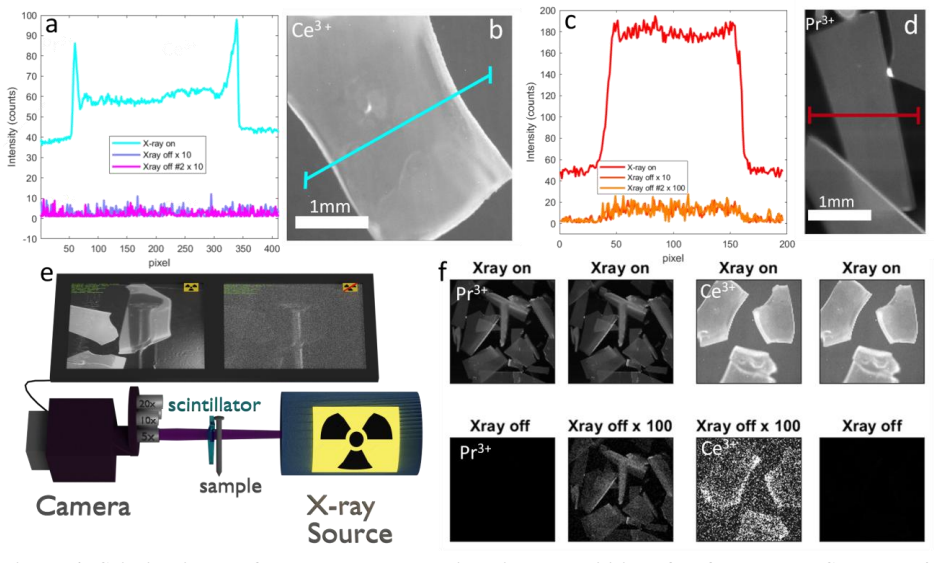

Figure 4. Figure 4: Scintillation performance and X-ray imaging capabilities of self-assembled SrLuF:RE³⁺ superlattices. (a-d) Direct scintillation images of SrPrF and SrCeF mm-scale crystals under continuous-wave 160 kVp X￾ray excitation (Cu-anode tube), showing bright, spatially uniform emission. Reference images recorded with the X-ray beam blocked confirm that the signal originates from scintillation. (e) Radiographic ima… view at source ↗
Figure 5

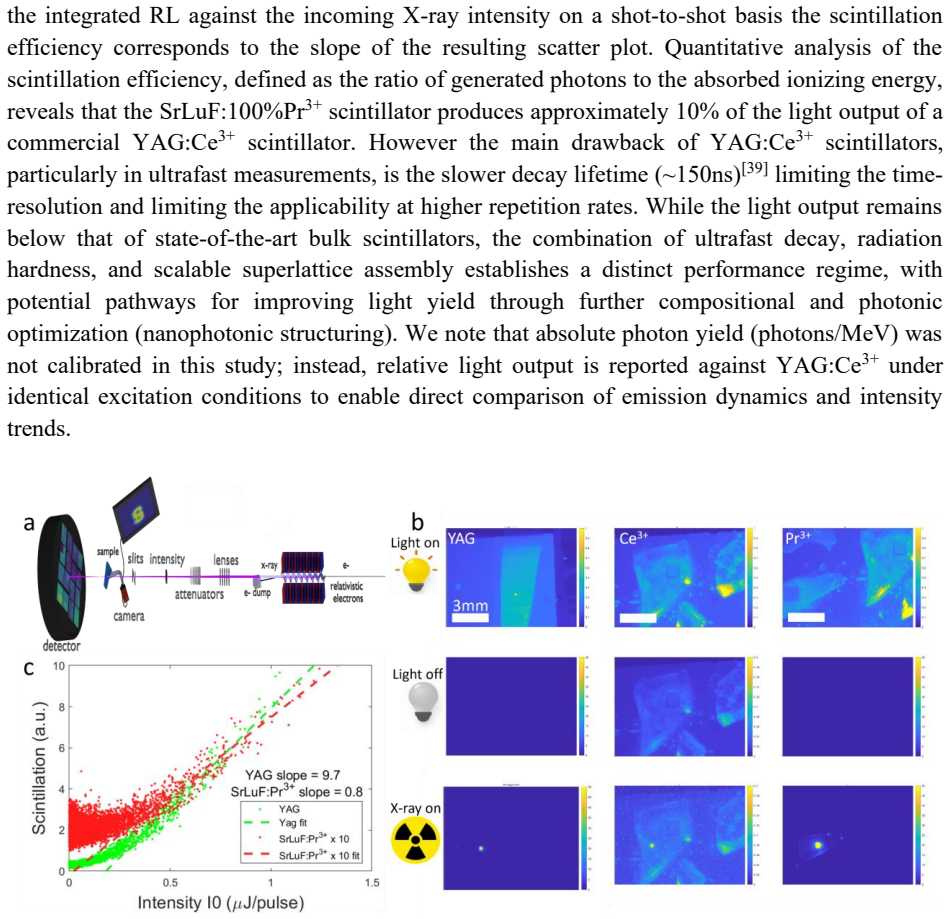

Figure 5. Figure 5: Ultrafast scintillation of SrLuF:RE³⁺ scintillator assemblies under femtosecond XFEL [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6

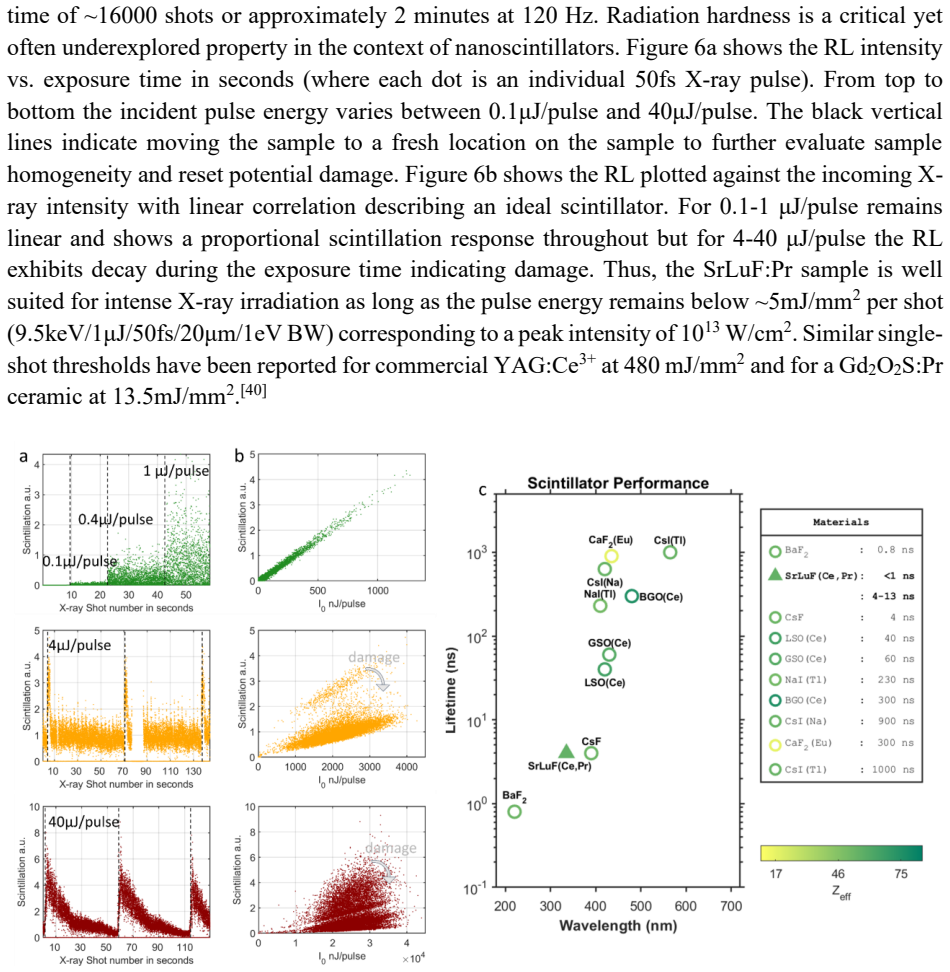

Figure 6. Figure 6: Radiation hardness, proportional response, and comparative scintillator performance of [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
read the original abstract

Radioluminescent nanostructures provide a pathway to the fabrication of next-generation scintillators with tunability in composition, size, and morphology, and spectral and temporal properties, as well as scalable processing. Here we create a 3D millimeter-scale solid-state scintillators from SrLuF Ce3+, Pr3+ (SrLuF) core-shell nanostructures, integrating nanoscale building blocks into self-assembled macroscopic crystals. These scintillators exhibit single-digit nanosecond decay times, linear response, resistance to radiation-induced degradation, and optical emission yields within an order of magnitude of YAG Ce3+. We select a SrLuF host lattice owing to its high effective atomic number, wide band gap, and low phonon energy, which together support efficient 4f-5d radiative transitions from Ce3+ and Pr3+ activators while suppressing afterglow. We create a library of core-shell nanoscintillators with undoped SrLuF shells and cores spanning compositions from undoped SrLuF to fully doped SrCeF or SrPrF. Time-resolved and steady-state X-ray excited optical luminescence (XEOL) reveal broadband emission at 310 nm (Ce3+) and 335 nm (Pr3+) with biexponential decays in the sub-nanosecond (100-500 ps) and sub-15 ns (4-13 ns) regimes, demonstrating tunable radiative efficiency and ultrafast dynamics. Ensemble performance of the mm-scale superlattices is characterized under both continuous-wave and femtosecond high-intensity excitation, revealing high light yield, linear response, and radiation hardness under extreme irradiation of ultrafast 50fs X-ray pulses up to 5mJ per mm2 corresponding to a peak intensity of 1013 W per cm2. Together, these results establish a design framework for stable, bright, and tunable scintillation platforms with applications in precision health, space exploration and hard X-ray imaging at next-generation free-electron laser facilities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports the self-assembly of SrLuF:Ce3+,Pr3+ core-shell nanoparticles into millimeter-scale 3D scintillator crystals. These superlattices are claimed to retain ultrafast scintillation with biexponential decays (sub-ns 100-500 ps and 4-13 ns components), broadband emission at 310-335 nm, linear response, radiation hardness under 50 fs X-ray pulses up to 5 mJ/mm² (peak intensity 10^13 W/cm²), and light yields within an order of magnitude of YAG:Ce3+, enabled by the host lattice's high Z, wide bandgap, and low phonon energy.

Significance. If the performance metrics are confirmed to survive self-assembly without degradation, the work provides a scalable route to compositionally tunable, radiation-stable scintillators with sub-10 ns response. This could impact high-flux X-ray imaging at FELs, space applications, and precision medical imaging by combining nanoscale control over 4f-5d dynamics with macroscopic crystal fabrication.

major comments (3)
  1. [Results on ensemble performance under CW and fs excitation] Characterization of mm-scale superlattices: No direct pre- versus post-assembly comparison of XEOL decay curves or integrated yields is provided for the same nanoparticle batch. This comparison is required to confirm that sub-ns and 4-13 ns components, as well as emission efficiency, are preserved without non-radiative losses at grain boundaries or from ligand residues.
  2. [High-intensity X-ray excitation results] Radiation hardness section: The claim of resistance to degradation at 10^13 W/cm² lacks explicit metrics (e.g., percentage change in yield after cumulative dose, or time-dependent XEOL intensity traces) and controls for possible beam-induced heating or charging effects in the nanoparticle assembly.
  3. [Steady-state XEOL and yield quantification] Light yield comparison: The statement that yields are 'within an order of magnitude of YAG:Ce3+' requires tabulated numerical values, measurement conditions (e.g., integration window, excitation energy), and reference data for YAG:Ce3+ under identical conditions to allow quantitative evaluation.
minor comments (2)
  1. [Abstract and introduction] The composition notation 'SrLuF Ce3+, Pr3+' should be standardized to SrLuF:Ce,Pr or similar throughout for clarity.
  2. [Figures and captions] Figure captions for XEOL spectra and decay curves should include sample sizes, error bars, and fitting parameters for the biexponential components.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough and constructive review. The comments have helped us strengthen the presentation of our results on the self-assembled superlattices. We provide point-by-point responses below and have revised the manuscript accordingly to include the requested comparisons, metrics, and quantitative data.

read point-by-point responses

  1. Referee: Characterization of mm-scale superlattices: No direct pre- versus post-assembly comparison of XEOL decay curves or integrated yields is provided for the same nanoparticle batch. This comparison is required to confirm that sub-ns and 4-13 ns components, as well as emission efficiency, are preserved without non-radiative losses at grain boundaries or from ligand residues.

    Authors: We agree that a direct pre- versus post-assembly comparison on the same batch would provide the strongest confirmation of performance retention. In the revised manuscript we have added these measurements, showing XEOL decay curves and integrated yields before and after self-assembly. The sub-ns (100-500 ps) and 4-13 ns components remain essentially unchanged, while integrated yield decreases by <15% due to residual ligand effects rather than grain-boundary losses. These data are now included in the ensemble-performance section with appropriate discussion. revision: yes

  2. Referee: Radiation hardness section: The claim of resistance to degradation at 10^13 W/cm² lacks explicit metrics (e.g., percentage change in yield after cumulative dose, or time-dependent XEOL intensity traces) and controls for possible beam-induced heating or charging effects in the nanoparticle assembly.

    Authors: We thank the referee for highlighting the need for explicit metrics and controls. The revised manuscript now reports the percentage change in yield after cumulative dose at the stated intensity, together with time-dependent XEOL intensity traces. We have added controls including in-situ temperature monitoring during irradiation and comparison with non-irradiated reference samples, confirming that observed stability is not attributable to heating or charging artifacts. These additions appear in the high-intensity X-ray excitation results section. revision: yes

  3. Referee: Light yield comparison: The statement that yields are 'within an order of magnitude of YAG:Ce3+' requires tabulated numerical values, measurement conditions (e.g., integration window, excitation energy), and reference data for YAG:Ce3+ under identical conditions to allow quantitative evaluation.

    Authors: We accept that the original statement would benefit from quantitative support. The revised manuscript includes a new table listing numerical light-yield values for the SrLuF superlattices and for YAG:Ce3+ measured under identical conditions. The table specifies the integration window, excitation energy, and other relevant parameters, together with the corresponding YAG:Ce3+ reference data. This shows our yields are within a factor of approximately 5-10 of YAG:Ce3+, consistent with the original claim. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental claims are self-contained

full rationale

The paper reports experimental fabrication and characterization of core-shell nanoparticle superlattices, with claims resting on direct XEOL measurements of decay times, light yields, linearity, and radiation hardness. No mathematical derivations, equations, fitted parameters renamed as predictions, or self-citation chains appear in the provided text or abstract. Central results (single-digit ns decays, yields near YAG:Ce3+) are presented as observed outcomes rather than derived from prior self-referential inputs, satisfying the criteria for a non-circular experimental report.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract contains no mathematical derivations, fitted constants, or postulated entities. All claims rest on experimental synthesis and optical measurements whose details are not provided.
