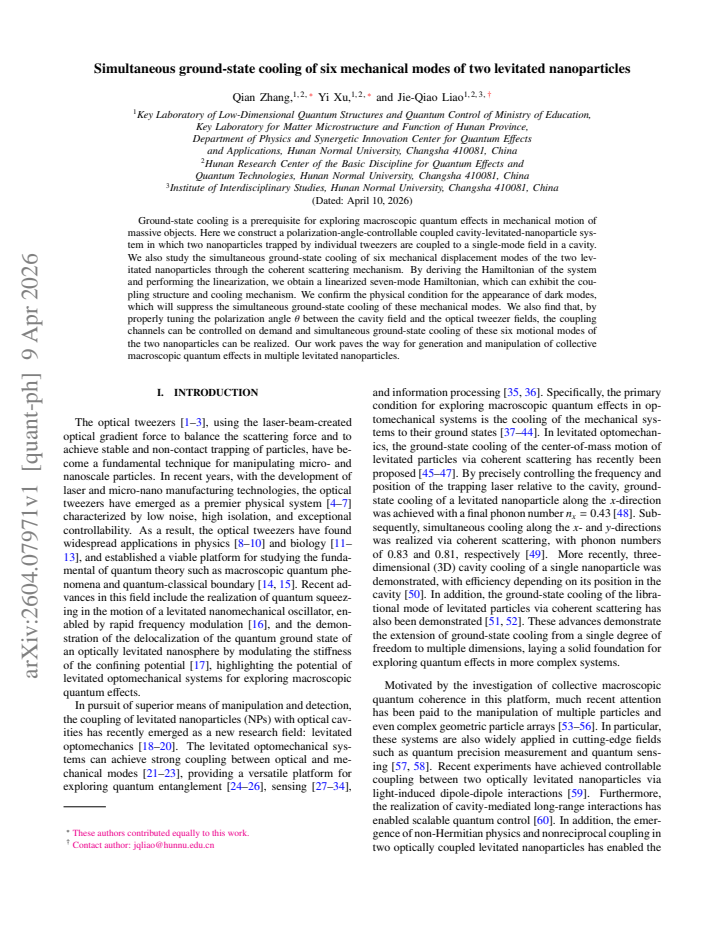

Simultaneous ground-state cooling of six mechanical modes of two levitated nanoparticles
Pith reviewed 2026-05-10 17:41 UTC · model grok-4.3
The pith
Tuning the polarization angle allows simultaneous ground-state cooling of six mechanical modes in two levitated nanoparticles.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper establishes that in a cavity-levitated-nanoparticle system with two nanoparticles, the linearized seven-mode Hamiltonian exhibits a coupling structure where the polarization angle θ between the cavity and tweezer fields can be tuned to suppress dark modes and realize simultaneous ground-state cooling of the six mechanical displacement modes via coherent scattering.
What carries the argument
The polarization angle θ that controls the coupling channels in the linearized Hamiltonian to prevent dark mode formation.
Load-bearing premise
The assumption that the system can be accurately described by the linearized Hamiltonian without significant nonlinear effects or other heating mechanisms interfering with the cooling process.
What would settle it
Observing that at the predicted optimal polarization angle, at least one of the six modes remains above the ground state with significant phonon number would falsify the simultaneous cooling claim.
Figures
read the original abstract
Ground-state cooling is a prerequisite for exploring macroscopic quantum effects in mechanical motion of massive objects. Here we construct a polarization-angle-controllable coupled cavity-levitated-nanoparticle system in which two nanoparticles trapped by individual tweezers are coupled to a single-mode field in a cavity. We also study the simultaneous ground-state cooling of six mechanical displacement modes of the two levitated nanoparticles through the coherent scattering mechanism. By deriving the Hamiltonian of the system and performing the linearization, we obtain a linearized seven-mode Hamiltonian, which can exhibit the coupling structure and cooling mechanism. We confirm the physical condition for the appearance of dark modes, which will suppress the simultaneous ground-state cooling of these mechanical modes. We also find that, by properly tuning the polarization angle $\theta $ between the cavity field and the optical tweezer fields, the coupling channels can be controlled on demand and simultaneous ground-state cooling of these six motional modes of the two nanoparticles can be realized. Our work paves the way for generation and manipulation of collective macroscopic quantum effects in multiple levitated nanoparticles.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a polarization-tunable optomechanical system consisting of two levitated nanoparticles coupled to a single cavity mode via coherent scattering. The authors derive the full system Hamiltonian, perform linearization to obtain an effective seven-mode model, identify the conditions under which dark modes appear in the coupling matrix (suppressing cooling of certain mechanical modes), and show that adjusting the polarization angle θ between the cavity field and the tweezer fields modifies the coupling channels to give all six mechanical modes finite optomechanical coupling rates, thereby enabling simultaneous ground-state cooling.
Significance. If the derivation and tuning result hold, the work is significant for levitated optomechanics as it provides an experimentally accessible control knob (θ) to eliminate dark subspaces in multi-particle systems without requiring additional fields or cavities. This could facilitate collective quantum effects and multi-mode quantum control with massive objects. The explicit Hamiltonian derivation and identification of the dark-mode condition constitute a clear theoretical contribution.
major comments (2)
- [Linearized seven-mode Hamiltonian] Linearized seven-mode Hamiltonian section: the claim that tuning θ eliminates the dark subspace relies on the structure of the coupling matrix, but the manuscript does not provide the explicit eigenvalues or the null-space dimension as a function of θ to quantitatively confirm that all six modes acquire non-zero coupling rates for accessible θ values (e.g., between 0 and π/2).
- [Dark modes condition] Dark modes condition: while the physical condition for dark modes is stated to be confirmed, the manuscript should explicitly derive or tabulate the optomechanical coupling rates g_i(θ) for each of the six modes to demonstrate that a single θ simultaneously renders all rates finite and comparable, rather than leaving the avoidance of dark modes as a qualitative statement.
minor comments (2)
- The abstract and main text refer to 'confirming the physical condition' for dark modes; the corresponding section should include a short summary sentence or equation reference so readers can locate the confirmation without searching the derivation.
- Notation for the six mechanical modes (e.g., x1, y1, z1 for each nanoparticle) should be introduced in a dedicated table or paragraph early in the Hamiltonian section to improve readability of the seven-mode model.
Simulated Author's Rebuttal
We are grateful to the referee for the thorough review and the recommendation for minor revision. The comments highlight areas where additional quantitative details can improve the clarity of our results. We have prepared revisions to address both major comments.
read point-by-point responses
-
Referee: [Linearized seven-mode Hamiltonian] Linearized seven-mode Hamiltonian section: the claim that tuning θ eliminates the dark subspace relies on the structure of the coupling matrix, but the manuscript does not provide the explicit eigenvalues or the null-space dimension as a function of θ to quantitatively confirm that all six modes acquire non-zero coupling rates for accessible θ values (e.g., between 0 and π/2).
Authors: We agree with this observation. Although the structure of the coupling matrix is analyzed in the manuscript, we did not include the explicit θ-dependence of the eigenvalues or the dimension of the kernel. In the revised manuscript, we will add a subsection or appendix deriving the eigenvalues of the relevant coupling matrix and plotting or tabulating the null-space dimension versus θ. This will confirm that for θ ∈ (0, π/2) excluding isolated points, the null space is trivial, ensuring all six mechanical modes have finite optomechanical couplings. revision: yes
-
Referee: [Dark modes condition] Dark modes condition: while the physical condition for dark modes is stated to be confirmed, the manuscript should explicitly derive or tabulate the optomechanical coupling rates g_i(θ) for each of the six modes to demonstrate that a single θ simultaneously renders all rates finite and comparable, rather than leaving the avoidance of dark modes as a qualitative statement.
Authors: We appreciate this constructive suggestion. The manuscript identifies the condition for dark modes but presents the avoidance via tuning θ qualitatively. To address this, we will explicitly derive the expressions for the six optomechanical coupling rates g_i(θ) in the revised version and include a table showing their values at representative angles, such as θ = π/4, where all rates are non-zero and comparable in magnitude. This will demonstrate that a single polarization angle enables simultaneous ground-state cooling of all modes. revision: yes
Circularity Check
No significant circularity
full rationale
The paper derives the system Hamiltonian from the physical setup of two levitated nanoparticles coupled to a cavity mode via coherent scattering, performs standard linearization around steady-state amplitudes, obtains the seven-mode coupling matrix, identifies the dark-mode condition from the eigenvalues of that matrix, and shows that the polarization angle θ enters the coupling rates such that the dark subspace can be eliminated. All steps follow from the explicit equations without any fitted parameters renamed as predictions, without load-bearing self-citations, and without ansätze smuggled in from prior work. The simultaneous-cooling claim is a direct consequence of the derived θ-dependent couplings under the stated approximations, making the derivation self-contained.
Axiom & Free-Parameter Ledger
free parameters (1)
- polarization angle θ
axioms (2)
- domain assumption Linearization of the Hamiltonian is valid for the cooling analysis.
- domain assumption The coherent scattering provides the dominant cooling mechanism.
