Experimental Evidence of Thermal Capillary Waves Excitation on a Microsphere Surface

Abhishek Sureshkumar , Georges Perin , Julien Lapeyre , Rozenn Bernard , Kelig Terrien , Bertrand Dudoux , Adil Haboucha , H\'el\`ene Ollivier
show 2 more authors
Yannick Dumeige St\'ephane Trebaol
This is my paper

Pith reviewed 2026-05-10 16:47 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mtrl-sci
keywords microsphere resonatorscapillary wavessurface scatteringwhispering gallery modesatomic force microscopythermodynamic fluctuationsoptical losses
0
0 comments X

The pith

Thermally excited capillary waves are the main source of scattering losses in microsphere optical cavities.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that the surface roughness limiting the performance of whispering-gallery-mode microsphere resonators originates from thermally excited capillary waves rather than fabrication imperfections. High-resolution atomic force microscopy reveals statistical signatures of these frozen fluctuations at sub-nanometer scales that match theoretical predictions. This finding revises the understanding of what limits quality factors, particularly at short wavelengths where scattering losses are severe. Identifying the thermodynamic origin opens possibilities for better control in photonic applications.

Core claim

We show that thermally excited capillary waves are the fundamental source of scattering losses in microsphere cavities. Using high-resolution atomic force microscopy combined with rigorous statistical analysis, we quantitatively identify the characteristic signatures of frozen capillary fluctuations at the sub-nanometre level, with roughness parameters in close agreement with capillary wave theory.

What carries the argument

High-resolution atomic force microscopy (AFM) combined with statistical analysis that extracts roughness parameters matching capillary wave theory predictions.

If this is right

  • Scattering losses arise from thermodynamic fluctuations instead of manufacturing defects.
  • Ultra-high-Q factors in microspheres can be pursued by strategies that account for capillary wave excitation during fabrication.
  • Performance limitations are most pronounced in visible and ultraviolet photonic applications.
  • The prevailing view of surface roughness as unavoidable fabrication artifacts needs revision.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar thermodynamic limits may apply to other microscale optical resonators or surfaces.
  • Techniques to suppress capillary waves, such as material choices or cooling, could be explored to improve Q-factors.
  • AFM statistical methods might be applied to other systems to distinguish capillary wave roughness from other sources.

Load-bearing premise

The roughness patterns observed in atomic force microscopy data are uniquely produced by frozen capillary waves and cannot arise from other physical processes or measurement issues.

What would settle it

Finding that the measured surface roughness power spectrum or extracted parameters like amplitude and correlation length deviate significantly from the values predicted by capillary wave theory for the given temperature and material properties.

Figures

Figures reproduced from arXiv: 2604.08255 by Abhishek Sureshkumar, Adil Haboucha, Bertrand Dudoux, Georges Perin, H\'el\`ene Ollivier, Julien Lapeyre, Kelig Terrien, Rozenn Bernard, St\'ephane Trebaol, Yannick Dumeige.

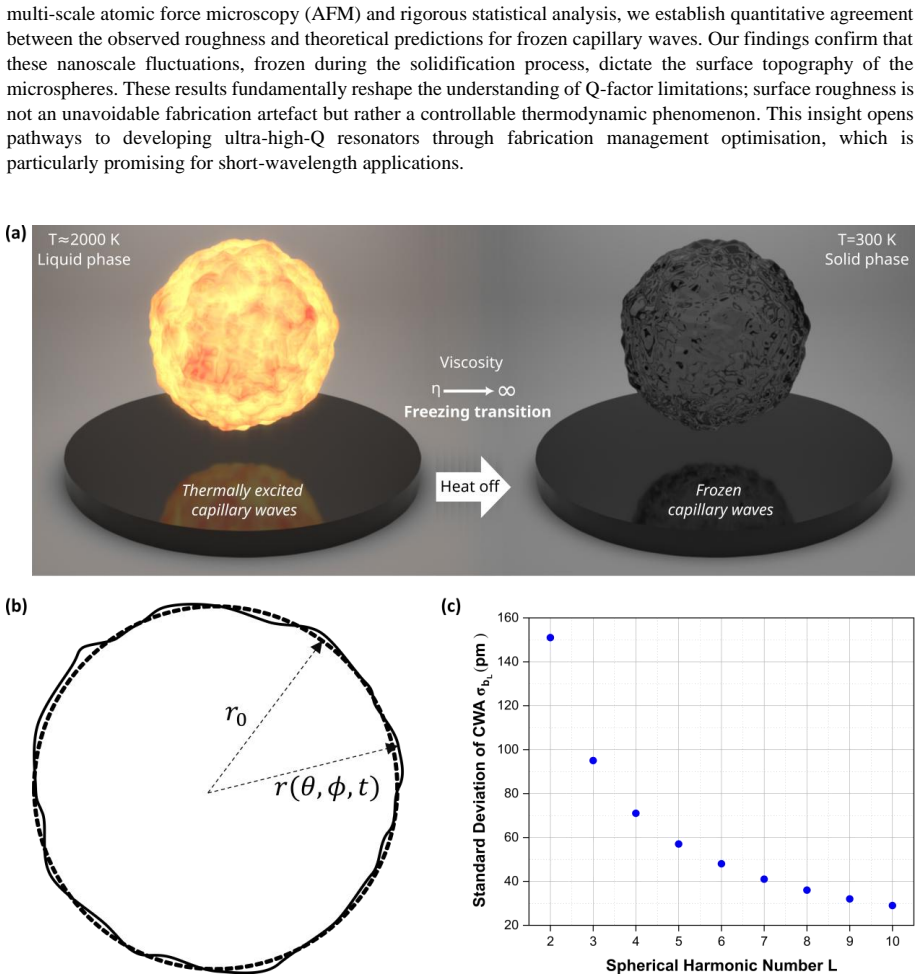

Figure 1
Figure 1. Figure 1: Fig.1. (a) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

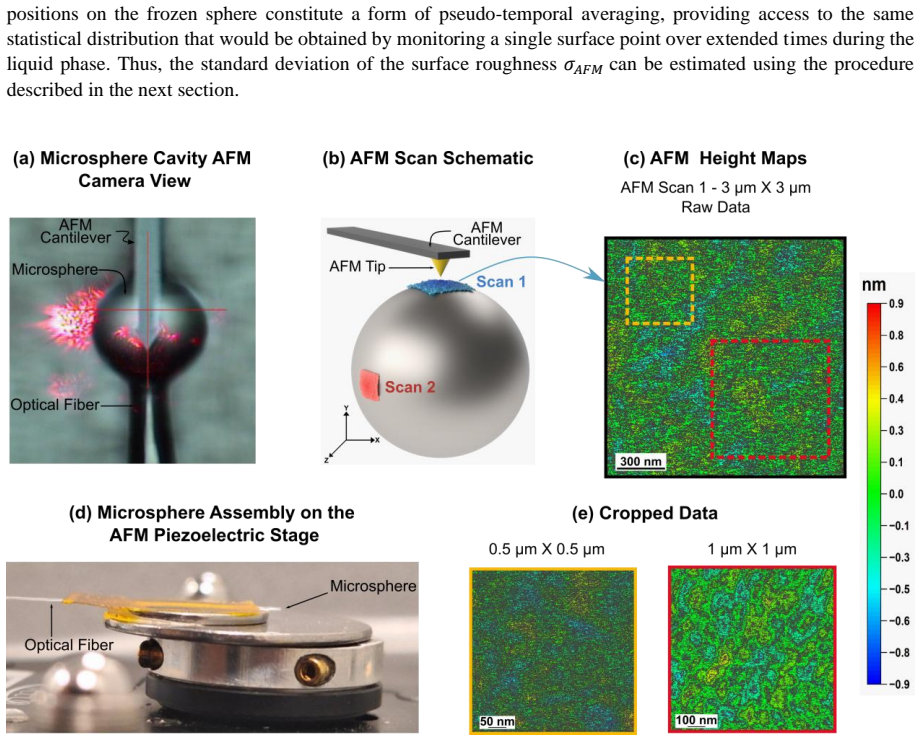

Figure 2
Figure 2. Figure 2: Fig.2. (a) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

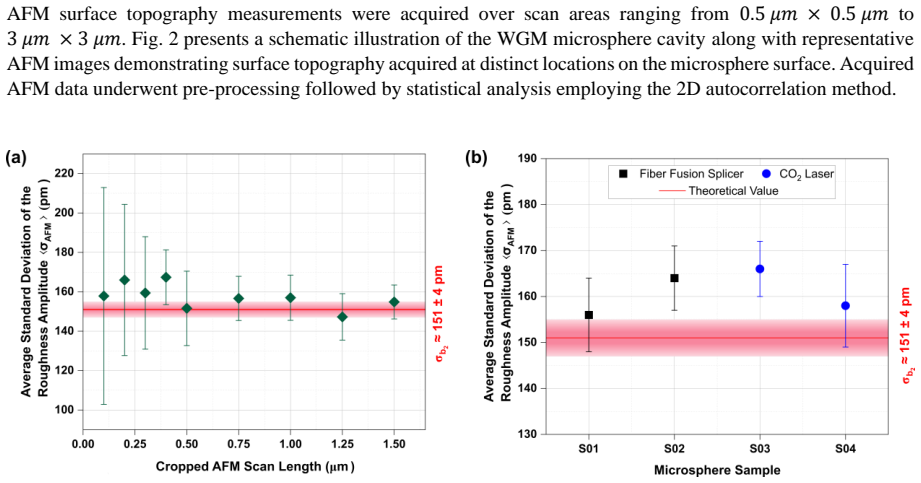

Figure 3
Figure 3. Figure 3: Fig.3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

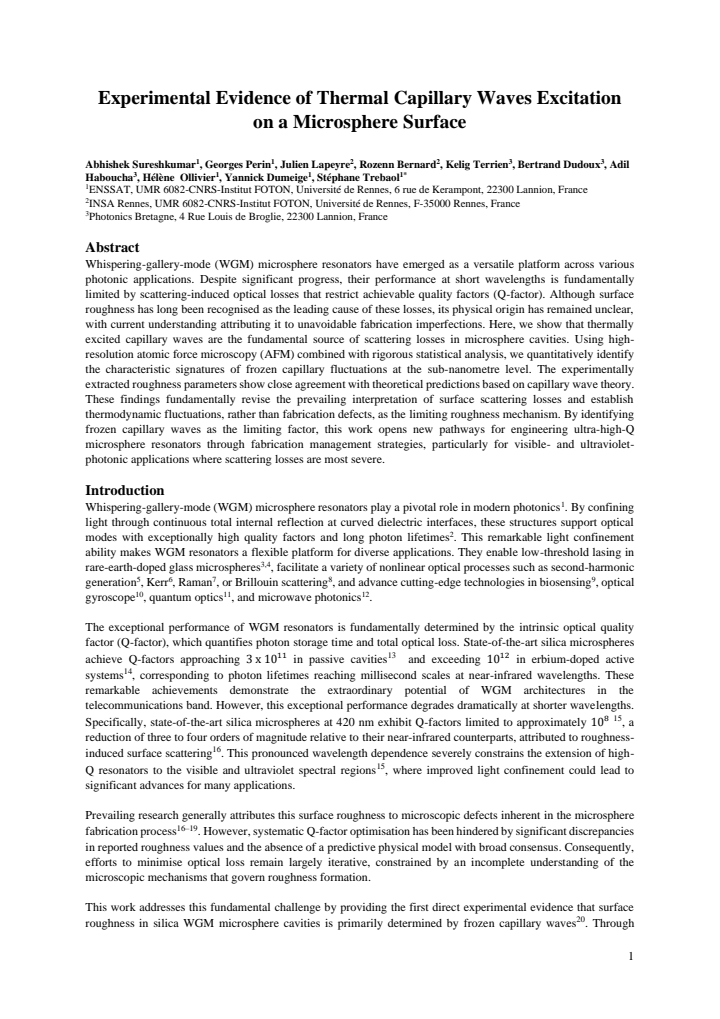

read the original abstract

Whispering-gallery-mode (WGM) microsphere resonators have emerged as a versatile platform across various photonic applications. Despite significant progress, their performance at short wavelengths is fundamentally limited by scattering-induced optical losses that restrict achievable quality factors (Q-factor). Although surface roughness has long been recognised as the leading cause of these losses, its physical origin has remained unclear, with current understanding attributing it to unavoidable fabrication imperfections. Here, we show that thermally excited capillary waves are the fundamental source of scattering losses in microsphere cavities. Using high-resolution atomic force microscopy (AFM) combined with rigorous statistical analysis, we quantitatively identify the characteristic signatures of frozen capillary fluctuations at the sub-nanometre level. The experimentally extracted roughness parameters show close agreement with theoretical predictions based on capillary wave theory. These findings fundamentally revise the prevailing interpretation of surface scattering losses and establish thermodynamic fluctuations, rather than fabrication defects, as the limiting roughness mechanism. By identifying frozen capillary waves as the limiting factor, this work opens new pathways for engineering ultra-high-Q microsphere resonators through fabrication management strategies, particularly for visible- and ultraviolet-photonic applications where scattering losses are most severe.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript claims that high-resolution AFM measurements combined with statistical analysis of microsphere surfaces reveal sub-nanometer roughness whose characteristic signatures (e.g., power spectra or correlation functions) match predictions from capillary-wave theory. The authors conclude that these thermally excited and subsequently frozen fluctuations, rather than fabrication defects, are the dominant source of scattering losses that limit Q-factors in whispering-gallery-mode resonators, particularly at short wavelengths, and that this finding opens new fabrication strategies for ultra-high-Q devices.

Significance. If the uniqueness of the capillary-wave attribution is established, the result would revise the prevailing model of surface scattering in microspheres and identify a fundamental thermodynamic limit rather than a purely technological one. This could redirect efforts toward controlling or mitigating fluctuation-induced roughness, with direct relevance to high-Q applications in sensing, nonlinear optics, and short-wavelength photonics.

major comments (3)
  1. [Abstract / Results] Abstract and Results sections: the claim of 'rigorous statistical analysis' yielding 'close agreement' with capillary-wave theory is not supported by any reported details on the analysis methods, number of independent microspheres or scan areas, sample sizes, error bars on extracted parameters (e.g., roughness amplitude or correlation length), or quantitative goodness-of-fit metrics. Without these, the strength of the experimental-theoretical match cannot be assessed.
  2. [Statistical analysis / Discussion] Statistical analysis / Discussion: the central claim requires that the observed AFM signatures are uniquely diagnostic of frozen capillary waves. The manuscript does not present explicit comparisons, model fits, or falsification tests against plausible alternative roughness sources (random polishing scratches, material inhomogeneities, or AFM tip-convolution artifacts) that could generate statistically similar spectra or height-height correlations within experimental uncertainty.
  3. [Discussion / Implications] Implications for optical losses: while roughness parameters are compared to theory, the manuscript does not provide a quantitative bridge from the AFM-derived roughness spectrum to predicted or measured scattering losses and Q-factor degradation in the actual resonators (e.g., via Mie scattering calculations or direct Q measurements on the same spheres). This link is load-bearing for the assertion that capillary waves are the 'fundamental source' of scattering losses.
minor comments (2)
  1. [Title] The title uses 'Excitation' while the text emphasizes frozen (quenched) fluctuations; a minor wording clarification would improve precision.
  2. [Figures / Methods] Figure captions and methods should explicitly state scan sizes, pixel resolution, and any filtering applied to AFM data to allow reproducibility.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive and detailed comments, which have helped us improve the clarity and rigor of our manuscript. We address each major comment point by point below, indicating where revisions have been made.

read point-by-point responses

  1. Referee: [Abstract / Results] Abstract and Results sections: the claim of 'rigorous statistical analysis' yielding 'close agreement' with capillary-wave theory is not supported by any reported details on the analysis methods, number of independent microspheres or scan areas, sample sizes, error bars on extracted parameters (e.g., roughness amplitude or correlation length), or quantitative goodness-of-fit metrics. Without these, the strength of the experimental-theoretical match cannot be assessed.

    Authors: We agree that the original manuscript did not provide sufficient methodological details to allow full assessment of the statistical analysis. In the revised version, we have substantially expanded the Methods and Results sections to describe the analysis procedures in full, including the number of independent microspheres and scan areas examined, the total sample sizes for the height-height correlation functions and power spectra, the procedures for extracting roughness parameters, and the quantitative error bars and goodness-of-fit metrics (such as reduced chi-squared values) used to evaluate agreement with capillary-wave theory. These additions directly address the concern and enable readers to evaluate the strength of the experimental-theoretical comparison. revision: yes

  2. Referee: [Statistical analysis / Discussion] Statistical analysis / Discussion: the central claim requires that the observed AFM signatures are uniquely diagnostic of frozen capillary waves. The manuscript does not present explicit comparisons, model fits, or falsification tests against plausible alternative roughness sources (random polishing scratches, material inhomogeneities, or AFM tip-convolution artifacts) that could generate statistically similar spectra or height-height correlations within experimental uncertainty.

    Authors: The referee is correct that demonstrating the diagnostic uniqueness of the observed signatures strengthens the central claim. In the revised manuscript we have added a dedicated subsection in the Discussion that presents explicit model comparisons and falsification tests. We now show calculated power spectra and correlation functions for random polishing scratches (exhibiting exponential rather than power-law decay) and for material inhomogeneities, demonstrating that these alternatives do not reproduce the measured functional forms within experimental uncertainty. We have also included a tip-convolution analysis using the known AFM tip geometry to confirm that the sub-nanometer features are not artifacts of convolution. These additions provide the requested tests while remaining within the scope of the existing data. revision: yes

  3. Referee: [Discussion / Implications] Implications for optical losses: while roughness parameters are compared to theory, the manuscript does not provide a quantitative bridge from the AFM-derived roughness spectrum to predicted or measured scattering losses and Q-factor degradation in the actual resonators (e.g., via Mie scattering calculations or direct Q measurements on the same spheres). This link is load-bearing for the assertion that capillary waves are the 'fundamental source' of scattering losses.

    Authors: We acknowledge that a direct quantitative connection to optical performance is important. Direct Q-factor measurements on the identical spheres after high-resolution AFM scanning are not feasible, because the AFM process is surface-contacting and can modify the resonator. However, we have added to the revised Discussion a quantitative estimation that uses the experimentally measured roughness power spectrum as input to established whispering-gallery-mode scattering-loss formulas. This calculation now explicitly links the AFM-derived spectrum to predicted Q-factor limits at short wavelengths and shows consistency with literature values. While this provides the requested theoretical bridge, we note that full Mie scattering simulations for the precise spectrum or non-destructive optical measurements on the same objects would require separate future experiments. revision: partial

standing simulated objections not resolved
  • Direct Q-factor measurements performed on the exact microspheres that were characterized by high-resolution AFM, because the scanning process is inherently surface-altering and precludes subsequent non-destructive optical testing of the same resonators.

Circularity Check

0 steps flagged

No significant circularity; experimental AFM statistics compared to independent capillary-wave theory

full rationale

The paper extracts roughness parameters (e.g., via power spectral density or height-height correlation) directly from high-resolution AFM data on microsphere surfaces, then compares those measured values against separate theoretical predictions derived from capillary wave theory. No step defines the extracted parameters in terms of the theory itself, renames a fit as a prediction, or relies on self-citation chains for uniqueness. The central claim rests on the empirical match between independently obtained data statistics and an external model, which is falsifiable and not forced by construction. This is the most common honest non-finding for experimental papers that benchmark measurements against established theory.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on the applicability of standard capillary wave theory to solid microsphere surfaces at sub-nanometer scales after cooling, plus the assumption that AFM resolves frozen fluctuations without significant tip convolution artifacts.

axioms (1)
  • domain assumption Capillary wave theory predictions remain valid for the frozen surface roughness of silica microspheres at room temperature
    The paper compares measured roughness parameters directly to theoretical predictions from capillary wave theory without deriving the theory.

pith-pipeline@v0.9.0 · 5548 in / 1145 out tokens · 53524 ms · 2026-05-10T16:47:04.304958+00:00 · methodology
