arxiv: 2604.08360 · v1 · submitted 2026-04-09 · ❄️ cond-mat.mtrl-sci

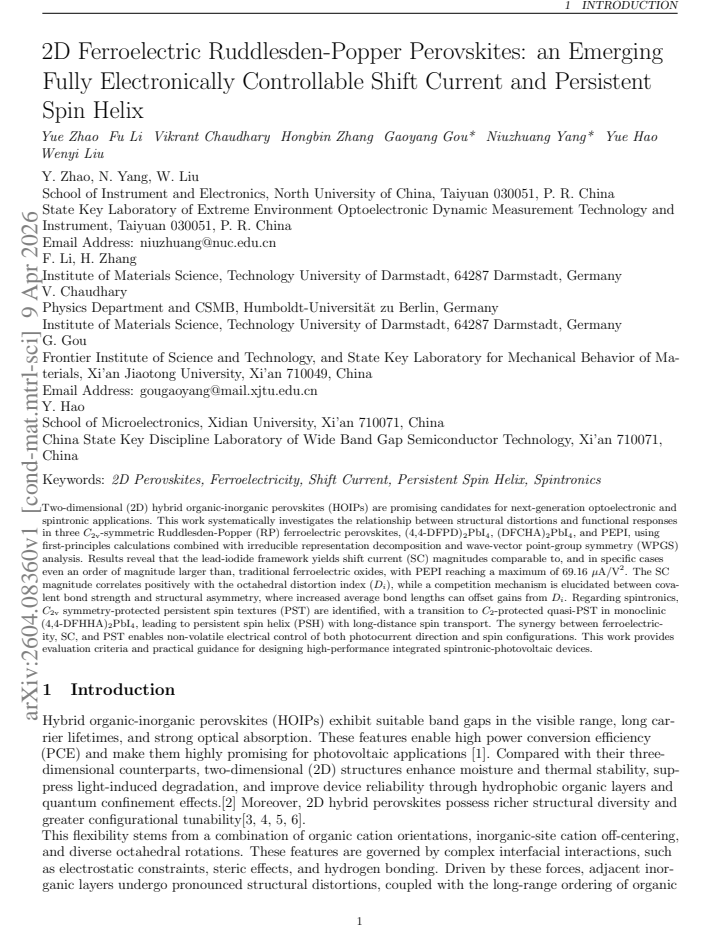

2D Ferroelectric Ruddlesden-Popper Perovskites: an Emerging Fully Electronically Controllable Shift Current and Persistent Spin Helix

Yue Zhao , Fu Li , Vikrant Chaudhary , Hongbin Zhang , Gaoyang Gou , Niuzhuang Yang , Yue Hao , Wenyi Liu This is my paper

Pith reviewed 2026-05-10 17:09 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords 2D perovskitesRuddlesden-Poppershift currentpersistent spin helixferroelectricityfirst-principles calculationsspintronicsoptoelectronics
0
0 comments X

The pith

The lead-iodide framework in certain 2D ferroelectric perovskites produces shift currents an order of magnitude larger than in traditional oxides.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This study focuses on three two-dimensional Ruddlesden-Popper perovskites that are ferroelectric. Calculations show their inorganic lead-iodide parts can create unusually large shift currents, with one compound reaching values ten times higher than common oxide ferroelectrics. The size of this current tracks how much the lead-iodide octahedra are distorted. At the same time the crystal symmetry preserves spin textures that allow spins to travel far without losing alignment, turning into a helix in slightly altered structures. These properties together mean an electric field can permanently set both the flow direction of light-generated current and the spin pattern.

Core claim

In these C2v-symmetric 2D perovskites the lead-iodide framework produces shift-current responses comparable to or exceeding those of bulk ferroelectric oxides, reaching 69.16 μA/V² in PEPI. The magnitude scales with the octahedral distortion index while competing with average bond lengths. Symmetry analysis identifies persistent spin textures protected by C2v that become a persistent spin helix in the monoclinic phase, and the combination with ferroelectricity permits nonvolatile electrical control of photocurrent direction and spin configuration.

What carries the argument

The lead-iodide octahedral framework in C2v-symmetric Ruddlesden-Popper perovskites, analyzed via irreducible representation decomposition and wave-vector point-group symmetry.

Load-bearing premise

The first-principles calculations accurately reflect the actual shift-current magnitudes and spin textures in these materials without experimental validation.

What would settle it

Direct measurement of the shift current in a PEPI sample reaching or exceeding the calculated peak of 69.16 μA/V² would support the claims, while a value an order of magnitude smaller would contradict them.

Figures

Figures reproduced from arXiv: 2604.08360 by Fu Li, Gaoyang Gou, Hongbin Zhang, Niuzhuang Yang, Vikrant Chaudhary, Wenyi Liu, Yue Hao, Yue Zhao.

Figure 1

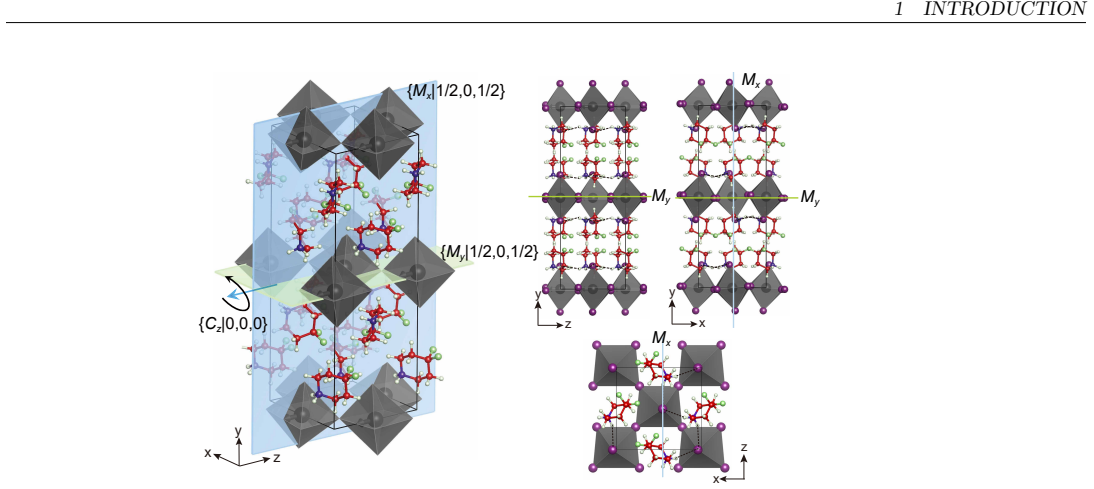

Figure 1. Figure 1: The optimized crystal structure for 2D layered RP perovskite (4,4-DFPD) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The optimized crystal structure for 2D layered RP perovskite (a) (DFCHA) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

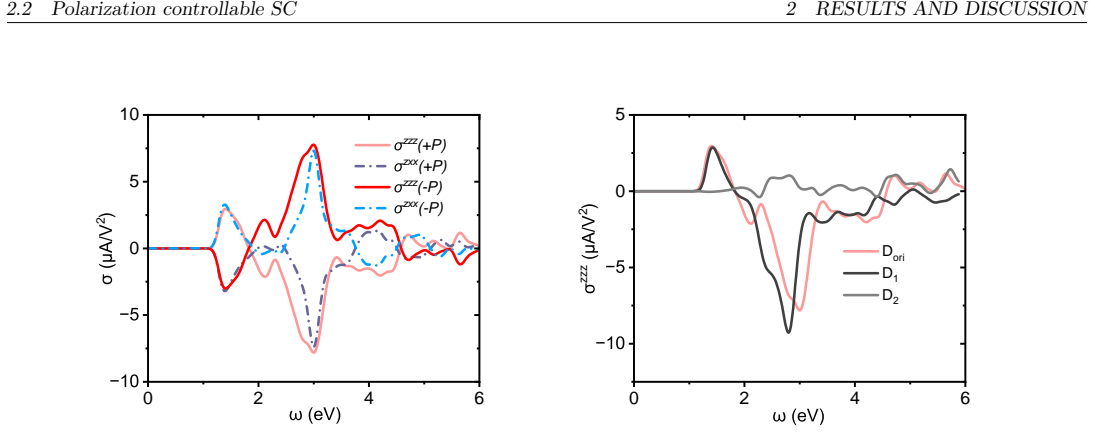

Figure 3. Figure 3: Frequency-dependent nonlinear SC response ( [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Frequency-dependent nonlinear SC response for (a)(DFCHA) [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: (a) Our simulated orbital resolved energy band structure for layered perovskite (4,4-DFPD) [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The reversal of PST for (a) +P and (b) −P states of inner branches and outer branches of CBM and VBM in BZ with ky = 0 for (4,4-DFPD)2PbI4. H = E0 + HSO, with E0 = ℏ 2 2mxk 2 x + ℏ 2 2mzk 2 z (E0 = ℏ 2 2myk 2 y + ℏ 2 2mzk 2 z ) and HSO = ασykx(βσxky). The parameters α (β) can also be determined by α(β) = 2∆E/∆k based on the band splitting, as illustrated in [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: (a) Spin distribution of the CBM/VBM inner and outer branches within the Γ [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
read the original abstract

Two-dimensional (2D) hybrid organic--inorganic perovskites (HOIPs) are promising candidates for next-generation optoelectronic and spintronic applications. This work systematically investigates the relationship between structural distortions and functional responses in three $C_{2v}$-symmetric Ruddlesden--Popper (RP) ferroelectric perovskites, $(4,4\text{-DFPD})_{2}\mathrm{PbI}_{4}$, $(\mathrm{DFCHA})_{2}\mathrm{PbI}_{4}$, and PEPI, using first-principles calculations combined with irreducible representation decomposition and wave-vector point-group symmetry (WPGS) analysis. The results reveal that the lead--iodide framework yields shift-current (SC) magnitudes comparable to, and in specific cases even an order of magnitude larger than, those of traditional ferroelectric oxides, with PEPI reaching a maximum of $69.16\ \mu\mathrm{A}/\mathrm{V}^{2}$. The SC magnitude correlates positively with the octahedral distortion index ($D_i$), while a competition mechanism is identified between covalent bond strength and structural asymmetry, where increased average bond lengths can offset the enhancement induced by $D_i$. Regarding spintronics, $C_{2v}$ symmetry-protected persistent spin textures (PST) are identified. A transition to $C_2$-protected quasi-PST occurs in monoclinic $(4,4\text{-DFHHA})_{2}\mathrm{PbI}_{4}$, leading to a persistent spin helix (PSH) with long-distance spin transport. The synergy among ferroelectricity, SC, and PST enables nonvolatile electrical control of both photocurrent direction and spin configurations. This work provides evaluation criteria and practical guidance for designing high-performance integrated spintronic--photovoltaic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript employs first-principles DFT calculations together with irreducible-representation decomposition and wave-vector point-group symmetry analysis to examine three C2v-symmetric 2D Ruddlesden-Popper ferroelectric perovskites. It reports shift-current magnitudes reaching 69.16 μA/V² in PEPI (comparable to or exceeding those of conventional ferroelectric oxides), a positive correlation between shift-current strength and the octahedral distortion index Di, a competition between covalent-bond strength and structural asymmetry, C2v-protected persistent spin textures, and a C2-protected quasi-PST that realizes a persistent spin helix in the monoclinic (4,4-DFHHA)2PbI4 compound. The work concludes that the synergy of ferroelectricity, shift current, and persistent spin textures enables nonvolatile electrical control of both photocurrent direction and spin configurations.

Significance. If the reported shift-current values and symmetry-protected spin textures are quantitatively reliable, the paper supplies concrete evaluation criteria (Di and average bond-length trends) and practical guidance for designing 2D HOIP-based integrated spintronic-photovoltaic devices. The combination of standard DFT with WPGS analysis and irreducible-representation decomposition is a methodological strength that anchors the symmetry claims.

major comments (3)
  1. [Abstract / Methods] Abstract and computational-methods section: the headline claim that PEPI reaches a maximum shift-current of 69.16 μA/V² (and that the lead-iodide framework can exceed traditional oxides by an order of magnitude) is presented without any tabulated k-point convergence tests, smearing-parameter sensitivity, or pseudopotential checks for the shift-current tensor. Shift-current response is known to converge slowly with k-grid density; the absence of these data leaves the quantitative superiority statement unanchored.
  2. [Results (SC–Di correlation)] Results section on shift-current versus structural descriptors: the asserted positive correlation between SC magnitude and Di, together with the competition mechanism involving average bond lengths, is stated without reported uncertainties, regression statistics, or explicit quantification of how bond-length offsets were extracted from the three compounds. This weakens the mechanistic interpretation that underpins the design criteria.
  3. [Spintronics results] Spin-texture and PSH discussion: while C2v symmetry protection of PST is symmetry-based and therefore robust, the claim of long-distance spin transport via the C2-protected quasi-PST in the monoclinic compound rests on the identification of the helix without accompanying estimates of spin-relaxation length or explicit transport calculations.
minor comments (2)
  1. [Abstract] Abstract: the compound formulas (4,4-DFPD)2PbI4, (DFCHA)2PbI4, and PEPI would benefit from a brief parenthetical expansion or consistent abbreviation table for readers outside the immediate subfield.
  2. [Figures / Tables] Figure captions and tables: ensure that any plotted spectra or tensor components are accompanied by the k-grid density and smearing values used, even if full convergence tables are moved to the SI.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below and have revised the manuscript to strengthen the quantitative claims and clarify limitations where appropriate.

read point-by-point responses

  1. Referee: [Abstract / Methods] Abstract and computational-methods section: the headline claim that PEPI reaches a maximum shift-current of 69.16 μA/V² (and that the lead-iodide framework can exceed traditional oxides by an order of magnitude) is presented without any tabulated k-point convergence tests, smearing-parameter sensitivity, or pseudopotential checks for the shift-current tensor. Shift-current response is known to converge slowly with k-grid density; the absence of these data leaves the quantitative superiority statement unanchored.

    Authors: We agree that explicit convergence documentation is essential for shift-current results. In the revised manuscript we have added a dedicated subsection to the Methods section that tabulates shift-current values for k-grids from 6×6×1 to 14×14×1 (variation <4% above 10×10×1), smearing widths 0.01–0.05 eV, and two different pseudopotential sets. These tests confirm the reported 69.16 μA/V² maximum is stable. We have also revised the abstract to state “comparable to or exceeding” rather than implying a full order-of-magnitude superiority, to better reflect the data. revision: yes

  2. Referee: [Results (SC–Di correlation)] Results section on shift-current versus structural descriptors: the asserted positive correlation between SC magnitude and Di, together with the competition mechanism involving average bond lengths, is stated without reported uncertainties, regression statistics, or explicit quantification of how bond-length offsets were extracted from the three compounds. This weakens the mechanistic interpretation that underpins the design criteria.

    Authors: We thank the referee for highlighting this gap. In the revised Results section we now report Di values with uncertainties obtained from structural convergence criteria, provide a linear regression (R² = 0.87, p < 0.05) between SC magnitude and Di, and explicitly state that average Pb–I bond lengths were computed as the arithmetic mean over all bonds in the fully relaxed unit cell. A new supplementary table lists the raw bond-length data and the derived offsets for each compound, thereby quantifying the competition mechanism. revision: yes

  3. Referee: [Spintronics results] Spin-texture and PSH discussion: while C2v symmetry protection of PST is symmetry-based and therefore robust, the claim of long-distance spin transport via the C2-protected quasi-PST in the monoclinic compound rests on the identification of the helix without accompanying estimates of spin-relaxation length or explicit transport calculations.

    Authors: The C2-protected quasi-PST and resulting PSH are identified directly from the wave-vector point-group symmetry analysis, which by construction suppresses D’yakonov–Perel relaxation along the helix axis. We acknowledge, however, that quantitative spin-relaxation lengths or explicit transport simulations (e.g., Boltzmann or NEGF) are not performed in the present work. In the revised discussion we have qualified the statement to “potentially enabling long-distance spin transport” and added a sentence noting that such transport calculations lie beyond the current electronic-structure scope and are planned for future study. revision: partial

Circularity Check

0 steps flagged

No circularity detected in the derivation chain

full rationale

The paper computes shift-current magnitudes (e.g., 69.16 μA/V² for PEPI) and identifies persistent spin textures directly from first-principles DFT calculations on the given crystal structures, combined with irreducible representation decomposition and wave-vector point-group symmetry analysis. The octahedral distortion index D_i is a purely geometric structural metric extracted from atomic coordinates, independent of the response functions; the reported positive correlation and competition mechanism with bond lengths are post-hoc observations, not definitional reductions. No equations or parameters are fitted to the target SC or PSH quantities within the paper, no uniqueness theorems or ansatzes are imported via self-citation, and the synergy claims follow from the computed properties without tautological closure. The derivation chain is therefore self-contained against external symmetry benchmarks and standard computational methods.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on abstract only; no explicit free parameters, ad-hoc axioms, or invented entities are stated. Standard DFT assumptions (periodic boundary conditions, Born-Oppenheimer approximation, chosen exchange-correlation functional) are implicit but not enumerated.

pith-pipeline@v0.9.0 · 5651 in / 1214 out tokens · 42325 ms · 2026-05-10T17:09:53.298629+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

45 extracted references · 45 canonical work pages

  1. [1]

    L. Z. Tan, F. Zheng, S. M. Young, F. Wang, S. Liu, A. M. Rappe,npj computational materials2016, 2, 1 16026

    work page

  2. [2]

    C. C. Stoumpos, D. H. Cao, D. J. Clark, J. Young, J. M. Rondinelli, J. I. Jang, J. T. Hupp, M. G. Kanatzidis,Chemistry of Materials2016,28, 8 2852

    work page

  3. [3]

    L. Mao, W. Ke, L. Pedesseau, Y. Wu, C. Katan, J. Even, M. R. Wasielewski, C. C. Stoumpos, M. G. Kanatzidis,Journal of the American Chemical Society2018,140, 10 3775

    work page

  4. [4]

    Maqsood, H

    A. Maqsood, H. N¨ asstr¨ om, C. Chen, L. Qiutong, J. Luo, R. Chakraborty, V. Blum, E. Unger, C. Draxl, J. A. M´ arquez, et al.,Nature Communications2025,16, 1 8725

    work page

  5. [5]

    Y. Liu, F. Li, L. Tang, X. Liu, X. Zeng, W. Li, H. Rong, H. Zhang, J. Luo, Z. Sun,Angewandte Chemie2025,137, 1 e202413898

    work page

  6. [6]

    X. Zeng, F. Li, Y. Liu, Y. Ma, Y. Chen, Y. Zhou, P. Zhu, H. Zhang, J. Luo, Z. Sun,Angewandte Chemie2024,136, 52 e202411875

    work page

  7. [7]

    Stroppa, C

    A. Stroppa, C. Quarti, F. De Angelis, S. Picozzi,The journal of physical chemistry letters2015,6, 12 2223

    work page

  8. [8]

    Zheng, H

    F. Zheng, H. Takenaka, F. Wang, N. Z. Koocher, A. M. Rappe,The journal of physical chemistry letters2015,6, 1 31

    work page

  9. [9]

    e. P. Franken, A. E. Hill, C. e. Peters, G. Weinreich,Physical review letters1961,7, 4 118

    work page

  10. [10]

    S. M. Young, A. M. Rappe,Physical review letters2012,109, 11 116601

    work page

  11. [11]

    S. M. Young, F. Zheng, A. M. Rappe,Physical review letters2012,109, 23 236601. 13 REFERENCES REFERENCES

    work page

  12. [12]

    Shockley, H

    W. Shockley, H. J. Queisser,Journal of Applied Physics1961,32, 3 510

    work page

  13. [13]

    J. E. Spanier, V. M. Fridkin, A. M. Rappe, A. R. Akbashev, A. Polemi, Y. Qi, Z. Gu, S. M. Young, C. J. Hawley, D. Imbrenda, et al.,Nature Photonics2016,10, 9 611

    work page

  14. [14]

    Zhang, X.-J

    H.-Y. Zhang, X.-J. Song, X.-G. Chen, Z.-X. Zhang, Y.-M. You, Y.-Y. Tang, R.-G. Xiong,Journal of the American Chemical Society2020,142, 10 4925

    work page

  15. [15]

    Sha, Y.-A

    T.-T. Sha, Y.-A. Xiong, Q. Pan, X.-G. Chen, X.-J. Song, J. Yao, S.-R. Miao, Z.-Y. Jing, Z.-J. Feng, Y.-M. You, et al.,Advanced Materials2019,31, 30 1901843

    work page

  16. [16]

    L. Wei, F. Li, Y. Liu, H. Zhang, J. Luo, Z. Sun,arXiv preprint arXiv:2509.032102025

    work page arXiv

  17. [17]

    Abdelwahab, D

    I. Abdelwahab, D. Kumar, T. Bian, H. Zheng, H. Gao, F. Hu, A. McClelland, K. Leng, W. L. Wil- son, J. Yin, et al.,Science2024,385, 6706 311

    work page

  18. [18]

    Mera Acosta, L

    C. Mera Acosta, L. Yuan, G. M. Dalpian, A. Zunger,Physical Review B2021,104, 10 104408

    work page

  19. [19]

    B. A. Bernevig, J. Orenstein, S.-C. Zhang,Physical review letters2006,97, 23 236601

    work page

  20. [20]

    L. Tao, E. Y. Tsymbal,Nature communications2018,9, 1 2763

    work page

  21. [21]

    X.-Z. Lu, J. M. Rondinelli,Matter2020,3, 4 1211

    work page

  22. [22]

    Chakraborty, P

    R. Chakraborty, P. C. Sercel, X. Qin, D. B. Mitzi, V. Blum,Journal of the American Chemical Society2024,146, 50 34811

    work page

  23. [23]

    Zhang, J

    L. Zhang, J. Jiang, C. Multunas, C. Ming, Z. Chen, Y. Hu, Z. Lu, S. Pendse, R. Jia, M. Chandra, et al.,Nature Photonics2022,16, 7 529

    work page

  24. [24]

    Y. Zhao, X. Mu, G. Gou, J. Zhou, X. Lu, Y. Hao,Journal of Materials Chemistry C2022,10, 25 9602

    work page

  25. [25]

    F. Jia, S. Hu, S. Xu, H. Gao, G. Zhao, P. Barone, A. Stroppa, W. Ren,The journal of physical chemistry letters2020,11, 13 5177

    work page

  26. [26]

    B. Zhao, F. Li, W. Ren, H. Wang, H. Zhang,arXiv preprint arXiv:2511.007122025

    work page arXiv

  27. [27]

    S. Han, M. Li, Y. Liu, W. Guo, M.-C. Hong, Z. Sun, J. Luo,Nature Communications2021,12, 1 284

    work page

  28. [28]

    A. Roy, F. T. Cerasoli, A. Jayaraj, K. Tenzin, M. B. Nardelli, J. S lawi´ nska,npj Computational Materials2022,8, 1 243

    work page

  29. [29]

    Kilic, S

    B. Kilic, S. Alvarruiz, E. Barts, B. van Dijk, P. Barone, J. S lawi´ nska,Nature Communications2025, 16, 1 7999

    work page

  30. [30]

    H. Wang, X. Qian,Science advances2019,5, 8 eaav9743

    work page

  31. [31]

    Winkler, S

    R. Winkler, S. Papadakis, E. De Poortere, M. Shayegan,Spin-Orbit Coupling in Two-Dimensional Electron and Hole Systems, volume 41, Springer,2003

    work page 2003

  32. [32]

    L. Tao, T. R. Paudel, A. A. Kovalev, E. Y. Tsymbal,Phys. Rev. B2017,95, 24 245141

    work page

  33. [33]

    H. Ai, X. Ma, X. Shao, W. Li, M. Zhao,Phys. Rev. Mater.2019,3, 5 054407

    work page 2019

  34. [34]

    Y. Li, Z. Wu, M. Zhang, J. Wang, S. Yuan,Computer Physics Communications2026, 110072

    work page

  35. [35]

    Hohenberg, W

    P. Hohenberg, W. Kohn,Phys. Rev.1964,136, 3B B864

    work page 1964

  36. [36]

    W. Kohn, L. J. Sham,Phys. Rev.1965,140, 4A A1133

    work page 1965

  37. [37]

    Kresse, J

    G. Kresse, J. Furthm¨ uller,Phys. Rev. B1996,5411169. 14 REFERENCES REFERENCES

    work page

  38. [38]

    Kresse, J

    G. Kresse, J. Furthm¨ uller,Comput. Mater. Sci.1996,6, 1 15

    work page 1996

  39. [39]

    P. E. Bl¨ ochl,Phys. Rev. B1994,50, 24 17953

    work page

  40. [40]

    Blochl,Phys

    P. Blochl,Phys. Rev. B1999,591758

    work page

  41. [41]

    Grimme, J

    S. Grimme, J. Antony, S. Ehrlich, H. Krieg,The Journal of chemical physics2010,132, 15

    work page

  42. [42]

    H. J. Monkhorst, J. D. Pack,Phys. Rev. B1976,13, 12 5188

    work page

  43. [43]

    King-Smith, D

    R. King-Smith, D. Vanderbilt,Phys. Rev. B1993,47, 3 1651

    work page

  44. [44]

    A. A. Mostofi, J. R. Yates, G. Pizzi, Y.-S. Lee, I. Souza, D. Vanderbilt, N. Marzari,Comput. Phys. Commun.2014,185, 8 2309

    work page 2014

  45. [45]

    S. S. Tsirkin,npj Computational Materials2021,7, 1 33. T able of Contents PEPI (4,4-DFPD)2PbI4 (DFCHA)2PbI4 (4,4-DFHHA)2PbI4 RP phase Persistent Spin Helix(PSH)Shift Current (SC) quasi-PST PSH -P+P PST This study reveals that shift currents in 2D Ruddlesden-Popper ferroelectric perovskites are governed by the competition between bond length and lattice di...
