Choice of optical transformation for photonic circuit wavefront sensors

Jonathan Lin This is my paper

Pith reviewed 2026-05-10 16:57 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords photonic integrated circuitswavefront sensingcoronagraphsunitary matrixphase aberrationsexoplanet imagingmode sorteroptical transformation
0
0 comments X

The pith

A unitary matrix can be constructed to maximize photonic circuit sensitivity to phase aberrations in two coupling setups.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Coronagraphs for exoplanet imaging can use photonic integrated circuits both to transmit off-axis light with high throughput and to sense wavefront aberrations from the rejected starlight. The paper examines the best way to configure the circuit for maximum sensitivity to phase errors, analyzing direct piecewise coupling to the electric field as well as coupling through an optical mode sorter. In each case it derives the unitary matrix the circuit should apply. A reader would care because better sensing enables tighter aberration correction and thus higher yields of detectable planets in future high-contrast imaging.

Core claim

In either case, this work constructs a unitary matrix which can be applied by a photonic circuit to produce maximum sensitivity.

What carries the argument

The unitary matrix that encodes the optical transformation chosen to maximize sensitivity to phase aberrations.

If this is right

  • The circuit achieves its highest possible response to small phase aberrations.
  • Rejected starlight can be used more effectively for real-time correction of non-common-path aberrations.
  • The same construction works for both direct piecewise coupling and mode-sorter coupling.
  • Overall throughput for off-axis signals remains high while wavefront sensing performance is optimized.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designs for other photonic sensors in astronomy could adopt similar unitary optimization.
  • Practical chips will need tolerance analysis because real fabrication will deviate from the ideal unitary.
  • Numerical or laboratory tests comparing the proposed matrix against random or standard bases would quantify the sensitivity gain.

Load-bearing premise

An ideal unitary transformation can be implemented perfectly by the photonic circuit with no loss, crosstalk or fabrication errors, and the piecewise direct and mode-sorter coupling models accurately describe the physical field interaction.

What would settle it

Fabricate a photonic circuit implementing the derived unitary matrix and measure its response to controlled phase aberrations to check whether sensitivity reaches the predicted theoretical maximum.

Figures

Figures reproduced from arXiv: 2604.08665 by Jonathan Lin.

Figure 1
Figure 1. Figure 1: a. Coupling of the PIC with a spatially discretized wavefront. This coupling could be accomplished in many ways, including via optical fibers (as drawn), or a microlens array which focuses light into an on-chip array of couplers, and could occur in a pupil plane (as drawn) or any other plane. Note that exoplanet detection and characterization with a PIC does not strictly require image formation. For fragme… view at source ↗
Figure 2

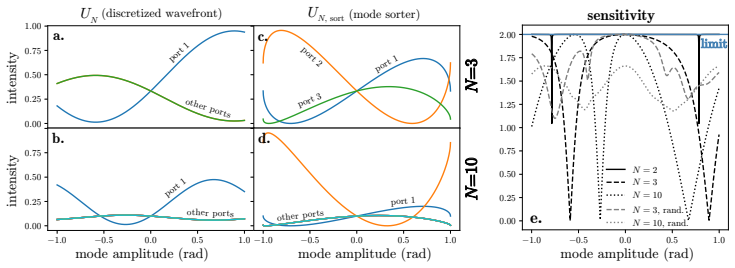

Figure 2. Figure 2: a, b: Intensity response of 𝑈3 and 𝑈10 to the 𝝓SP,𝑘 mode basis (the local subaperture piston modes, orthogonalized against the global piston). c, d: Intensity response of 𝑈3,sort and 𝑈10,sort when scanning over an aberration mode. While scanning, the total power of the electric field is kept at 1. Note that the behavior near the edges is not meaningful because it violates the small angle approximation; how… view at source ↗
