High-resolution long-range 3D single-photon imaging with a compact SPAD array

Zunwang Bo , Chenjin Deng , Fei Wang , Wenlin Gong , Yuanhao Su , Yichen Zhang , Mingliang Chen , Chunfang Wang

show 1 more author

Shensheng Han

Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:15 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords 3D single-photon imagingSPAD arrayDMD modulationtime-of-flightlong-range imaginghigh-resolution reconstructionphoton-starved conditions

0 comments

The pith

A compact 64x64 SPAD array paired with DMD spatial modulation delivers 256 by 256 resolution 3D images of natural targets at 670 meters in outdoor conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates a technique for high-resolution 3D single-photon imaging over long distances using limited detector hardware. By modulating the light with a digital micromirror device before it reaches the small SPAD array, the system effectively increases the number of spatial samples while each still records precise arrival times for depth. Outdoor tests at 670 meters produced detailed 3D maps of natural scenes, showing that compact detectors can overcome their native resolution limits in photon-poor environments. This approach addresses the challenge of balancing detector size, cost, and performance in applications needing long-range vision with minimal light.

Core claim

The authors establish that DMD-based high-resolution spatial modulation, when combined with parallel time-resolved detection from a compact 64 by 64 SPAD array, extends the effective spatial sampling to 256 by 256 while preserving accurate time-of-flight depth information. This is validated through outdoor experiments at a 670 m stand-off distance, where natural targets were reconstructed in three dimensions under photon-starved conditions.

What carries the argument

DMD-based spatial modulation combined with time-resolved detection on the SPAD array, which samples the scene at higher resolution than the detector's native 64x64 format by modulating incoming light and measuring photon arrival times in parallel.

If this is right

High-resolution 3D reconstruction becomes feasible with compact SPAD arrays instead of requiring larger detectors.
The method supports imaging natural targets at long standoff distances while retaining depth precision from time-of-flight measurements.
Effective spatial resolution reaches 256 by 256 pixels in photon-starved outdoor settings without major hardware changes.
Parallel detection on the array maintains the efficiency of simultaneous time-resolved measurements across the modulated scene.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This modulation strategy may allow smaller detector arrays to substitute for bulkier ones in portable long-range systems.
The technique could extend to moving targets if DMD switching rates improve to match scene dynamics.
Integration with existing lidar hardware might reduce overall system size while increasing spatial detail.
Similar approaches could address resolution limits in other photon-counting applications like fluorescence imaging.

Load-bearing premise

The assumption that DMD spatial modulation can extend the effective spatial sampling of the 64x64 SPAD array while preserving accurate time-of-flight depth information without introducing reconstruction artifacts or significant losses under real outdoor photon-starved conditions.

What would settle it

An experiment at 670 m showing depth errors exceeding expected noise levels or visible spatial artifacts in the 3D reconstructions would indicate that the modulation fails to preserve accurate information.

read the original abstract

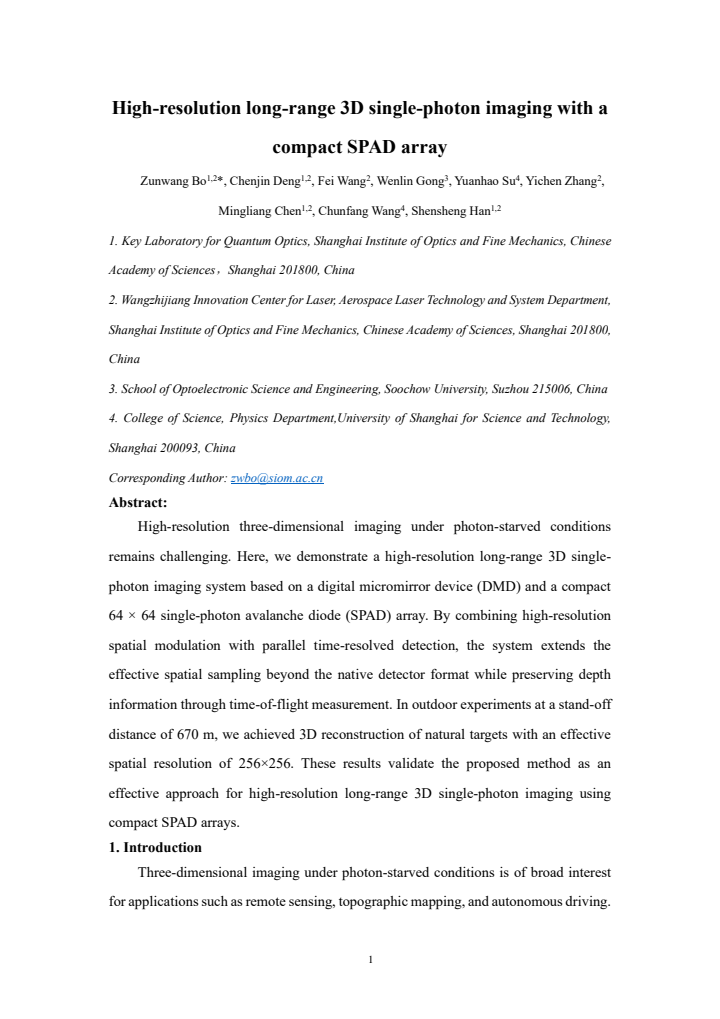

High-resolution three-dimensional imaging under photon-starved conditions remains challenging. Here, we demonstrate a high-resolution long-range 3D single-photon imaging system based on a digital micromirror device (DMD) and a compact 64 multiply 64 single-photon avalanche diode (SPAD) array. By combining high-resolution spatial modulation with parallel time-resolved detection, the system extends the effective spatial sampling beyond the native detector format while preserving depth information through time-of-flight measurement. In outdoor experiments at a stand-off distance of 670 m, we achieved 3D reconstruction of natural targets with an effective spatial resolution of 256 multiply 256. These results validate the proposed method as an effective approach for high-resolution long-range 3D single-photon imaging using compact SPAD arrays.
