Temporal Patch Shuffle (TPS): Leveraging Patch-Level Shuffling to Boost Generalization and Robustness in Time Series Forecasting

Jafar Bakhshaliyev , Johannes Burchert , Niels Landwehr , Lars Schmidt-Thieme This is my paper

Pith reviewed 2026-05-10 17:20 UTC · model grok-4.3

classification 💻 cs.LG
keywords time series forecastingdata augmentationpatch shufflinggeneralizationrobustnesstemporal coherencelong-term forecasting
0
0 comments X

The pith

Temporal Patch Shuffle improves time series forecasting by adding diversity through selective patch shuffling while preserving local structure.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes Temporal Patch Shuffle as a data augmentation method tailored for time series forecasting. It extracts overlapping patches from the input sequence, shuffles a subset chosen by variance order, and rebuilds the series by averaging the overlaps. This creates more varied training samples without breaking the short-range temporal patterns that forecasting models rely on. The authors test it on nine long-term and four short-term datasets using several recent model families and report consistent gains in accuracy. If the method works as described, it offers a lightweight way to strengthen generalization when training data is limited.

Core claim

TPS extracts overlapping temporal patches from the input series, selectively shuffles a subset ordered by variance as a conservative heuristic, and reconstructs the sequence through averaging of overlapping regions. This process increases sample diversity while maintaining forecast-consistent local temporal structure. When applied during training, it leads to consistent performance gains in long-term and short-term forecasting tasks using models like TSMixer, DLinear, PatchTST, TiDE, and LightTS.

What carries the argument

Temporal Patch Shuffle (TPS), a procedure that breaks the series into overlapping patches, shuffles a variance-selected subset, and reconstructs the series by averaging overlaps.

Load-bearing premise

That selectively shuffling patches by variance order adds useful diversity without destroying the local temporal patterns required for accurate forecasts.

What would settle it

Running the same forecasting model on one of the tested datasets both with and without TPS and finding equal or worse error metrics such as MSE would disprove the claim of consistent improvement.

Figures

Figures reproduced from arXiv: 2604.09067 by Jafar Bakhshaliyev, Johannes Burchert, Lars Schmidt-Thieme, Niels Landwehr.

Figure 1
Figure 1. Figure 1: Overview of the training pipeline for time series forecasting with augmentation. The look-back window and forecast horizon are concatenated and processed by the augmentation module to produce synthetic sequences, following the general procedure described in Chen et al. (2023a). ments and expands them back to the original length using lin￾ear interpolation, effectively acting as a “magnifying glass” that em… view at source ↗
Figure 2

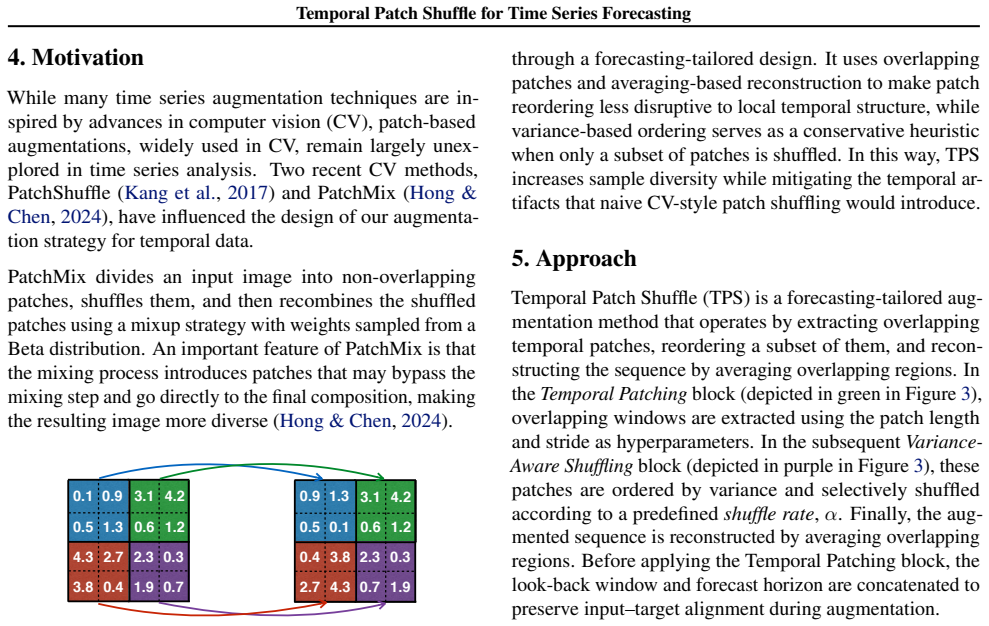

Figure 2. Figure 2: presents a simplified version of the PatchShuffle method. In this example, a 4 × 4 image matrix is divided into four non-overlapping 2 × 2 patches. The pixels within each patch are independently shuffled: attributes in each patch are permuted separately, and a shuffled patch may also retain its original structure. This local pixel-level shuffling introduces variation while preserving the global structure o… view at source ↗
Figure 3

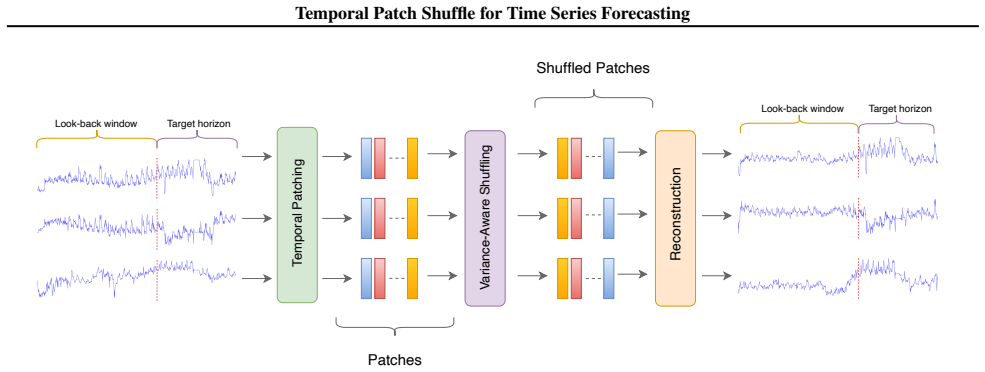

Figure 3. Figure 3: Illustration of the proposed TPS method for time series forecasting. The input sequence, consisting of a look-back window and a forecast horizon, is first processed by the Temporal Patching block to extract overlapping patches. These patches are then ordered by variance and partially shuffled in the Variance-Aware Shuffling block. Finally, the shuffled patches are merged back into a full sequence via the R… view at source ↗
Figure 4

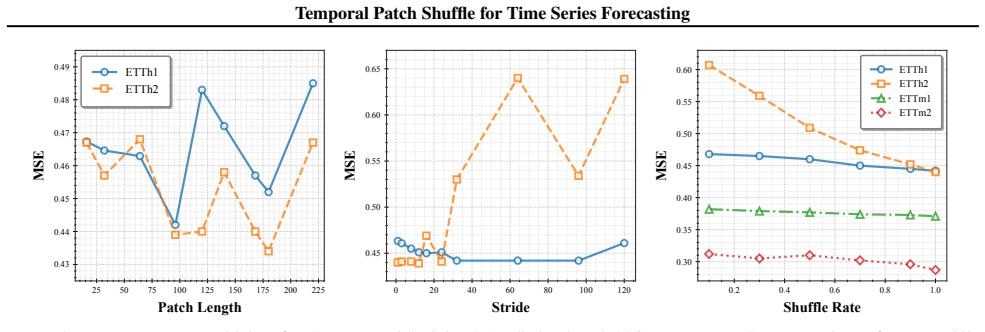

Figure 4. Figure 4: Hyperparameter sensitivity of TPS on ETT with LightTS (prediction length 336). We report MSE averaged over five runs while varying one of {p, s, α} and fixing the other two to the best validation configuration. Additional details on baselines, datasets, and experimental results are provided in Appendix F. These results highlight the versatility of TPS and demonstrate that its benefits ex￾tend beyond foreca… view at source ↗
Figure 5

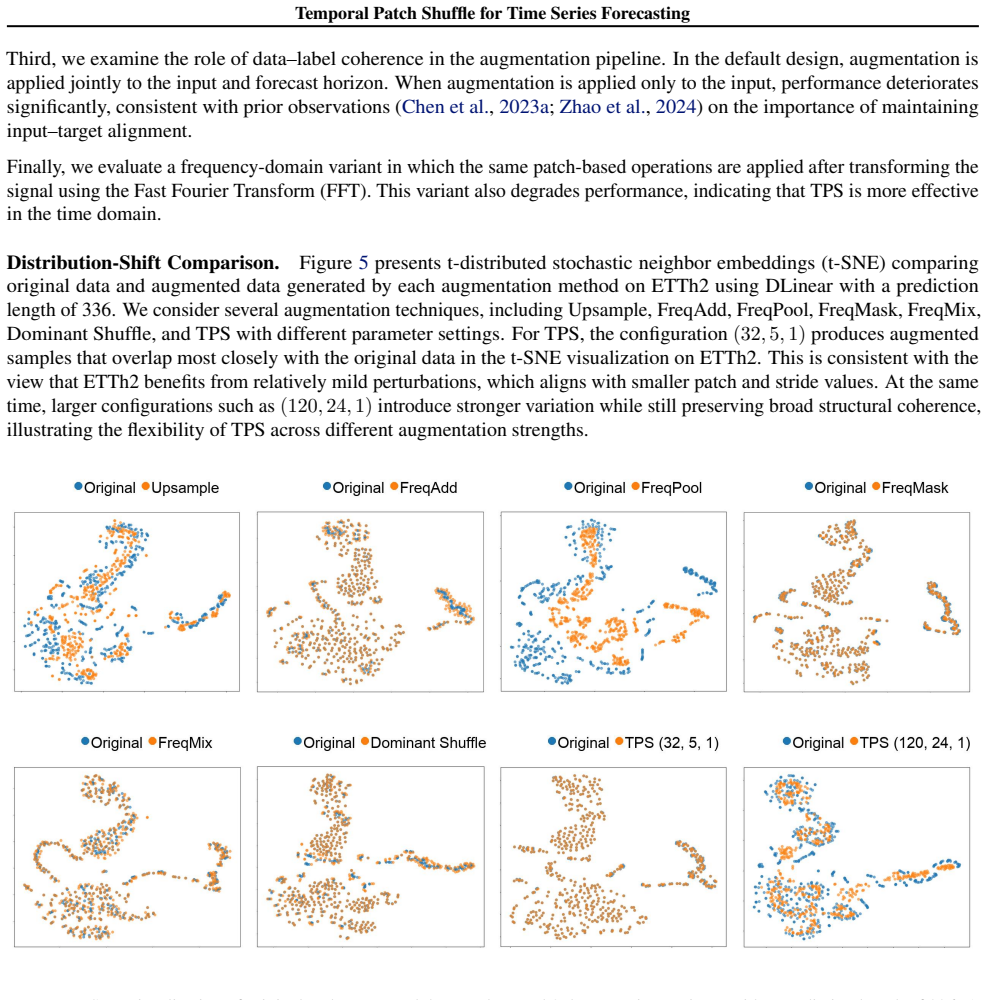

Figure 5. Figure 5: t-SNE visualization of original and augmented data on the ETTh2 dataset using DLinear with a prediction length of 336. A closer overlap between original and augmented points suggests better distributional alignment and reduced out-of-distribution deviation. Best viewed in color [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6

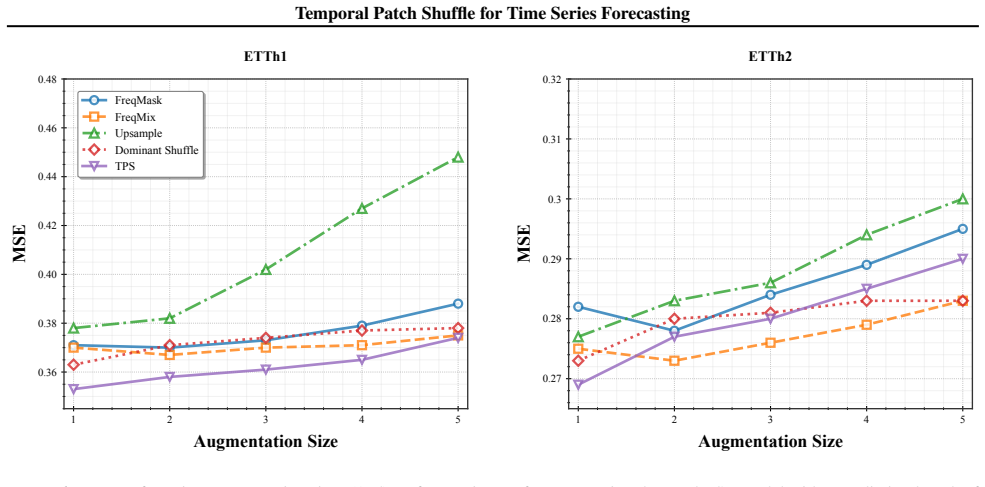

Figure 6. Figure 6: Impact of varying augmentation sizes (1–5) on forecasting performance using the PatchTST model with a prediction length of 96 on the ETTh1 and ETTh2 datasets. The results demonstrate how different augmentation methods respond to increasing augmentation intensity, highlighting stability or degradation in performance. For univariate classification, we use the UCR archive, which contains datasets with a singl… view at source ↗
Figure 7

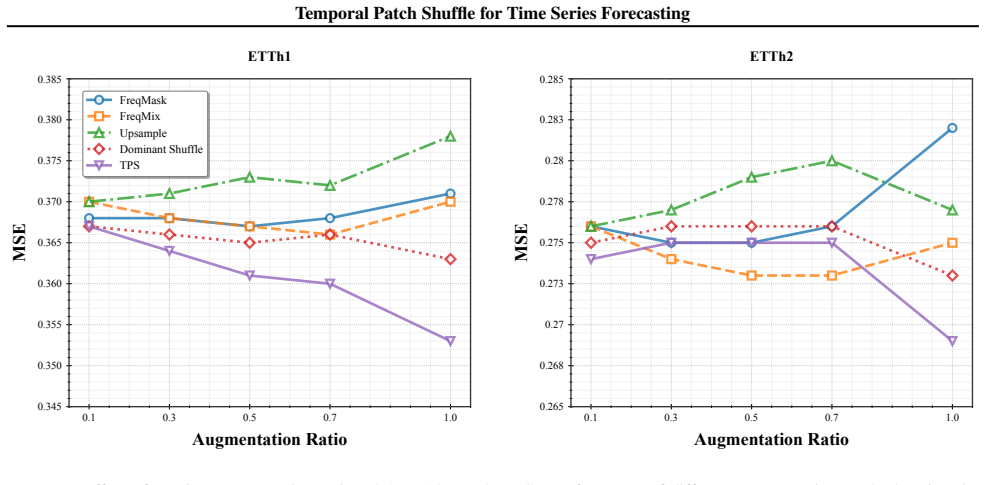

Figure 7. Figure 7: Effect of varying augmentation ratios (0.1 to 1.0) on the MSE performance of different augmentation methods using the PatchTST model with prediction length 96 on the ETTh1 and ETTh2 datasets. The augmentation ratio indicates the proportion of augmented samples used during training. TPS improves over the second-best augmentation by 0.50% on the univariate UCR benchmark and by 1.10% on the multivariate UEA b… view at source ↗
read the original abstract

Data augmentation is a crucial technique for improving model generalization and robustness, particularly in deep learning models where training data is limited. Although many augmentation methods have been developed for time series classification, most are not directly applicable to time series forecasting due to the need to preserve temporal coherence. In this work, we propose Temporal Patch Shuffle (TPS), a simple and model-agnostic data augmentation method for forecasting that extracts overlapping temporal patches, selectively shuffles a subset of patches using variance-based ordering as a conservative heuristic, and reconstructs the sequence by averaging overlapping regions. This design increases sample diversity while preserving forecast-consistent local temporal structure. We extensively evaluate TPS across nine long-term forecasting datasets using five recent model families (TSMixer, DLinear, PatchTST, TiDE, and LightTS), and across four short-term forecasting datasets using PatchTST, observing consistent performance improvements. Comprehensive ablation studies further demonstrate the effectiveness, robustness, and design rationale of the proposed method.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes Temporal Patch Shuffle (TPS), a model-agnostic data augmentation method for time series forecasting. It extracts overlapping temporal patches, selectively shuffles a subset using variance-based ordering as a conservative heuristic, and reconstructs the sequence via overlap averaging. The central claim is that this increases sample diversity while preserving forecast-consistent local temporal structure, yielding consistent performance improvements. The authors report extensive evaluations on nine long-term forecasting datasets across five model families (TSMixer, DLinear, PatchTST, TiDE, LightTS) and four short-term datasets with PatchTST, plus ablation studies demonstrating effectiveness and design rationale.

Significance. If the results hold under scrutiny, TPS would offer a lightweight, architecture-independent augmentation strategy for time series forecasting, addressing the scarcity of suitable augmentation techniques that maintain temporal coherence. The multi-dataset, multi-model evaluation provides a solid empirical foundation that could encourage adoption in practice.

major comments (2)
  1. [Method] Method description: the assertion that variance-based ordering is a 'conservative heuristic' that preserves forecast-consistent local temporal structure is not supported by analysis. In non-stationary series, series with trend/seasonal components encoded in low-variance segments, or heteroscedastic noise, shuffling low-variance patches can alter autocorrelation or low-frequency content; overlap averaging may further smooth signals. This is load-bearing for the central claim, as the reported gains could arise from generic regularization rather than the claimed mechanism, and no theoretical bound, counterexample analysis, or comparison to random shuffling is provided.
  2. [Experiments] Experimental evaluation: the claim of 'consistent performance improvements' across nine long-term and four short-term datasets lacks reported quantitative details in the abstract (specific deltas, error bars, statistical tests, or baseline augmentation comparisons). Without these, it is impossible to assess whether gains are meaningful, robust, or statistically significant, undermining the generalization and robustness assertions.
minor comments (2)
  1. Clarify the precise patch extraction parameters (length, stride, overlap size) and how reconstruction handles edge cases or variable-length inputs.
  2. In ablation studies, explicitly isolate the contribution of variance-based selection versus random selection or overlap averaging alone.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment point by point below, indicating planned revisions to strengthen the work while maintaining its empirical focus.

read point-by-point responses

  1. Referee: [Method] Method description: the assertion that variance-based ordering is a 'conservative heuristic' that preserves forecast-consistent local temporal structure is not supported by analysis. In non-stationary series, series with trend/seasonal components encoded in low-variance segments, or heteroscedastic noise, shuffling low-variance patches can alter autocorrelation or low-frequency content; overlap averaging may further smooth signals. This is load-bearing for the central claim, as the reported gains could arise from generic regularization rather than the claimed mechanism, and no theoretical bound, counterexample analysis, or comparison to random shuffling is provided.

    Authors: We acknowledge that the current manuscript provides limited analysis to support the variance-based ordering as a conservative heuristic. In the revised version, we will add an ablation study directly comparing variance-based patch selection against random shuffling across the same datasets and models to isolate its contribution. We will also include qualitative visualizations of reconstructed series and a discussion of potential limitations in non-stationary or heteroscedastic settings. While we cannot provide a formal theoretical bound on structure preservation (as the work is primarily empirical), these additions will better substantiate the design rationale and address concerns about generic regularization effects. revision: partial

  2. Referee: [Experiments] Experimental evaluation: the claim of 'consistent performance improvements' across nine long-term and four short-term datasets lacks reported quantitative details in the abstract (specific deltas, error bars, statistical tests, or baseline augmentation comparisons). Without these, it is impossible to assess whether gains are meaningful, robust, or statistically significant, undermining the generalization and robustness assertions.

    Authors: We agree that the abstract would be strengthened by including quantitative details. The full manuscript already reports per-dataset and per-model results in Tables 1–4 with standard deviations from multiple runs, showing improvements in the large majority of settings. We will revise the abstract to include average relative improvement figures and a note on multi-run evaluation. Regarding baseline augmentation comparisons, our ablations examine TPS design choices rather than external methods; we will add a brief comparison to a simple baseline such as Gaussian jittering in the experiments section if space allows. revision: yes

standing simulated objections not resolved
  • A rigorous theoretical bound or counterexample analysis proving that variance-based shuffling preserves forecast-consistent local temporal structure (e.g., autocorrelation and low-frequency content) under all non-stationary or heteroscedastic conditions.

Circularity Check

0 steps flagged

No significant circularity: purely empirical heuristic with external validation

full rationale

The paper introduces TPS as a model-agnostic data augmentation heuristic for time series forecasting: extract overlapping patches, apply variance-based selective shuffling, and reconstruct via overlap averaging. No derivation chain, equations, or fitted parameters exist that could reduce claims to self-defined quantities. Performance claims rest on extensive empirical evaluations across nine long-term and four short-term datasets using multiple model families, with ablations. No self-citations are load-bearing for any mathematical result; the method is presented as a conservative heuristic without uniqueness theorems or ansatzes imported from prior work. This is a standard non-circular empirical contribution.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the proposed shuffling heuristic preserves sufficient temporal structure for forecasting; no free parameters or invented entities are described in the abstract.

axioms (1)
  • domain assumption Variance-based ordering provides a conservative heuristic that increases diversity while preserving forecast-consistent local temporal structure
    This assumption underpins the design choice for which patches to shuffle and is invoked to justify why the augmentation does not harm forecasting performance.
