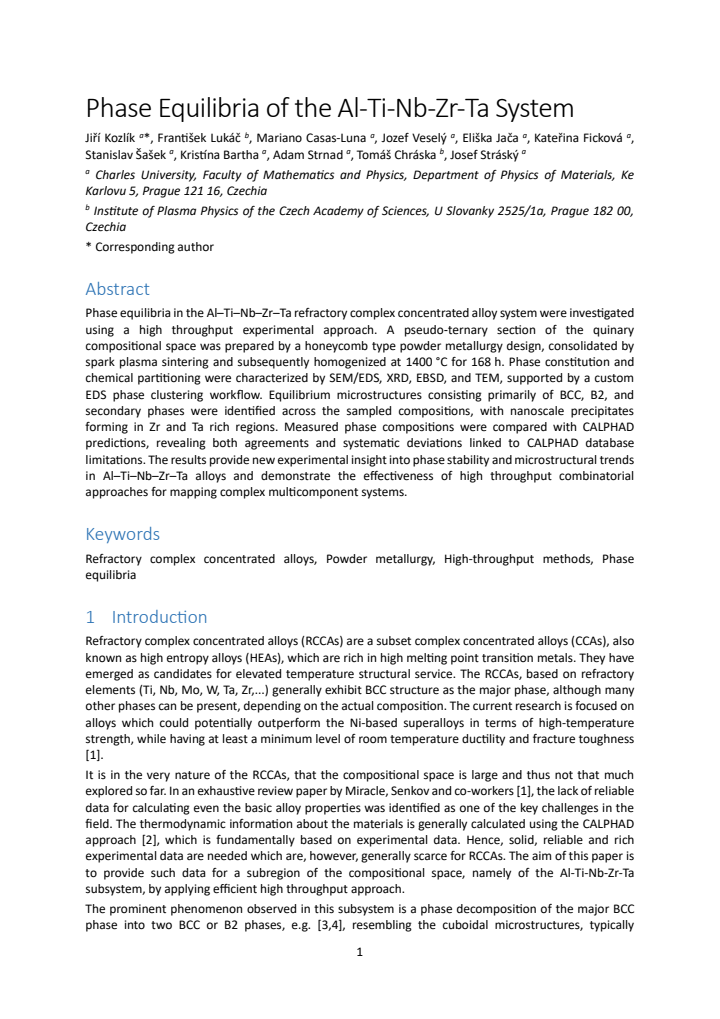

Phase Equilibria of the Al-Ti-Nb-Zr-Ta System

Ji\v{r}\'i Kozl\'ik , Franti\v{s}ek Luk\'a\v{c} , Mariano Casas-Luna , Jozef Vesel\'y , Eli\v{s}ka Ja\v{c}a , Kate\v{r}ina Fickov\'a , Stanislav \v{S}a\v{s}ek , Krist\'ina Bartha
show 3 more authors
Adam Strnad Tom\'a\v{s} Chr\'aska Josef Str\'ask\'y
This is my paper

Pith reviewed 2026-05-10 16:49 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords phase equilibriarefractory alloysAl-Ti-Nb-Zr-Tahigh-throughputBCC phaseB2 phaseCALPHADcombinatorial synthesis
0
0 comments X

The pith

High-throughput experiments map equilibrium phases across a pseudo-ternary section of the Al-Ti-Nb-Zr-Ta system.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines phase equilibria in the quinary Al-Ti-Nb-Zr-Ta refractory alloy system through a combinatorial experimental design. A honeycomb powder metallurgy layout creates multiple compositions in a pseudo-ternary slice, which are consolidated by spark plasma sintering and then homogenized at 1400 degrees Celsius for 168 hours. Multi-technique characterization identifies predominantly BCC and B2 phases together with secondary phases and nanoscale precipitates that appear in zirconium-tantalum enriched regions. Direct comparison of measured phase compositions against CALPHAD calculations reveals both matches and systematic offsets that the authors link to gaps in existing thermodynamic databases. The results supply fresh experimental anchors for phase stability trends while showing that high-throughput methods can efficiently chart phase behavior in complex multicomponent systems.

Core claim

Equilibrium microstructures in the sampled Al-Ti-Nb-Zr-Ta compositions consist primarily of BCC and B2 phases, with additional secondary phases present and nanoscale precipitates forming preferentially in Zr- and Ta-rich areas. Experimental phase compositions obtained after 168-hour homogenization at 1400 °C agree with some CALPHAD predictions yet display consistent deviations that point to limitations in current thermodynamic databases for this quinary system.

What carries the argument

Honeycomb-type powder metallurgy layout that simultaneously prepares a grid of pseudo-ternary compositions, followed by spark plasma sintering, 168-hour homogenization at 1400 °C, and phase identification via SEM/EDS, XRD, EBSD, TEM plus a custom EDS clustering workflow.

If this is right

  • Measured phase compositions supply new benchmarks that can guide selection of stable BCC/B2 microstructures for high-temperature alloy design.
  • Systematic offsets between experiment and CALPHAD highlight specific composition ranges where thermodynamic databases require refinement.
  • Nanoscale precipitates concentrated in Zr-Ta rich zones indicate a composition window where precipitation strengthening may be accessible.
  • The honeycomb combinatorial workflow demonstrates that full quinary phase mapping is feasible with far fewer individual samples than conventional methods.
  • Microstructural trends across the pseudo-ternary section establish clear composition-dependent rules for phase selection in this alloy family.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same sample library could be used to measure mechanical properties at temperature and directly connect the observed phases to strength and ductility.
  • Repeating the mapping at lower temperatures would reveal any solid-state phase transformations that affect processing or service performance.
  • The honeycomb approach is transferable to other refractory quinary or senary systems where conventional diffusion-couple studies become prohibitively time-consuming.

Load-bearing premise

The 168-hour hold at 1400 °C produces true thermodynamic equilibrium microstructures and phase compositions in every sampled composition.

What would settle it

Detection of additional phases, altered phase fractions, or measurably different compositions after either longer homogenization or independent diffusion-couple experiments at the same temperature would show that equilibrium had not been reached.

read the original abstract

Phase equilibria in the Al-Ti-Nb-Zr-Ta refractory complex concentrated alloy system were investigated using a high throughput experimental approach. A pseudo-ternary section of the quinary compositional space was prepared by a honeycomb type powder metallurgy design, consolidated by spark plasma sintering and subsequently homogenized at 1400 {\deg}C for 168 h. Phase constitution and chemical partitioning were characterized by SEM/EDS, XRD, EBSD, and TEM, supported by a custom EDS phase clustering workflow. Equilibrium microstructures consisting primarily of BCC, B2, and secondary phases were identified across the sampled compositions, with nanoscale precipitates forming in Zr and Ta rich regions. Measured phase compositions were compared with CALPHAD predictions, revealing both agreements and systematic deviations linked to CALPHAD database limitations. The results provide new experimental insight into phase stability and microstructural trends in Al-Ti-Nb-Zr-Ta alloys and demonstrate the effectiveness of high throughput combinatorial approaches for mapping complex multicomponent systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports a high-throughput experimental investigation of phase equilibria in the Al-Ti-Nb-Zr-Ta refractory complex concentrated alloy system. A pseudo-ternary section was prepared via a honeycomb powder-metallurgy design, consolidated by spark plasma sintering, and homogenized at 1400 °C for 168 h. Phase constitution, chemical partitioning, and nanoscale features were characterized by SEM/EDS, XRD, EBSD, and TEM, aided by a custom EDS clustering workflow. Measured phase compositions (primarily BCC, B2, and secondary phases) were compared with CALPHAD predictions, revealing both agreements and systematic deviations attributed to database limitations.

Significance. If the reported microstructures and compositions represent thermodynamic equilibrium, the work supplies new experimental benchmarks on phase stability and partitioning trends in a quinary refractory system that is difficult to explore by conventional means. It also illustrates the practical value of combinatorial high-throughput methods for mapping multicomponent phase spaces and flags specific shortcomings in current CALPHAD databases for these alloys.

major comments (1)
  1. [Experimental Methods] The central claim that the observed BCC/B2/secondary-phase assemblages and partitioning represent equilibrium phase equilibria rests on the 168-hour homogenization at 1400 °C. Given the melting points of Nb, Ta, and Zr (>2400 °C), self- and inter-diffusion coefficients at 1400 °C are low; the manuscript supplies no diffusion-length estimates, Arrhenius-based calculations, time-series data, or invariant-composition checks to confirm that equilibrium has been reached. Without such verification, the systematic deviations from CALPHAD cannot be unambiguously attributed to database limitations rather than incomplete equilibration. (Experimental Methods and Results sections on homogenization and phase identification.)
minor comments (2)
  1. [Abstract] The abstract and results mention 'systematic deviations' with CALPHAD but provide neither quantified error bars on EDS-measured compositions nor the exact list of sampled pseudo-ternary compositions, limiting the ability to assess the magnitude and statistical significance of the reported discrepancies.
  2. [Methods] The custom EDS phase-clustering algorithm is referenced as supporting the characterization but its clustering criteria, hyperparameters, and validation against manual or standard methods are not described, hindering reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comments and for recognizing the value of our high-throughput approach to the Al-Ti-Nb-Zr-Ta system. We address the concern regarding equilibration below.

read point-by-point responses

  1. Referee: [Experimental Methods] The central claim that the observed BCC/B2/secondary-phase assemblages and partitioning represent equilibrium phase equilibria rests on the 168-hour homogenization at 1400 °C. Given the melting points of Nb, Ta, and Zr (>2400 °C), self- and inter-diffusion coefficients at 1400 °C are low; the manuscript supplies no diffusion-length estimates, Arrhenius-based calculations, time-series data, or invariant-composition checks to confirm that equilibrium has been reached. Without such verification, the systematic deviations from CALPHAD cannot be unambiguously attributed to database limitations rather than incomplete equilibration. (Experimental Methods and Results sections on homogenization and phase identification.)

    Authors: We agree that the absence of explicit diffusion estimates or time-series verification leaves the equilibrium assumption open to the concern raised. The 168 h / 1400 °C homogenization was selected to align with durations reported for comparable refractory alloys in the literature, and our SEM/EDS maps show no detectable coring or composition gradients within grains. In the revised manuscript we will add a new paragraph in the Experimental Methods section that (i) cites available Arrhenius parameters for self- and inter-diffusion of Nb, Ta, Zr and Ti in BCC phases, (ii) provides order-of-magnitude diffusion-length estimates at 1400 °C, and (iii) notes that these lengths exceed the observed grain sizes. We will also qualify the discussion of CALPHAD deviations by acknowledging that incomplete equilibration cannot be entirely ruled out and that future time-series or invariant-composition experiments would be desirable. These additions directly address the referee’s point without altering the reported microstructures or compositions. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental mapping with external CALPHAD comparison

full rationale

The paper reports an experimental workflow (honeycomb powder metallurgy, SPS consolidation, 168 h homogenization at 1400 °C, SEM/EDS/XRD/EBSD/TEM characterization) whose outputs are measured phase fractions and compositions. These are compared to independent CALPHAD calculations but are not derived from any fitted parameters, self-referential equations, or prior self-citations within the manuscript. No load-bearing step reduces to a definition, fit, or author-specific ansatz; the central claim of new insight rests on direct observation rather than internal construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the experimental assumption that the chosen thermal treatment reaches equilibrium; no free parameters, new physical entities, or ad-hoc postulates are introduced beyond standard materials-science characterization practices.

axioms (1)
  • domain assumption Homogenization at 1400 °C for 168 h achieves thermodynamic equilibrium phase constitution for the sampled compositions.
    This premise underpins the interpretation of all measured microstructures and compositions as equilibrium states.
