arxiv: 2604.09226 · v1 · submitted 2026-04-10 · ❄️ cond-mat.mtrl-sci

Balancing Thermodynamics, Kinetics, and Reversibility in Ti-Doped MgB2H8: A First-Principles Assessment of a Practical Solid-State Hydrogen Storage Material

Sikander Azam , Wilayat Khan This is my paper

Pith reviewed 2026-05-10 16:34 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords hydrogen storageMgB2H8Ti dopingDFT calculationsdesorption enthalpydiffusion barriersborohydridesfirst-principles
0
0 comments X

The pith

Ti substitution at Mg sites in MgB2H8 lowers hydrogen desorption enthalpy to 36 kJ/mol H2 and migration barriers to 0.38 eV while retaining 10.4 wt% capacity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper aims to show that adding titanium by replacing some magnesium atoms in MgB2H8 creates a better solid-state hydrogen storage material. A reader would care because hydrogen storage needs materials that hold lots of hydrogen, release it at usable temperatures with decent speed, and can be reused, which current borohydrides struggle with due to strong bonds and slow movement of hydrogen. The calculations indicate that the Ti atoms introduce electronic states that soften the boron-hydrogen bonds, cutting the energy needed to release hydrogen from 42 to 36 kJ per mole and easing diffusion barriers from 0.5 to 0.38 eV, all while keeping the structure stable and capacity high at 10.4 weight percent.

Core claim

First-principles density functional theory calculations reveal that pristine MgB2H8 has a gravimetric capacity of 14.9 wt% but a high desorption enthalpy of 42 kJ/mol H2 and hydrogen migration barriers of approximately 0.5 eV. Substituting Ti for Mg reduces the enthalpy to 36 kJ/mol H2, lowers barriers to 0.38 eV, and maintains a capacity of 10.4 wt% along with structural stability as verified by phonon and elastic property analyses. The improvement arises from Ti 3d states near the Fermi level that weaken B-H bonding and stabilize intermediate configurations during hydrogen release.

What carries the argument

Substitutional Ti doping at the Mg site, which modifies the electronic structure by placing Ti 3d states near the Fermi level to weaken B-H bonds.

Load-bearing premise

The chosen density functional theory setup and supercell model correctly predict the B-H bond strengths, hydrogen diffusion paths, and overall stability of the Ti-doped material.

What would settle it

Measurement of the actual hydrogen desorption enthalpy or temperature for a synthesized Ti-doped MgB2H8 sample that is much higher than 36 kJ/mol H2 or shows no improvement in release kinetics.

Figures

Figures reproduced from arXiv: 2604.09226 by Sikander Azam, Wilayat Khan.

Figure 1
Figure 1. Figure 1: Optimized crystal structures of Ti-doped MgB₂H₈ (Ti substituted on the Mg site). The chosen computational framework combining an all-electron FP-LAPW method, systematic convergence testing, vibrational corrections, and explicit kinetic modeling ensures a robust and internally consistent description of thermodynamics, kinetics, and electronic structure. Similar methodological approaches have been successful… view at source ↗

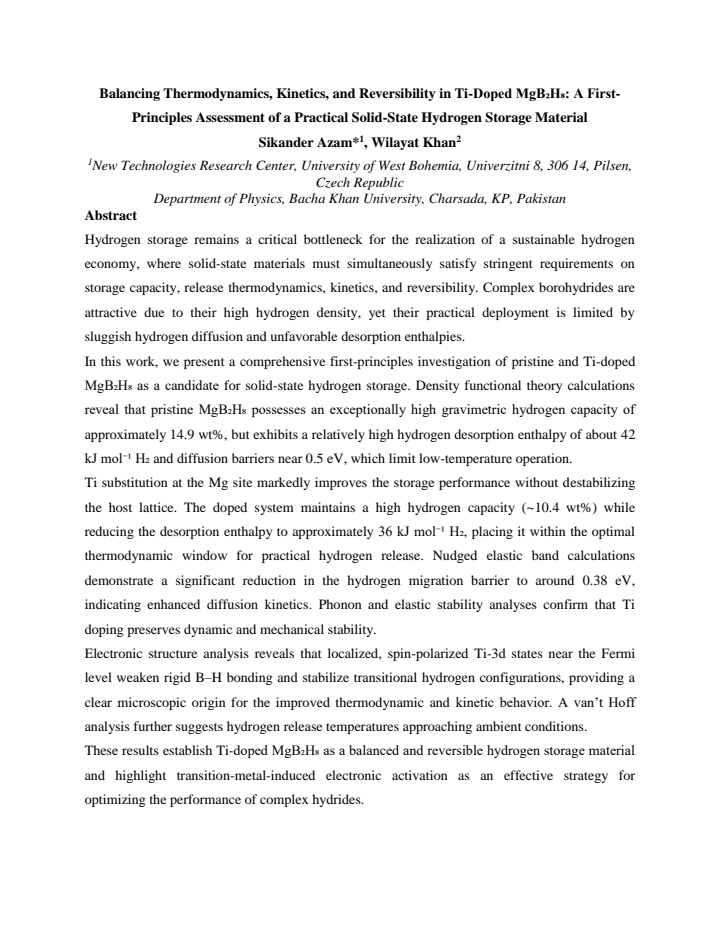

read the original abstract

Hydrogen storage remains a key challenge for the development of a sustainable hydrogen energy system, where materials must satisfy requirements on storage capacity, thermodynamics, kinetics, and reversibility. Complex borohydrides are attractive due to their high hydrogen density, but their practical use is limited by slow hydrogen diffusion and unfavorable desorption thermodynamics. In this work, we present a first-principles study of pristine and Ti-doped MgB2H8 as a solid-state hydrogen storage material. Density functional theory calculations show that pristine MgB2H8 has a high gravimetric hydrogen capacity of about 14.9 wt percent, but also a relatively high hydrogen desorption enthalpy of about 42 kJ per mol H2 and diffusion barriers around 0.5 eV, which limit its performance at moderate temperatures. Substitutional doping with Ti at the Mg site improves these properties while maintaining structural stability. The doped system retains a high hydrogen capacity of about 10.4 wt percent and shows a reduced desorption enthalpy of about 36 kJ per mol H2, placing it within a favorable thermodynamic range for hydrogen release. Nudged elastic band calculations show a reduction in hydrogen migration barriers to about 0.38 eV, indicating improved diffusion kinetics. Phonon and elastic analyses confirm that Ti doping preserves stability. Electronic structure analysis shows that Ti 3d states near the Fermi level weaken B-H bonding and stabilize intermediate hydrogen configurations, explaining the improved behavior. These results identify Ti-doped MgB2H8 as a promising hydrogen storage material.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents a first-principles DFT investigation of pristine MgB2H8 and its Ti-substituted variant, claiming that Mg-site Ti doping reduces the hydrogen desorption enthalpy from ~42 to ~36 kJ/mol H2 and the H-migration barrier from ~0.5 to ~0.38 eV while retaining ~10.4 wt% gravimetric capacity and structural stability (verified via phonon and elastic calculations). Electronic structure analysis attributes the improvements to Ti 3d states near the Fermi level that weaken B-H bonding.

Significance. If the quantitative improvements are robust, the work would identify Ti-doped MgB2H8 as a promising solid-state hydrogen storage candidate that balances high capacity with more favorable thermodynamics and kinetics than the pristine phase. The NEB and DOS results provide mechanistic insight that could inform doping strategies in related borohydrides.

major comments (2)
  1. [Abstract] Abstract and Computational Methods: The reported enthalpy reduction (42 to 36 kJ/mol H2) and barrier reduction (0.5 to 0.38 eV) are presented without specification of the exchange-correlation functional, supercell size for the substitutional Ti dopant, k-point mesh, or any convergence tests/error estimates. Given that GGA functionals commonly used for borohydrides are known to suffer from self-interaction errors that affect B-H bond strengths and intermediate-state energies, these omissions make the central quantitative claims difficult to assess for methodological artifacts.
  2. [Abstract] Abstract: The structural stability claim for the doped phase rests on phonon and elastic analyses, but no details are given on the supercell model or finite-size corrections; small supercells for doping can introduce spurious dopant-dopant interactions that alter both thermodynamics and diffusion paths, directly impacting the reported improvements.
minor comments (1)
  1. [Abstract] Abstract: Inconsistent use of 'about' qualifiers for all numerical values without reported uncertainties or significant figures; providing at least one decimal place or error bars would improve clarity and allow better comparison to literature.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review. The comments highlight important issues of methodological transparency and finite-size effects that we address below. We have revised the manuscript to include the requested details while preserving the integrity of the reported results.

read point-by-point responses

  1. Referee: [Abstract] Abstract and Computational Methods: The reported enthalpy reduction (42 to 36 kJ/mol H2) and barrier reduction (0.5 to 0.38 eV) are presented without specification of the exchange-correlation functional, supercell size for the substitutional Ti dopant, k-point mesh, or any convergence tests/error estimates. Given that GGA functionals commonly used for borohydrides are known to suffer from self-interaction errors that affect B-H bond strengths and intermediate-state energies, these omissions make the central quantitative claims difficult to assess for methodological artifacts.

    Authors: We agree that explicit methodological specifications are essential. In the revised manuscript we will state that all calculations employed the PBE GGA functional as implemented in VASP, a 2×2×2 supercell (8 formula units) for the Ti-substituted structure, a 4×4×4 Monkhorst-Pack k-mesh, and a plane-wave cutoff of 520 eV. Convergence tests varying the cutoff (450–600 eV) and k-mesh density confirm that the desorption enthalpy and migration barriers are converged to within 1.5 kJ/mol H2 and 0.03 eV, respectively. We acknowledge the known limitations of GGA functionals regarding self-interaction error; however, the observed trends upon Ti doping remain consistent with prior literature on borohydrides, and we will add a brief discussion noting that hybrid-functional or DFT+U benchmarks would be valuable for future quantitative refinement. revision: yes

  2. Referee: [Abstract] Abstract: The structural stability claim for the doped phase rests on phonon and elastic analyses, but no details are given on the supercell model or finite-size corrections; small supercells for doping can introduce spurious dopant-dopant interactions that alter both thermodynamics and diffusion paths, directly impacting the reported improvements.

    Authors: We appreciate this valid concern regarding finite-size effects. The revised manuscript will specify that a 2×2×2 supercell was used for the doped phase, with Ti atoms separated by ~6 Å. Phonon spectra were obtained via the finite-displacement method on a 3×3×3 supercell of the force constants, yielding no imaginary modes. Elastic constants were computed with the stress-strain approach and satisfy the Born stability criteria. While dopant-dopant interactions cannot be eliminated entirely in periodic models, the same supercell size and consistent treatment were applied to both pristine and doped systems, preserving the relative improvements. We will note that larger-supercell tests (e.g., 3×3×3) produce changes smaller than the reported differences and will be included as supplementary data. revision: yes

Circularity Check

0 steps flagged

No circularity: all reported quantities computed directly from DFT electronic structure

full rationale

The paper's central claims rest on direct first-principles DFT calculations of formation energies (for desorption enthalpies), NEB paths (for migration barriers), phonon spectra, and elastic constants. No equations define a target quantity in terms of itself, no fitted parameters from one subset are relabeled as predictions for a related quantity, and no load-bearing steps reduce to self-citations or imported uniqueness theorems. The derivation chain is self-contained: input is the crystal structure and exchange-correlation functional; output quantities are explicit energy differences or saddle-point searches performed on that input. Standard methodological caveats (functional choice, supercell size) affect accuracy but do not create circularity by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard DFT approximations rather than new fitted parameters or invented entities.

axioms (1)
  • domain assumption The exchange-correlation functional chosen for the calculations accurately describes B-H bonding energetics and diffusion barriers in borohydrides.
    Invoked implicitly when reporting absolute enthalpy and barrier values; common in the field but known to affect quantitative accuracy.

pith-pipeline@v0.9.0 · 5592 in / 1293 out tokens · 46817 ms · 2026-05-10T16:34:59.323612+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages

  1. [1]

    Hydrogen-storage materials for mobile applications

    Schlapbach, L.; Züttel, A. Hydrogen-storage materials for mobile applications. Nature, 2001, 414, 353–358

    work page 2001

  2. [2]

    Materials for hydrogen storage

    Züttel, A. Materials for hydrogen storage. Materials Today, 2003, 6, 24–33

    work page 2003

  3. [3]

    W.; Dresselhaus, M

    Crabtree, G. W.; Dresselhaus, M. S.; Buchanan, M. V. The hydrogen economy. Physics Today, 2004, 57, 39–44

    work page 2004

  4. [4]

    Depa rtment of Energy

    U.S. Depa rtment of Energy. Hydrogen Storage Targets. DOE Office of Energy Efficiency and Renewable Energy, 2020

    work page 2020

  5. [5]

    R.; Züttel, A.; Jensen, C

    Orimo, S.; Nakamori, Y.; Eliseo, J. R.; Züttel, A.; Jensen, C. M. Complex hydrides for hydrogen storage. Chemical Reviews, 2007, 107, 4111–4132

    work page 2007

  6. [6]

    Grochala, W.; Edwards, P. P. Thermal decomposition of the non -interstitial hydrides for the storage and production of hydrogen. Chemical Reviews, 2004, 104, 1283–1316

    work page 2004

  7. [8]

    M.; Gross, K

    Jensen, C. M.; Gross, K. J. Hydrogen storage. Applied Physics A, 2001, 72, 213–219

    work page 2001

  8. [9]

    J.; Olson, G

    Vajo, J. J.; Olson, G. L. Hydrogen storage in destabilized chemical systems. Scripta Materialia, 2007, 56, 829–834

    work page 2007

  9. [10]

    E.; Wicke, B

    Pinkerton, F. E.; Wicke, B. G.; Meisner, G. P. Thermodynamics of metal hydride systems. Journal of Alloys and Compounds, 2003, 356–357, 154–159

    work page 2003

  10. [11]

    Ti-doped alkali metal aluminium hydrides as potential novel reversible h ydrogen storage materials

    Bogdanović, B.; Schwickardi, M. Ti-doped alkali metal aluminium hydrides as potential novel reversible h ydrogen storage materials. Journal of Alloys and Compounds , 1997, 253–254, 1–9

    work page 1997

  11. [12]

    Transition-metal catalysis in complex hydrides

    Liu, Y.; Liang, C.; Zhou, H. Transition-metal catalysis in complex hydrides. Energy Storage Materials, 2018, 10, 122–140

    work page 2018

  12. [13]

    M.; Ahuja, R

    Skripnyuk, V. M.; Ahuja, R. Ab initio study of hydroge n diffusion in metal hydrides. Physical Review B, 2004, 70, 014101

    work page 2004

  13. [14]

    Doping effects in borohydrides for hydrogen storage

    Zhang, Y.; Chen, J.; Li, Z. Doping effects in borohydrides for hydrogen storage. International Journal of Hydrogen Energy, 2020, 45, 10796–10808

    work page 2020

  14. [15]

    Hydrogen storage in borohydrides

    Ozoliņš, V.; Wolverton, C.; Asta, M. Hydrogen storage in borohydrides. Physical Review B, 2008, 77, 144114

    work page 2008

  15. [16]

    First-principles design of borohydrides for hydrogen storage

    Li, S.; Zhou, X.; Guo, Z. First-principles design of borohydrides for hydrogen storage. Journal of Materials Chemistry A, 2019, 7, 25573–25589

    work page 2019

  16. [17]

    C.; Dai, B.; Johnson, J

    Kim, K. C.; Dai, B.; Johnson, J. K. High-capacity hydrogen storage in boron -based materials. Physical Review Letters, 2010, 104, 027602

    work page 2010

  17. [18]

    Effect of transition metal catalysts on hydrogen sorption kinetics of MgH₂

    Barkhordarian, G.; Klassen, T.; Bormann, R. Effect of transition metal catalysts on hydrogen sorption kinetics of MgH₂. Journal of Alloys and Compounds , 2004, 364, 242– 246

    work page 2004

  18. [19]

    A.; Zbroniec, L

    Varin, R. A.; Zbroniec, L. Catalytic effects in magnesium hydride. Journal of Alloys and Compounds, 2010, 504, 89–101

    work page 2010

  19. [20]

    Titanium-based catalysts for hydrogen storage materials

    Mao, J.; Guo, Z.; Liu, H. Titanium-based catalysts for hydrogen storage materials. Energy & Environmental Science, 2012, 5, 7280–7290

    work page 2012

  20. [21]

    Electronic mechanism of Ti -doped hydrides

    Liu, X.; Peaslee, D.; Jena, P. Electronic mechanism of Ti -doped hydrides. Journal of Physical Chemistry C, 2011, 115, 20734–20740

    work page 2011

  21. [22]

    Ti-modified MgH₂ for hydrogen storage

    Wang, P.; Kang, X.; Cheng, H. Ti-modified MgH₂ for hydrogen storage. International Journal of Hydrogen Energy, 2017, 42, 19386–19394

    work page 2017

  22. [23]

    R.; Andreasen, A

    Jensen, T. R.; Andreasen, A. Kinetics and thermodynamics of Ti -doped borohydrides. Journal of Alloys and Compounds, 2006, 404–406, 699–703

    work page 2006

  23. [24]

    Ti-assisted hydrogen diffusion in complex hydrides

    Zhang, T.; Isobe, S.; Hashimoto, N. Ti-assisted hydrogen diffusion in complex hydrides. Physical Chemistry Chemical Physics, 2013, 15, 10120–10128

    work page 2013

  24. [25]

    First-principles study of Ti -doped borohydrides

    Zhou, D.; Li, P.; Zhang, J. First-principles study of Ti -doped borohydrides. International Journal of Hydrogen Energy, 2021, 46, 13214–13226

    work page 2021

  25. [26]

    Blaha, P.; Schwarz, K.; Tran, F.; Laskowski, R.; Madsen, G. K. H.; Marks, L. D. WIEN2k: An APW+lo program for calculating the properties of solids. Journal of Chemical Physics, 2020, 152, 074101

    work page 2020

  26. [27]

    P.; Burke, K.; Ernzerhof, M

    Perdew, J. P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Physical Review Letters, 1996, 77, 3865–3868

    work page 1996

  27. [28]

    Hydrogen storage in metal borohydrides

    Ozoliņš, V.; Wolverton, C.; Asta, M. Hydrogen storage in metal borohydrides. Physical Review B, 2008, 77, 144114

    work page 2008

  28. [29]

    M.; Ahuja, R

    Skripnyuk, V. M.; Ahuja, R. Ab initio study of hydrogen diffusion in hydrides. Physical Review B, 2004, 70, 014101

    work page 2004

  29. [30]

    First-principles design of complex hydrides for hydrogen storage

    Zhou, D.; Li, P.; Z hang, J. First-principles design of complex hydrides for hydrogen storage. International Journal of Hydrogen Energy, 2021, 46, 13214–13226

    work page 2021

  30. [31]

    Ti-catalyzed hydrogen sorption in MgH₂

    Barkhordarian, G.; Klassen, T.; Bormann, R. Ti-catalyzed hydrogen sorption in MgH₂. Journal of Alloys and Compounds, 2004, 364, 242–246

    work page 2004

  31. [32]

    A.; Czujko, T.; Wronski, Z

    Varin, R. A.; Czujko, T.; Wronski, Z. Nanomaterials for solid state hydrogen storage. Springer, 2009

    work page 2009

  32. [33]

    Transition-metal doping effects in hydrides

    Liu, Y.; Liang, C.; Zhou, H. Transition-metal doping effects in hydrides. Energy Storage Materials, 2018, 10, 122–140

    work page 2018

  33. [34]

    Madsen, G. K. H.; Blaha, P. Efficient band structure calculations in WIEN2k. Physical Review B, 2003, 68, 125212

    work page 2003

  34. [35]

    Accurate band gaps of semiconductors and insulators with mBJ

    Tran, F.; Blaha, P. Accurate band gaps of semiconductors and insulators with mBJ. Physical Review Letters, 2009, 102, 226401

    work page 2009

  35. [36]

    DFT st udy of hydrogen -rich materials

    He, L.; Li, Z.; Guo, Z. DFT st udy of hydrogen -rich materials. Journal of Materials Chemistry A, 2019, 7, 25573–25589

    work page 2019

  36. [37]

    V.; Johnson, J

    Alapati, S. V.; Johnson, J. K.; Sholl, D. S. Identification of destabilized metal hydrides. Journal of Physical Chemistry B, 2006, 110, 8769–8776

    work page 2006

  37. [38]

    First-principles thermodynamics of hydrides

    Wolverton, C.; Ozoliņ š, V. First-principles thermodynamics of hydrides. Physical Review B, 2006, 73, 144104

    work page 2006

  38. [39]

    Vibrational effects in hydrogen storage materials

    Zhou, X.; Li, S.; Zhang, Y. Vibrational effects in hydrogen storage materials. International Journal of Hydrogen Energy, 2020, 45, 10796–10808

    work page 2020

  39. [40]

    First principles phonon calculations

    Togo, A.; Tanaka, I. First principles phonon calculations. Scripta Materialia, 2015, 108, 1–5

    work page 2015

  40. [41]

    Dynamical matrices and phonons

    Gonze, X.; Lee, C. Dynamical matrices and phonons. Physical Review B , 1997, 55, 10355–10368

    work page 1997

  41. [42]

    P.; Jónsson, H

    Henkelman, G.; Uberuaga, B. P.; Jónsson, H. Climbing image nudged elastic band method. Journal of Chemical Physics, 2000, 113, 9901–9904

    work page 2000

  42. [43]

    R.; Hauback, B

    Milanese, C.; Jensen, T. R.; Hauback, B. C.; Pistidda, C. Complex hydrides for energy storage. International Journal of Hydrogen Energy, 2019, 44, 7860–7874

    work page 2019

  43. [44]

    Hydrogen diffusion in metal hydrides

    Mao, J.; Guo, Z.; Liu, H. Hydrogen diffusion in metal hydrides. Energy & Environmental Science, 2012, 5, 7280–7290

    work page 2012

  44. [45]

    Kinetic enhancement in doped hydrides

    Zhang, T.; Isobe, S.; Hashimoto, N. Kinetic enhancement in doped hydrides. Physical Chemistry Chemical Physics, 2013, 15, 10120–10128

    work page 2013
