arxiv: 2604.09895 · v1 · submitted 2026-04-10 · 📊 stat.AP · physics.data-an

Blume-Capel model: Estimation of a three stable state network for -bf 1, bf 0 and bf +1 data

Lourens Waldorp , Jonas Dalege , Maarten Marsman , Adam Finnemann , Irene Ferri , Han L. J. van der Maas This is my paper

Pith reviewed 2026-05-10 16:02 UTC · model grok-4.3

classification 📊 stat.AP physics.data-an
keywords Blume-Capel modelIsing modelpseudo-likelihoodlasso regularizationnetwork estimationthree-state dataparameter recoveryconfidence intervals
0
0 comments X

The pith

The Blume-Capel model enables accurate estimation of three-state networks from data valued at -1, 0, and +1 using pseudo-likelihood and lasso.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes extending the Ising model to the Blume-Capel model to handle responses that include a neutral option alongside negative and positive values. This allows each node in the network to occupy one of three stable states. The model is shown to be a member of the exponential family and to be identified except for the inverse temperature parameter. Estimation proceeds by maximizing the pseudo-likelihood regularized with lasso, which recovers the true parameters accurately even when the network contains few nodes. The desparsified lasso combined with sandwich variance estimation and shrinkage then supplies confidence intervals that achieve good coverage of the true values, as shown in simulations and an application to voting preference data.

Core claim

An extension of the Ising model called the Blume-Capel model is proposed for the inverse problem of estimating parameters from -1, 0, +1 data. The model belongs to the exponential family and is identified apart from the inverse temperature. Pseudo-likelihood estimation combined with the lasso produces accurate parameter recovery for the Blume-Capel model even in small networks. In addition, confidence intervals with good coverage properties are obtained by using the desparsified lasso together with sandwich and shrinkage techniques.

What carries the argument

The Blume-Capel model, which generalizes the Ising model to three states and permits a neutral response while supporting three stable states in the network.

If this is right

  • Parameters can be recovered with high accuracy in small networks by using pseudo-likelihood and lasso regularization.
  • Confidence intervals with reliable coverage are available through the combination of desparsified lasso, sandwich estimators, and shrinkage.
  • The magnetization properties of the model can be characterized using both mean-field theory and direct simulations.
  • The estimation procedure applies directly to empirical data sets such as those collected from online voting advice platforms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The three-state structure opens the possibility of modeling centrist or undecided positions in social or psychological networks without forcing a binary choice.
  • Similar estimation strategies might be adapted to other three-valued data types encountered in biology or economics.
  • Direct comparisons with alternative three-state models could reveal when the Blume-Capel assumptions provide better recovery than simpler multinomial approaches.

Load-bearing premise

The data are generated from the Blume-Capel distribution or a distribution sufficiently close to it.

What would settle it

Repeated simulations from the Blume-Capel model on small networks where the lasso estimates show large bias or the confidence intervals exhibit coverage far from the nominal level would disprove the accuracy and coverage claims.

Figures

Figures reproduced from arXiv: 2604.09895 by Adam Finnemann, Han L. J. van der Maas, Irene Ferri, Jonas Dalege, Lourens Waldorp, Maarten Marsman.

Figure 1

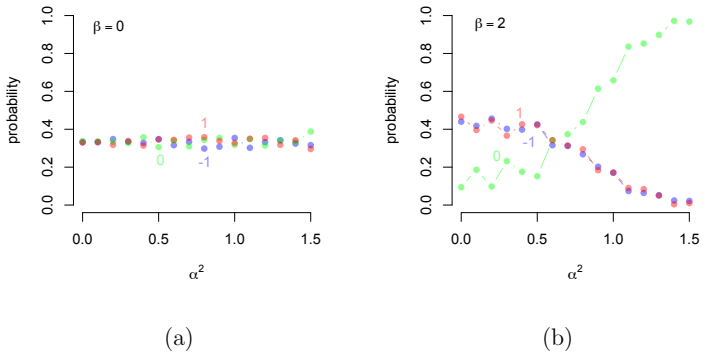

Figure 1. Figure 1: Average proportions of a 5 node BC model (in equilibrium) observed 100 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

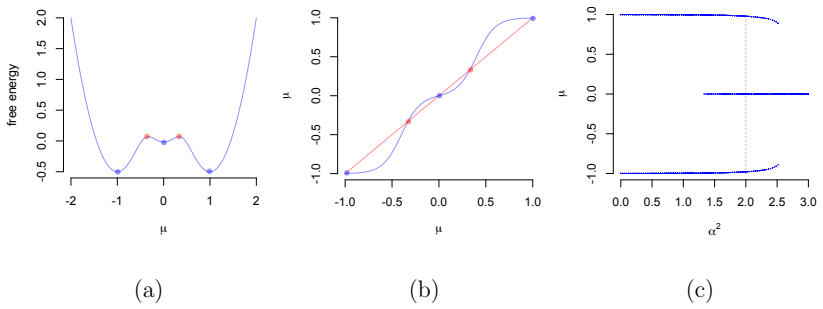

Figure 2. Figure 2: In (a) is the free energy (equation (A.2)), showing three stable fixed points. The settings are β = 2, α 2 = 2, τ = 0, σ = 1 and d = 5. The red circles are repelling fixed points and the blue circles are attracting fixed points. In (b) is the mean field approximation µ (see equation (4)) for the same settings; the intersection with the diagonal (red) line indicates fixed points (circles), with the same int… view at source ↗
Figure 3

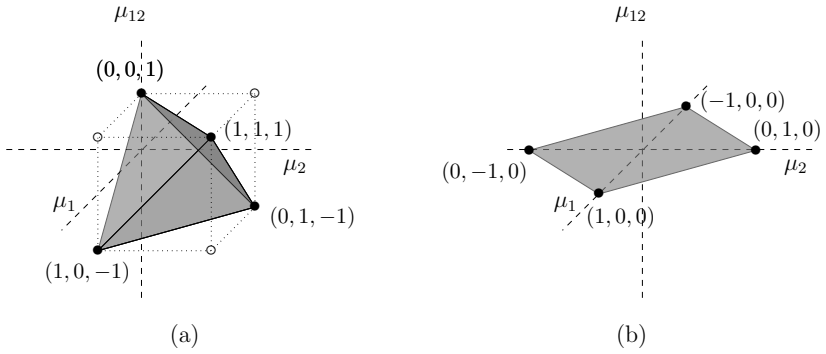

Figure 3. Figure 3: Marginal polytope of the BC model with two nodes and one edge, which [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

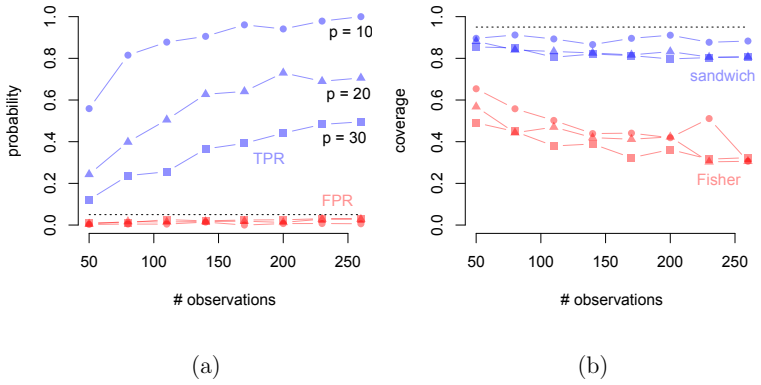

Figure 4. Figure 4: Results for random networks of 10, 20 and 30 nodes with edge probability [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

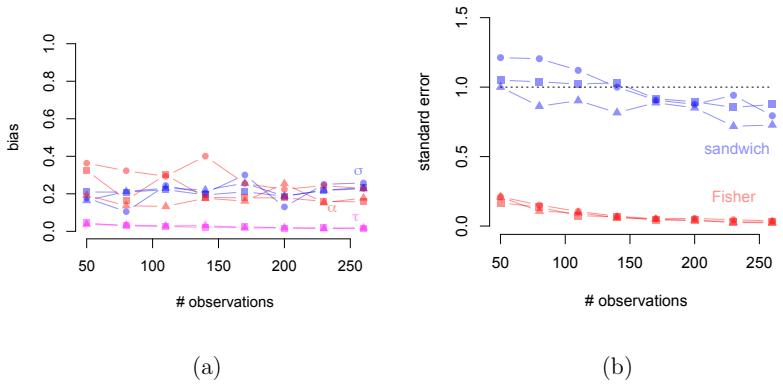

Figure 5. Figure 5: Results for networks of size 10 (circles), 20 (triangles) and 30 (squares), with [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6

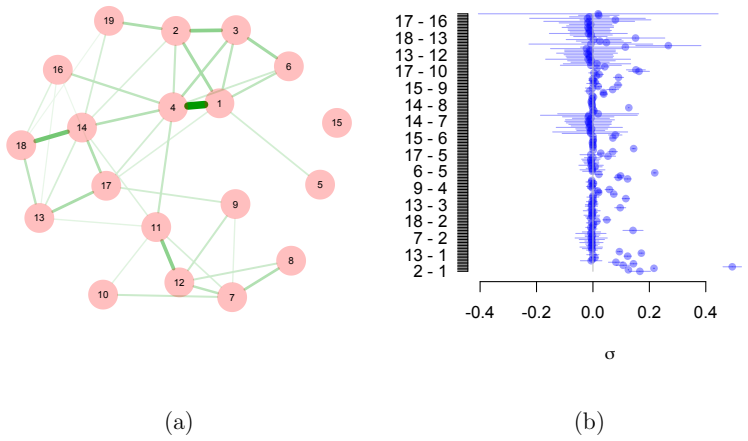

Figure 6. Figure 6: In (a) is the network estimate using the BC model with the lasso algorithm, [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7

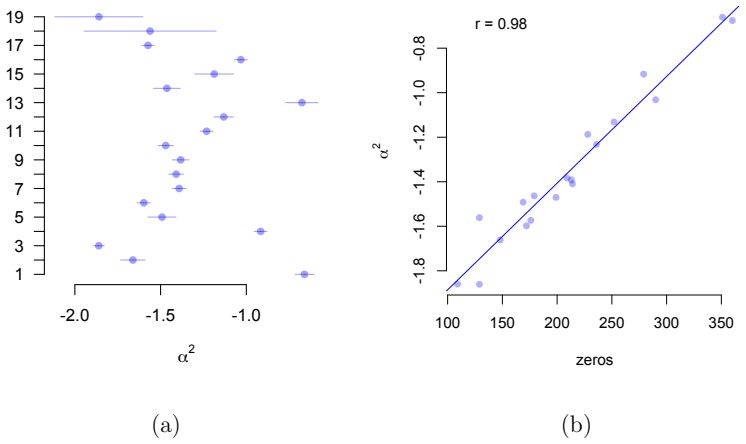

Figure 7. Figure 7: In (a) are the desparsified estimates and the corresponding confidence inter [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
read the original abstract

An extension of the Ising model is proposed as a viable alternative for data with values $-1$, $0$ and $+1$ in the inverse problem, i.e., estimation of the parameters. This model is called the Blume-Capel (BC) model, adapted from physics for small networks. The advantage of the BC model is not only the fact that it is possible to have a neutral (centrist) position on the response scale, but also that this model allows for three stable states. We illustrate magnetisation properties of the BC model using simulations and mean field results. For estimation of the BC parameters, we show that the BC model is part of the exponential family of distributions and show that the model is identified, except for the (inverse) temperature. We then show that combining pseudo-likelihood with lasso yields accurate parameter recovery for the BC model, even in small networks. Moreover, confidence intervals with good coverage properties can be obtained using the desparsified lasso together with sandwich and shrinkage techniques. We apply the methods to data obtained from the online platform \textit{Stemwijzer}, intended to aid people in deciding for whom to vote.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes the Blume-Capel model as an extension of the Ising model suitable for inverse problems with ternary data taking values -1, 0, and +1. It illustrates magnetization properties via mean-field theory and simulations, establishes that the model belongs to the exponential family and is identified except for the inverse temperature, and claims that pseudo-likelihood combined with lasso achieves accurate parameter recovery even for small networks, with desparsified lasso plus sandwich and shrinkage methods yielding confidence intervals with good coverage. The approach is applied to Stemwijzer voting data.

Significance. If the central claims on recovery accuracy and coverage hold, the work supplies a statistically grounded framework for modeling three-state network interactions in small systems, with direct relevance to applications in political science and social network analysis. The integration of pseudo-likelihood, lasso regularization, and desparsified inference addresses high-dimensional estimation challenges in a principled way.

major comments (2)
  1. [§4 and abstract] §4 (Estimation procedure) and abstract: the claim that 'combining pseudo-likelihood with lasso yields accurate parameter recovery for the BC model, even in small networks' and that desparsified lasso gives 'good coverage properties' is load-bearing for the paper's contribution, yet the supporting evidence consists of mean-field analysis plus simulations whose finite-N regimes are not shown to match the small, sparse graphs arising in the Stemwijzer application (N typically < 30).
  2. [§3] §3 (Magnetisation properties): the mean-field magnetisation results are derived under the infinite-N limit; no explicit finite-size correction or scaling analysis is provided for the exact small-N, sparse-graph settings used in the estimation experiments and real-data application, leaving open whether stronger dependence or selection bias in small networks degrades recovery error and sandwich-based coverage.
minor comments (2)
  1. [§2] Notation for the inverse temperature parameter is introduced but its non-identifiability is stated without an explicit statement of the resulting invariance in the likelihood or pseudo-likelihood.
  2. [§6] The Stemwijzer application section would benefit from a table reporting the estimated parameters, their desparsified-lasso confidence intervals, and a brief comparison to an Ising-model baseline on the same data.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major comment below and outline the revisions we will make to strengthen the alignment between our theoretical claims, simulations, and the small-network application.

read point-by-point responses

  1. Referee: [§4 and abstract] §4 (Estimation procedure) and abstract: the claim that 'combining pseudo-likelihood with lasso yields accurate parameter recovery for the BC model, even in small networks' and that desparsified lasso gives 'good coverage properties' is load-bearing for the paper's contribution, yet the supporting evidence consists of mean-field analysis plus simulations whose finite-N regimes are not shown to match the small, sparse graphs arising in the Stemwijzer application (N typically < 30).

    Authors: We agree that a closer match between the simulation regimes and the Stemwijzer data characteristics (N typically below 30 and sparse) would better support the central claims. Our current simulations already include small network sizes (N ranging from 10 to 50), but we will add a new set of targeted experiments in the revised Section 4 specifically for N=15, 20, and 25 with edge densities calibrated to the empirical Stemwijzer graphs. These will report parameter recovery error and coverage rates for the desparsified lasso with sandwich and shrinkage estimators, directly addressing whether performance holds in the relevant finite-N, sparse regime. revision: yes

  2. Referee: [§3] §3 (Magnetisation properties): the mean-field magnetisation results are derived under the infinite-N limit; no explicit finite-size correction or scaling analysis is provided for the exact small-N, sparse-graph settings used in the estimation experiments and real-data application, leaving open whether stronger dependence or selection bias in small networks degrades recovery error and sandwich-based coverage.

    Authors: The mean-field analysis in Section 3 is presented to illustrate the existence of three stable states and qualitative magnetization behavior in the thermodynamic limit, serving as theoretical motivation rather than a direct basis for the estimation results. The pseudo-likelihood estimation and desparsified inference procedures are exact for finite N and do not rely on mean-field approximations. Our existing finite-N simulations already validate recovery and coverage for small networks. To address the concern about potential finite-size effects or selection bias, we will insert a brief discussion in the revised manuscript (near the end of Section 3 or in Section 4) that references the small-N simulation outcomes and notes that no substantial degradation is observed empirically, while acknowledging that a full scaling analysis lies beyond the current scope. revision: yes

Circularity Check

0 steps flagged

No significant circularity; standard estimation validated by independent simulation

full rationale

The paper extends the Ising model to the Blume-Capel form for ternary data and applies standard pseudo-likelihood plus lasso estimation, with accuracy claims supported by separate mean-field analysis and simulations rather than any reduction by construction. Model membership in the exponential family and identification (except temperature) are shown directly from the distribution definition without self-referential loops. No load-bearing self-citations, uniqueness theorems imported from the authors, or fitted inputs renamed as predictions appear in the derivation chain. This is the expected non-circular outcome for a methodological statistics paper whose central results rest on external validation techniques.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claims rest on the Blume-Capel model belonging to the exponential family, being identifiable except for temperature, and on the suitability of pseudo-likelihood lasso for small networks; these are stated without derivation in the abstract.

free parameters (1)
  • inverse temperature
    Explicitly stated as the only non-identified parameter in the abstract.
axioms (1)
  • domain assumption The Blume-Capel model is part of the exponential family of distributions
    Invoked to justify estimation and identification results.

pith-pipeline@v0.9.0 · 5538 in / 1196 out tokens · 65979 ms · 2026-05-10T16:02:14.108105+00:00 · methodology
