arxiv: 2604.09924 · v1 · submitted 2026-04-10 · 💻 cs.CR

S3CDM: A secret-sharing-scheme-based cyberattack detection model and its simulation implementation

Chi Sing Chum , Jia Lu , Claire Tang , Xiaowen Zhang This is my paper

Pith reviewed 2026-05-10 16:35 UTC · model grok-4.3

classification 💻 cs.CR

keywords secret sharingcyberattack detectioninsider attacksnetwork securityShamir schememulti-component modelauthenticationsimulation

0 comments

The pith

A secret-sharing model splits keys across network components to detect insider cyberattacks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces S3CDM, a detection model that distributes a secret among legitimate network components using secret-sharing schemes to authenticate participants and identify unauthorized activities such as insider attacks. It applies both Shamir's polynomial interpolation and a custom hash function to keep inter-component communications secure while flagging illegal actions. Probability analysis indicates that versions with multiple components resist cyberattacks more effectively than single-component setups. A practical simulation on Google Cloud Platform with Docker and Python services demonstrates how the approach works in a complex infrastructure.

Core claim

The S3CDM model splits a secret among a group of legitimate participants or components for authentication, integration and detection of unauthorized activities. Traditional Shamir's polynomial interpolation based and our own hash function based schemes are utilized in the model, they both are practical and efficient to make sure the communications between different components are secure and any unauthorized activities can be detected. The model offers a flexible multi-factor authentication method to enhance the overall system security. Probability analysis shows that multiple component model is more resistant against cyberattacks than the single component one.

What carries the argument

The secret-sharing-scheme-based cyberattack detection model (S3CDM), which distributes a secret across components via Shamir's interpolation or custom hash to enable authentication and flag unauthorized activity.

If this is right

Multi-component versions of the model resist cyberattacks better than single-component versions according to the probability analysis.
The approach supplies a flexible multi-factor authentication layer for protecting sensitive data in large organizational networks.
Unauthorized activities become detectable through failure to reconstruct the shared secret during integration checks.
A cloud-based implementation with separate services and Docker containers can validate secure communications in simulated complex infrastructures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The model could apply to other distributed systems where insider threats are a concern, such as cloud service meshes.
Real-world deployment would require measuring actual detection latency and false positive rates against live traffic.
Integration with existing intrusion detection tools might create layered defenses without replacing current monitoring.

Load-bearing premise

The secret-sharing schemes are practical and efficient enough to guarantee secure communications and reliable detection of unauthorized activities, with the probability analysis correctly establishing greater resistance for the multi-component version.

What would settle it

A simulation run in which an insider attack succeeds or goes undetected in the multi-component S3CDM setup, or probability calculations that show no resistance advantage over the single-component case.

Figures

Figures reproduced from arXiv: 2604.09924 by Chi Sing Chum, Claire Tang, Jia Lu, Xiaowen Zhang.

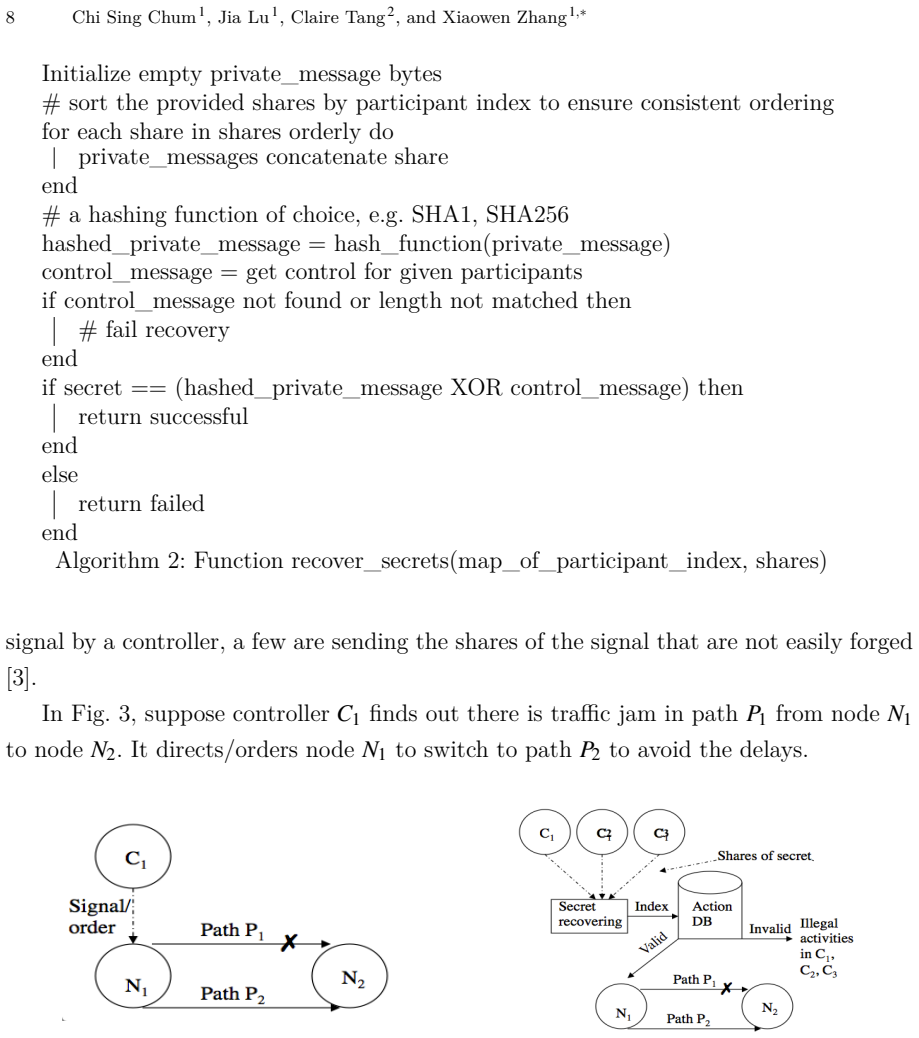

**Figure 3.** Figure 3: Single controller: switch path to P2 [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

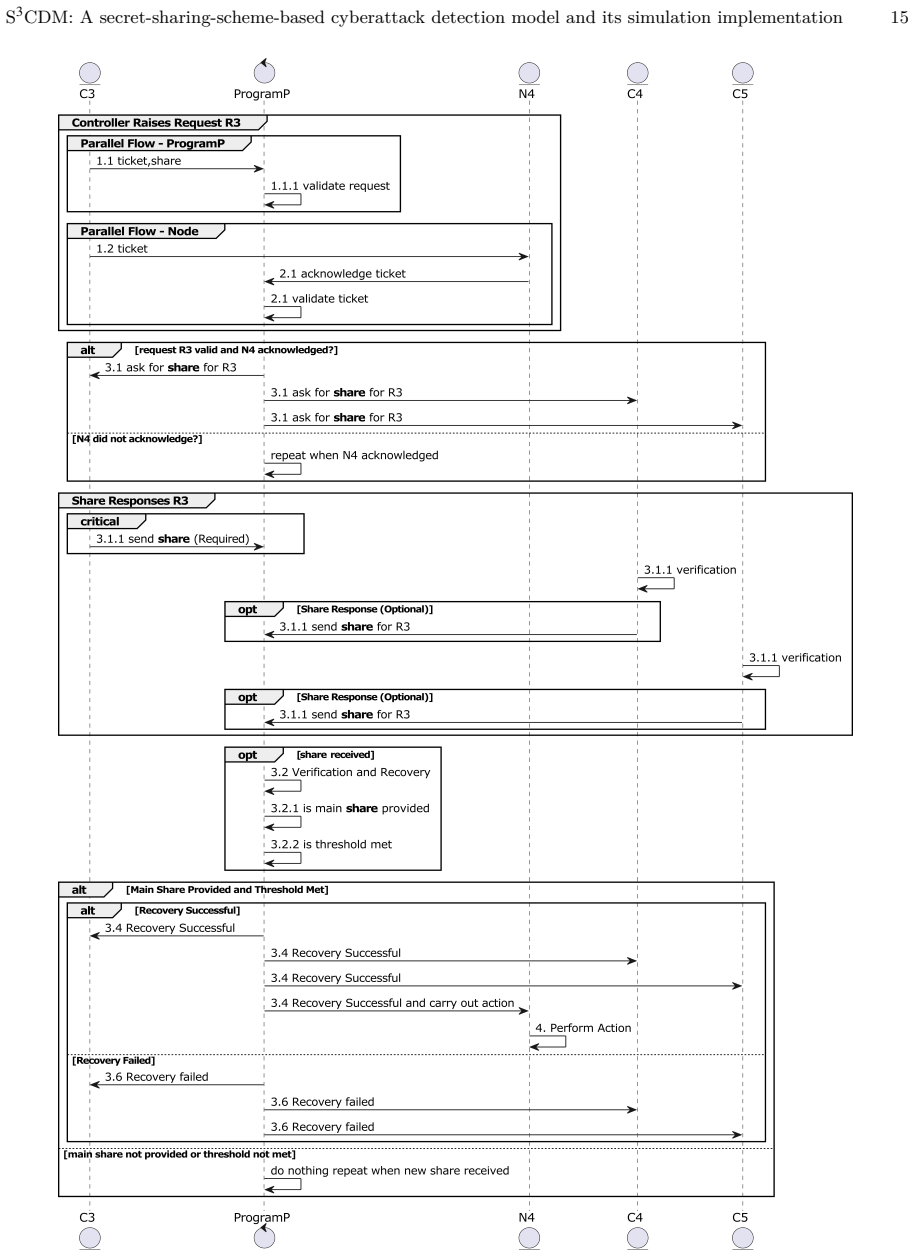

**Figure 5.** Figure 5: Request case 3 model sequence in a diagram. [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗

**Figure 6.** Figure 6: Secret sharing scheme based cyber attack detection project graphic user interface. [PITH_FULL_IMAGE:figures/full_fig_p023_6.png] view at source ↗

**Figure 7.** Figure 7: Dealer service configuration and editing action database record [PITH_FULL_IMAGE:figures/full_fig_p024_7.png] view at source ↗

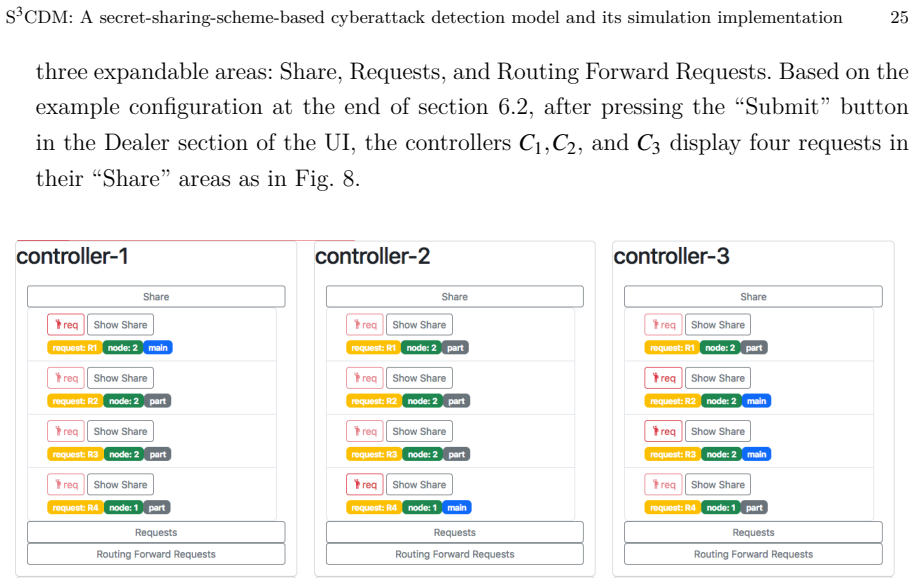

**Figure 8.** Figure 8: Share areas of controllers C1,C2,C3 before issuing any request. (a) Share This section shows all shares that this controller has in memory along with their request information. By clicking and expanding “Share” area, we see an icon of a little man with the right hand raised followed by “req” button (raise-hand) and “Show Share” button. Raise-hand req button: If the controller is the main participant for th… view at source ↗

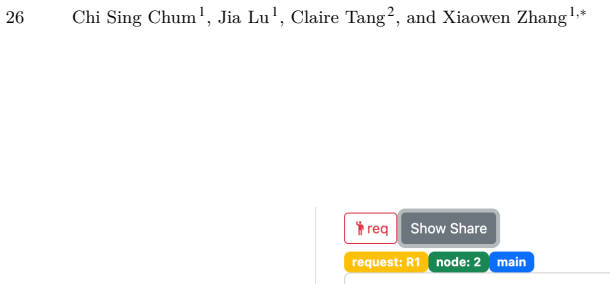

**Figure 9.** Figure 9: Raise-hand button for controller to raise request. [PITH_FULL_IMAGE:figures/full_fig_p026_9.png] view at source ↗

**Figure 10.** Figure 10: Share areas of controllers C1,C2,C3 after raising request R1 [PITH_FULL_IMAGE:figures/full_fig_p026_10.png] view at source ↗

**Figure 11.** Figure 11: Change share to mimic a compromised controller. [PITH_FULL_IMAGE:figures/full_fig_p027_11.png] view at source ↗

**Figure 12.** Figure 12: Display of node section. – Action information When the request is approved, the node will perform the action. Most of these are system commands (e.g. shell commands like ls, pwd, etc.). The execution status and results are displayed here. – Event logs The journey of the requests. The node will start logging events when it receives the request. Upon receiving a recovery success, the node will carry out the… view at source ↗

**Figure 13.** Figure 13: Routes configuration UI and default weights of links. [PITH_FULL_IMAGE:figures/full_fig_p029_13.png] view at source ↗

**Figure 14.** Figure 14: Disable a link between the dealer and a node. [PITH_FULL_IMAGE:figures/full_fig_p029_14.png] view at source ↗

**Figure 15.** Figure 15: First we use Hash-based (2, 3)-threshold scheme, in which we only [PITH_FULL_IMAGE:figures/full_fig_p029_15.png] view at source ↗

**Figure 16.** Figure 16: We also make sure we reset any previous route configurations. [PITH_FULL_IMAGE:figures/full_fig_p030_16.png] view at source ↗

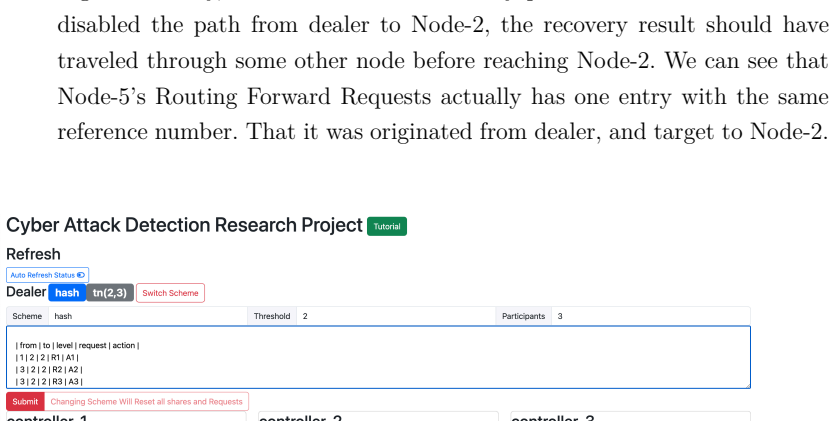

**Figure 15.** Figure 15: Use case: make choice of thrshold scheme. [PITH_FULL_IMAGE:figures/full_fig_p030_15.png] view at source ↗

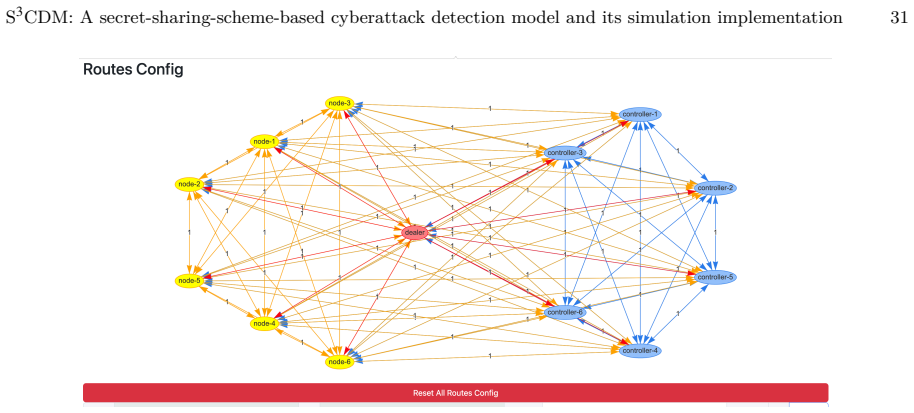

**Figure 16.** Figure 16: Use case: reset previous route configurations. [PITH_FULL_IMAGE:figures/full_fig_p031_16.png] view at source ↗

**Figure 17.** Figure 17: Use case: raise a request [PITH_FULL_IMAGE:figures/full_fig_p031_17.png] view at source ↗

**Figure 18.** Figure 18: Use case: disable a path from route configuration table. [PITH_FULL_IMAGE:figures/full_fig_p031_18.png] view at source ↗

**Figure 19.** Figure 19: Use case: verify disabled path on the route graph. [PITH_FULL_IMAGE:figures/full_fig_p031_19.png] view at source ↗

**Figure 20.** Figure 20: Use case: recover secret using two controllers. [PITH_FULL_IMAGE:figures/full_fig_p032_20.png] view at source ↗

**Figure 21.** Figure 21: Use case: verify routing forward requests. [PITH_FULL_IMAGE:figures/full_fig_p032_21.png] view at source ↗

read the original abstract

We design and develop a secret-sharing-scheme-based cyberattack detection model(S3CDM)that can detect unauthorized or illegal activities (especially insider attacks) and protect sensitive information within complex network infrastructures of large organizations. The model splits a secret among a group of legitimate participants or components for authentication, integration and detection of unauthorized activities. Traditional Shamir's polynomial interpolation based and our own hash function based schemes are utilized in the model, they both are practical and efficient to make sure the communications between different components are secure and any unauthorized activities can be detected. The model offers a flexible multi-factor authentication method to enhance the overall system security. Probability analysis [3] shows that multiple component model is more resistant against cyberattacks than the single component one. To demonstrate the feasibility, we implement the S3CDM in three parts on Google Cloud Platform, i.e., the front end UI (User Interface) running on an HTTP server, the back end individual services written in Python, and a PostgreSQL database. Docker is used to manage the start and stop of individual services and their URLs. We demonstrate how to use the UI with a use case of simulation of broken path in details.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper applies Shamir secret sharing plus a custom hash to insider-attack detection and shows a working Docker-based cloud simulation, but the resistance claim rests on an undescribed probability analysis.

read the letter

This paper applies Shamir's secret sharing and a custom hash function to detect insider attacks in complex networks, then demonstrates the setup with a three-part implementation on Google Cloud Platform. The multi-component model is presented as more resistant than a single-component version, with the claim tied to probability analysis in reference [3]. The implementation uses a front-end UI on an HTTP server, Python back-end services, PostgreSQL, and Docker for service management, including a concrete use case of simulating a broken path. That part is straightforward and gives a clear picture of how the pieces connect for authentication and detection. The implementation is the part that stands out as usable for someone wanting to see the architecture in practice. The main limitation is the security argument. The abstract states that the probability analysis shows greater resistance for the multi-component version, yet no equations, attack model, or quantitative comparison appear here, so it is hard to judge whether the analysis handles realistic cases such as correlated component compromises. The custom hash is described only as practical and efficient, with no further specification or reduction to standard properties. No performance numbers, baselines, or error analysis are supplied either. This is for readers who build applied security prototypes and want an example of secret sharing in a detection setting. It is not a broad theoretical advance, but the simulation is concrete enough that someone working on similar systems could extract useful architecture details. I would send it for peer review once the authors expand the probability section with explicit assumptions and add some evaluation data. The implementation gives it enough substance to merit referee attention.

Referee Report

3 major / 2 minor

Summary. The paper proposes S3CDM, a secret-sharing-scheme-based cyberattack detection model for large network infrastructures. It splits a secret among multiple legitimate components using both Shamir's polynomial interpolation and a custom hash-based scheme to enable authentication, integration, and detection of unauthorized activities (especially insider attacks). The model is asserted to provide flexible multi-factor authentication, with the claim that the multi-component version is more resistant than a single-component baseline supported by an undescribed probability analysis labeled [3]. Feasibility is shown via a simulation implementation on Google Cloud Platform consisting of a front-end UI on an HTTP server, Python backend services, a PostgreSQL database, and Docker for container management, illustrated with a use case of simulating a broken path.

Significance. If the probability analysis [3] were to rigorously establish greater resistance under a well-defined attack model with quantitative comparisons, and if the implementation were accompanied by security reductions or empirical validation, the work could offer a practical contribution to insider-threat mitigation via threshold secret sharing. The explicit GCP-based simulation with Docker demonstrates deployment feasibility, which strengthens the paper's engineering component.

major comments (3)

[Abstract] Abstract: The headline claim that 'multiple component model is more resistant against cyberattacks than the single component one' rests entirely on 'Probability analysis [3]', yet the manuscript contains no description of the attack model (e.g., independent vs. correlated component compromise), the reconstruction threshold probability derivation, or any quantitative comparison to the single-component baseline. This is load-bearing for the central resistance result.
[Implementation] Implementation description (final paragraph): The simulation is presented only at the level of architecture and tools (HTTP server UI, Python services, PostgreSQL, Docker). No security analysis, attack-game definition, performance metrics, false-positive rates, or comparison against standard detection baselines is supplied, leaving the practical detection guarantee unverified.
[Secret-sharing schemes] Secret-sharing schemes section: The custom hash-function-based scheme is stated to be 'practical and efficient' for secure communications and unauthorized-activity detection, but the text supplies neither a formal reduction to a standard secret-sharing property nor an explicit attack-game definition that would link the scheme to the probability-resistance claim.

minor comments (2)

[Abstract] Abstract contains a typographical error: 'model(S3CDM)that' is missing a space after the parenthesis.
[Introduction / Related work] The manuscript would benefit from additional citations to prior work on threshold cryptography and insider-threat detection to situate the contribution.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment below, indicating planned revisions where appropriate to strengthen the manuscript.

read point-by-point responses

Referee: [Abstract] Abstract: The headline claim that 'multiple component model is more resistant against cyberattacks than the single component one' rests entirely on 'Probability analysis [3]', yet the manuscript contains no description of the attack model (e.g., independent vs. correlated component compromise), the reconstruction threshold probability derivation, or any quantitative comparison to the single-component baseline. This is load-bearing for the central resistance result.

Authors: We agree that the manuscript would benefit from a self-contained summary of the probability analysis. Reference [3] defines the attack model under independent component compromises, derives the reconstruction threshold probabilities via combinatorial analysis, and provides quantitative comparisons showing lower success probability for adversaries against the multi-component threshold. We will insert a concise description of these elements, including the key assumptions and results, into the revised abstract and introduction. revision: yes
Referee: [Implementation] Implementation description (final paragraph): The simulation is presented only at the level of architecture and tools (HTTP server UI, Python services, PostgreSQL, Docker). No security analysis, attack-game definition, performance metrics, false-positive rates, or comparison against standard detection baselines is supplied, leaving the practical detection guarantee unverified.

Authors: The implementation section is deliberately focused on demonstrating deployment feasibility in a GCP Docker environment rather than exhaustive benchmarking. We will expand it to include observed performance metrics from the simulation (such as share distribution latency and broken-path detection times) and a brief discussion of how the secret-sharing components enable detection in the provided use case. Comprehensive false-positive rates and baseline comparisons are not part of the current feasibility study but could be explored in follow-on work. revision: partial
Referee: [Secret-sharing schemes] Secret-sharing schemes section: The custom hash-function-based scheme is stated to be 'practical and efficient' for secure communications and unauthorized-activity detection, but the text supplies neither a formal reduction to a standard secret-sharing property nor an explicit attack-game definition that would link the scheme to the probability-resistance claim.

Authors: The custom hash-based scheme complements Shamir's polynomial method by enabling efficient integrity verification for unauthorized activity detection. We will revise the section to include an informal attack-game description (adversary attempting to inject invalid shares) and explicitly connect the scheme's detection mechanism to the overall resistance properties. A full formal reduction is outside the paper's engineering scope, which prioritizes practical implementation and simulation. revision: partial

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper introduces the S3CDM model using standard Shamir secret sharing and a custom hash-based scheme for authentication and detection, with a concrete implementation split across UI, Python services, and PostgreSQL on Google Cloud Platform using Docker. The comparative claim that the multi-component version is more resistant is attributed to an external probability analysis in reference [3] rather than derived via equations or fits inside this manuscript. No self-definitional loops, parameters fitted to data then relabeled as predictions, ansatzes imported via self-citation, or renaming of known results appear in the provided text. The core construction and simulation details stand independently of the cited analysis.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the security properties of Shamir's secret sharing and an external probability analysis [3]. No free parameters, new entities, or ad-hoc axioms are explicitly introduced in the abstract.

axioms (2)

standard math Shamir's polynomial-interpolation secret sharing allows secure splitting and reconstruction among legitimate participants.
Invoked as the basis for authentication and detection in the model description.
domain assumption The authors' hash-function-based scheme is practical and efficient for secure component communications.
Stated without derivation or performance data in the abstract.

pith-pipeline@v0.9.0 · 5513 in / 1413 out tokens · 31618 ms · 2026-05-10T16:35:55.094841+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

10 extracted references · 10 canonical work pages

[1]

Blakley, Safeguarding cryptographic keys

G.R. Blakley, Safeguarding cryptographic keys. Proc. of the National Computer Conference, American Federation of Information Processing Societies Proceedings 48, (1979), pp. 313-317. 34 Chi Sing Chum 1, Jia Lu 1, Claire Tang 2, and Xiaowen Zhang 1,∗

work page 1979
[2]

C. Chum, B. Fine, and X. Zhang, A survey: Shamir threshold scheme and its enhancements. Chapter 2, Infinite Group Theory - From the Past to the Future, World Scientific Publishing, February 2018, pp. 19-41

work page 2018
[3]

C. Chum, X. Wei, and X. Zhang, Cyber attack detection using secret sharing schemes. Proc. of 2023 IEEE 9th Int Conf. on Big Data Security and Cloud, New York, NY, May 6-8, 2023, pp.57-59

work page 2023
[4]

Chum and X

C. Chum and X. Zhang, Hash function based secret sharing scheme designs. Security and Com- munication Networks (Wiley), 6(5), 2013, pp. 584-592

work page 2013
[5]

Chum and X

C. Chum and X. Zhang. Implementations of a hash function based secret sharing scheme. Journal of Applied Security Research, 10(4), 2015, pp. 525-542

work page 2015
[6]

Ghodosi and R

H. Ghodosi and R. Safavi-Naini, Remarks on the multiple assignment secret sharing scheme. Proc. of ICICS 1997 - International Conference on Information and Communications Security, SpringerVerlag, pp. 72-80

work page 1997
[7]

Homoliak, F

I. Homoliak, F. Toffalini, J. Guarnizo, Y. Elovici, and M. Ochoa, Insight into insiders and it: A survey of insider threat taxonomies, analysis, modeling, and countermeasures. ACM Computing Surveys, 52(2), 2019, pp.1-30

work page 2019
[8]

Johnson, L

C. Johnson, L. Badger, D. Waltermire, J. Snyder, and C. Skorupka, Guide to Cyber Threat Information Sharing. NIST Special Publication 800-150, 2016, pp. 1-43. A vailable at http://dx.doi.org/10.6028/NIST.SP.800-150

work page doi:10.6028/nist.sp.800-150 2016
[9]

Sanzgiri and D

A. Sanzgiri and D. Dasgupta, Classification of insider threat detection techniques. Proc. of ACM CISRC 2016 (the 11th Annual Cyber and Information Security Research Conference), 2016, pp. 1-4

work page 2016
[10]

Shamir, How to share a secret

A. Shamir, How to share a secret. Communications of the ACM, 22(11) (1979), pp. 612-613

work page 1979
