Compact single-shot ranging and near-far imaging using metasurfaces

Junjie Luo , Yuxuan Liu , Wei Ting Chen , Qing Wang , Qi Guo

Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:16 UTC · model grok-4.3

classification 📡 eess.IV cs.CV

keywords metasurfaceimaging systempassive rangingdepth-from-defocussingle-shotcompact cameranear-far imagingfocal stack

0 comments

The pith

A metasurface creates a 15 mm camera that records two close focal planes and one far plane on one sensor to enable passive millimeter ranging.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how a single metasurface optic can focus light at 1.4 cm, 2.0 cm, and roughly 40 cm so that one photosensor records a near focal stack plus a distant image in one exposure. The close-range pair supplies the data for a depth-from-defocus calculation that recovers object distance to within one millimeter between 12 mm and 20 mm in a simplified case. This arrangement keeps the entire optical track to 15 mm, which removes the usual need for separate sensors or moving lenses when both near and far information must be gathered at once.

Core claim

The metasurface imaging system captures two images at close range (1-2 cm) and an additional image at long range (about 40 cm) on a shared photosensor. The close-range image pair focuses at 1.4 cm and 2.0 cm, respectively, which forms a focal stack, enabling passive ranging with an accuracy of ±1 mm from 12 mm to 20 mm through a computationally efficient depth-from-defocus algorithm for a simplified scenario. The entire system is compact, with a total track length of 15 mm.

What carries the argument

A metasurface optic that imposes three distinct focal lengths on incoming light to produce a focal stack plus a far image on a single shared photosensor, supporting depth-from-defocus ranging.

Load-bearing premise

The depth-from-defocus algorithm reaches the stated millimeter accuracy only when the metasurface actually delivers the claimed focal lengths with usable image quality on the shared sensor.

What would settle it

Place test objects at known distances between 12 mm and 20 mm and run the depth-from-defocus algorithm on the captured focal stack; the claim fails if the average absolute error exceeds 1 mm.

Figures

Figures reproduced from arXiv: 2604.10037 by Junjie Luo, Qi Guo, Qing Wang, Wei Ting Chen, Yuxuan Liu.

**Figure 1.** Figure 1: Schematic of the proposed imaging system. The front layer consists of three laterally spaced apertures, where [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: Prototype of the optical system illustrated in Fig. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: Sample measurement captured by the prototype. A microscope slide and a plastic ruler are placed approximately [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

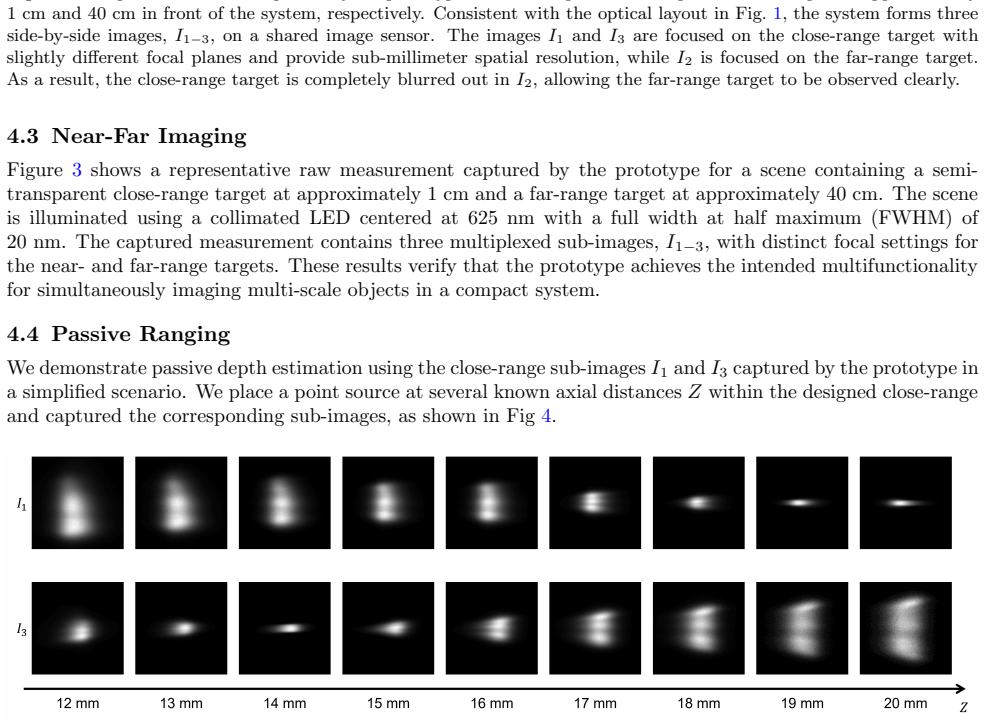

**Figure 4.** Figure 4: Measured point spread functions of close-range sub-images [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
