arxiv: 2604.10357 · v4 · submitted 2026-04-11 · 💻 cs.CE

Recognition: unknown

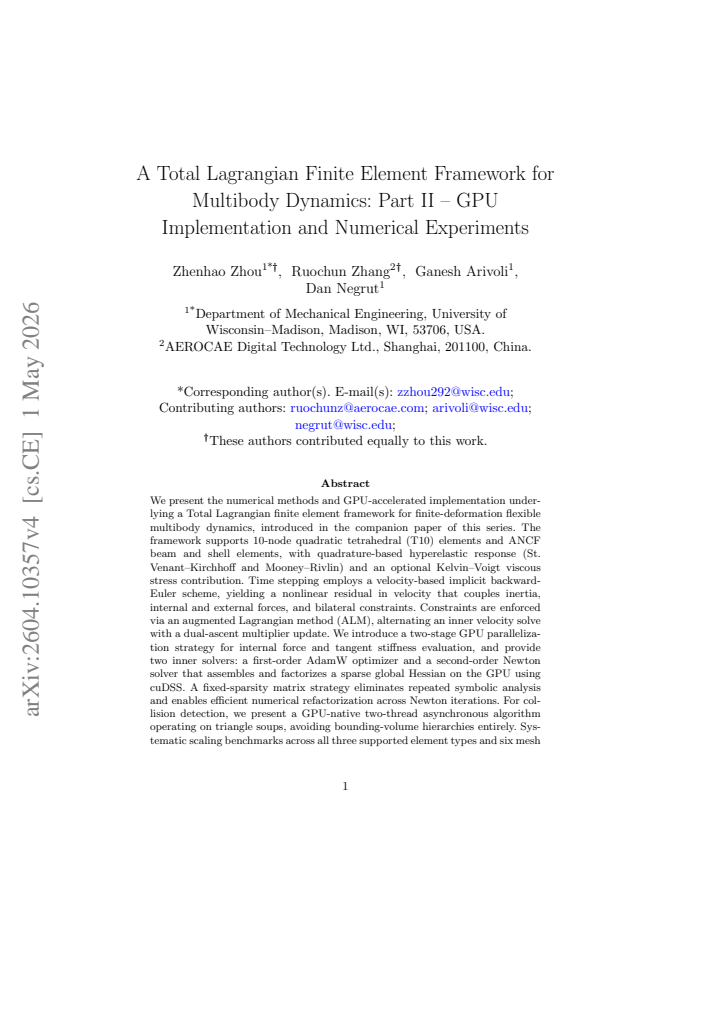

A Total Lagrangian Finite Element Framework for Multibody Dynamics: Part II -- GPU Implementation and Numerical Experiments

Zhenhao Zhou , Ruochun Zhang , Ganesh Arivoli , Dan Negrut

Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:07 UTC · model grok-4.3

classification 💻 cs.CE

keywords GPU accelerationfinite element methodmultibody dynamicstotal LagrangianNewton solvercontact modelingreal-time simulationimplicit time integration

0 comments

The pith

GPU Newton solver reduces real-time factor by an order of magnitude for large flexible multibody simulations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a GPU-accelerated implementation of a total Lagrangian finite element method for finite-deformation multibody dynamics, including support for quadratic tetrahedral elements and ANCF beams and shells. It details a two-stage parallel strategy for evaluating internal forces and tangent stiffness, a Newton solver that uses fixed-sparsity refactorization for the global Hessian, and an asynchronous GPU collision algorithm on triangle meshes. Systematic benchmarks across element types and mesh sizes demonstrate that the GPU Newton approach achieves roughly ten times lower real-time factor than CPU baselines at the largest resolutions, while an augmented Lagrangian scheme handles constraints and a frictional contact model is checked against rigid-body formulas. These results matter for applications where modeling large deformable systems in real time is needed, such as vehicle dynamics or robotics.

Core claim

The central claim is that a GPU-native two-stage parallelization for force and stiffness evaluation, paired with fixed-sparsity cuDSS refactorization inside a Newton solver and a two-thread asynchronous collision handler, enables an order-of-magnitude reduction in real-time factor relative to CPU execution across T10, ANCF beam, and shell discretizations at the highest tested resolutions, while the velocity-based backward-Euler scheme with augmented Lagrangian constraints preserves the same numerical behavior as the reference implementation.

What carries the argument

The fixed-sparsity matrix strategy that eliminates repeated symbolic analysis and permits fast numerical refactorization of the sparse global Hessian on the GPU during Newton iterations.

If this is right

At the largest mesh resolutions the Newton solver delivers approximately one order of magnitude lower real-time factor than CPU baselines.
The frictional contact model matches closed-form rigid-body predictions in both quasi-static and dynamic impact tests.
The fixed-sparsity refactorization removes the cost of repeated symbolic analysis across Newton iterations.
The two-stage GPU parallelization applies uniformly to quadratic tetrahedral, ANCF beam, and shell elements with hyperelastic and viscous constitutive laws.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same parallel structure could be reused for other implicit time integrators beyond backward Euler in continuum mechanics problems.
Real-time capability at these resolutions opens direct use in hardware-in-the-loop testing of deformable mechanisms.
The collision algorithm's avoidance of bounding-volume hierarchies may extend to other triangle-soup contact problems outside multibody dynamics.

Load-bearing premise

The GPU parallelization and solver choices preserve numerical accuracy and stability equivalent to the CPU reference for every element type, mesh resolution, and contact scenario examined.

What would settle it

Running the identical initial condition and time step on both GPU and CPU implementations and finding statistically significant differences in final positions, velocities, or contact forces for any of the three element types would falsify equivalence.

read the original abstract

We present the numerical methods and GPU-accelerated implementation underlying a Total Lagrangian finite element framework for finite-deformation flexible multibody dynamics, introduced in the companion paper [1]. The framework supports 10-node quadratic tetrahedral (T10) elements and ANCF beam and shell elements, with quadrature-based hyperelastic response (St. Venant-Kirchhoff and Mooney-Rivlin) and an optional Kelvin-Voigt viscous stress contribution. Time stepping employs a velocity-based implicit backward-Euler scheme, yielding a nonlinear residual in velocity that couples inertia, internal and external forces, and bilateral constraints. Constraints are enforced via an augmented Lagrangian method (ALM), structured as an outer loop alternating an inner velocity solve with a dual-ascent multiplier update. We introduce a two-stage GPU parallelization strategy for internal force and tangent stiffness evaluation, and provide two inner solvers: a first-order AdamW optimizer and a second-order Newton solver that assembles and factorizes a sparse global Hessian on the GPU using cuDSS. A fixed-sparsity matrix strategy eliminates repeated symbolic analysis and enables efficient numerical refactorization across Newton iterations. For collision detection, we present a GPU-native two-thread asynchronous algorithm operating on triangle soups, avoiding bounding-volume hierarchies entirely. Systematic scaling benchmarks across all three supported element types and six mesh resolutions show that the Newton solver achieves approximately one order of magnitude reduction in real-time factor relative to CPU baselines at the largest resolutions tested. The frictional contact model is validated against closed-form rigid-body predictions through quasi-static and dynamic impact unit tests.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This delivers practical GPU speedups of about 10x on large meshes for flexible multibody FEM while matching CPU accuracy on the tested cases.

read the letter

The main thing to know is that the GPU version cuts real-time factors by roughly an order of magnitude versus CPU baselines at the biggest resolutions, across T10 tets, ANCF beams, and shells, with contact validation holding up against closed-form rigid-body results. The implementation choices look workable for people who actually run these simulations at scale. What is new here is the two-stage GPU parallelization for internal forces and tangent stiffness, the fixed-sparsity cuDSS refactorization that skips repeated symbolic analysis, and the two-thread asynchronous collision detector that runs directly on triangle soups without bounding-volume hierarchies. These sit on top of the total Lagrangian framework and velocity-based backward Euler with ALM from the companion paper. The benchmarks are systematic: six mesh resolutions per element type, Newton solver timings, and both quasi-static and dynamic impact tests for friction. The numerics appear grounded; they use standard St. Venant-Kirchhoff and Mooney-Rivlin models plus optional Kelvin-Voigt viscosity, and the GPU results track the CPU reference. The fixed-sparsity trick is a straightforward efficiency gain for repeated Newton steps. One minor soft spot is that the AdamW optimizer is described but the scaling plots focus almost entirely on Newton; a short comparison would clarify when the first-order option is worth using. The collision tests are limited to unit problems, so complex multi-body contact scenarios might need more coverage, but nothing in the reported results suggests instability or accuracy loss. This paper is for engineers and HPC-focused researchers who need to push flexible multibody problems to larger sizes on GPUs. The concrete scaling data and implementation details make it worth a serious referee's time; the evidence is specific enough to support review even if some edge cases could be expanded.

Referee Report

1 major / 3 minor

Summary. The manuscript presents the GPU-accelerated implementation and numerical experiments for a Total Lagrangian finite element framework for finite-deformation flexible multibody dynamics (companion to Part I). It supports 10-node quadratic tetrahedral (T10) elements and ANCF beam/shell elements with St. Venant-Kirchhoff and Mooney-Rivlin hyperelastic models plus optional Kelvin-Voigt viscosity. Time integration uses velocity-based implicit backward Euler, with constraints handled by an augmented Lagrangian method (ALM) featuring an outer dual-ascent loop and inner velocity solve. The implementation includes a two-stage GPU parallelization for internal force and tangent stiffness, a Newton solver assembling and factorizing sparse Hessians via cuDSS with fixed-sparsity refactorization (plus an AdamW optimizer alternative), and a GPU-native two-thread asynchronous collision algorithm on triangle soups without BVHs. Systematic scaling benchmarks across the three element types and six mesh resolutions report that the Newton solver achieves approximately one order of magnitude reduction in real-time factor versus CPU baselines at the largest resolutions; the frictional contact model is validated against closed-form rigid-body predictions in quasi-static and dynamic impact tests.

Significance. If the reported performance gains are achieved while preserving numerical accuracy and stability, the work provides a practical, scalable GPU framework for large-deformation flexible multibody simulations. The systematic benchmarks across multiple element types and resolutions, together with direct validation against closed-form solutions, strengthen the evidence for both efficiency and correctness. Such capabilities could enable previously intractable real-time or near-real-time analyses in robotics, biomechanics, and structural dynamics.

major comments (1)

[Numerical Experiments] The central performance claim (approximately 10x reduction in real-time factor for the Newton solver) is predicated on the assumption that the two-stage GPU parallelization, fixed-sparsity cuDSS refactorization, and asynchronous collision algorithm preserve numerical accuracy and stability equivalent to the CPU reference. The manuscript does not appear to report quantitative error metrics (e.g., displacement or velocity L2 norms, residual histories, or convergence rates) comparing GPU and CPU solutions across the tested element types, mesh resolutions, and contact scenarios; without such data the speedup cannot be fully assessed as apples-to-apples.

minor comments (3)

The term 'real-time factor' is used in the benchmark summary but is not explicitly defined (e.g., as wall-clock time divided by simulated time, or the inverse); a clear definition and units would improve interpretability of the scaling results.
Acronyms such as ALM, ANCF, and cuDSS should be expanded at first use in the main text even if they appear in the abstract.
The description of the two-thread asynchronous collision algorithm would benefit from a short pseudocode listing or diagram to clarify thread responsibilities and synchronization.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and for recognizing the potential of the GPU-accelerated total Lagrangian framework. We address the single major comment below and will incorporate the suggested improvements in the revised manuscript.

read point-by-point responses

Referee: [Numerical Experiments] The central performance claim (approximately 10x reduction in real-time factor for the Newton solver) is predicated on the assumption that the two-stage GPU parallelization, fixed-sparsity cuDSS refactorization, and asynchronous collision algorithm preserve numerical accuracy and stability equivalent to the CPU reference. The manuscript does not appear to report quantitative error metrics (e.g., displacement or velocity L2 norms, residual histories, or convergence rates) comparing GPU and CPU solutions across the tested element types, mesh resolutions, and contact scenarios; without such data the speedup cannot be fully assessed as apples-to-apples.

Authors: We agree that explicit quantitative comparisons would strengthen the validation. The GPU implementation replicates the identical numerical algorithms from Part I (velocity-based implicit backward Euler, augmented Lagrangian constraints, St. Venant-Kirchhoff/Mooney-Rivlin hyperelasticity, and the same quadrature rules), so the solutions are mathematically equivalent; the two-stage parallelization, fixed-sparsity cuDSS refactorization, and asynchronous collision detection are purely computational optimizations that preserve the residual and Jacobian. Nevertheless, to address the concern directly, the revised manuscript will add a new subsection in Numerical Experiments that reports L2-norm differences in nodal displacements and velocities, plus Newton residual histories, between GPU and CPU runs for representative cases spanning all three element types, multiple mesh resolutions, and both frictional contact scenarios. These metrics will demonstrate that discrepancies remain at machine precision and do not affect the reported performance gains. revision: yes

Circularity Check

0 steps flagged

No significant circularity; benchmarks anchored to external CPU and closed-form references

full rationale

The paper describes a GPU implementation and scaling experiments for a Total Lagrangian FE framework whose theoretical foundation is introduced in the companion paper [1]. All load-bearing performance claims (one order of magnitude real-time factor reduction) are obtained by direct comparison against independent CPU baselines and closed-form rigid-body solutions for contact validation. No equations, fitted parameters, or uniqueness statements are shown to reduce by construction to the paper's own inputs or to a self-citation chain. The two-stage GPU parallelization, cuDSS refactorization, and asynchronous collision algorithm are presented as engineering choices whose correctness is assessed via external numerical equivalence tests rather than internal redefinition.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard continuum mechanics and finite-element assumptions for hyperelastic constitutive models and implicit integration; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)

domain assumption Standard assumptions of finite strain continuum mechanics and quadrature-based hyperelastic constitutive response hold for T10, ANCF beam, and shell elements.
Invoked implicitly by the choice of element types and material models described in the abstract.
