MuSimA: A Tool with Multi-modal Input for Generating Bespoke ABAC Datasets

Saket Jha (Indian Institute of Technology Kharagpur , India) , Karthikeya S. M. Yelisetty (Indian Institute of Technology Kharagpur , Singabattu Sathya (Indian Institute of Technology Kharagpur , Shamik Sural (Indian Institute of Technology Kharagpur This is my paper

Pith reviewed 2026-05-10 16:19 UTC · model grok-4.3

classification 💻 cs.CR
keywords ABACsynthetic datasetsdataset generation toolmulti-modal inputaccess controlprobability distributionsLLM-assisted specification
0
0 comments X

The pith

MuSimA generates synthetic ABAC datasets matching user-specified attribute value distributions from JSON files or hand-drawn sketches.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper notes that while many methods exist for representing and enforcing ABAC policies, few tools support creation of large synthetic datasets for testing them. It fills this gap by presenting MuSimA, a web tool that produces datasets where attribute values follow user-chosen probability distributions. Input can be a full structured JSON or a minimal JSON plus hand-drawn sketches, with an LLM used to read parameters from the sketches. The tool outputs downloadable synthetic data at chosen sizes and complexities, making it available to the research community for ABAC algorithm evaluation.

Core claim

MuSimA is a web-based tool that generates bespoke ABAC datasets with user-specified probability distributions of attribute values. Specifications are accepted either as structured JSON or as minimal JSON combined with hand-drawn distribution sketches, from which a Large Language Model extracts the parameters. The resulting synthetic data can be generated at varying scales and downloaded for use in testing ABAC systems.

What carries the argument

Multi-modal input handler that accepts JSON specifications or hand-drawn sketches and uses an LLM to convert sketches into distribution parameters for ABAC dataset generation.

If this is right

  • ABAC researchers can produce datasets whose attribute statistics exactly match chosen probability distributions.
  • Scalability experiments become feasible by generating data at multiple sizes and policy complexities.
  • The tool supports both precise file-based input and intuitive visual specification of distributions.
  • The generated data is intended to be downloaded and used directly for ABAC method evaluation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Widespread use of such a generator could produce more consistent benchmark datasets across ABAC papers.
  • The sketch-to-parameter step could be extended to support additional visual cues like histograms or curves.
  • Direct linkage of the output data to policy simulators would allow immediate testing of enforcement correctness.

Load-bearing premise

The LLM reliably converts hand-drawn sketches into accurate distribution parameters and the resulting synthetic data behaves like real ABAC data for system testing.

What would settle it

A side-by-side run of the same ABAC enforcement algorithm on MuSimA-generated data and on a real collected ABAC dataset, where the two produce substantially different performance or policy outcomes.

Figures

Figures reproduced from arXiv: 2604.10501 by India), Karthikeya S. M. Yelisetty (Indian Institute of Technology Kharagpur, Saket Jha (Indian Institute of Technology Kharagpur, Shamik Sural (Indian Institute of Technology Kharagpur, Singabattu Sathya (Indian Institute of Technology Kharagpur.

Figure 1
Figure 1. Figure 1: MuSimA Web Interface • Entity counts: ns = |S|, no = |O|, ne = |E| representing the number of subject, object and environment entities. • Attribute counts: nsa = |As |, noa = |Ao |, nea = |Ae | for subject, object, and environmental attributes, respectively. • Attribute value cardinalities: nsa,i, noa,j , nea,k representing the number of distinct values for each attribute, where for example, nsa,1 denotes … view at source ↗
Figure 2

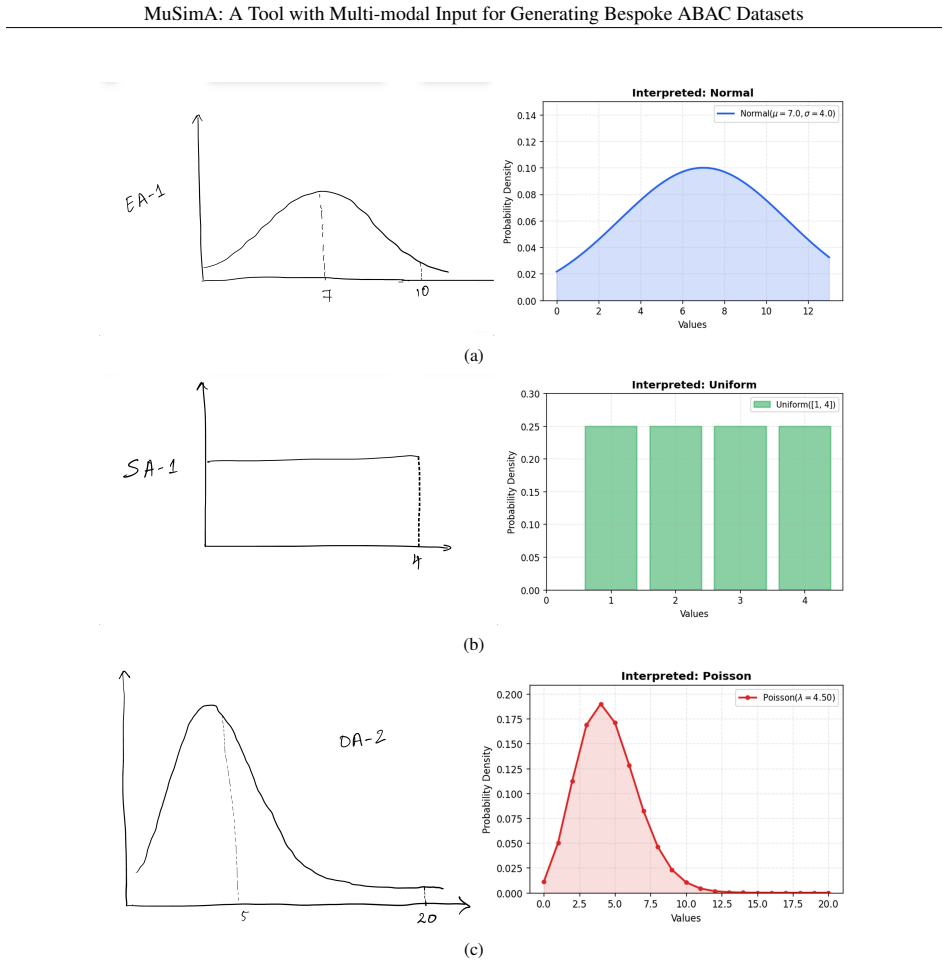

Figure 2. Figure 2: Example hand-drawn images and corresponding LLM-generated distributions [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

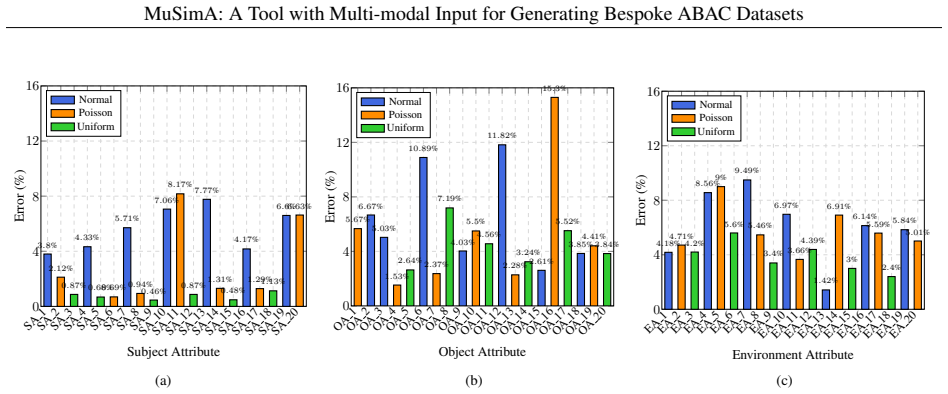

Figure 3. Figure 3: Error Distribution for (a) Subject Attribute (SA) (b) Object Attribute (OA) (c) Environment Attribute (EA). [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

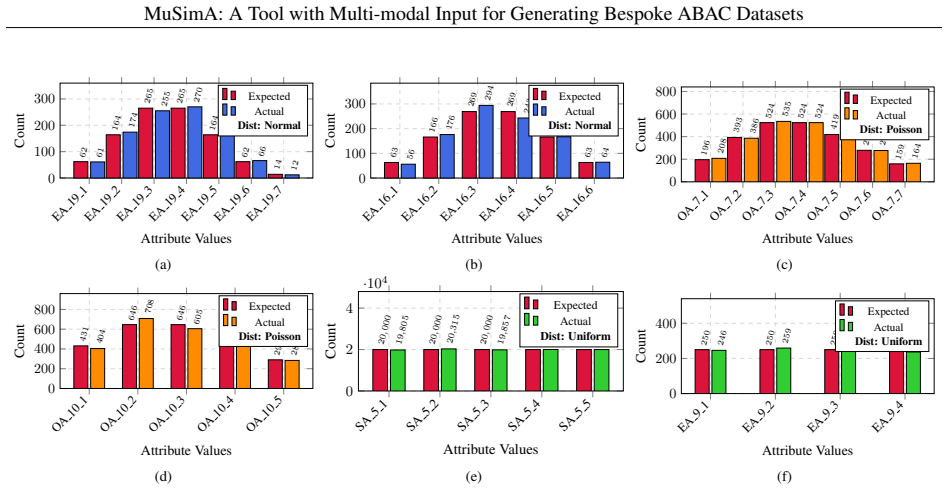

Figure 4. Figure 4: Expected vs Actual Count for (a) EA 19 (b) EA 16 (c) OA 7 (d) OA 10 (e) SA 5 (f) EA 9 [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

Recent advances in research on Attribute-based Access Control (ABAC) has led to the development of several ingenious methods for representing and enforcing organizational security policies. However, so far little effort has been spent towards building a tool for generating large-scale synthetic datasets that can be used to test the developed ABAC systems. In this paper, we address this shortcoming by building MuSimA - a web-based tool for generating ABAC datasets with user-specified probability distributions of attribute values. It supports multi-modal input, i.e., users can provide specifications either as a structured JSON file or as a combination of a minimal JSON along with hand-drawn distribution sketches. In the latter case, a Large Language Model is used to automatically extract appropriate distribution parameters from the sketches. The generated synthetic ABAC data matching the input specifications can be downloaded by the user. For studying scalability of algorithms and methods related to ABAC, data can be generated for varying sizes and complexities. We make MuSimA freely available for use by the research community.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents MuSimA, a web-based tool for generating synthetic ABAC datasets with user-specified probability distributions over attribute values. It supports multi-modal input via either a full structured JSON specification or a minimal JSON paired with hand-drawn distribution sketches, where an LLM extracts the distribution parameters. The tool allows generation and download of datasets at varying sizes and complexities for evaluating ABAC systems and is made freely available.

Significance. If the LLM reliably interprets sketches and the output data proves realistic and useful, MuSimA could help address the scarcity of customizable ABAC datasets for research. However, the manuscript supplies no implementation details, accuracy metrics, error analysis, statistical fidelity checks, or user studies, so the practical significance cannot be assessed from the provided description alone.

major comments (2)
  1. [Abstract] Abstract: The central claim that MuSimA 'addresses this shortcoming' by supporting multi-modal input with LLM-based sketch interpretation is load-bearing for the paper's contribution, yet the abstract (and manuscript) provides no accuracy metrics, example sketch-to-parameter mappings, error rates, or validation experiments for the LLM component.
  2. [Abstract] Abstract: The statement that 'data can be generated for varying sizes and complexities' to study ABAC scalability is presented without any reported performance measurements, generation times, dataset examples, or comparisons to prior synthetic ABAC data generators.
minor comments (1)
  1. [Abstract] Abstract: The phrase 'minimal JSON along with hand-drawn distribution sketches' would benefit from a brief clarification of the exact interface and how the two inputs are merged before LLM processing.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript describing MuSimA. We address each major comment point by point below, indicating planned revisions where we can strengthen the paper without altering its core contribution as a tool description.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that MuSimA 'addresses this shortcoming' by supporting multi-modal input with LLM-based sketch interpretation is load-bearing for the paper's contribution, yet the abstract (and manuscript) provides no accuracy metrics, example sketch-to-parameter mappings, error rates, or validation experiments for the LLM component.

    Authors: We acknowledge that the LLM-based sketch interpretation is a highlighted feature and that supporting evidence would strengthen the claim. The manuscript is structured as a tool paper focused on design, architecture, and user workflow rather than an empirical evaluation of the LLM. No accuracy metrics or validation experiments were conducted. In revision we will add concrete examples of sketch-to-parameter mappings (with before/after illustrations) and a limitations paragraph discussing LLM reliability. This constitutes a partial revision; full error analysis and user studies remain outside the current scope but can be flagged for future work. revision: partial

  2. Referee: [Abstract] Abstract: The statement that 'data can be generated for varying sizes and complexities' to study ABAC scalability is presented without any reported performance measurements, generation times, dataset examples, or comparisons to prior synthetic ABAC data generators.

    Authors: The statement reflects the tool's parametric design, which permits users to control dataset size and attribute complexity via the input specification. Specific benchmarks were not reported because the primary novelty lies in the multi-modal input mechanism. We will revise the manuscript to include sample generation times for datasets of different sizes, one or two downloadable example datasets, and a brief reference to prior ABAC generators for context. This addresses the request directly. revision: yes

Circularity Check

0 steps flagged

No circularity: descriptive tool paper with no derivations or fitted predictions

full rationale

The manuscript presents MuSimA as a web tool for ABAC dataset generation from user-specified distributions (JSON or LLM-processed sketches). No equations, parameter fitting, predictions, or derivation chains appear in the abstract or described content. The contribution is a feature description and availability statement, not a claimed first-principles result or statistical model. Self-citations are absent from the provided text, and the LLM component is presented as an implementation detail without any reduction to fitted inputs or self-referential definitions. This is a standard non-circular engineering/tool paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a software tool description paper with no theoretical derivations. No free parameters, axioms, or invented entities are introduced beyond standard web technologies and LLM usage.
