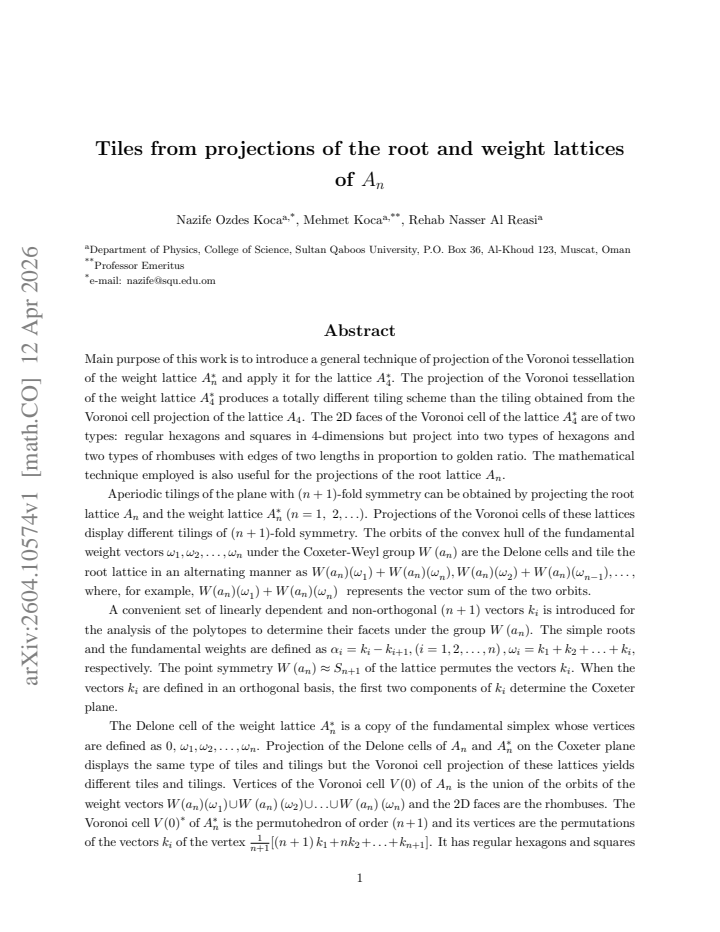

Tiles from projections of the root and weight lattices of A_n

Nazife Ozdes Koca , Mehmet Koca , Rehab Nasser Al Reasi This is my paper

Pith reviewed 2026-05-10 16:10 UTC · model grok-4.3

classification 🧮 math.CO cond-mat.othermath-phmath.MP
keywords A_n latticesVoronoi tessellationweight latticeroot latticeCoxeter planegolden ratiotilingsprojections
0
0 comments X

The pith

Projections of the weight lattice A_4 star produce hexagons and golden-ratio rhombi unlike the root lattice.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a general technique for projecting the Voronoi tessellation of the weight lattice A_n star using a set of k_i vectors. For A_4 star this yields a tiling with two types of hexagons and two types of rhombuses whose edges have lengths in the golden ratio. This scheme differs from the tiling obtained from projecting the Voronoi cell of the root lattice A_4. The method also applies to projections of the root lattice A_n and distinguishes between Voronoi and Delone cell projections.

Core claim

The projection of the Voronoi tessellation of the weight lattice A_4 star produces a totally different tiling scheme than the tiling obtained from the Voronoi cell projection of the lattice A_4. The 2D faces of the Voronoi cell of the lattice A_4 star are of two types: regular hexagons and squares in 4-dimensions but project into two types of hexagons and two types of rhombuses with edges of two lengths in proportion to golden ratio.

What carries the argument

A set of linearly dependent non-orthogonal vectors k_i where the first two components in an orthogonal basis determine the Coxeter plane for the projection.

If this is right

  • The same technique can be used for the projections of the root lattice A_n.
  • Vertices of the Voronoi cell of A_n are the union of orbits of the weight vectors omega_1 to omega_n.
  • The Voronoi cell of A_n star is the permutohedron of order n+1 with regular hexagons and squares as faces.
  • Projections of Delone cells of both A_n and A_n star produce the same type of tiles.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The appearance of the golden ratio suggests that the projection preserves certain metric relations from the higher-dimensional lattice.
  • Such projected tilings may offer new ways to construct planar patterns with irrational scaling factors from lattice symmetries.

Load-bearing premise

The specific choice of the first two components of the k_i vectors defines a projection onto the Coxeter plane that faithfully captures the combinatorial and metric structure of the higher-dimensional Voronoi faces.

What would settle it

Measure the edge lengths in the projected 2D figures from the 4D hexagons and squares of the A_4 star Voronoi cell to verify whether they consist of exactly two distinct lengths whose ratio is the golden ratio.

Figures

Figures reproduced from arXiv: 2604.10574 by Mehmet Koca, Nazife Ozdes Koca, Rehab Nasser Al Reasi.

Figure 1
Figure 1. Figure 1: Coxeter-Dynkin diagram an. The root system and certain polytopes of the group W(an ) ≈ Sn+1 has a symmetry called Dynkin diagram symmetry γ which acts on the simple roots and weights as γ : α1 ←→ αn, α2 ←→ αn−1, . . . ; γ : ω1 ←→ ωn, ω2 ←→ ωn−1, . . . . (2) Therefore, the root system and certain polytopes symmetric under the Dynkin diagram symmetry has a larger symmetry W(an ) : C2 of order 2 × (n + 1)!. T… view at source ↗
Figure 2

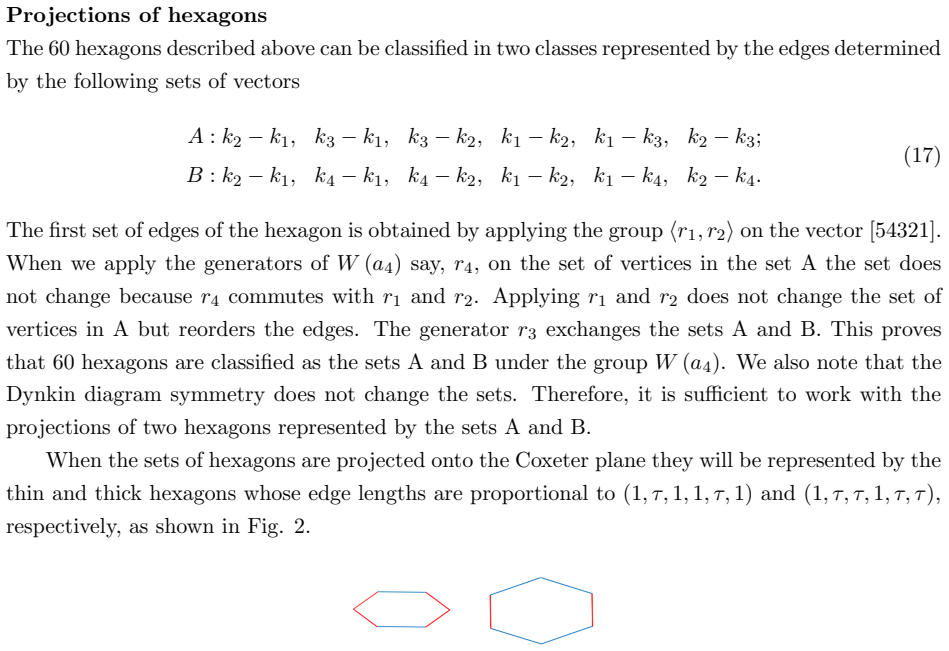

Figure 2. Figure 2: Thin and thick hexagons projected from the sets A and B. [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
